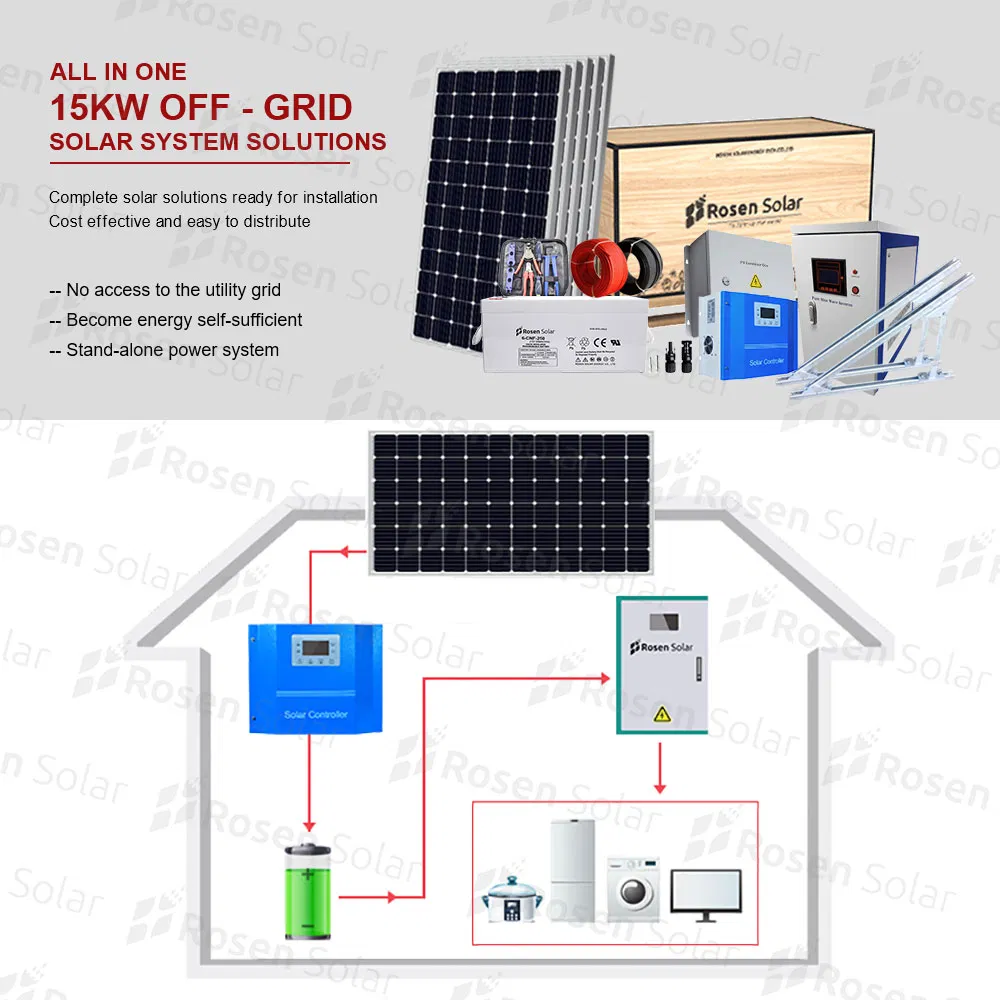

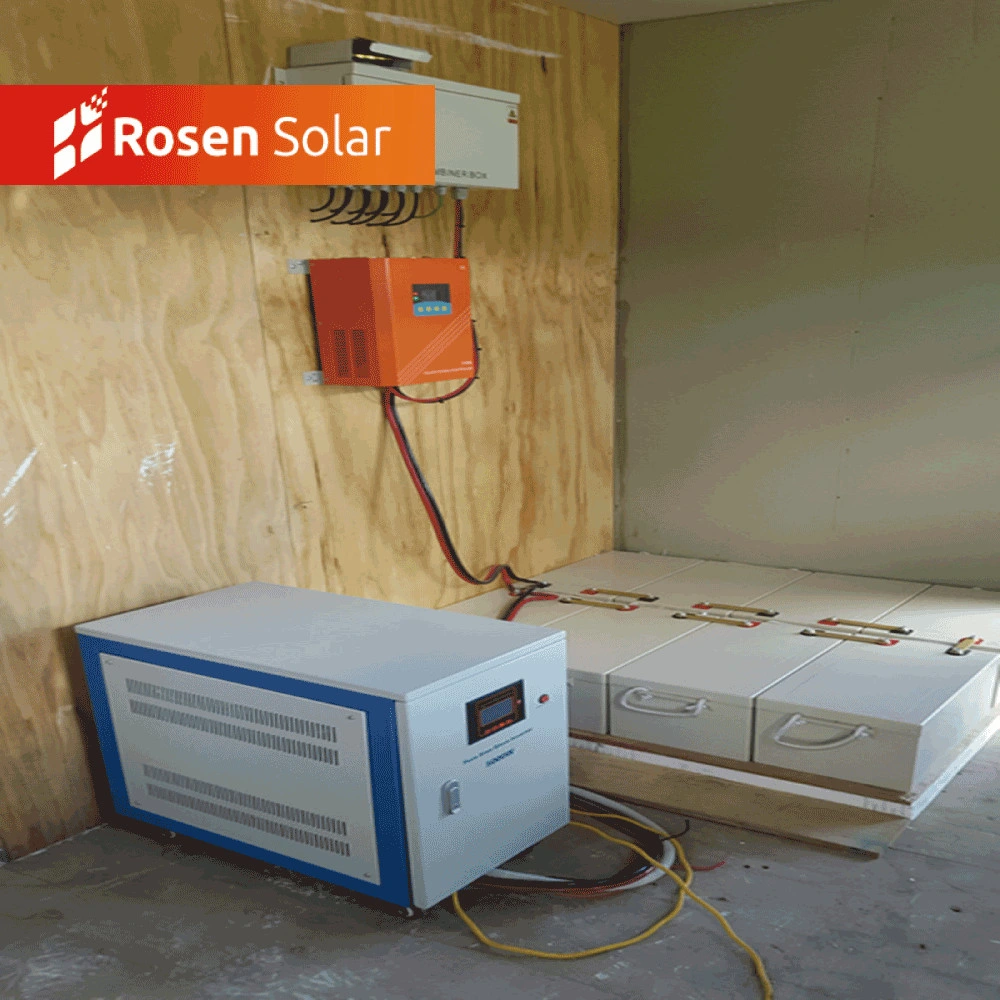

The Off-Grid solar system is an electricity generating solar PV power system that is not connected to the utility(State) grid, and has to be connected with batteries for electricity storage.
It consists of solar panels, Charge Controller (regulator), Battery, off grid Inverters, Mounting Brackets and solar system connection equipments such as MC4, PV Cable and Installation Tool Box.
Users can store the excess power in the batteries for usage at night or backup of sudden power cut. The inverter converts the DC power into AC for loads single phase (110/120V; 220/230/240Vac) or three phase (240V; 380V; 480Vac) etc. It is also called Stand Alone System (SAPS) functioned as UPS.
| No. | Photo | Item | Specification | Quantity | Warranty |
|---|---|---|---|---|---|
| 1 |  |
Solar Panels | PV Module Mono 380W 72cells 1956*992*40mm, 22kg |
40 pcs | 25 Years |
| 2 |  |
PV Combiner Box | DC Combiner Box 4 input 2 output (Switches, Breaker, SPD) |
1 pc | 10 Years |
| 3 |  |

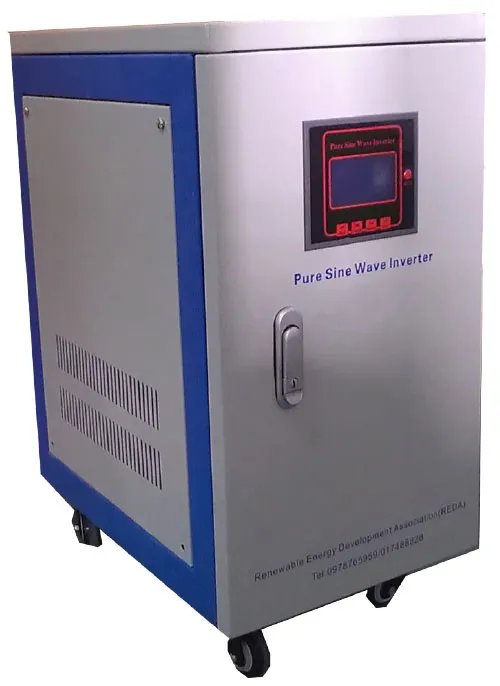

Off Grid Inverter | 15KW 192Vdc AC Single/Three Phase Opt |
1 pc | 10 Years |
| 4 |  |

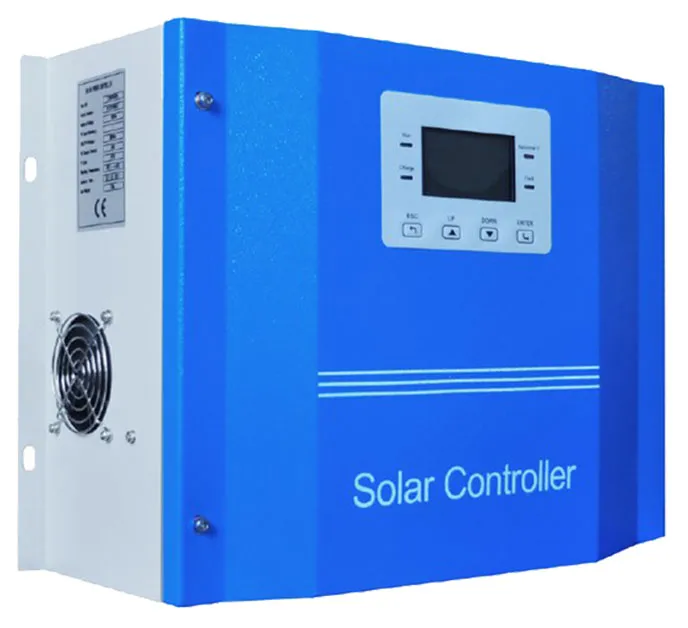

Charge Controller | MPPT/PWM Regulator 192Vdc 100A LCD Screen, IP67 Protection |
1 pc | 10 Years |
| 5 |  |

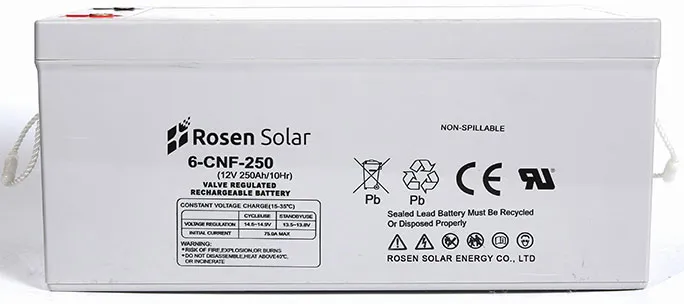

Deep Cycle Battery | GEL/AGM/Lithium Optional 12V 250Ah |
32 pcs | 5 Years |
| 6 |  |
Mounting Bracket | Aluminium Alloy / Galvanized steel Roof or Ground Mounted |
1 set | 20 Years |
| 7 |  |

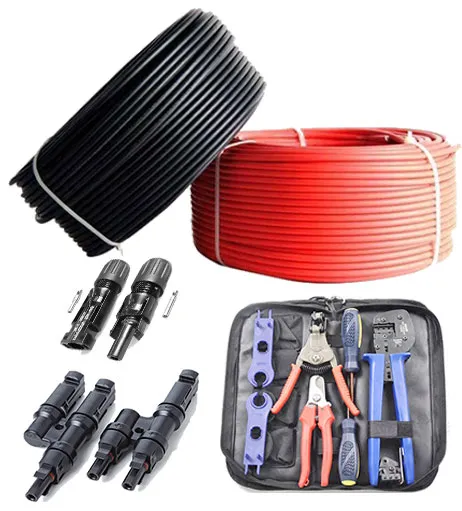

Connections & Tools | PV Cable (600m), MC4 (40 pairs), Installation Tools |
1 set | 10-20 Years |

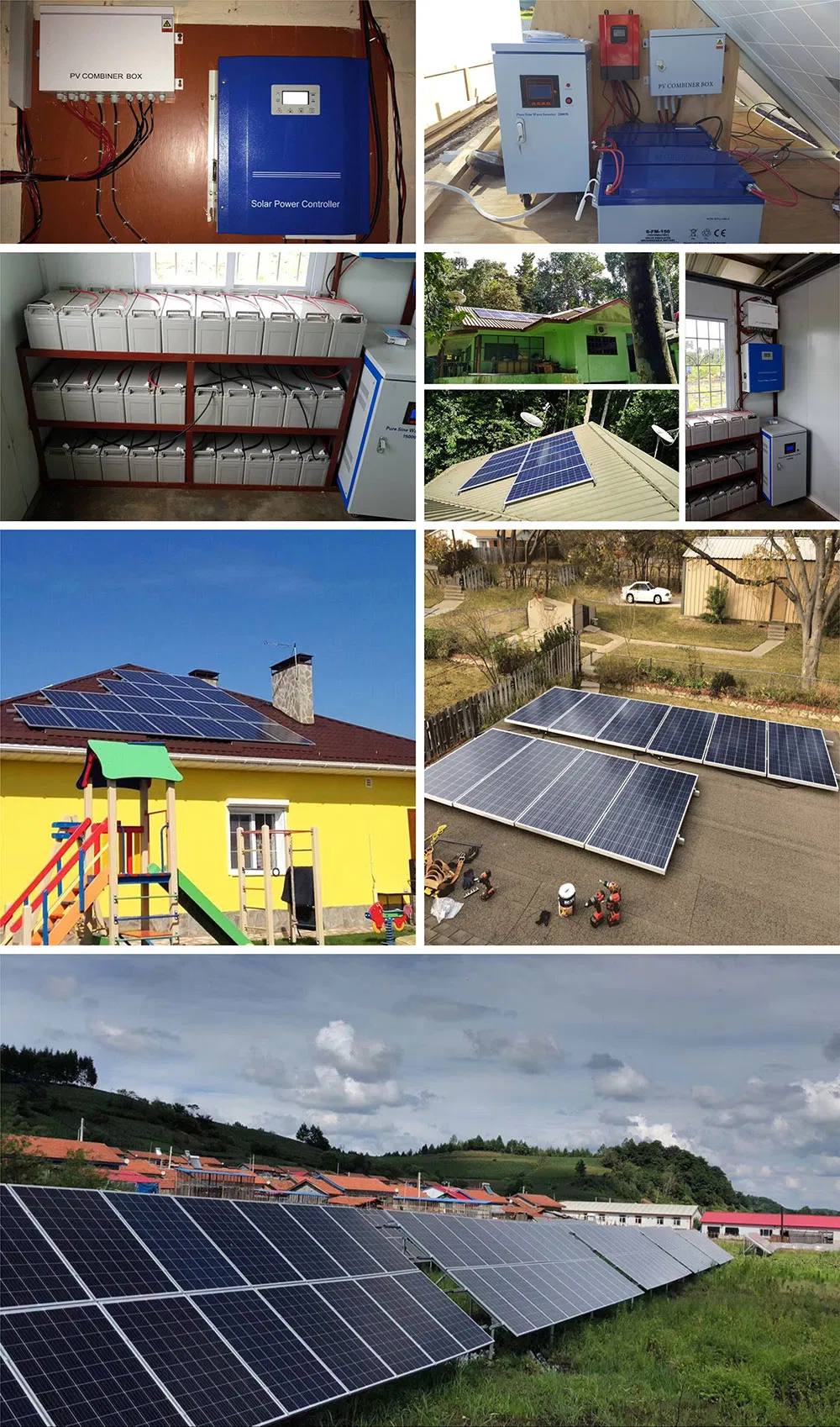

Our Off Grid Projects are installed all around the world, mainly in Africa, South America, Mid-East, and Asia. We provide residential systems (1-20KW), commercial systems (30-300KW), and industrial projects with advanced battery storage.
