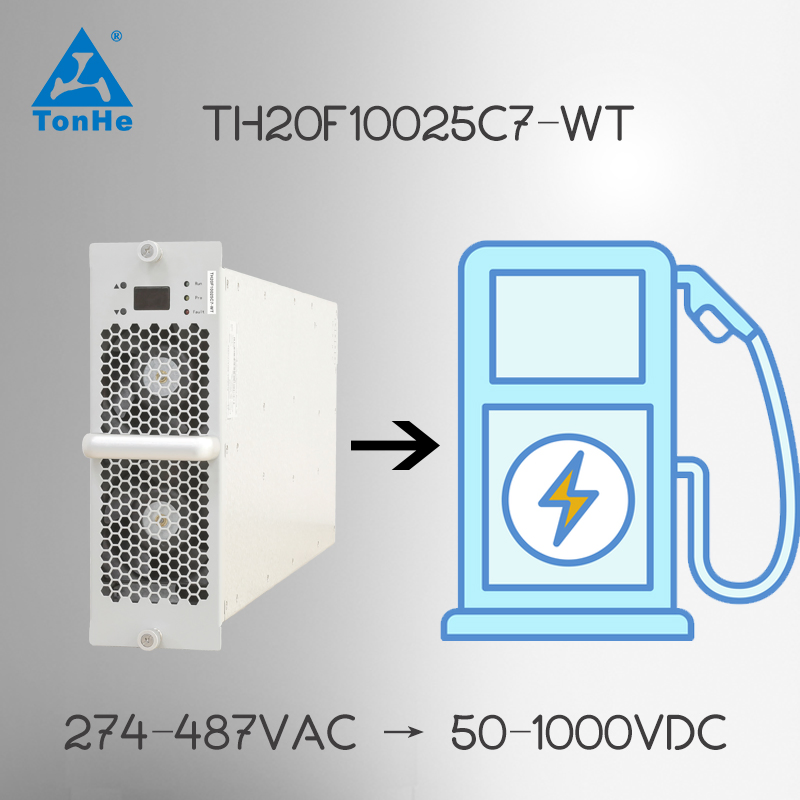

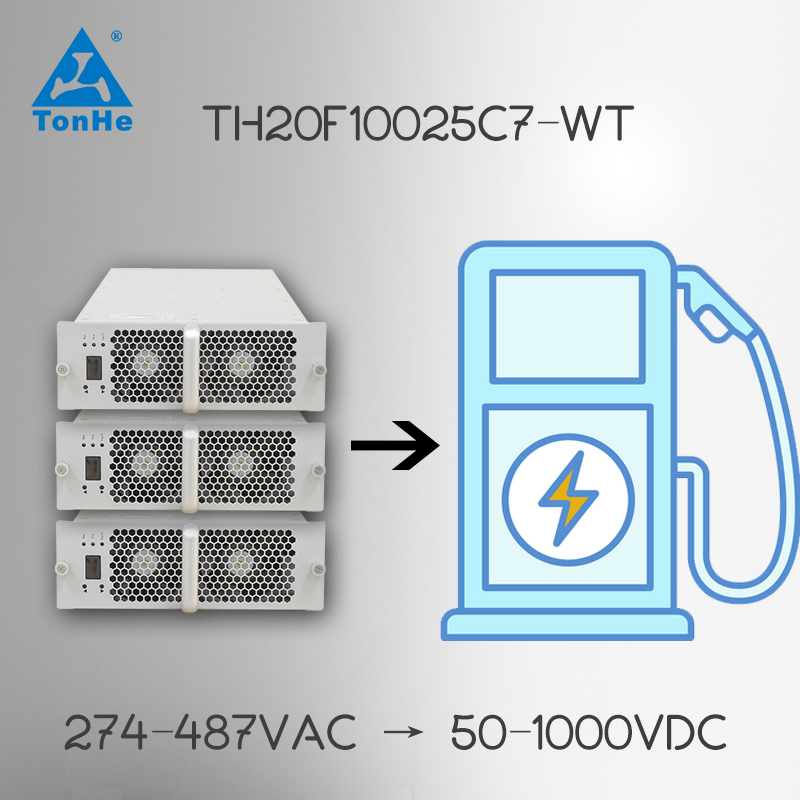

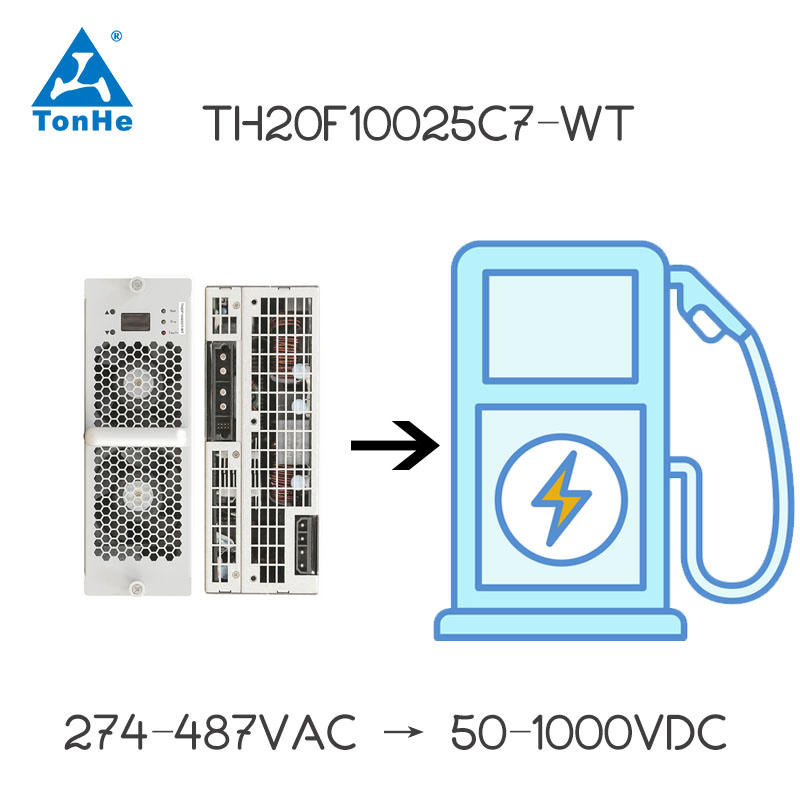

20kW 1000V Tonhe 7th Gen EV Charging Power Module/Station/DC Fast Charger

1 / 5

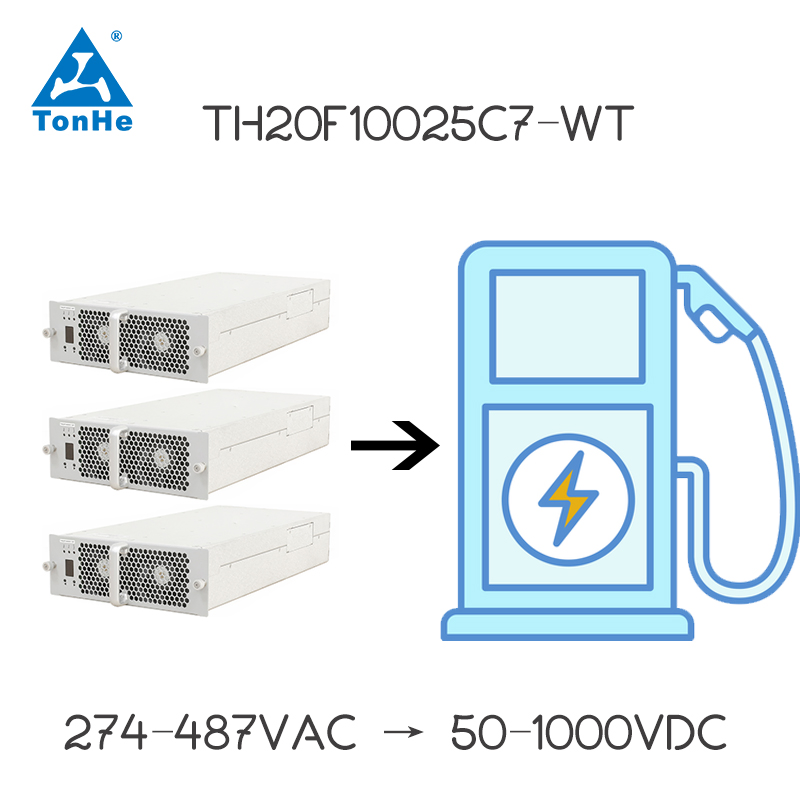

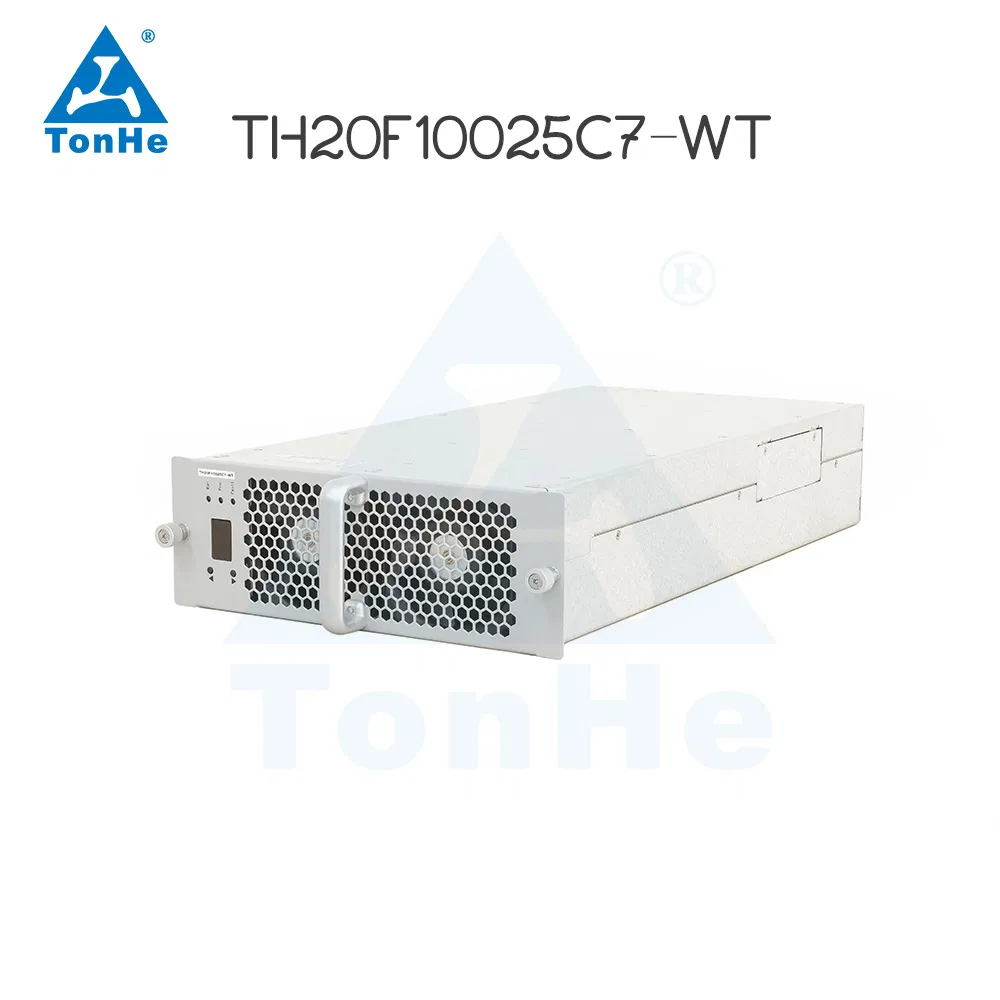

20kW 1000V Tonhe 7th Gen EV Charging Power Module/Station/DC Fast Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

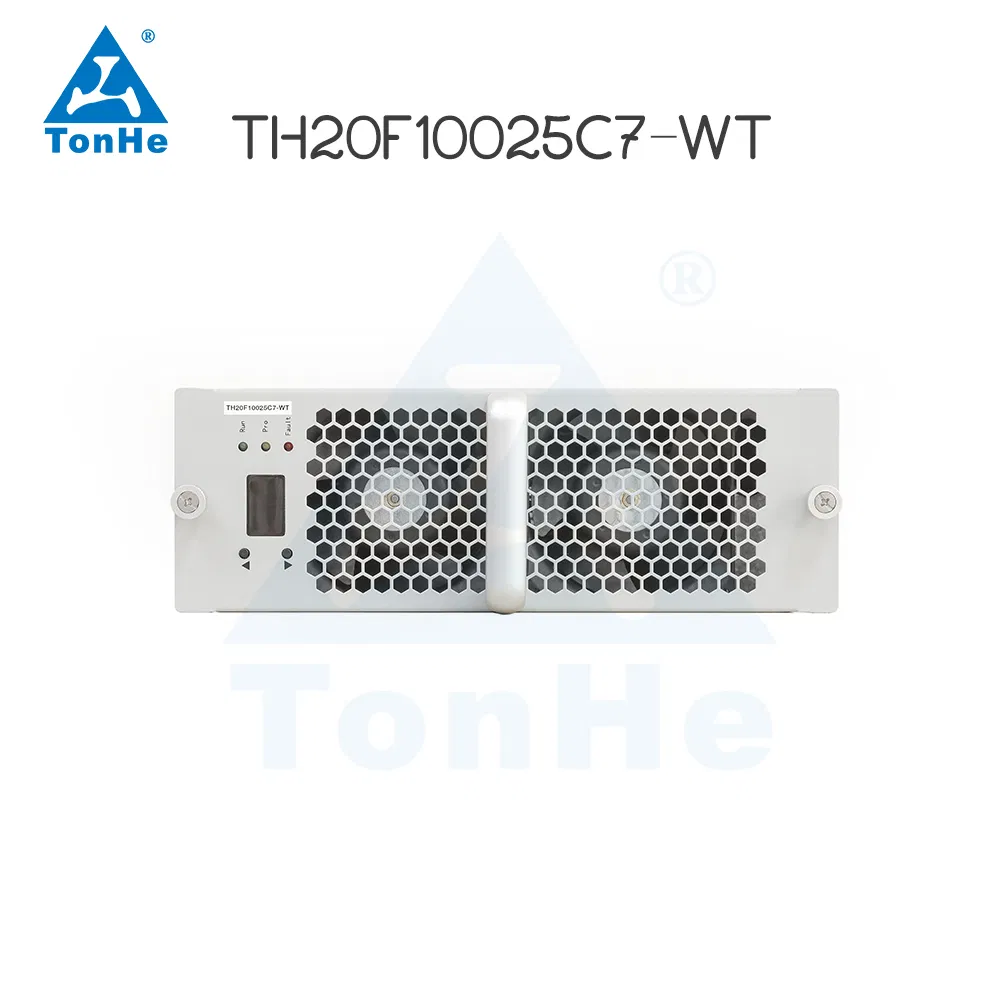

Product Description

Product Overview

Model NO.

TH20F10025C7EWT-Y

Location

Public Use

Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Mobile Remote, Card Payment

Input Voltage

274-487VAC

Output Range

300-1000VDC

Peak Efficiency

≥96%

Working Temp

-40℃ - 75℃

Communication

CAN Protocol

Cooling Method

Fan Cooling

Product Advantages

Wide output constant power range: 300-1000VDC
Ultra-low standby power consumption: < 10W
Ultra-wide Voltage Input Range 274-487VAC
Ultra-wide operating temperature: -40ºC - 75ºC
Peak efficiency > 96% with SiC Power Components

Technical Specifications

Model No. TH20F10025C7EWT-Y
Rated Output Power	20kW
Output Voltage Range	50-1000VDC
Output Current Range	0.5-67A
Soft Start Time	3~8S
Protection	Short circuit & Self-rollback protection
MTBF	500,000 hours
Module Dimension	460mm210mm84mm (DWH)
Weight	≤13kg

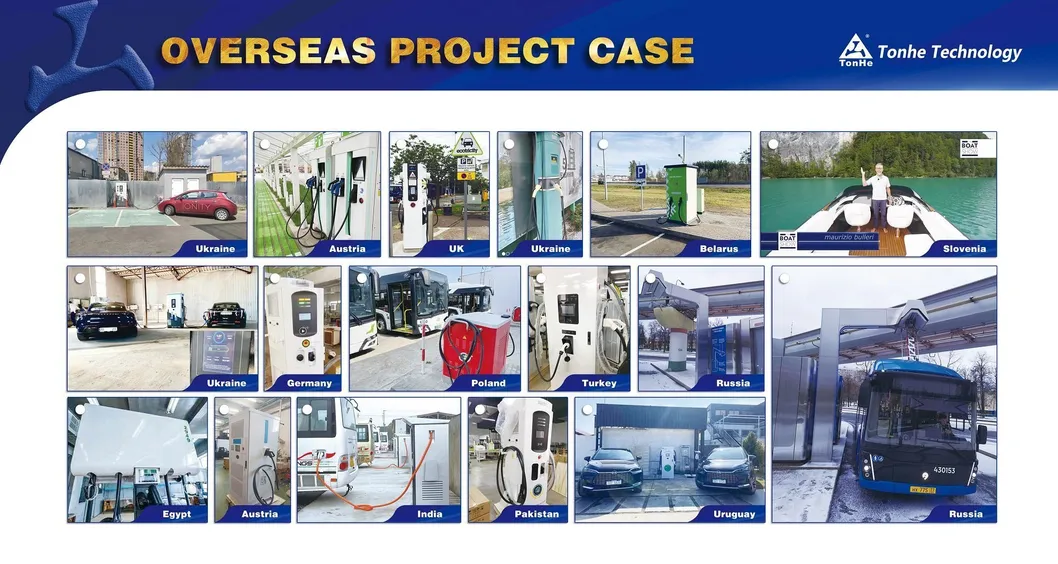

Packaging & Shipping

Industry Capacity

Sticking to technological innovation and focusing on high-frequency power conversion, the facility has realized soft switching technology for the entire power conversion process. We provide internationally advanced core technologies in the EV charging and swapping industry, committed to innovation in technology, products, and management.

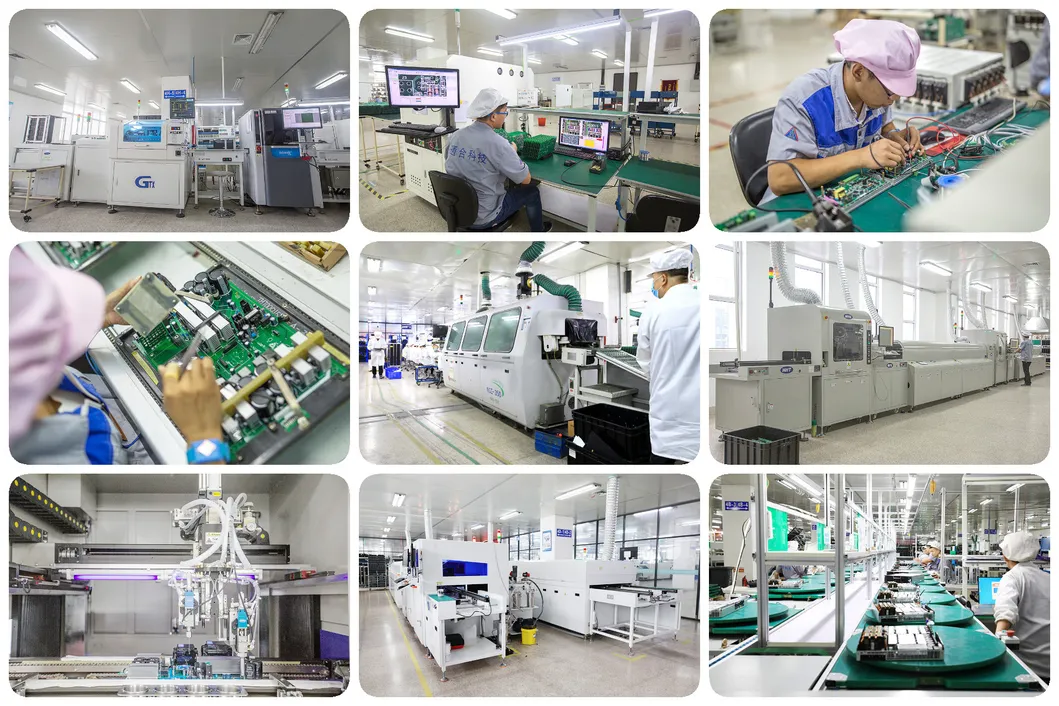

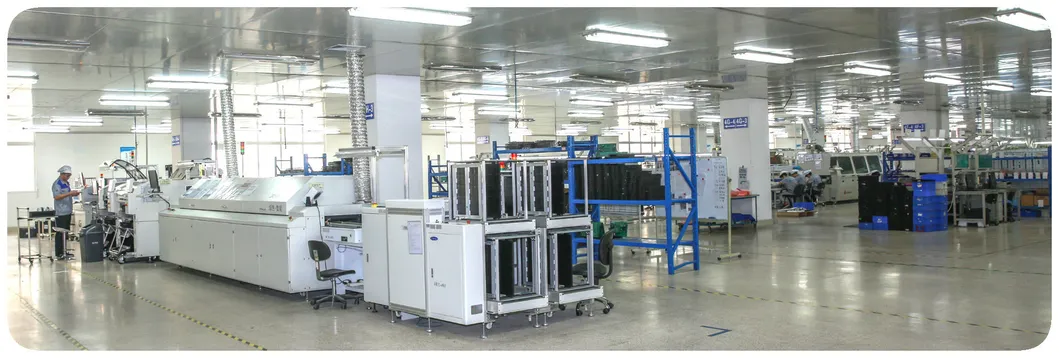

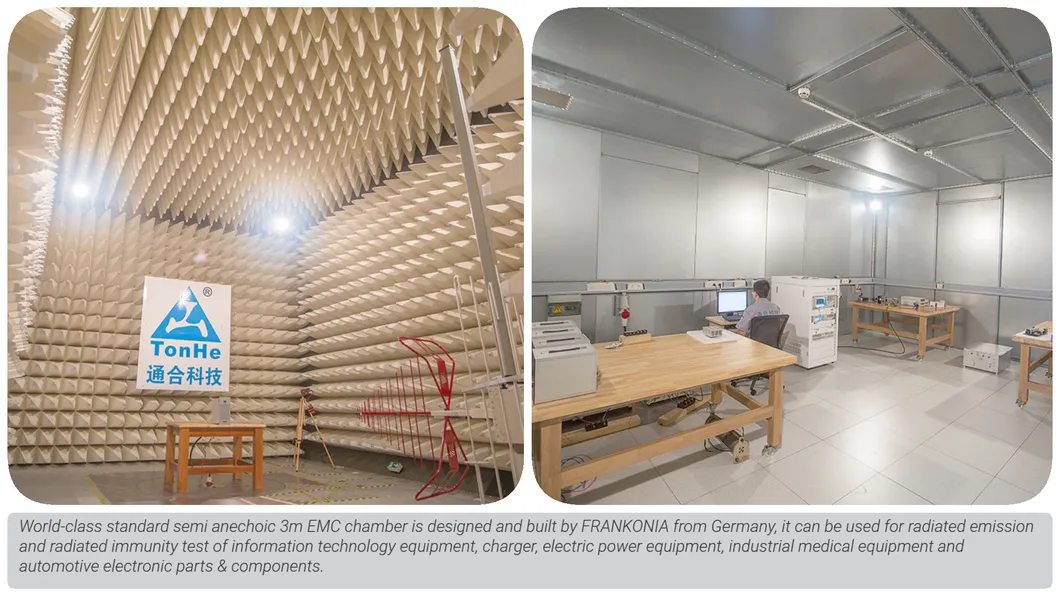

Workshop & Testing Labs

Certifications & Negotiations

Frequently Asked Questions

What are the module CAN baud rate and CAN voltage level?

- 125Kbs 5V.

Do the modules support glue filling?

- Yes, all series modules can support glue filling for enhanced protection.

What are the installation requirements for the charging module?

- The module can be installed horizontally, side standing, or upside down. Note that upside-down installation requires a customized front panel without a handle.

What is the typical delivery time?

- Approximately 7 days for modules and 35 days for standard charging piles. Large or customized orders are coordinated based on workshop capacity.

How long is the standard warranty period?

- The standard warranty is 12 months upon the receipt of the shipment.

What certifications have been obtained?

- Products are qualified with ISO, TUV, and CE certifications, meeting international quality and safety standards.
