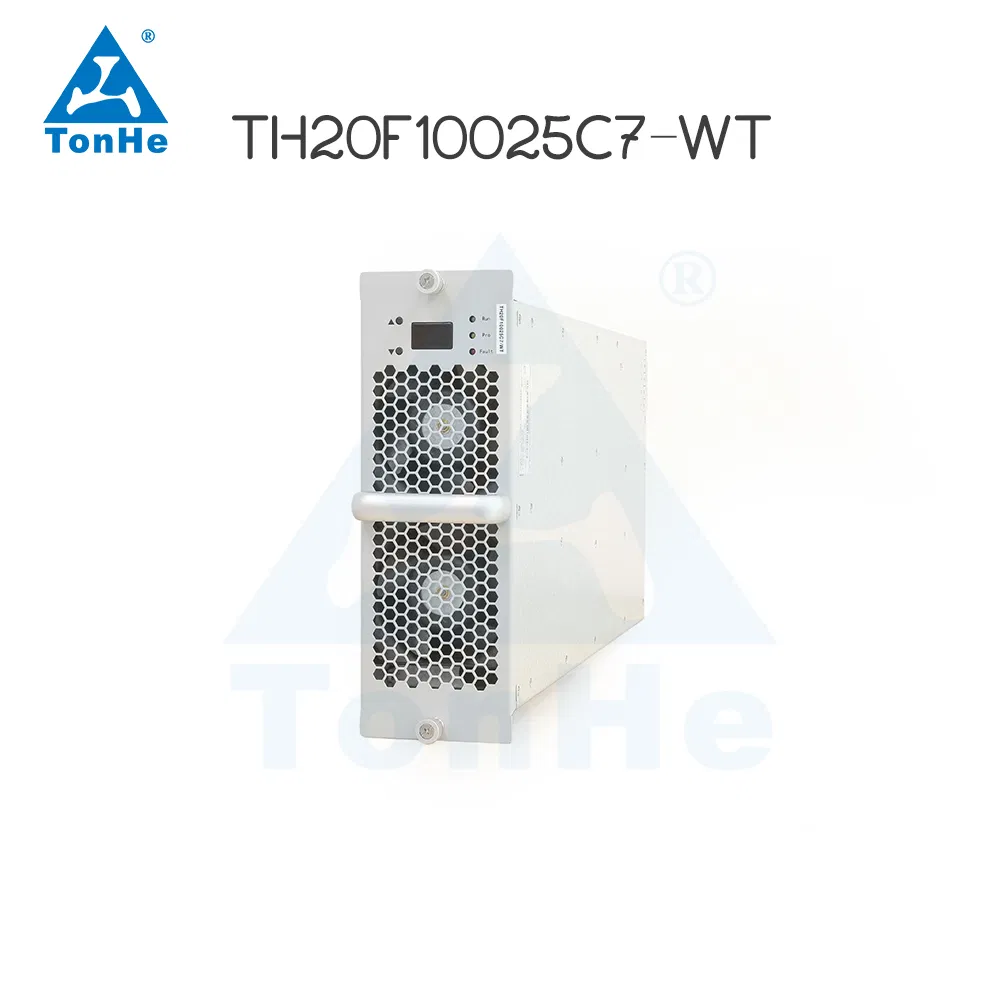

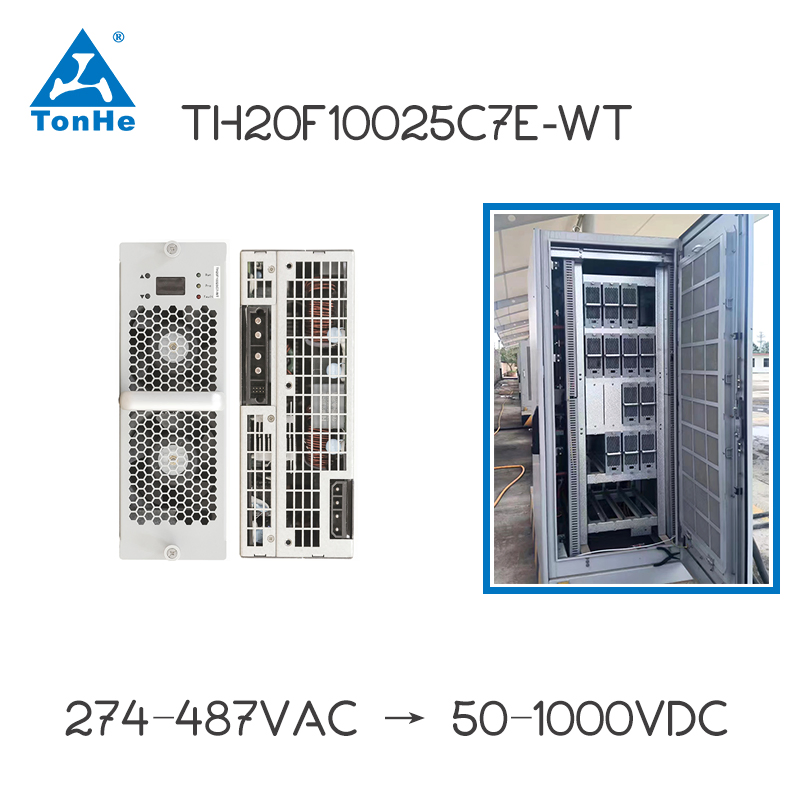

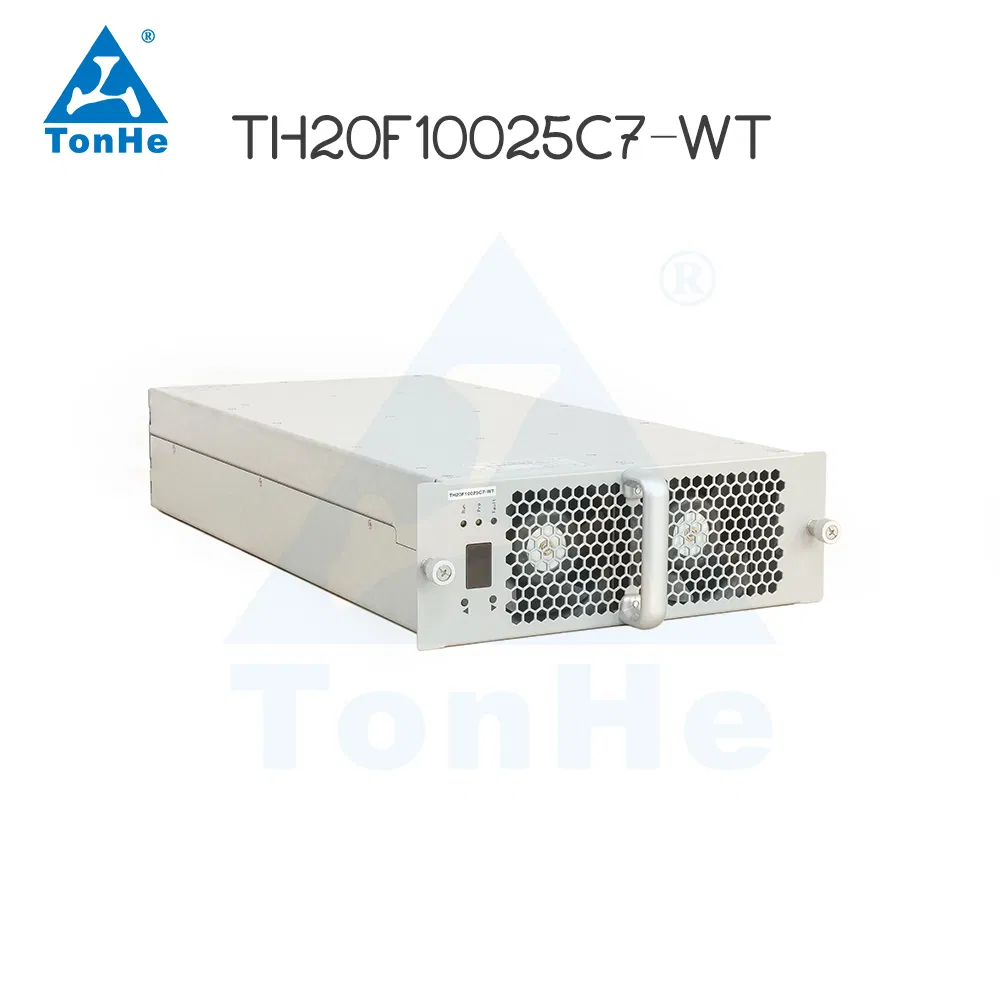

20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
TH20F10025C7-WT
Type
Fast EV Charging Station
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Output Function
300-1000VDC
Input Voltage
274-487VAC
Certification
CE, ISO, Kc
Warranty
12 Months
Production Capacity
5000PCS / Month
Product Advantages
  • Wide output constant power range: 300-1000VDC
  • Ultra-low standby power consumption: <10W
  • Ultra-low total harmonic distortion: ≤5%
  • Ultra-wide operating temperature: -40ºC-75ºC
  • High Conversion Efficiency: peak efficiency ≥ 96%

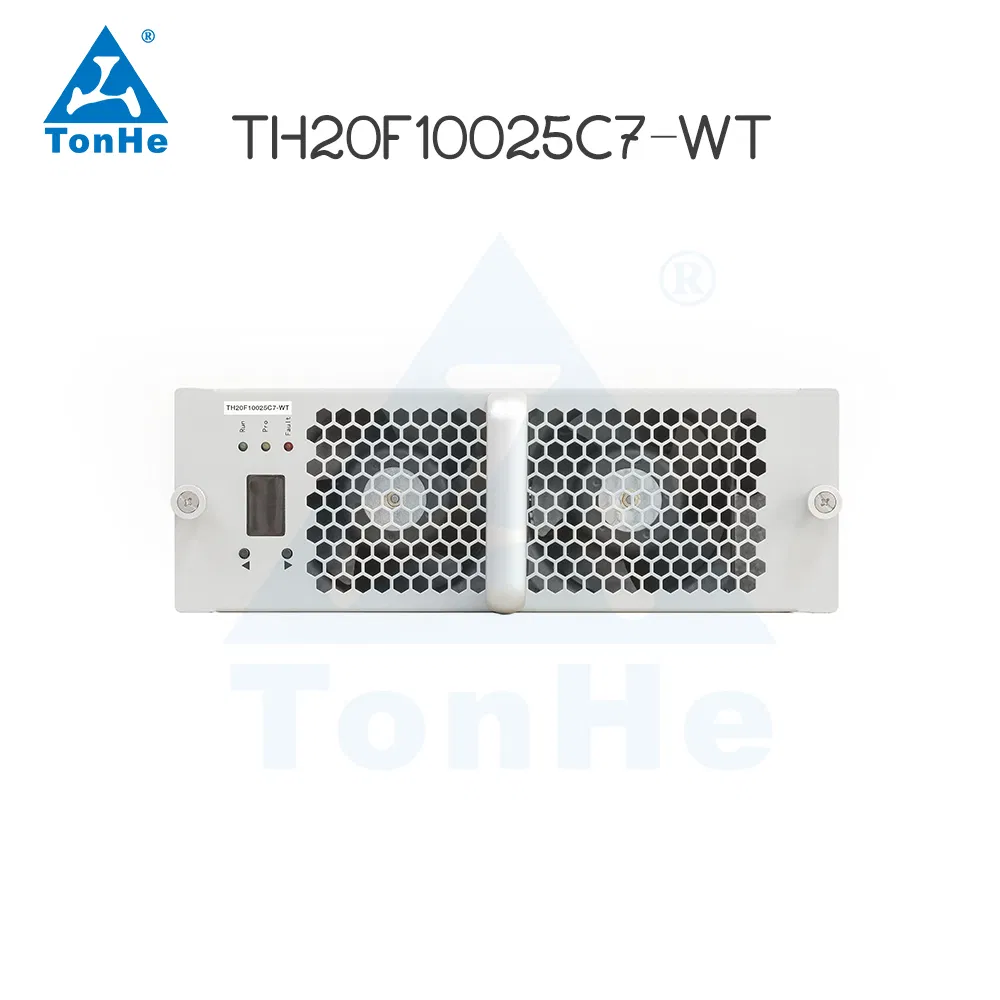

DC Fast Charger Module

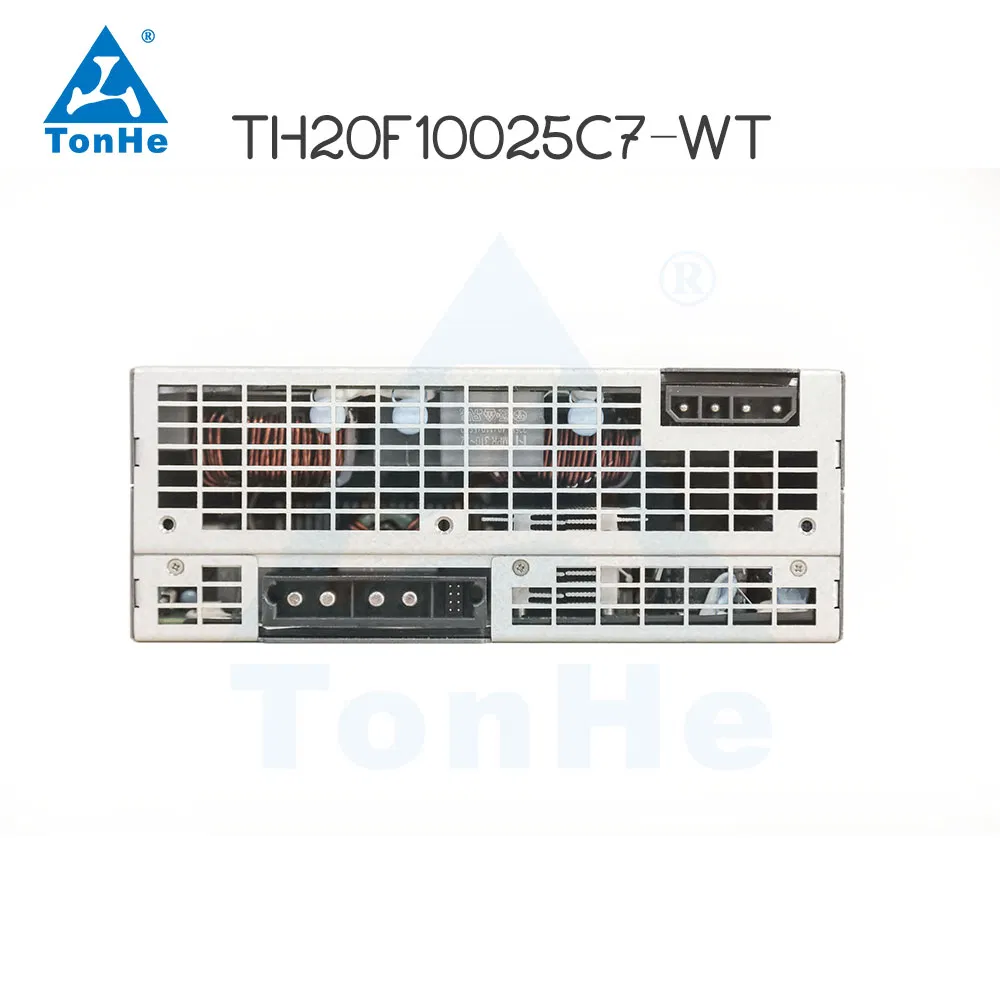

Fast Charger Infrastructure

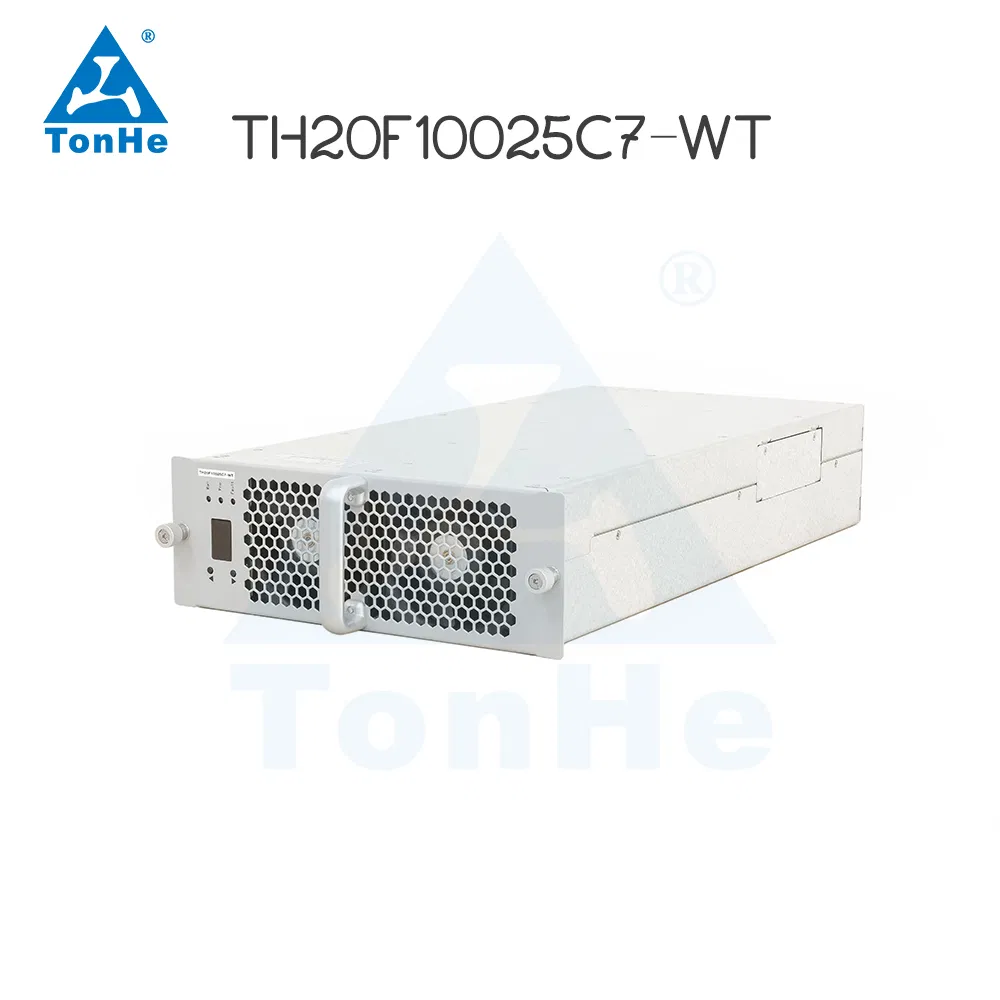

EV Charging Station Module

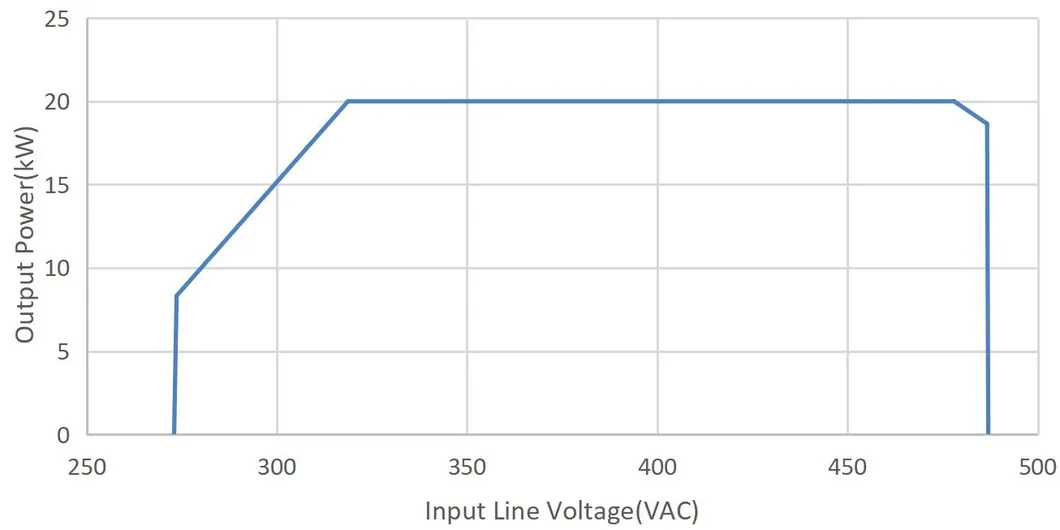

Charging Technical Details

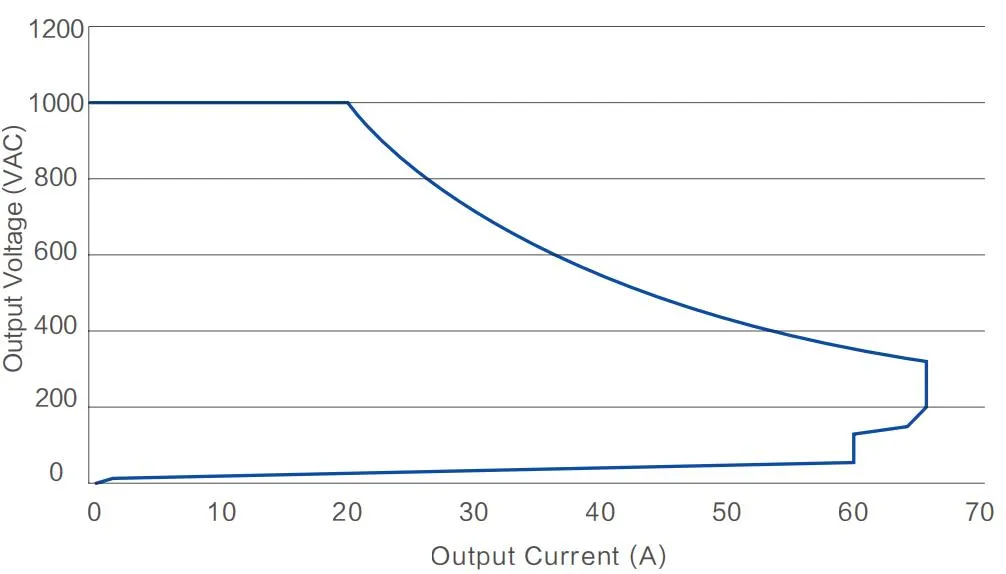

Module Performance

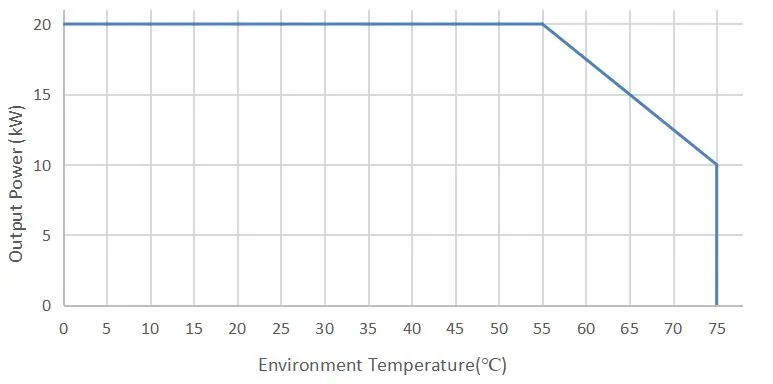

Efficiency Graph

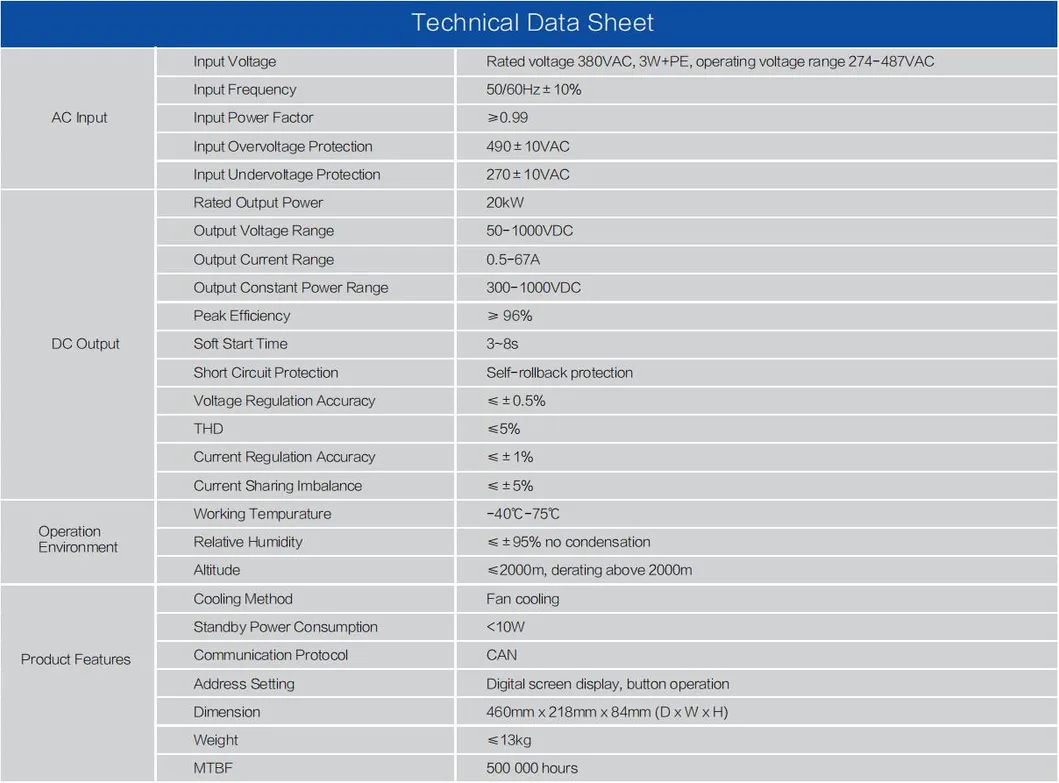

Technical Specifications Overview
Packaging & Shipping
Product Packaging

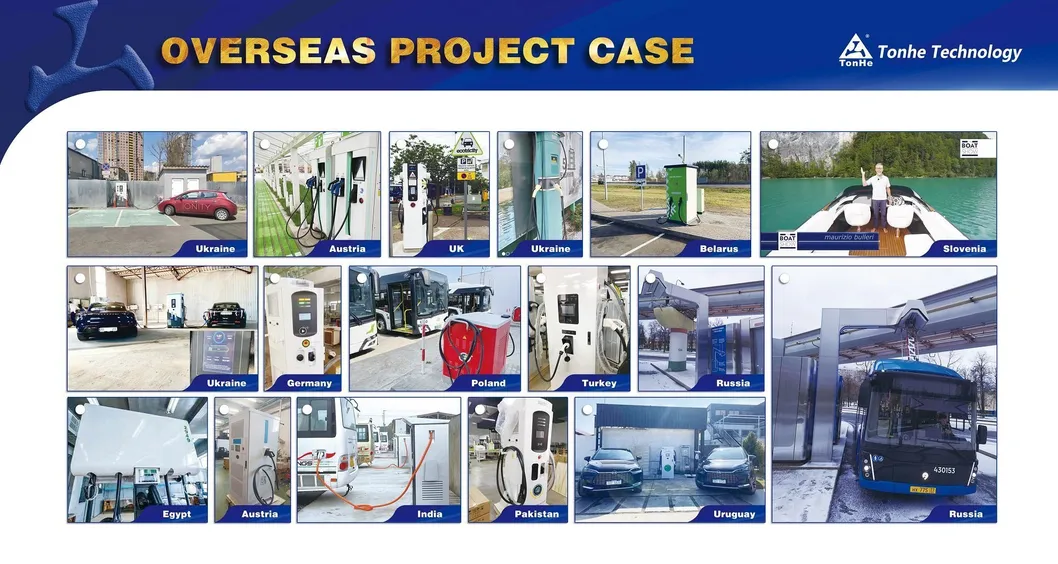

Shipping Logistics
Technical Expertise

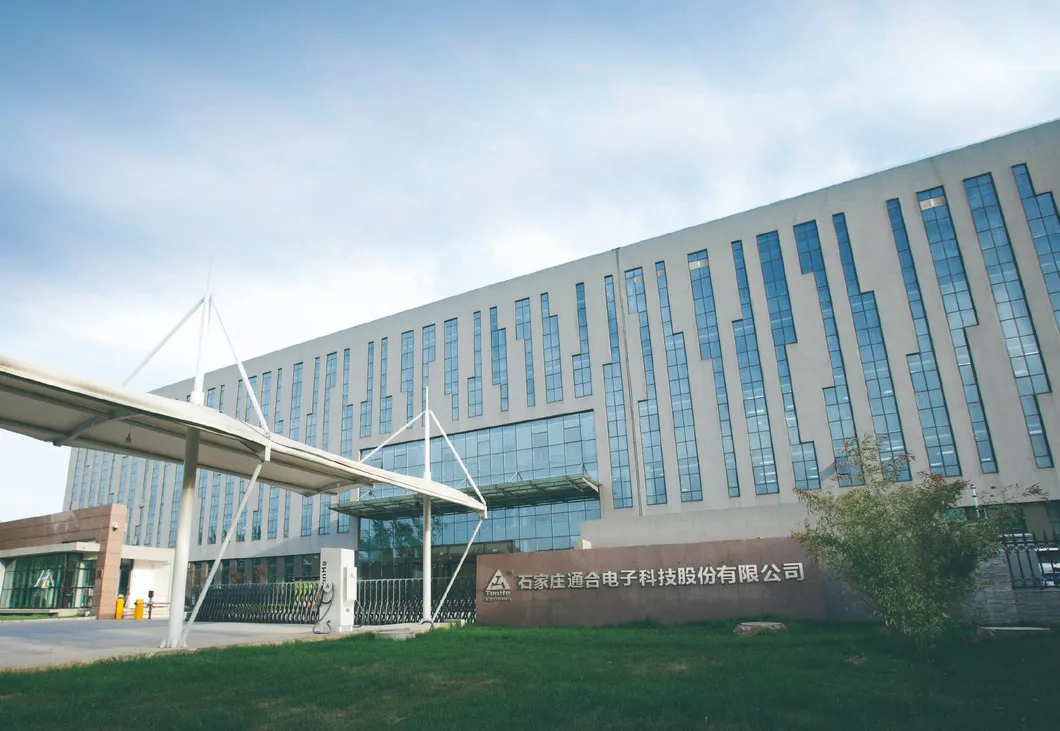

Technology Hub
Sticking to technological innovation, focusing on the field of high-frequency power conversion technology. We are a leading power electronic enterprise that has realized soft switching technology for the whole process of power conversion. Committed to innovation in technology, products and management, providing "One-Stop Service" including R&D guidance, system solutions, technical training and after-sales services.
Manufacturing & Testing

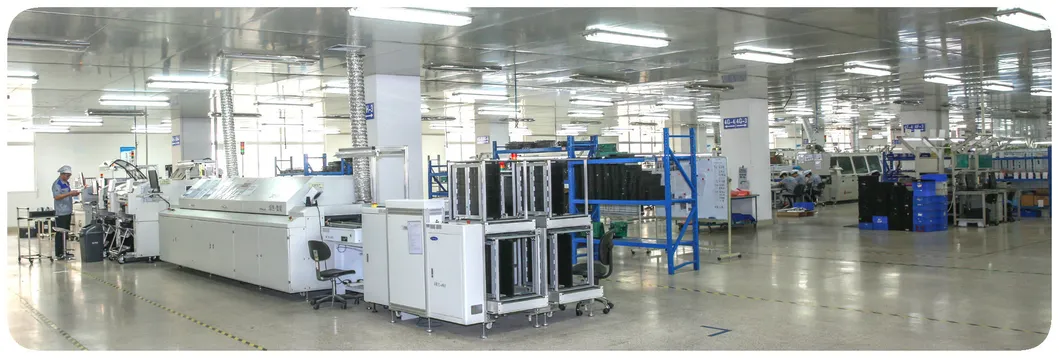

Manufacturing Workshop

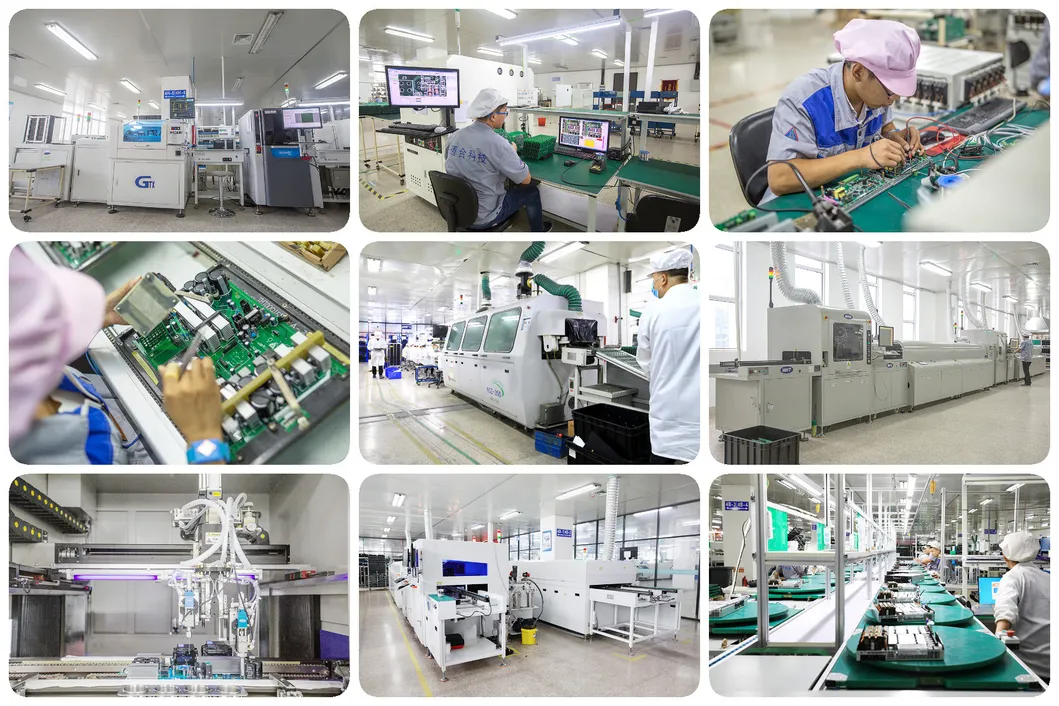

Production Line

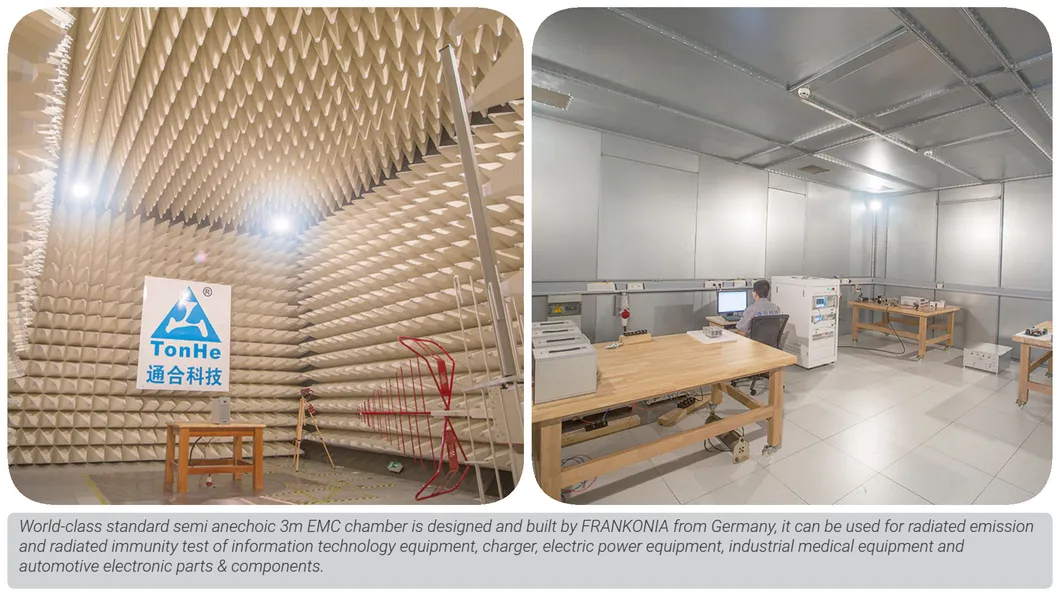

Testing Lab 1

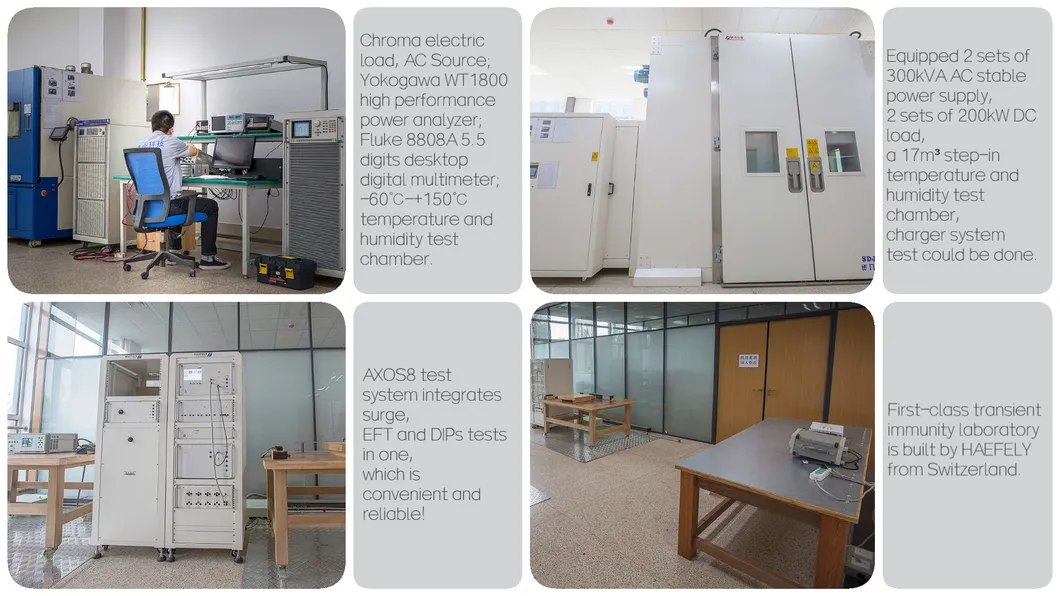

Testing Lab 2
Certifications & Global Presence
Certifications Display
Customer Negotiations
Frequently Asked Questions
What are module CAN baud rate and CAN voltage level?
- 125Kbs 5V
Do the modules support glue filling?
- All series modules can support glue filling.
What are the requirements for the installation method?
- The charging module can be installed horizontally, side standing or upside down. For specific orientations, custom front panels are available.
How do you handle shipments?
- Small orders are sent via FedEx, DHL, UPS (door to door). Large shipments are sent by sea or air in containers.
What is your typical delivery time?
- Approximately 7 days for modules and 35 days for standard piles. Large quantity orders are coordinated based on workshop capacity.
What certifications have you obtained?
- Company and products have passed ISO, IATF16949, CNAS, TUV, and CE certifications.
