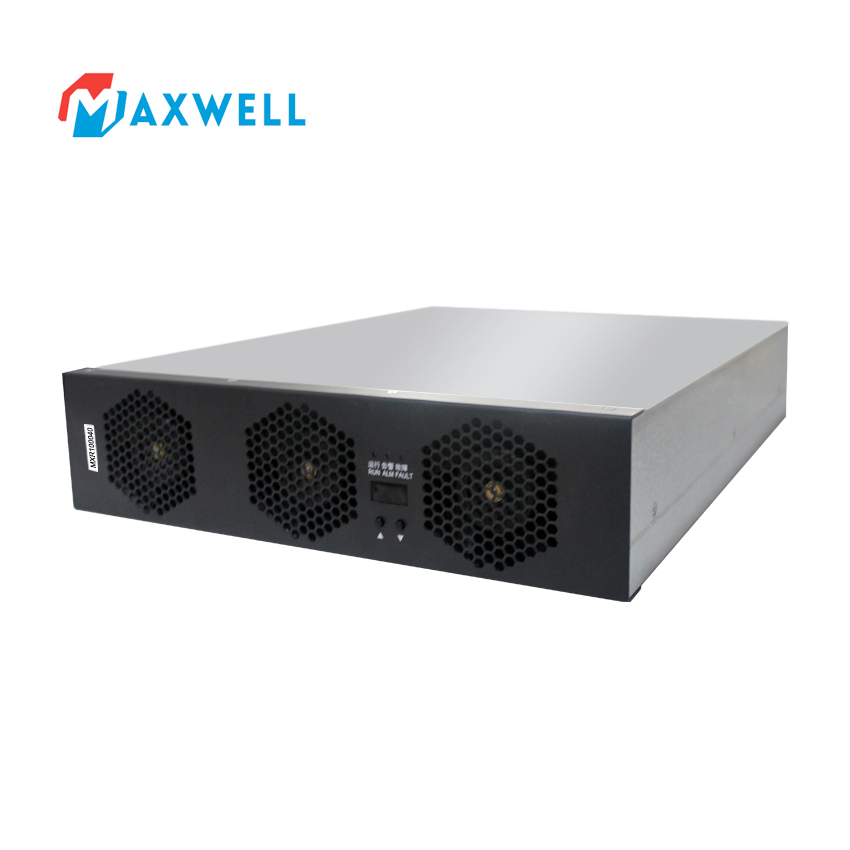

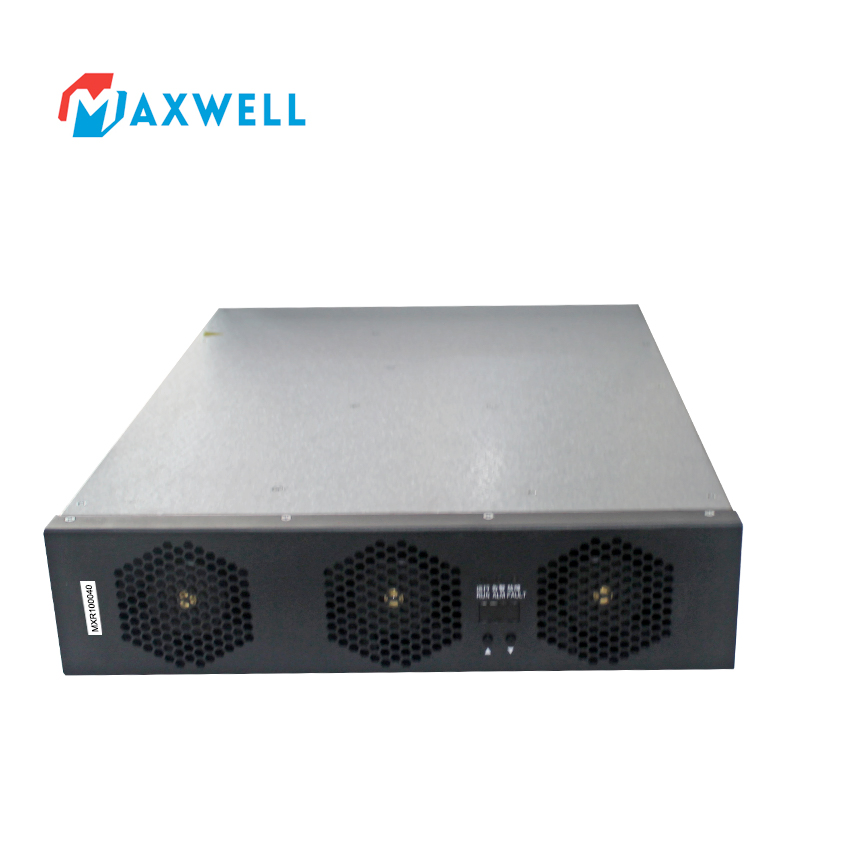

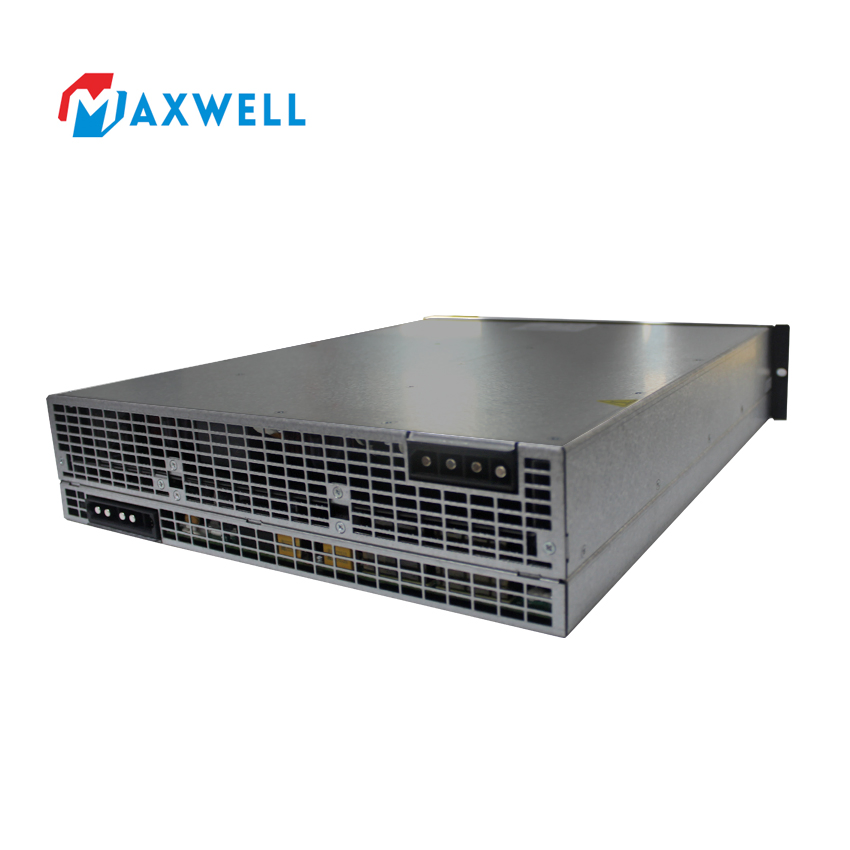

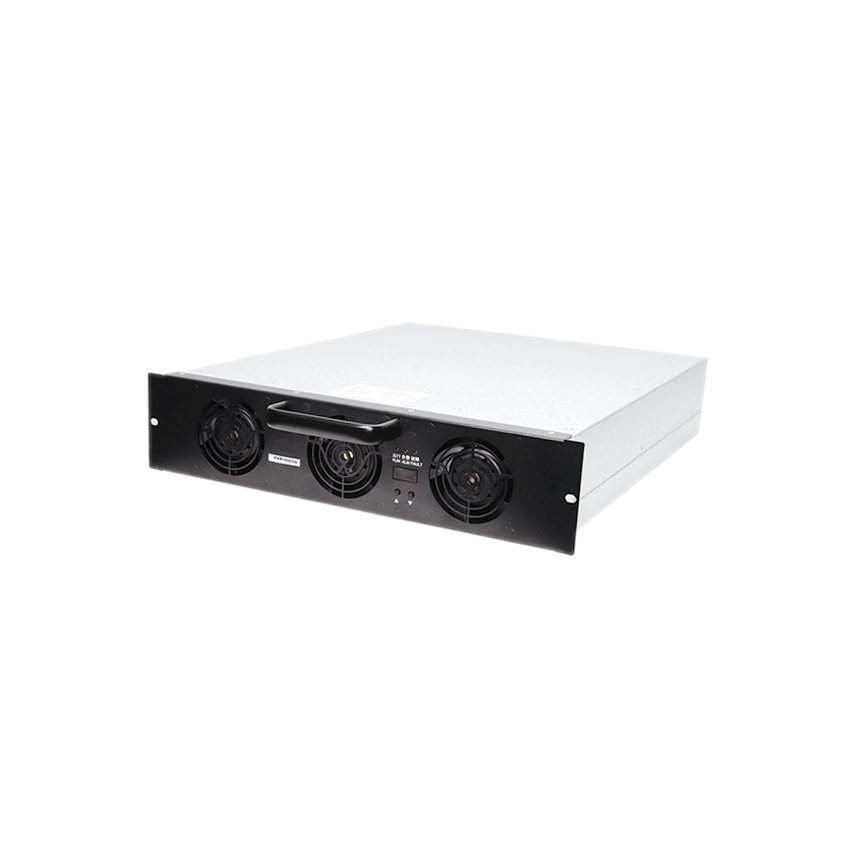

20kw/30kw/40kw AC/DC Rectifier Module for DC Fast Charging Station CE Approved

Basic Specifications

Model NO.

MXR100030

Product Name

EV DC Charging Module

Power Supply

3phase+PE

Input Voltage

285VAC-475VAC

Output Voltage

100VDC-1000VDC

Output Current

0-100A

Efficiency

>95.5%

Certification

CE, ISO, TUV, RoHS

Specification

459*360*85mm

Type

Fast EV Charging Station

Product Performance

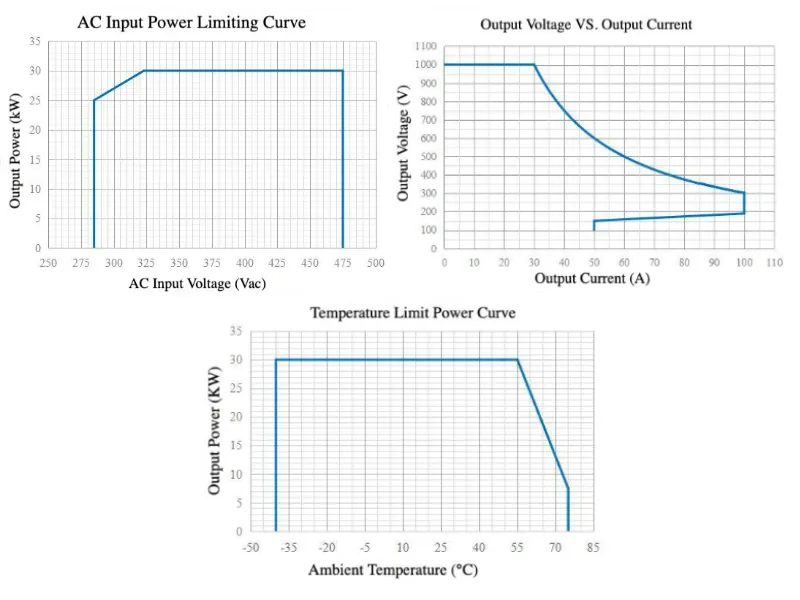

MXR100030 is a high-performance charging power module designed to address industry shortages. It features significant advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range. Key characteristics include high reliability, efficiency, power factor, and power density, combined with low noise and low standby power consumption.

Dimension & Weight	85mm(H)360mm(W)459mm(D) ≤26kg
Communication Mode	CAN bus
Efficiency	>95.5%
Output Power	30kw @ output voltage ≥ 300Vdc
Voltage Range	100Vdc-1000Vdc (Default: 200Vdc)
MTBF	> 500,000 hours
Test Standards	IEC61851-21-2:2018; EN61851-21-2-2017

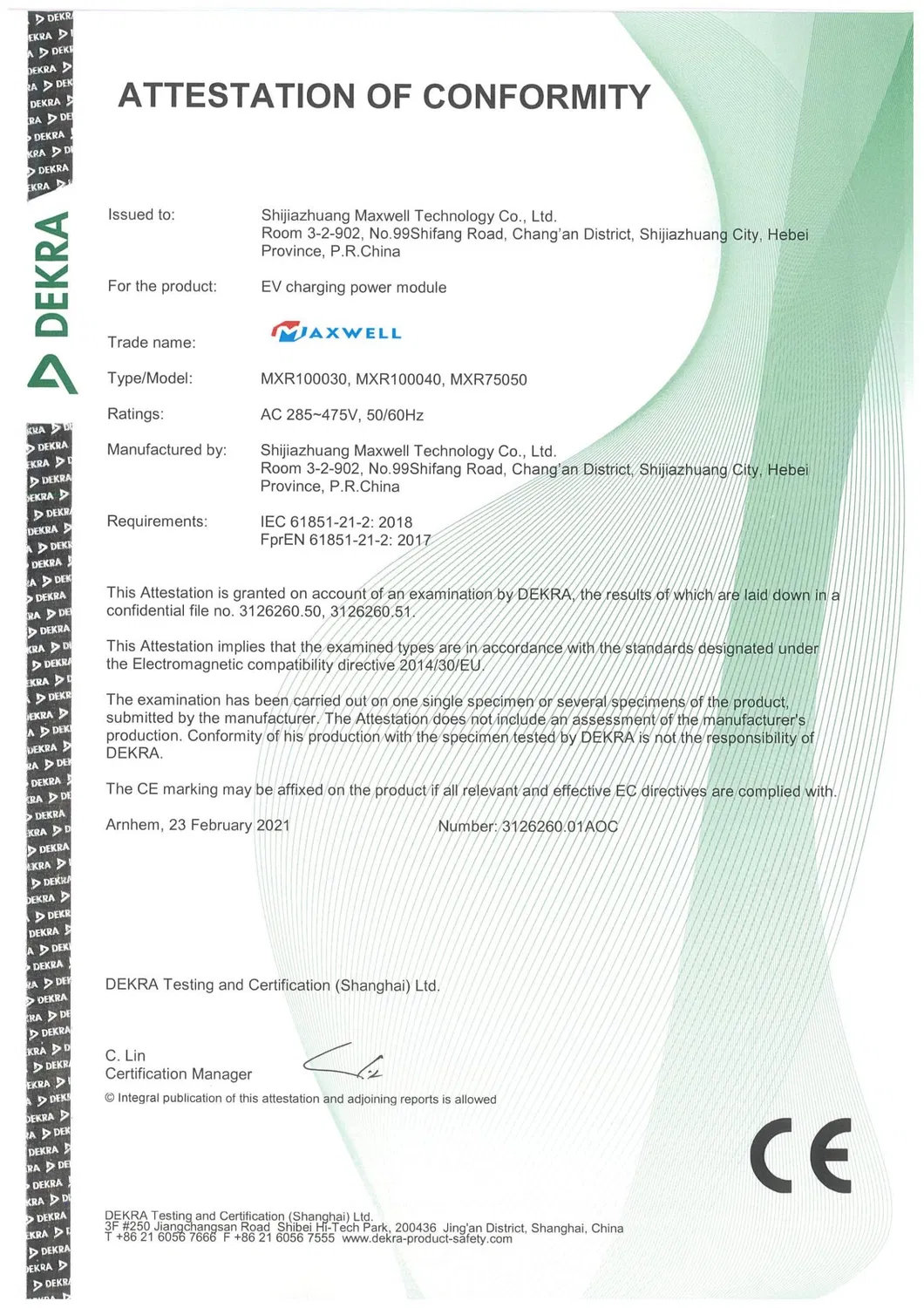

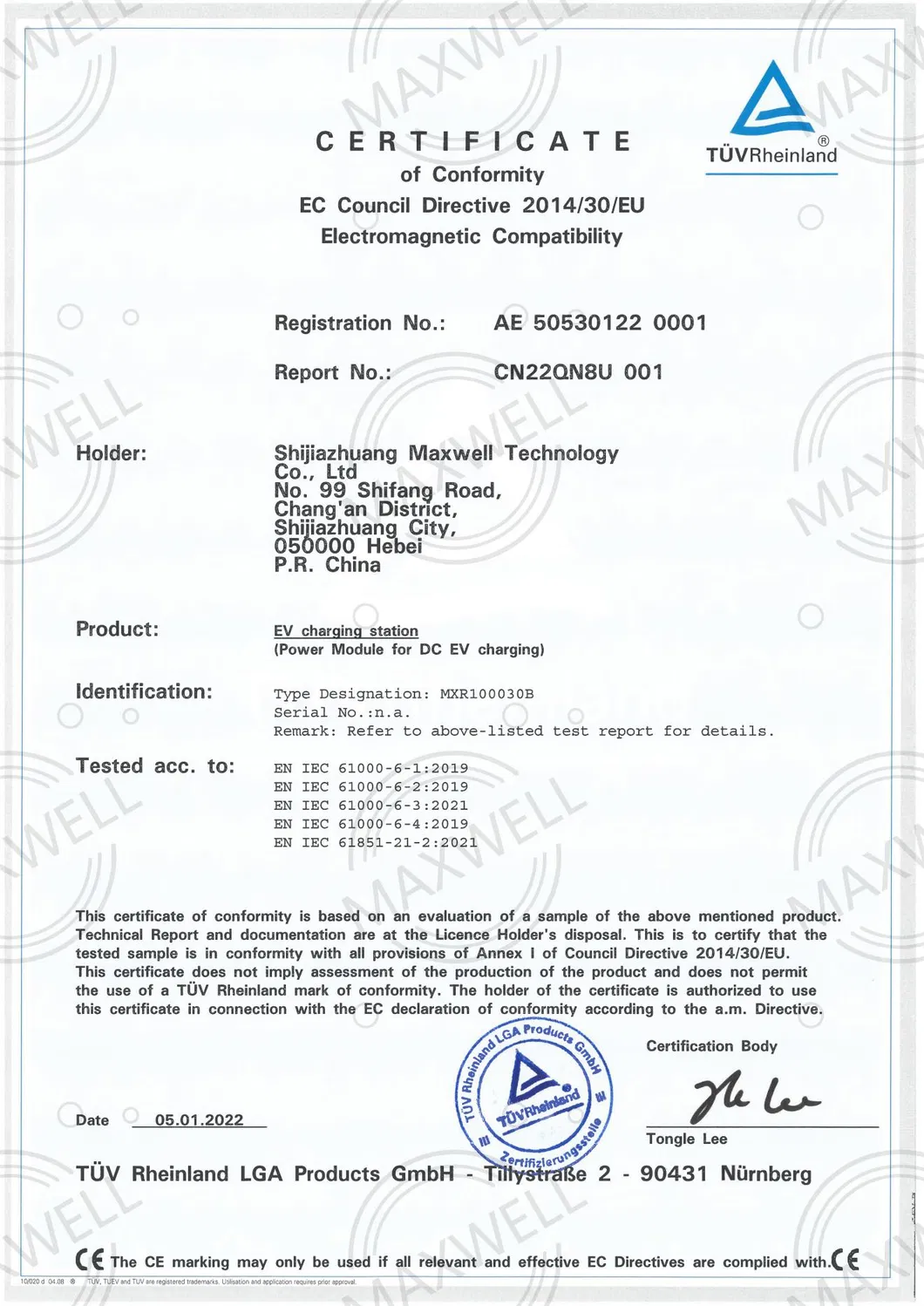

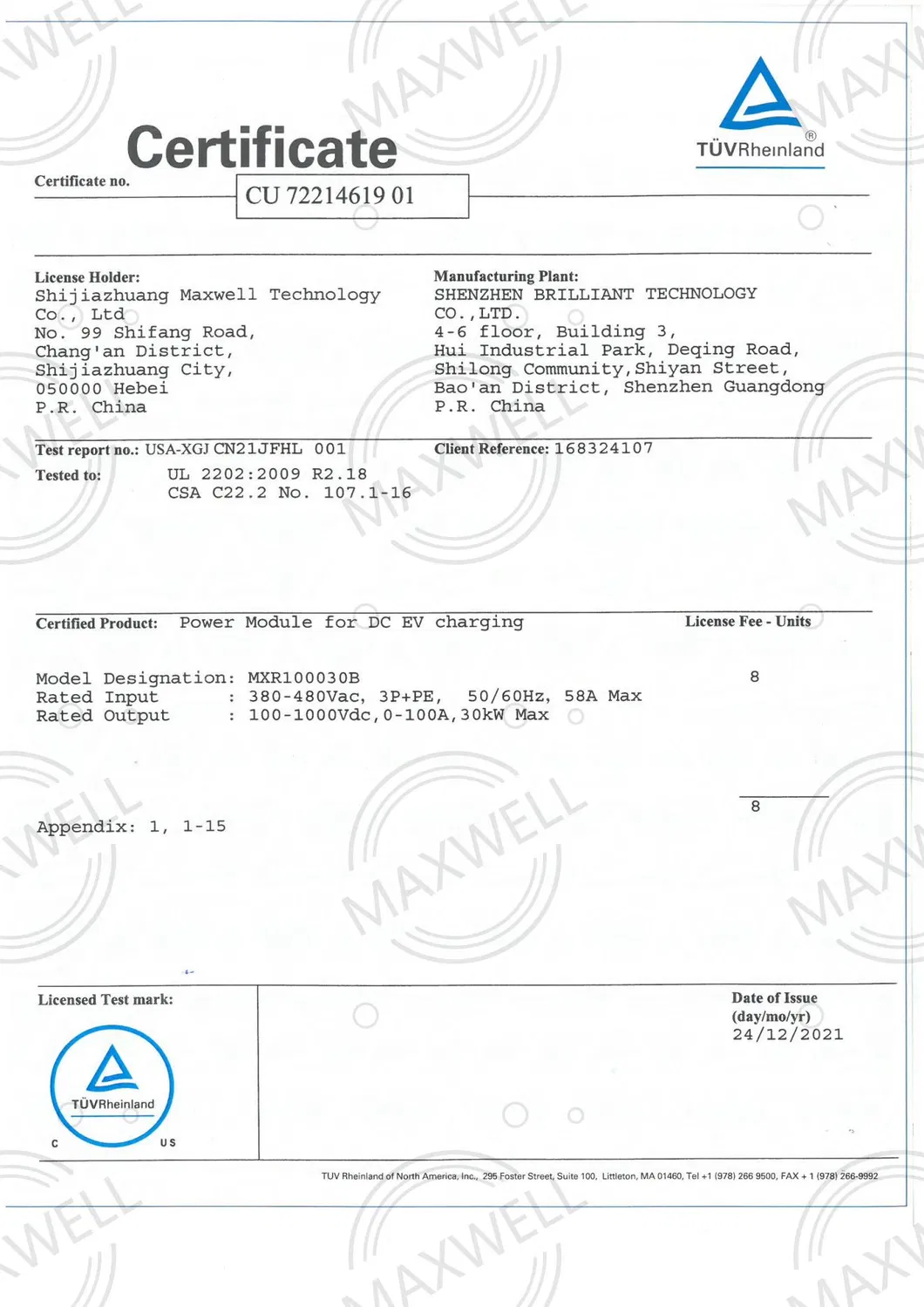

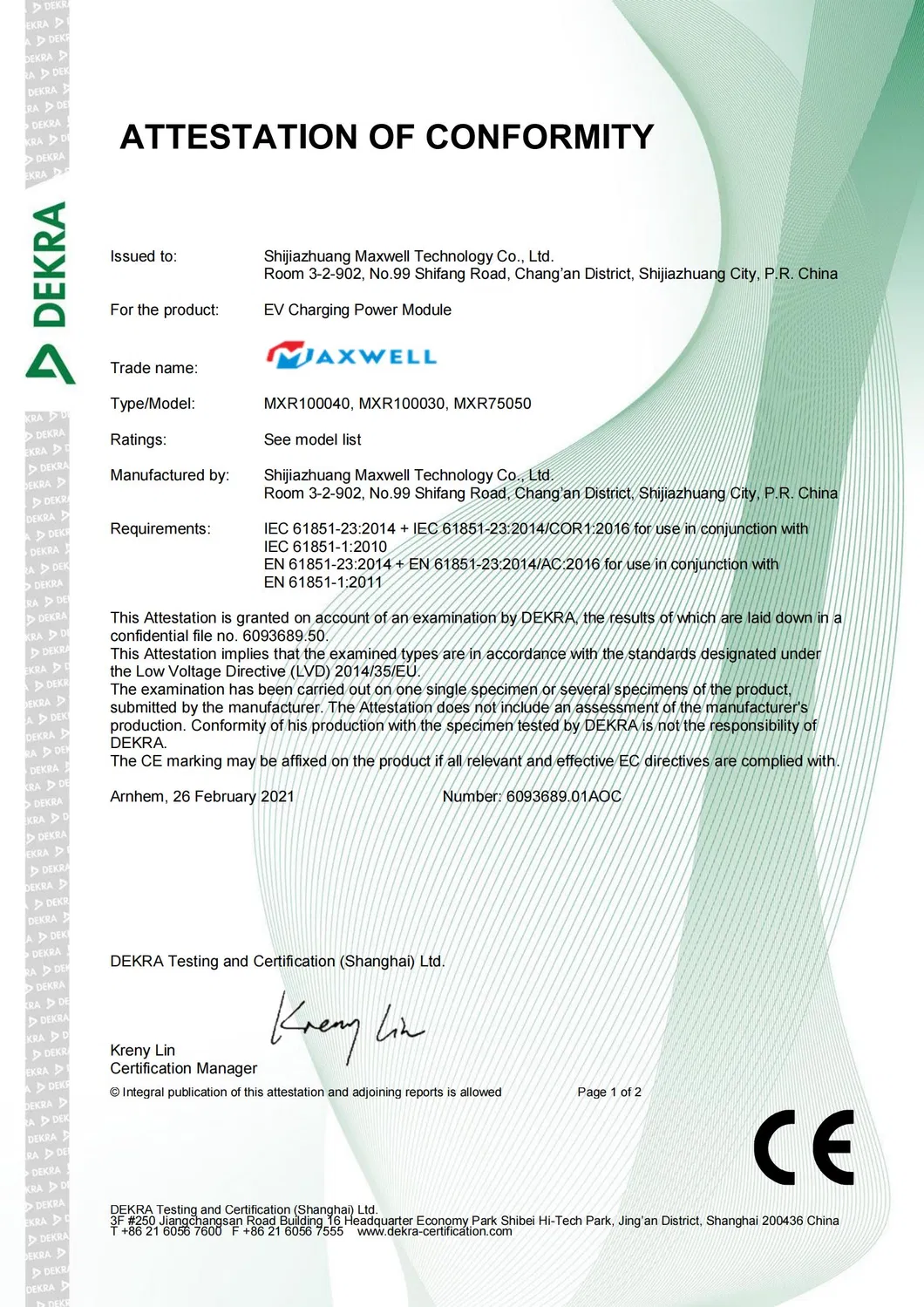

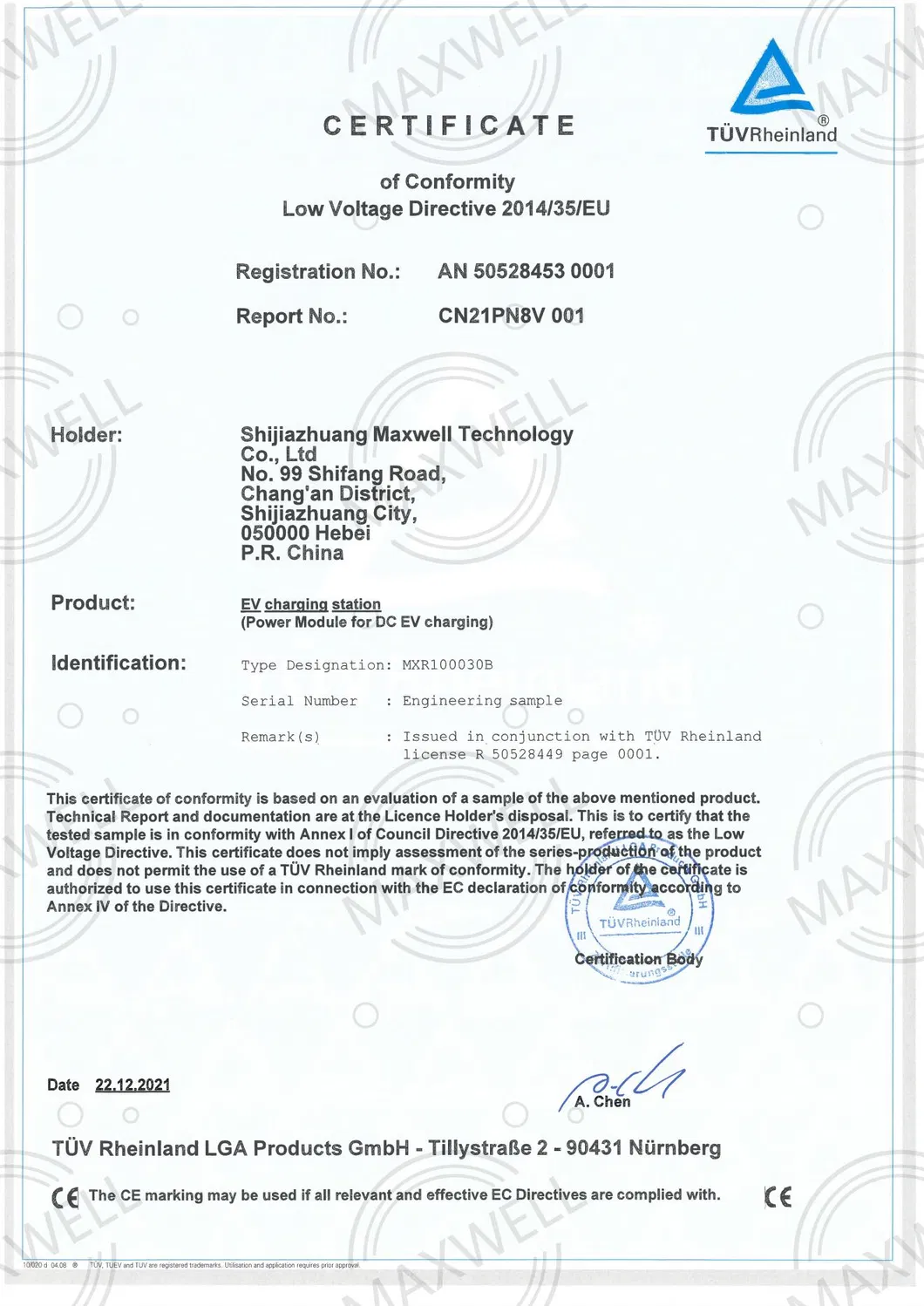

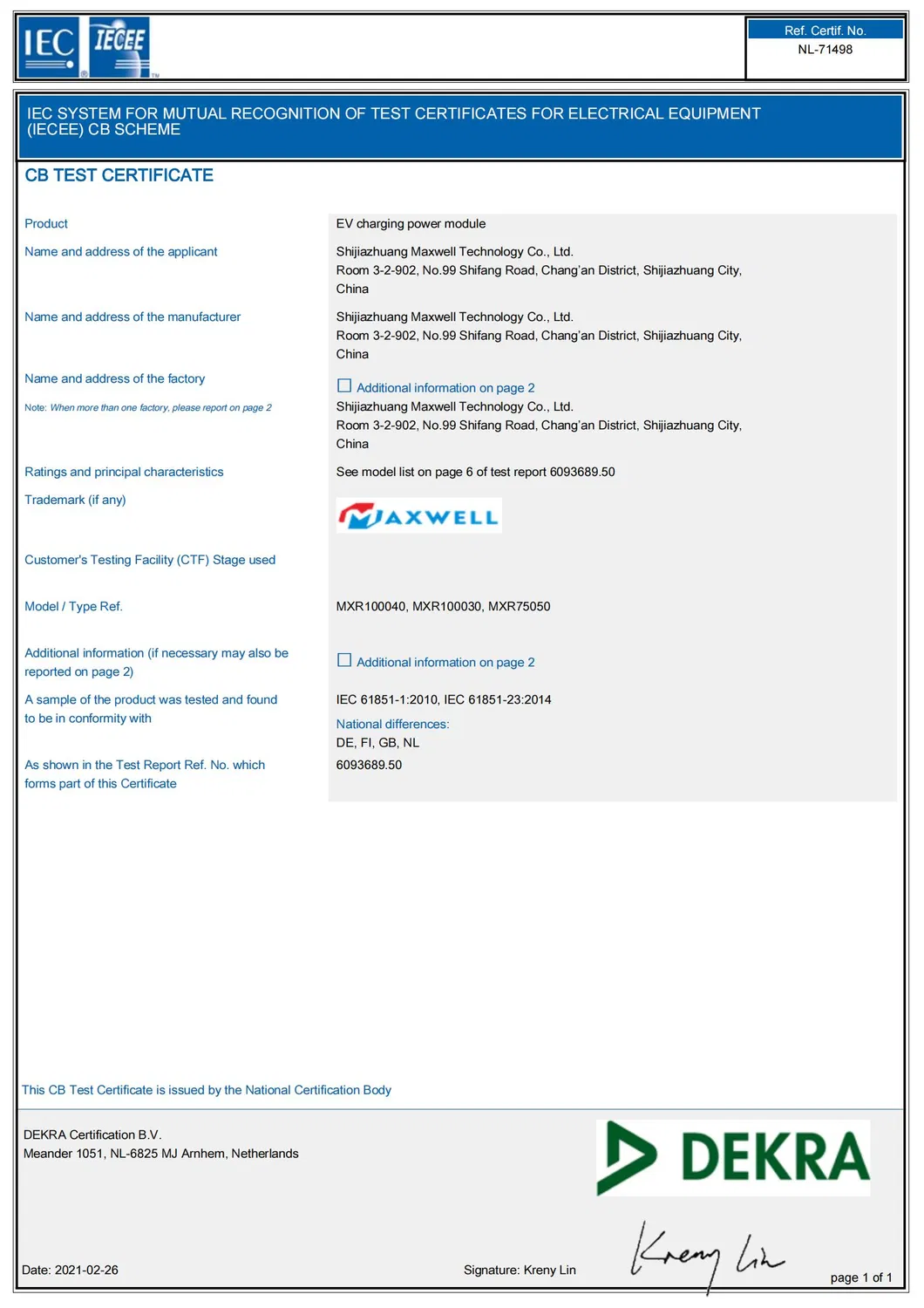

Industry Certifications

Packaging & Logistics

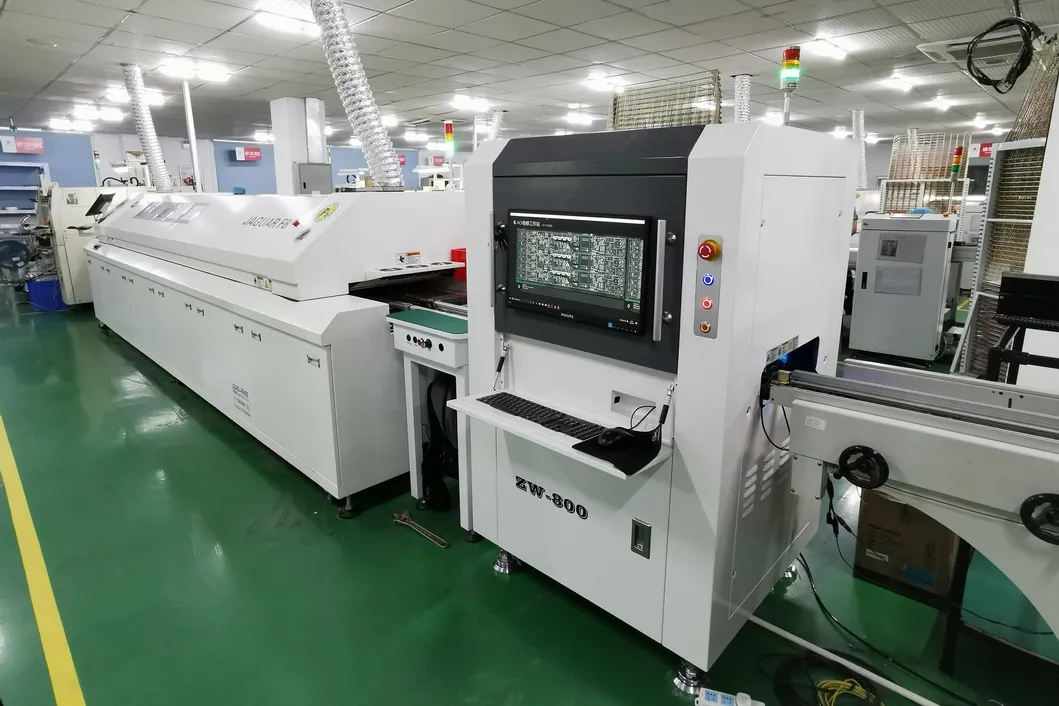

Professional Manufacturing

As a state-level high-tech enterprise, we are a leading provider of new energy and energy internet solutions. We focus on the R&D, production, and sales of power electronic products, specializing in mid-to-high-end DC power supply systems. With over ten years of expertise, we maintain a high-quality R&D team and hold multiple national invention patents and software copyrights.

Our products are widely utilized in automotive, electric power, railway, metallurgy, and communications sectors. Since 2011, we have pioneered the development of automotive DC charging modules, now offering a comprehensive range of 15kW, 20kW, 30kW, 40kW, and 50kW series units used in major infrastructure projects worldwide.

Frequently Asked Questions

Who is the manufacturer of these modules?

We are a professional manufacturer and supplier of EV charger power modules and DC charging stations with over 12 years of industry experience.

What are the technical advantages of your charging modules?

Our modules feature active PFC for 0.99 power factor, wide voltage ranges (up to 1000V), soft-start functions, and full protection for both input (over/under voltage) and output (short-circuit/over-current).

Which charging standards are supported?

Our products comply with global standards including CCS-1, CCS-2, CHAdeMO, and GB/T standards, ensuring compatibility across different regions.

How do you provide after-sales support?

We provide comprehensive technical training, including written materials and videos. For urgent situations, professional technicians are available to provide technical guidance to ensure system maintenance.

What is the typical delivery timeframe?

Generally, delivery is made within 2-3 weeks after order confirmation, depending on the parallel quantity and specific requirements.

What are the terms of payment?

We accept T/T in advance or Irrevocable L/C at sight to facilitate secure international transactions.
