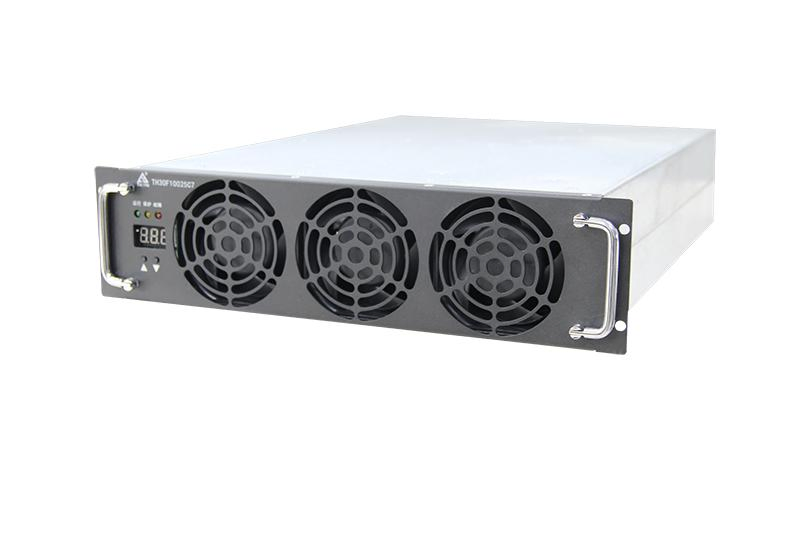

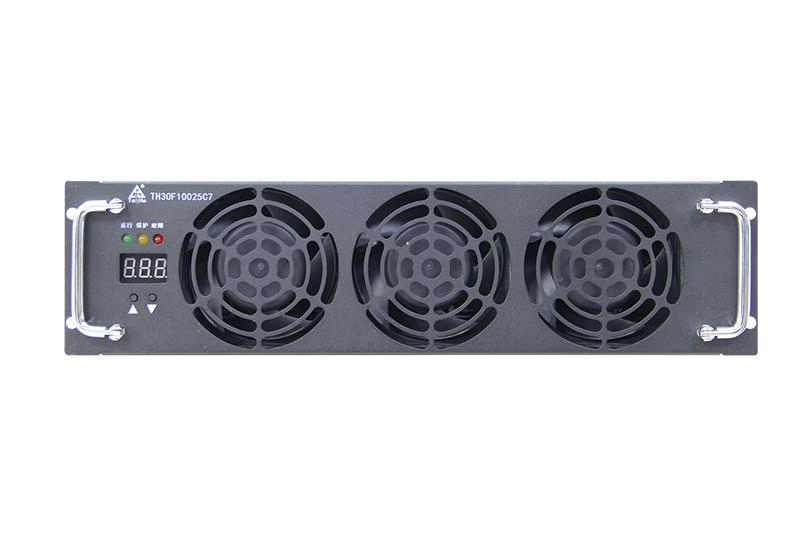

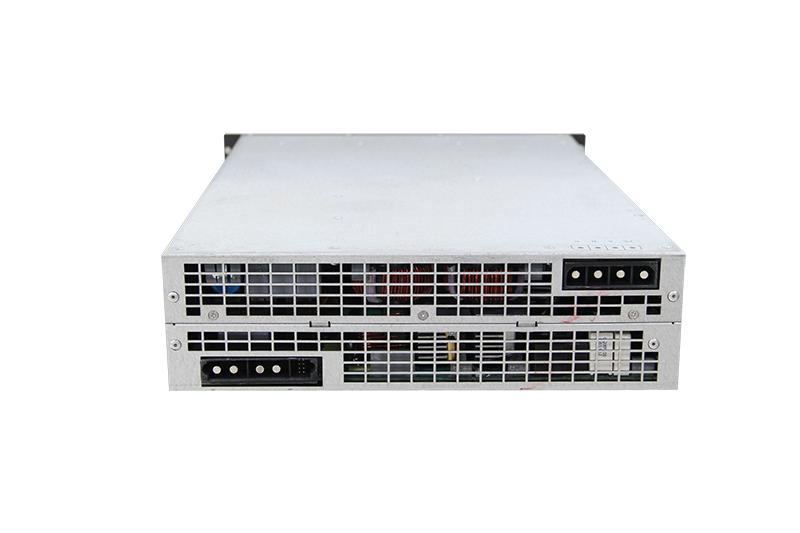

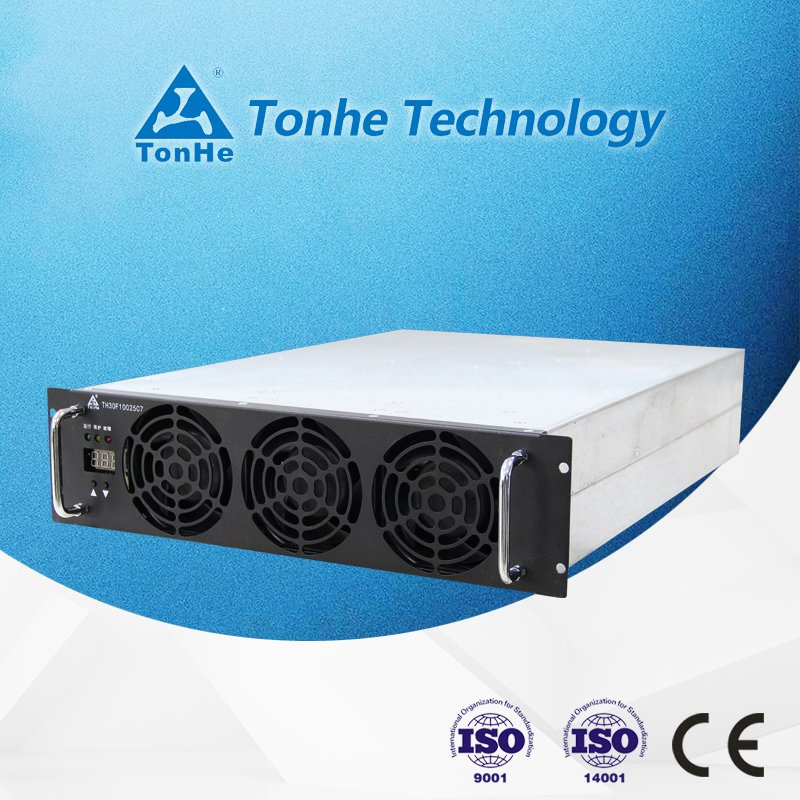

30kw EV DC Charging Module for Electric Vehicle 1000V CCS Fast Charge EV Charger

1 / 5

30kw EV DC Charging Module for Electric Vehicle 1000V CCS Fast Charge EV Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

TH30F10025C7

Type

Fast EV Charging Station

Efficiency

Larger Than 96%

Output Voltage

150-1000V

Output Current

2-120 A

Power Factor

Larger Than 0.99

Certification

CCC, CE, ISO

Warranty

12 Months

Start Mode

RFID Authentic

Location

Public Use

Soft Start Time

3-8 S

Origin

China

⚡

Product Description

This product is a three-phase 380VAC input charging module, utilizing industry-leading resonant voltage type double-loop control switching power supply technology and three-phase three-level power factor correction. It offers significant advantages in size, weight, efficiency, and high operational reliability.

30kW/1000V Power Module Technical Specification
Input Features	Input Voltage Range	285V~475V
	Input Frequency	50Hz±10%
	Power Factor	≥ 0.99
	THD	≤ 5%
Output Features	Output Voltage Range	150~1000V DC
	Max Output Current	80A
	Constant Power Range	1000-250VDC constant 30KW
	Efficiency	≥ 96%
	Communication	CAN Protocol
Environmental	Working Temp	-30~+75ºC (50ºC derating)
	Humidity	5%RH~95%RH (non-condensing)
	Cooling	Fan cooling

📜

Certifications & Manufacturing

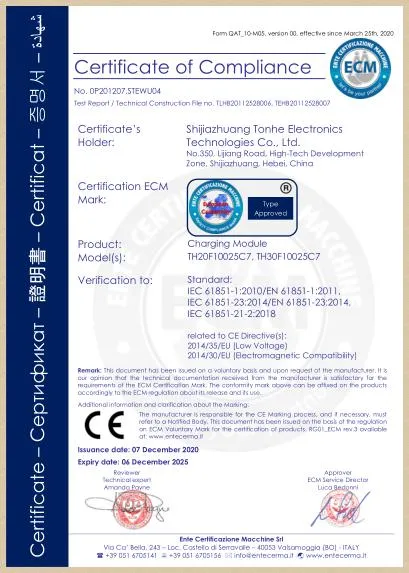

CE Certificate

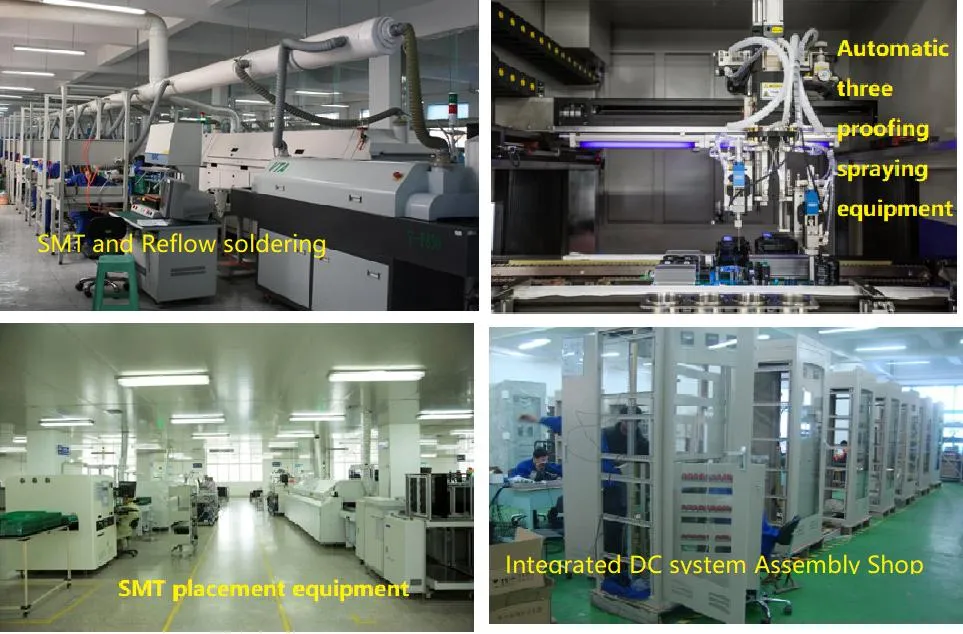

Manufacturing Center

🔬

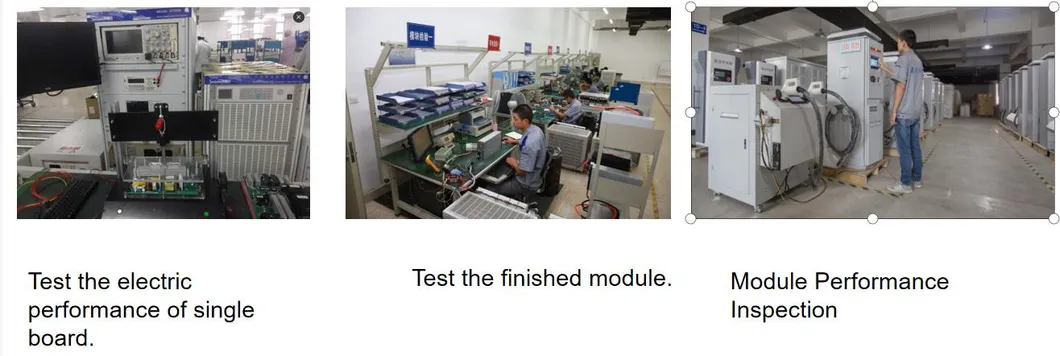

Testing & Quality Assurance

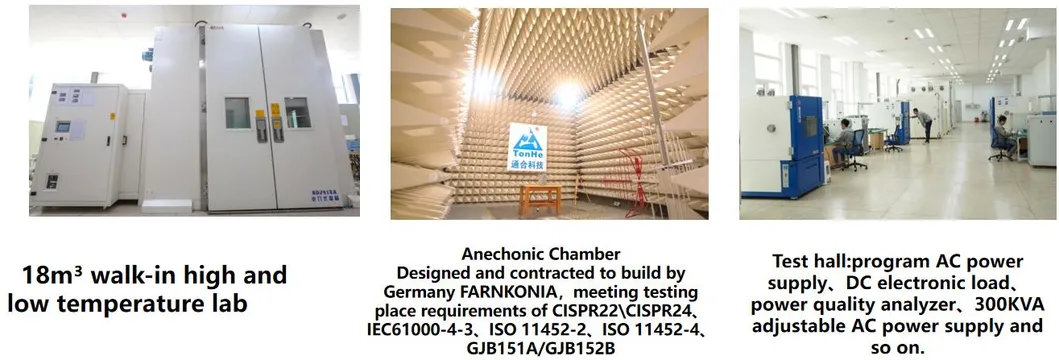

Test Center

Quality Guarantee Systems

❓

Frequently Asked Questions

Q1: What is the input voltage requirement for the 30kW charging module?

The module requires a three-phase 380VAC input, with a stable range between 285V and 475V.

Q2: What is the maximum output voltage this module can provide?

It supports a wide output voltage range from 150V DC up to 1000V DC, making it suitable for a variety of electric vehicle batteries.

Q3: How efficient is the TH30F10025C7 charging module?

The peak efficiency of this module is greater than 96%, ensuring minimal energy loss during the fast-charging process.

Q4: Does the module support parallel connection?

Yes, it features current sharing for modules in parallel with an imbalance of ≤±5%, allowing for scalable power configurations.

Q5: What cooling method is used for thermal management?

The module utilizes forced fan cooling to maintain optimal performance even in high-temperature environments.

Q6: What communication protocol does it use for integration?

It uses the standard CAN communication protocol for seamless integration into EV charging station control systems.
