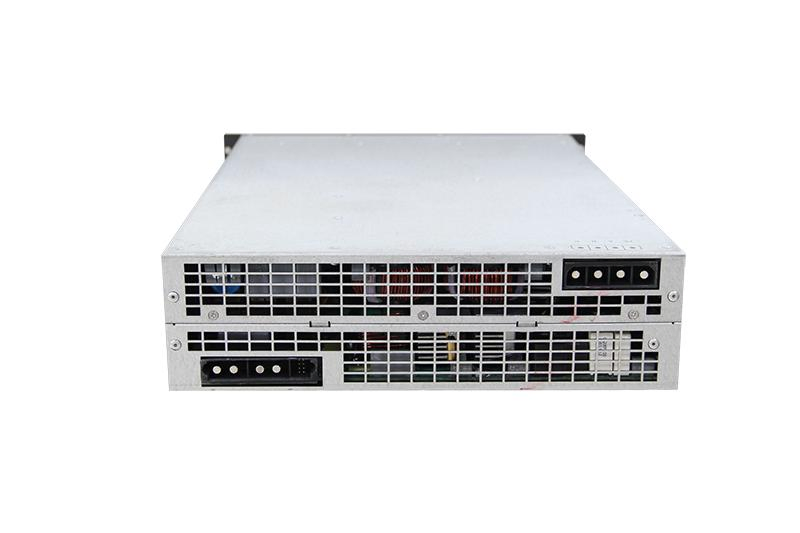

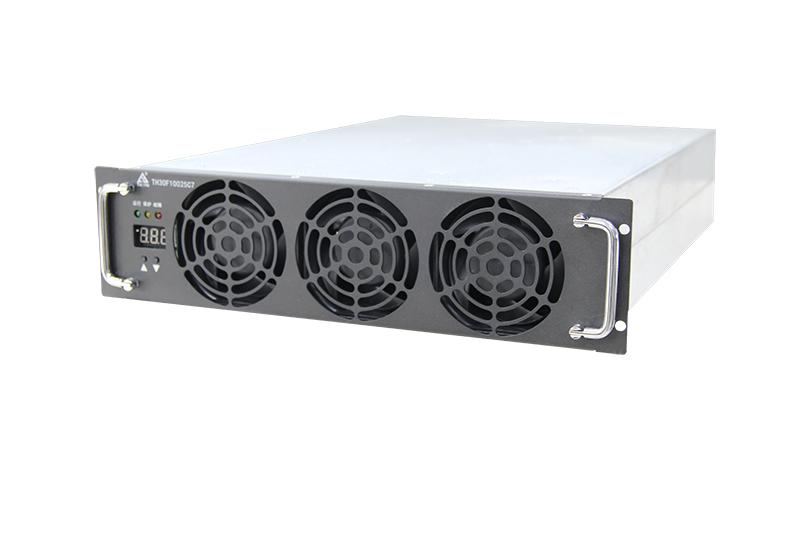

30kw 96% Efficiency 200~1000V Output Voltage EV Super Fast DC Power Supply Module 30kw Charging Module

1 / 5

30kw 96% Efficiency 200~1000V Output Voltage EV Super Fast DC Power Supply Module 30kw Charging Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

TH30F10025C7-WT

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID Authentic

Certification

CE, ISO

Specification

30kW

Weight

15kgs

Origin

China

HS Code

8504401990

📦 Packaging & Delivery

Package Size

45.00cm * 32.00cm * 10.00cm

Gross Weight

20.000kg

Transport Package

Wooden Package

⚡ Input Features

Item	Parameters	Remark
Operating Voltage (AC)	285~475V, rated voltage 380V	See voltage/power curve
Input Frequency (HZ)	45~55	-
Power Factor	Full load ≥ 0.99	-
THD	Full load ≤ 5%	-
Standby Power Consumption	< 12W	-

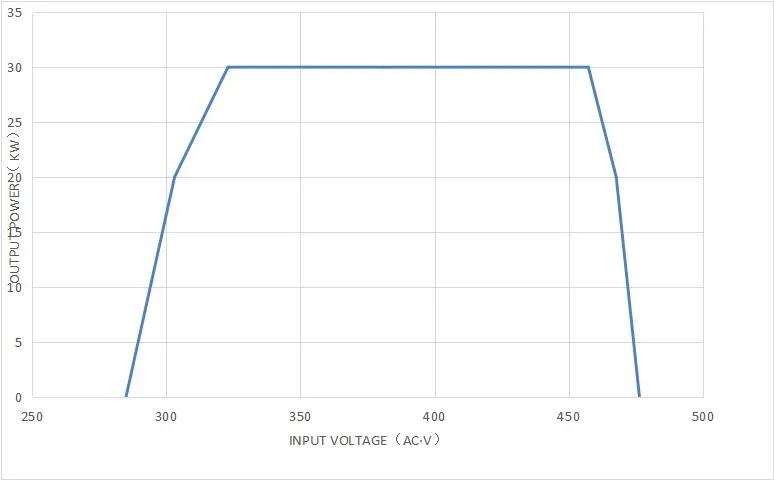

Input voltage / Output power curve

🔌 Output Features

Item	Parameter	Remark
Output Voltage Range (DC)	150~1000V	Ultra-wide range
Max Output Current (A)	120	-
Constant Power Interval	250~500VDC, 500~1000VDC	-
Output Limit Range	2~120A adjustable	See voltage/current curve
Voltage Accuracy	≤±0.5%	-
Current Accuracy	≤±1%	Load range 20%~100%
Peak Efficiency	≥95.5%	High efficiency
Soft Start Time (S)	3~8	-
Communication Protocol	CAN	Standard communication

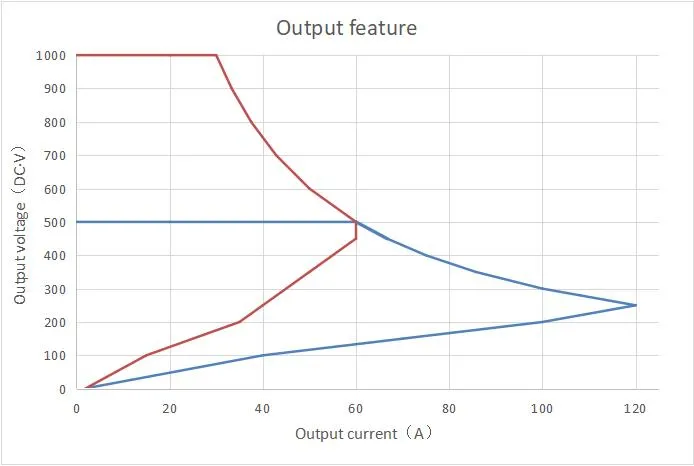

Output voltage / Output current curve

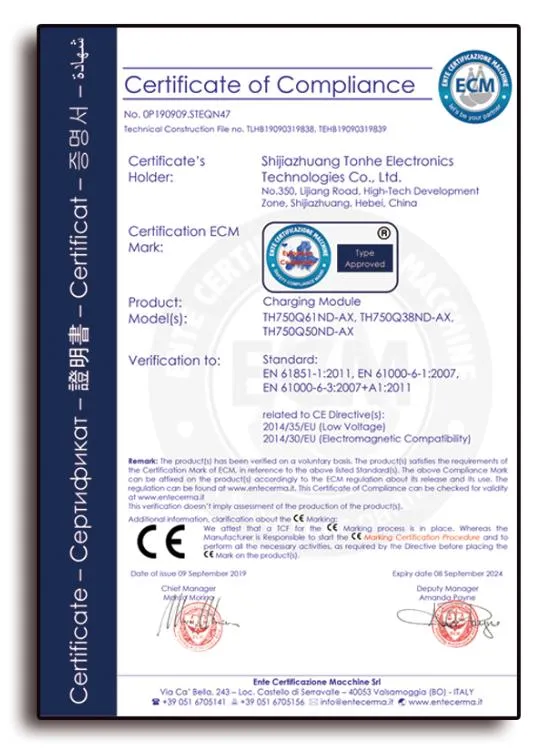

CE Certificate Compliance

🏭 Manufacturing & Testing Facilities

Professional manufacturing and testing centers ensuring the highest standards for EV charging modules.

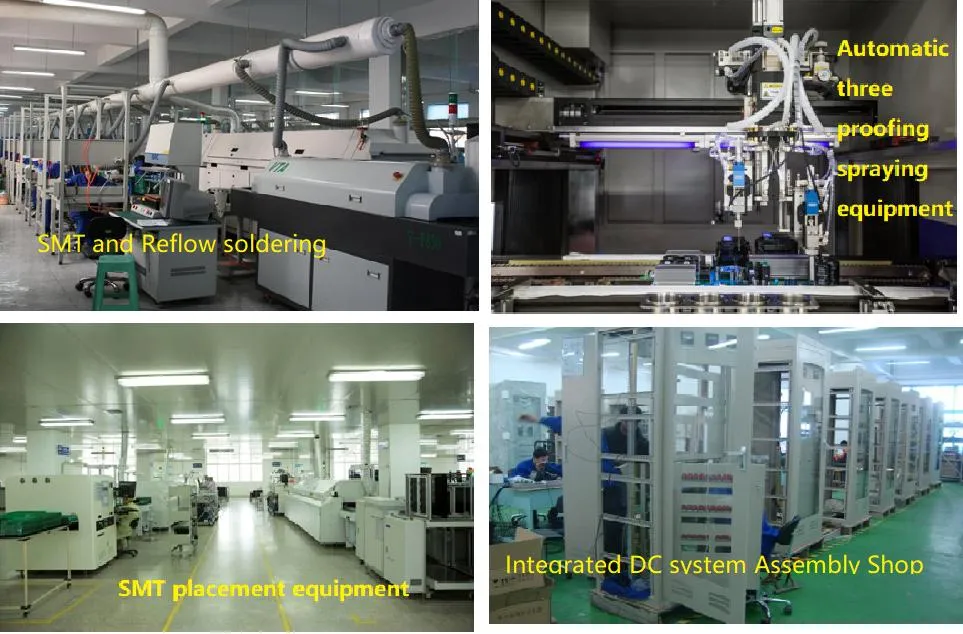

Manufacturing Center

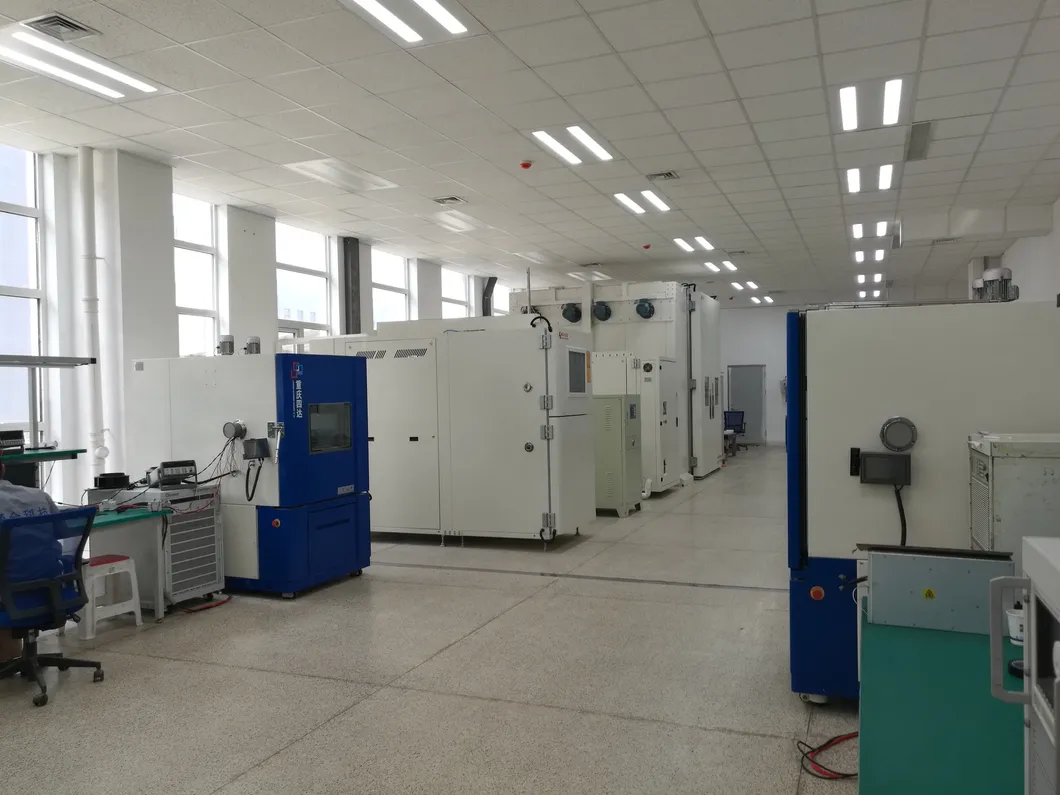

🔬 Advanced Laboratory Testing

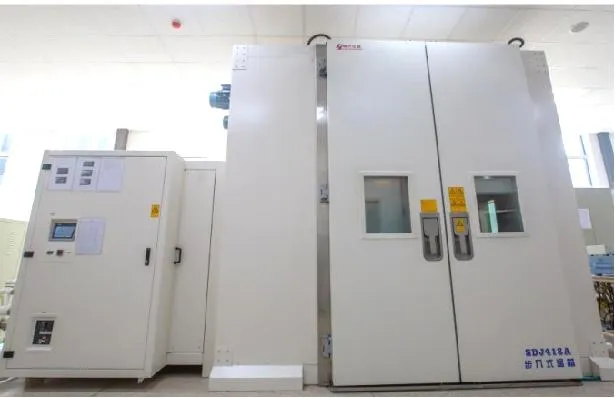

18m³ walk-in high and low temperature lab

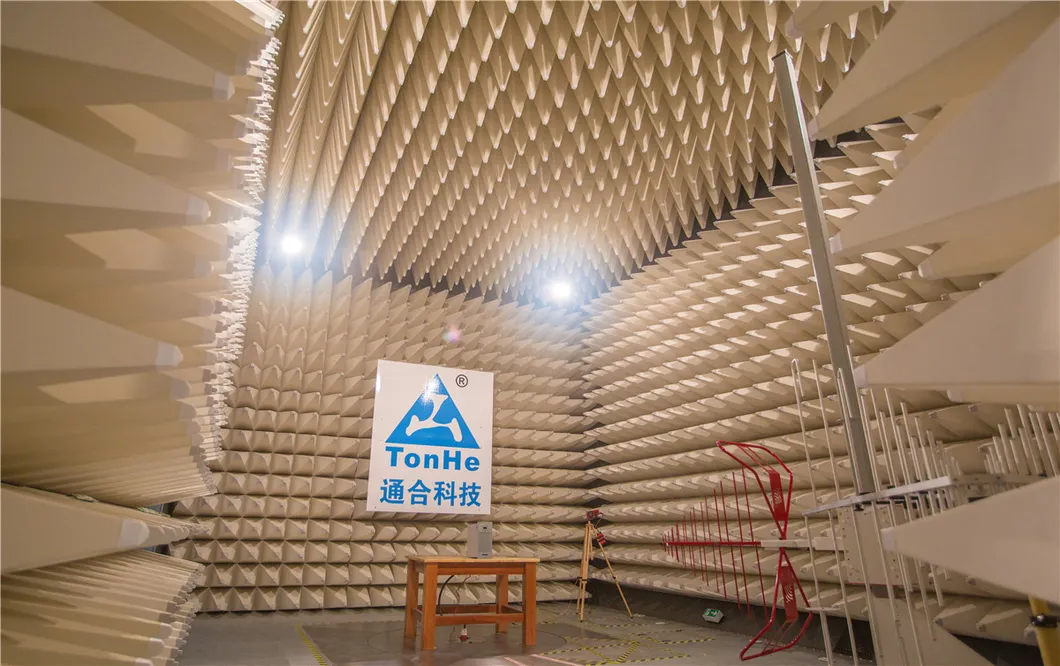

Anechonic Chamber: Designed to meet CISPR22, CISPR24, IEC61000-4-3, and ISO 11452 standards.

❓ Frequently Asked Questions

Q1: What is the input voltage range for this 30kW charging module?

A: The operating AC input voltage range is 285V to 475V, with a rated voltage of 380V.

Q2: What is the maximum output DC voltage?

A: This module supports a wide output voltage range from 150V DC up to 1000V DC, making it suitable for various EV battery requirements.

Q3: How efficient is the 30kW EV charging module?

A: The module features a peak efficiency of ≥95.5%, ensuring minimal energy loss during the power conversion process.

Q4: Does the module support parallel operation for higher power needs?

A: Yes, it supports current sharing for modules in parallel with an imbalance of ≤±5% when the average current is more than 5A.

Q5: What communication protocol is used for system integration?

A: The module uses the standard CAN communication protocol for reliable data exchange and control.

Q6: What certifications does this charging module carry?

A: The product is fully certified with CE and ISO standards, ensuring safety and quality for public and industrial use.
