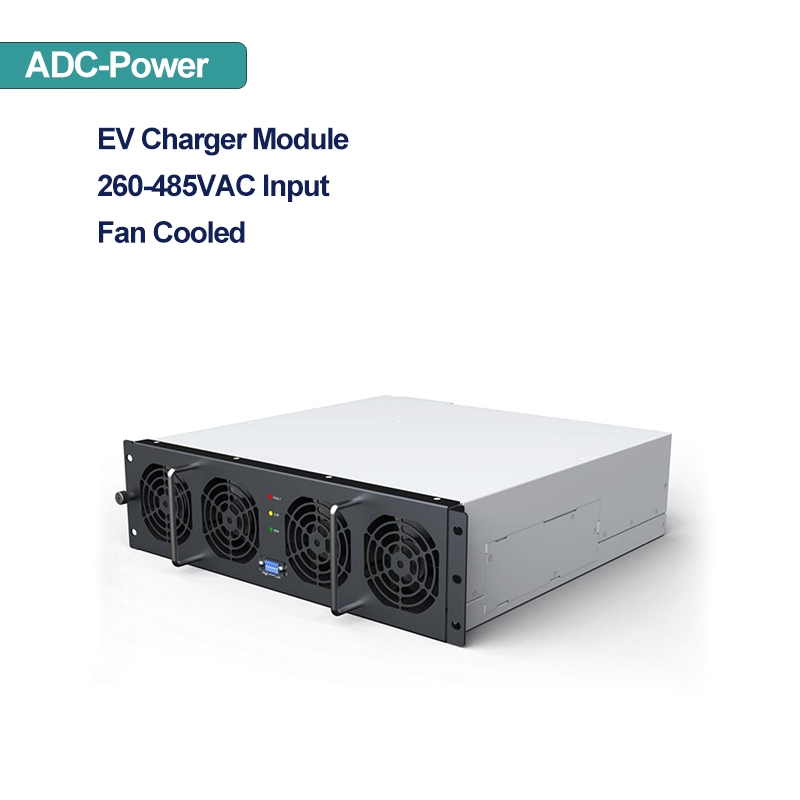

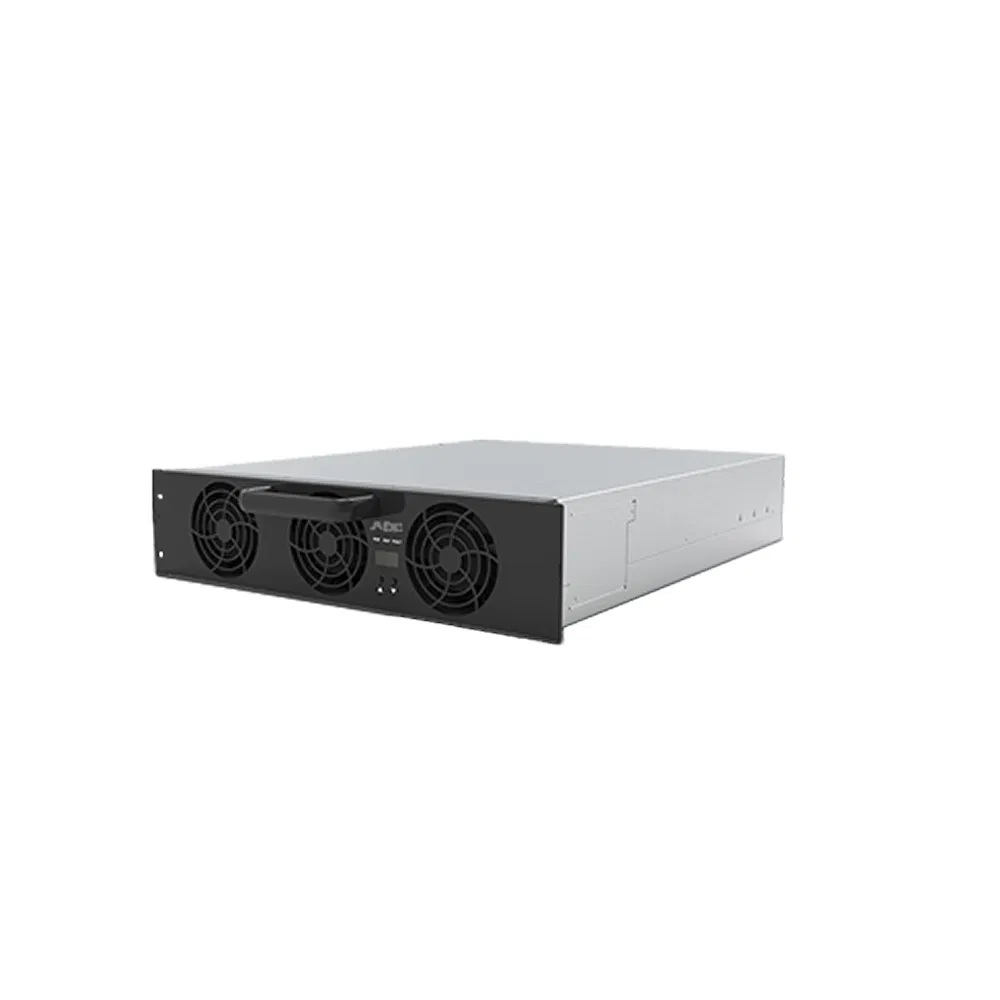

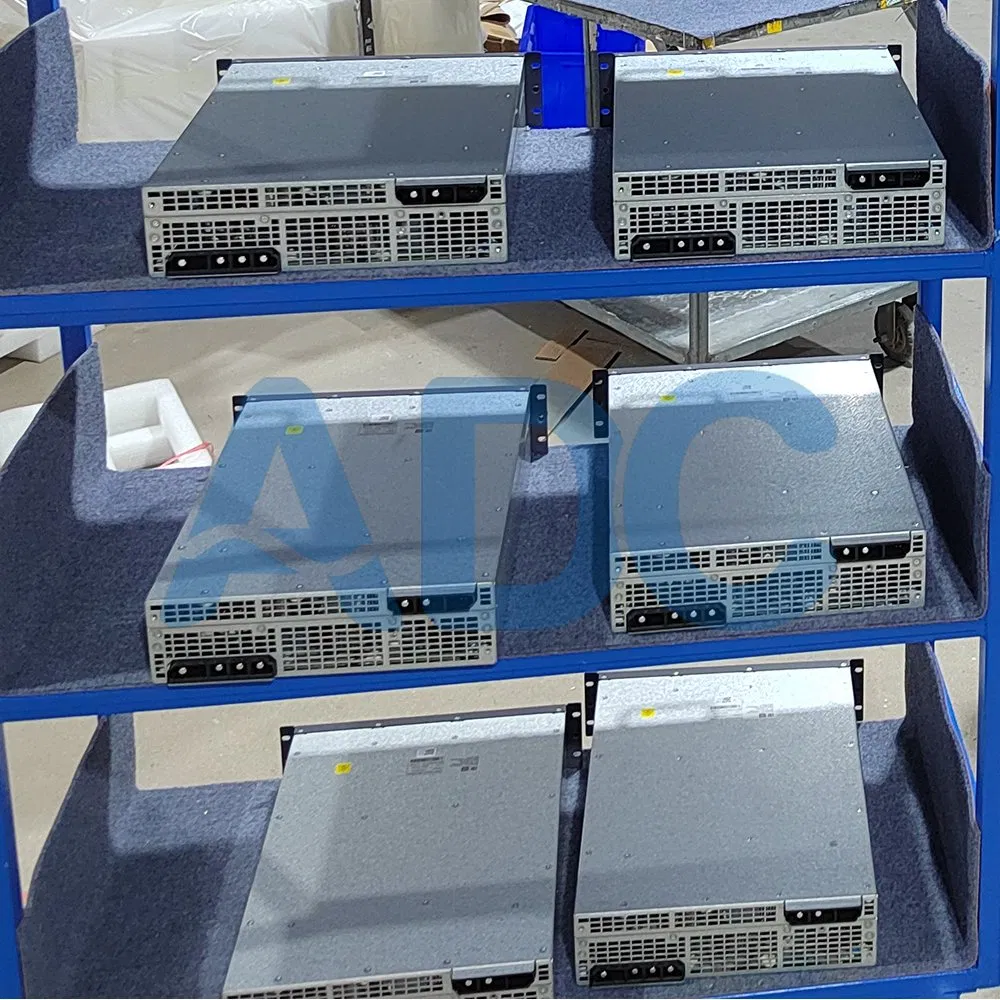

40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
1 / 5
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard
40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard

40kw EV Charging Module AC-DC Module Big Power 150-1000V Output 260-530VAC Input DC Fast Charger Module CE TUV Certification Class B Standard

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ADC1000V40KW-MF
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Weight
≤15kg
Efficiency
>95%
Warranty
12 Months
Cooling Mode
Fan Cooling
Power Factor
≥0.99
Origin
China
Product Description
We provide efficient and durable EV charging modules with high conversion efficiency, wide voltage range, and smart protection. Perfect for DC chargers, fast-charging stations, and energy storage systems.

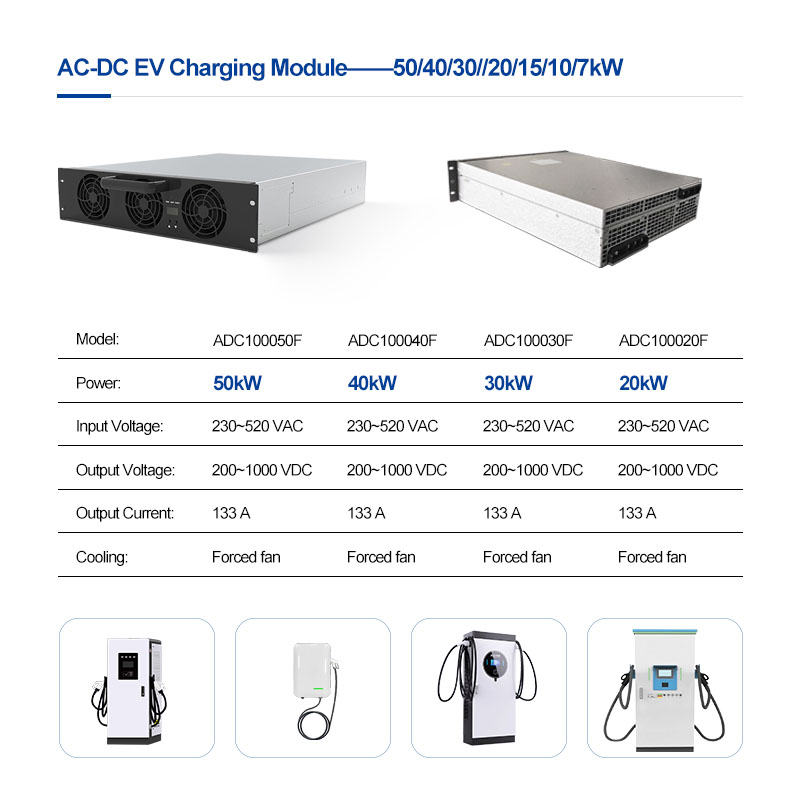

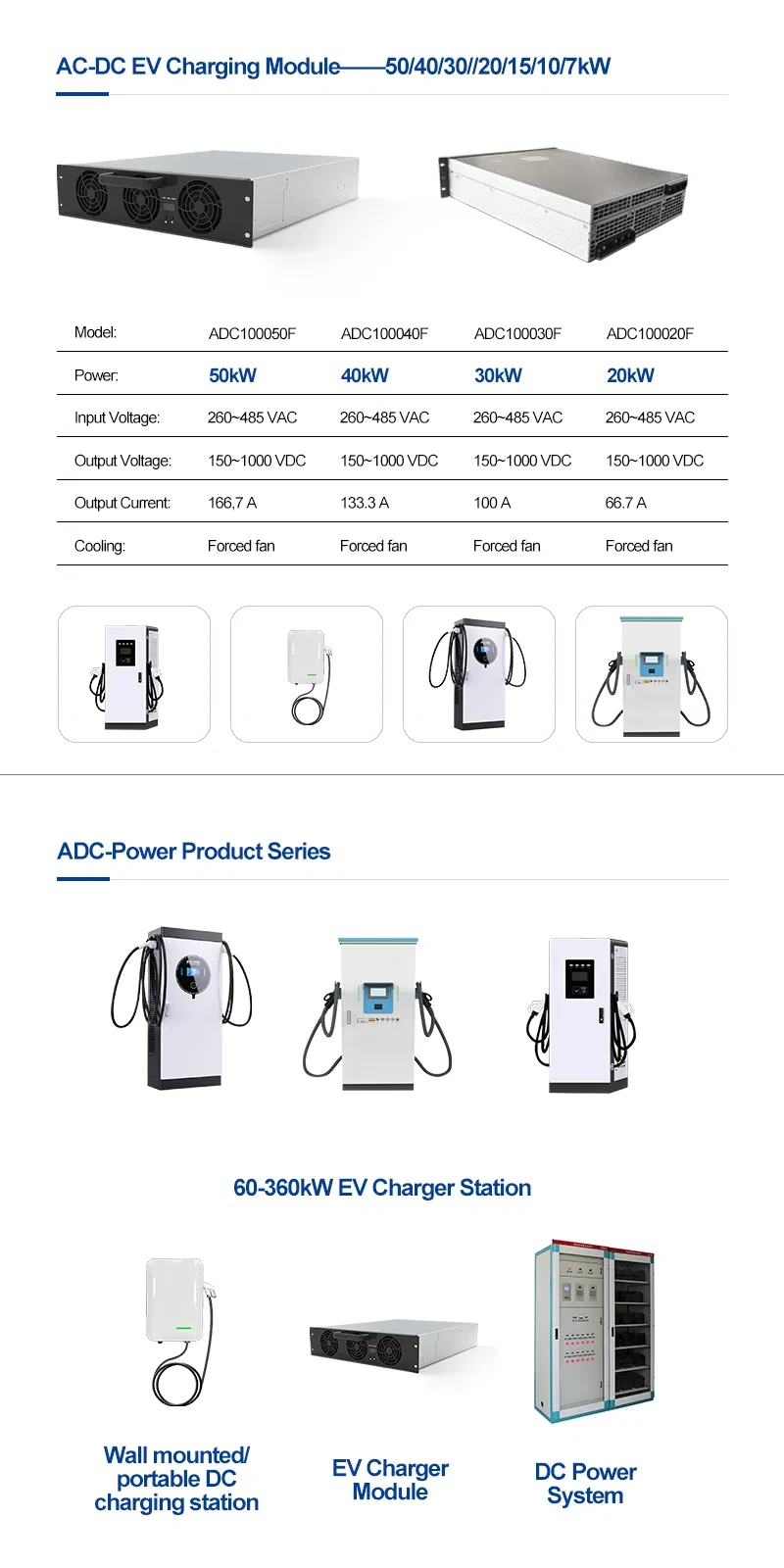

EV Charging Module Overview

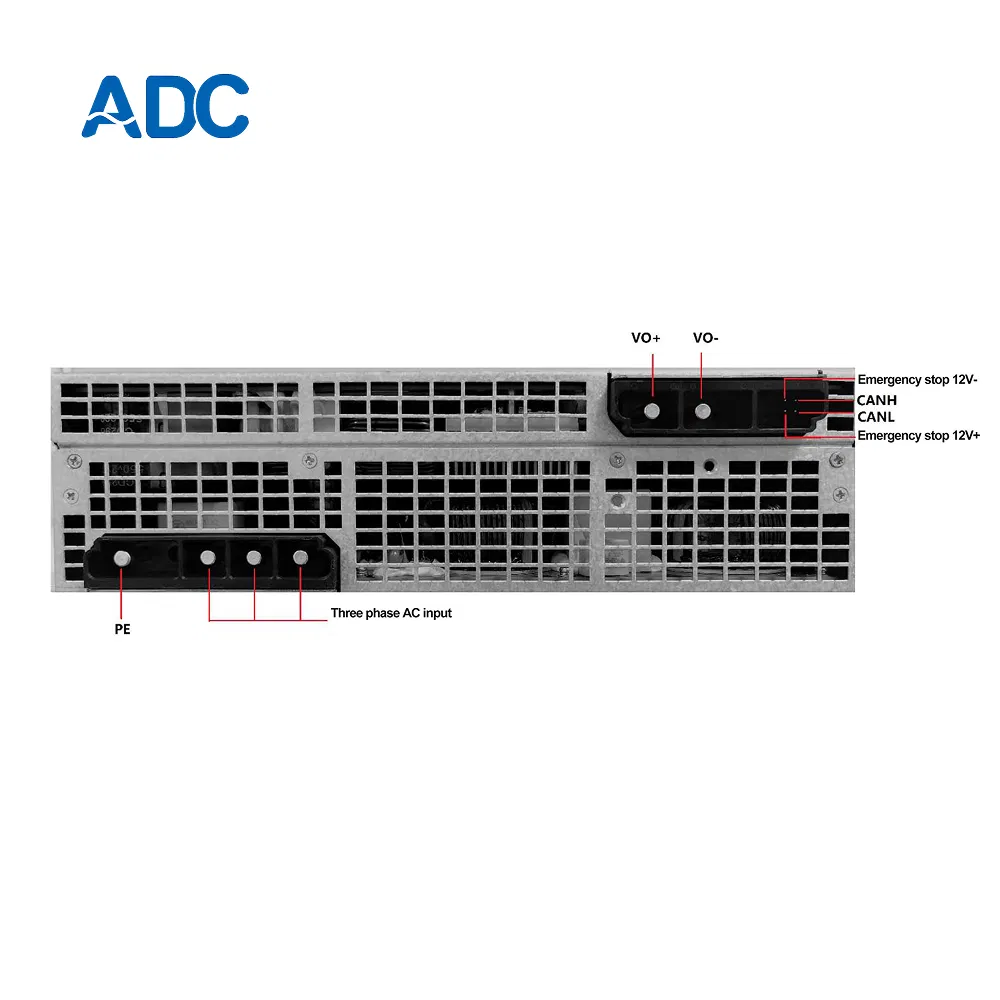

40kw EV Charging Module

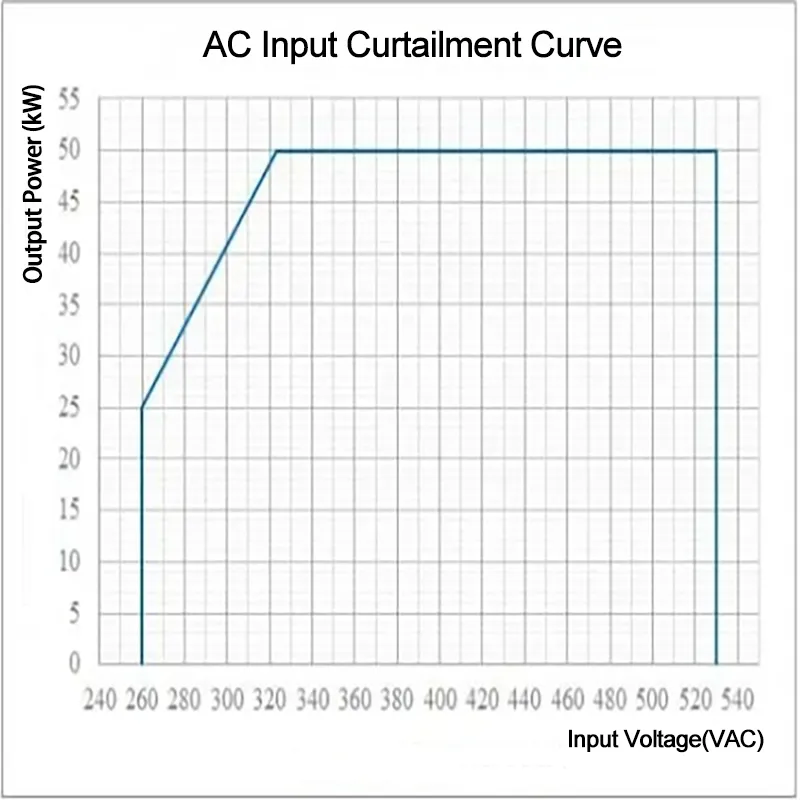

Fast Charger Module

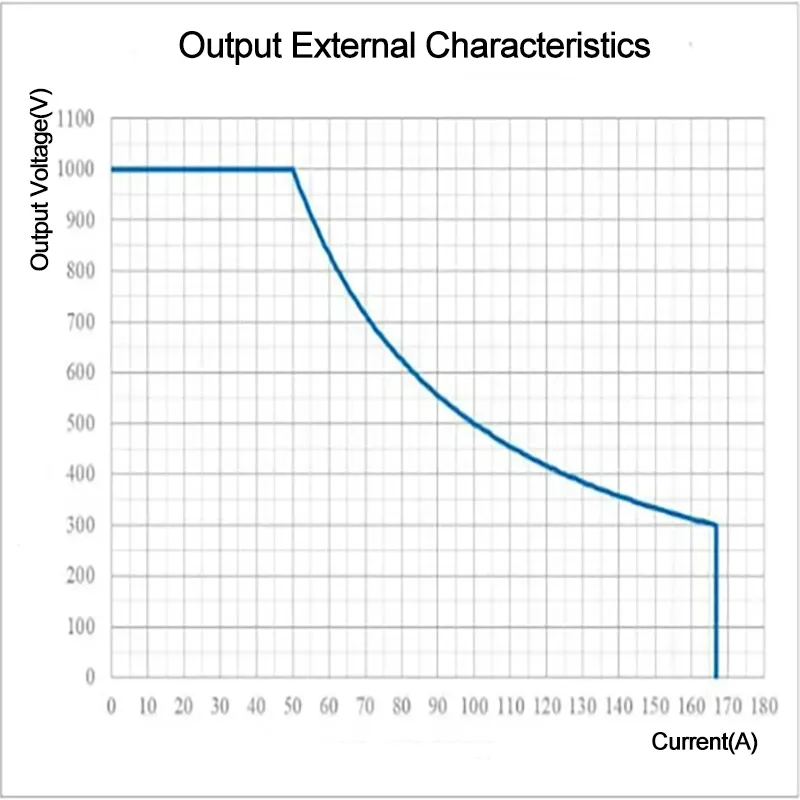

Technical Specifications
Model 20KW-MF 30KW-MF 40KW-MF 50KW-MF
AC Input
Input Frequency50±10Hz
THD≤5%
Max. Input Current<42A<60A<60A<60A
DC Output
Output Voltage150~1000VDC
Current Range0~66.7A0~100A0~133.3A0~166.7A
EfficiencyHighest >96%, Rated >95%
Environment
Operating Temp.-40℃~75℃ (derates from 55℃)
Acoustic Noise<65dB
Profile

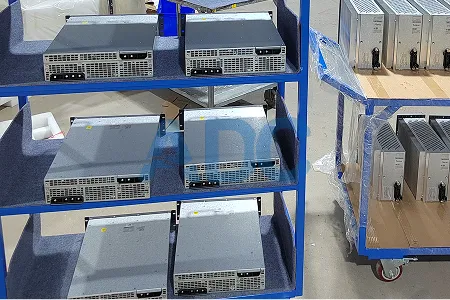

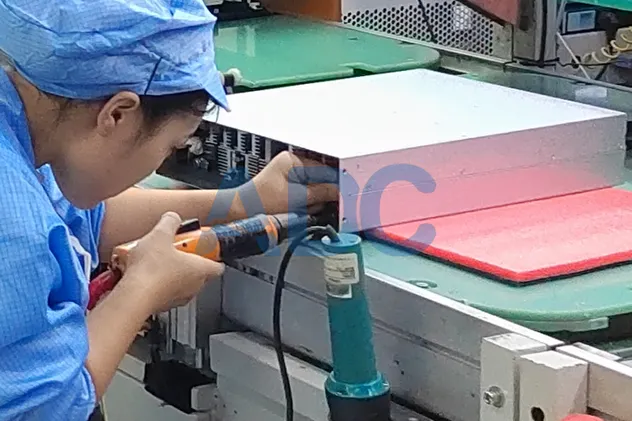

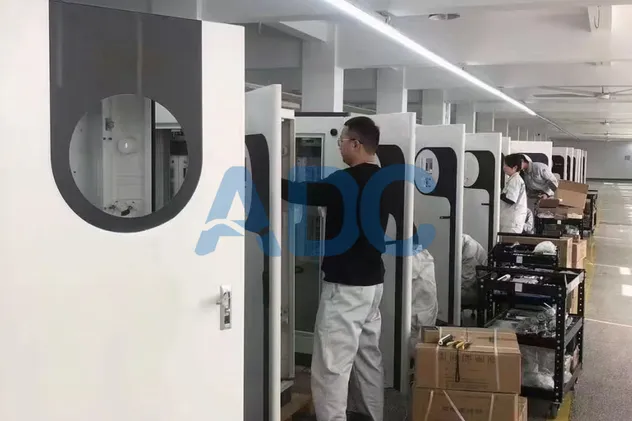

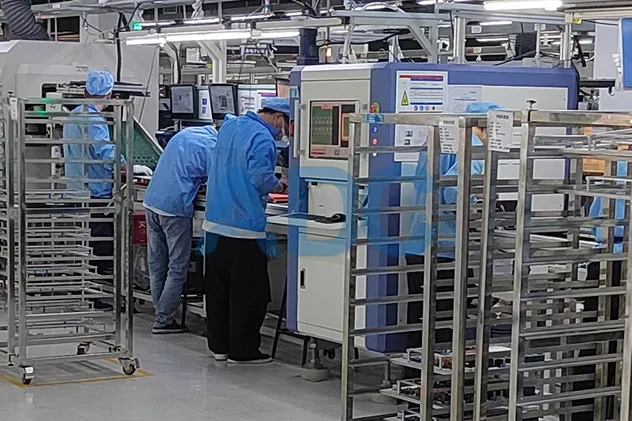

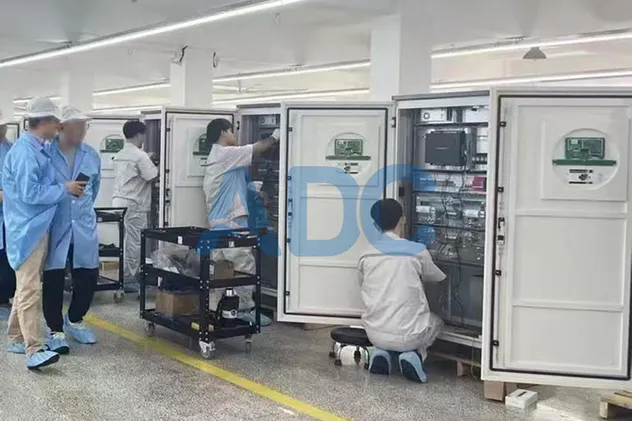

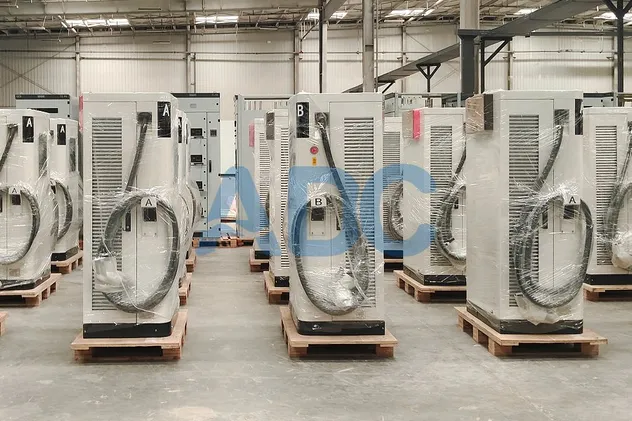

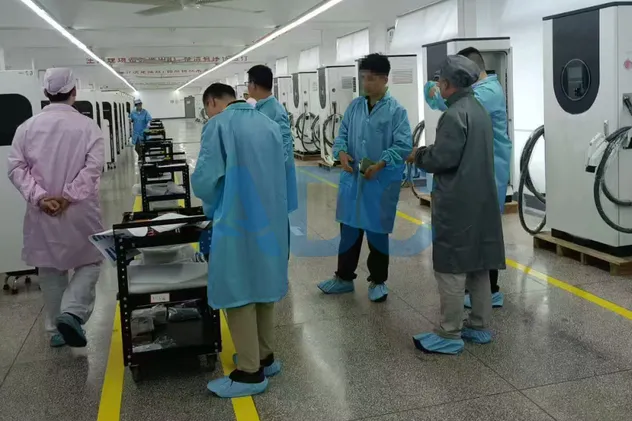

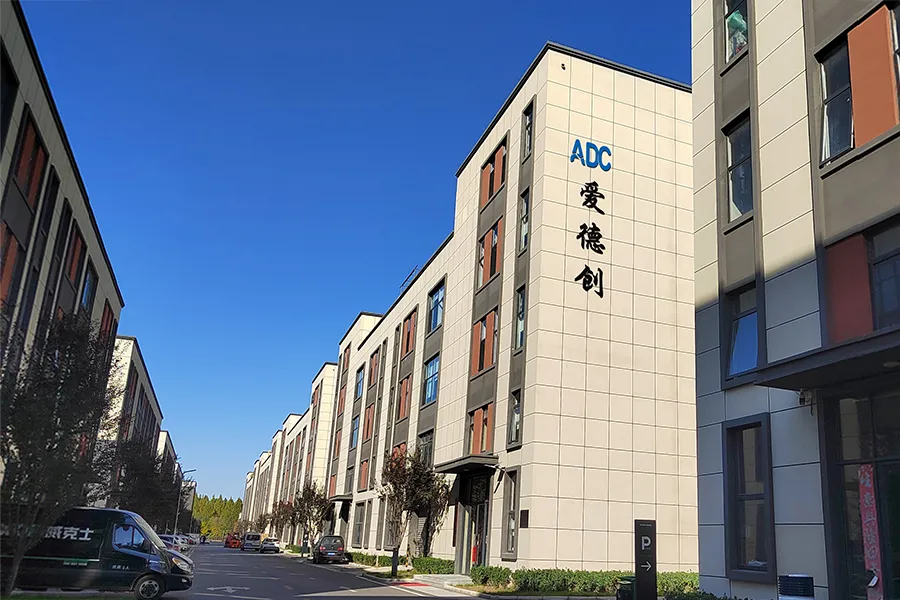

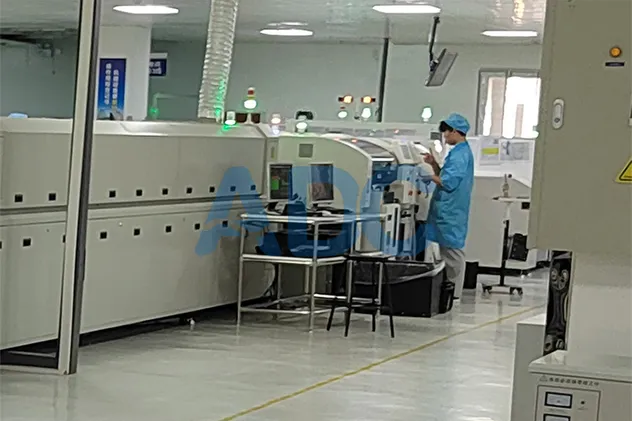

Factory Facility
With over 15 years in power technology, we specialize in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments. Our facilities include 40,000 m² of production space and over 70 R&D engineers.

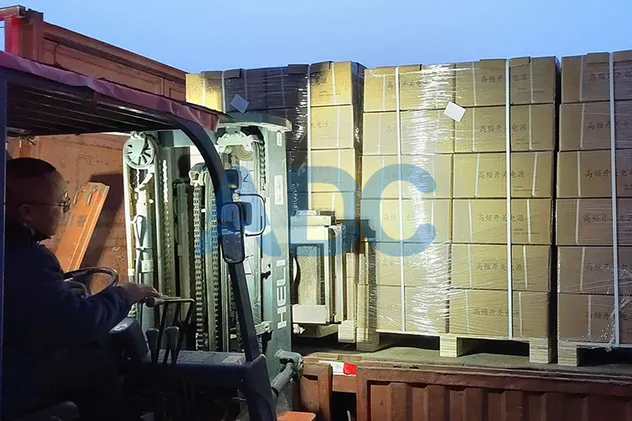

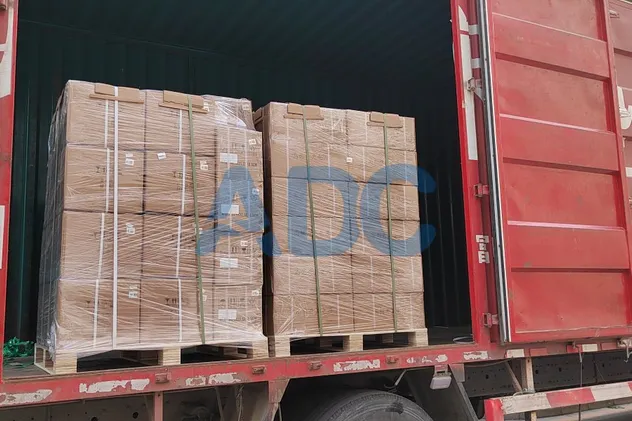

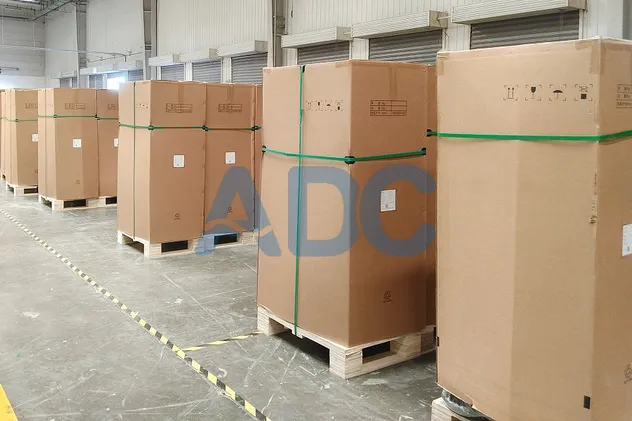

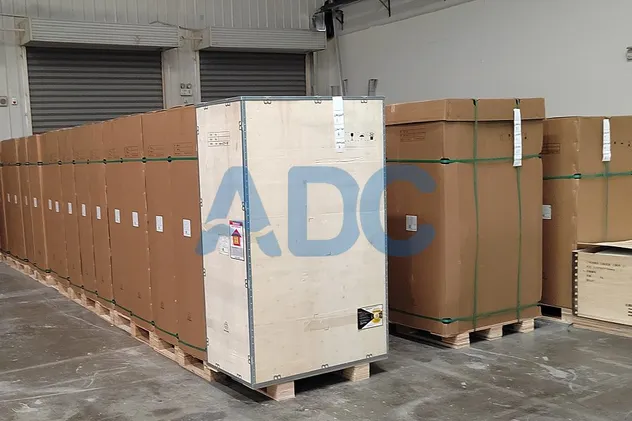

Packing & Delivery
Frequently Asked Questions
Q: Are you a factory or a trading company? A: We are a manufacturer, welcome to visit our factory at any time!
Q: Can you provide OEM/ODM service? A: Yes. If you have customized requirements, please contact us.
Q: What is your delivery time? A: Normally, we need about 30 days. For large or customized orders, the time will be slightly longer.
Q: Do you test all your goods before delivery? A: Yes, we perform 100% testing on all products before shipment.
Q: What is the warranty on your products? A: The warranty is 12 months upon receipt of shipment under normal circumstances.
Q: What are your terms of payment? A: Our standard term is 100% TT advance, though it is negotiable for strategic partnerships.
