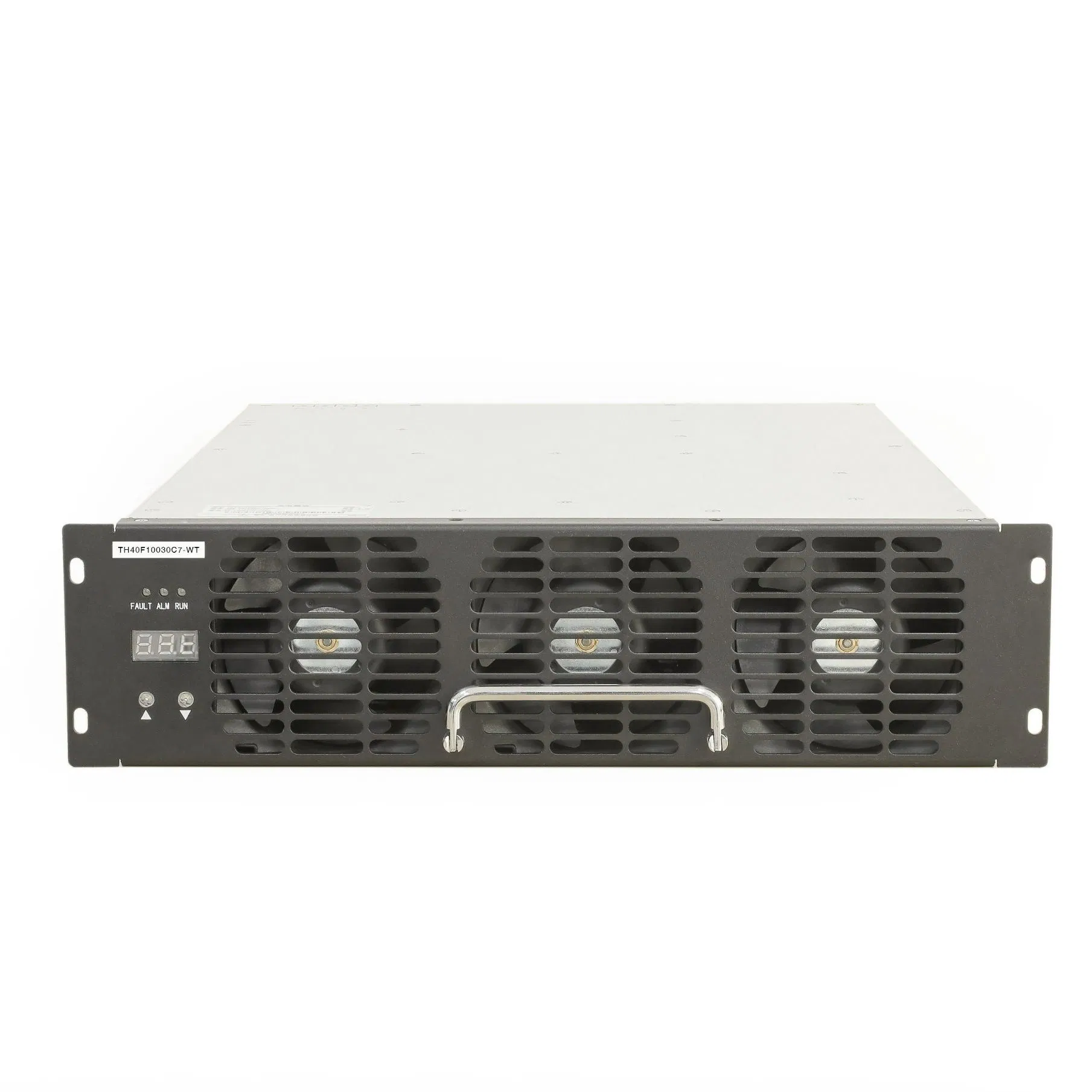

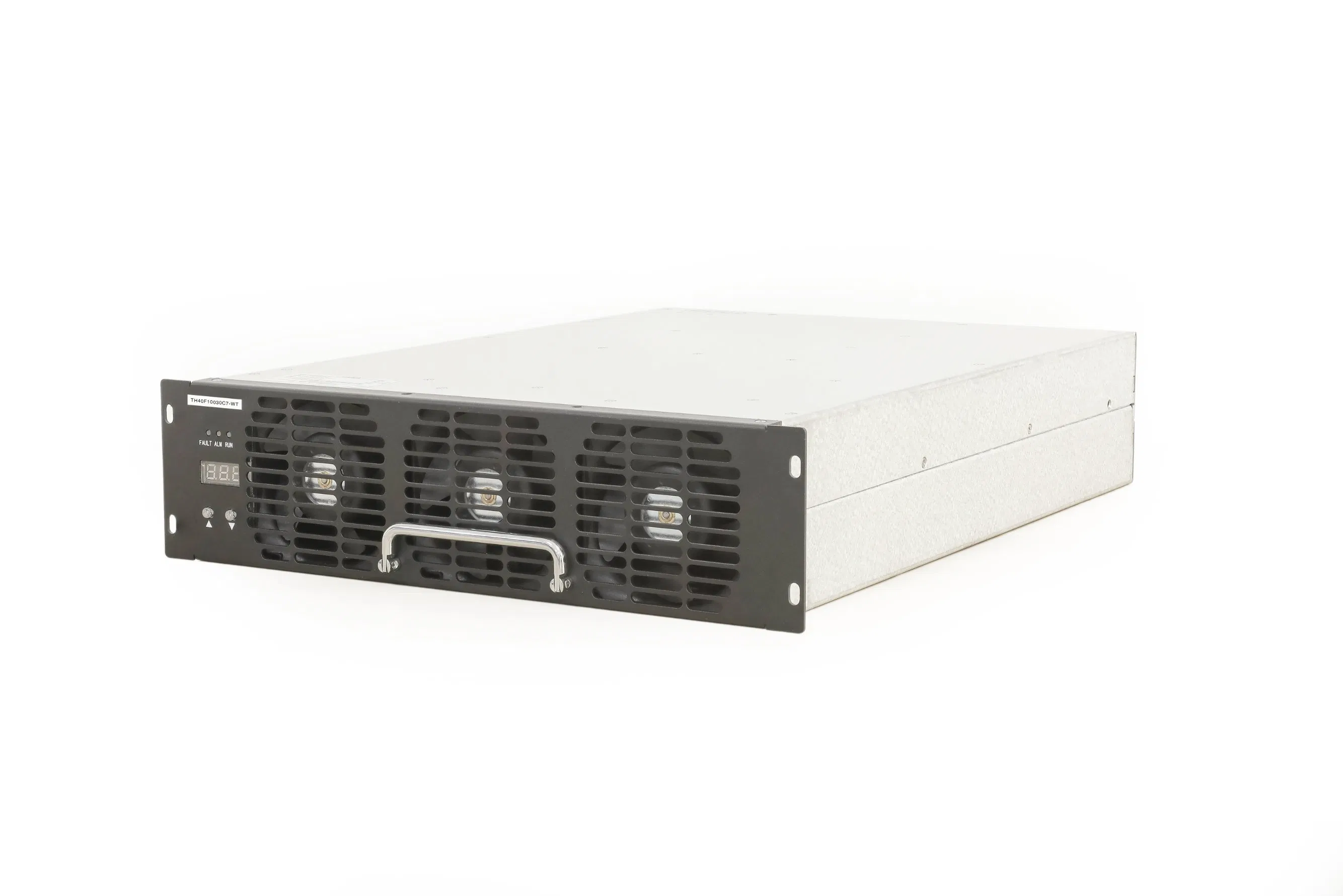

40kw EV Charging Module for DC Fast Electric Car Charger

1 / 5

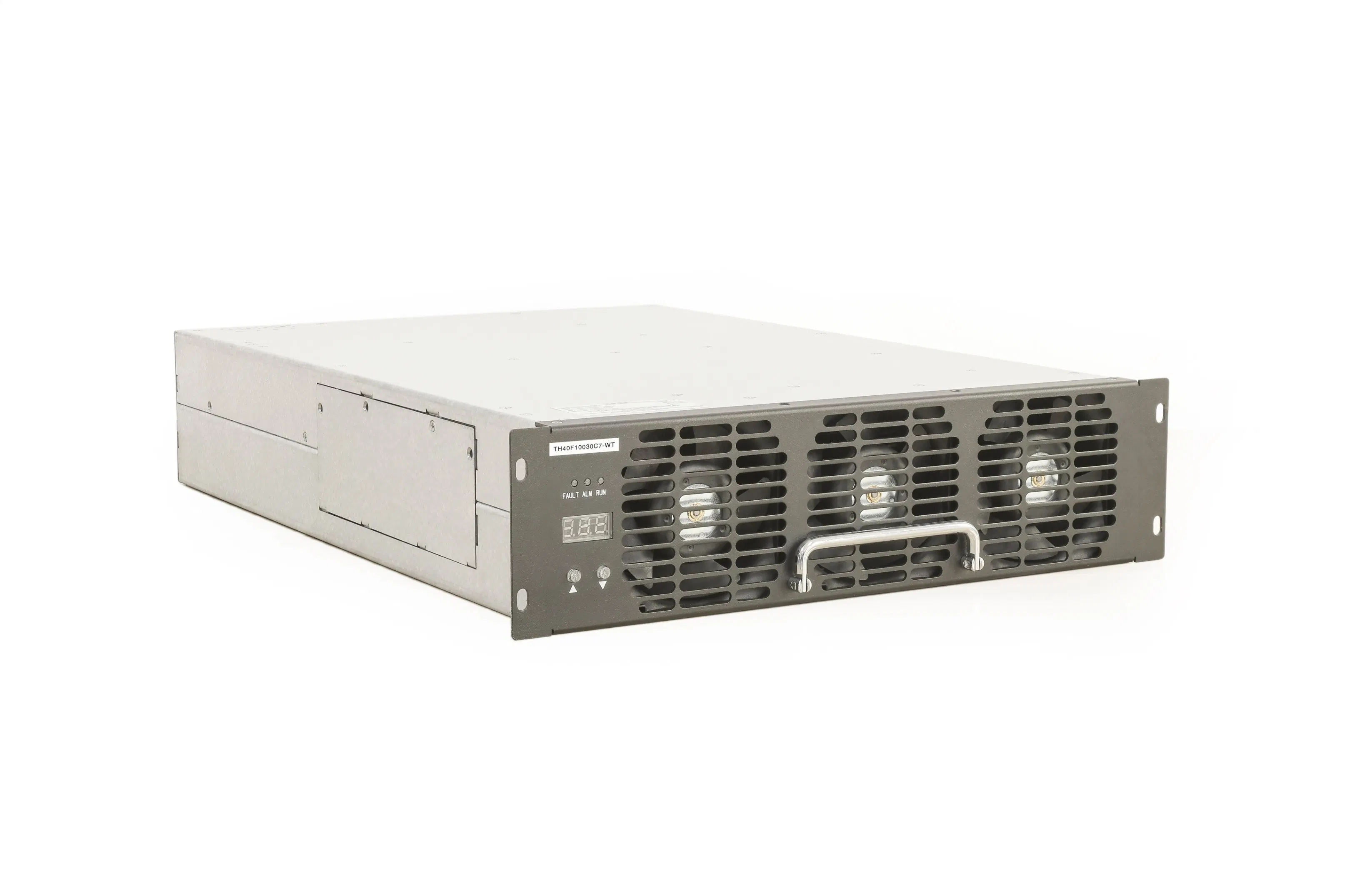

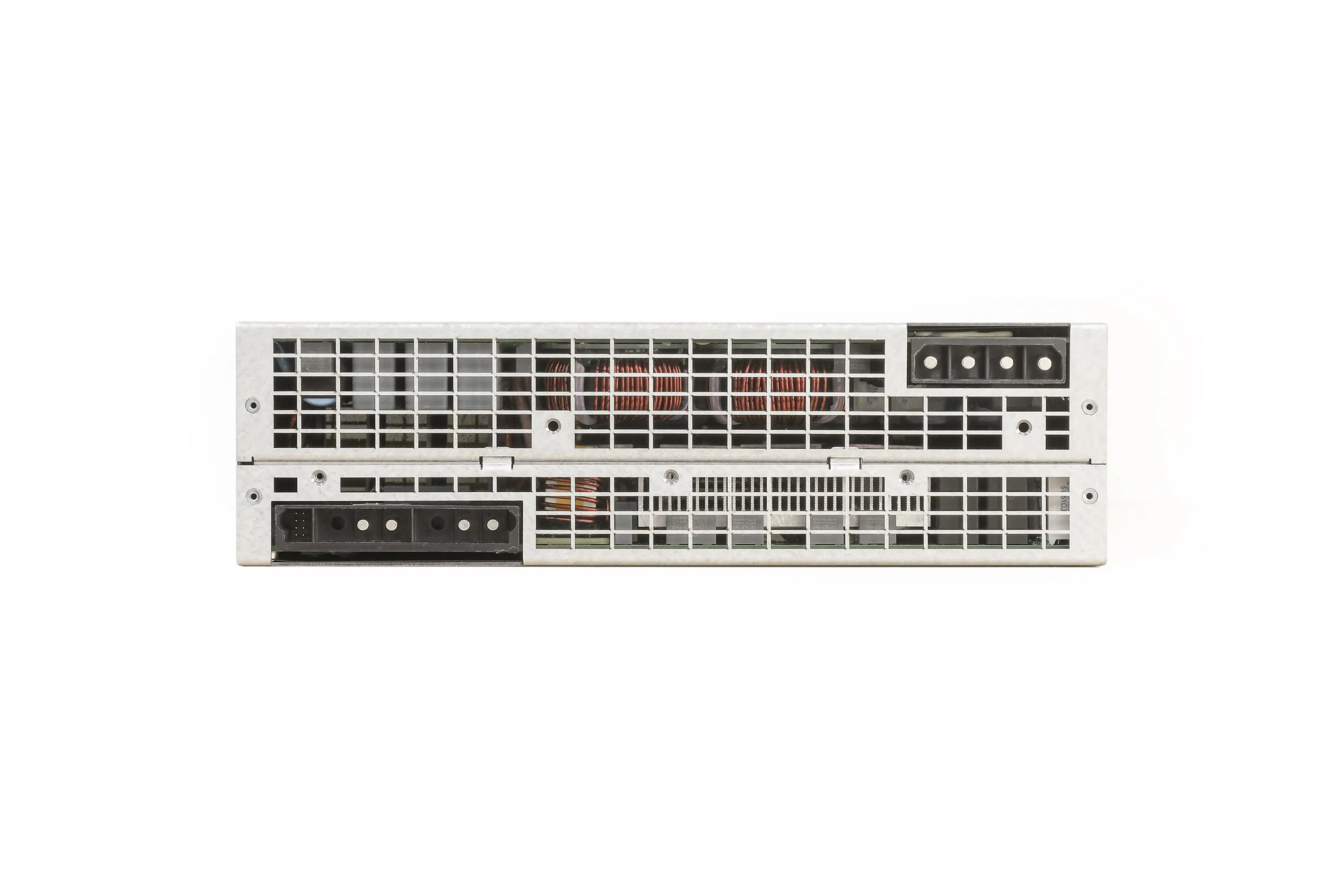

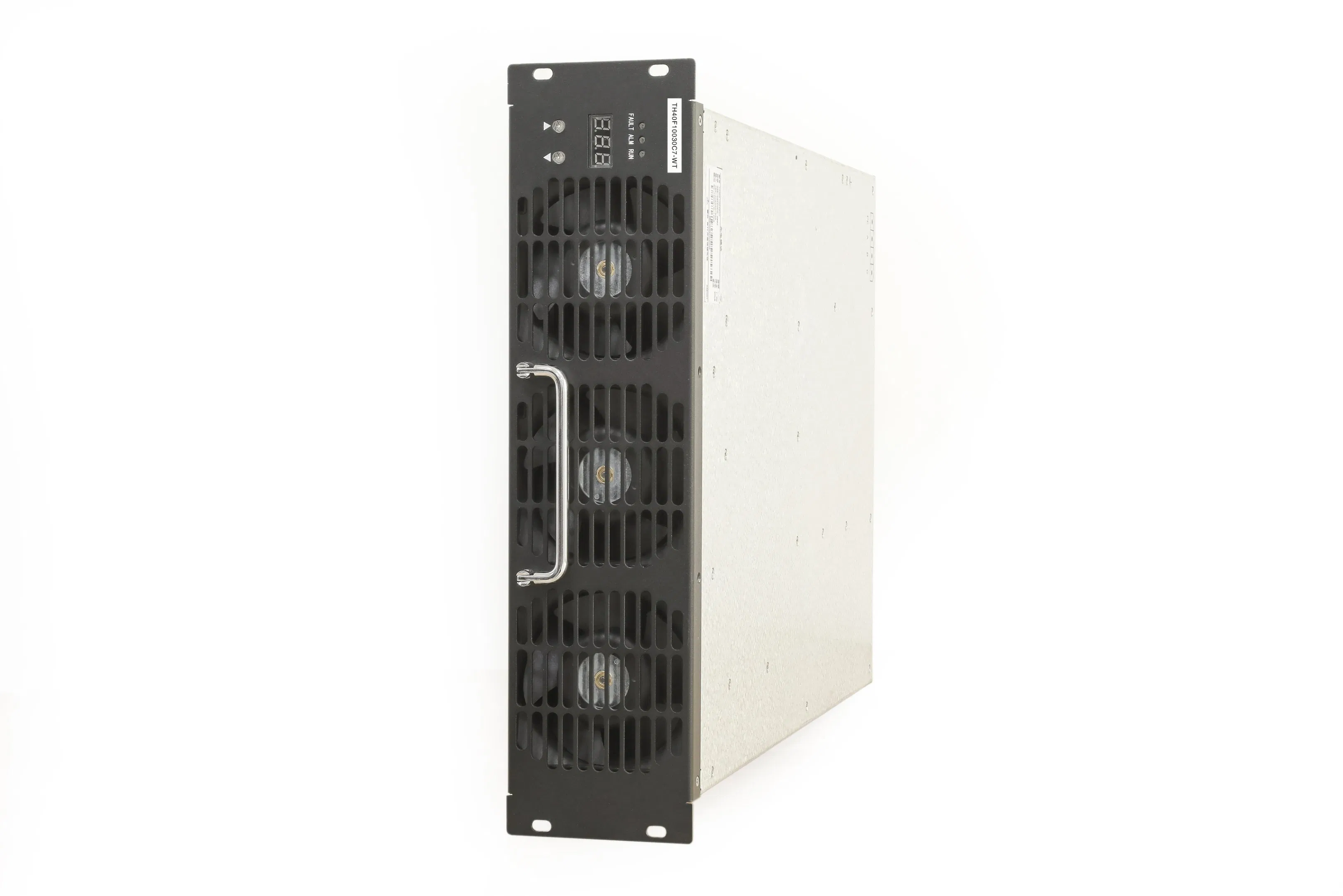

40kw EV Charging Module for DC Fast Electric Car Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

TH40F10030C7 is a high-efficiency, high-power density DC charging module developed for modern charging stations. Featuring an output voltage of up to 1000V and a constant power output of 40KW within 300-500VDC and 600-1000VDC ranges, it is designed for seamless updates and iteration.

Model NO.

TH40F10030C7-WT

Peak Efficiency

≥ 96%

THD

≤ 5%

Working Temp

-40℃ to 75℃

IP Degree

IP54

Cooling

Fan Cooling

Output Range

50-1000VDC / 0.5-134A

Protocol

CAN Bus

⚡

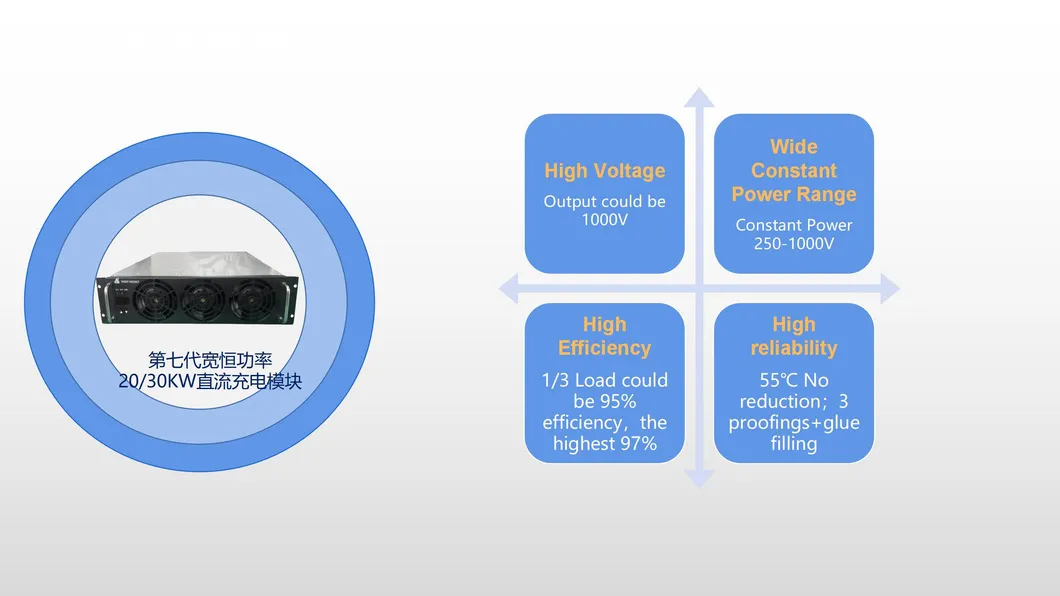

Product Characteristics

✔Wide Constant Power Range: 300-500V & 600-1000V

✔Ultra low standby power consumption: < 13W

✔Ultra wide voltage input range: 380V±25%

✔Superior Efficiency: Peak conversion ≥ 96%

✔Robust Temperature Resilience: -40°C to +75°C

✔Low Harmonic Distortion: THD ≤ 5%

📊

Product Performance Data

Parameter Item		Specification Details
AC Input	Input Voltage	Rated 380VAC, 3-phase, Range 285-475VAC
	Power Factor	≥ 0.99
	Frequency	50±5Hz
DC Output	Rated Power	40kW
	Output Voltage	50~1000VDC
	Max Current	134A
	Accuracy	Voltage ≤±0.5% \| Current ≤±1%
Physical	Dimensions	437.530084mm (LWH)
Physical	Weight	≤ 20kg

🏆

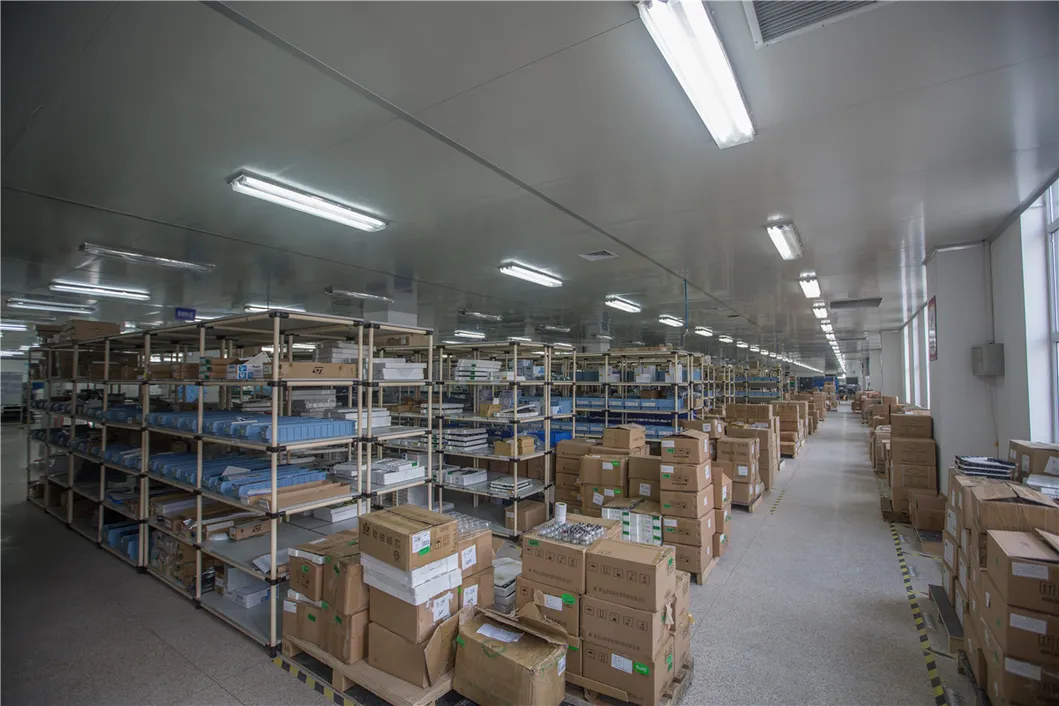

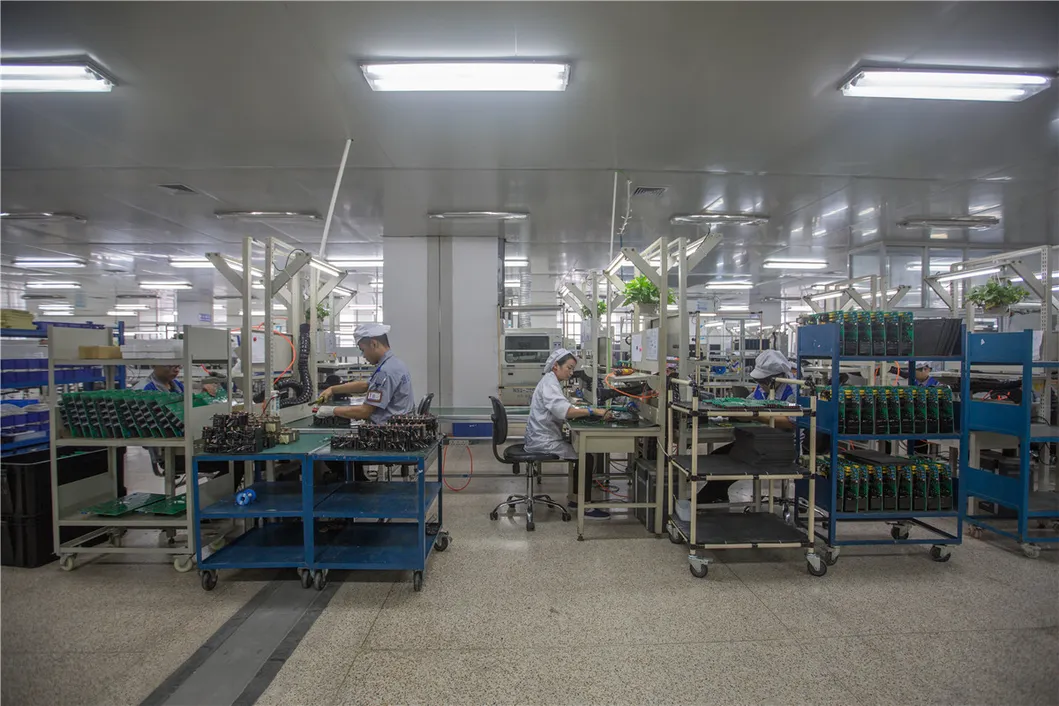

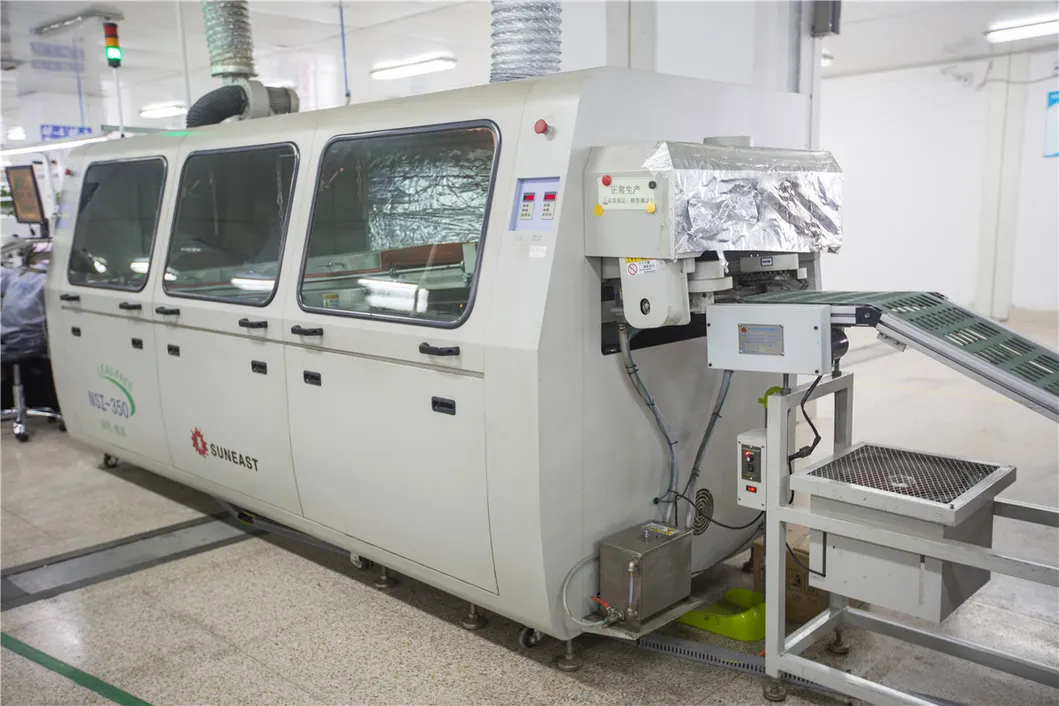

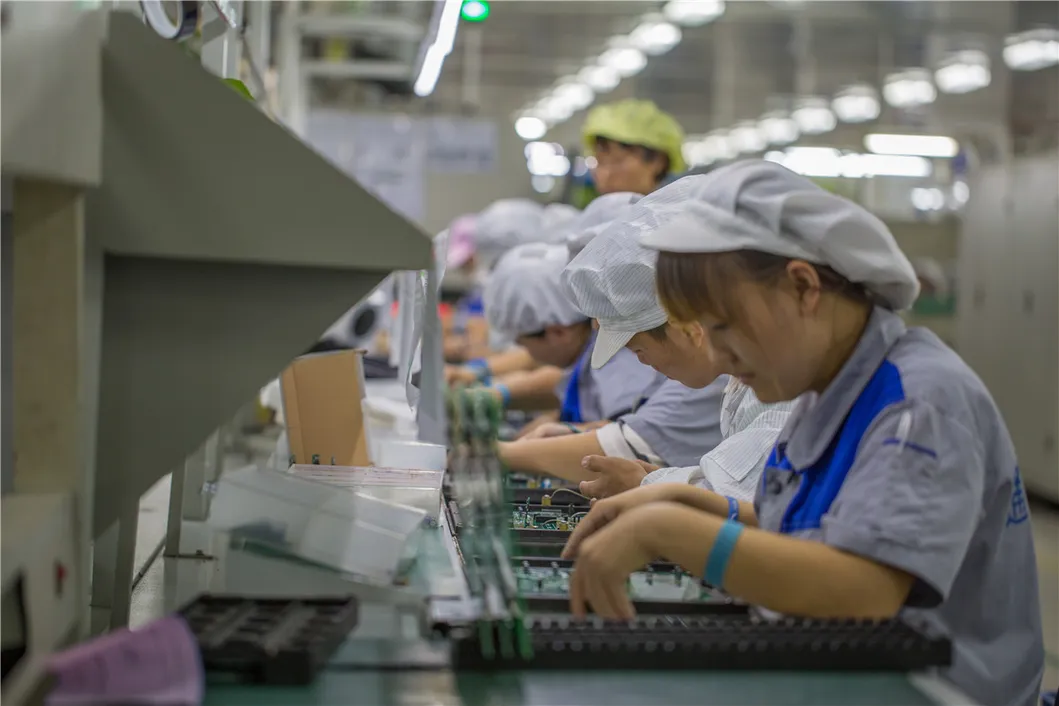

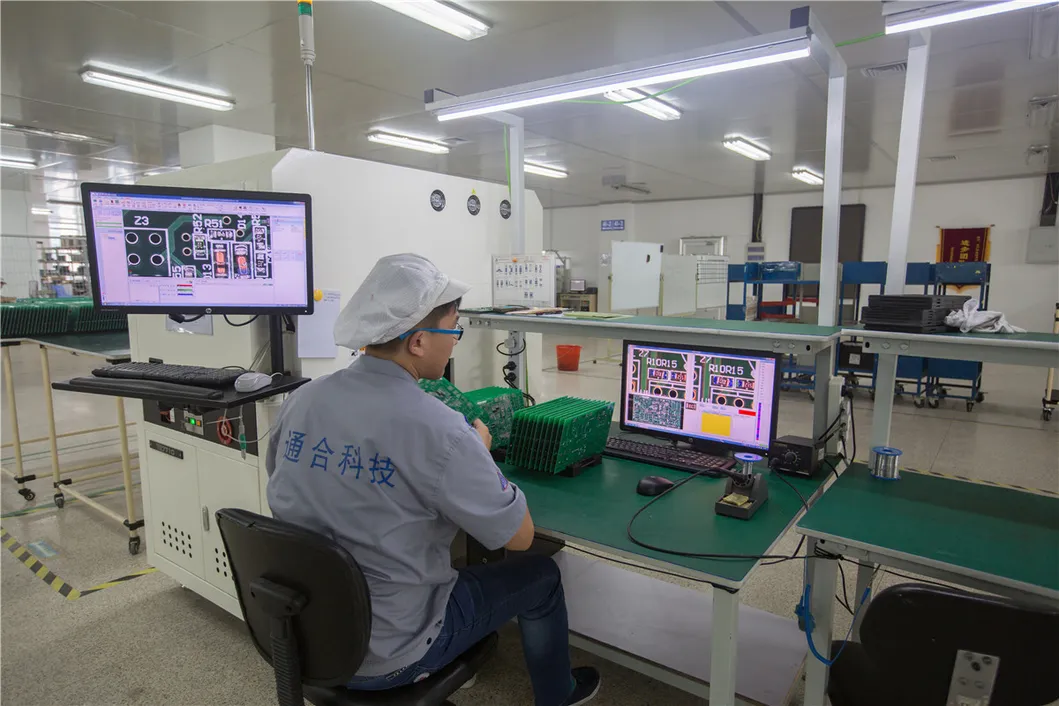

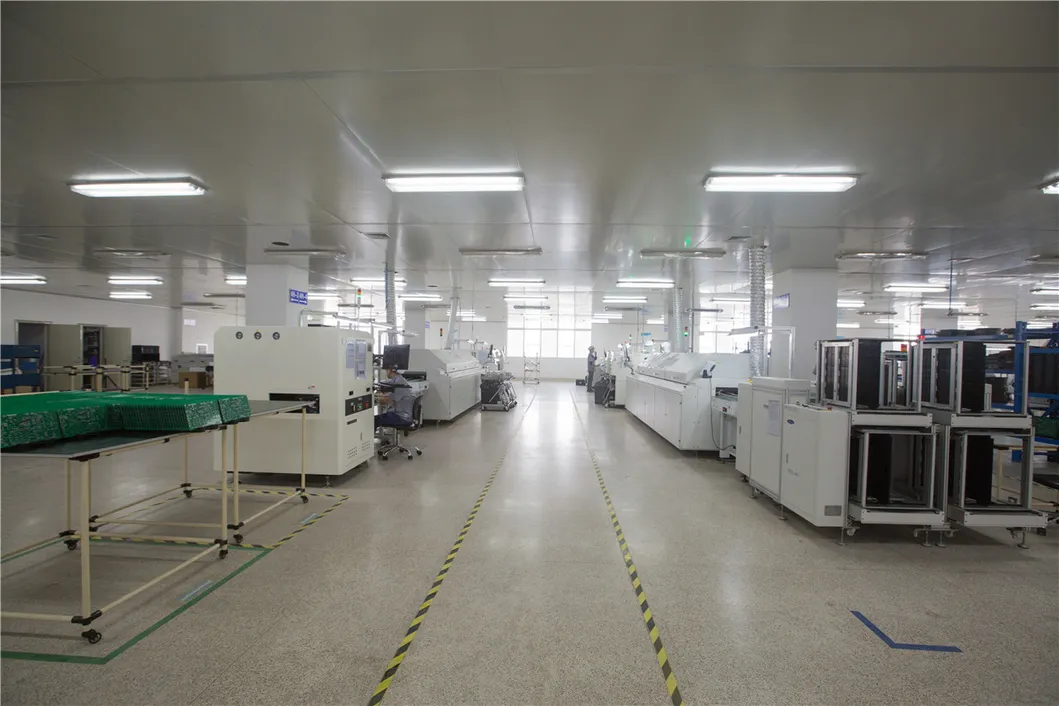

Certifications & Production

🔬

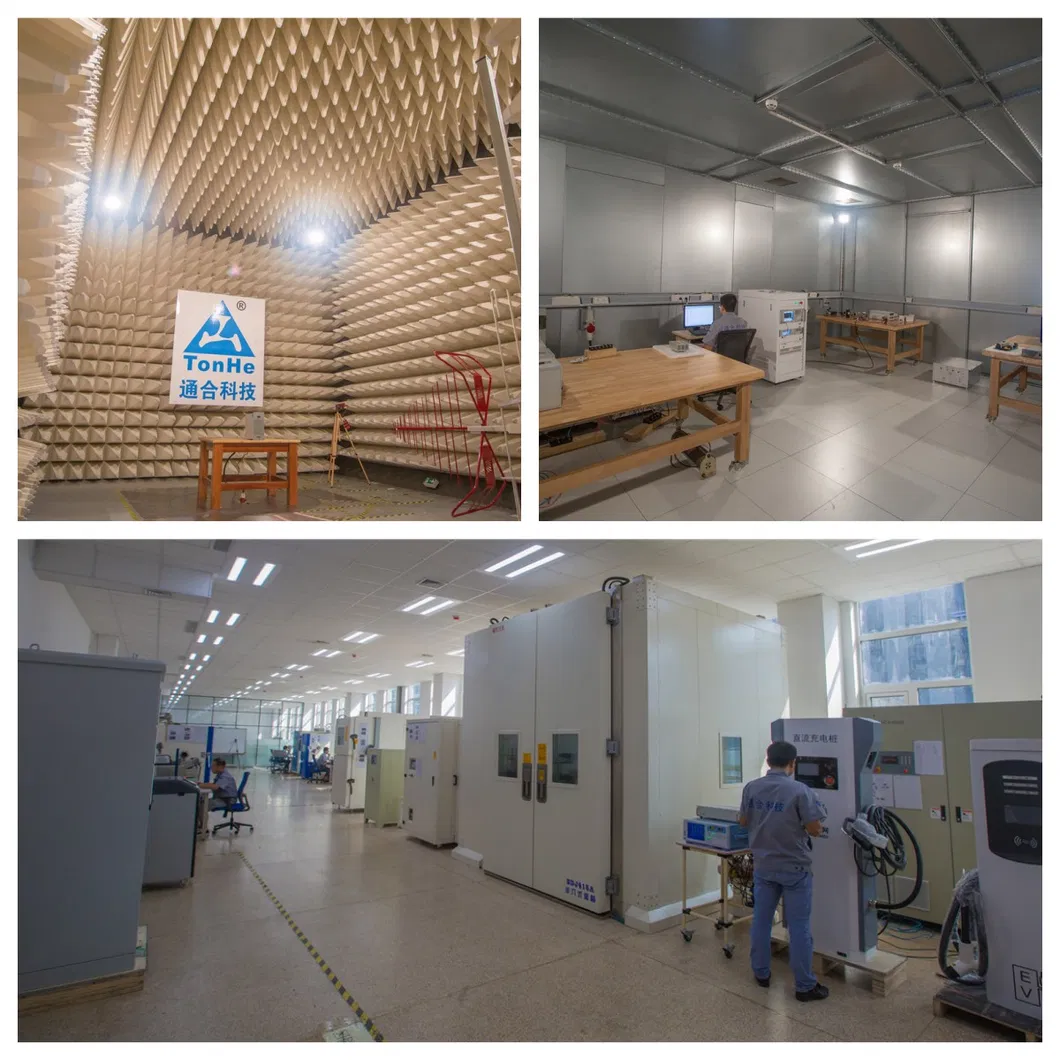

Testing Lab & Exhibitions

🌟

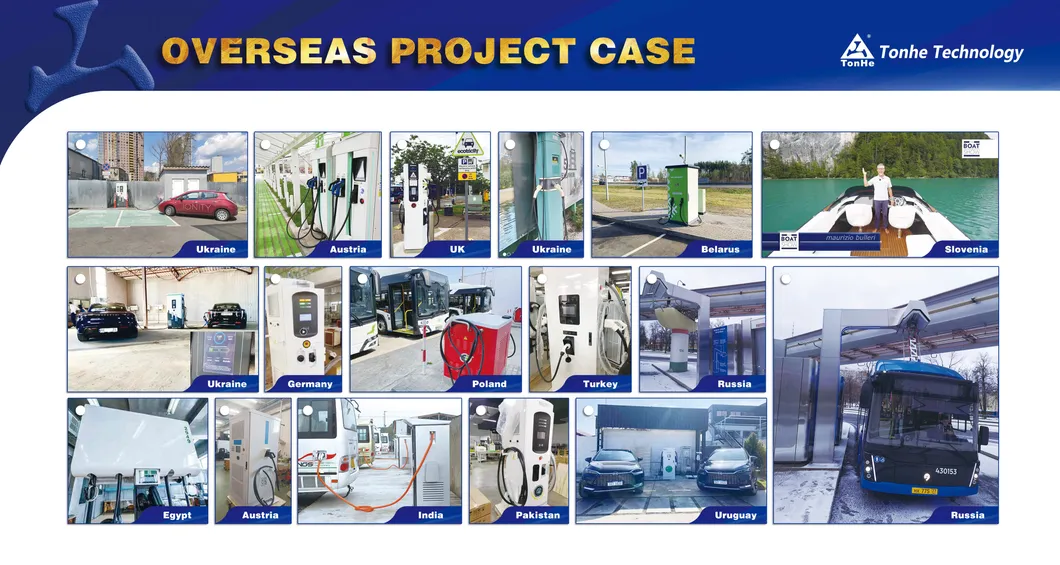

Successful Cases

Frequently Asked Questions

1. What are the module CAN baud rate and CAN voltage level?

The module operates at 125Kbs with a 5V CAN voltage level.

2. Do these modules support glue filling?

Yes, all series modules support glue filling for enhanced protection and durability.

3. What are the installation requirements for the charging module?

The module can be installed horizontally, side-standing, or upside down. For upside-down installation, a front panel without a handle is recommended.

4. What is the standard delivery time?

Modules generally require about 7 days, while standard charging piles take approximately 35 days. Custom or large orders are coordinated based on workshop capacity.

5. What is the warranty period for this module?

The standard warranty is 12 months from the date of receipt of shipment.

6. Is after-sales technical support available?

Yes, we provide both online technician support and site guidance based on the contract and specific installation conditions.
