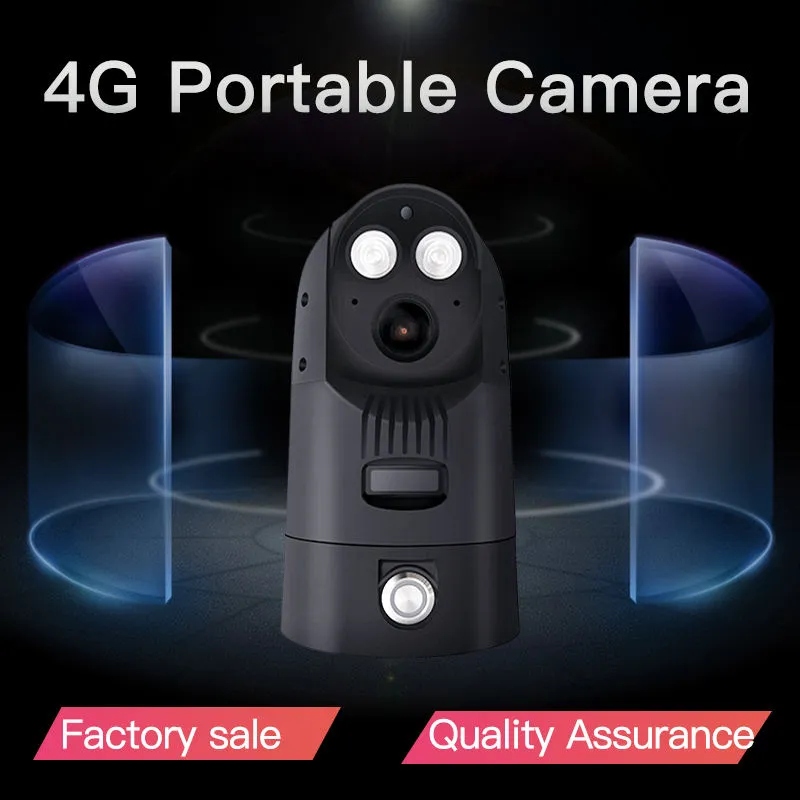

4G HD PTZ Camera Including Smarteye Platform Software

1 / 3

4G HD PTZ Camera Including Smarteye Platform Software

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📡 4G HD Connectivity

Support for FDD and TDD networks with high-speed data flow.

🔄 360° PTZ Control

Full rotation capability with automatic synchronization and focus.

🛡️ IP66 Waterproof

Rugged design suitable for harsh environments from -30℃ to 60℃.

Basic Information

Model NO.

Type

Video Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

1080P

Lens Kind

Autofocus Lens

Certification

CE, RoHS, ISO9001: 2000

Effective Distance

10-30m

Android 8 Core

TF Card Storage

Built 32g, Max 1t

Lithium Battery

3600mAh

Waterproof Rate

IP66

Product Description

4G HD PTZ Camera Including SmartEye platform software

Detailed Parameters

Operating System	Android 8 Core
Processor	SP9863A 1.6G H.265
Memory (ROM)	DDR: 2GB, EMMC: 16GB
Sensor	5 Million 1/2.8" F23 CMOS Sensor
Lens & Zoom	4.5~94.0mm 4 times lens; Digital Zoom: 4 times
Night Vision	IR-CUT Support
Video/Audio	MP4 AVC/H.265 1920*1080P; AAC/G711
Connectivity	802.11.b/g/n, 2.4G/5G, Dual-mode, BT4.0, GPS/Beidou
4G Network	FDD: B1/B2/B3/B4/B5/B7/B8/B28B; TDD: B38/B39/B40/B41
PTZ Movement	360° rotation; Horizontal & Vertical Velocity 0.05°~100°/s
Dimensions	Diameter: 103mm; Height: 177mm; Weight: 750g
Installation	Base embedded with strong magnet for roof/tripod attachment

Functions & Gallery

Frequently Asked Questions

How long does the battery last on a single charge?

The camera features a built-in 3600mAh lithium battery. It takes approximately 3 hours to charge and provides about 6 hours of continuous working time.

Does this camera support 4G remote monitoring?

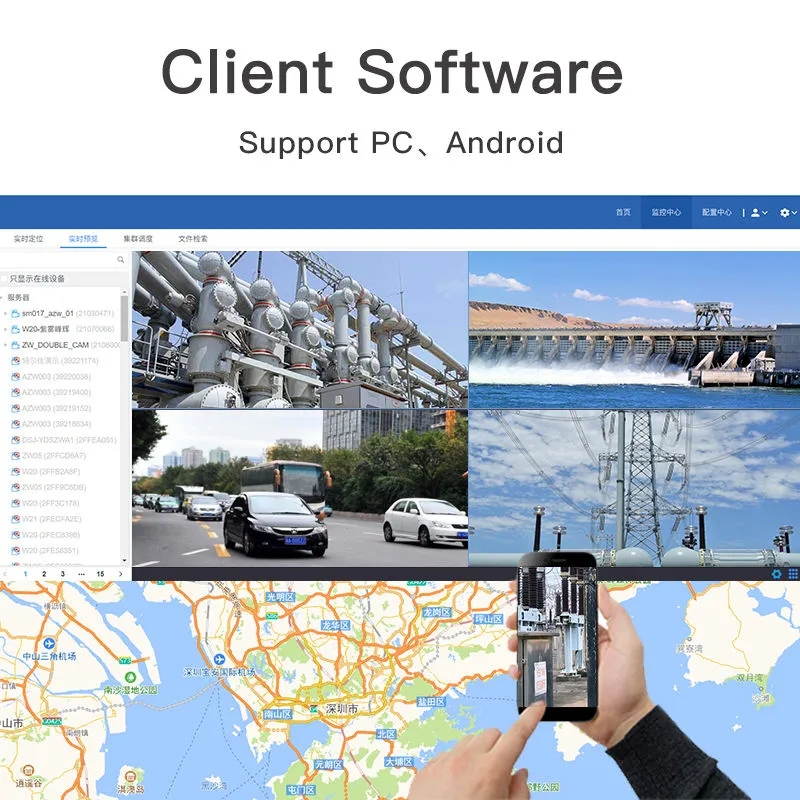

Yes, it supports multiple 4G network bands (FDD and TDD) and includes SmartEye platform software for remote management and monitoring.

What is the rotation range of the PTZ function?

The camera offers a full 360° horizontal rotation and a vertical range of -20° to +90°, with adjustable velocities up to 100°/s.

Is the camera suitable for extreme weather conditions?

Absolutely. The device is IP66 waterproof rated and can operate in temperatures ranging from -30ºC to 60ºC.

What is the maximum storage capacity supported?

The camera has 32GB of built-in storage and supports external TF cards with a maximum capacity of up to 1TB.

Can the camera be mounted on a vehicle or tripod?

Yes, the base is embedded with a strong magnet, allowing it to be easily attached to metal surfaces like car roofs or mounted on standard tripods.
