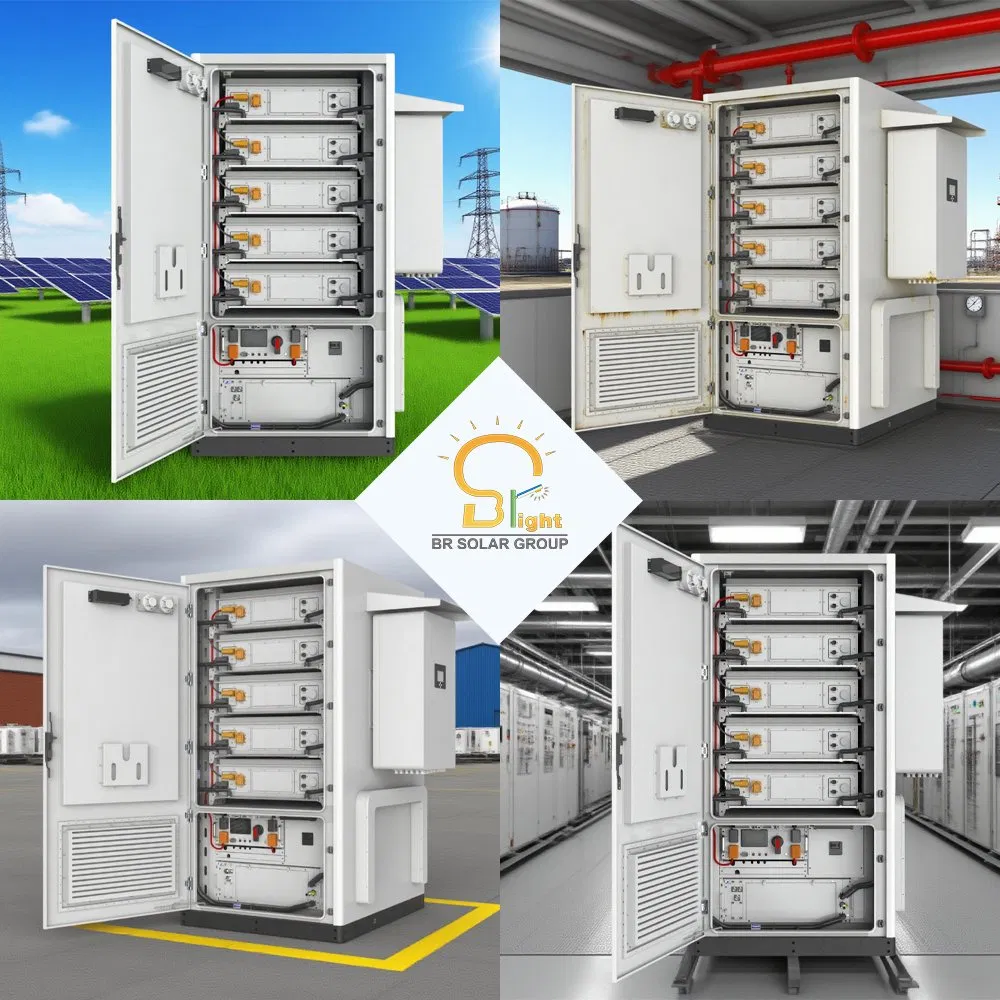

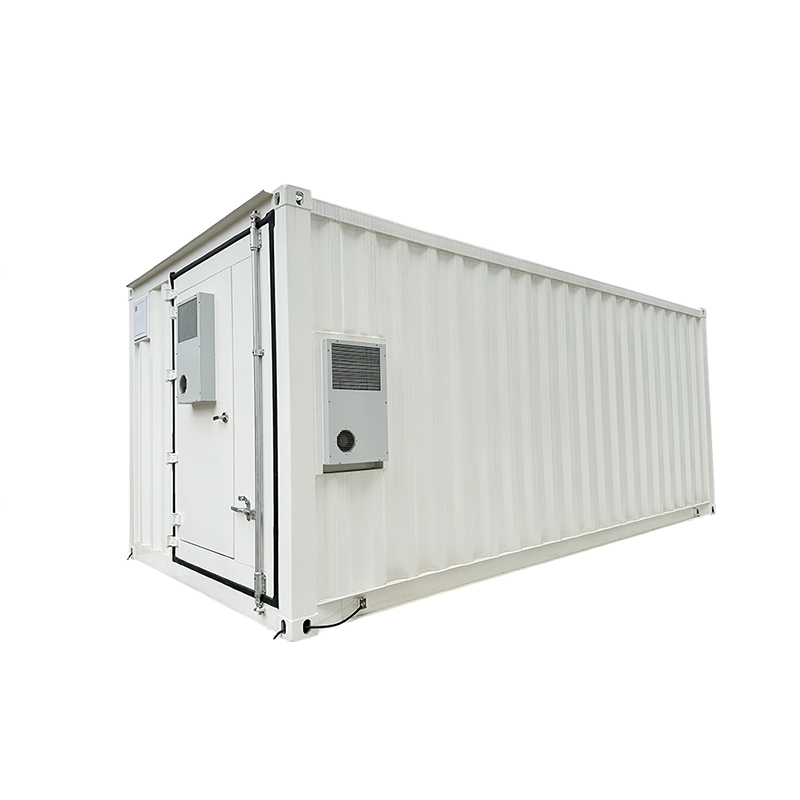

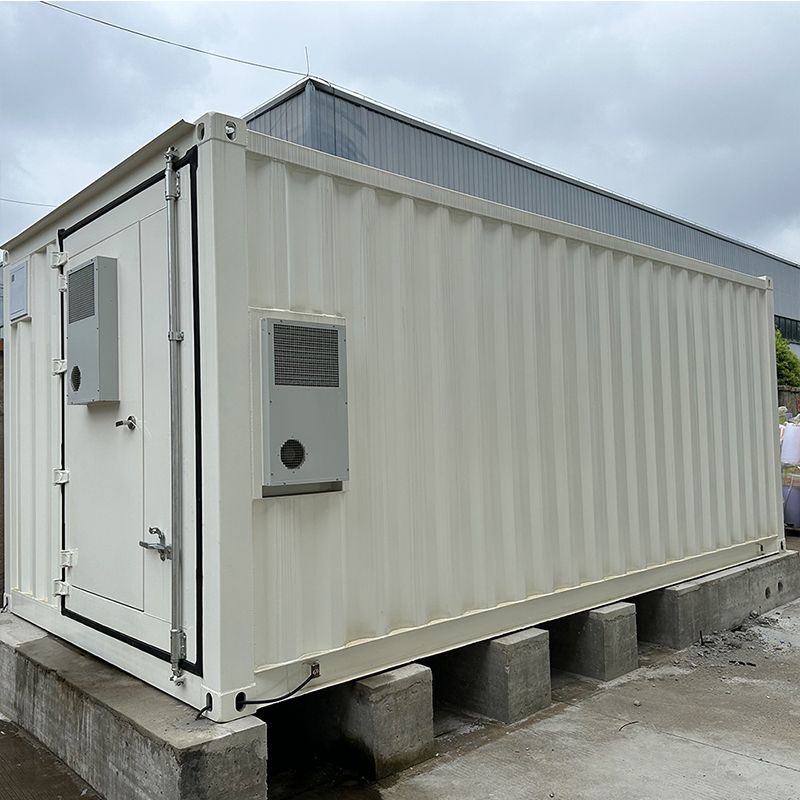

Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
1 / 5
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Carton and Pallet 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Information

ConditionNew
CertificationISO, CE
ApplicationHome, Industrial, Commercial, School, Factory
Specification100kwh, 233kwh
Type of CellLithium Iron Phosphate(LFP)
Cell Parameter3.2V/314ah
CoolingLiquid Cooling
Protection ClassIP55
Rated Capacity5.01 Mwh
Rated Voltage1331.2V
OriginChina
HS Code8501310000

Packaging & Delivery

Package Size110.00cm * 140.00cm * 238.00cm
Gross Weight2000.000kg
Package TypeCarton and Pallet

Technical Parameters

Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension (L×W×H)6058×2438×2896mm
Weight≈42000 kg

Product Gallery

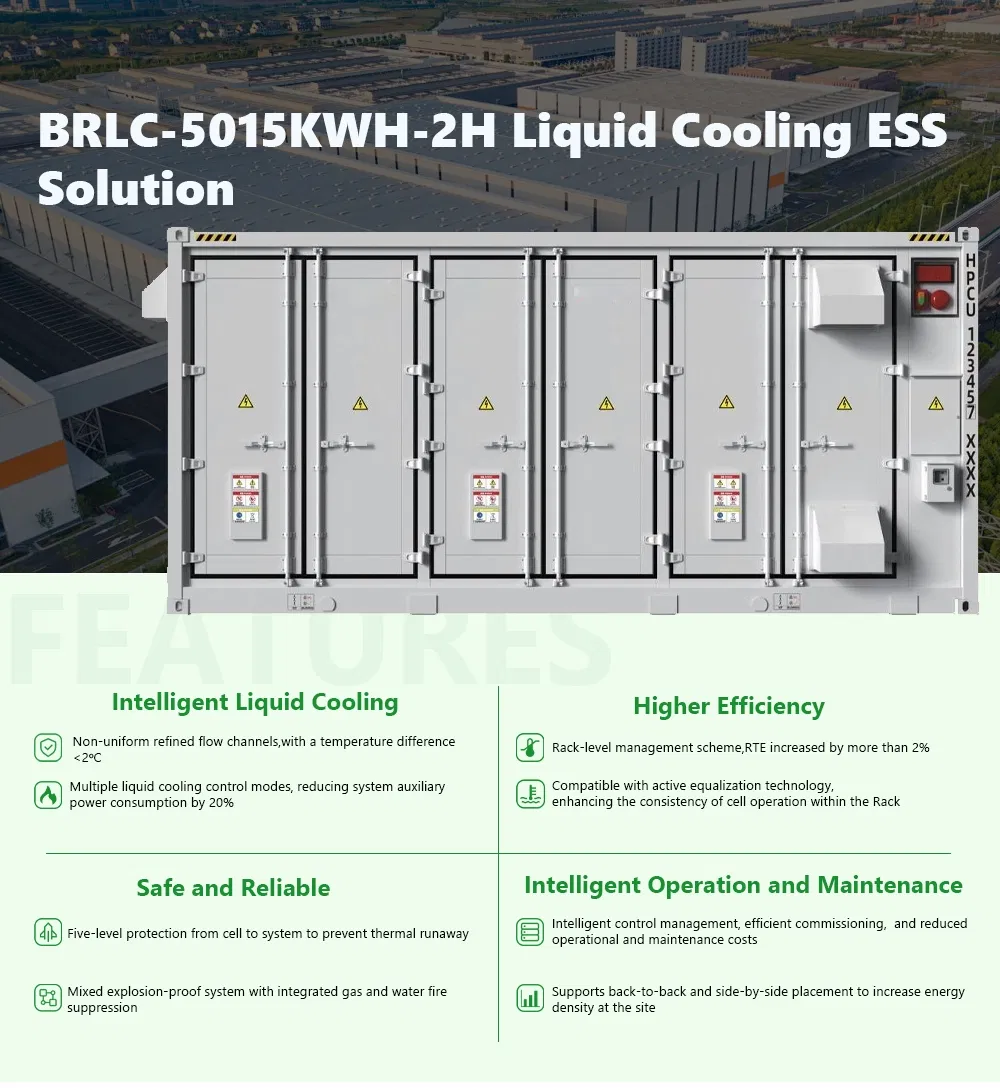

Energy Storage Battery

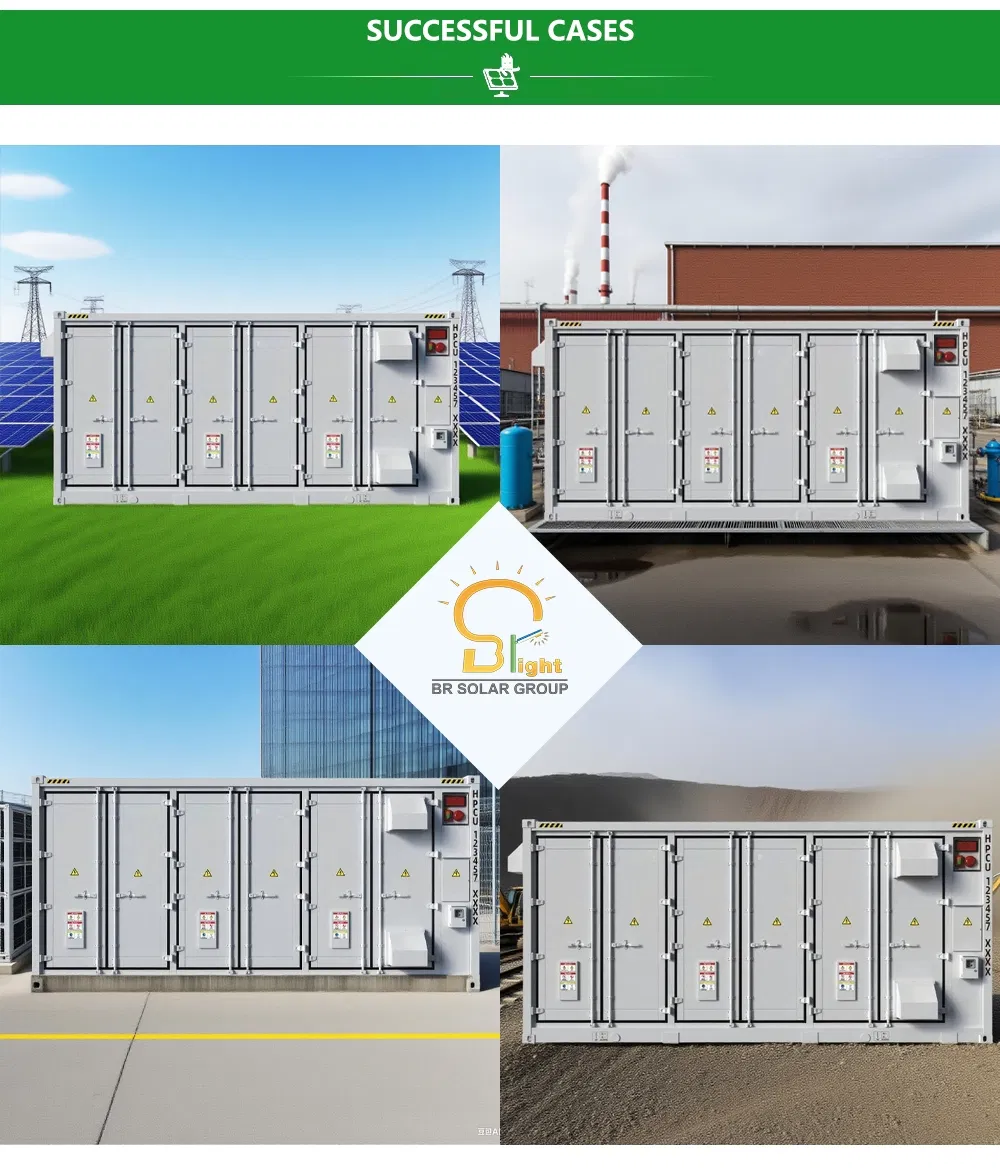

Grid-Tied Storage

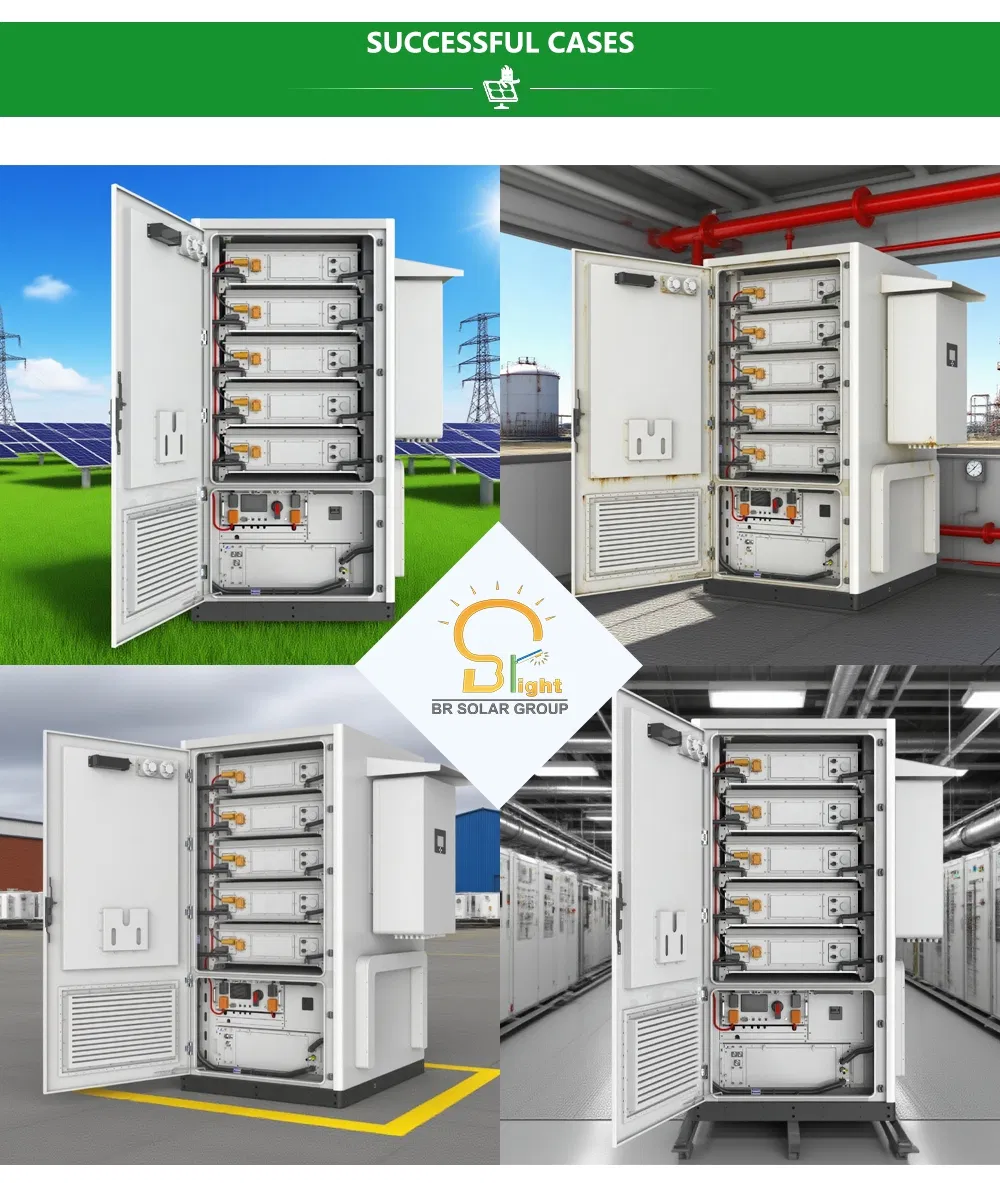

Battery Detail
Technical Layout
Energy Unit
System View
Battery Rack
Internal Structure
Storage Solution
Final Product

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters.
What is the protection rating and can it be used outdoors?
The system has an IP55 protection grade and is designed for operating temperatures between -30°C and 50°C, making it suitable for various environments.
What cooling method is employed?
This energy storage system uses advanced Liquid Cooling technology to maintain optimal battery temperatures.
What fire safety features are included?
The system is equipped with multiple safety layers, including temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, gas fire extinguishing, and water sprinklers.
Is the system suitable for high-altitude installations?
Yes, the system is designed to operate efficiently at altitudes up to 3000 meters.
What communication interfaces are available?
The system supports Ethernet, CAN, and RS485 interfaces for comprehensive external communication and monitoring.
