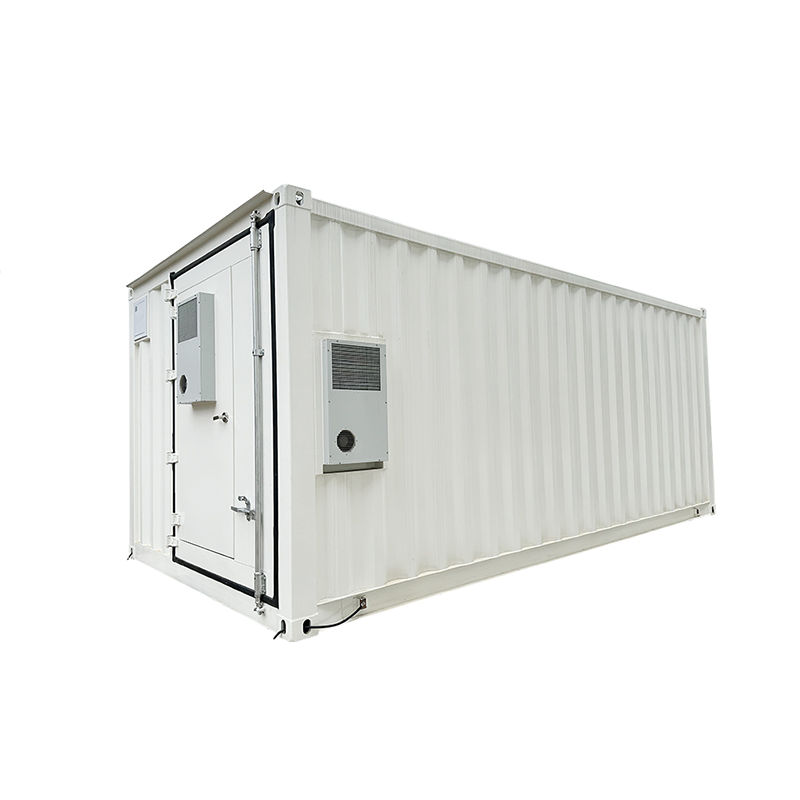

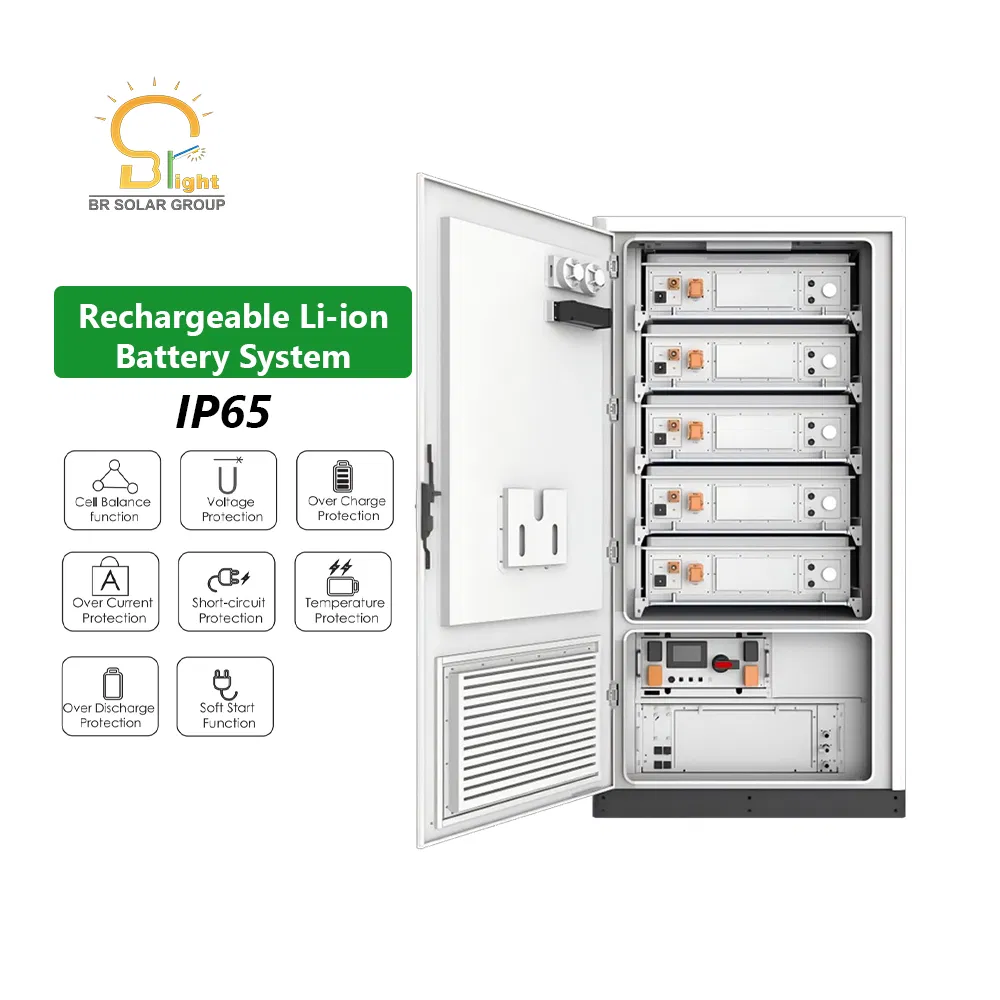

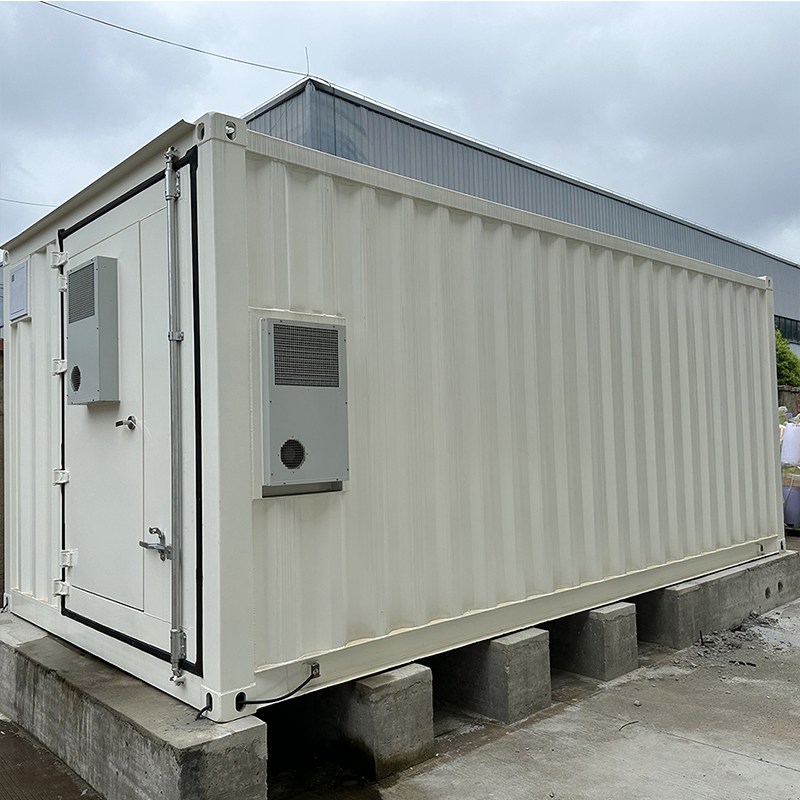

School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
1 / 5
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE

School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

i

Basic Specifications

ConditionNew
CertificationISO, CE
ApplicationHome, Industrial, Commercial, School, Factory

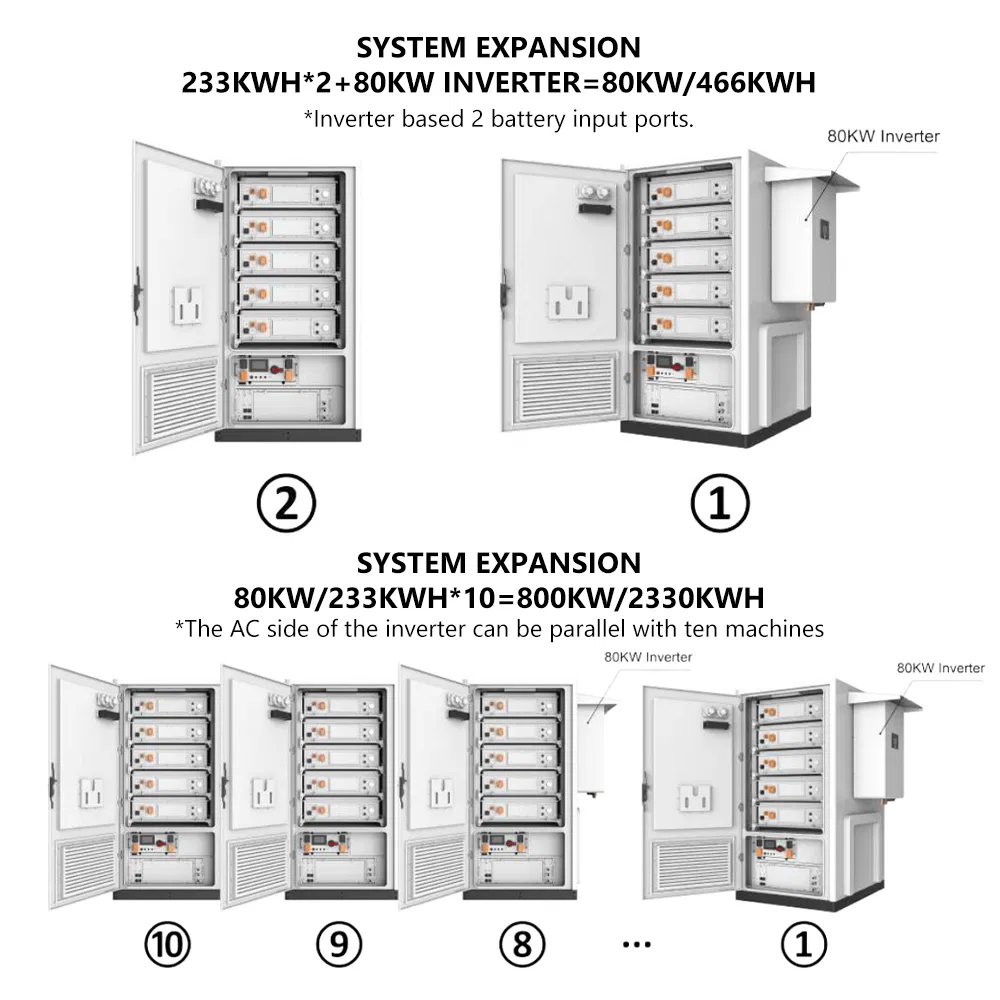

Specification100kwh, 233kwh
Type of CellLithium Iron Phosphate(LFP)
Cell Parameter3.2V/314ah
CoolingLiquid Cooling
Protection ClassIP55
Rated Capacity5.01 Mwh
Rated Voltage1331.2V
OriginChina
HS Code8501310000
📦

Packaging & Delivery

Package Size110.00cm * 140.00cm * 238.00cm
Gross Weight2000.000kg
Transport PackageCarton and Pallet
Production Capacity1000set/Month
📝

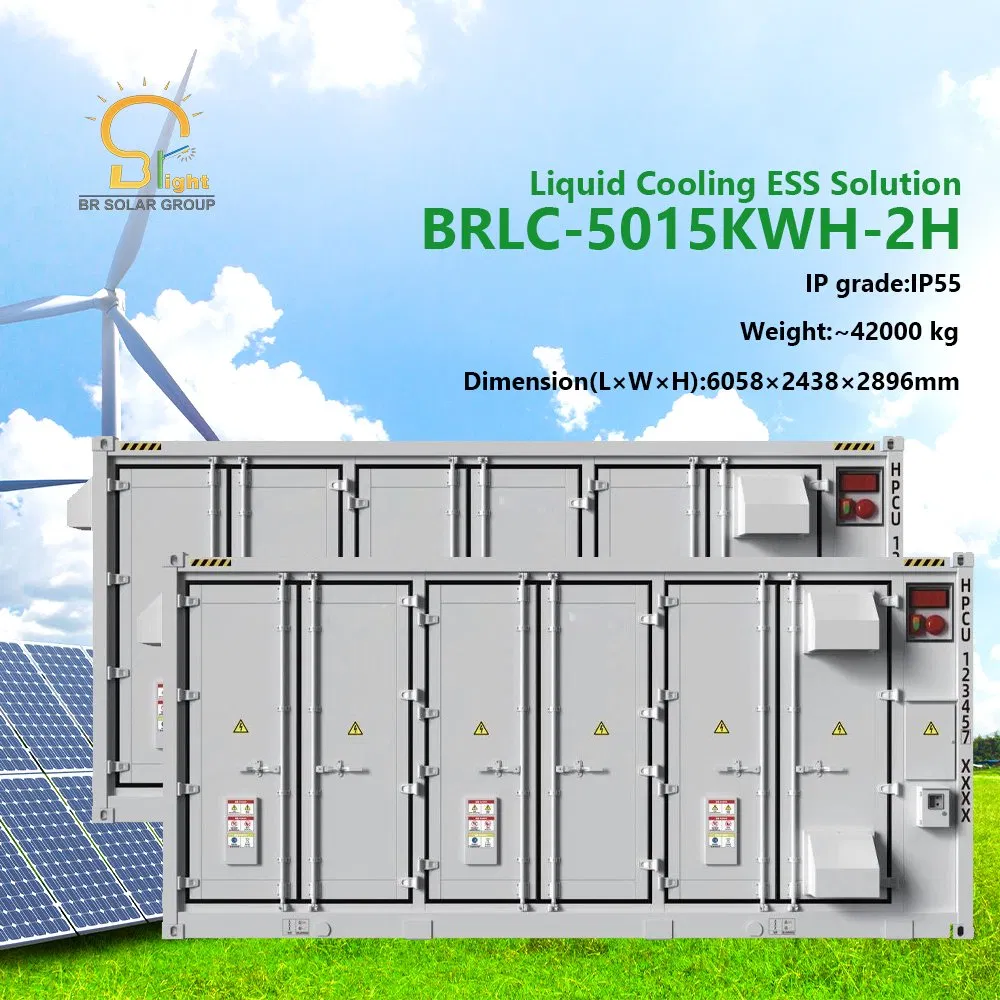

Technical Parameters

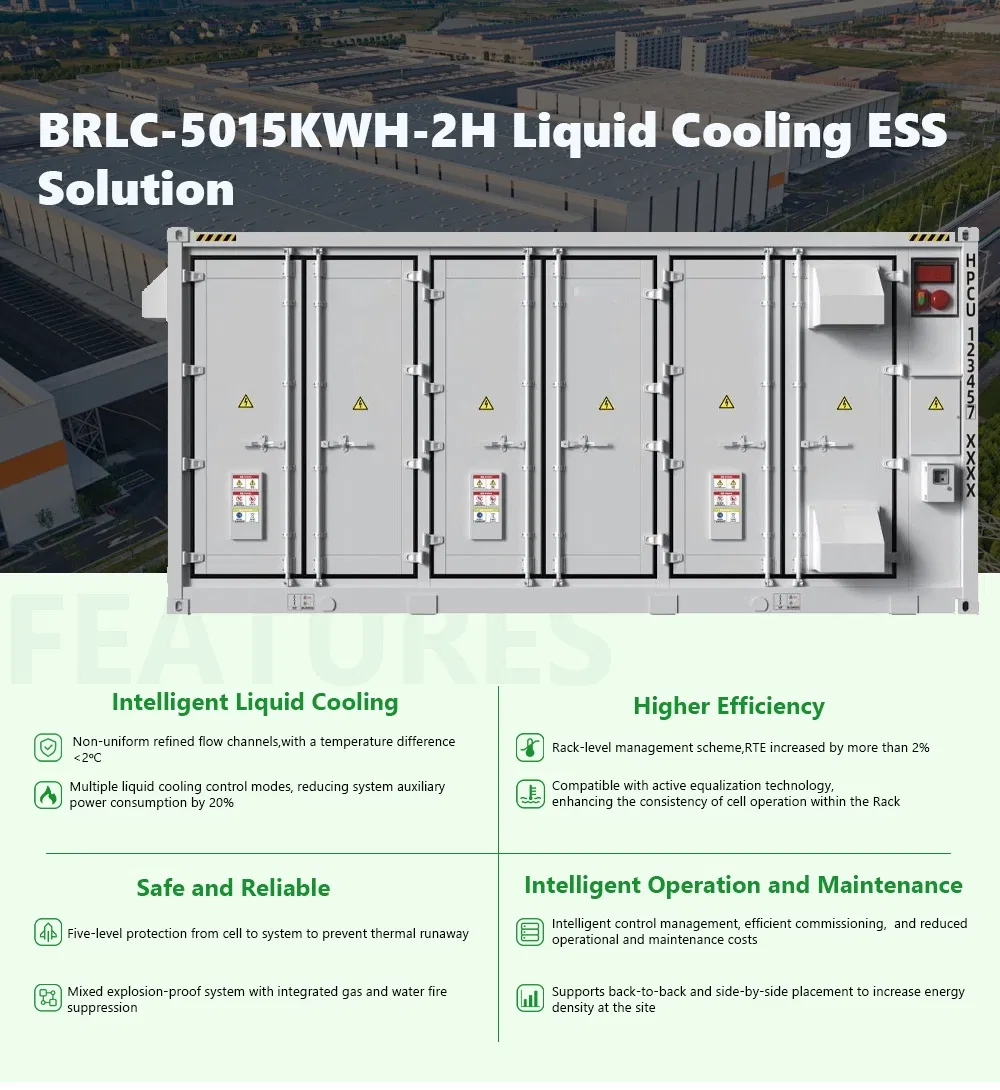

Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Corrosion-proof gradeC4/C5(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communicationEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
Storage Detail 1
Storage Detail 2
Storage Detail 3
Storage Detail 4
Storage Detail 5
Storage Detail 6
Storage Detail 7
Storage Detail 8

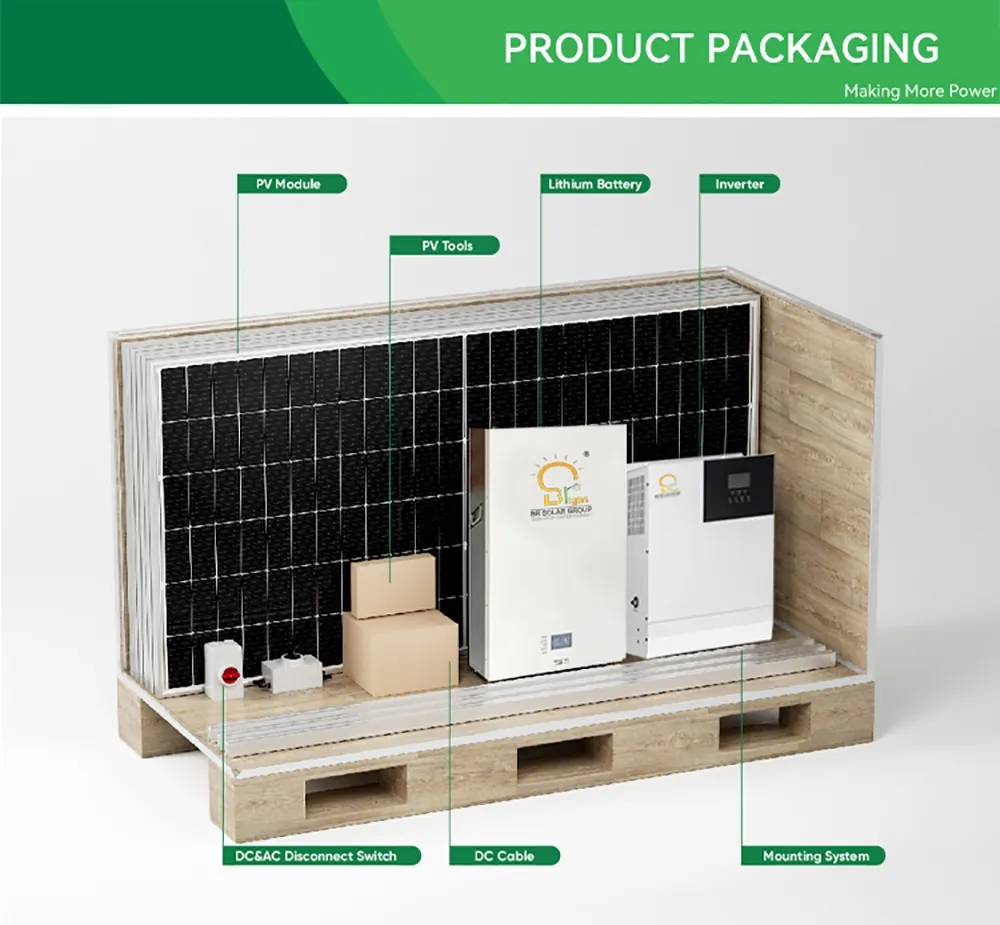

Storage Detail 9
?

Frequently Asked Questions

What type of battery technology is used in this system?
The system utilizes Lithium Iron Phosphate (LFP) cells, known for their high safety standards and long cycle life.
How is the thermal management handled?
It uses an advanced Liquid Cooling system to maintain optimal operating temperatures between -30°C and 50°C.
What is the protection rating for outdoor use?
The system is rated at IP55, providing robust protection against dust and water, suitable for industrial and commercial environments.
What safety features are included for fire protection?
Safety is prioritized with temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers.
What is the total rated capacity of this energy storage unit?
This specific configuration offers a large-scale rated capacity of 5.01 MWh.
Can it be used at high altitudes?
Yes, the system is designed to operate efficiently at altitudes up to 3000 meters.
