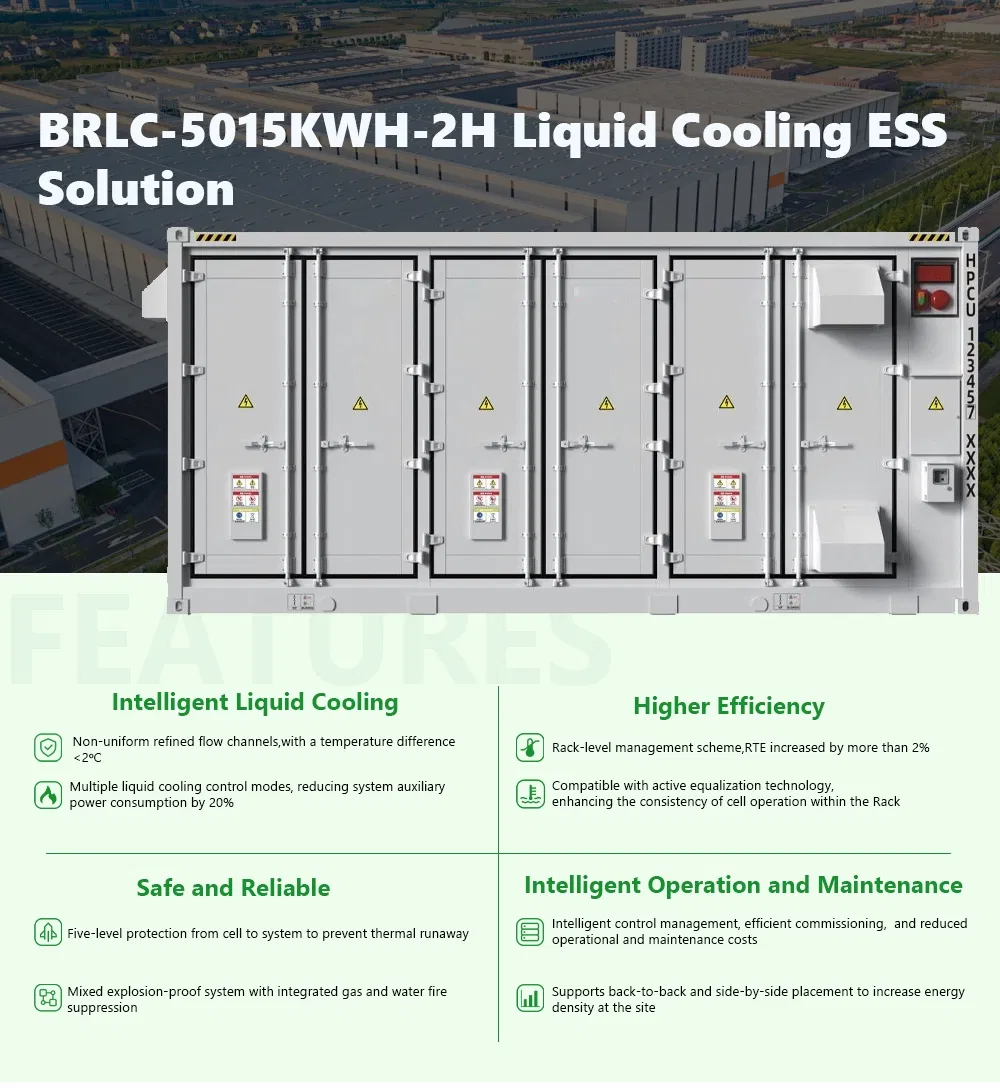

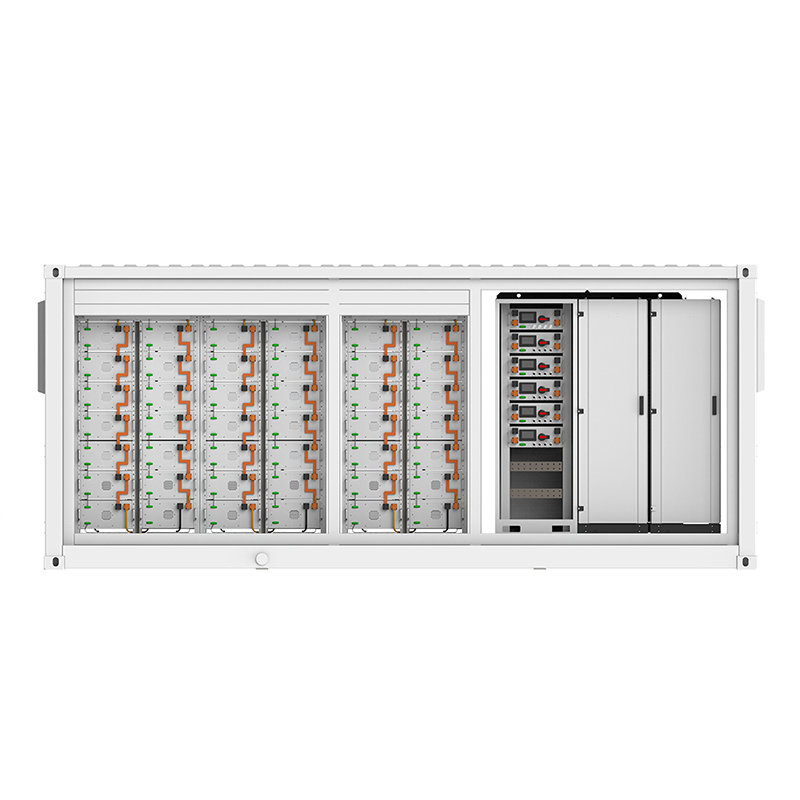

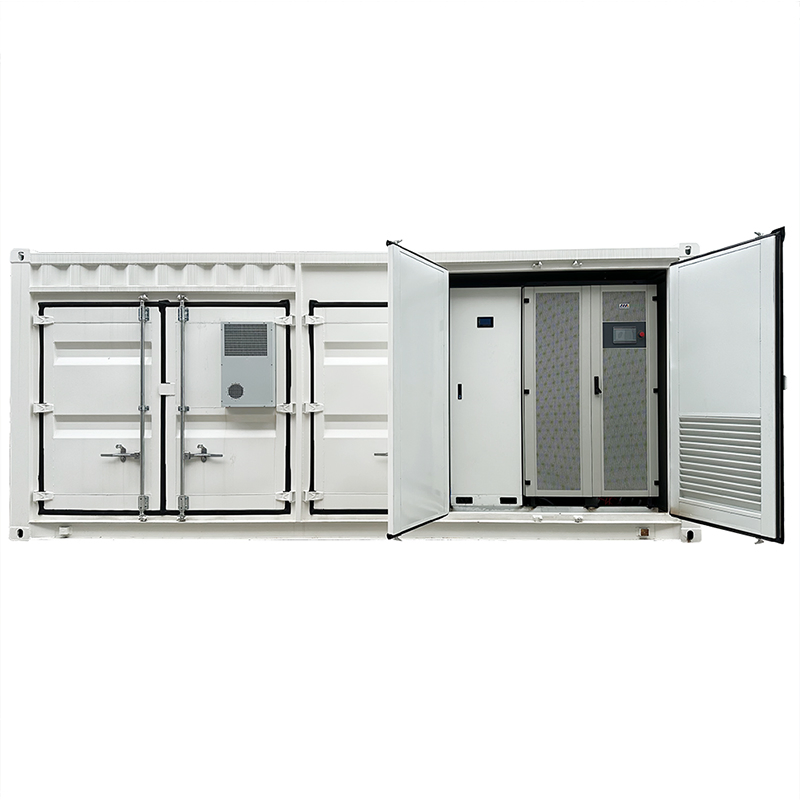

Br Solar 100kwh 200kwh 500kwh 1mwh Battery Energy Storage Solution

1 / 5

Br Solar 100kwh 200kwh 500kwh 1mwh Battery Energy Storage Solution

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Information

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial, School, Factory

Specification100kwh, 233kwh

Type of CellLithium Iron Phosphate (LFP)

Cell Parameter3.2V/314ah

CoolingLiquid Cooling

Protection ClassIP55

Rated Capacity5.01 Mwh

Rated Voltage1331.2V

OriginChina

HS Code8501310000

Technical Parameters

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V
Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

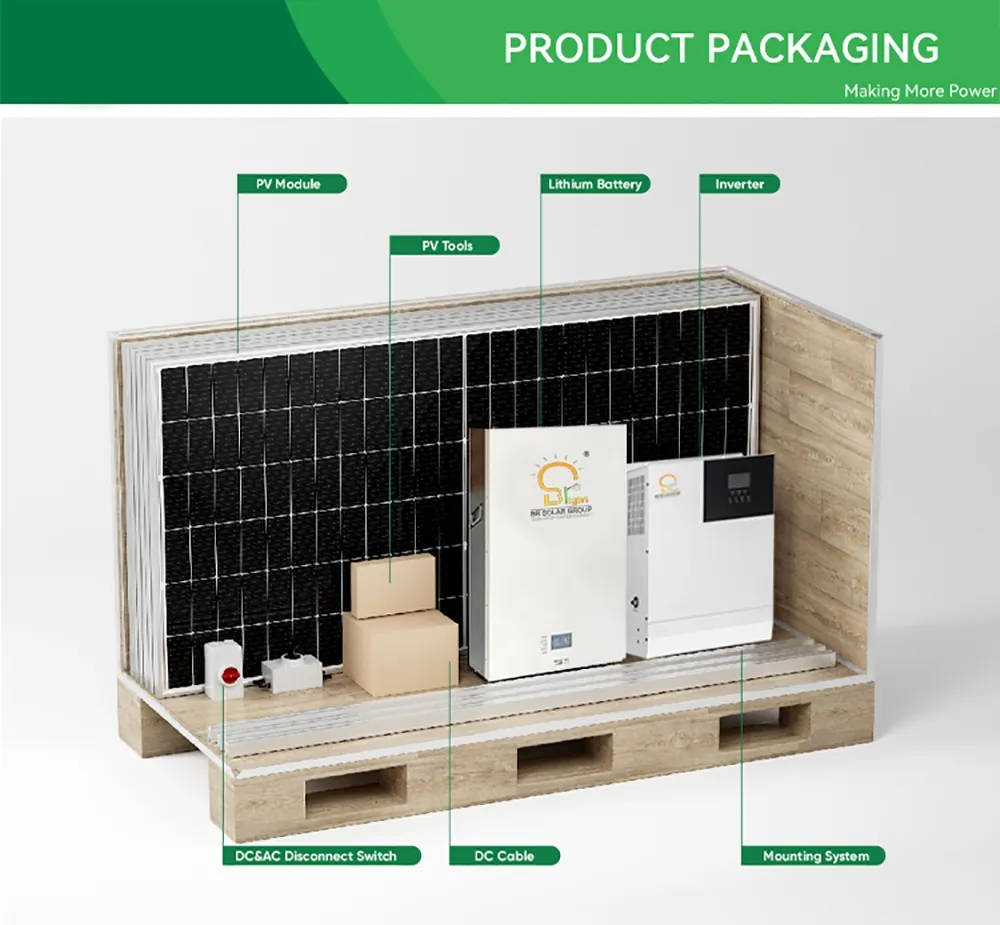

Packaging & Delivery

Package Size110.00cm * 140.00cm * 238.00cm

Gross Weight2000.000kg

Transport PackageCarton and Pallet

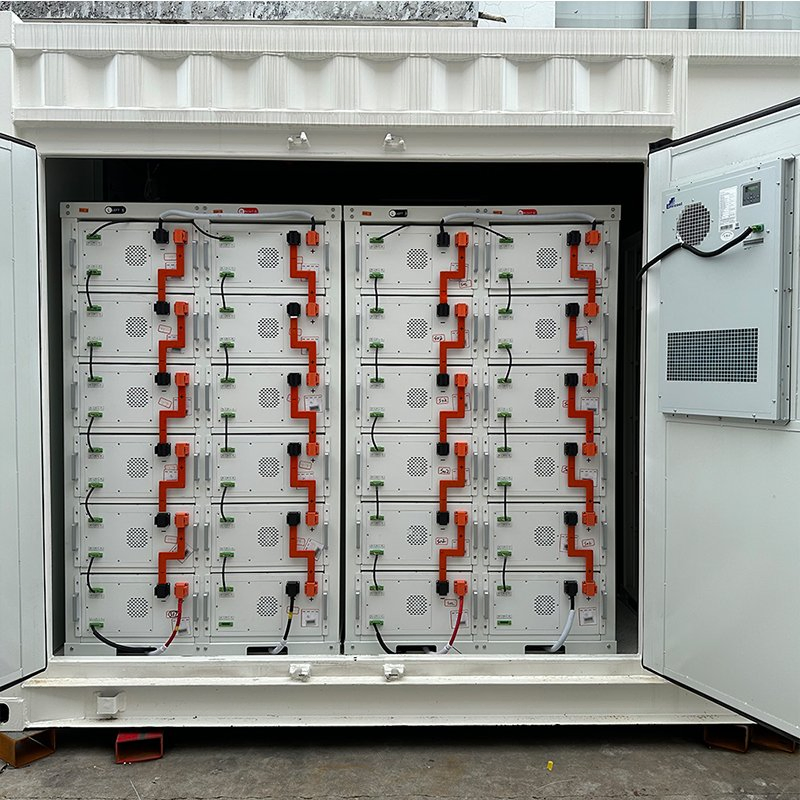

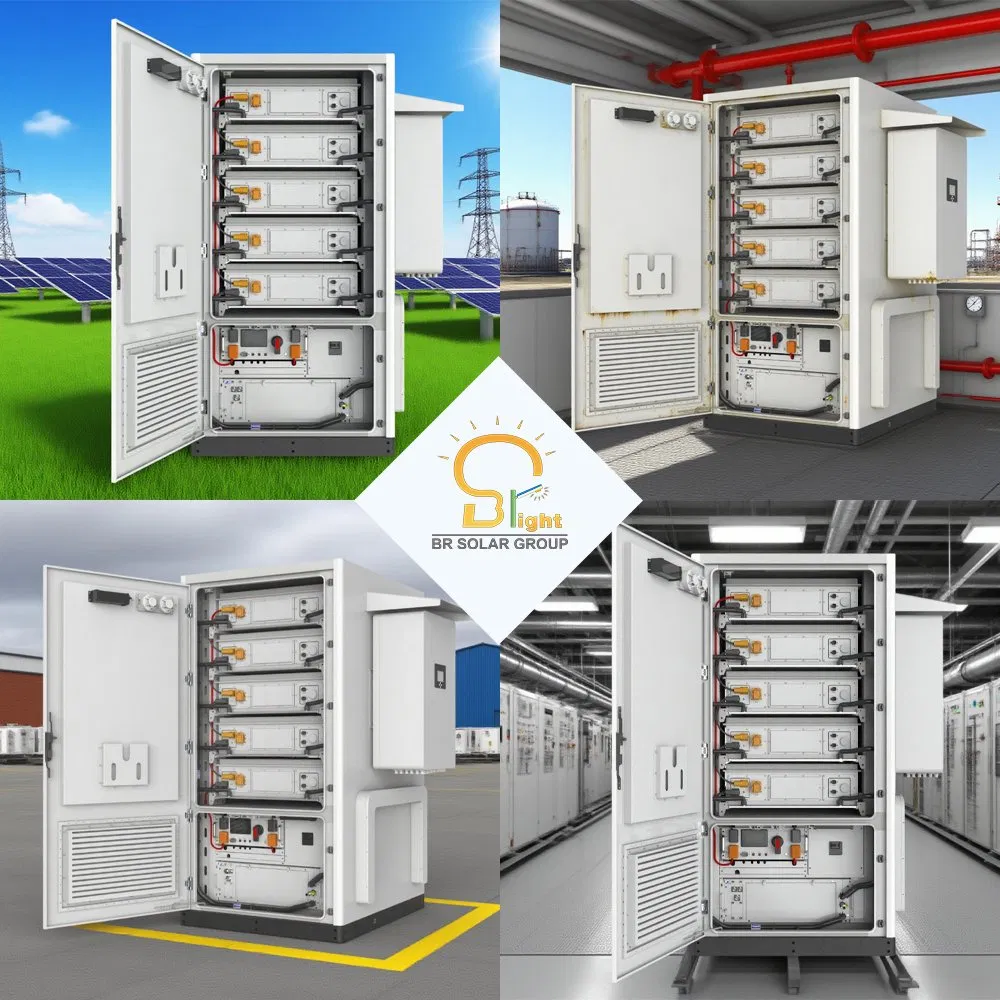

Product Gallery

Frequently Asked Questions

Q1: What type of battery cells are used in this energy storage solution? A: The system utilizes high-quality Lithium Iron Phosphate (LFP) cells with a cell parameter of 3.2V/314Ah, known for their safety and long cycle life.

Q2: What cooling method does the system use to maintain optimal temperature? A: This system employs an advanced Liquid Cooling method, which is highly efficient for large-scale energy storage applications.

Q3: Is the system suitable for outdoor installation? A: Yes, the system features an IP55 protection class and an operating temperature range of -30°C to 50°C, making it suitable for various outdoor environments.

Q4: What integrated fire protection features are included? A: The safety system includes temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers for comprehensive protection.

Q5: What are the communication interfaces available for external monitoring? A: The system supports multiple communication interfaces including Ethernet, CAN, and RS485 for seamless integration with management systems.

Q6: What is the rated capacity and voltage of this specific unit? A: This unit has a rated capacity of 5.01 MWh and a rated voltage of 1331.2V, designed for high-demand industrial and commercial power needs.
