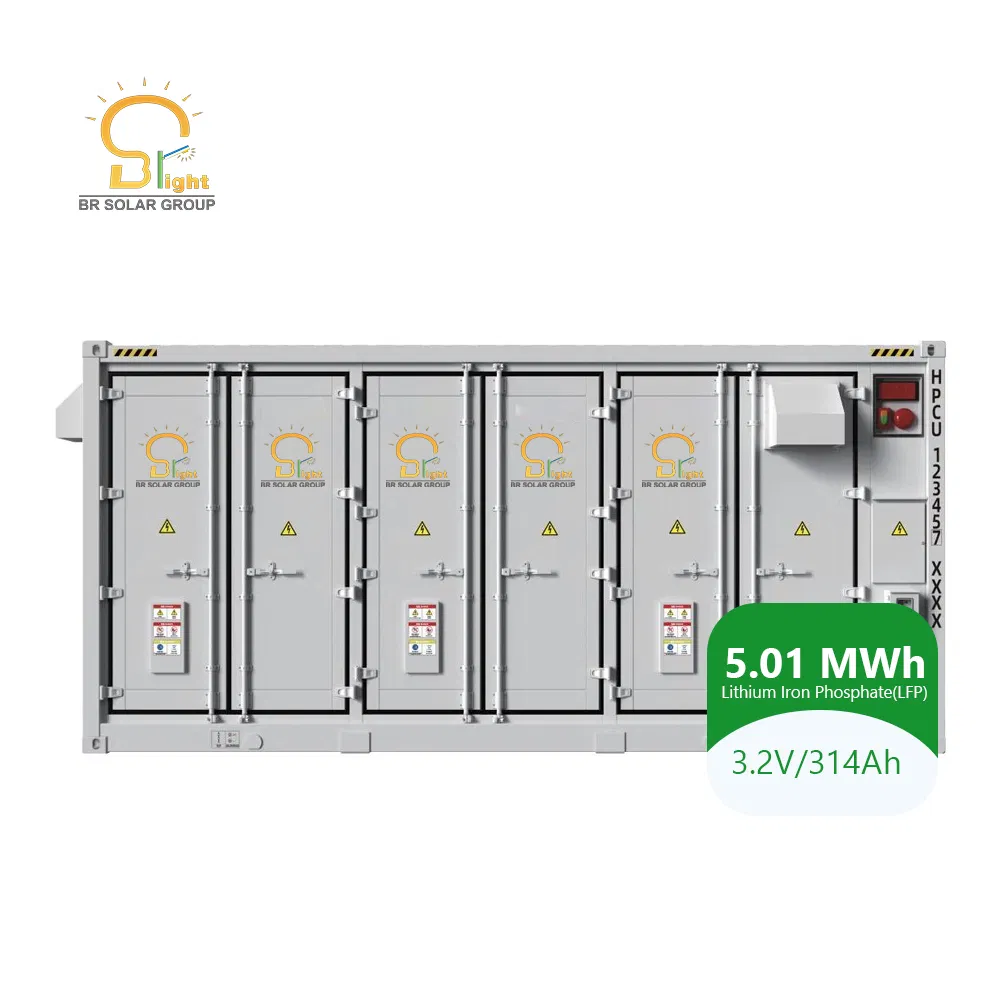

Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
1 / 5
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE

Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

📋

Basic Specifications

Condition:New
Certification:ISO, CE
Application:Home, Industrial, Commercial, School, Factory
Cell Type:Lithium Iron Phosphate (LFP)
Cell Parameter:3.2V/314ah
Cooling:Liquid Cooling
Protection Class:IP55
Rated Capacity:5.01 Mwh
Rated Voltage:1331.2V
Origin:China
📦

Packaging & Logistics

Package Size:110.00cm * 140.00cm * 238.00cm
Gross Weight:2000.000kg
Transport Package:Carton and Pallet
Capacity:1000set/Month
⚡

Technical Parameters

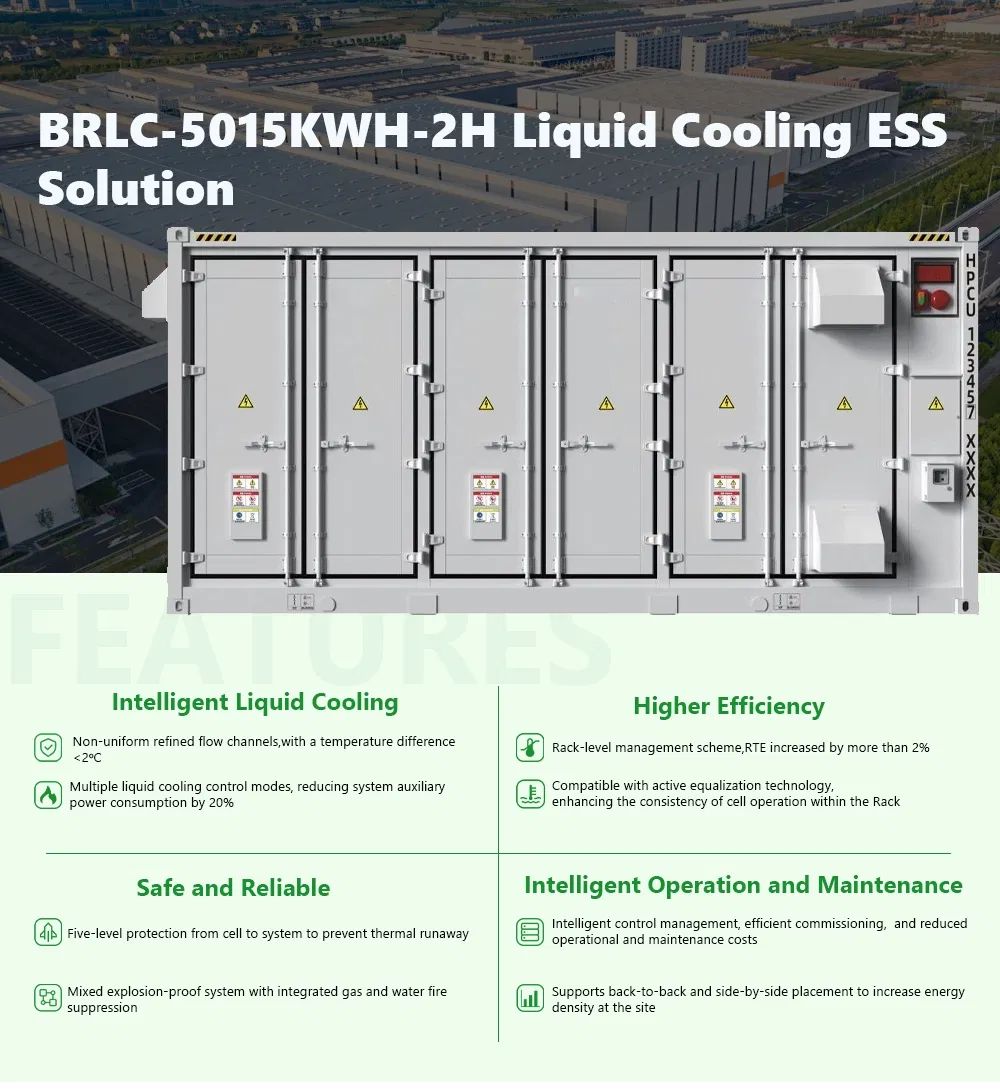

Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
IP gradeIP55
Fire protectionMulti-sensor detection + Gas/Water extinguishing
Dimension(L×W×H)6058×2438×2896mm
Details 1
Details 2
Details 3
Details 4
Details 5
Details 6

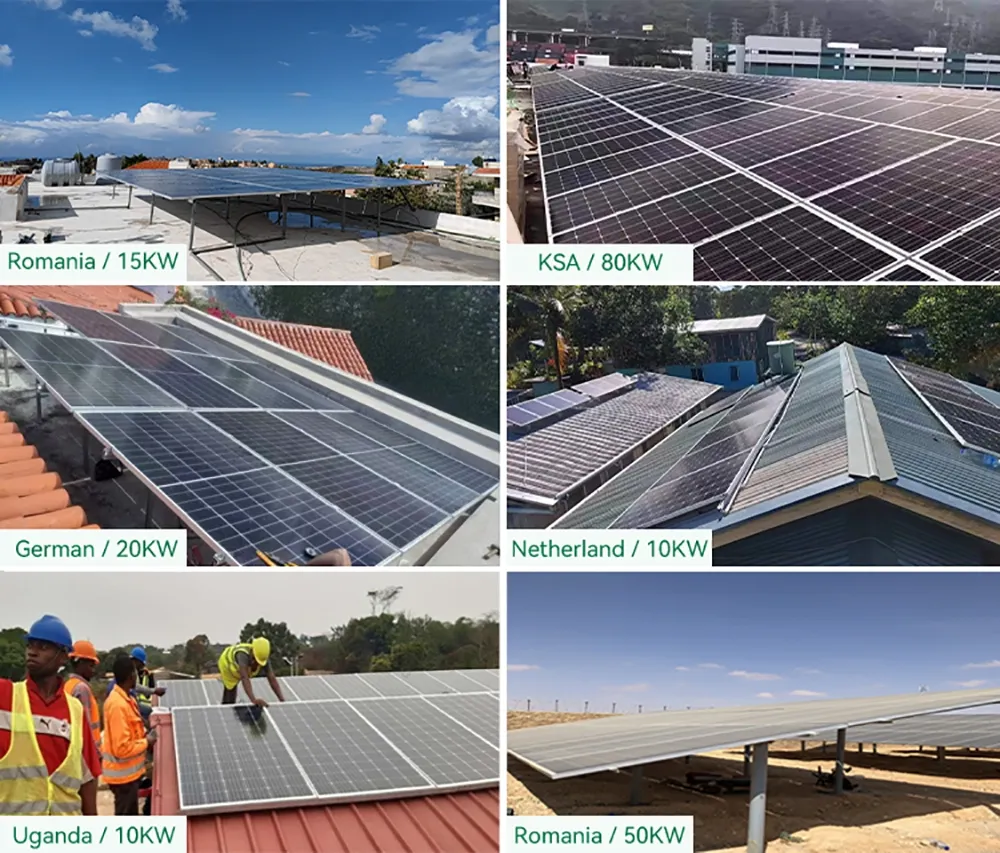

Details 7
Details 8

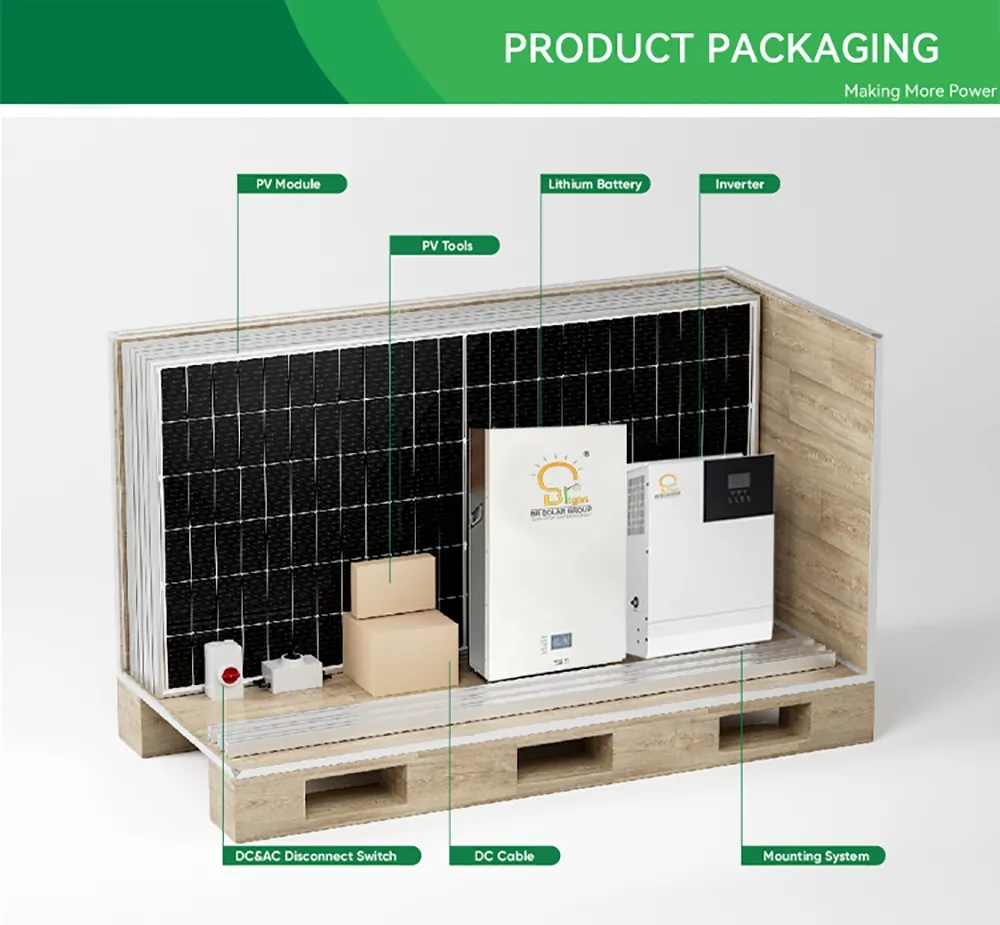

Details 9
❓

Frequently Asked Questions

1. What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.
2. How is the battery system cooled?
It employs an advanced Liquid Cooling method to ensure optimal operating temperatures and enhance system efficiency.
3. What is the protection rating for outdoor use?
The system is rated at IP55, providing strong protection against dust and water, making it suitable for various industrial and commercial environments.
4. What is the operating temperature range?
The system is designed to operate reliably in temperatures ranging from −30ºC to 50ºC.
5. What safety features are included for fire protection?
The safety system includes temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers.
6. What communication interfaces are supported?
It supports Ethernet, CAN, and RS485 interfaces for easy integration with external management systems.
