Partial discharge does not cause the electric discharge of a completely short-circuited electrode. Such discharge usually has a very small amplitude value, but it will certainly cause the continuous deterioration of the property of the insulation layer and finally cause electric equipment fault. The non-intrusive partial discharge detection, as a convenient and simple method, is used for identifying the potential insulation faults which may cause power cutoff or personal injury.

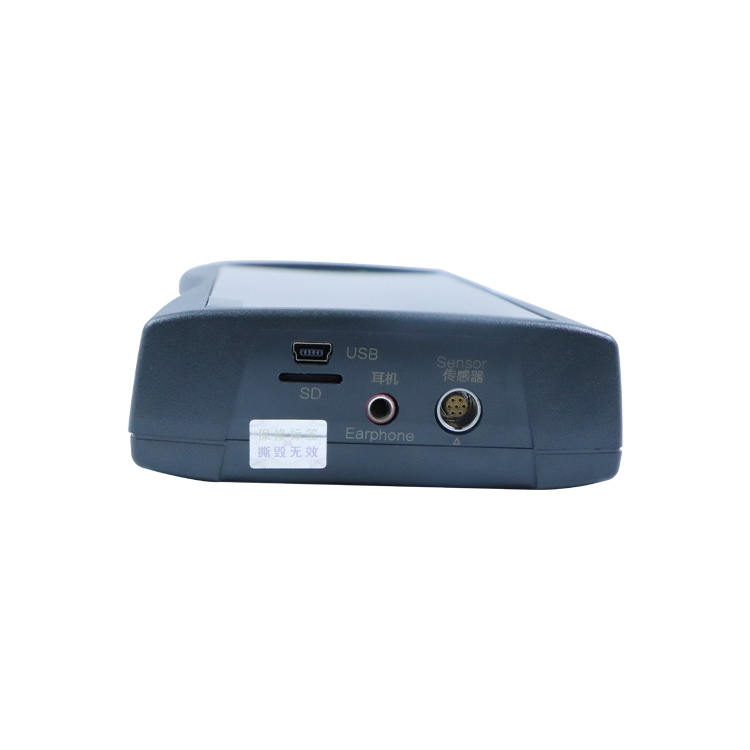

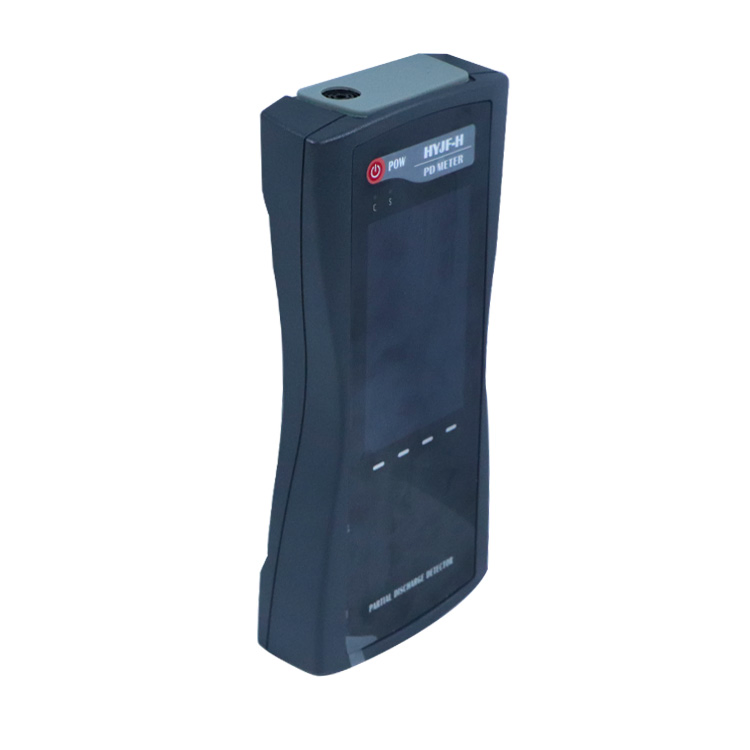

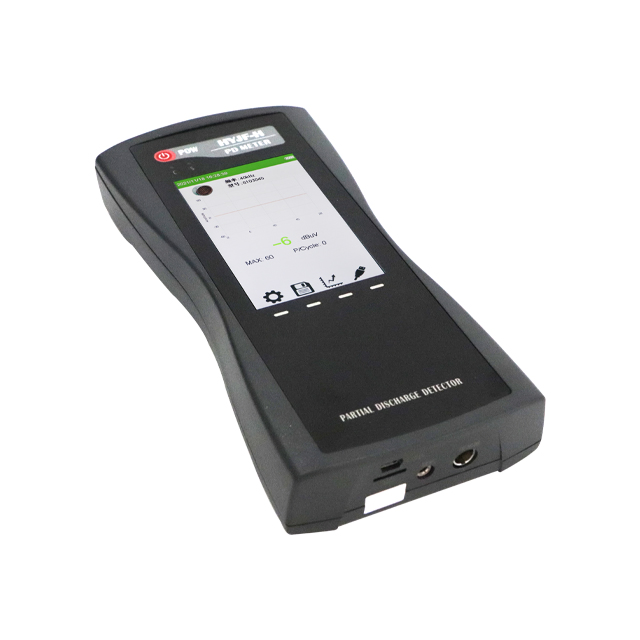

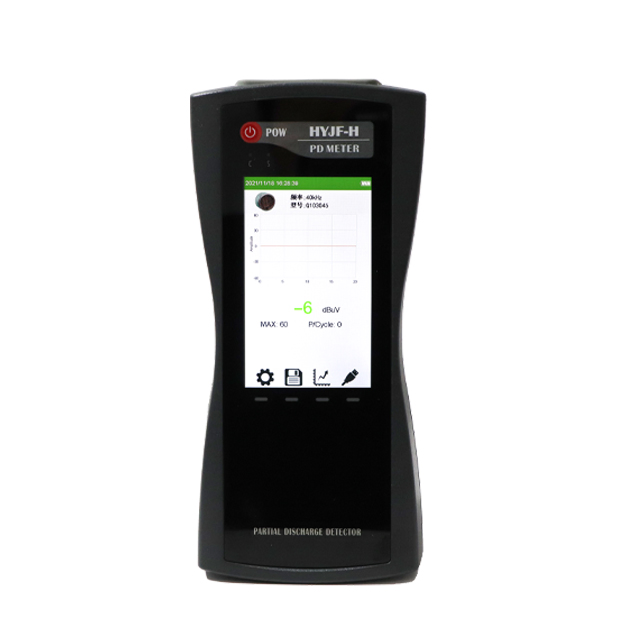

The product is an instrument which has simple operation and is specially developed for detecting the activities of electromagnetic waves and ultrasonic waves.
1. Applicable scope: Non-intrusive mode to detect and locate partial discharge defects of high-voltage electric equipment.
2. Sensor configuration: Standard: UA, TEV; Optional: Transformer network, GIS high frequency, high-voltage cable sensors.
3. Detection principle: UHF (Ultra High Frequency), UA (Ultrasonic Analysis), and TEV (Transient Earth Voltage).
4. Frequency bands: UA: 40-200KHz; TEV: 3~100MHz; UHF: 300-2000MHz.
5. Sensitivity: Minimum sensitivity 10pC.
6. Display: High-contrast 3.5" TFT color screen.
7. Data storage: 1000 groups of test data.
8. Power: Embedded 8.4V lithium battery for 8h continuous operation.

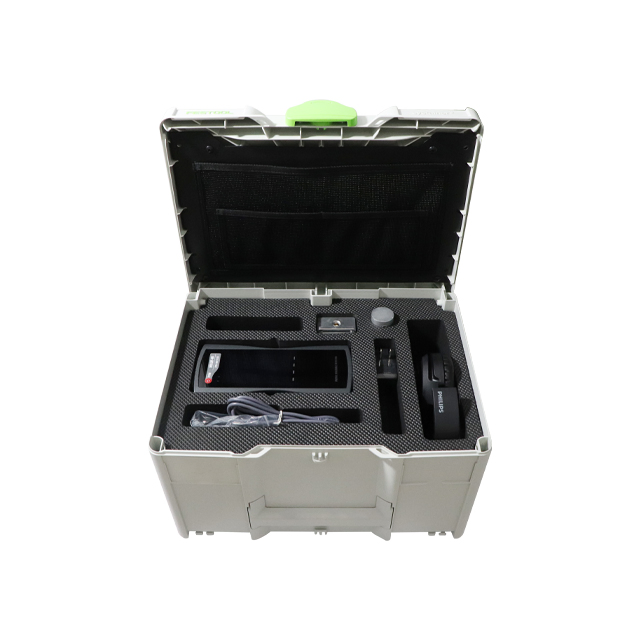

| Serial Number | Name | Amount |
|---|---|---|
| 1 | Mainframe | one |
| 2 | Specification | one |
| 3 | Inspection Report | one |
| 4 | Certification | one |

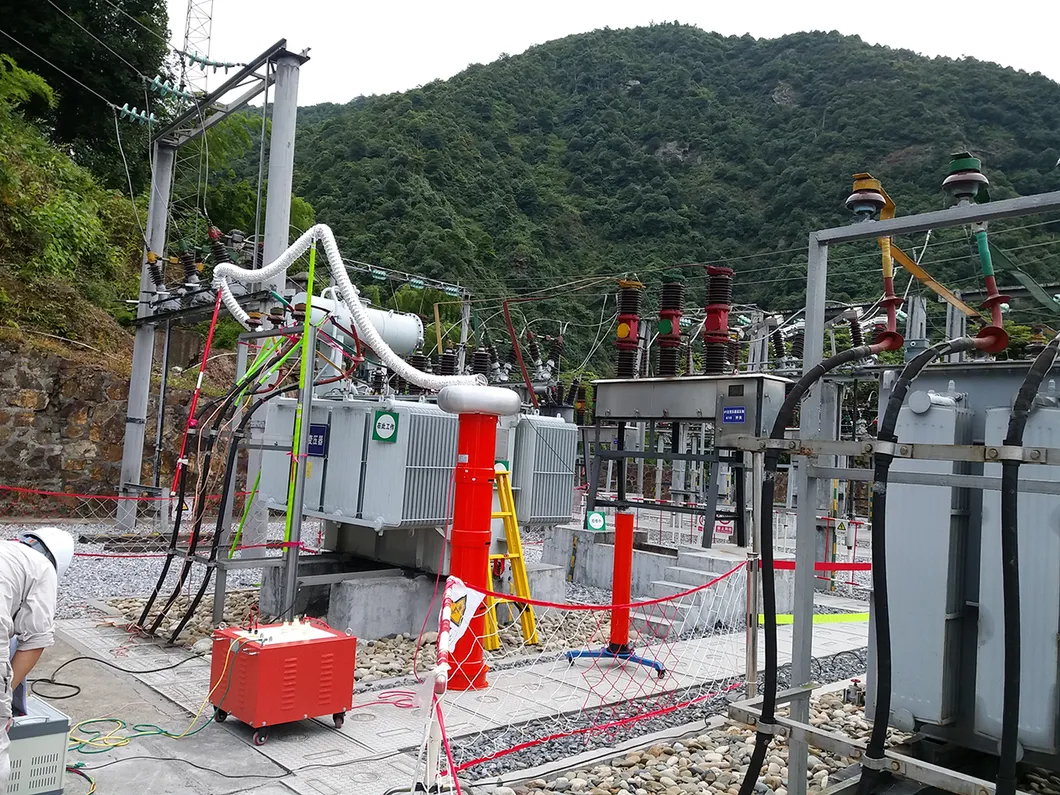

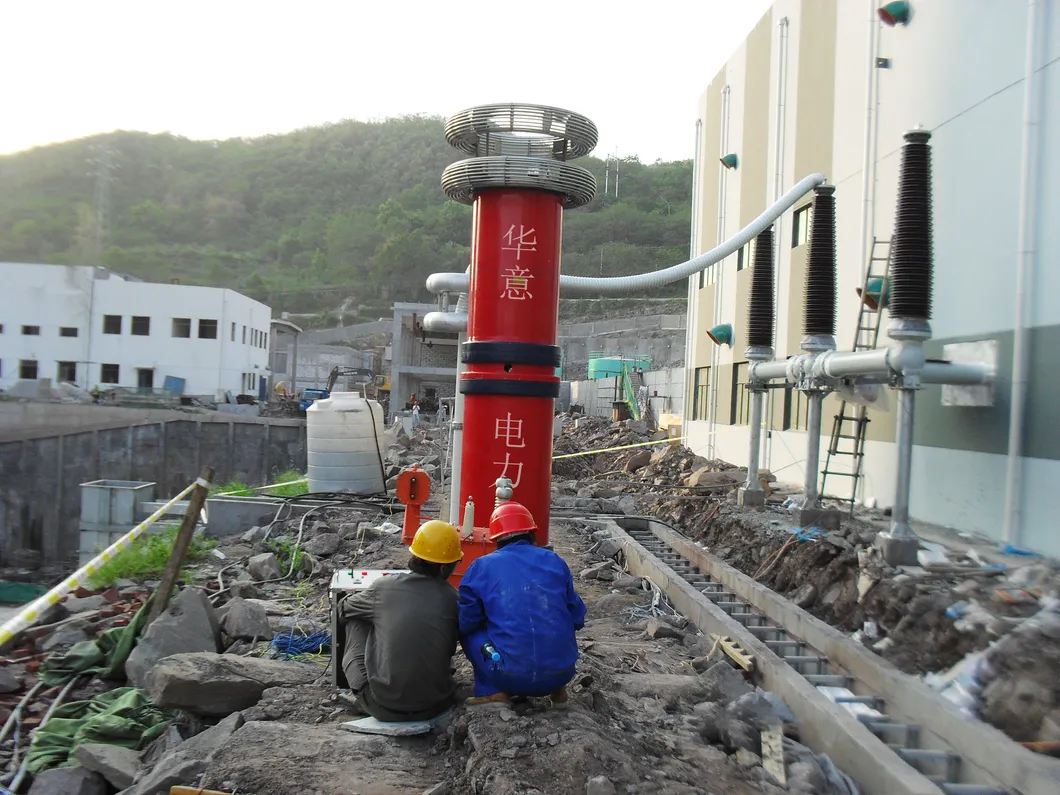

As a professional manufacturer with over 15 years of industry experience, we are engaged in high voltage testers with high performance, good quality, and easy operation. We provide solutions for preventative maintenance, troubleshooting, and commissioning across electric power, water conservation, oil, railway, and chemical industries.
