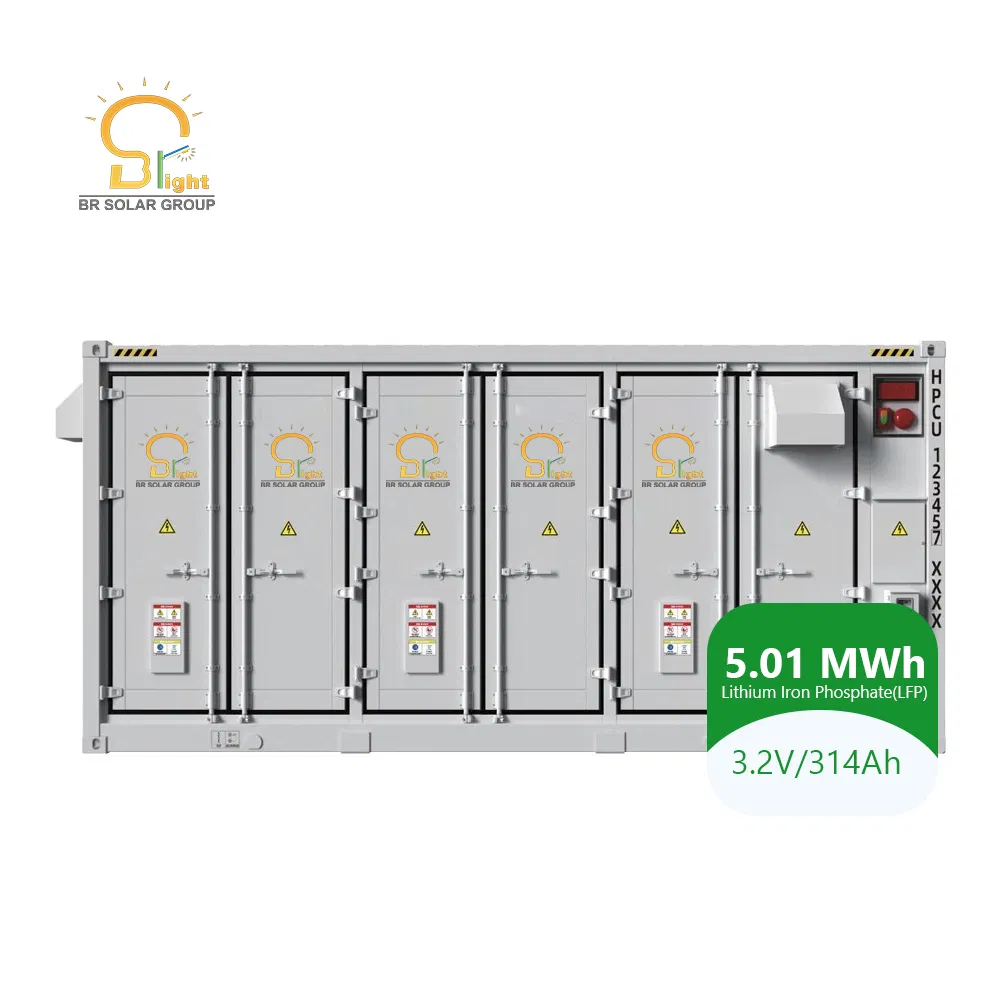

CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
1 / 5
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

CE Approved Br Solar 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Specifications

Condition:
New
Certification:
ISO, CE
Application:
Home, Industrial, Commercial, School, Factory
Specification:
100kwh, 233kwh
Type of Cell:
Lithium Iron Phosphate(LFP)
Cell Parameter:
3.2V/314ah
Cooling:
Liquid Cooling
Protection Class:
IP55
Max Power:
0.5c
Configuration:
1p416sx12
Rated Capacity:
5.01 Mwh
Rated Voltage:
1331.2V
Voltage Range:
1164.8~1497.6V
Origin:
China
HS Code:
8501310000
Production Capacity:
1000set/Month

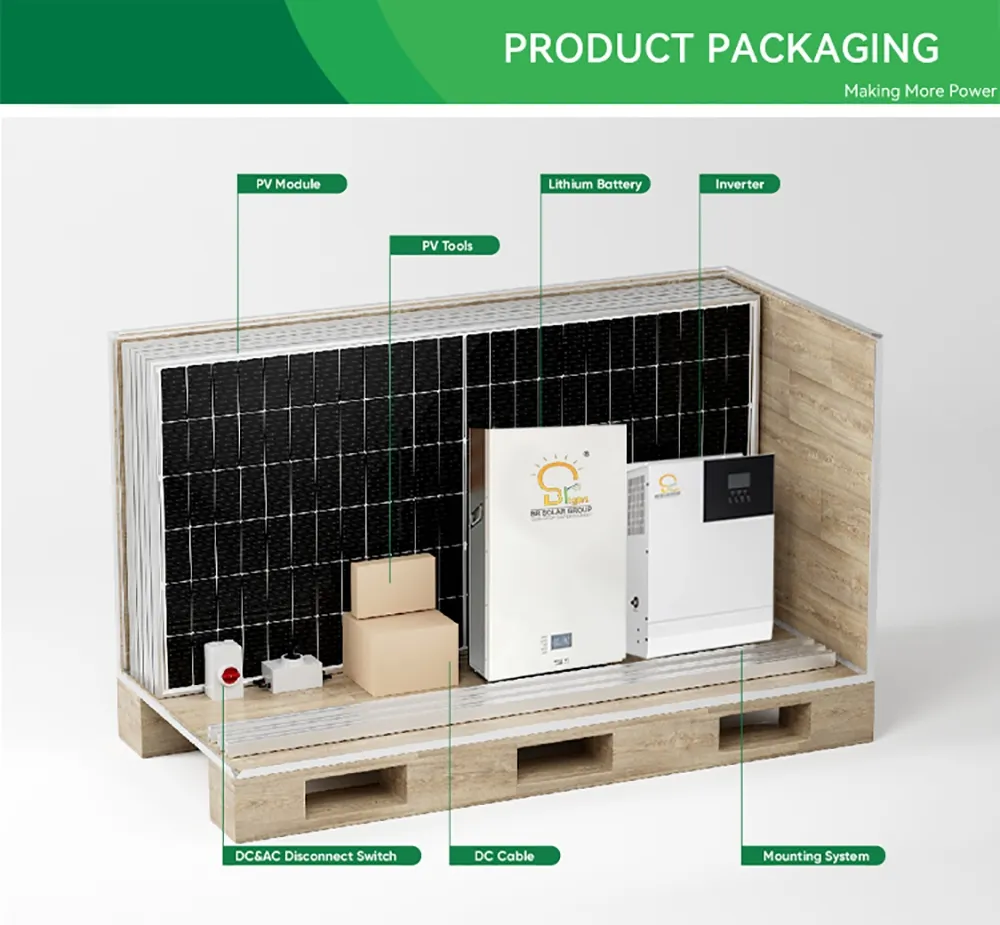

Packaging & Delivery

Package Size:
110.00cm * 140.00cm * 238.00cm
Gross Weight:
2000.000kg
Transport Package:
Carton and Pallet

Detailed Parameters

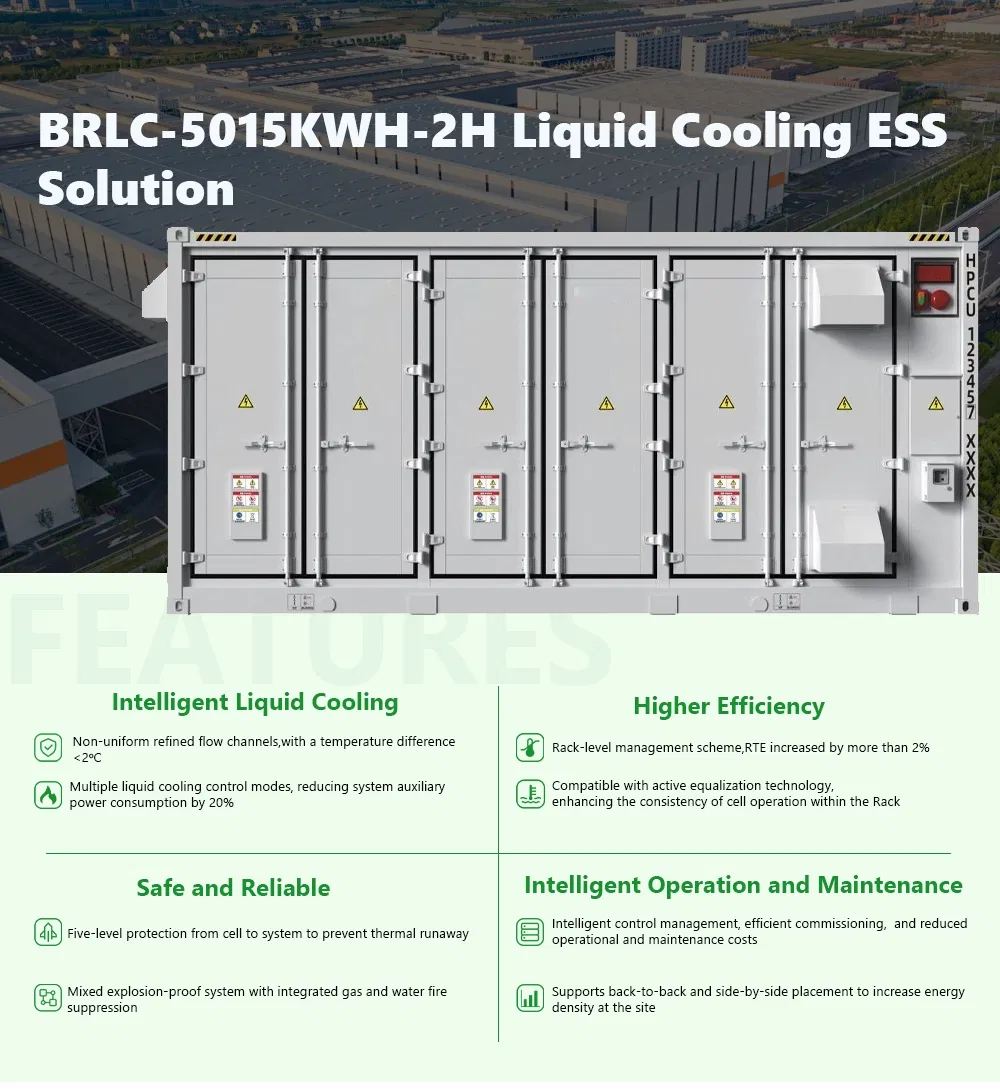

Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Corrosion-proof gradeC4/C5(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
Storage Unit View 1

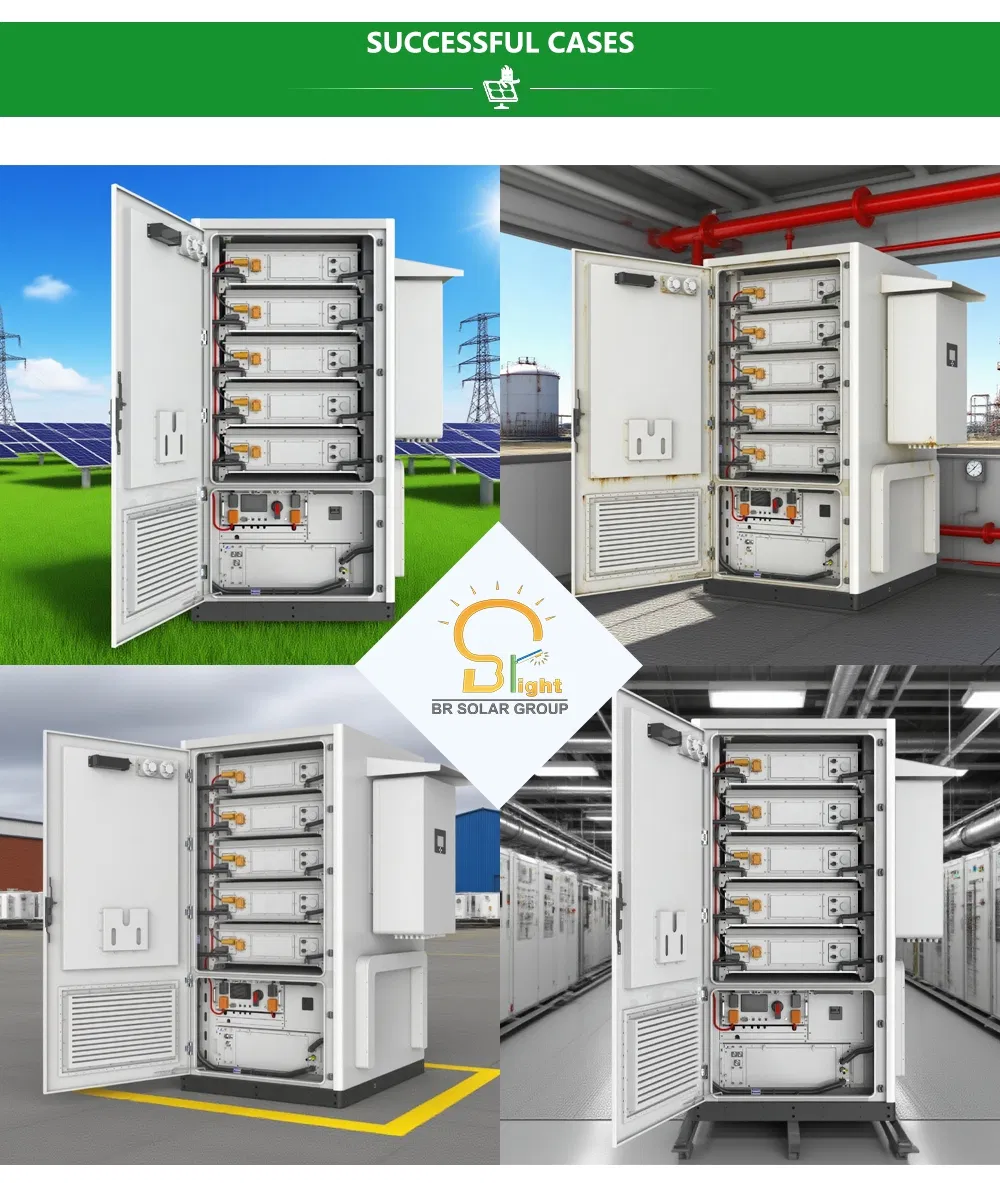

Storage Unit View 2
Technical Drawing
Internal Components
System Interface
Installation Site
Module Detail
Control Panel
Final Assembly

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.
How is the battery system cooled?
This energy storage system uses advanced Liquid Cooling technology to maintain optimal operating temperatures and enhance efficiency.
What is the protection rating for outdoor use?
The system is rated at IP55, providing excellent protection against dust and water, making it suitable for various industrial and commercial environments.
What are the main applications for this energy storage?
It is designed for versatile use across Home, Industrial, Commercial, School, and Factory settings to manage energy load and storage.
What fire protection features are included?
The safety system includes temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers.
What is the operating temperature range?
The system is designed to operate reliably in a wide temperature range from −30ºC to 50ºC.
