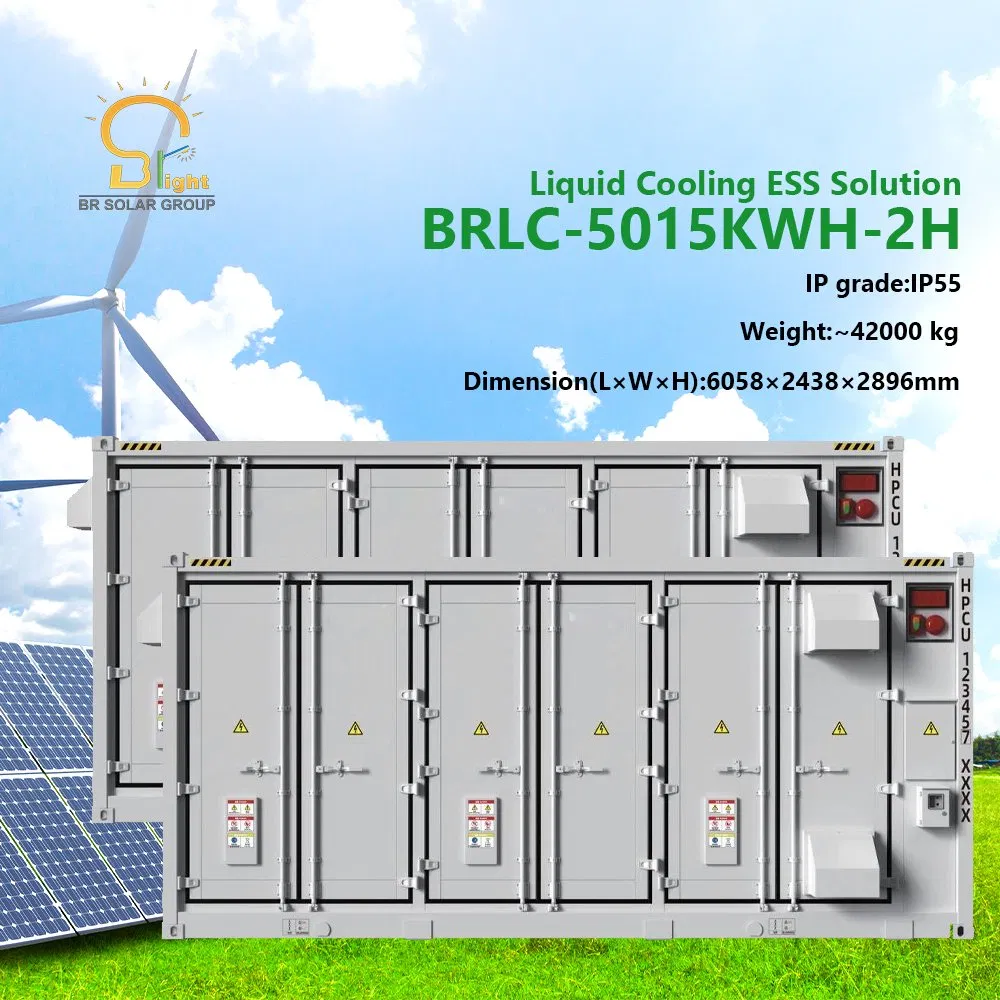

CE Approved Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years

Product Description

i

Basic Information

ConditionNew
CertificationISO, CE
ApplicationHome, Industrial, Commercial, School, Factory
Specification100kwh, 233kwh
Type of CellLithium Iron Phosphate(LFP)
Cell Parameter3.2V/314ah
CoolingLiquid Cooling
Protection ClassIP55
Max. Charge/Discharge Power0.5c
Configuration of System1p416sx12
Rated Capacity5.01 Mwh
Rated Voltage1331.2V
Voltage Range1164.8~1497.6V
OriginChina
HS Code8501310000
Production Capacity1000set/Month
P

Packaging & Delivery

Package Size110.00cm * 140.00cm * 238.00cm
Package Gross Weight2000.000kg
Transport PackageCarton and Pallet
D

Product Description

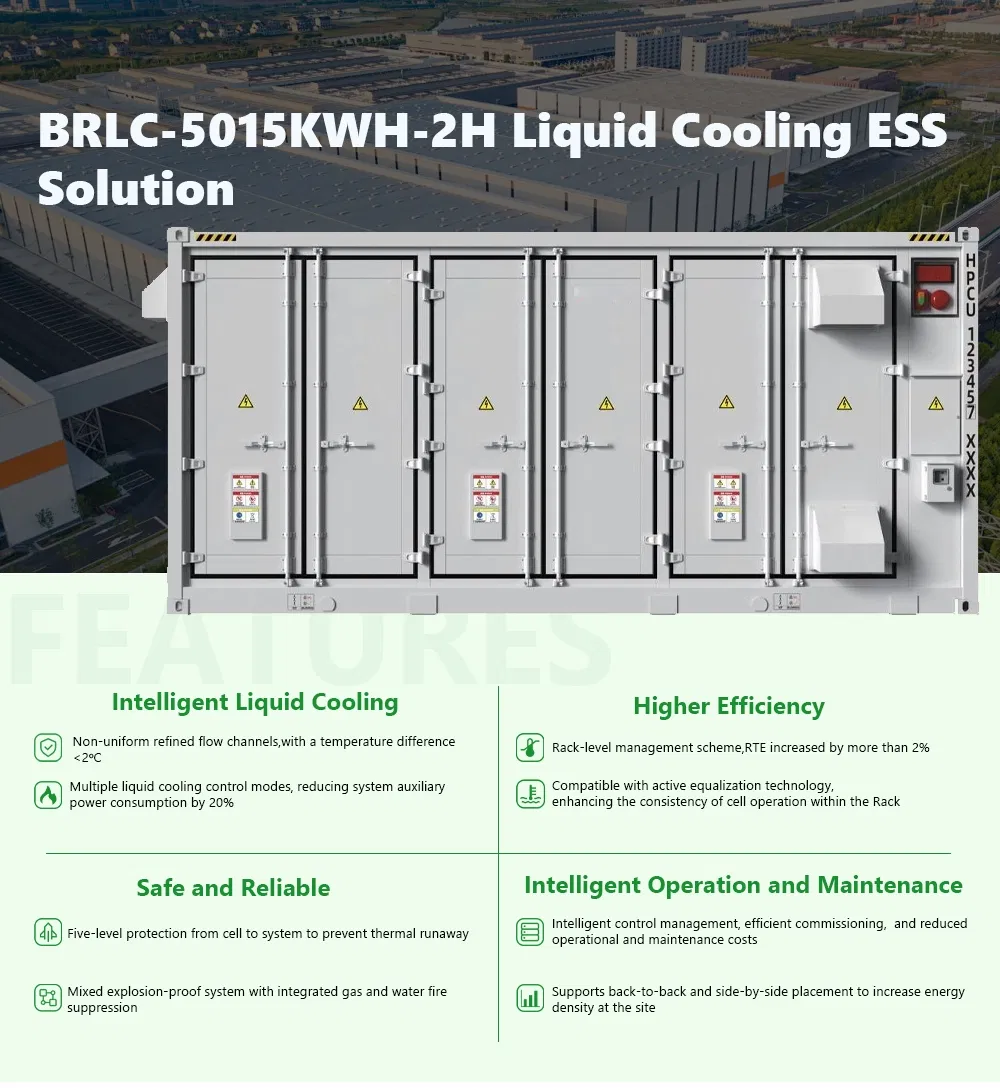

Industrial Battery Energy Storage
Technical Parameters
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
Storage temperature−20~45ºC
Corrosion-proof gradeC4/C5(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

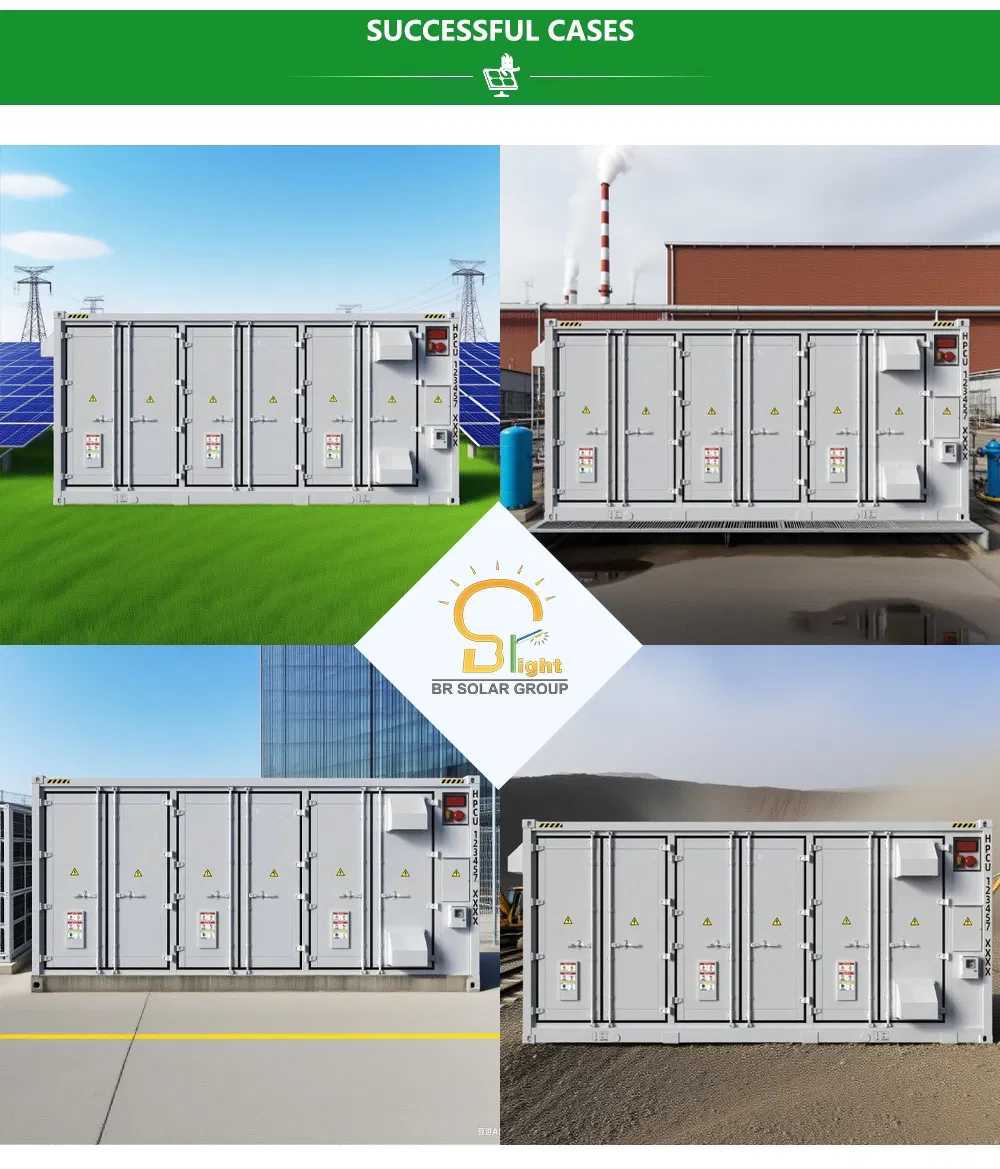

Energy Storage Detail 1

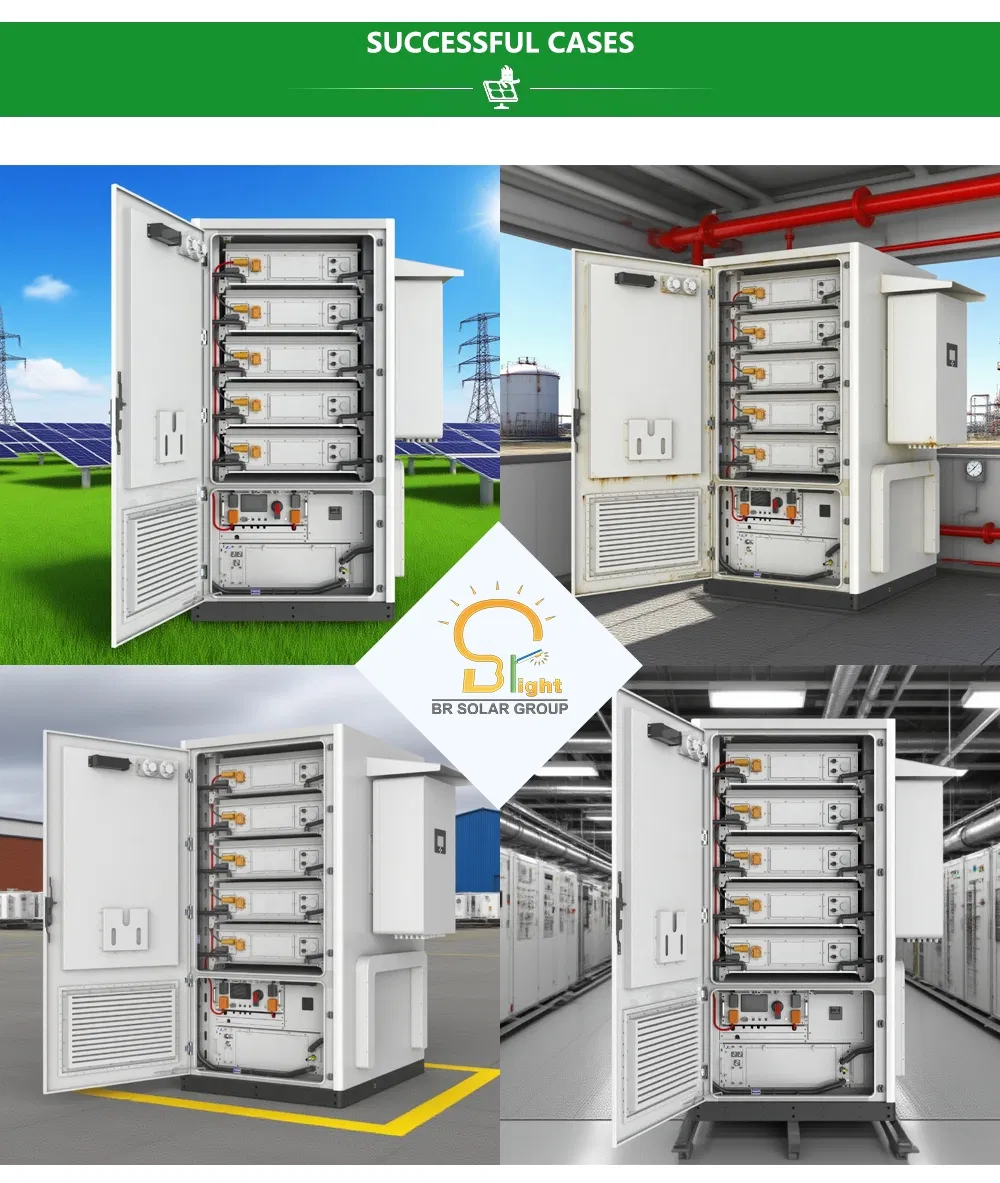

Energy Storage Detail 2
Energy Storage Detail 3

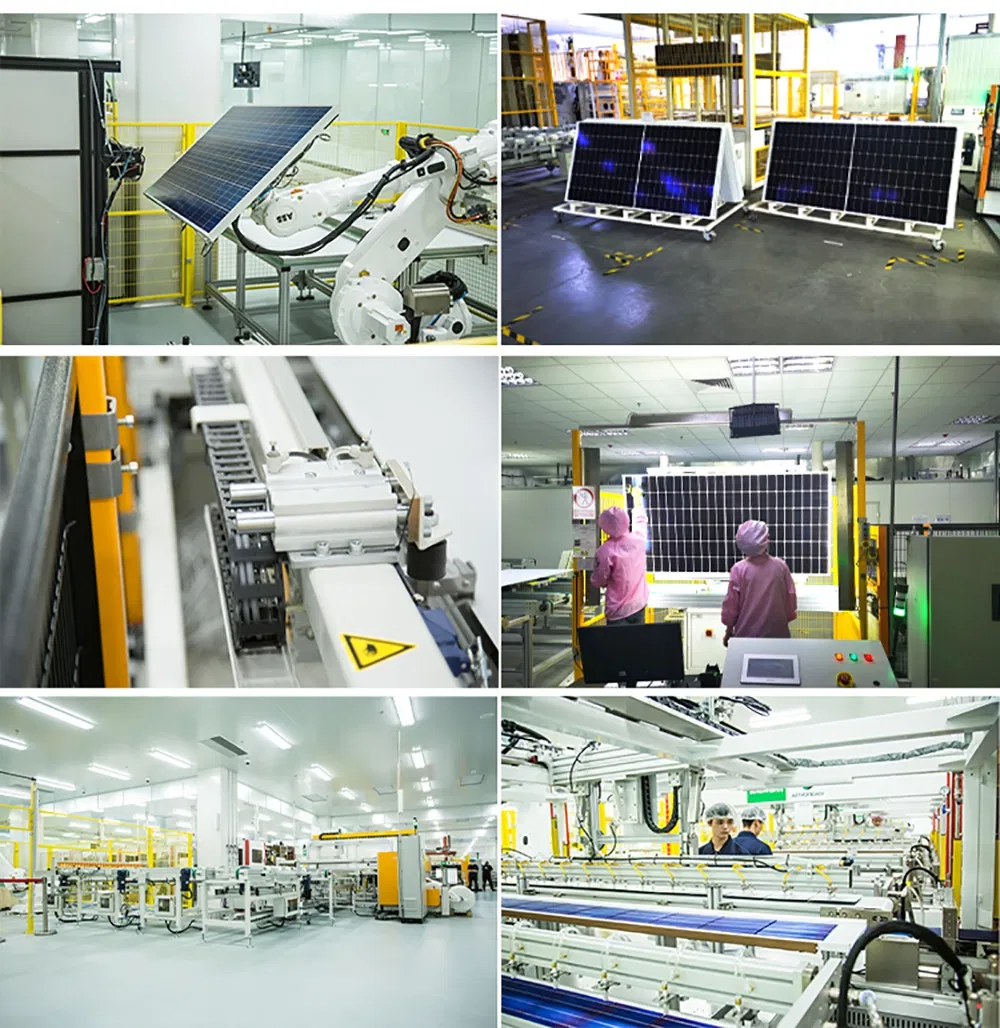

Energy Storage Detail 4
Energy Storage Detail 5

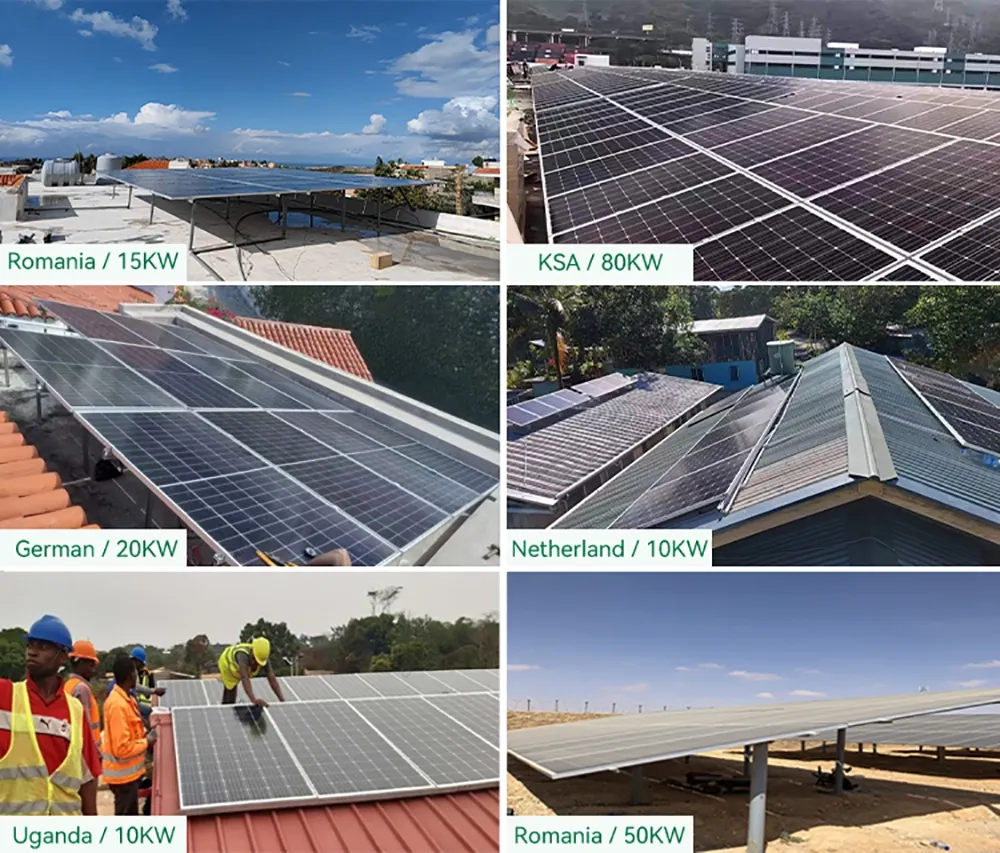

Energy Storage Detail 6
Energy Storage Detail 7
Energy Storage Detail 8
Specifications Banner
?

Frequently Asked Questions

What is the battery cell technology used in this system?
The system utilizes Lithium Iron Phosphate (LFP) cells, known for their high safety standards and long cycle life.
Is the system suitable for outdoor installation?
Yes, the system features an IP55 protection class and is designed to operate in temperatures ranging from -30ºC to 50ºC.
What type of cooling system is integrated?
The system uses advanced Liquid Cooling technology to ensure optimal temperature management and efficiency.
What fire protection measures are included?
Safety is prioritized with temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers.
What are the primary applications for this energy storage?
It is ideal for high-capacity needs including industrial, commercial, school, factory, and large-scale home energy storage.
What communication interfaces are supported?
The system supports Ethernet, CAN, and RS485 interfaces for seamless external communication and monitoring.
