Basic Specification
Model NO.U1-LC-418
Energy Capacity100kWh-500kWh
Cycle Life8000 Cycles (80%DOD)
Cooling MethodFull Liquid Cooling
Warranty Period5-10 Years
StructureAll in One Cabinet
Battery TypeLiFePO4
Protection LevelIP55
Product Overview

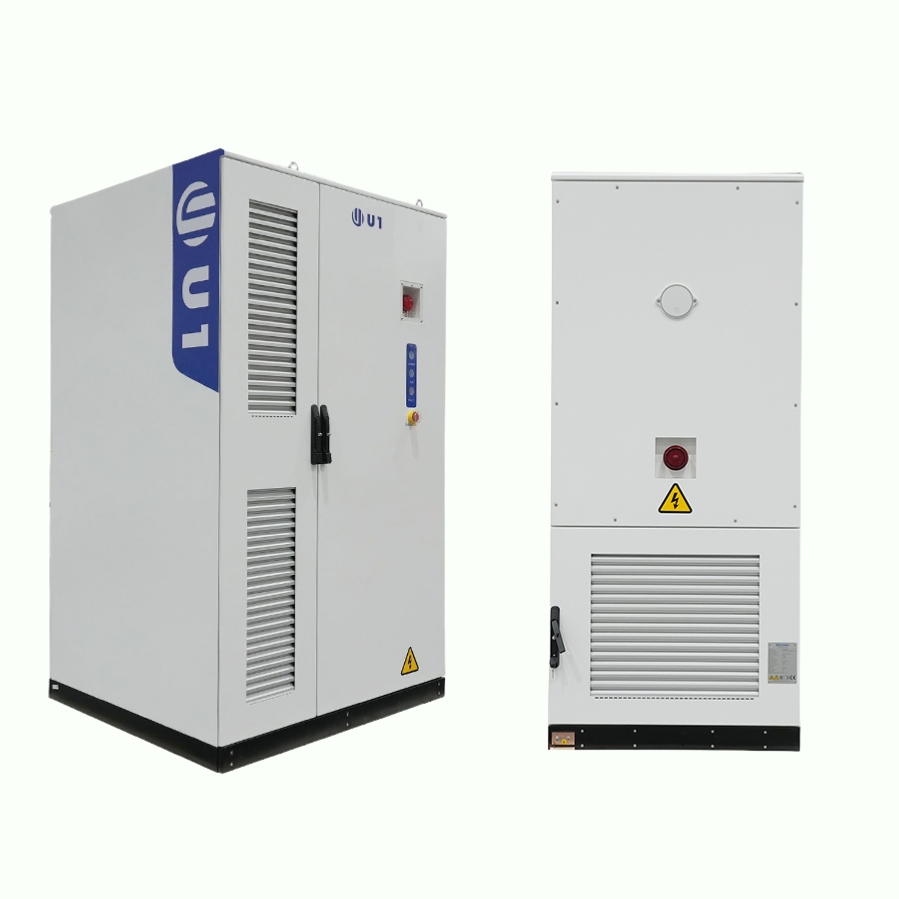

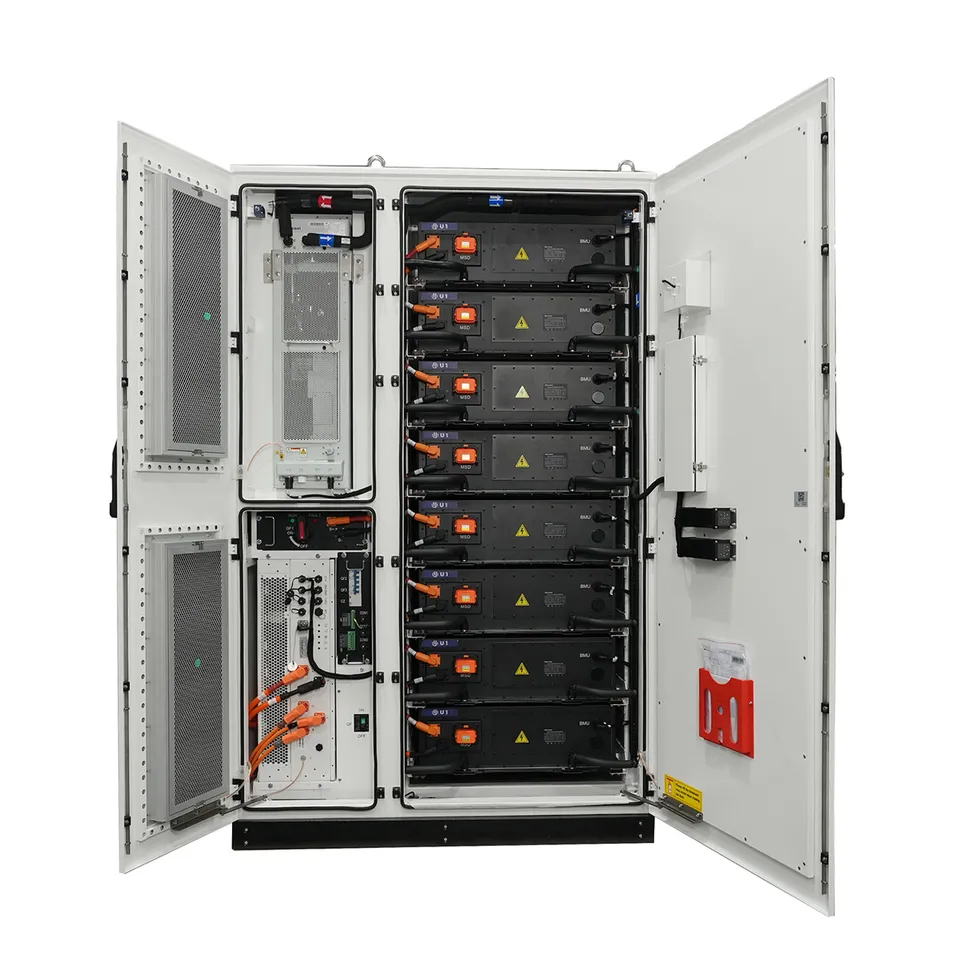

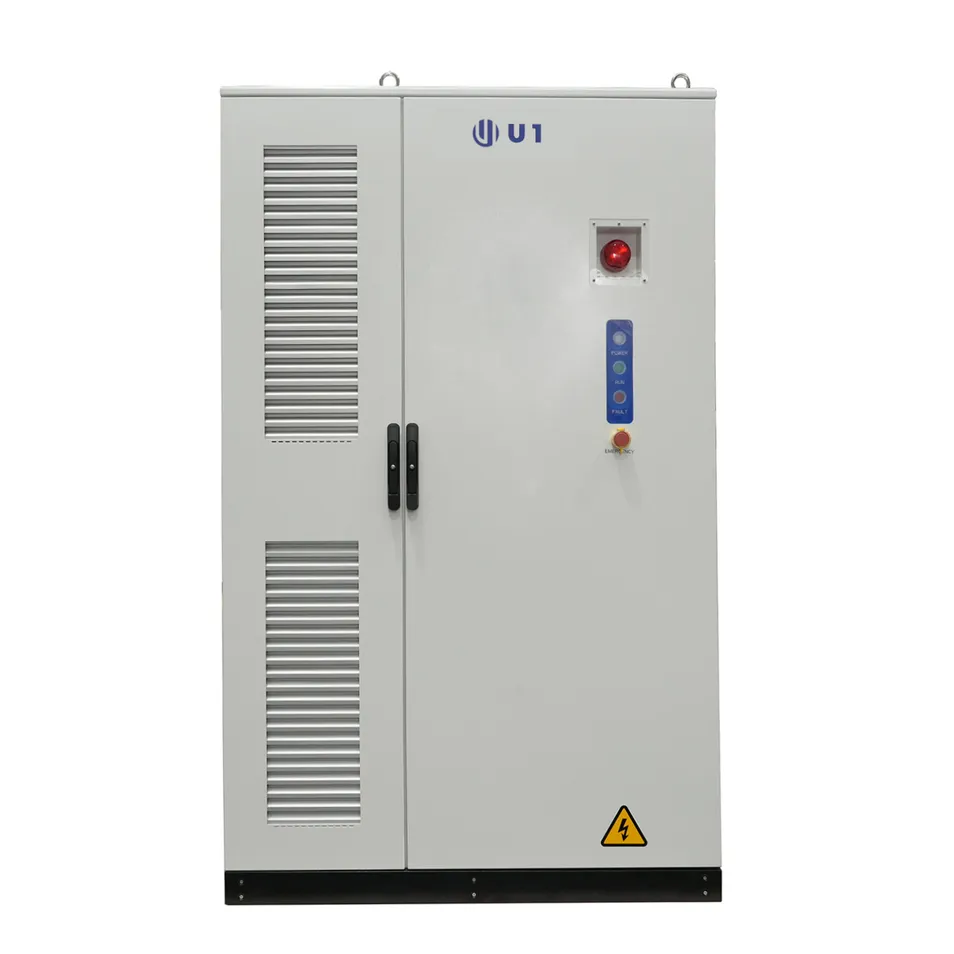

The system is a free-standing battery cabinet featuring pack-level liquid cooling and cell-level temperature balancing. It maintains temperature differences within 3°C between cells, enhancing temperature consistency and extending battery life. Its modular design offers flexible parallel configurations and can be paired with a centralized PCS to create a complete ESS solution that delivers higher energy density and significantly improves cost-effectiveness.
Key Features
Compact Design1.7m² footprint only, allowing for easy transportation and fast installation.
High IntegrationMultiple units connected in parallel achieve MV/HV connection with PCS-boost containers.
Efficient CoolingOptimized in-pack liquid cooled design ensures high cooling efficiency with low energy consumption.
Long Cycle LifeOver 5500 to 8000 times cycle life, providing excellent performance for the battery system.
Flexible ExpansionSupport seamless cabinets combination and flexible grid access.
Ultimate SafetyIn-Pack fire warning and protection with aerosol, preventing heat diffusion and runaway.
System Integration & Solutions
Specializing in integrated energy solutions with dual-core expertise in power generation and energy storage. We deliver one-stop, reliable, and efficient energy systems worldwide. By integrating generators and battery energy storage under a unified control architecture, we deliver optimized hybrid power solutions for industrial and commercial facilities, data centers, mines, ports, microgrids, and power plants.
Frequently Asked Questions
What is the expected lifespan of this battery storage system?
The system utilizes high-quality LiFePO4 cells offering 5500 to 8000 cycles at 80% Depth of Discharge (DOD), translating to a long service life of approximately 10-15 years depending on usage.
How does the liquid cooling system benefit the battery?
The full liquid cooling design ensures that the temperature difference between cells is kept within ≤3℃. This consistency prevents hotspots, ensures safety, and significantly slows down battery degradation.
Is this system suitable for outdoor installation?
Yes, the cabinet is designed with an IP55 protection level, making it resistant to dust and water, suitable for various outdoor commercial and industrial environments.
Can the capacity be expanded if my energy needs grow?
Absolutely. The modular "All-in-One" design supports seamless parallel combination of multiple cabinets, allowing you to scale from 100kWh to MWh-level containers easily.
What safety measures are integrated into the cabinet?

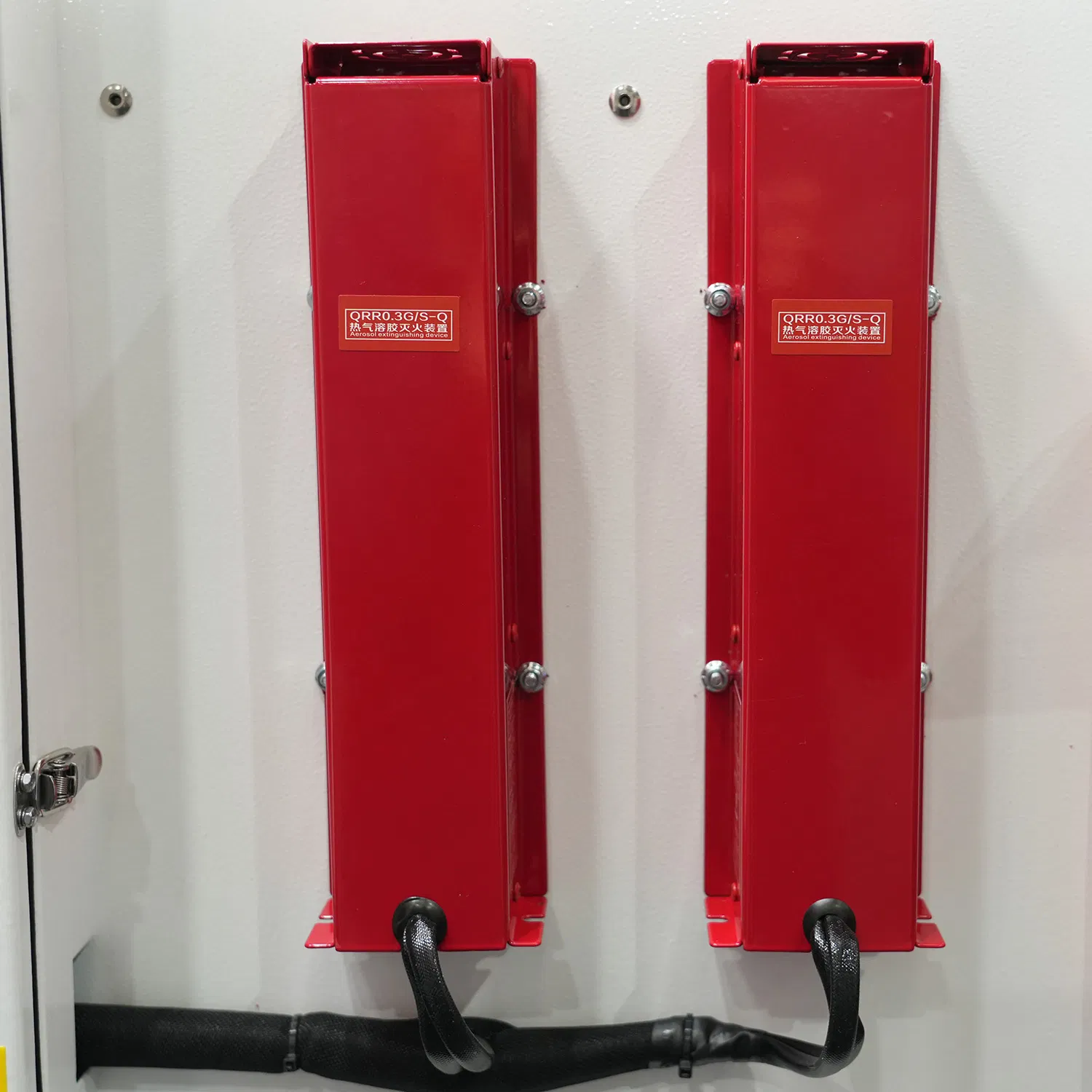

Safety is our priority. The system includes an in-pack fire warning system and aerosol fire suppression to prevent heat diffusion and thermal runaway.
What is the footprint required for installation?
The system is extremely compact, requiring only a 1.7m² footprint, which simplifies site selection and reduces installation costs.
