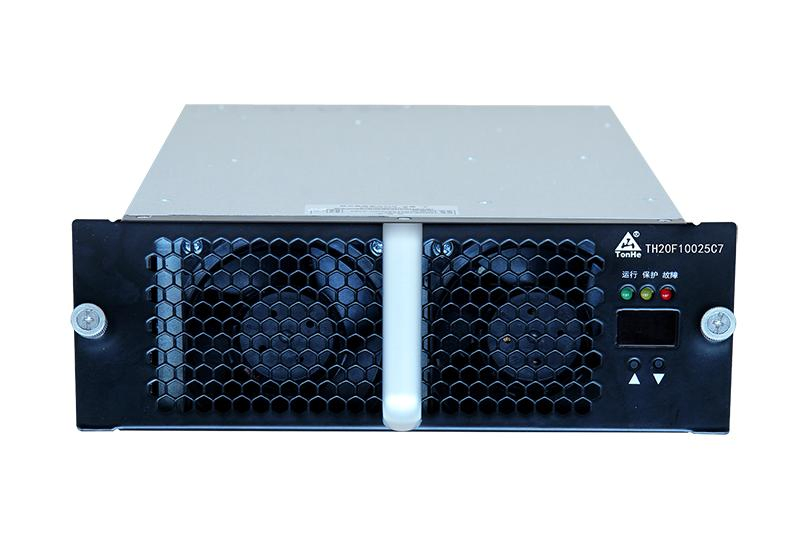

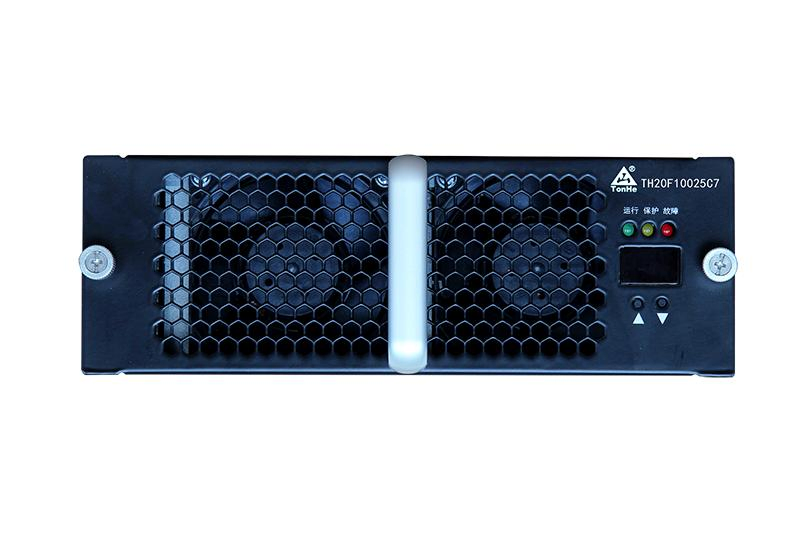

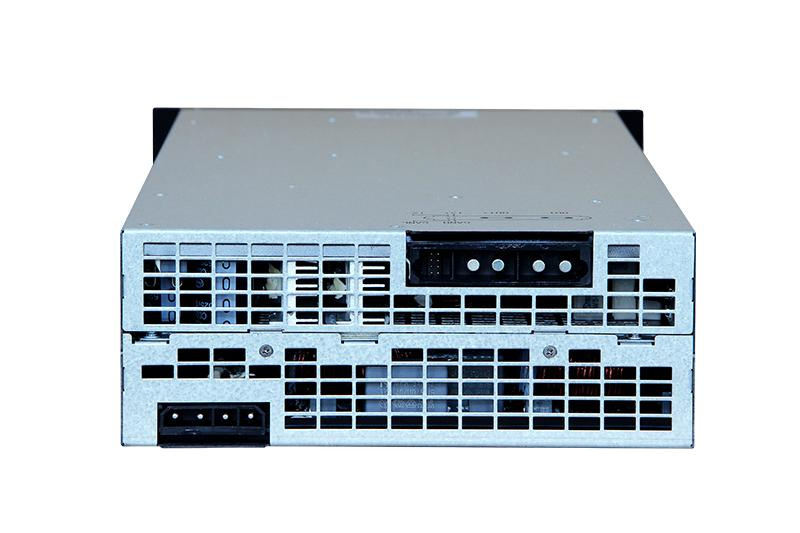

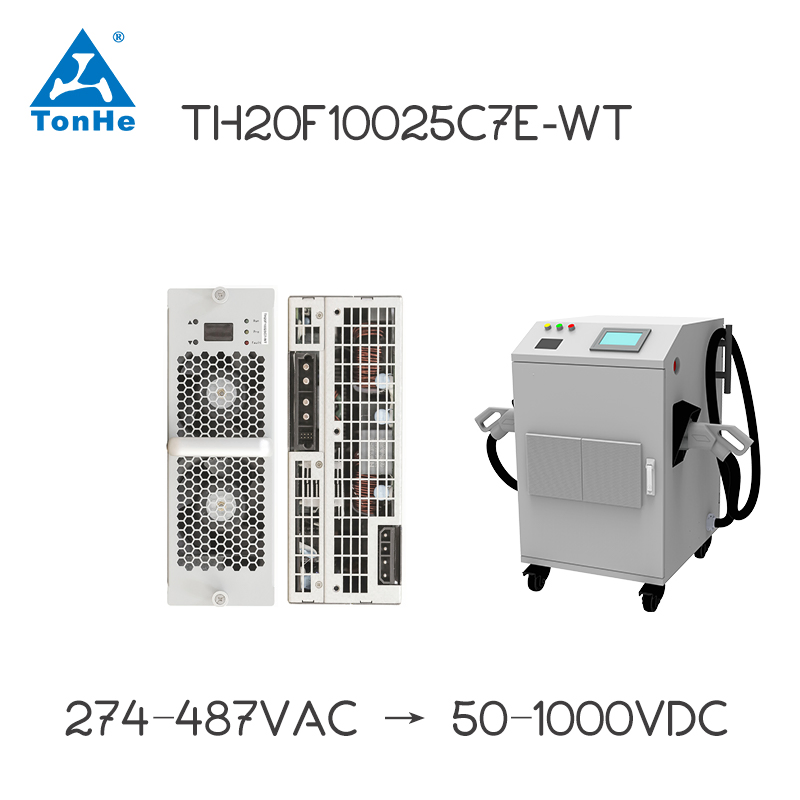

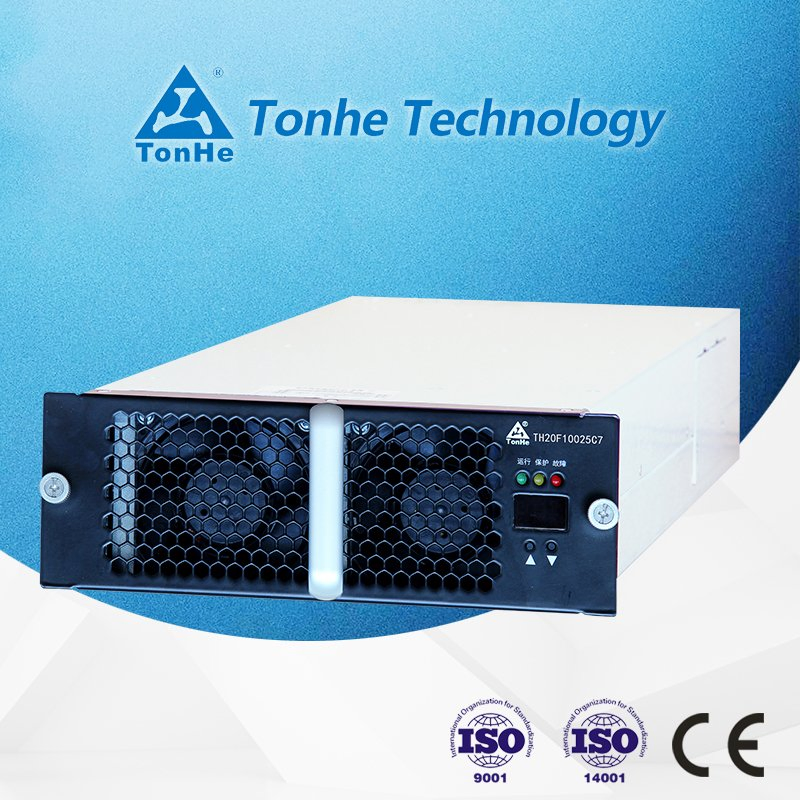

DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
1 / 5
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture
DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture

DC Fast Charging Module with CE TUV Certificate Electric Vehicle Tonhe 1000V/120A 20kw High Efficiency China Manufacture

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
TH20F10025C7E-WT
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Efficiency
Mini 95%
IP Class
IP54
Output Power
160kw
Input Voltage
380V
Type
Fast EV Charging Station
Certification
CE, ISO
Warranty
12 Months
Package
Wooden Case
Origin
China
Capacity
100 Sets / Month
⚙️

Detailed Technical Parameters

AC Input 3 phase+neutral+PE, 400VAC±10%, 50Hz±10%
Output Performance Power: 120KW | Voltage: CCS: 200-750VDC | Cable: 5m Liquid Cooled
Electrical Power Factor ≥0.99 (Full Load)
THD Value ≤5%
Efficiency ≥95% at nominal power
Accuracy Voltage ≤±0.5%, Current ≤±1%
Structure Housing Galvanized steel, Vertical ground installation
User Interface 10" TFT LCD Touch Screen, Emergency Stop (Mushroom type)
Payment RFID CARD / Phone APP with backend
Communication Ethernet, Wi-Fi, 2G/3G/4G | Protocol: OCPP1.6
Protection Over/Under Current, Surge, Short Circuit, Earth Fault, Over Temperature
🏭

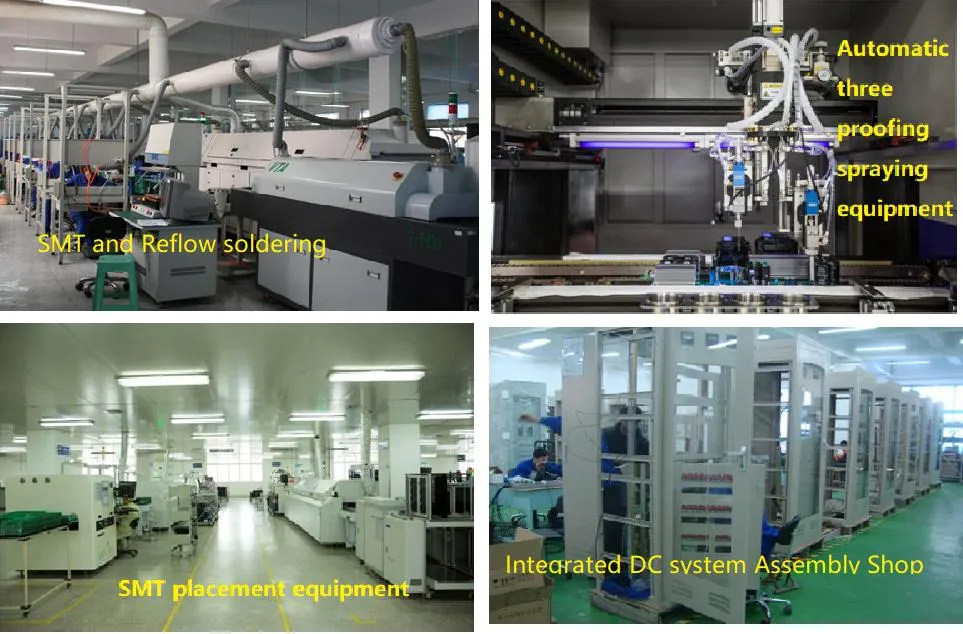

Manufacturing Center & Certification

Advanced automatic production lines with integrated assembly and testing processes ensure consistent product quality and technological excellence.

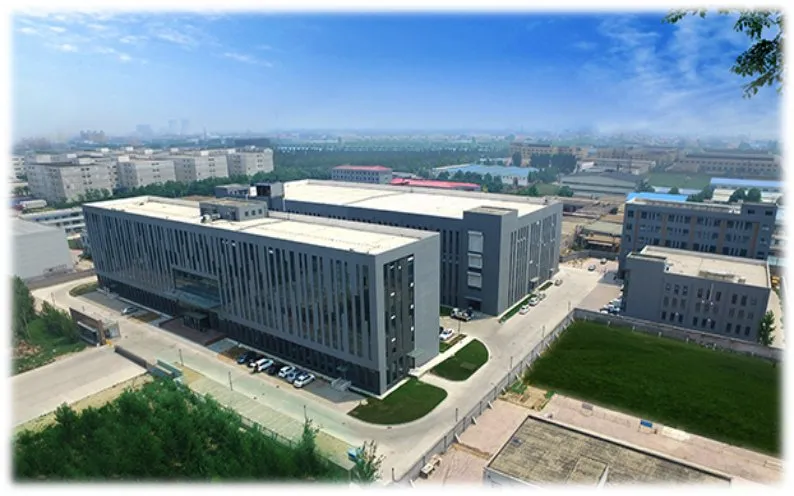

Production Module Manufacturing Center Certification Display
🌍

Global EV Charging Projects

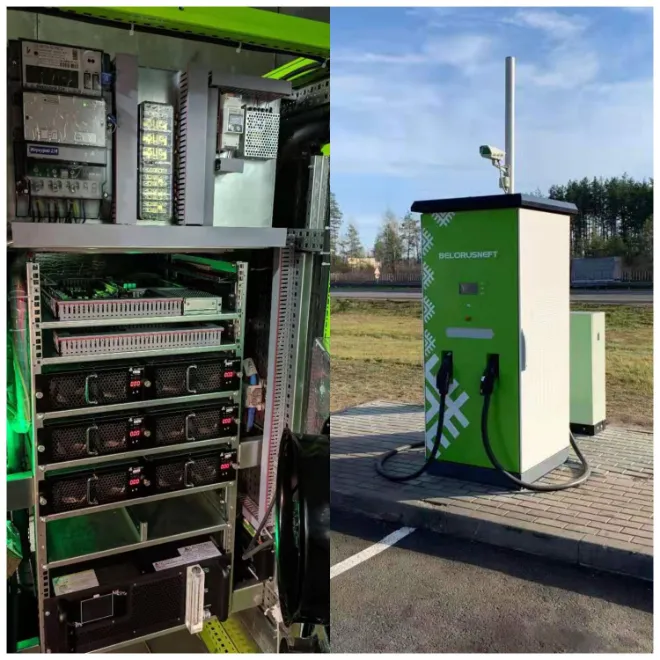

St. Petersburg Charging Station
St. Petersburg Station

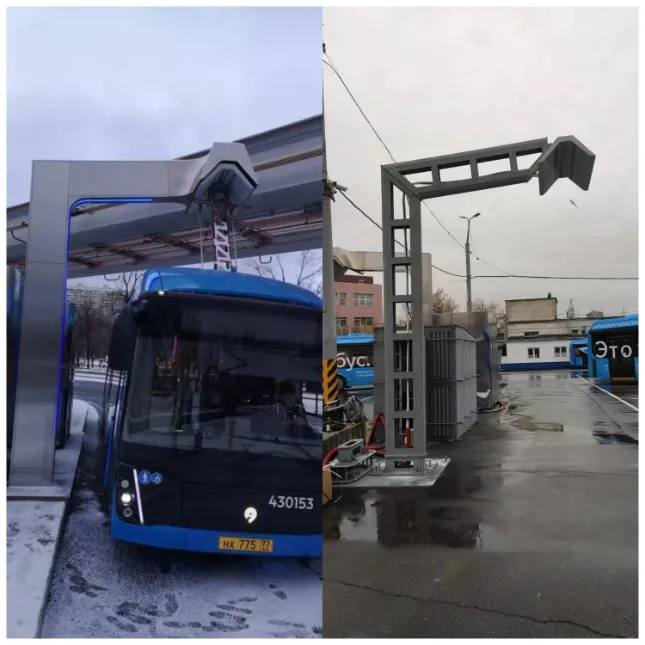

Moscow Bus Station
Moscow Station

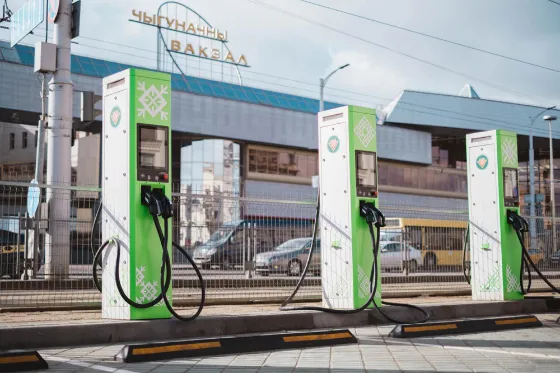

Minsk Railway Station
Minsk Station

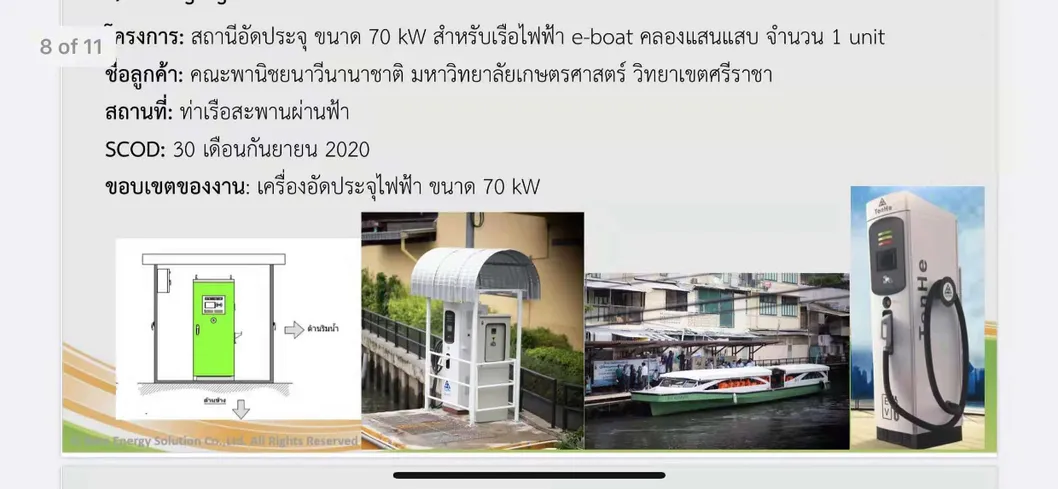

Ship Environment Application (Thailand)
Thailand Project
📸

Product Gallery

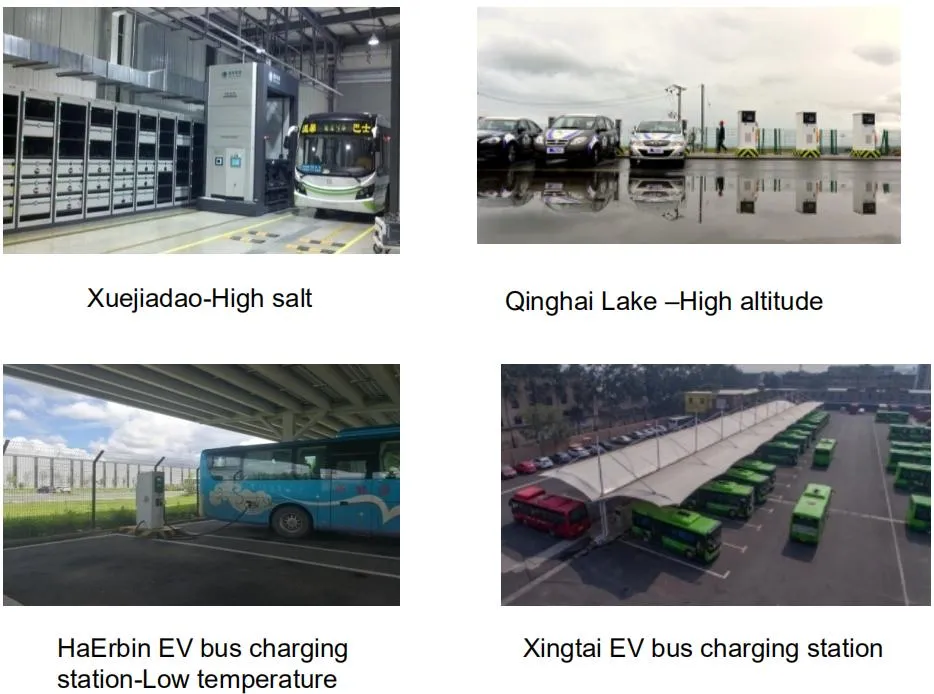

Charging Unit 1

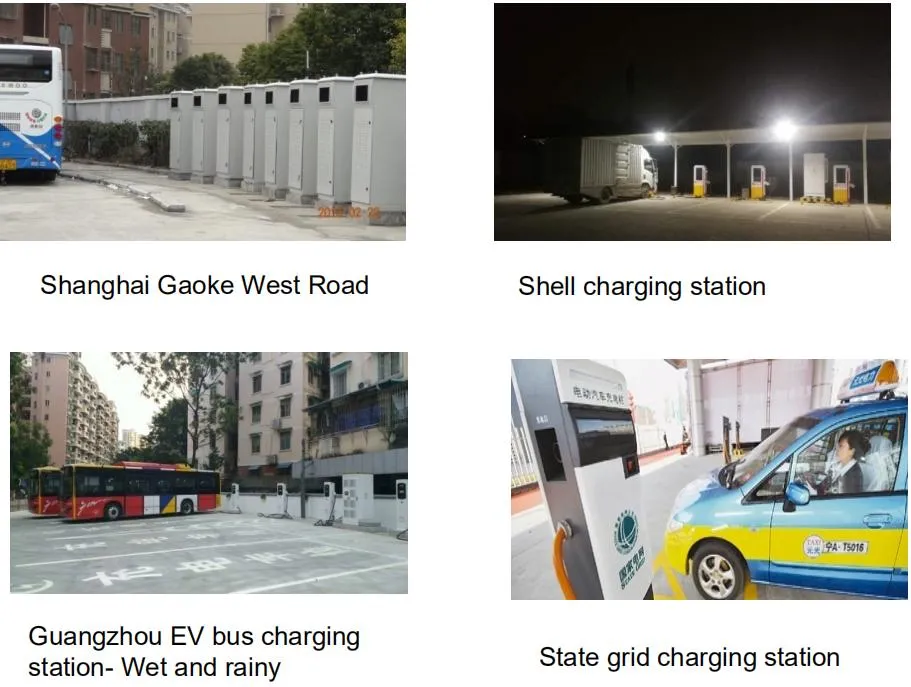

Charging Unit 2

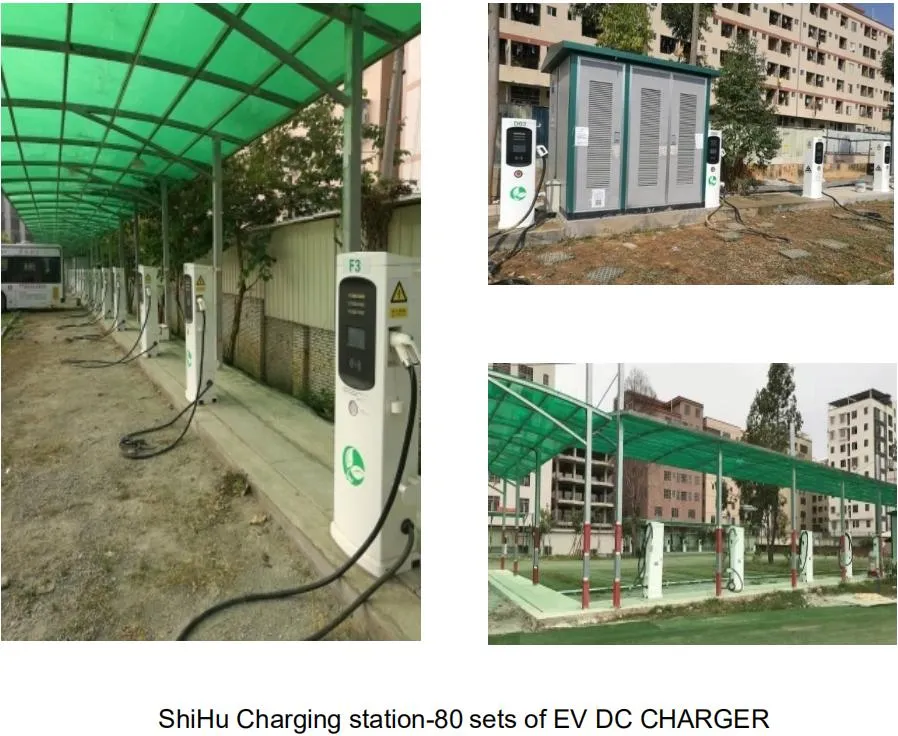

Charging Unit 3

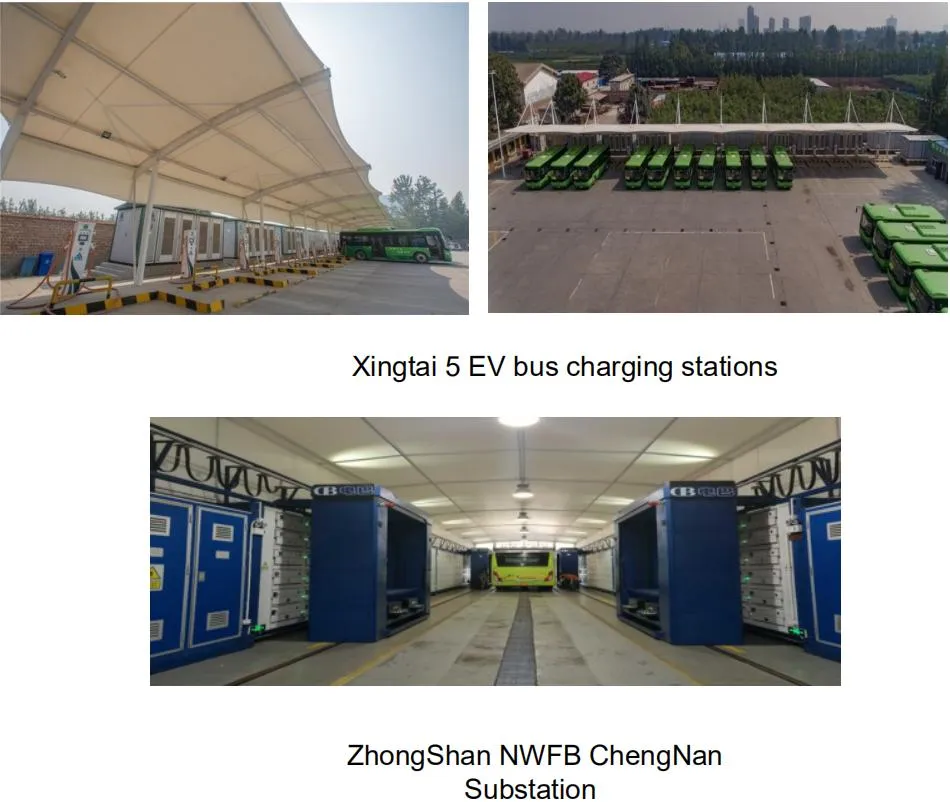

Charging Unit 4
Frequently Asked Questions
Q1: What is the peak efficiency of this charging station?
The station operates with a high efficiency of at least 95% at nominal output power, ensuring minimal energy loss.
Q2: Which charging standards and protocols are supported?
It supports CCS (Combined Charging System) and utilizes the OCPP 1.6 communication protocol for backend connectivity.
Q3: Is the charging station suitable for outdoor installation?
Yes, the station has an IP54 protection rating and can operate in temperatures ranging from -20ºC to +65ºC.
Q4: What payment methods can users use to start charging?
Users can initiate charging sessions using RFID cards or via a dedicated Phone APP integrated with the backend.
Q5: What safety protections are built into the system?
The system includes multiple protections: over/under current, surge protection, short circuit, earth fault, and emergency shut-down with alarms.
Q6: What are the main components of the user interface?
The station features a 10-inch TFT LCD touch screen for user interaction, supplemented by LED indicators for status and voice notifications.
