All-in-One Energy Storage Solution

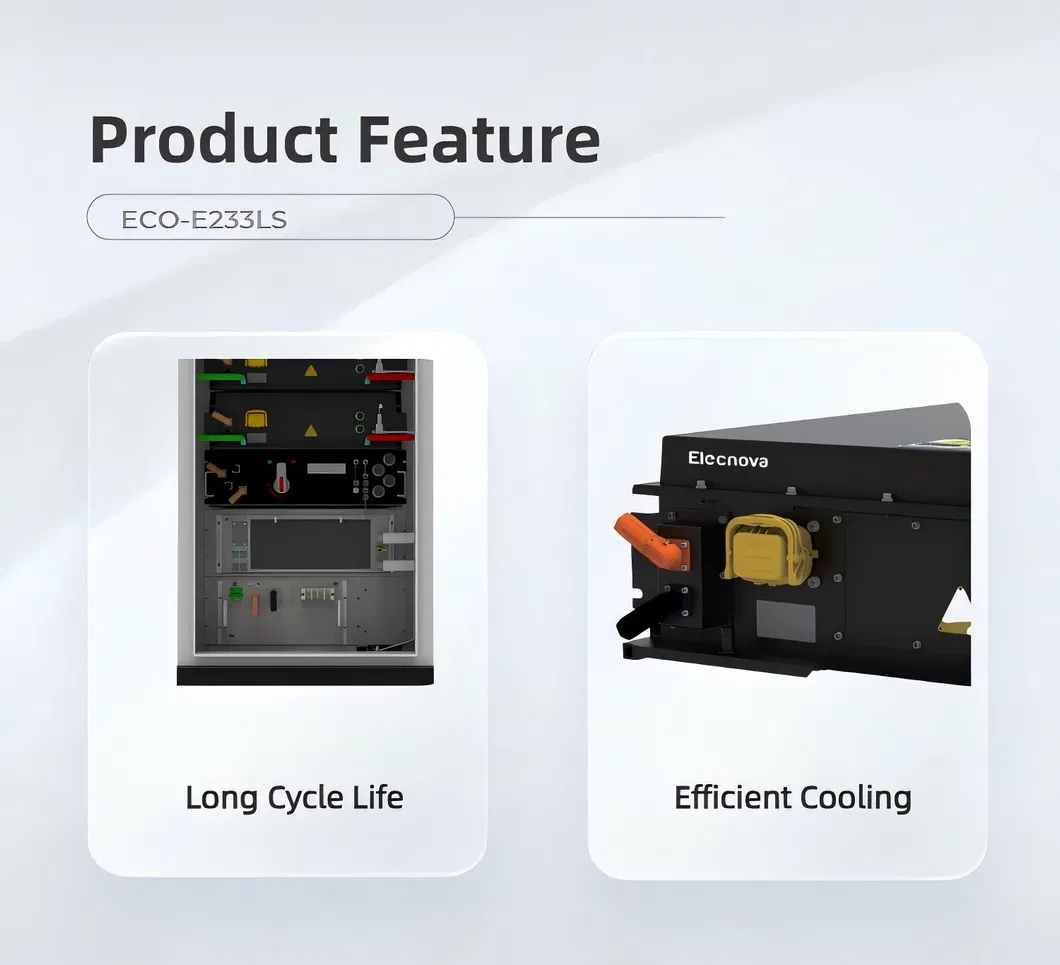

This 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of projects.

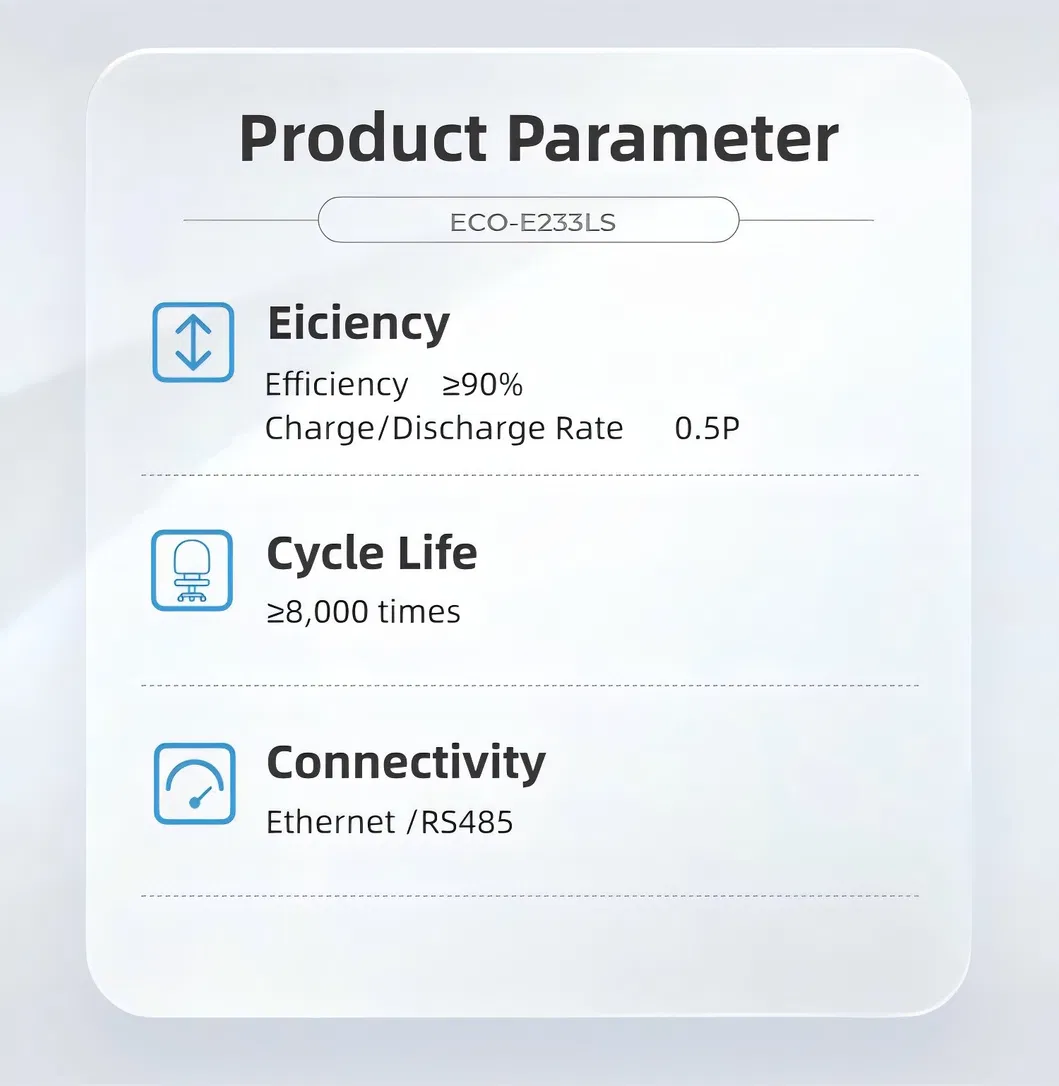

| Model NO. | ECO-E233LS |
| Nominal Capacity | 233kwh |
| Cycle Life | 8000 Cycles |
| Application | Industrial Commercial Factory |
| Cooling | Liquid-Cooled |
| Grid Type | On Grid / Off Grid |
| Battery Type | LFP Energy Storage System |
| Dimensions | 1250*1300*2400mm |
Application Scenarios
The energy storage project is designed for high efficiency, stability, and safety across various scenarios including C&I ESS, microgrid, and PV-plus ESS projects.

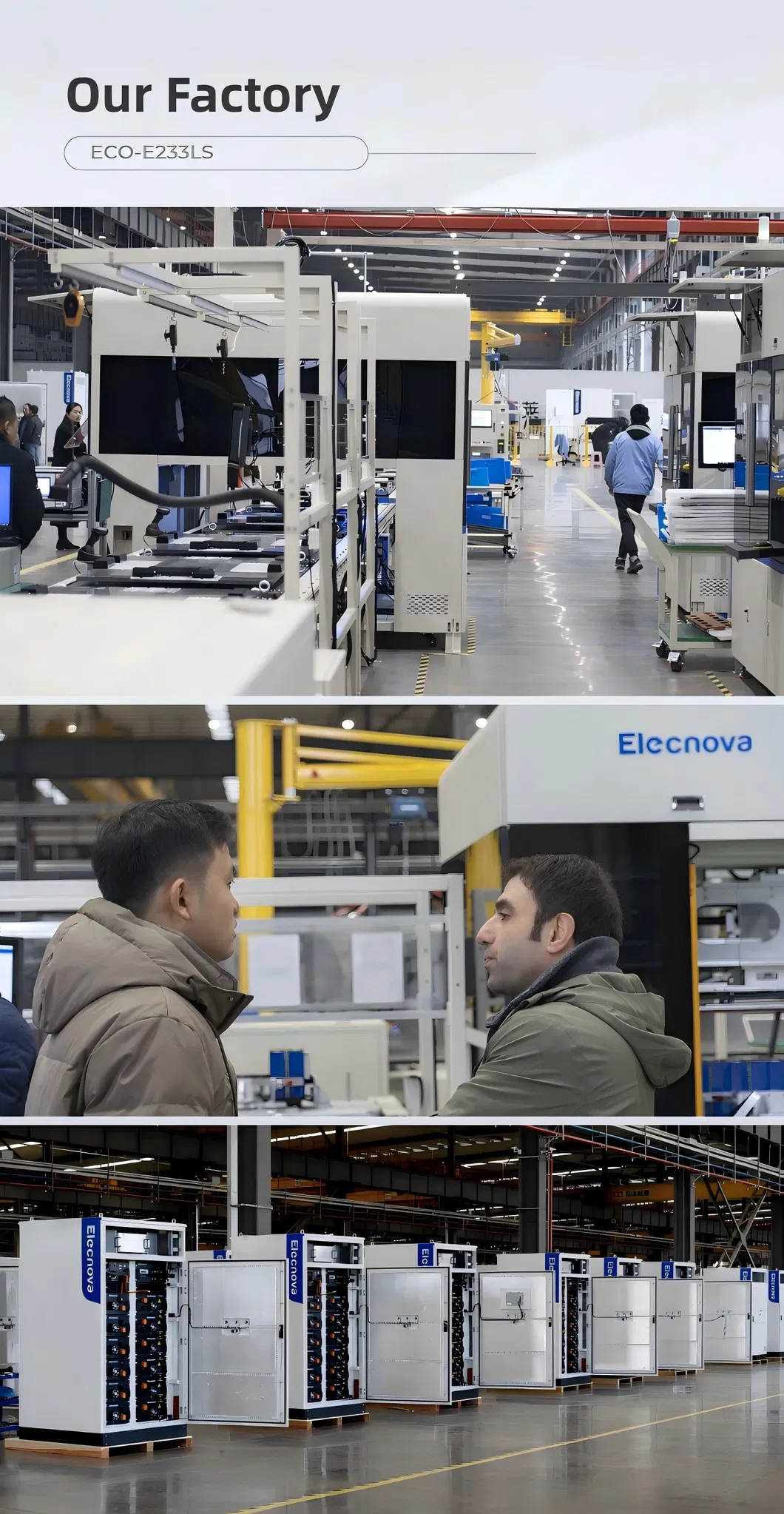

Manufacturing & Quality

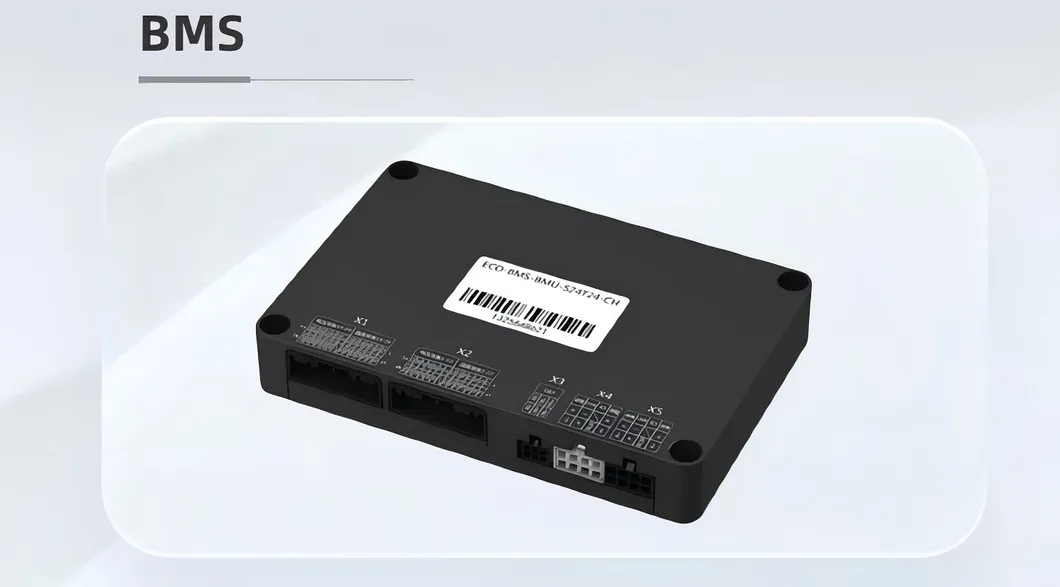

Focusing on overall solutions for energy storage systems, we maintain supporting capabilities for system integration including PACK, PCS, and BMS. Products are the core and quality is the cornerstone of our commitment to diversified energy requirements.
Frequently Asked Questions
Q1: What is the primary advantage of the liquid cooling system?
The liquid cooling system maintains cell temperature differences within 3°C, which significantly enhances battery consistency and extends the overall cycle life to over 8,000 cycles.
Q2: Can this system operate independently during a power outage?
Yes, the system features black start capability and ms-level on-/off-grid switching, allowing for reliable power restoration and independent operation during emergencies.
Q3: What safety measures are integrated into the cabinet?
The unit includes an in-PACK fire warning and protection system using NOVEC1230 or aerosol to prevent heat diffusion and thermal runaway, ensuring ultimate safety.
Q4: Is the system scalable for larger industrial needs?
Absolutely. The modular design allows for simplified parallel expansion, making it easy to increase capacity as your energy storage requirements grow.
Q5: What is the expected lifespan and warranty for the battery system?
The system is designed for a 10-year lifespan with a cycle life of ≥8,000 times. Standard warranty options range from 5 to 10 years depending on the specific application and configuration.

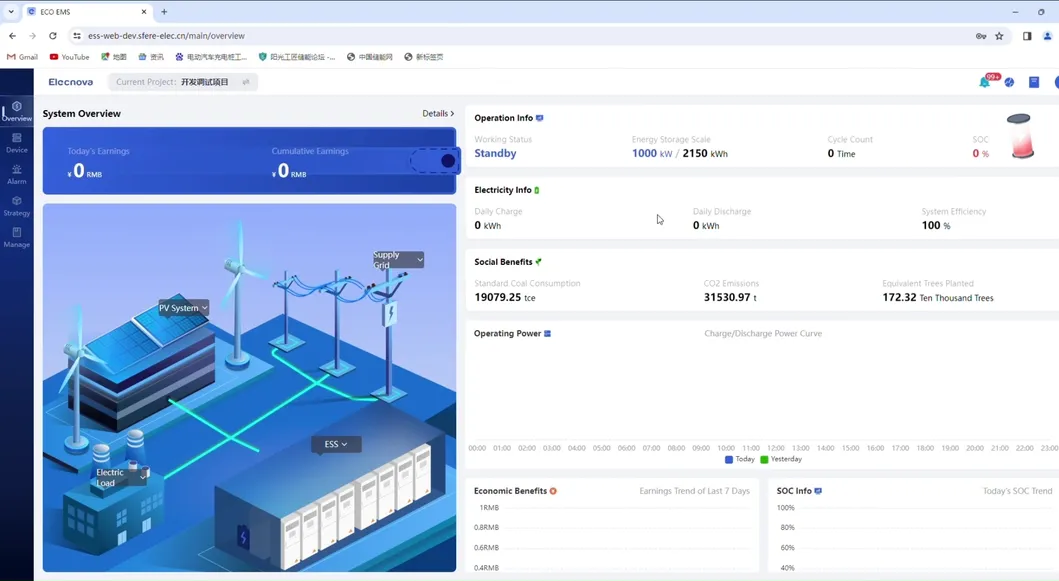

Q6: What communication protocols are supported?
The system supports standard communication via Ethernet and RS485 ports, ensuring seamless integration with existing monitoring and management systems.
