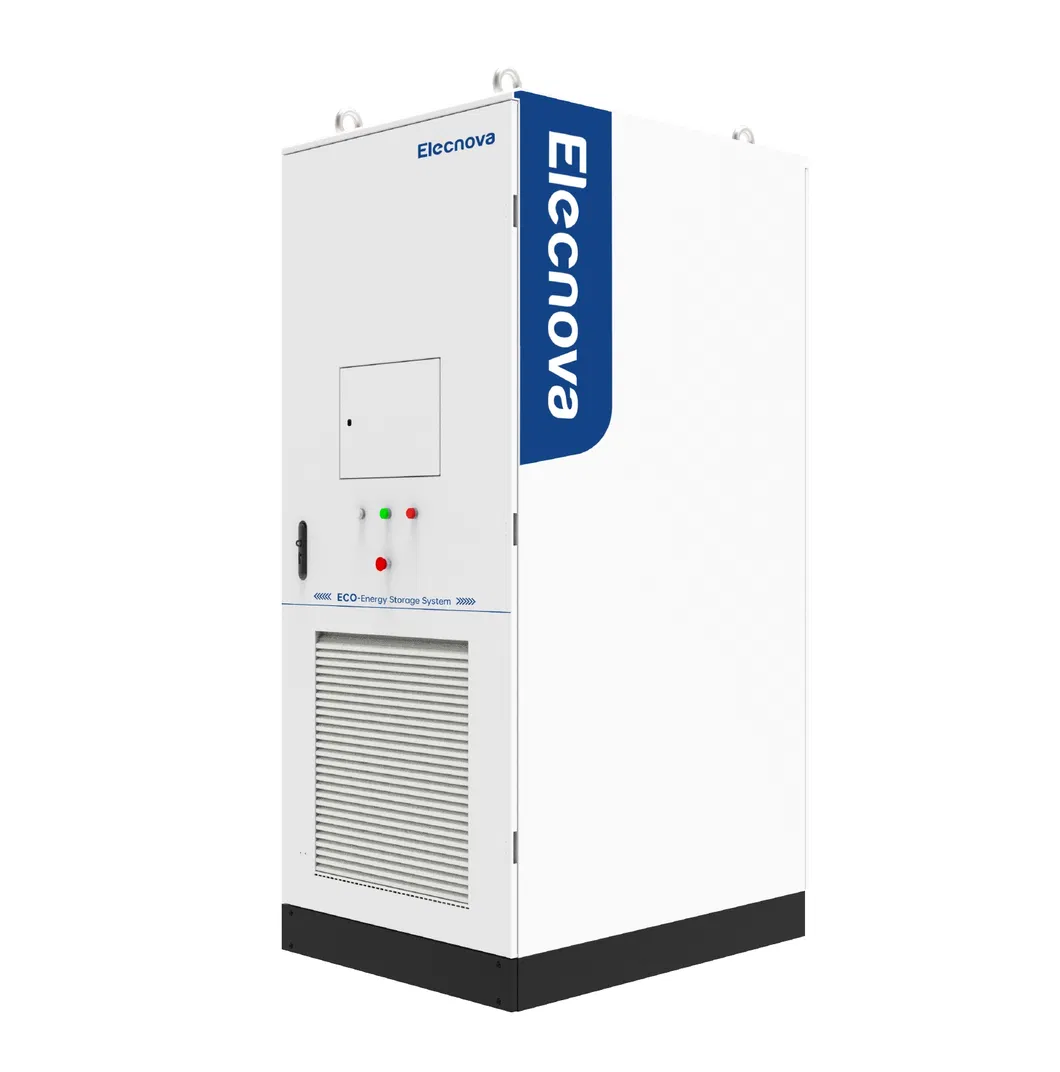

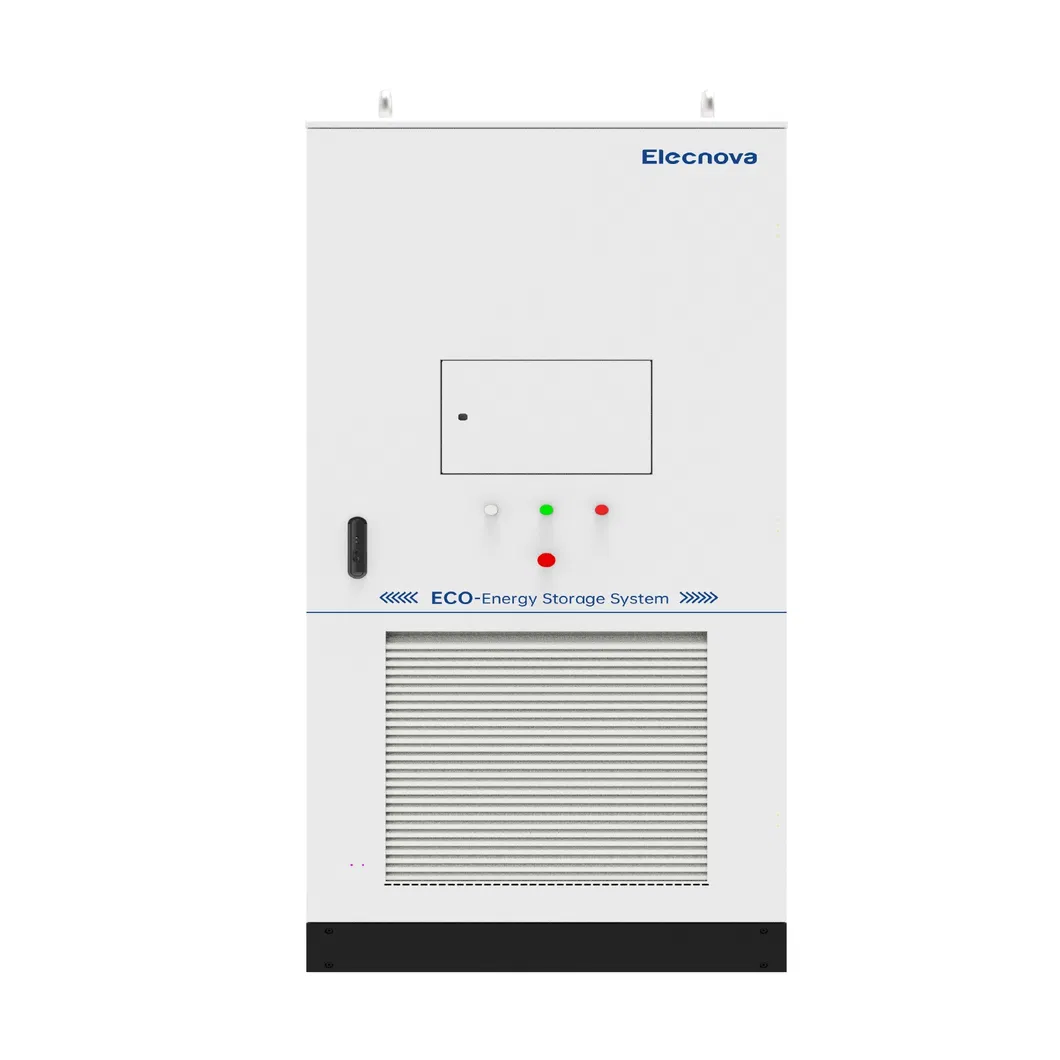

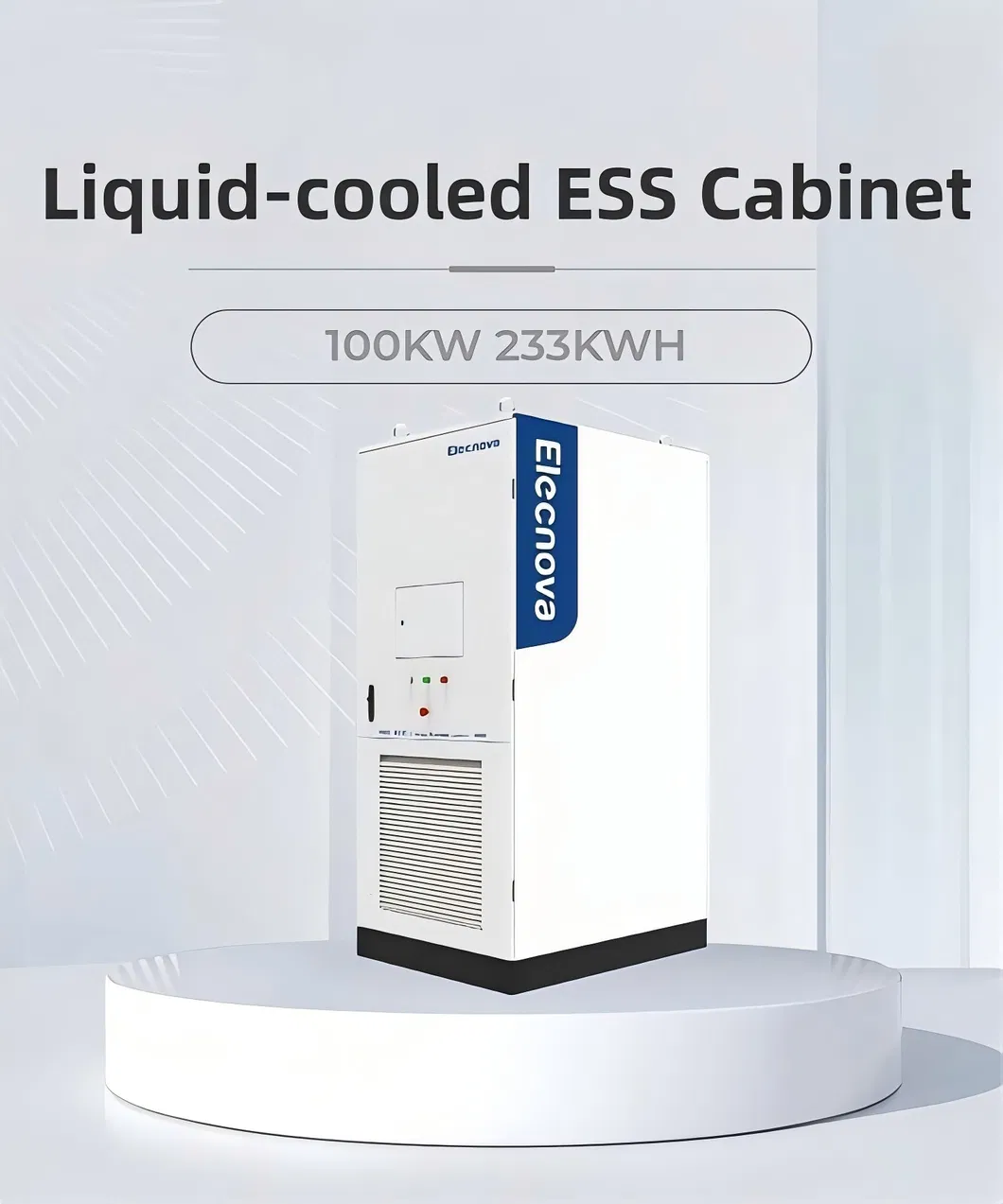

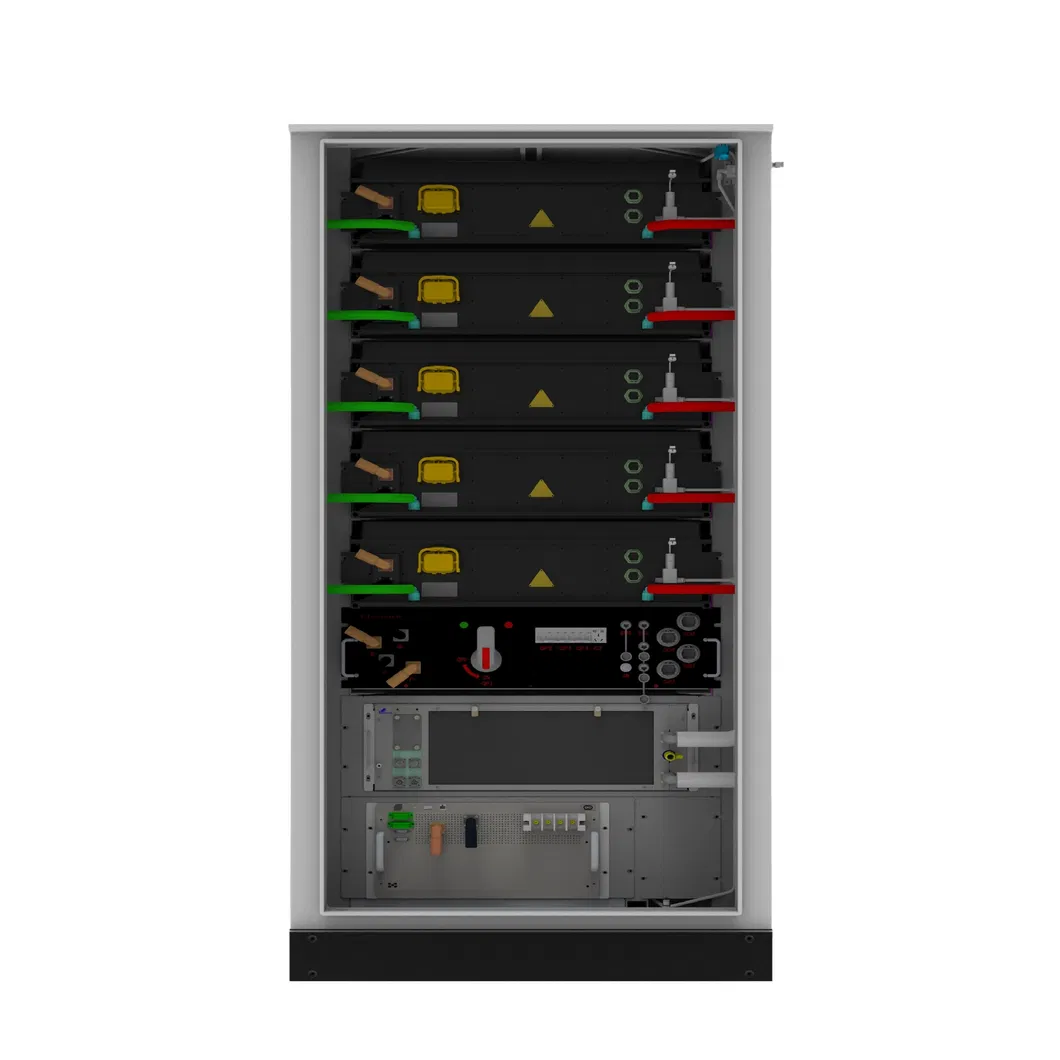

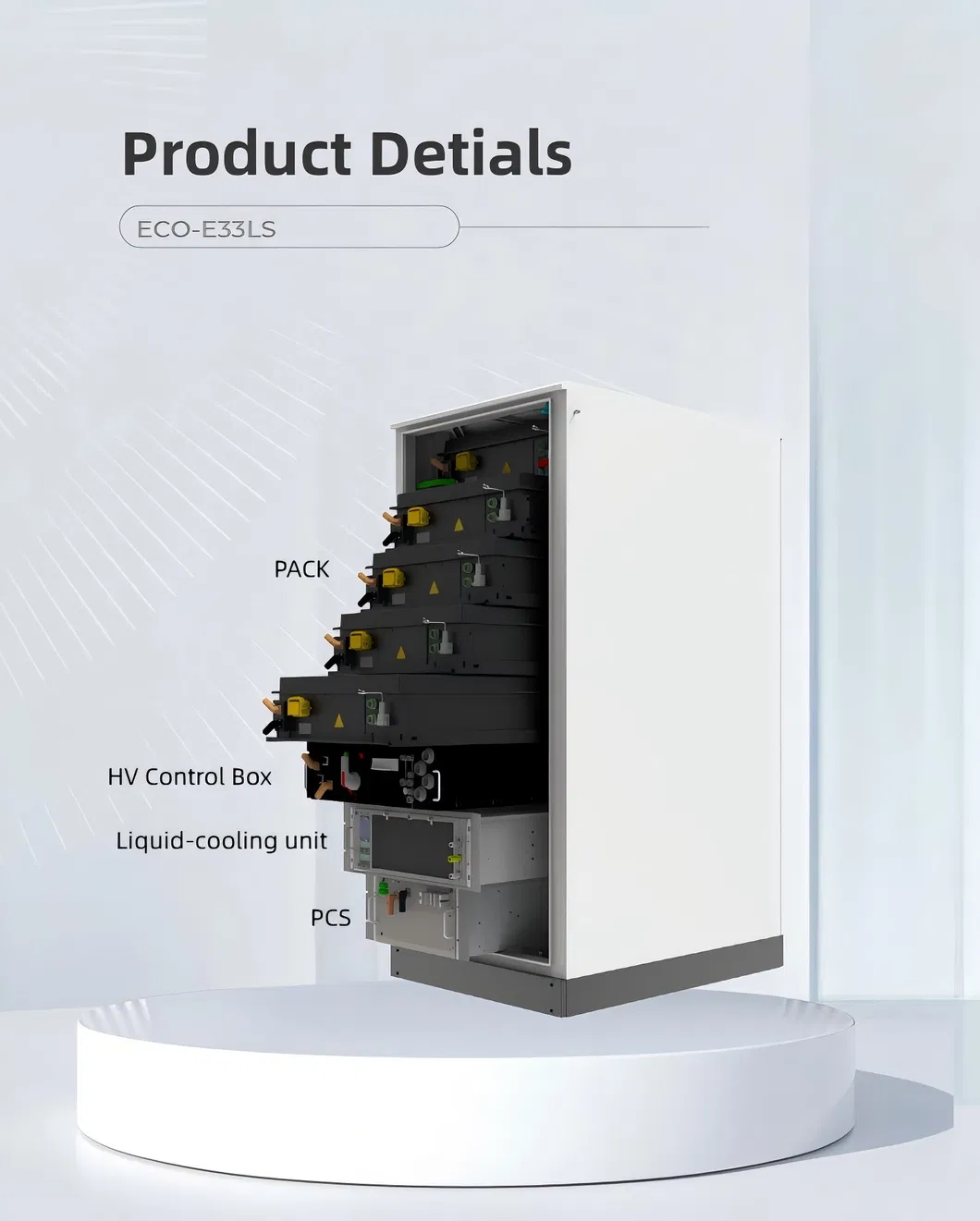

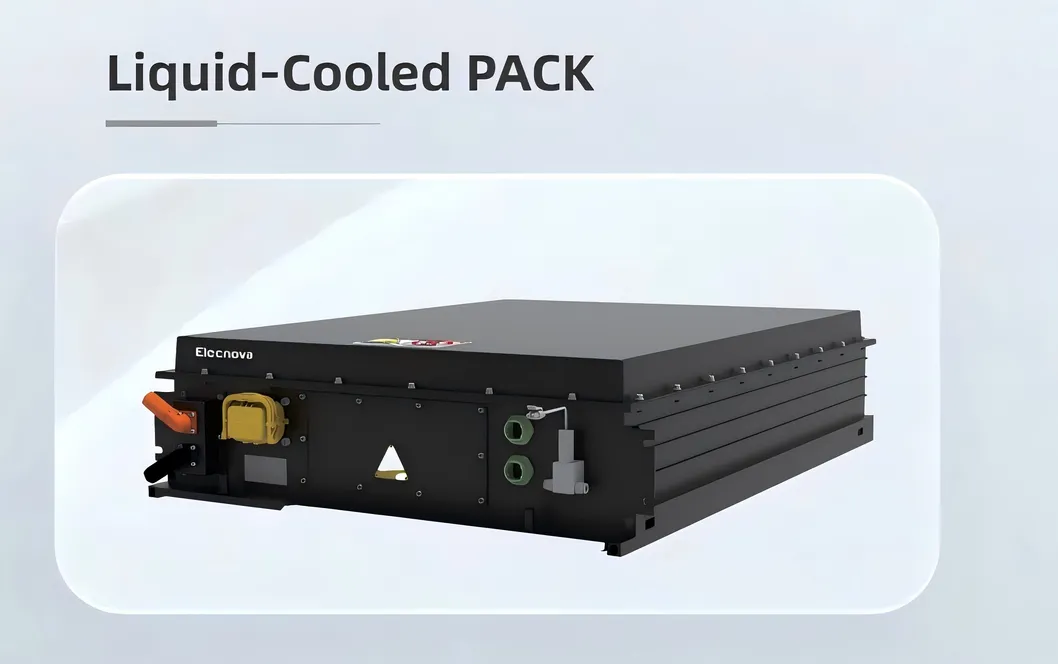

This commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP 280Ah |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| Ingress Rating | IP65 |
| AC Side Specifications | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| THDi | < 3% |
| General Data | |
| System Efficiency | ≥ 90% |
| Charge/Discharge Rate | 0.5P |
| Cycle Life | ≥ 8,000 times |
| Operating Temperature | -25ºC to 55ºC |
| Fire Safety | Aerosol |
| Weight | 2,570kg |

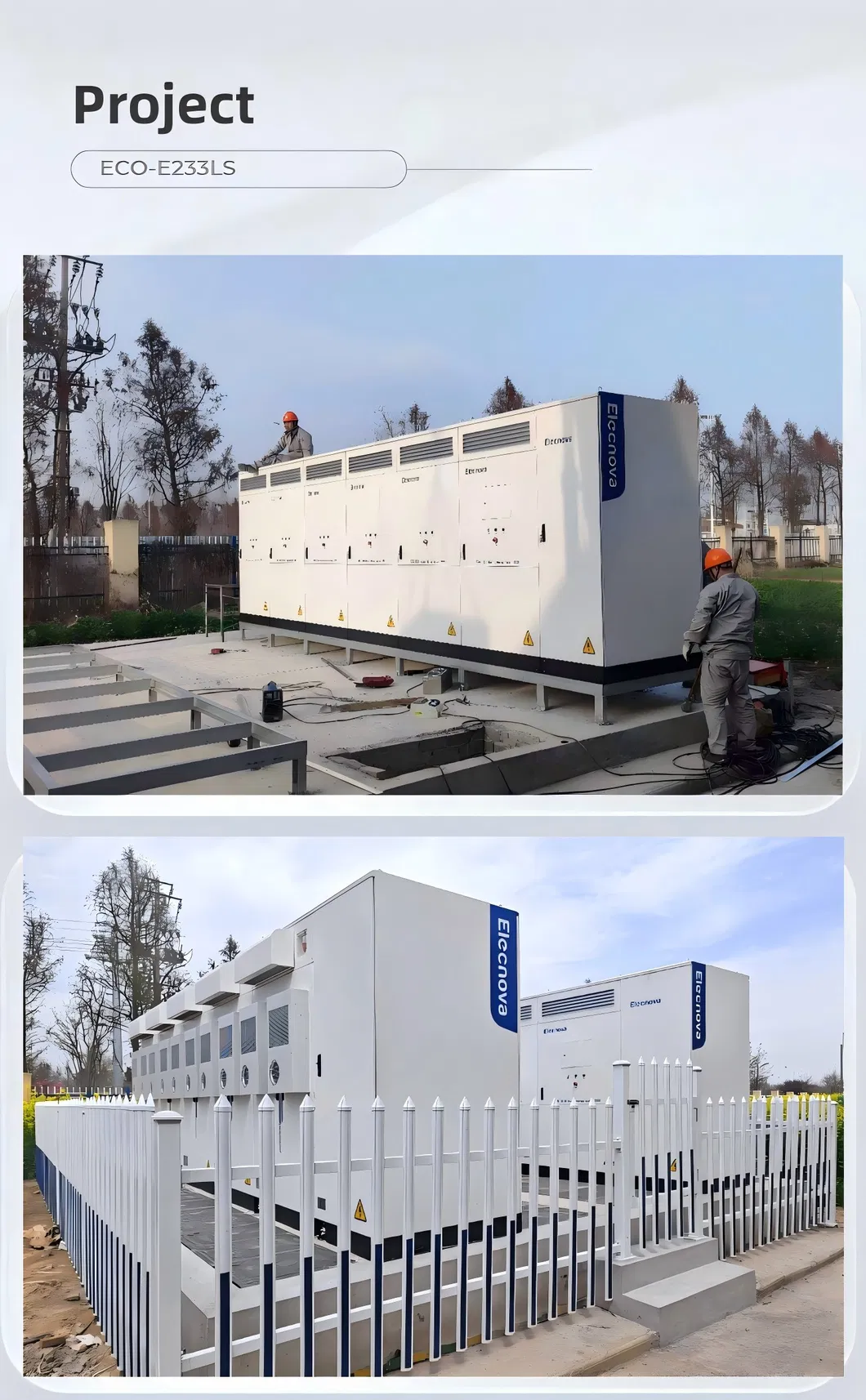

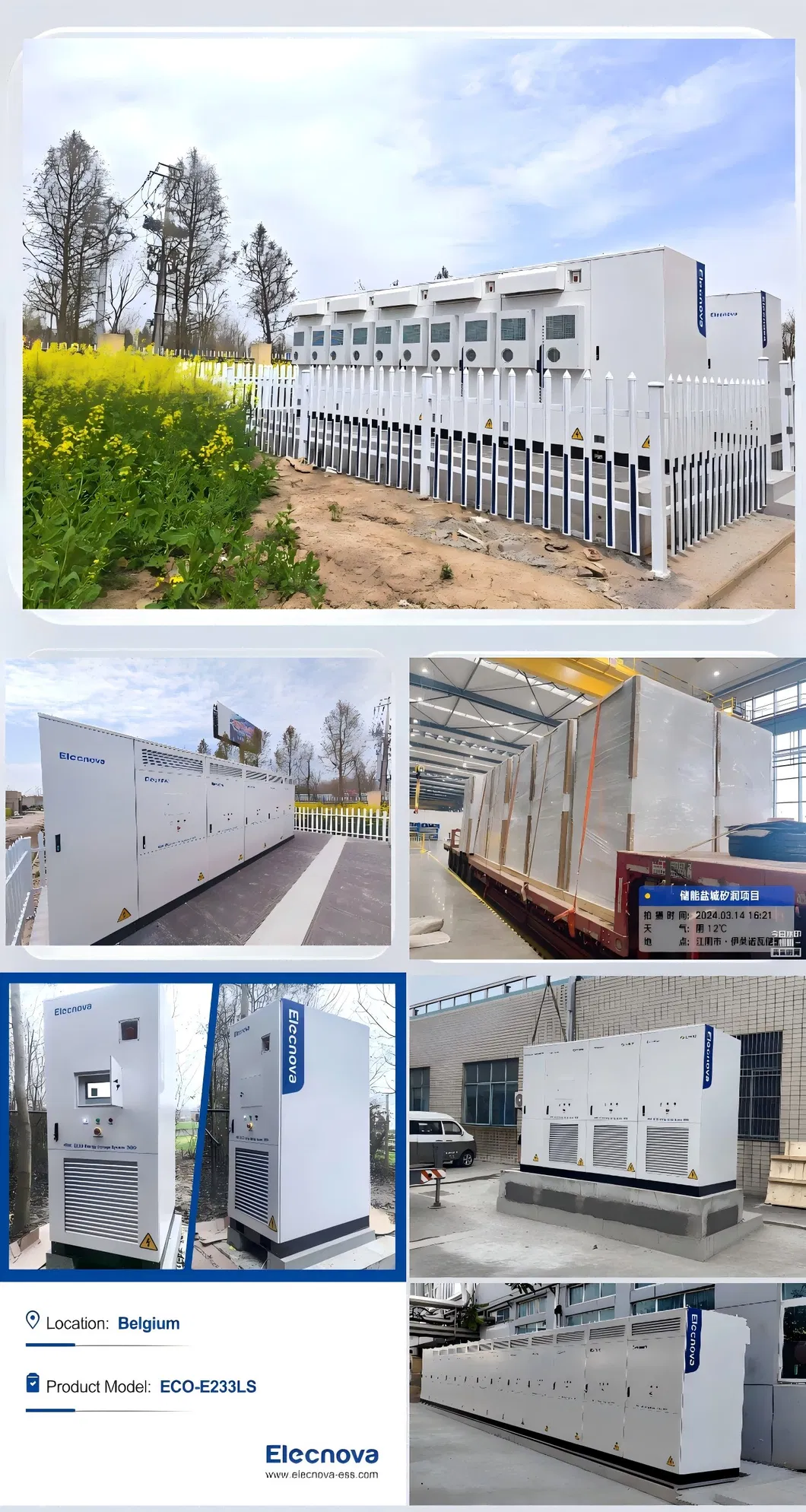

Perfect for 2.4MWh or larger scale energy storage projects. Successfully proven in grid-connected systems with high stability and safety standards.
