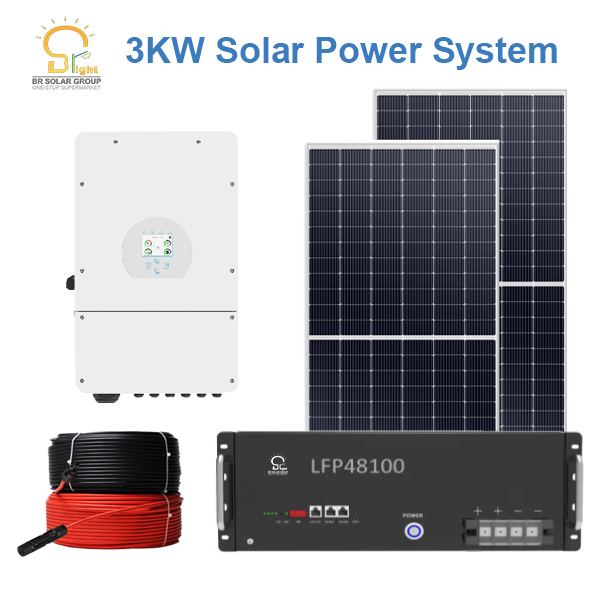

Energy System, Back up, UPS Backup off Grid System Solar Battery

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
BR-LFP-48300 Lithium Battery
Rechargeable
Yes
Installation
Fixed
Battery Size
453*433*177mm
Warranty
10 Years
Cycle Life
More Than 6000 Times
Material
LiFePO4
Nominal Capacity
4.8/9.6/14.4/19.2kwh
Standard Voltage
51.2V / 48V
Usage
Solar Energy System, Battery Backup, UPS

Product Description

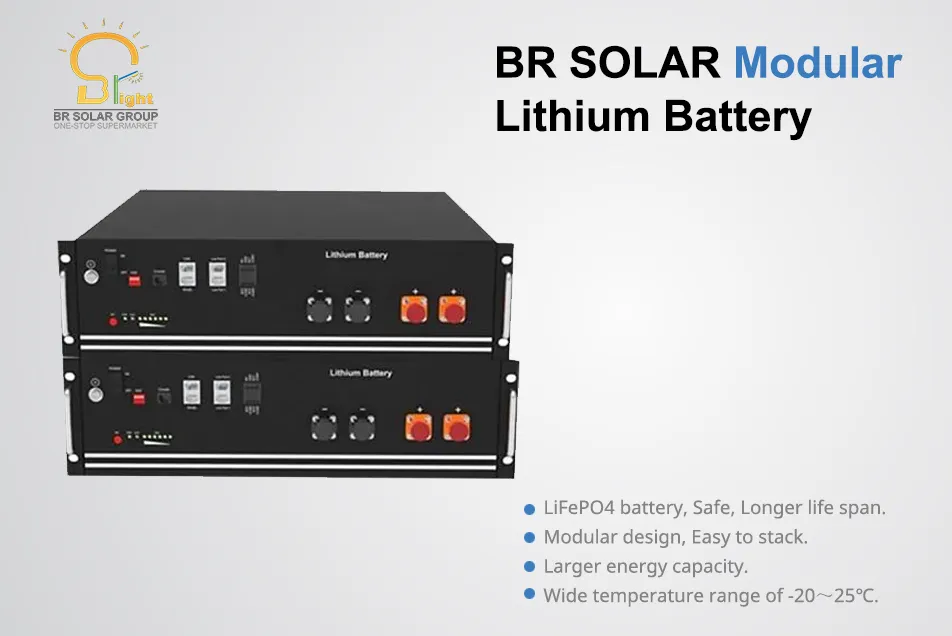

Solar Battery System
Energy System Details

1. Size and Weight Specifications

Product Nominal Voltage Nominal Capacity Dimension Weight
LFP-48100 DC48V 100Ah 453*433*177mm ≈48kg

2. Performance Parameters

Item Parameter Value
Nominal Voltage(v)48
Work Voltage Range(v)44.8-57.6
Nominal Capacity(Ah)100
Nominal Energy(kWh)4.8
Max. Power Charge/Discharge Current(A)50
Charge Voltage (Vdc)58.4

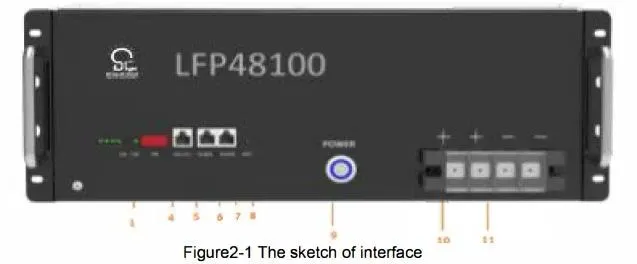

Interface Definition

Detailed interface functions of the front panel device:

Interface Definition
Item Name Definition
1SOCGreen lights showing remaining power status.
2ALMRed light flashing for alarms; solid red during protection status.
3RUNGreen light flashing (standby/charging); solid green (discharging).
4ADDDIP switch for configuration.
5CANCommunication cascade port, supports CAN.
7RS485Communication cascade port, supports 485.
9PowerMain power switch.

Key Features

Product Features
The whole module is non-toxic, non-polluting and environmentally friendly.
Cathode material is made from LiFePO4 with high safety performance and long cycle life.
BMS provides protection against over-discharge, over-charge, over-current, and temperature extremes.
Compact size and light weight for easy installation and maintenance.

Packing & Logistics

Packaging

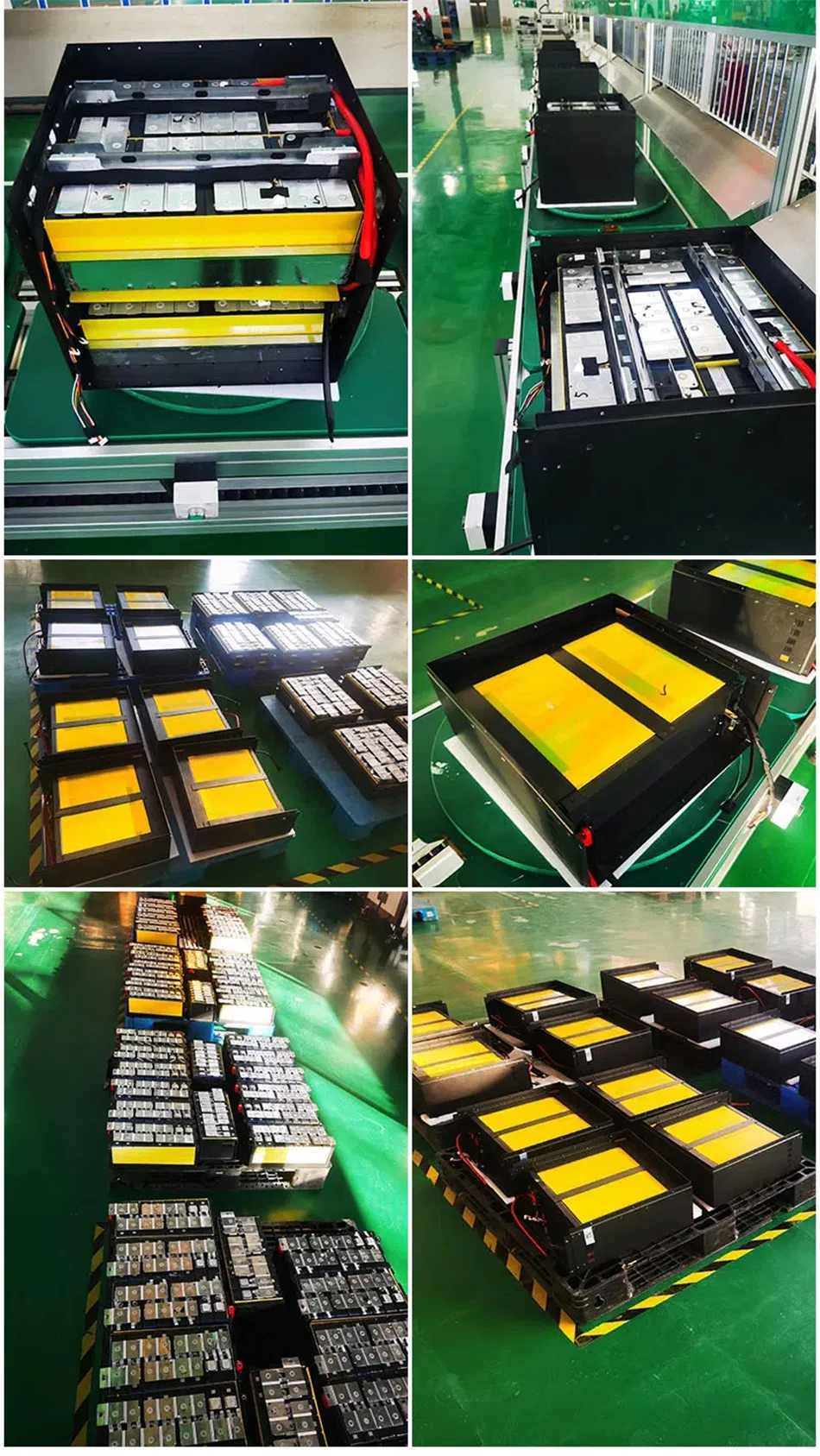

Shipping

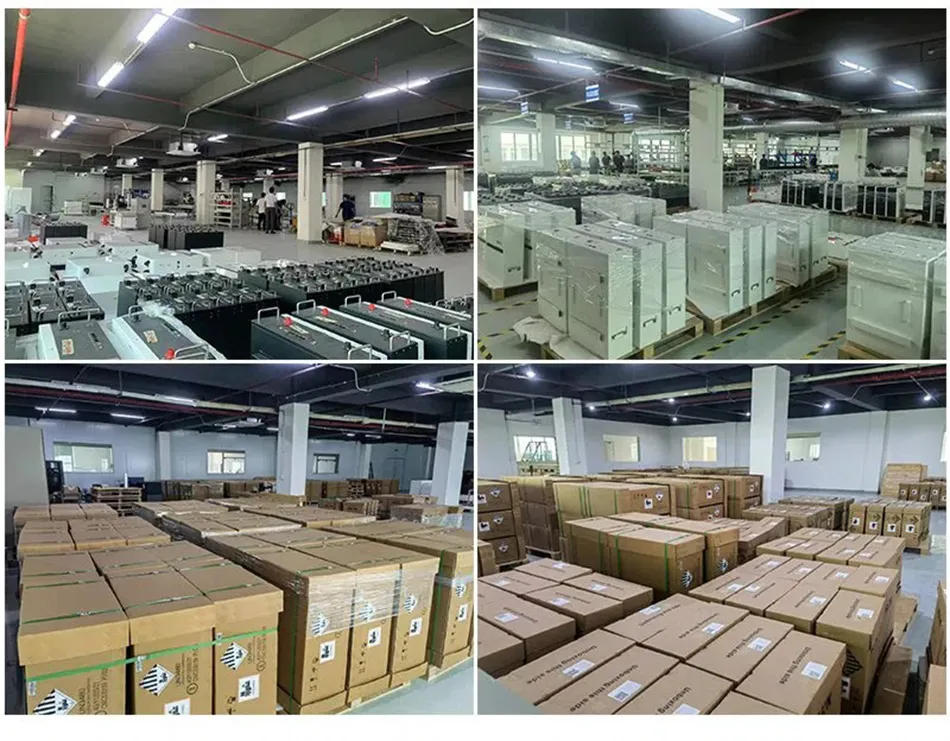

Logistics

Project References & Certificates

Successfully applied in more than 110 countries for various energy projects.

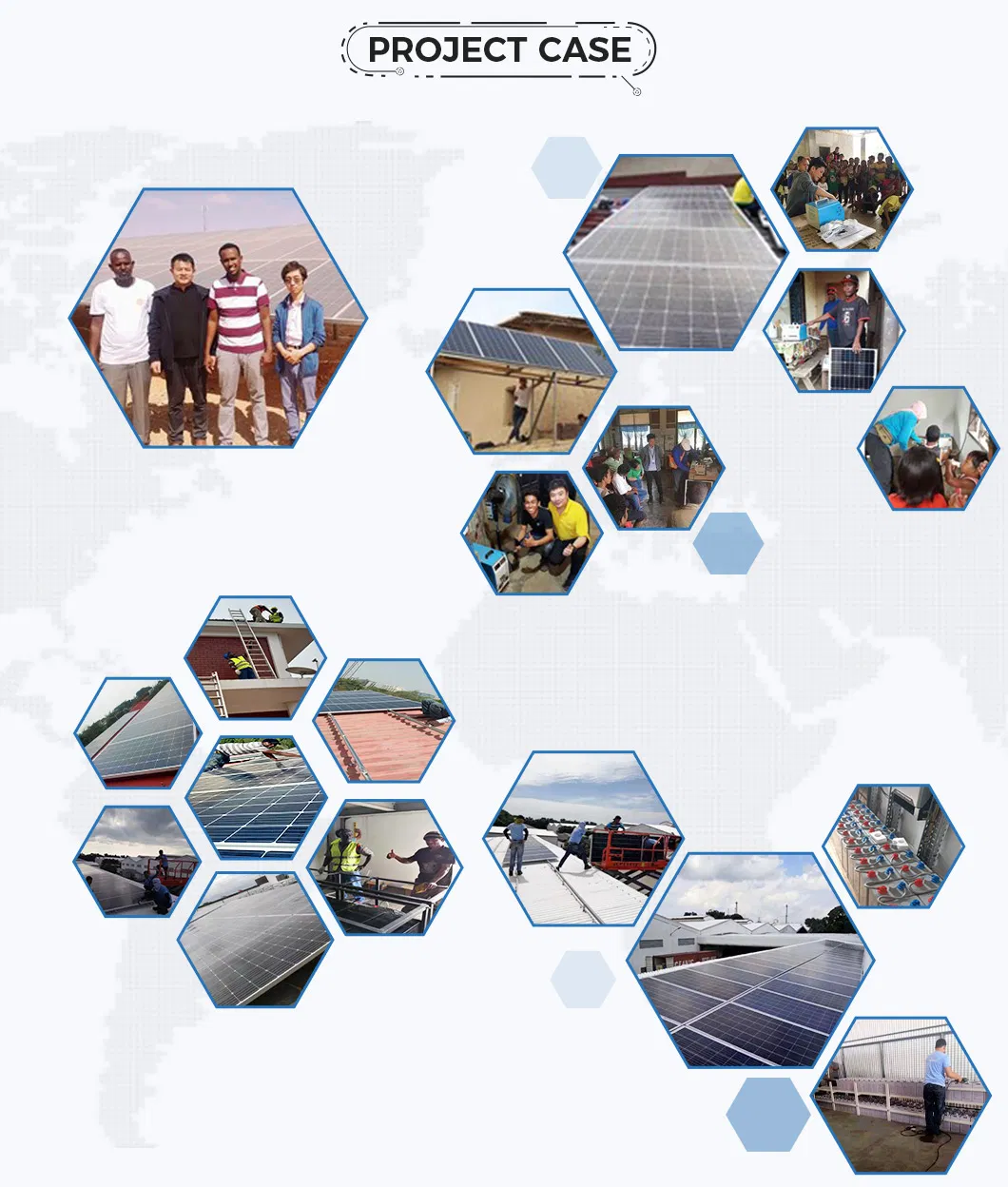

Project Case
Certificates

Payment & Delivery

Terms Method Condition
T/TEXW/FOB30% In Advance, 70% Before Delivery
T/TCFR/CIF30% In Advance, 70% Against Copy of B/L
L/CAt SightAmount > USD 100,000
DeliveryAll Methods15-20 Working Days After Down Payment

Frequently Asked Questions

Q: What is the expected cycle life of this LiFePO4 battery?
A: The battery offers a long service life with more than 6000 cycles.
Q: How long is the warranty period for the battery system?
A: We provide a comprehensive 10-year warranty for this product.
Q: Which inverter brands are compatible with this battery?
A: It is compatible with major brands including Solax, Deye, Goodwe, Growatt, Victron, Sofar, and Gmde.
Q: Does the battery include a management system?
A: Yes, it features an integrated Battery Management System (BMS) to protect against over-charge, over-discharge, and temperature issues.
Q: What are the primary applications for this 48V system?
A: It is ideal for Solar Energy Systems, UPS backups, and general battery backup solutions.
Q: Is the battery material safe and eco-friendly?
A: Yes, the module uses LiFePO4 material which is non-toxic, non-polluting, and highly stable.
