Our systems adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh, meeting diverse power demand scenarios with high usable energy ratios.
Electrical parameters are optimized for industrial grids. Nominal DC voltage spans 358.4V to 832V, adapting to different grid conditions. Systems are designed as grid-tied with MPPT functionality (200~800V), enabling efficient integration with renewable energy sources like solar panels.
Functional Advantages
Economic Value
Enable peak-valley tariff arbitrage by storing low-cost off-peak electricity and supplying it during high-tariff peak hours, directly cutting operational expenses.
Safety & Reliability
Adopting LFP batteries with excellent thermal stability and long cycle life, minimizing risks and ensuring uninterrupted power for critical equipment.
Grid Adaptability
Wide DC voltage ranges and MPPT compatibility allow seamless integration with on-site renewable energy and diverse grid conditions.
Sustainability
Lowers carbon emissions by reducing reliance on fossil-fueled grid power and maximizing clean energy consumption.
Core Applications
1. Peak-Valley Arbitrage: Crucial for energy-intensive sectors like manufacturing and retail to reduce monthly electricity costs. 2. Backup Power: Ensures stable AC400V output for production lines and data servers during outages. 3. Renewable Integration: Maximizes self-consumption of solar or wind power via MPPT compatibility. 4. Grid Stability: Balances fluctuating electrical loads, reducing pressure on public grid infrastructure.
Technical Specifications

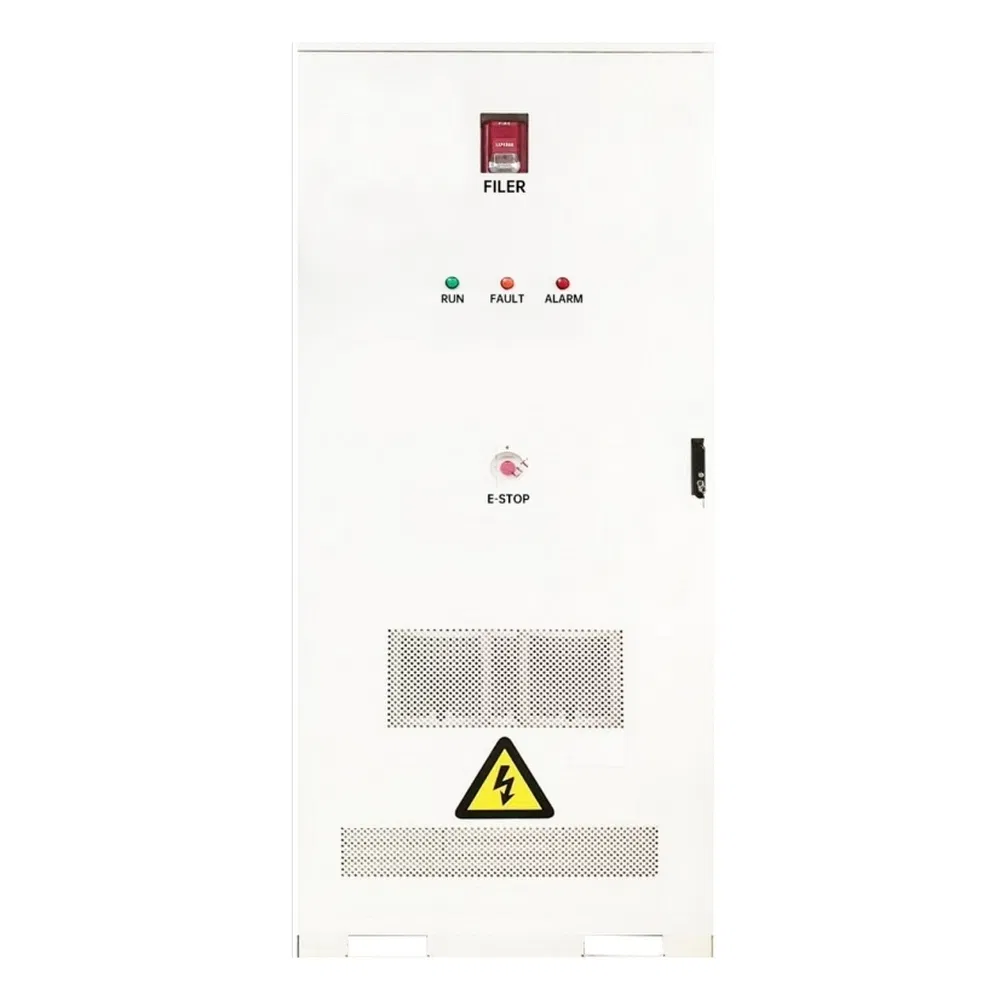

Product Model
WRES-CI-25-261/125
Total Energy
261 kWh
Usable Energy
245.57 kWh
Nominal Voltage
832 Vd.c
Voltage Range
728~936 Vd.c
Rated Capacity
314 Ah
Max Output Current
200 A
Grid Voltage
230/400V, 3L+N+PE
Grid Frequency
50/60 Hz
Cycle Life
≥8000 @ 25℃
Storage Temp
-20°C to 55°C
Altitude
≤2000m
Transportation & Logistics
We provide secure transportation services with custom protective packaging. Large units are secured in sturdy wooden crates or steel frames. We offer full-process tracking and rapid issue resolution for any transit-related concerns.
FAQ
What are the main functions of this energy storage system?
The system primarily serves peak-valley tariff arbitrage, backup power for critical operations, renewable energy consumption, and grid stability support.
What type of batteries are used in the cabinet?
We use high-safety Lithium Iron Phosphate (LFP) batteries, which offer excellent thermal stability and a long cycle life of over 6,000-8,000 cycles.
Is the system compatible with existing solar inverters?
Yes, our systems offer high compatibility using RS485, CAN, or RS232 communication protocols, supporting most major hybrid and grid-tied inverter brands.
What protection features does the system include?
The integrated Battery Management System (BMS) provides overcharge, over-discharge, short-circuit, temperature monitoring, and overcurrent protection.
How can I monitor the system performance?
Performance can be tracked via a cloud-based monitoring platform accessible through App and Web interfaces, providing real-time power metrics and health insights.
What is the expected lifespan of the batteries?
Typically, the batteries offer 6,000-8,000 charge cycles, which equates to approximately 10-15 years of daily use depending on maintenance and conditions.
