High-Capacity 241 Kwh Energy Storage Solution for Commercial Use

Customization:	Available
Energy Capacity:	314ah
Power Configuration:	100kW-250kW

Basic Information

Model NO.	WRES-CI-25-241/125
Cycle Life	≥8000 @25℃
Product Name	C&I Energy Storage
Keywords	Industrial Energy Storage System
Total Energy (Kwh)	241
Usable Energy (Kwh)	245.57
Nominal Voltage (Vd.C)	768
Voltage Range (Vd.C)	672~864
Rated Capacity (Ah)	314
Single Module Specifications	153.6V/314ah
Max. PV Input Power (Kw)	115
Max. Output Current to Grid (a)	167
Nominal Grid Voltage (V)	230/400V, 3L+N+PE
Rated Grid Frequency (Hz)	50/60
Maximum Efficiency	99%
Corrosion Resistance Rating	C4
Weight (Kg)	3080
Specification (mm)	105523001300
Production Capacity	50000pieces/Year

Product Description

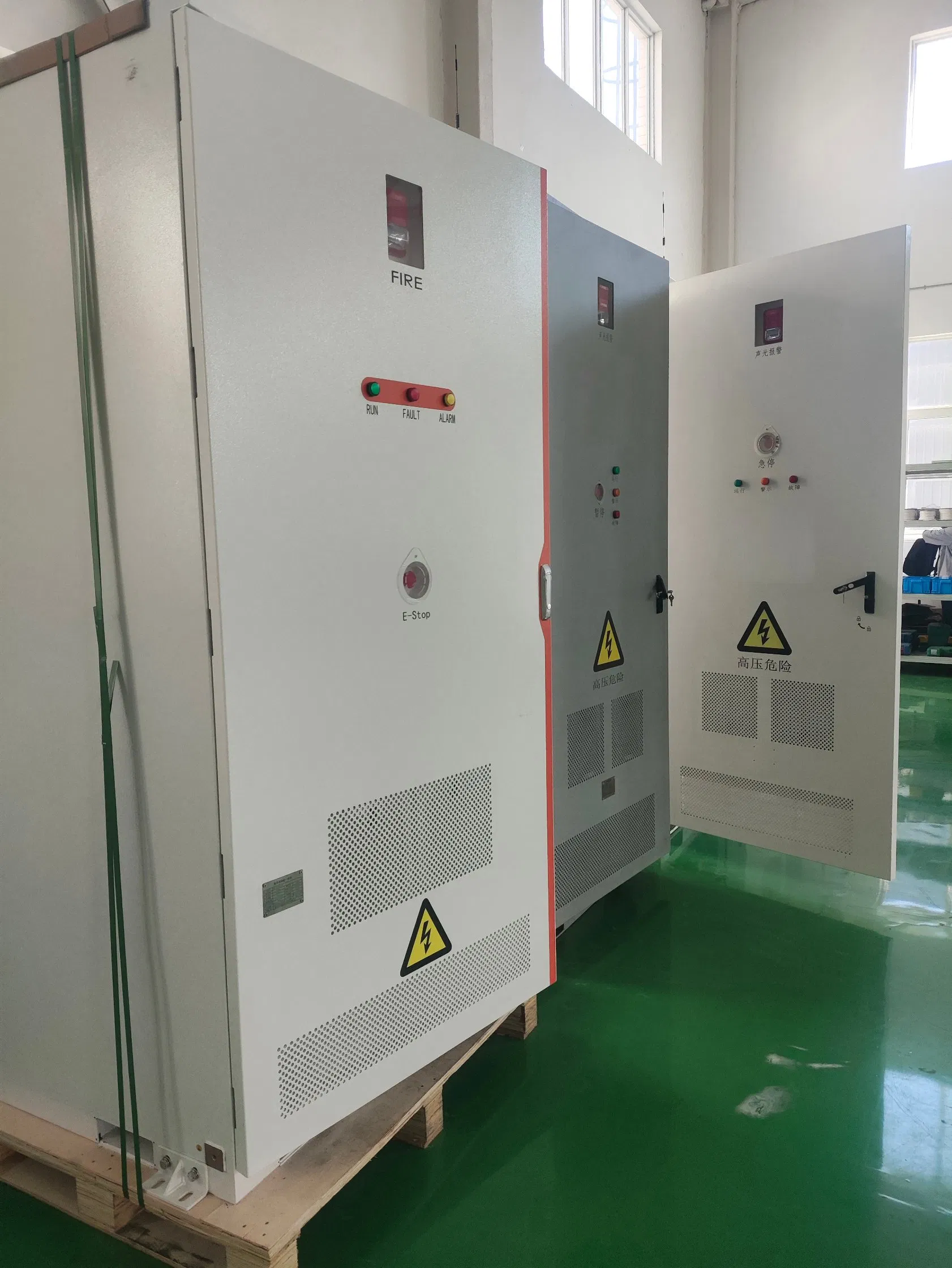

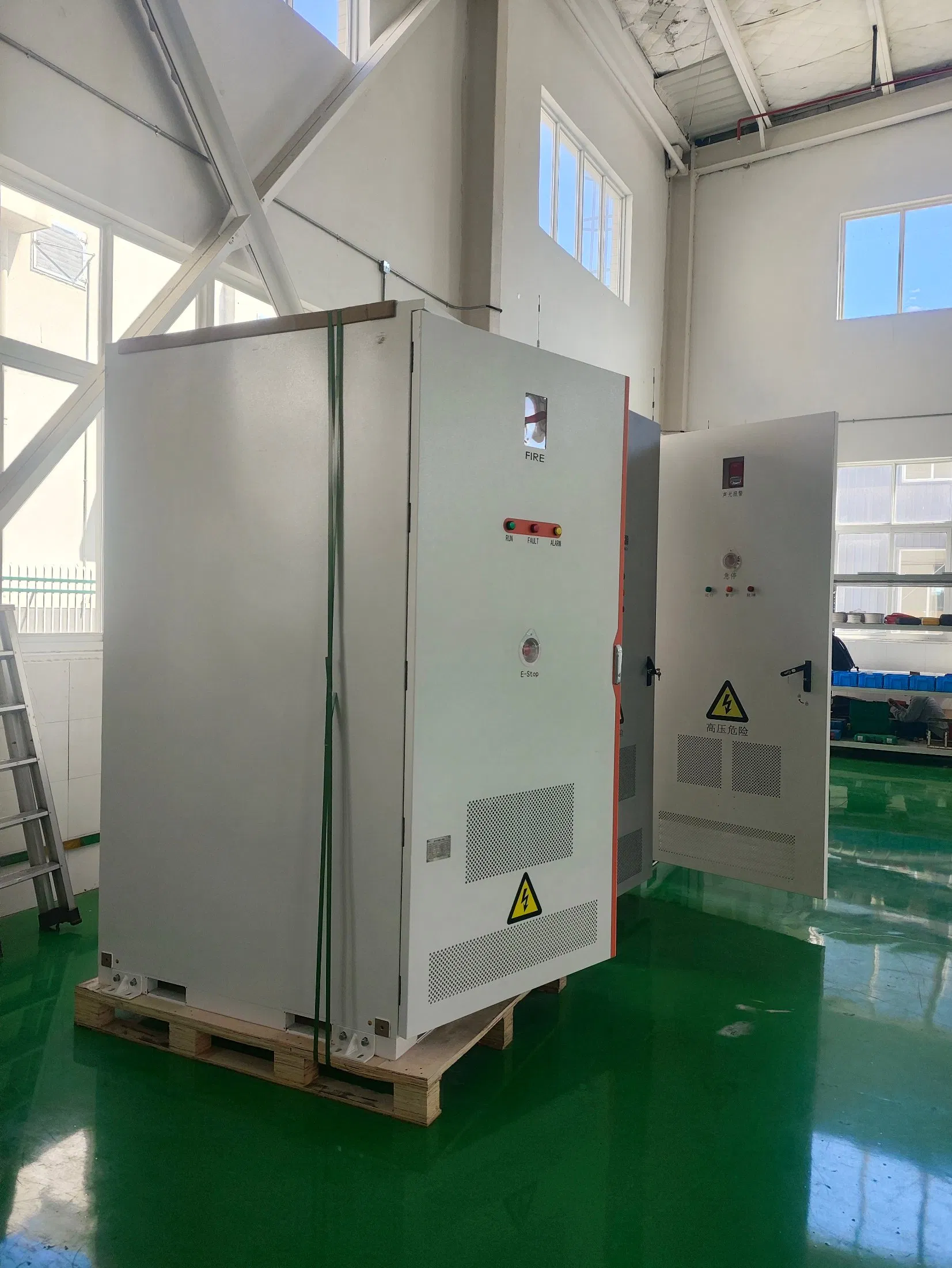

COMMERCIAL & INDUSTRIAL ENERGY STORAGE CABINET

Firstly, they adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability—critical for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh, with high usable energy ratios, meeting diverse power demand scenarios.

Secondly, the electrical parameters are optimized for industrial grids. Nominal DC voltage spans 358.4V to 832V, with corresponding voltage ranges to adapt to different grid conditions. Most models feature 100KW rated power and AC 400V rated voltage, compatible with standard industrial power systems.

Thirdly, they are designed as grid-tied systems with MPPT (Maximum Power Point Tracking) functionality (voltage range 200~800V), enabling efficient integration with renewable energy sources like solar panels.

Technical Specification

Product Name	WRES-CI-25-241/125
Total Energy (kWh)	241
Usable Energy (kWh)	226.68
Nominal Voltage (Vd.c)	768
Voltage Range (Vd.c)	672~864
Rated Capacity (Ah)	314
Max. PV input Power (kW)	115
Nominal Grid Voltage (V)	230/400V,3L+N+PE
Maximum Efficiency	99%
IP Rating	IP54
Cycle Life	≥8000@25℃

Functional Advantages

💰

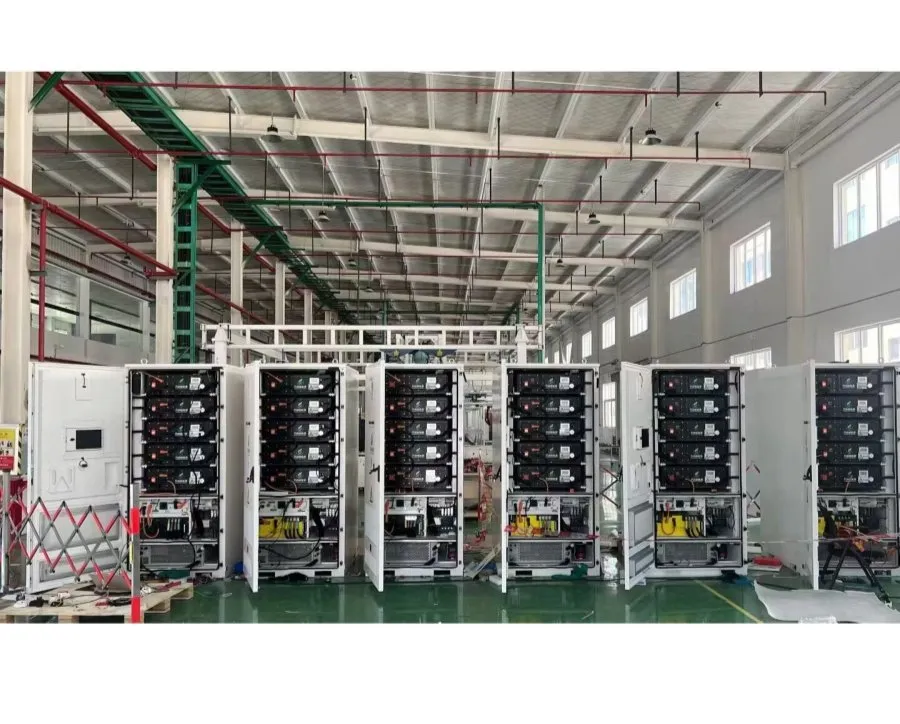

Strong Economic Value

Systems enable effective peak-valley tariff arbitrage—storing low-cost off-peak electricity and supplying it during high-tariff peak hours, directly cutting long-term energy expenses.

🛡️

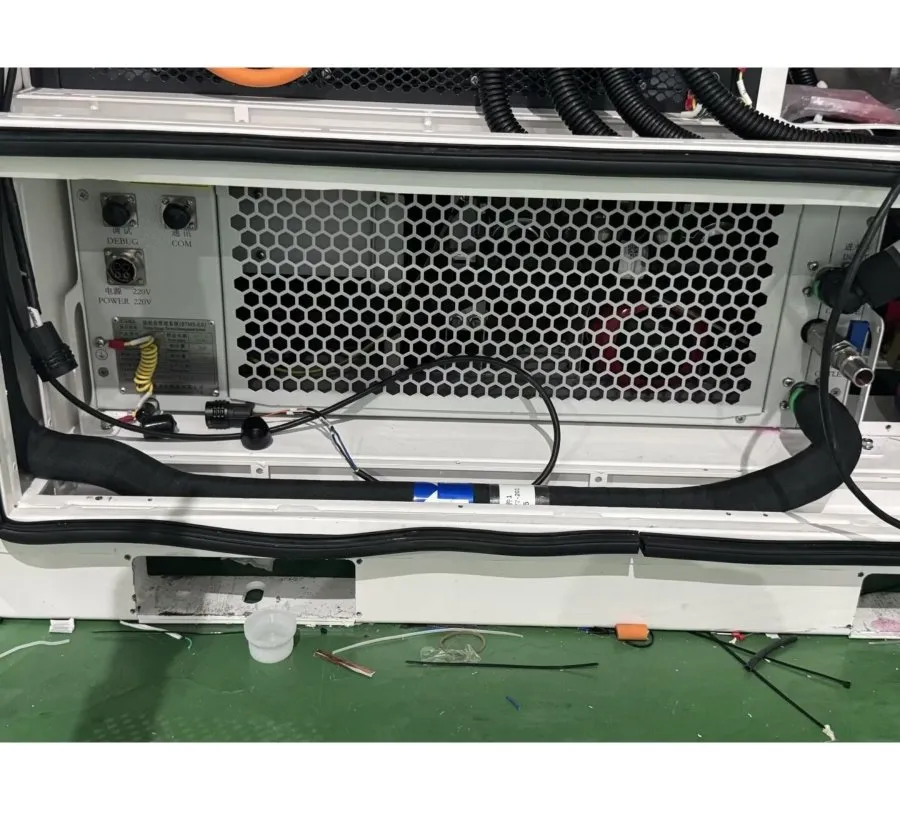

Safety & Reliability

Adopting LFP (Lithium Iron Phosphate) batteries, the systems feature excellent thermal stability and long cycle life, minimizing risks of faults or downtime.

⚙️

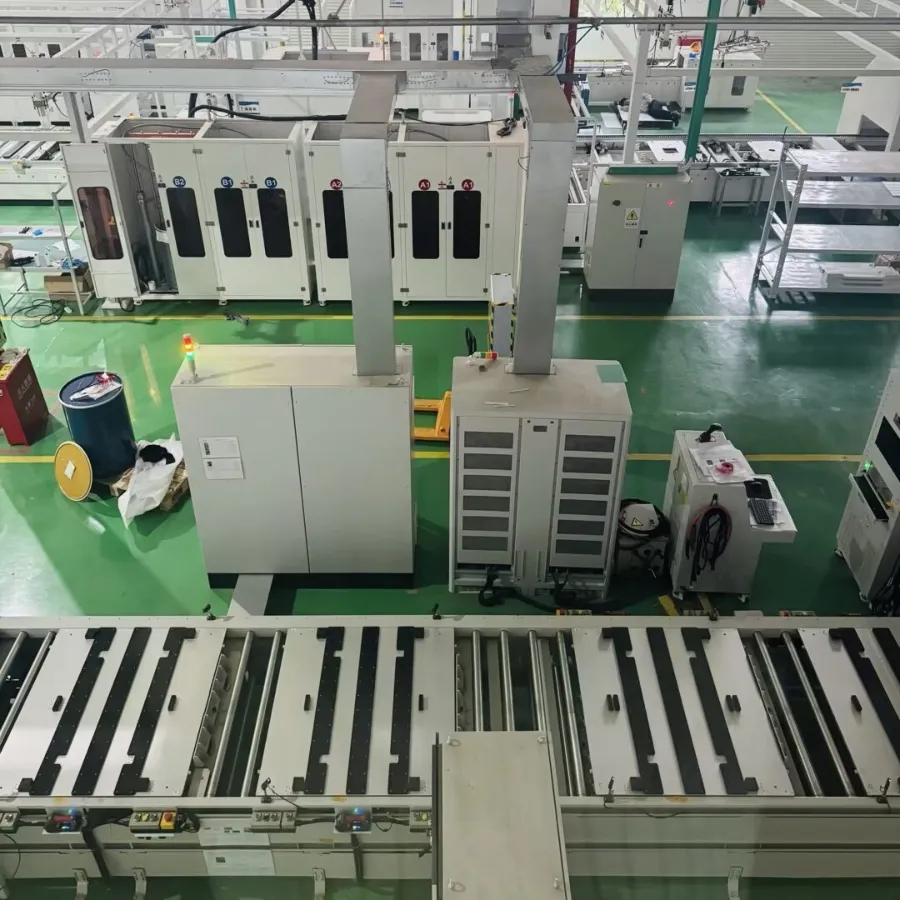

Strong Adaptability

With wide DC voltage ranges and 200–800V MPPT compatibility, the grid-tied systems seamlessly integrate with on-site renewable energy and adapt to diverse grid conditions.

Core Applications

⚡

Peak-Valley Arbitrage: Store electricity during off-peak hours and discharge during peak periods to reduce monthly costs for manufacturing and retail sectors.

🔌

Backup Power: Ensure uninterrupted power supply to key equipment like production lines and data servers during grid outages.

☀️

Renewable Integration: Store excess electricity generated by solar panels or wind turbines, increasing self-consumption of clean energy.

Transportation & Logistics

We provide reliable, transparent, and secure transportation services. From dispatch to delivery, we ensure professional handling and safe, on-time arrival using custom protective packaging and full-process tracking.

Frequently Asked Questions

Q1. What is the typical lifespan of these energy storage batteries? Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to approximately 10-15 years of daily use depending on conditions.

Q2. Are the systems compatible with existing solar inverters? Yes, our systems offer high compatibility using RS485, CAN, or RS232 protocols, supported by most major inverter brands such as SMA, Growatt, Deye, and Victron.

Q3. What safety features are included in the Battery Management System (BMS)? The comprehensive BMS includes overcharge protection, over-discharge protection, short-circuit protection, temperature monitoring, and overcurrent protection.

Q4. Can I monitor the performance of the system remotely? Yes, we provide a cloud-based monitoring platform via App and Web where you can track real-time power metrics, charging status, and overall battery health.

Q5. Does installation require specialized knowledge? Yes, it is essential to hire certified professionals for installation to ensure safety and correct integration with your existing electrical or solar systems.

Q6. How do I choose between grid-connected and off-grid systems? Grid-connected is ideal for stable urban areas; off-grid is necessary for remote locations without grid access; and grid-tied with off-grid switching is best for areas with frequent power outages.
