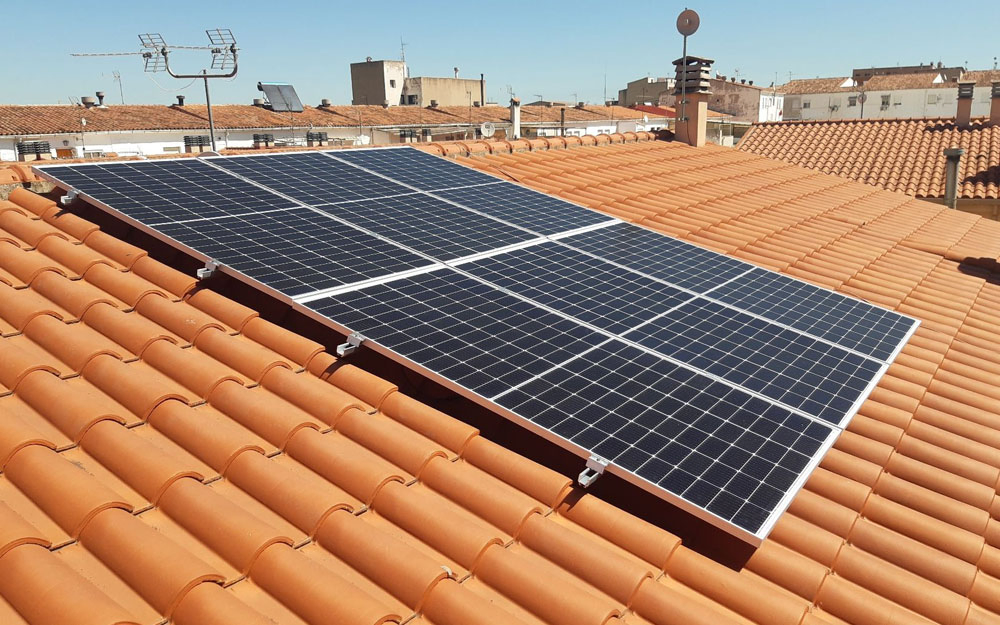

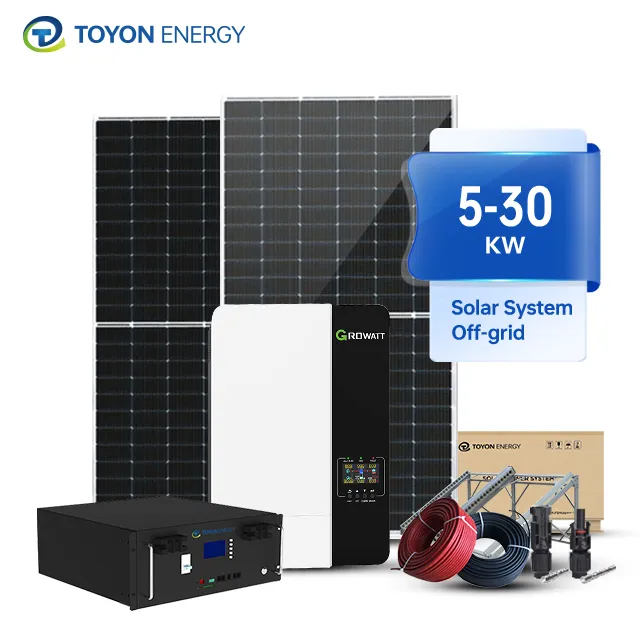

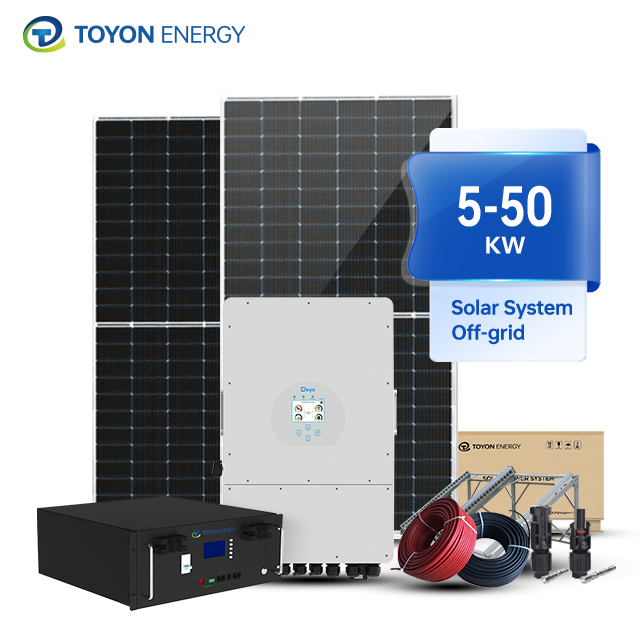

High-Efficiency 3kw-15kw Solar System with Built-in Battery Backup off-Grid Solar System for Home Use

Customization:	Available
After-sales Service:	24 Hours Response
Warranty:	5 Years

📊 Overview - Basic Info

Model NO.

TY-5kW-OFF

Condition

New

Certification

CE

Application

Home

Battery Type

Lithium Ion

Mounting Type

Roof/Ground Mounting

Output Voltage

110/120/220/230V

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT

Bracket

Aluminum

Origin

China

Work Time

24 Hours

🔆 Product Description

System Model	TY5KW-OFF	TY10KW-OFF	TY15KW-OFF	TY20KW-OFF
PV MODULE SPECIFICATIONS
Power (W)	440-700
Certifications	CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Rated Power (KW)	5	10	15	20
Max DC Power (W)	6000	11000	18000	22000
Output Voltage (Vac)	220/230		220/380, 230/400
BATTERY BANK SPECIFICATIONS
Number of Batteries	1	2	3	4
Battery Bank Power (kWh)	4.8	9.6	14.4	19.2
Battery Current (Ah)	100/200/280/304

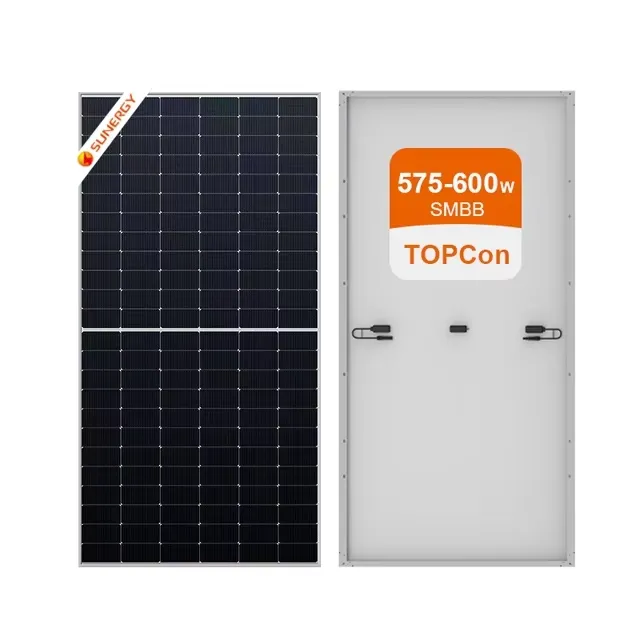

Half Cut Mono 580W Solar Panel

N-type TopCon technology
Peak Power Watt: 580W
Maximum Power Voltage: 42.78V
Open Circuit Voltage: 51.32V
Dimensions: 2278*1134*35mm
Weight: 27.0kg

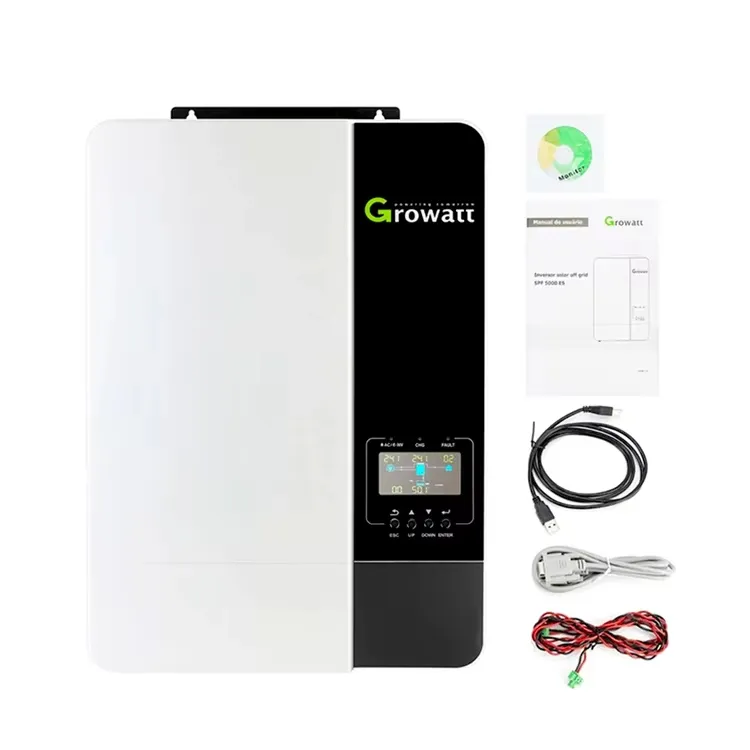

All In One Off Grid Inverter

Integrated MPPT charge controller
PV input voltage up to 450Vdc
Optional WIFI/GPRS remote monitoring
Support parallel operation up to 30kw
Flexible schedule for charging/discharging

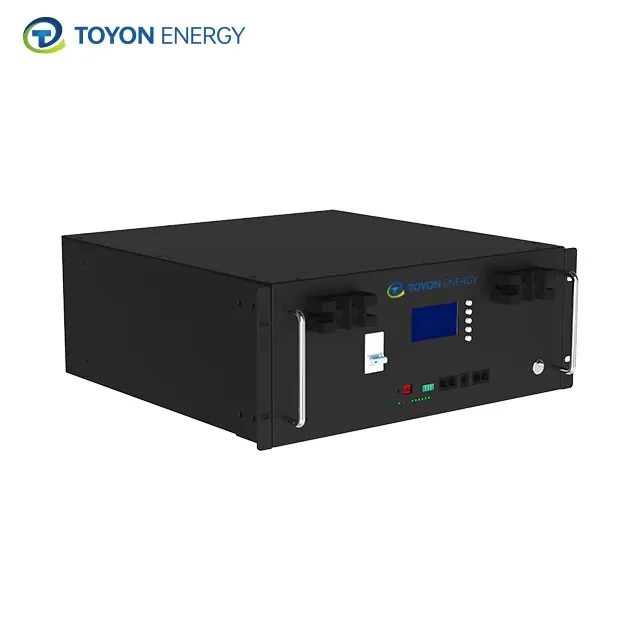

Low Voltage Lithium Battery

Rated Voltage: 48V/51.2V (Optional)
Capacity: 100Ah/200Ah/280Ah (Optional)
Cycle Life: 6000 cycles @ 80% DOD
Material System: LiFePO4
Case Type: Rack Mounted

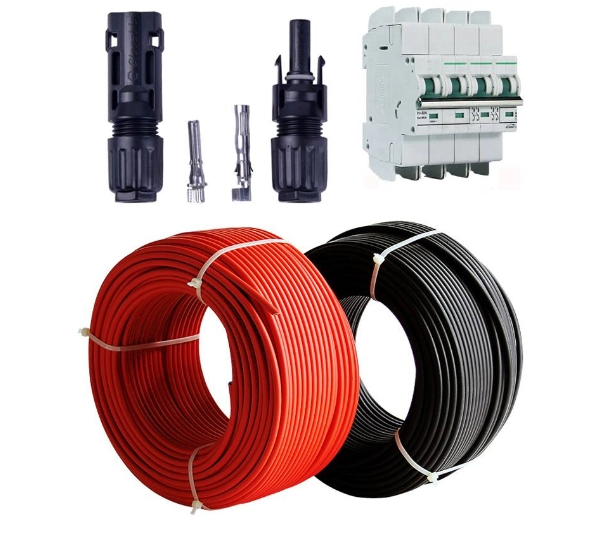

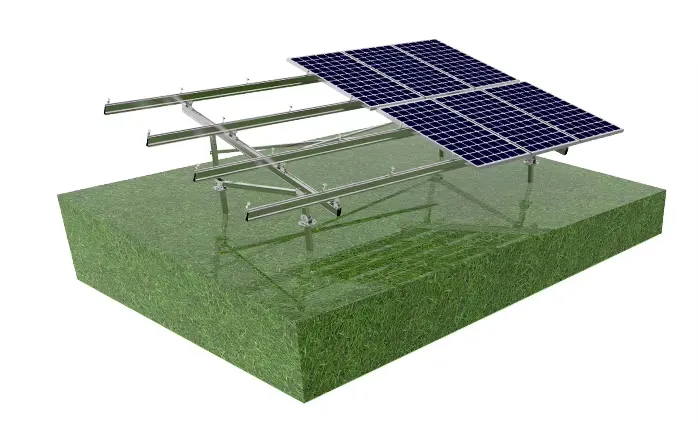

PV Mounting & Accessories

Pitched/Flat Rooftop/Ground Brackets
Aluminum Alloy/Galvanized Steel
DC Cable Cross Section: 4mm²/6mm²
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Lifetime: ≤25 Years

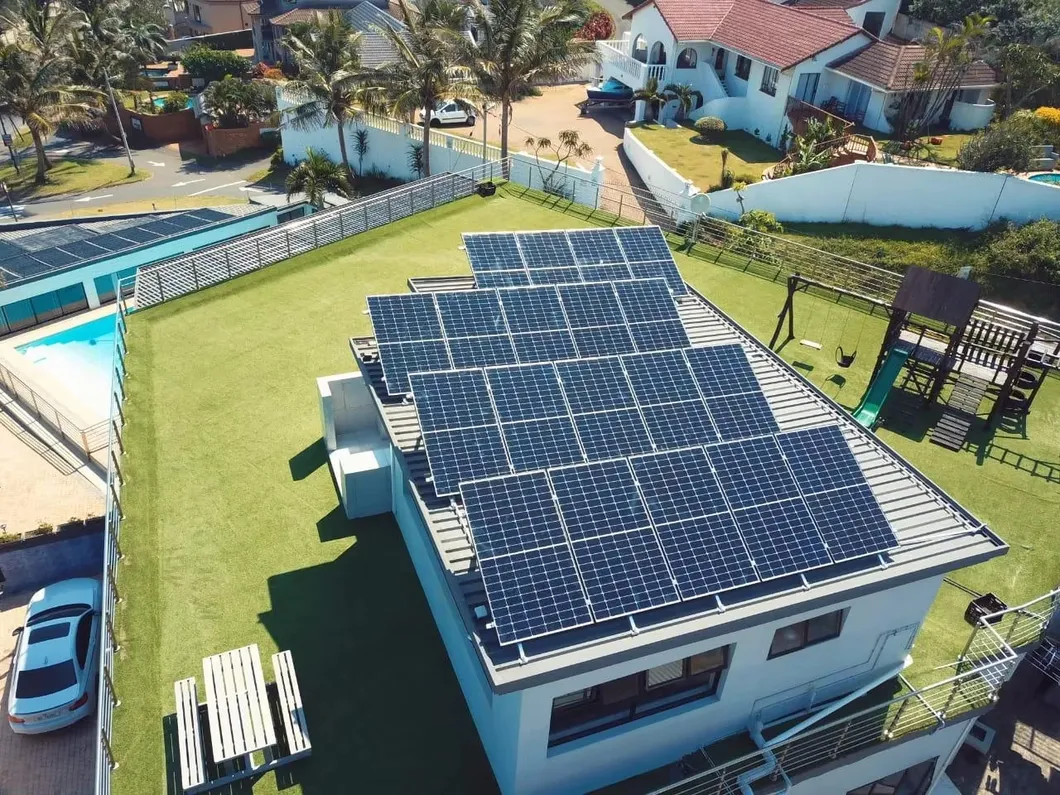

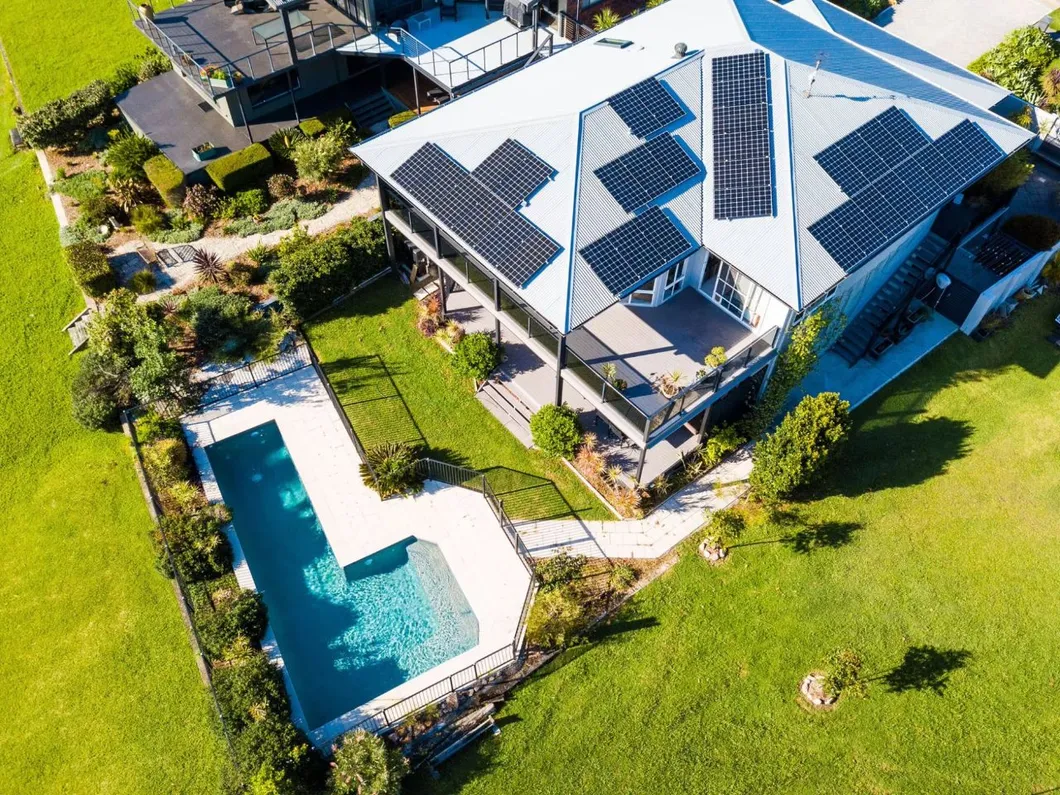

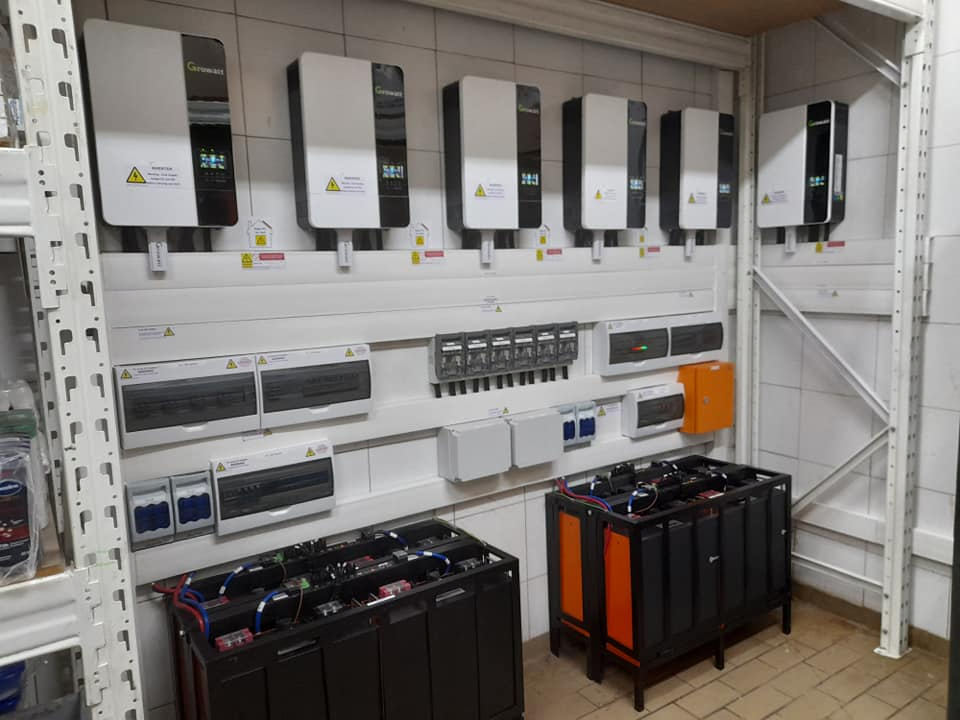

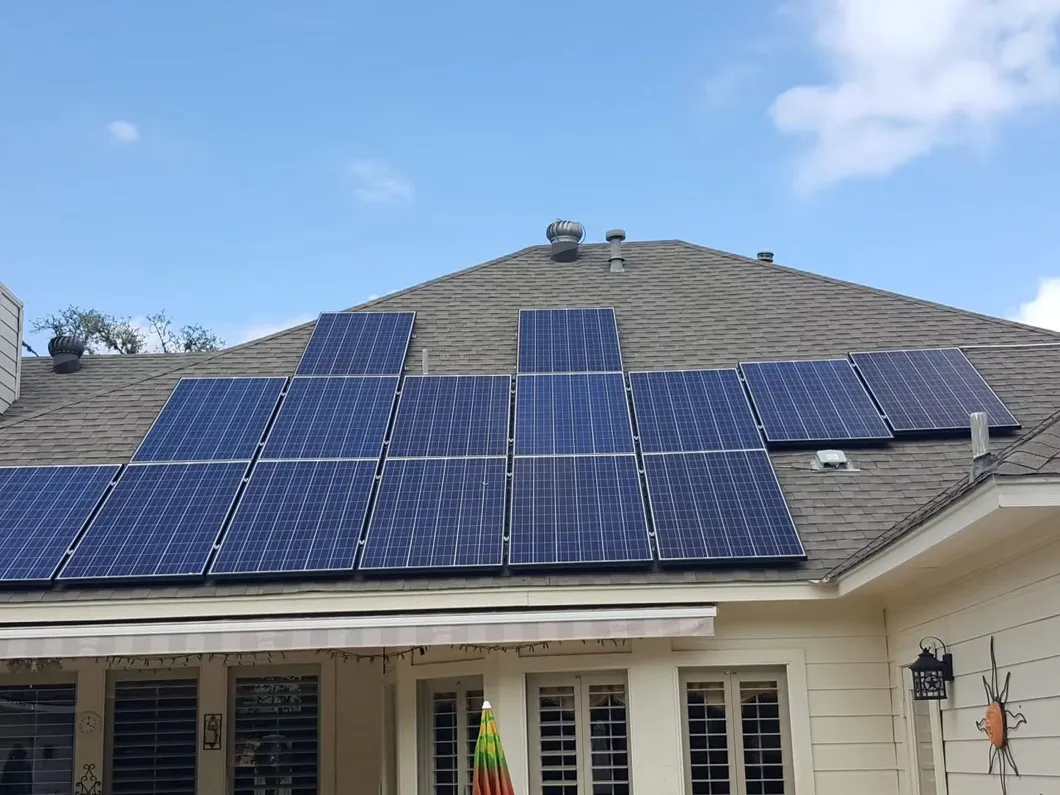

🛠️ Installation Instructions

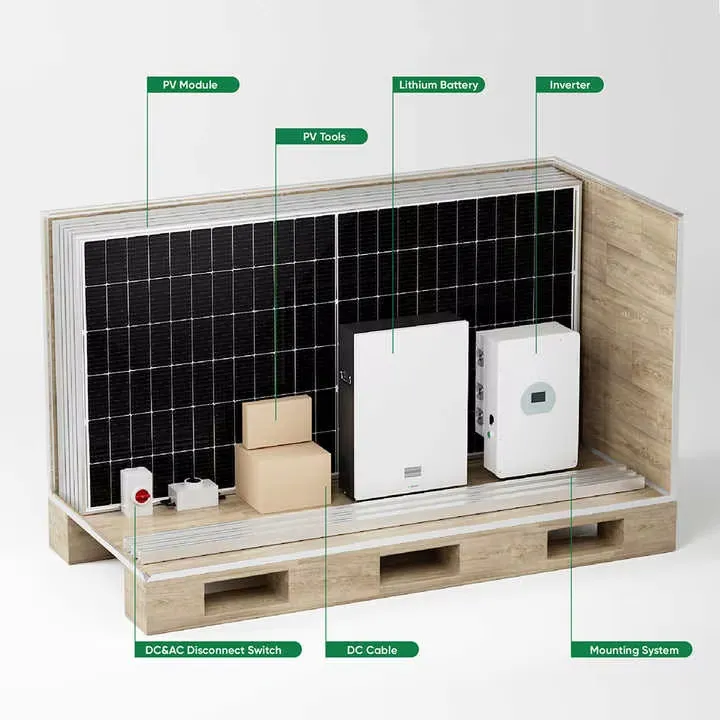

📦 Packaging & Shipping

🏢 Professional Service

Why Choose Our Solutions

We are a professional factory leader in the PV industry, offering solar photovoltaic all-in-one systems and one-stop services with competitive prices and fast delivery.

Higher power generation efficiency
Stable supply chain guarantee
High quality standard QC
Customized professional service
Comprehensive technical support

❓ Frequently Asked Questions

What main products can you provide?

We provide a wide range of solar products, including solar panels, inverters, power walls, lithium-ion batteries, and complete all-in-one solar system solutions tailored to your needs.

How do you provide technical support?

We offer lifetime online support. Any technical issues after delivery can be resolved via video calls, email, or messaging apps at any time.

What is the typical lead time for orders?

Common products in stock can be sent within 15 days. Standard delivery usually takes 5-15 working days. Larger custom orders require negotiated production schedules.

Do you provide OEM and customized services?

Yes, as a professional manufacturer, we provide OEM services, on-site installation support, and comprehensive after-sales services tailored to client specifications.

How is product quality guaranteed?

We provide pre-production samples before mass manufacturing and conduct a final inspection before shipment. We also provide 24-hour after-sales service to solve any issues immediately.

What are your accepted payment and delivery terms?

We accept various delivery terms including FOB, CIF, EXW, DDP, and DDU. Accepted payment methods include T/T, L/C, and PayPal.
