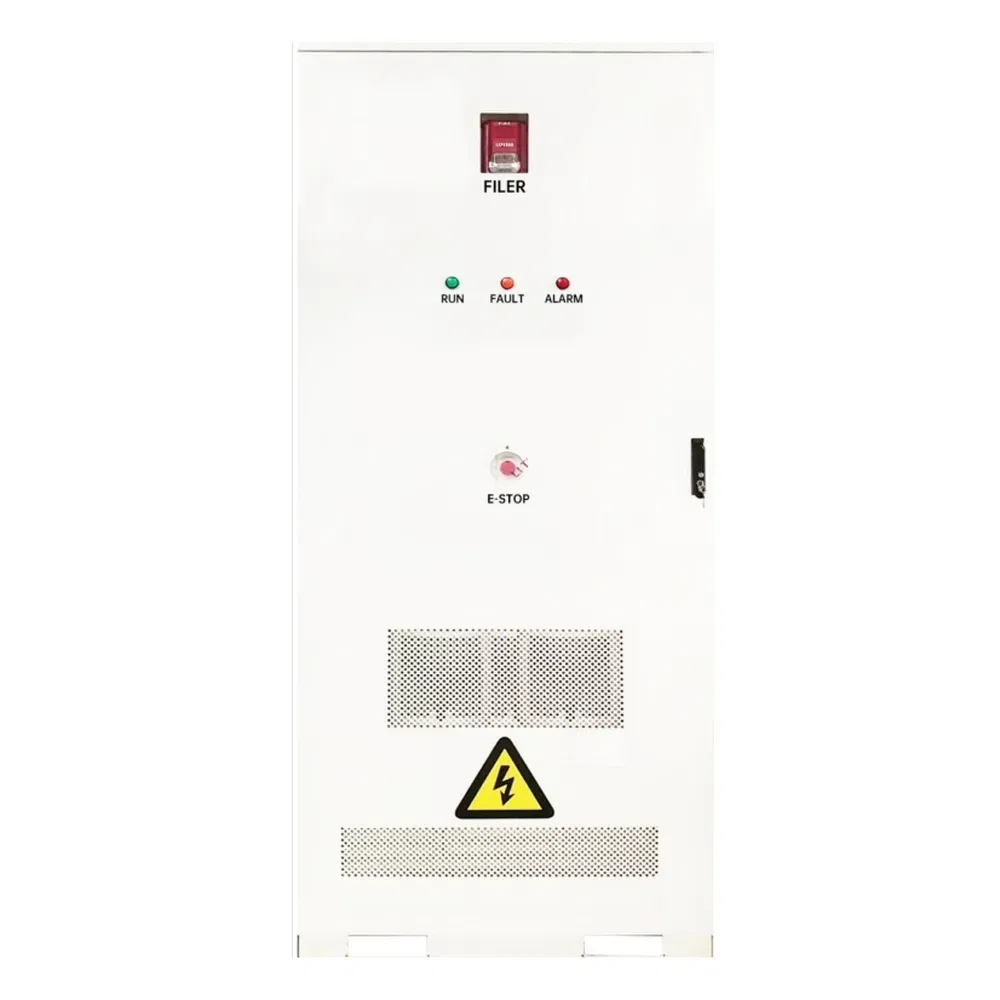

High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
1 / 5
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms
High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms

High Security Wres-Ci-25-261-125 Grid-Tied Commercial Battery Storage System for Telecommunications Equipment Rooms

Customization: Available
Power Configuration: 832
Cycle Life: ≥8000 @25℃
Send Inquiry

Product Description

Basic Specifications

Model NO.
Commercial Energy Storage Battery
Product Name
C&I Energy Storage
Total Energy (Kwh)
261
Usable Energy (Kwh)
245.57
Nominal Voltage (Vd.C)
832
Voltage Range (Vd.C)
728 ~ 936
Rated Capacity (Ah)
314
Max. Efficiency
99%
Corrosion Rating
C4
Weight (Kg)
3180
Commercial Battery Storage System Overview

Product Description

🛡️
High Safety LFP Technology They adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability—critical for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh, with high usable energy ratios.
⚙️
Industrial Grid Optimization Electrical parameters are optimized for industrial grids. Nominal DC voltage spans 358.4V to 832V, with wide voltage ranges to adapt to different grid conditions.
☀️
Efficient Renewable Integration Designed as grid-tied systems with MPPT (Maximum Power Point Tracking) functionality (voltage range 200~800V), enabling efficient integration with renewable energy sources like solar panels.

Technical Specification

Product NameWRES-CI-25-261/125
Total Energy (kWh)261
Usable Energy (kWh)245.57
Nominal Voltage (Vd.c)832
Rated Capacity (Ah)314
Max. PV Input Power (kW)137
Nominal Grid Voltage (V)230/400V, 3L+N+PE
Cycle Life≥8000 @ 25℃
Dimension (W*H*D) (mm)1055*2300*1300

Functional Advantages

Economic Value

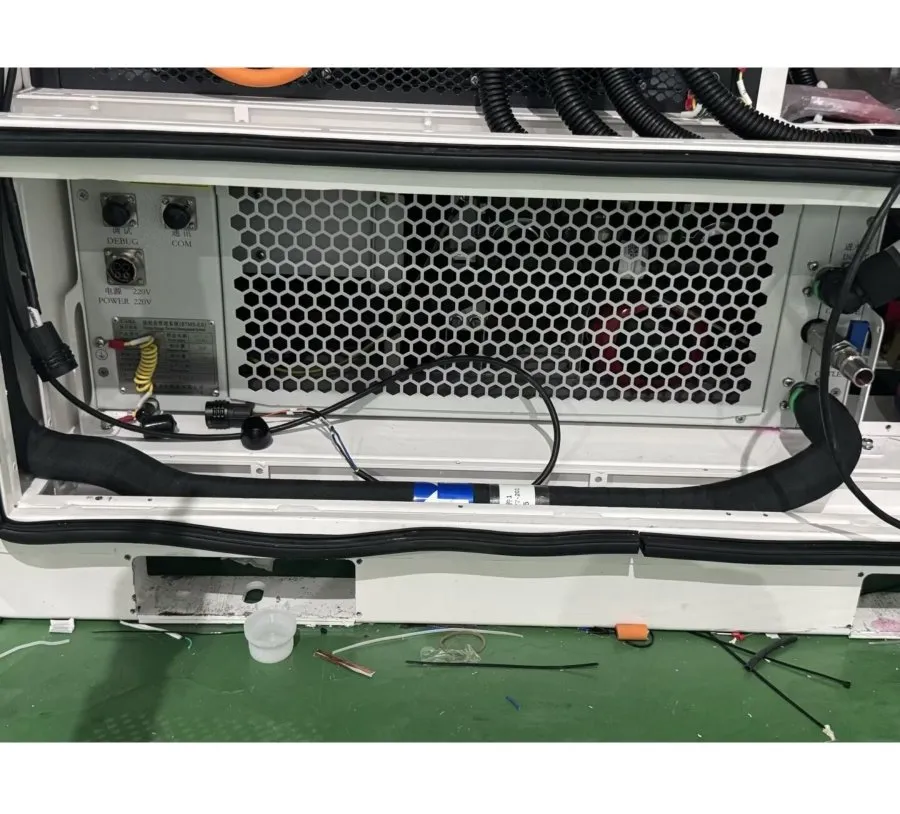

Safety and Reliability

Economic Value: Systems enable effective peak-valley tariff arbitrage—storing low-cost off-peak electricity and supplying it during high-tariff peak hours, directly cutting long-term energy expenses.

Strong Adaptability: With wide DC voltage ranges and 200–800V MPPT compatibility, the grid-tied systems seamlessly integrate with on-site renewable energy and adapt to diverse grid conditions.

Adaptability

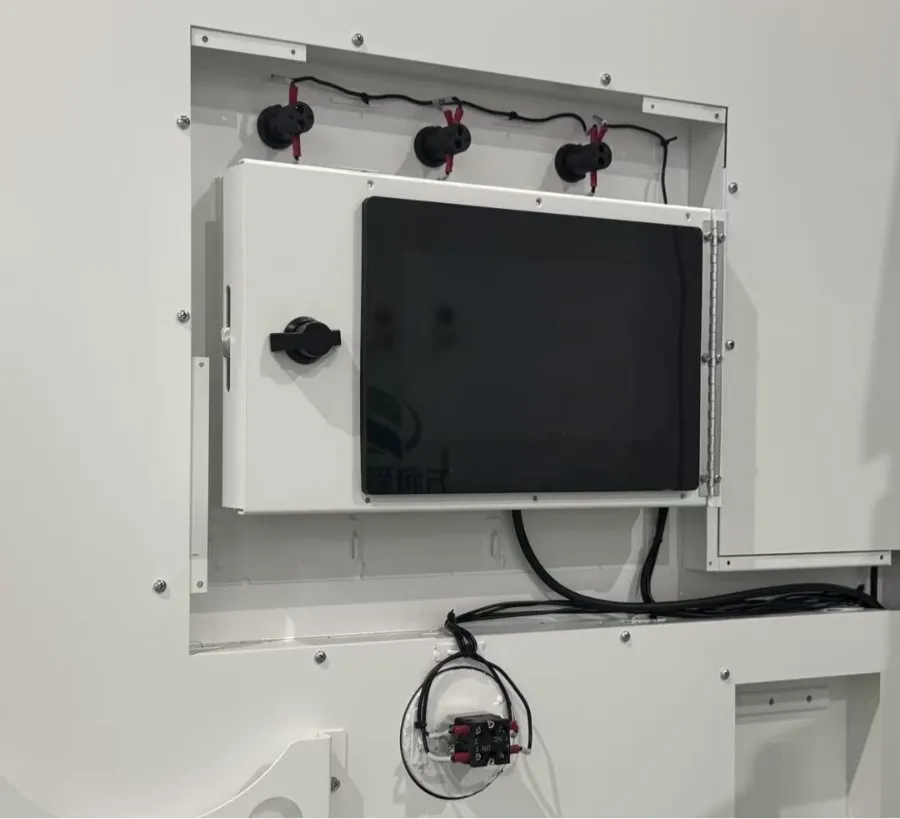

Sustainability

Transportation & Logistics

We provide reliable and secure transportation services. From dispatch to delivery, we ensure professional handling and safe, on-time arrival.

Packing 1
Packing 2
Packing 3
Packing 4
Packing 5
Packing 6
Logistics 1
Logistics 2

Frequently Asked Questions

What is the lifespan of these energy storage batteries?
Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to approximately 10-15 years of daily use, depending on usage patterns and maintenance.
How does peak-valley tariff arbitrage work?
The system stores electricity during off-peak hours when tariffs are low and discharges that energy during peak periods when tariffs are high. This allows businesses to significantly reduce their monthly electricity costs.
Are these batteries compatible with existing solar inverters?
Yes, our systems offer high compatibility with various solar inverters using RS485, CAN, or RS232 communication protocols, supported by most major inverter brands.
What safety features are included in the Battery Management System (BMS)?
The comprehensive BMS includes overcharge protection, over-discharge protection, short-circuit protection, temperature monitoring, and overcurrent protection to ensure safe operation at all times.
Do I need specialized knowledge for installation?
Yes, installation requires specialized electrical knowledge. We highly recommend hiring certified professionals to ensure the system is integrated safely and correctly with your local grid or solar array.
How can I monitor the performance of my system?
We provide a cloud-based monitoring platform accessible via App and Web. Users can track real-time performance, charging/discharging status, and health metrics effortlessly.
