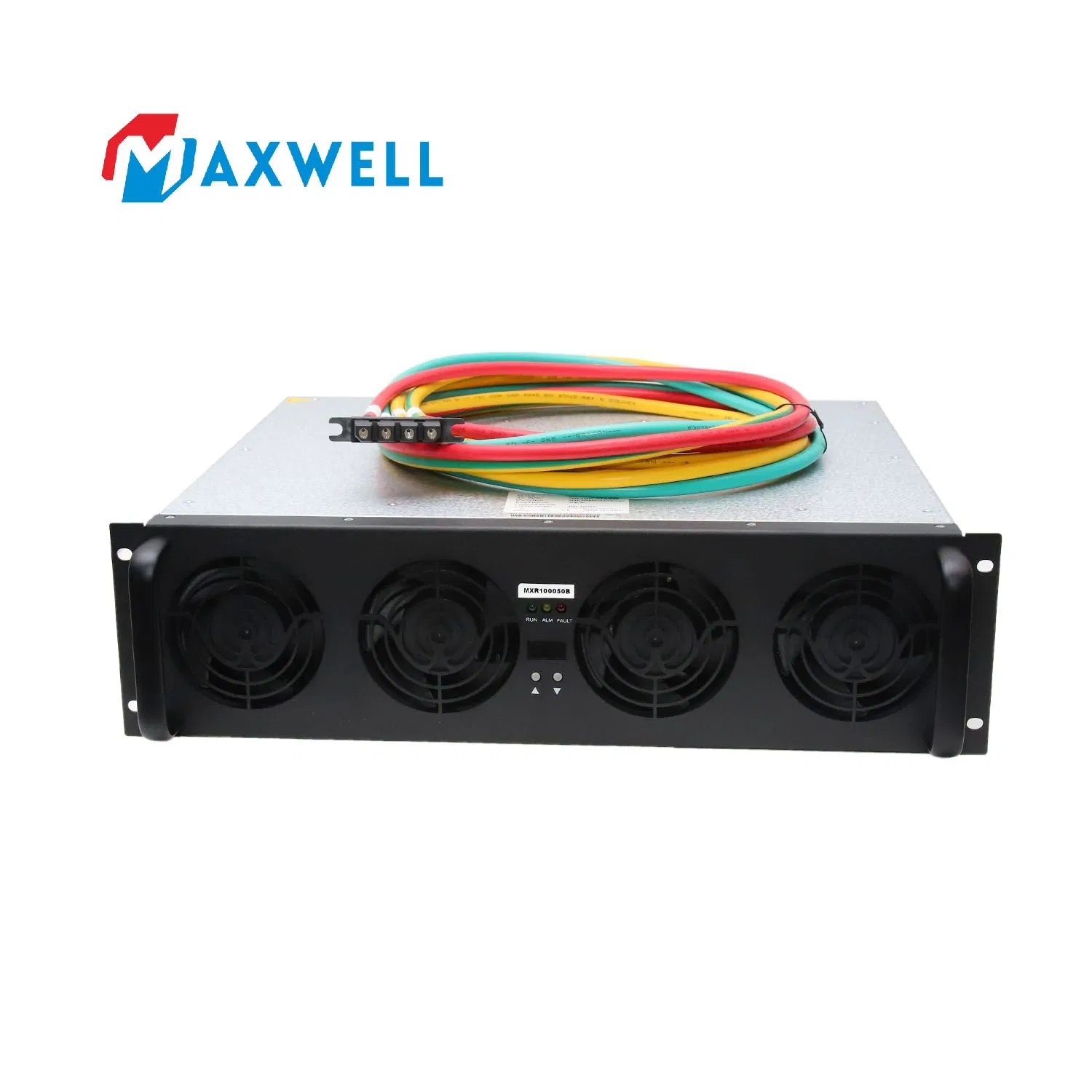

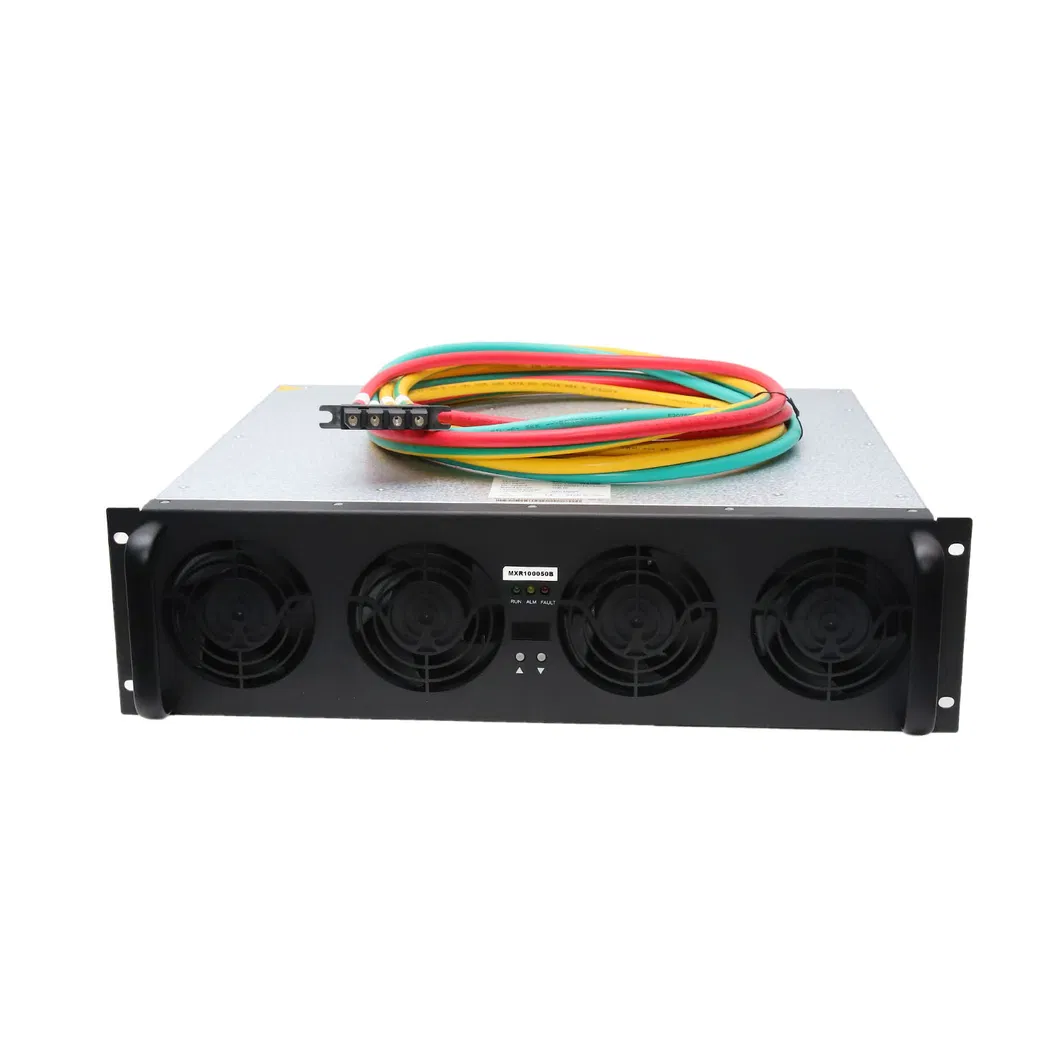

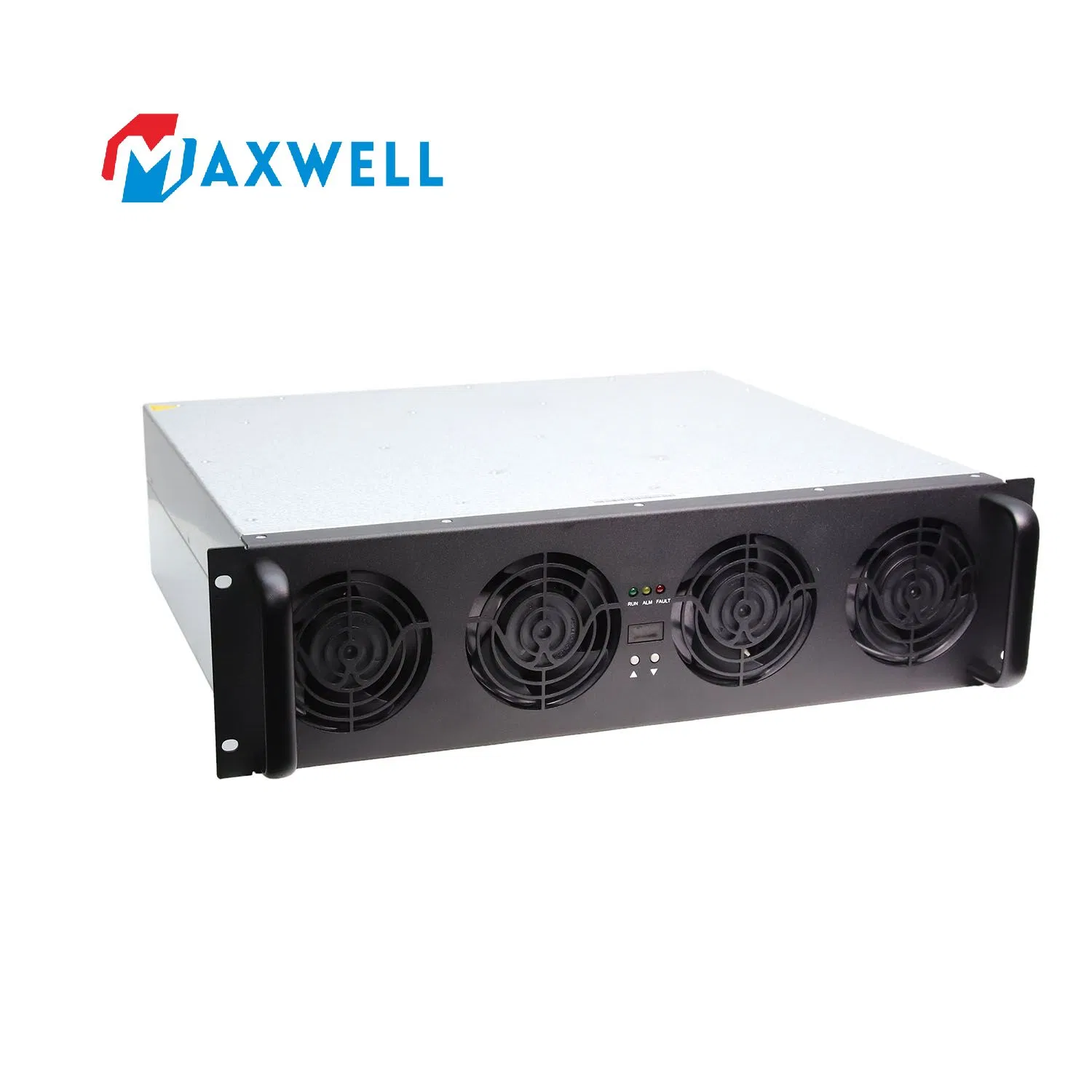

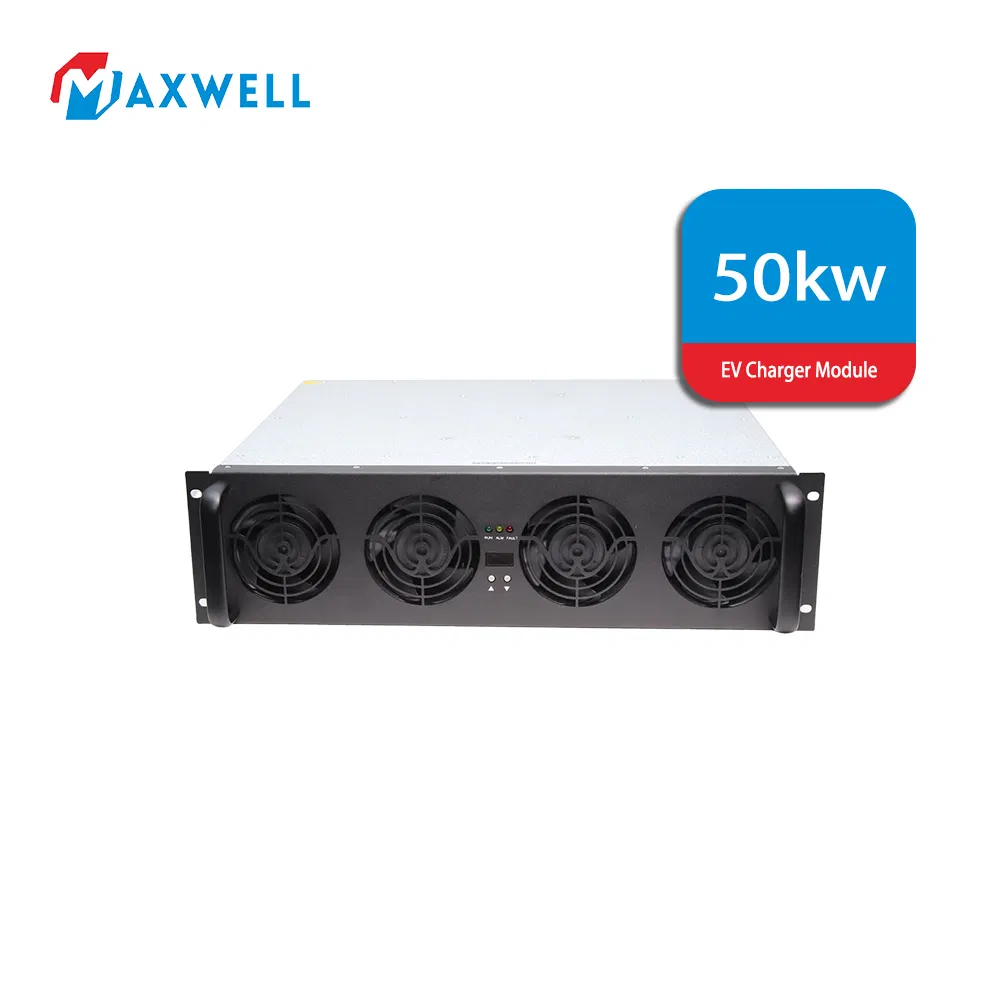

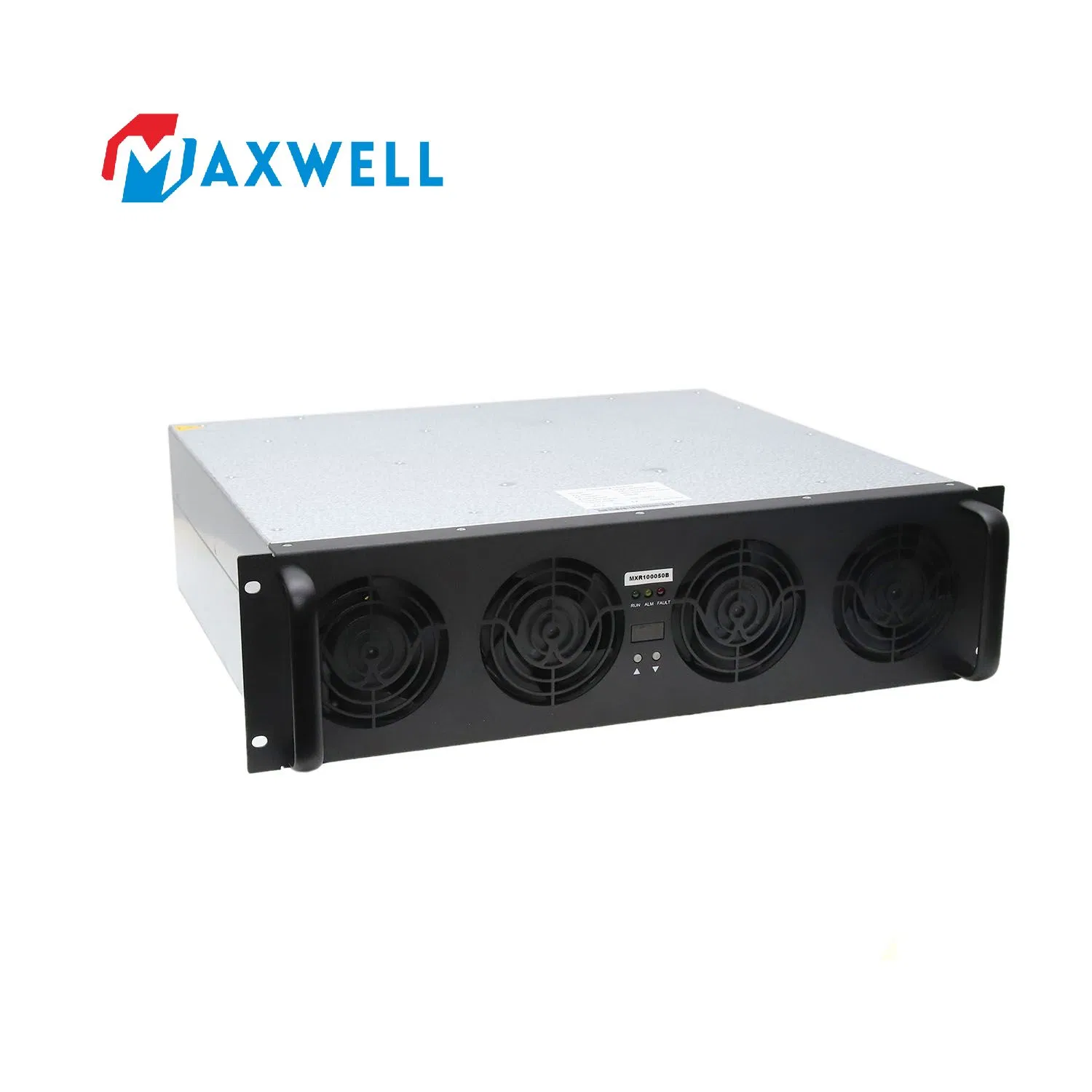

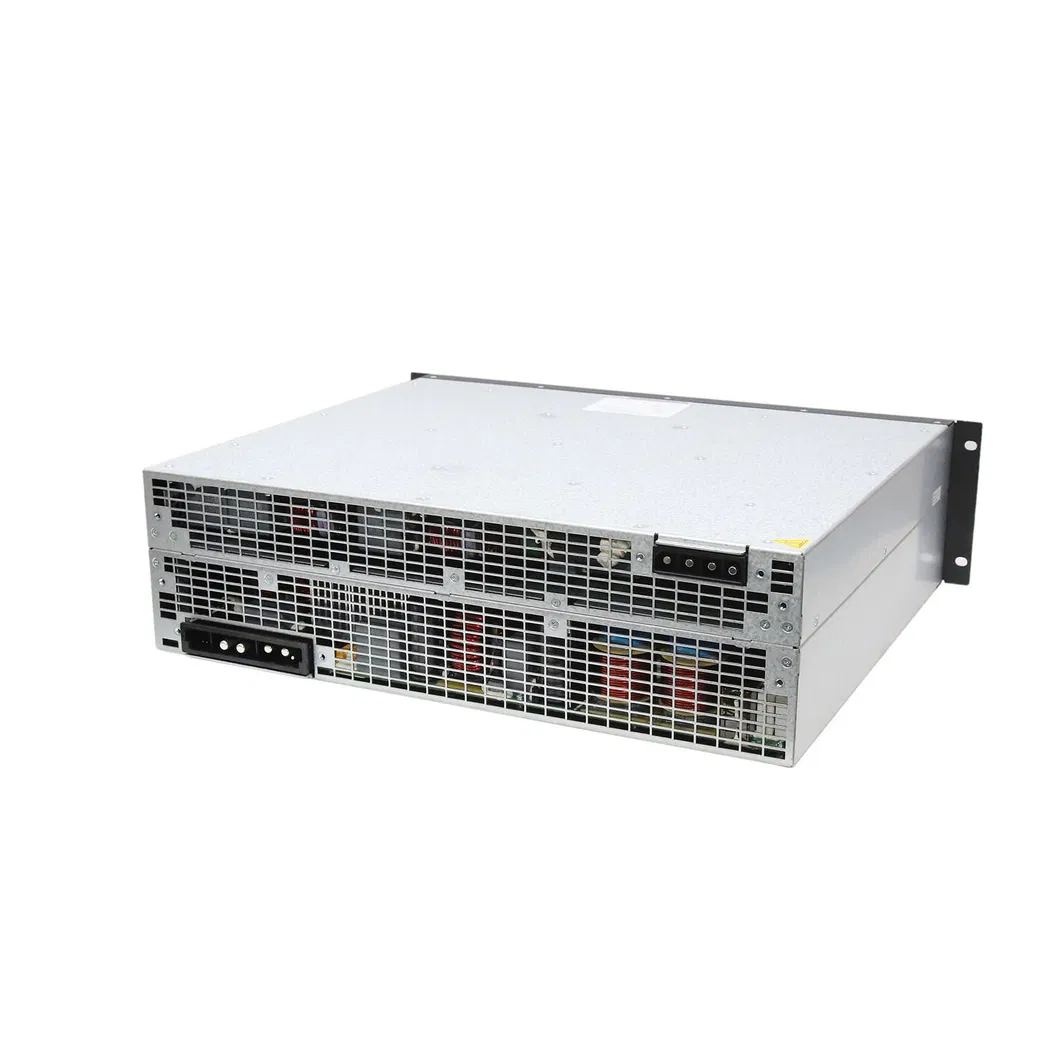

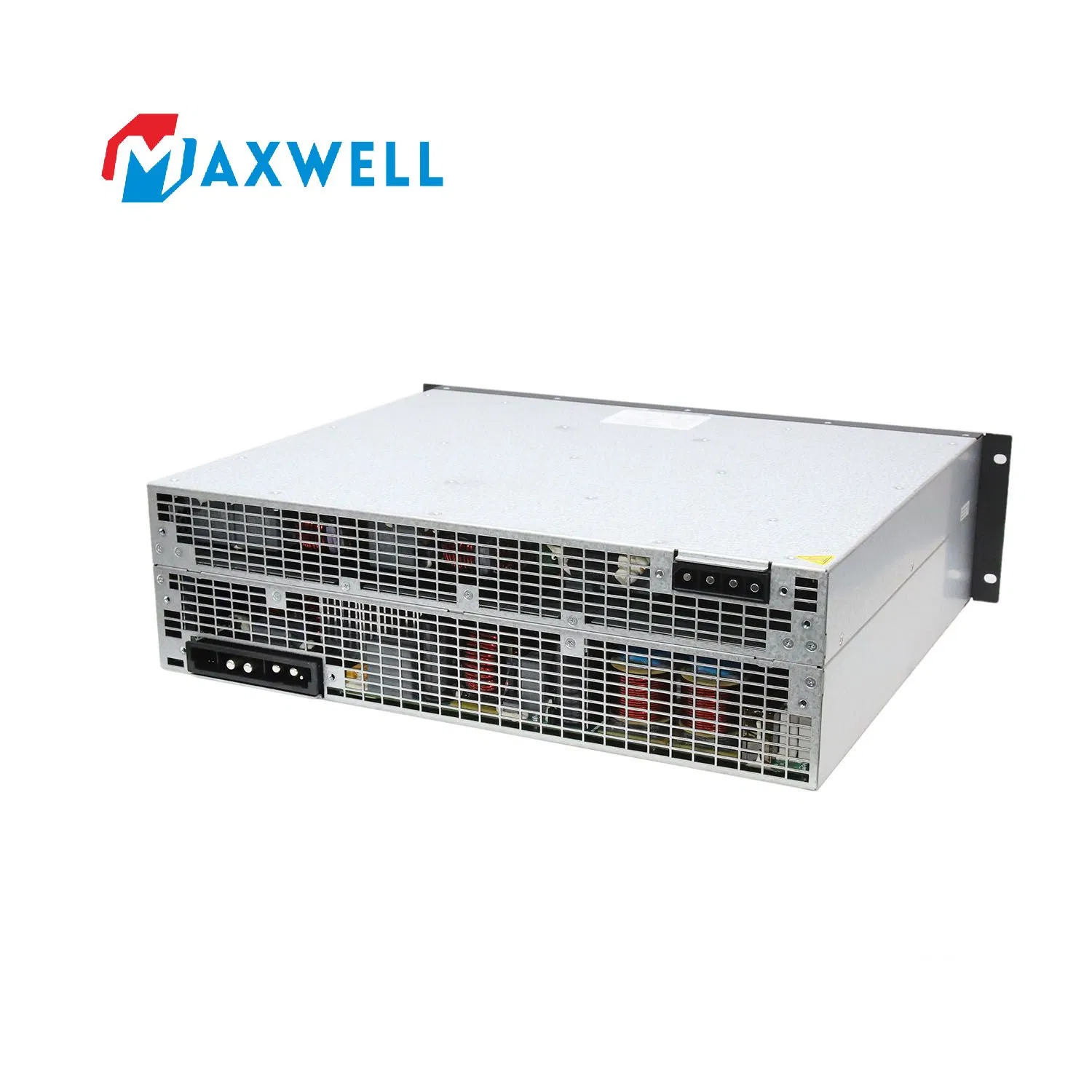

Good Price High Voltage AC DC Rectifier 50kw 1000V EV Charging Module

Basic Information

Model NO.

MXR100050B

Cooling Method

Forced Air Cooling

Protection Level

IP20

Certification

CE, TUV, RoHS

Warranty

12 Months

Consumption

13.5W (Standby)

Communication

Can Bus

Parallel Quantity

<60 Pieces

Package Size

57.00cm * 45.00cm * 33.00cm

Gross Weight

35.000kg

Product Description

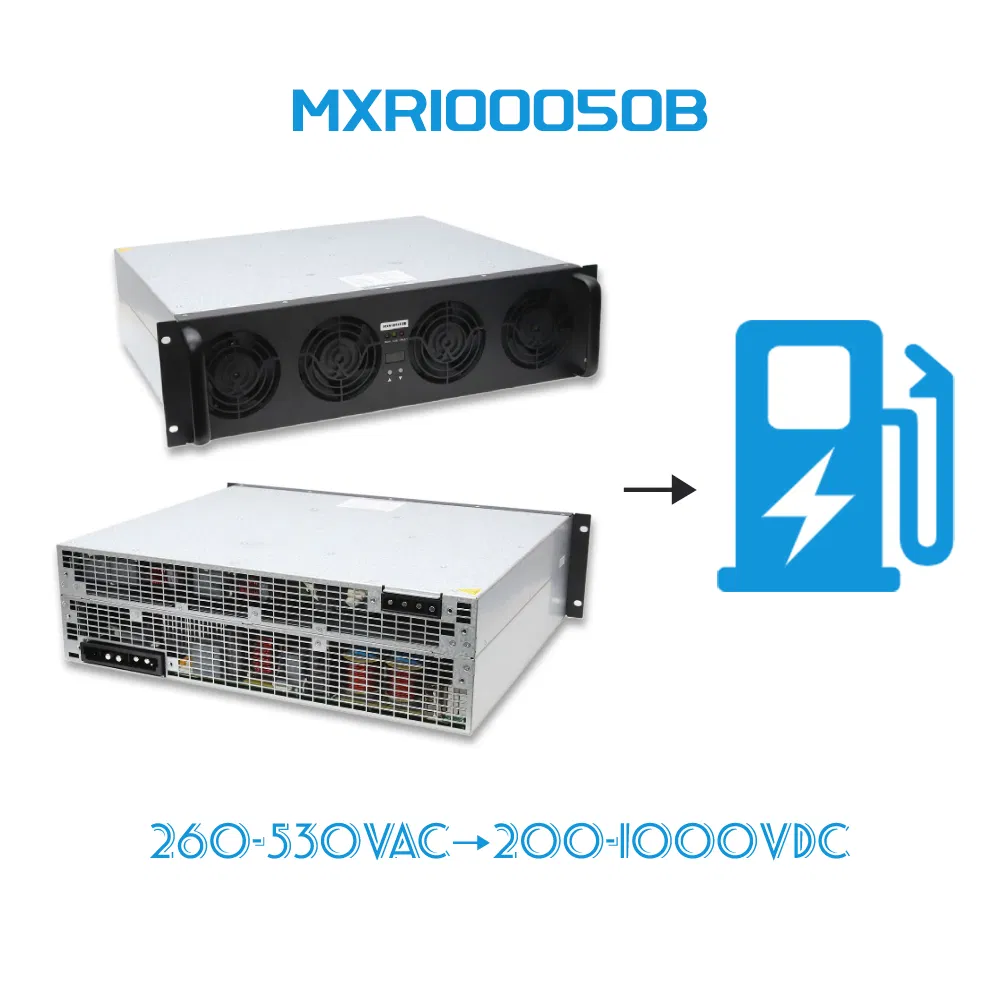

MXR100050B is a high-performance charging power module specifically developed for the EV charging pile industry. It offers significant advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range, making it ideal for robust charging infrastructure.

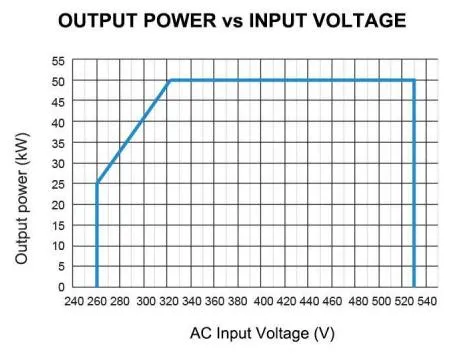

Input Characteristics

Item	Parameters
Input Voltage	260Vac-530Vac, three-phase+PE
Input Current	≤100A
Grid frequency	45Hz-65Hz
Power Factor	≥0.99 (Load > 50%)
ITHD	≤5% (Load > 50%)

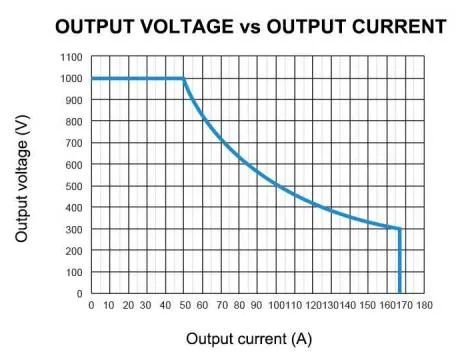

Output Characteristics

Item	Parameters
Output Power	50kw
Voltage Range	200-1000Vdc
Current Range	0-167A continuously adjustable
Voltage Regulation	≤±5%
Stabilized Current	≤±1% (Output current ≥20% Max)
Ripple Peak-to-Peak	<1%

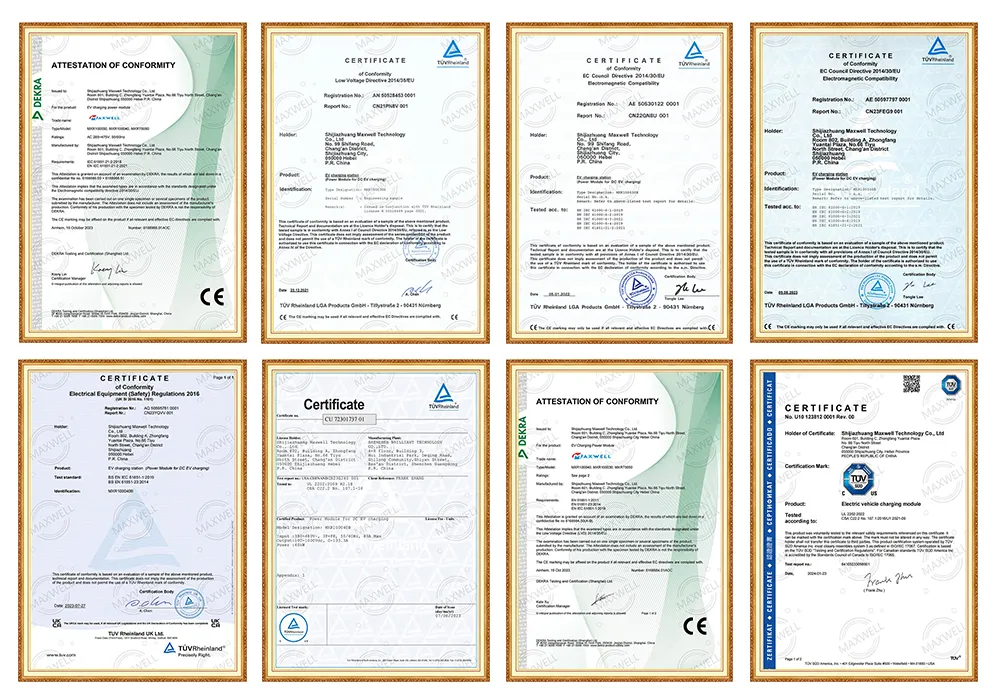

Certifications

Packaging & Shipping

Goods are typically packed in high-strength kraft cartons, with or without pallets based on shipping requirements. For customized orders with registered patents, branded packaging solutions are available upon authorization.

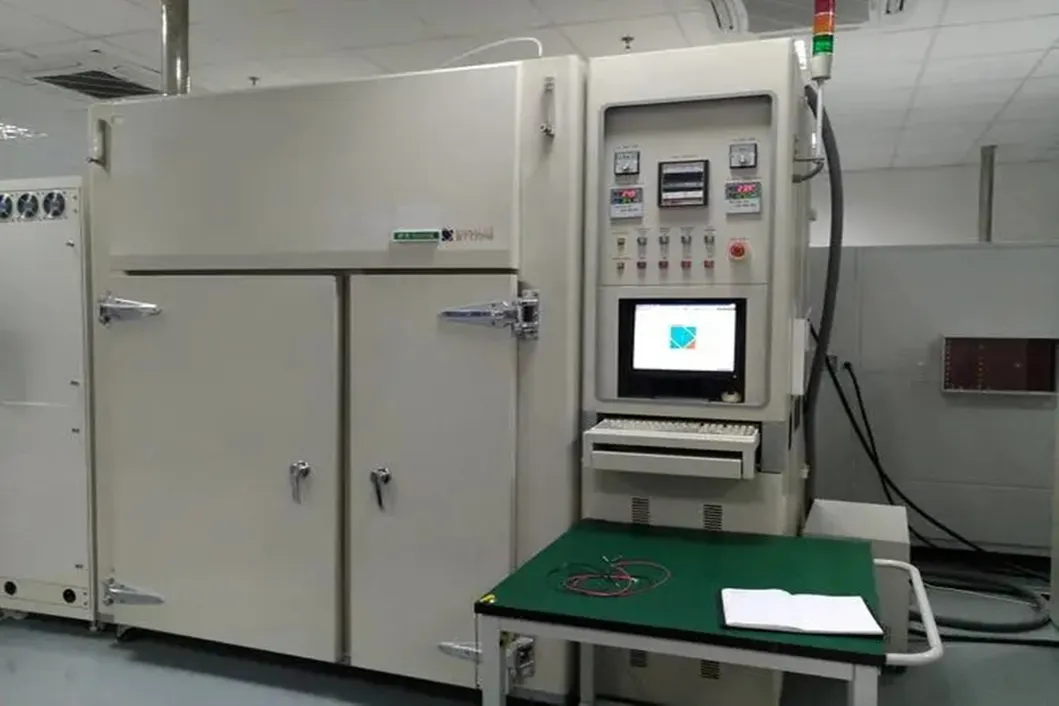

Company Profile

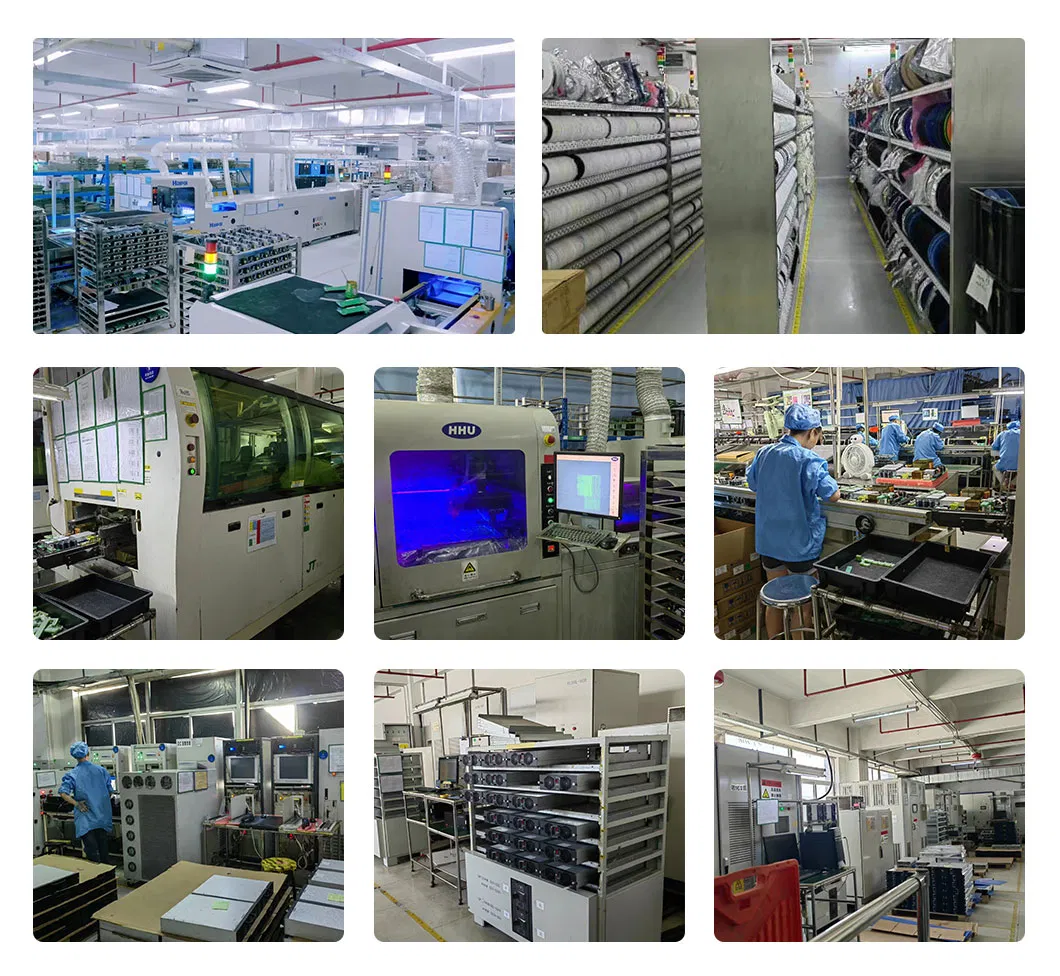

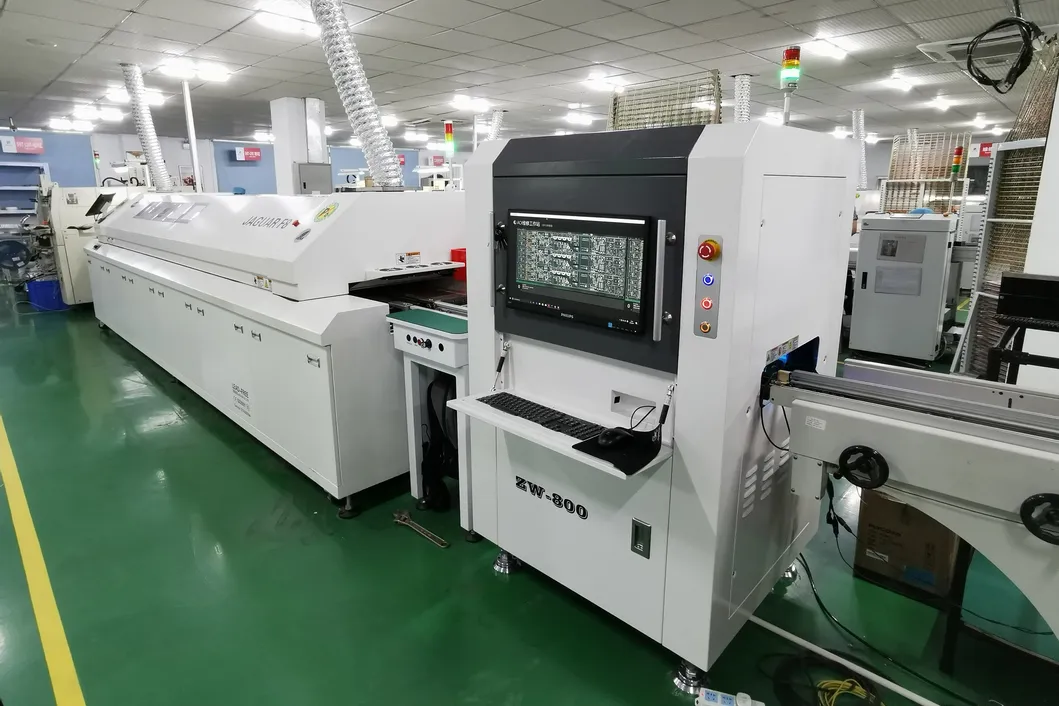

As a state-level high-tech enterprise, the manufacturer focuses on the research, development, and production of power electronic products. Positioning services for mid-to-high-end DC power supply systems, the company relies on independent intellectual property rights and continuous technological innovation.

With over a decade of experience, the professional R&D team has obtained multiple national invention patents. The products are widely utilized in automotive, electric power, railway, metallurgy, and communications sectors globally. Since 2011, a specialized focus on DC charging modules has led to a comprehensive portfolio of 15kW to 60kW series, serving major international exhibition centers, airports, and bus terminals.

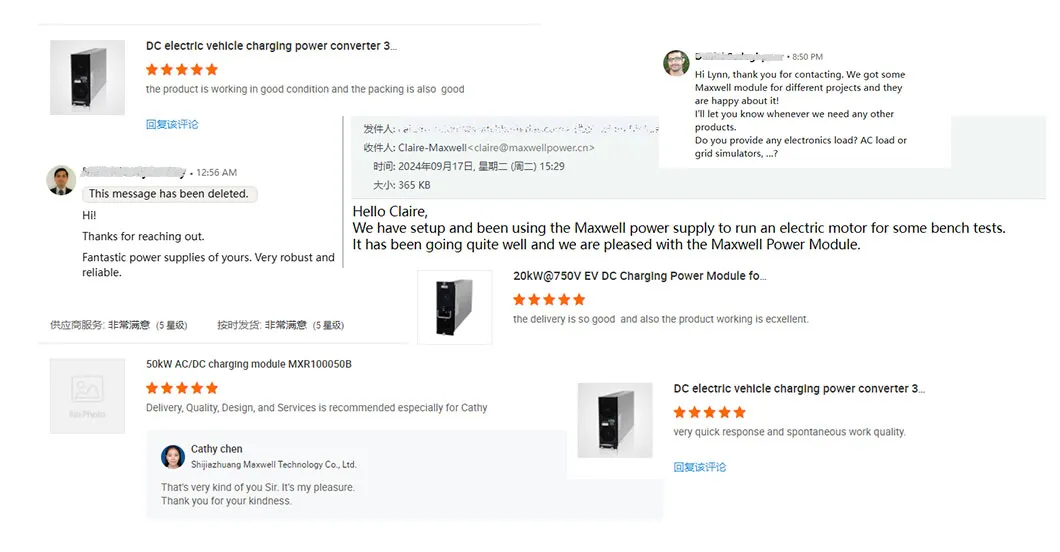

Customer Evaluation

Recommended Products

Available Output Power	20KW, 30KW, 40KW, 50KW, 60KW

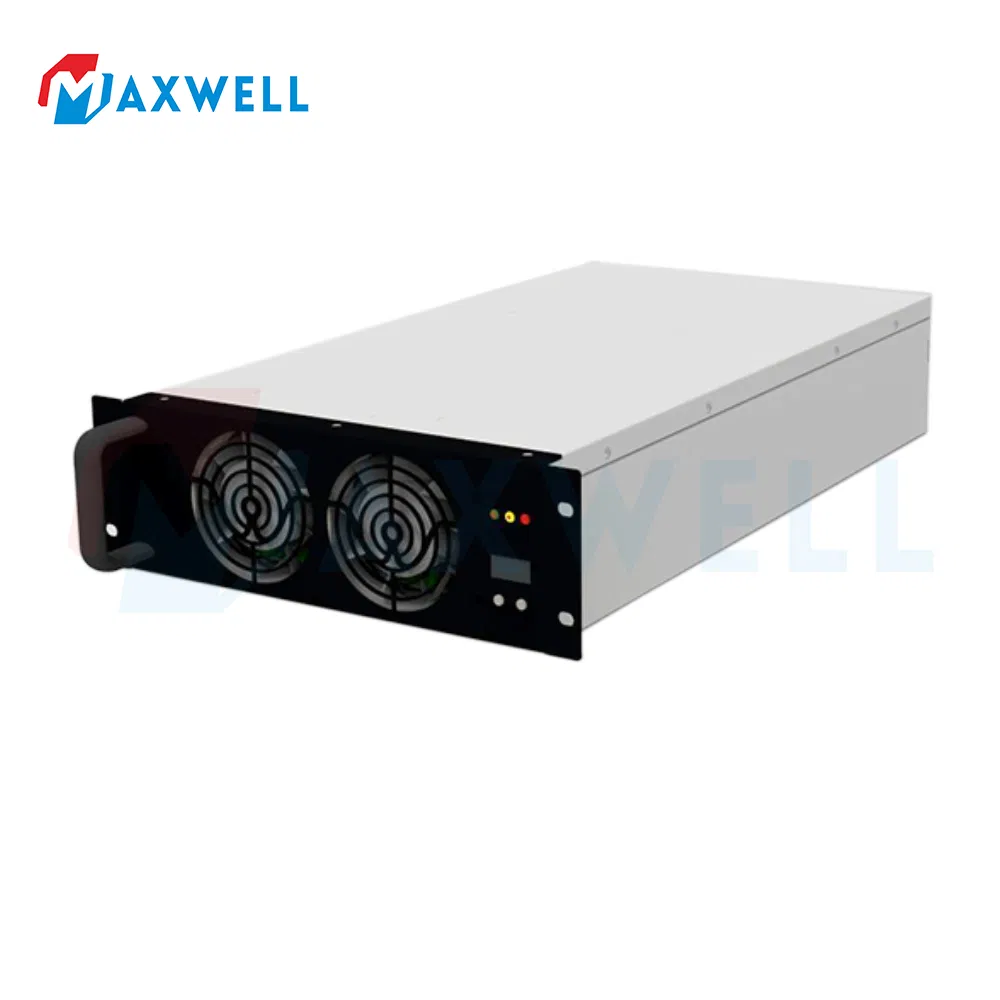

Product Categories	AC-DC, DC-DC EV Charging Modules, Bidirectional Power Modules, Liquid Cooling Modules

Frequently Asked Questions

1. Can you explain the differences between global DC fast charging standards?

There are several major DC fast charging standards used globally, including CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China). Our modules are designed to be compatible with various system requirements.

2. How is after-sales support provided for the charging modules?

We provide comprehensive technical training, including written manuals, instructional videos, and face-to-face training sessions. For urgent technical issues, professional technicians can be deployed for on-site guidance.

3. What customized services (OEM/ODM) do you offer?

We offer a wide range of OEM and ODM solutions tailored to specific customer requirements, including power rating adjustments and structural design modifications.

4. What are the standard terms of payment?

Standard payment terms are T/T (Telegraphic Transfer) in advance or Irrevocable L/C (Letter of Credit) at sight.

5. What is the typical delivery timeframe?

For standard orders, delivery is usually completed within 2-3 weeks after order confirmation.

6. What cooling methods do these modules use?

The MXR series modules primarily utilize Forced Air Cooling for high-efficiency heat dissipation, and we also offer Liquid Cooling options for specific high-power applications.
