Efficient High Voltage off Grid Commercial Industrial Cabinet 215kw Energy Storage Solution

1 / 5

Efficient High Voltage off Grid Commercial Industrial Cabinet 215kw Energy Storage Solution

Customization:	Available
Container Size:	250029001500mm
Weight:	2.65t

Send Inquiry

Product Description

📊

Basic Information

Model NO.

PLPF0280C0-0768R0A

Nominal Voltage

768V

Warranty

2 Years

Nominal Capacity

215kWh

Cycle Life

≥6000 @100%Dod, 80%Eol

Battery Type

302V/280Ah

Rated Power

110kVA

Grid Voltage

400V

Frequency

50Hz/60Hz

Package

Container

⚙️

Technical Parameters

Specification Item	Technical Detail
Battery Parameters
Product Model	PLPF0280C0-0768R0A
Cell Configuration	1p240s
Cell Type	3.2V/280Ah
Rated Battery Capacity	215kWh
Voltage Range	600~876V
AC Output Parameters
Rated Output Power	110kW
Rated Grid Voltage	400V (±15%)
Rated Grid Frequency	50Hz/60Hz (±2.5Hz)
Power Factor	-1 (leading) ~ 1 (lagging)
THDI	≤3% (at rated power)
Off-grid Voltage	400V (±10% adjustable)
System & Environmental
Dimensions (Air Cooled)	2100 x 2500 x 1100 mm
Dimensions (Liquid Cooled)	1300 x 2600 x 1000 mm
Operating Temperature	-30°C to 60°C (>40°C derating)
Cooling Method	Air / Liquid Cooled Optional
Fire Suppression	Aerosol / Heptafluoropropylene
Communication	ModBus-TCP / ModBus-RTU / IEC104

📷

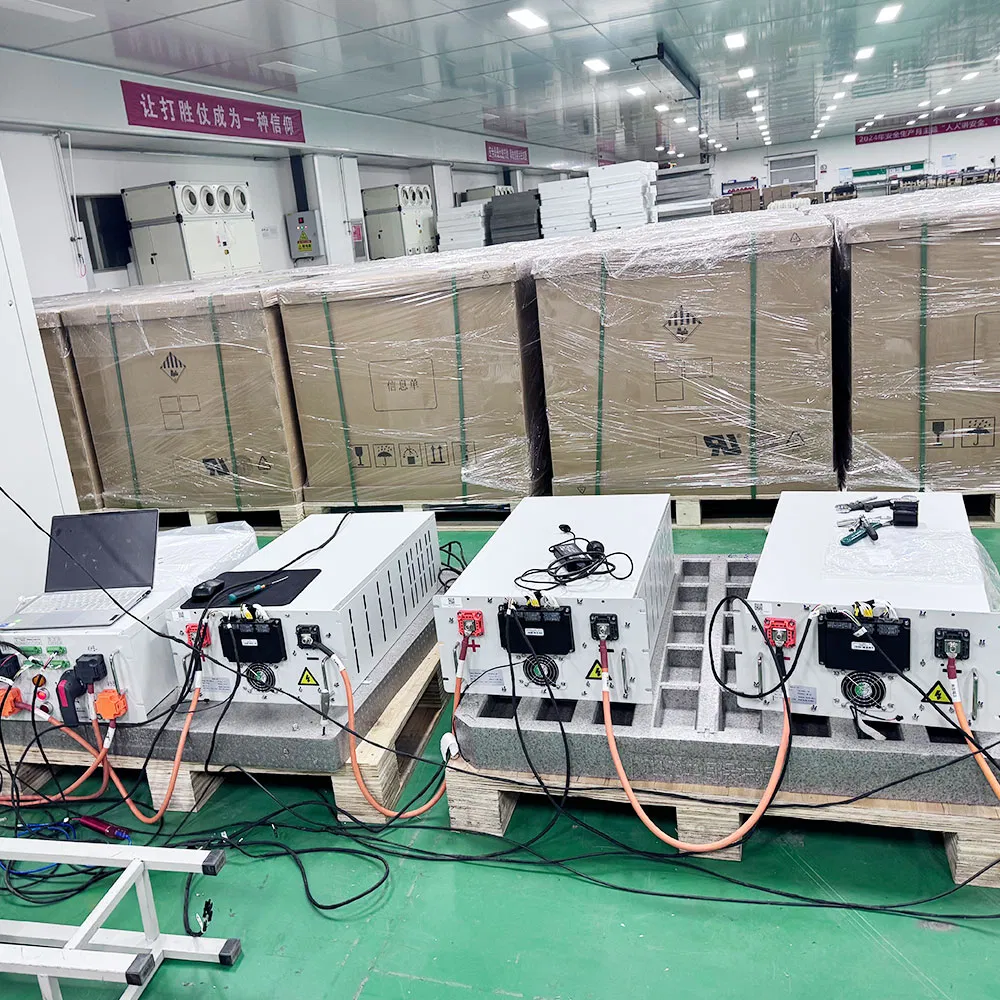

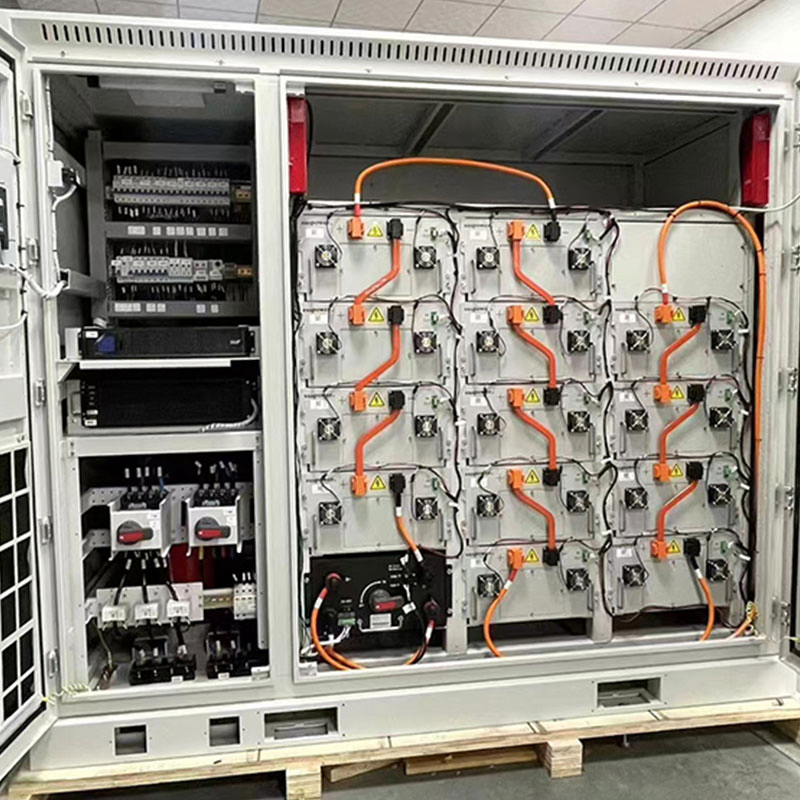

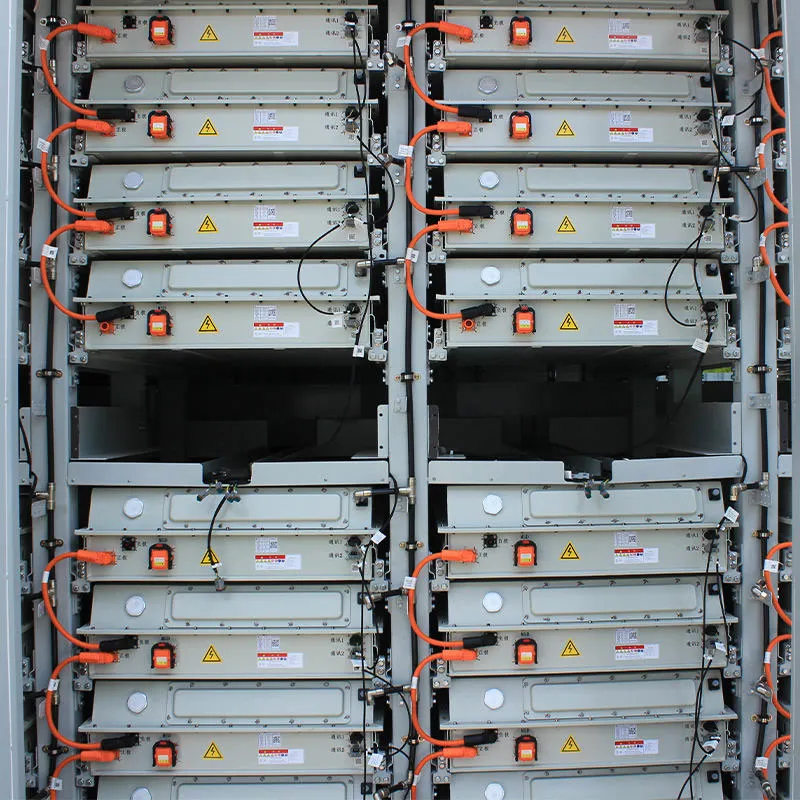

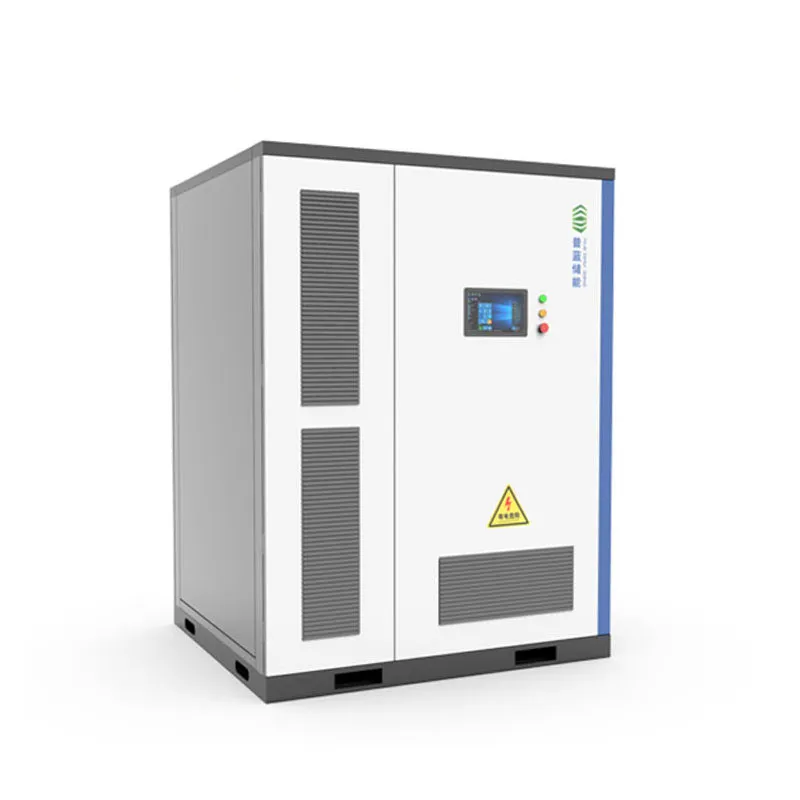

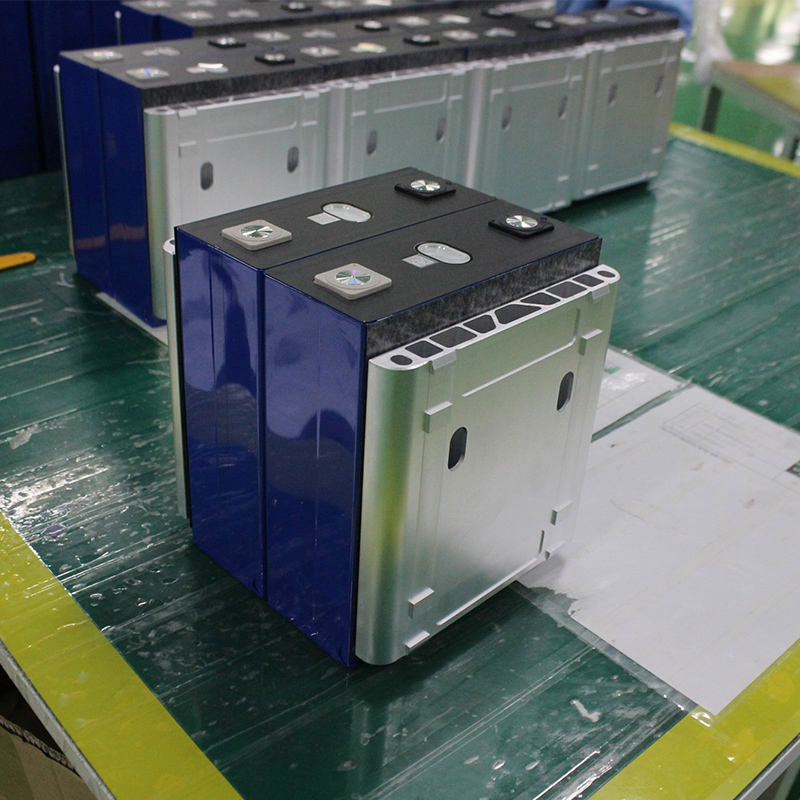

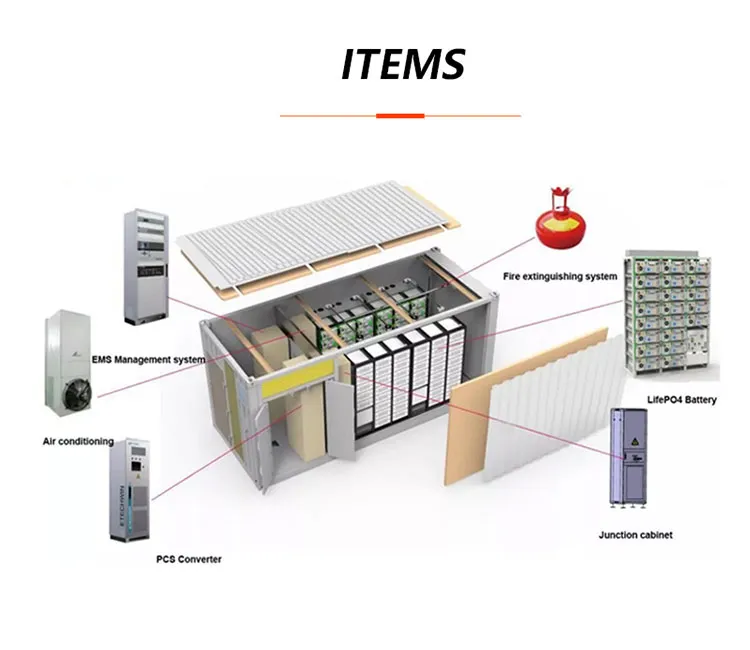

Product Detailed Photos

📦

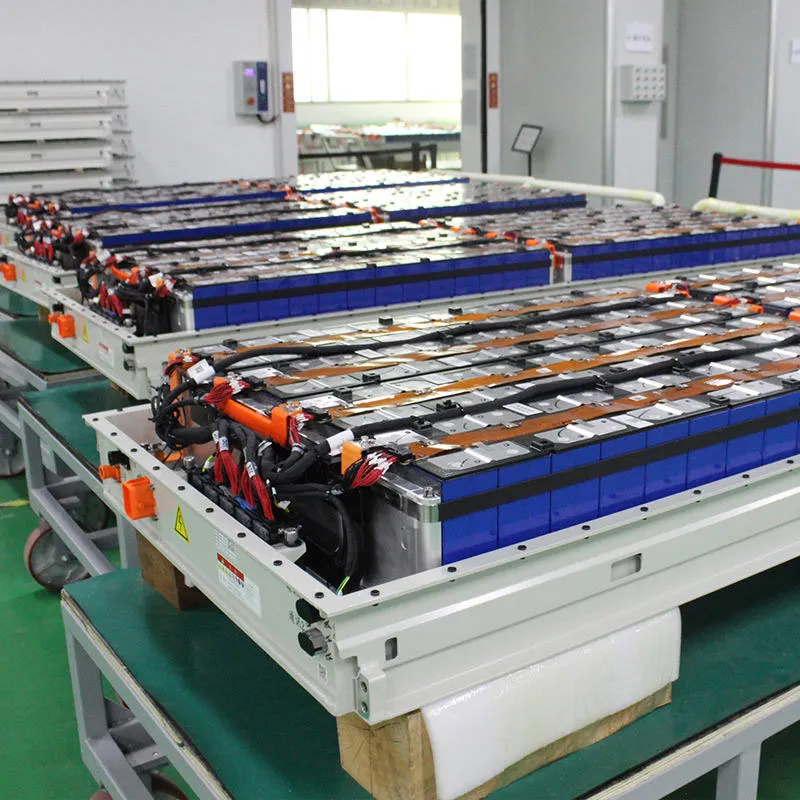

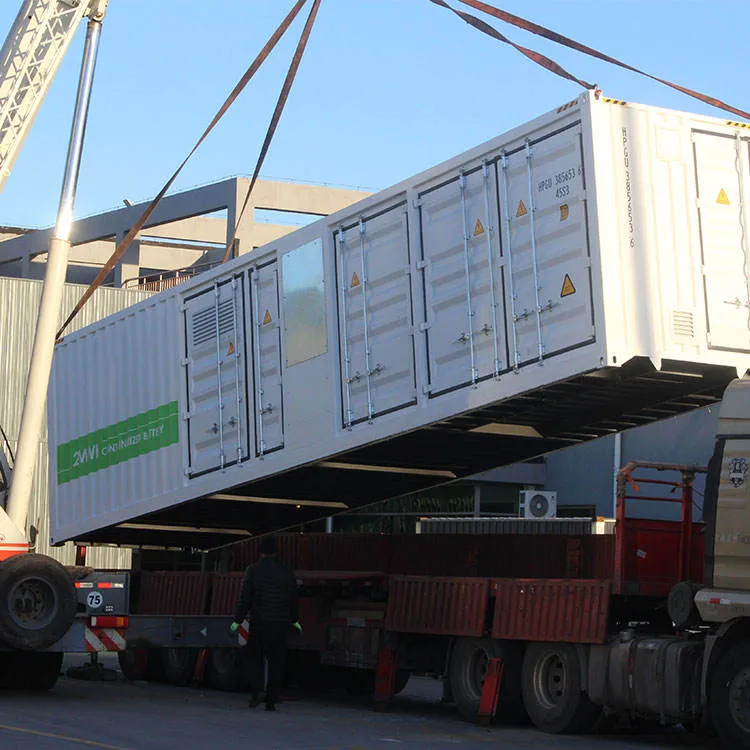

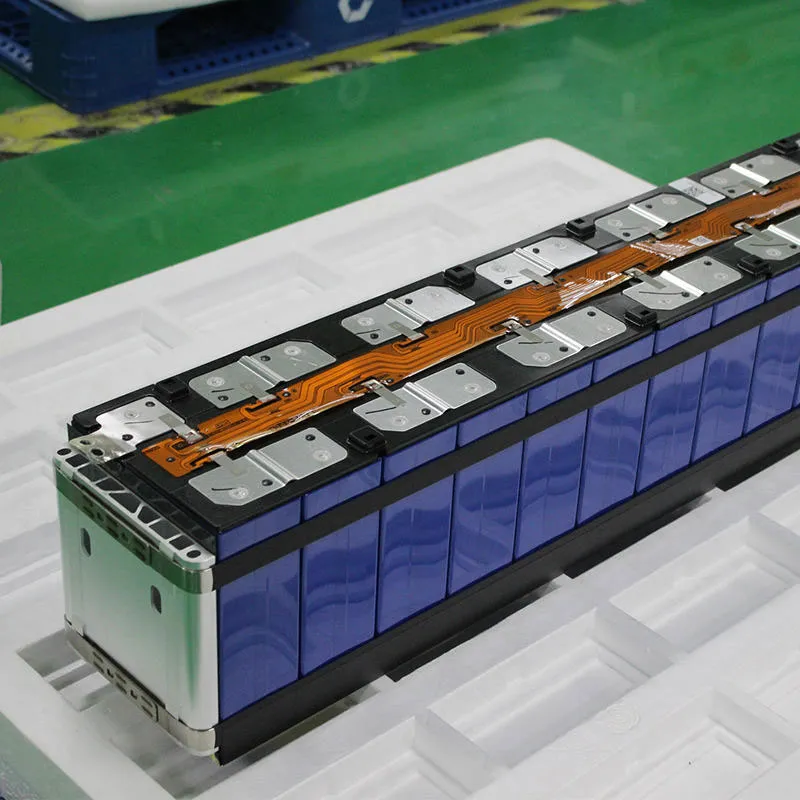

Packaging & Shipping

❓

Frequently Asked Questions

What is the expected lifespan of the battery cells?

The system utilizes high-quality cells with a cycle life of ≥6000 cycles at 100% Depth of Discharge (DOD) until 80% End of Life (EOL).

Does the system support both grid-connected and off-grid modes?

Yes, the system is designed for high-voltage off-grid and grid-connected commercial and industrial applications with a 400V AC output.

What cooling options are available for this energy storage cabinet?

We offer both Air Cooled and Liquid Cooled solutions to meet different environmental requirements and performance needs.

How is the system protected against fire hazards?

The cabinet is equipped with a professional fire extinguishing system, utilizing Aerosol or Heptafluoropropylene to ensure maximum safety.

Can the system operate at high altitudes?

Yes, the system is designed to operate at a maximum altitude of up to 4000 meters.

Which communication protocols are supported?

The system supports standard industrial protocols including ModBus-TCP, ModBus-RTU, and IEC104 for seamless integration.

Product Detail

Efficient High Voltage off Grid Commercial Industrial Cabinet 215kw Energy Storage Solution

Product Description

Related Products

Feimengsi Energy Storage Solutions for Industrial and Commercial Sectors - China

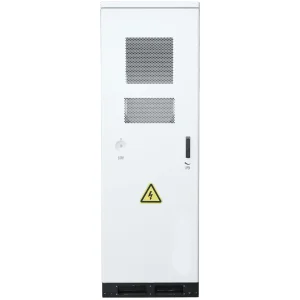

High-Performance IP54 Commercial Energy Storage Solution for Grids

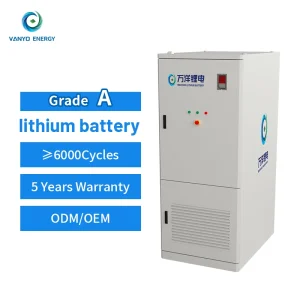

High-Capacity Commercial Battery Storage Solutions for Efficient Energy Management

High-Capacity Commercial Battery Storage Solutions for Efficient Energy Management

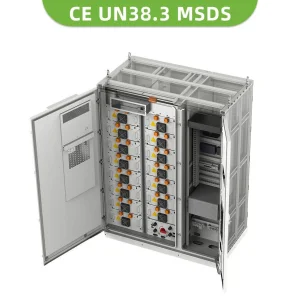

215kwh Air Cooling Commercial Battery Pack Energy Storage Solutions with High Voltage Inverter Systems

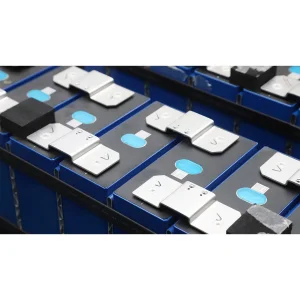

Advanced 215kwh Energy Storage Solution for Commercial Applications

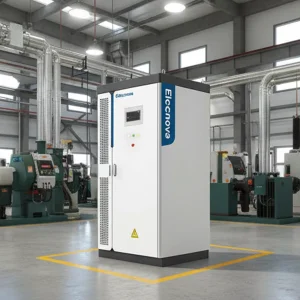

High-Capacity 372kwh Energy Storage Solution for Commercial Use

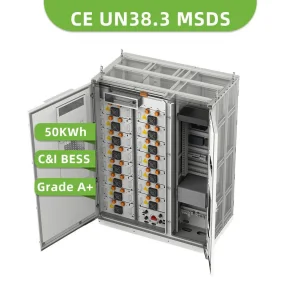

Advanced Commercial Energy Storage Solution for Efficient Operations

Advanced Commercial Energy Storage Solution for Efficient Operations

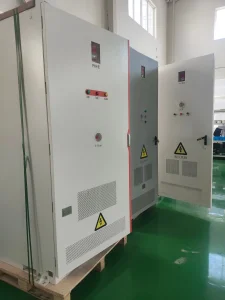

High-Performance 241 Kwh Energy Storage Solution for Commercial Use
