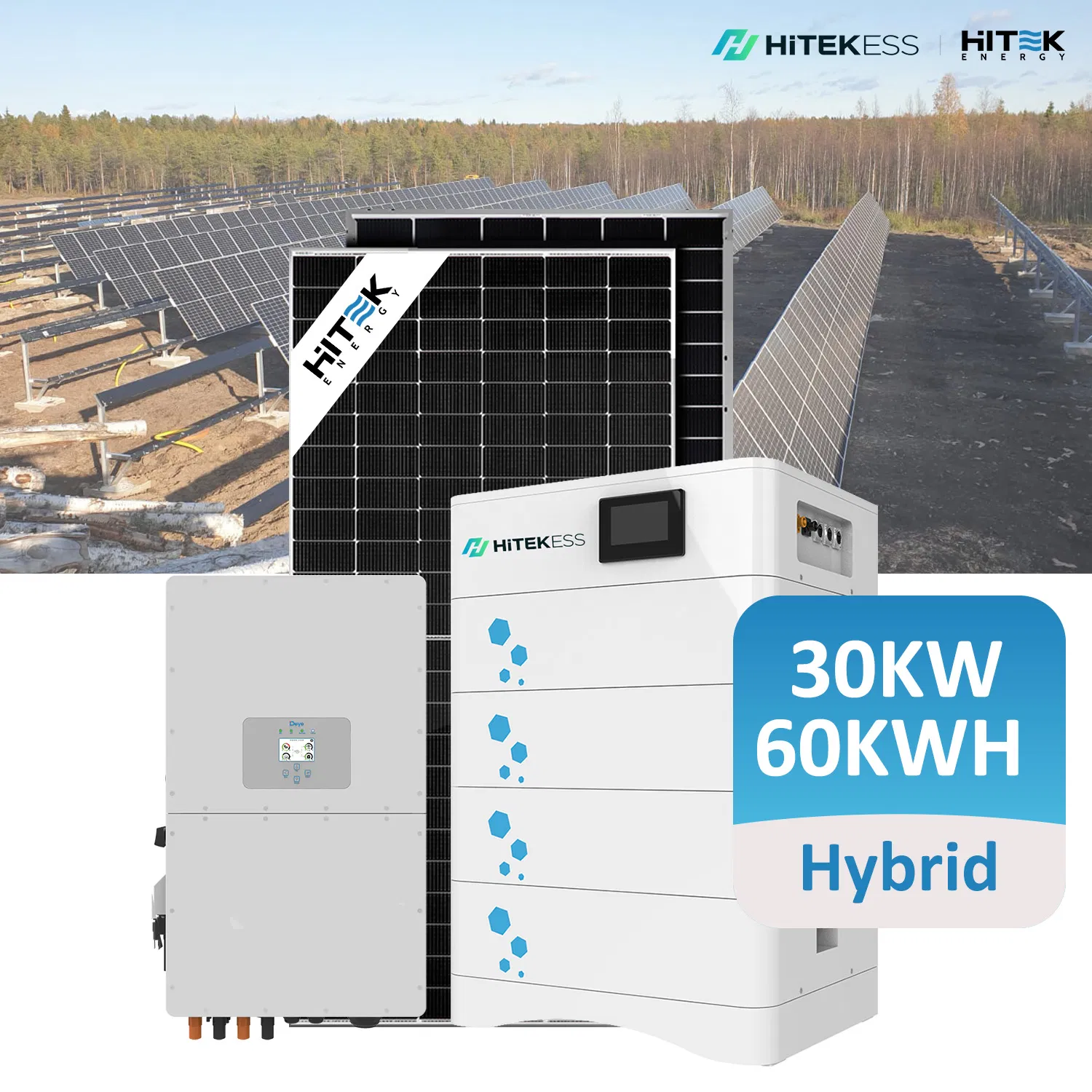

Complete Hitek 10kw to 30kw Solar Energy Storage Solutions

1 / 5

Complete Hitek 10kw to 30kw Solar Energy Storage Solutions

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

HT30KW-HY

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

10KW-30KW

Product Name

Off Grid Hybrid Solar System

Solar System Type

Hybrid Solar Power System

Battery Type

Lead Acid, Lithium Ion, LiFePO4

Output Voltage

380V/400/415VAC 50Hz 3phase

Monitoring

WiFi/LAN/GPRS

Product Description

Residential solar energy storage solutions include battery systems, battery storage inverters, and PV components. These energy storage systems support your energy revolution, whether for an apartment, house, outdoor camp, or emergency needs.

Warranty & Operation

Configuration Details (10KW - 15KW)

Model	HT10KW-HY	HT12KW-HY	HT15KW-HY
Solar Panel 560W	18PCS	24PCS	27PCS
Hybrid Inverter	10KVA 1PC	12KVA 1PC	15KVA 1PC
LiFePO4 Battery	12.8KWH	15.36KWH	17.92KWH
DC Cable 4mm2	300 Meters	400 Meters	500 Meters
Mounting System	Customized Roof/Ground Kits

Configuration Details (20KW - 30KW)

Model	HT20KW-HY	HT25KW-HY	HT30KW-HY
Solar Panel 560W	34PCS	45PCS	51PCS
Hybrid Inverter	20KVA 1PC	25KVA 1PC	30KVA 1PC
LiFePO4 Battery	25.6KWH	30.72KWH	35.84KWH
DC Cable 4mm2	600 Meters	700 Meters	800 Meters
Mounting System	Customized Roof/Ground Kits

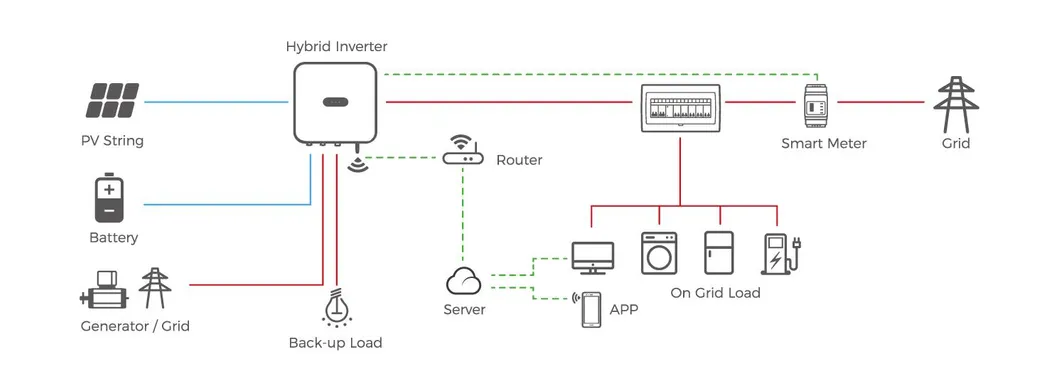

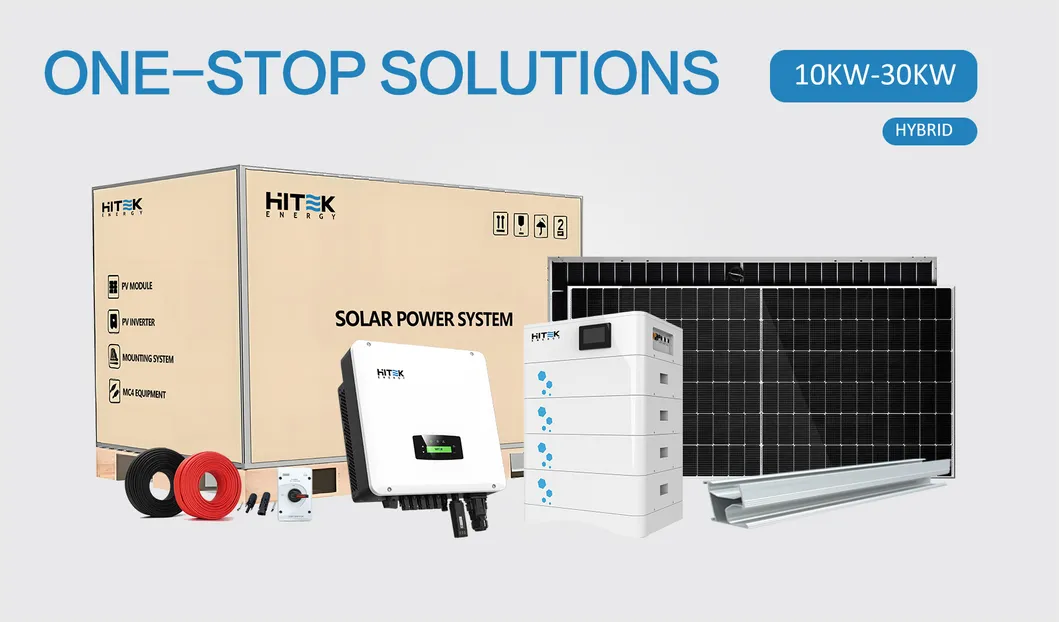

System Components

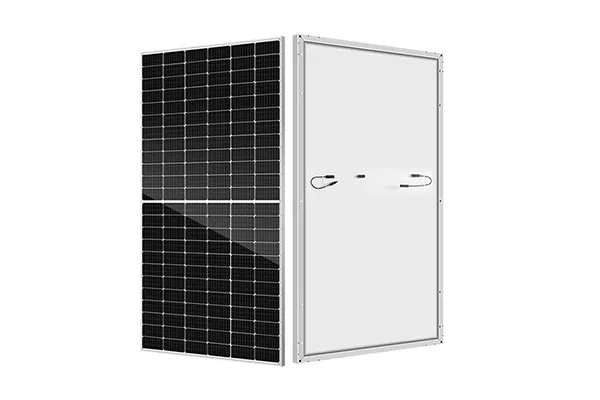

Mono Solar Panel

Model: HT560M-72 | Peak Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

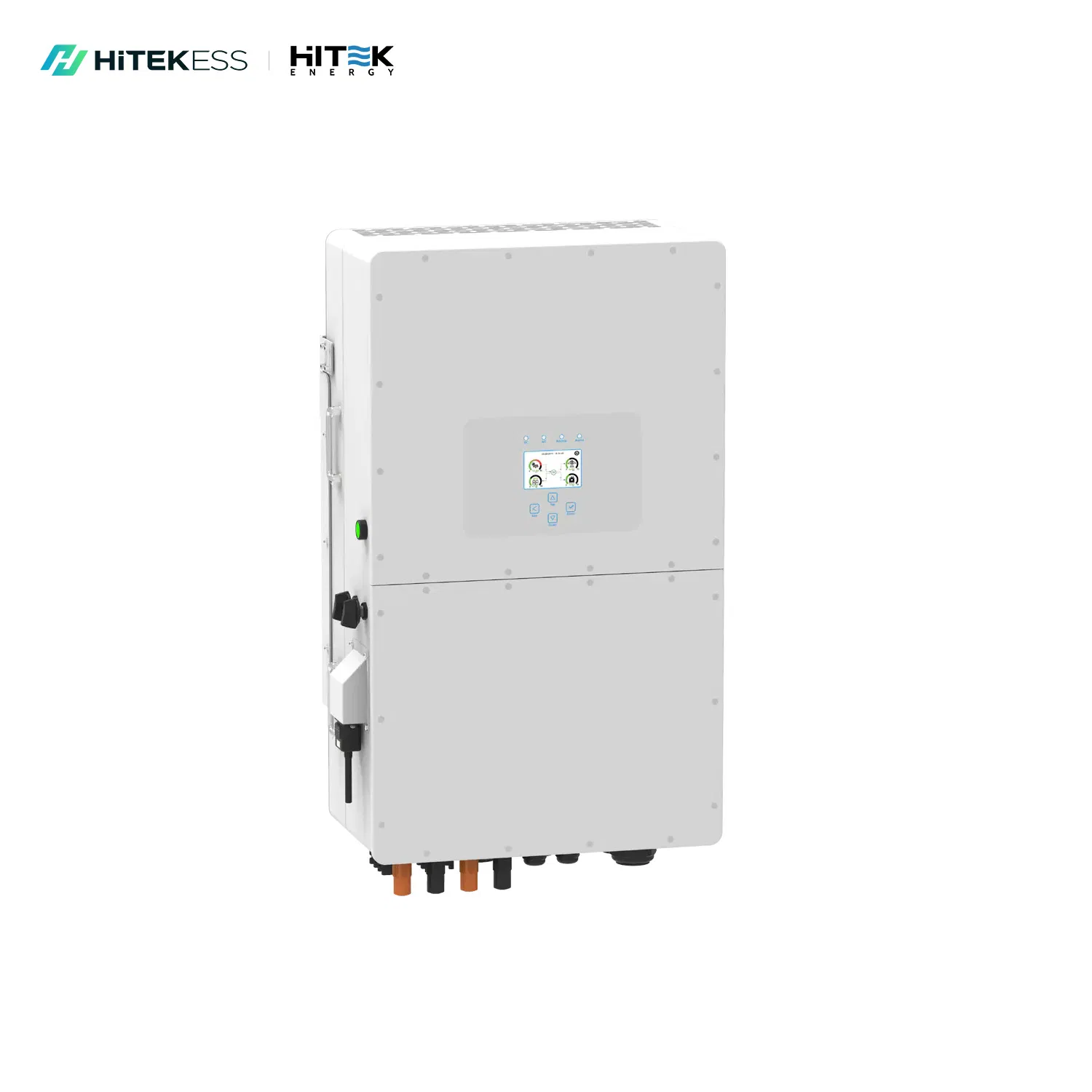

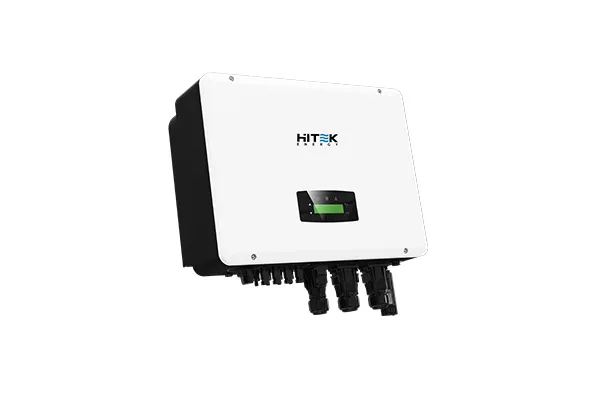

All-in-one Hybrid Solar Inverter

Increases energy independence for homeowners and commercial users. Smart monitoring, built-in anti-feed-in function, and rapid shutdown ready.

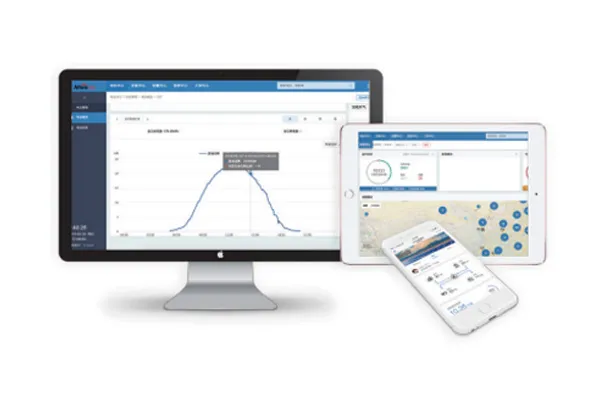

Online Monitoring System

One-click installation and registration. Supports full lifecycle data storage to ensure data security and reliability with real-time tracking.

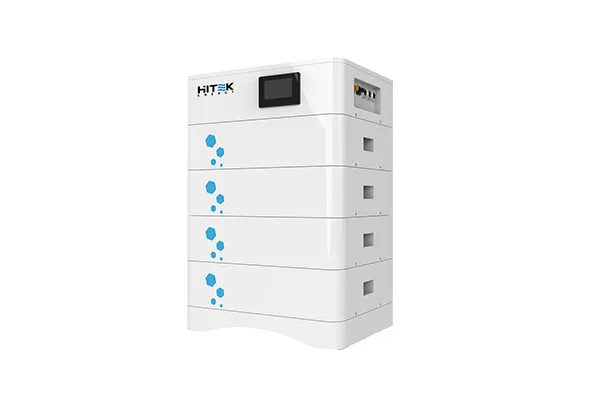

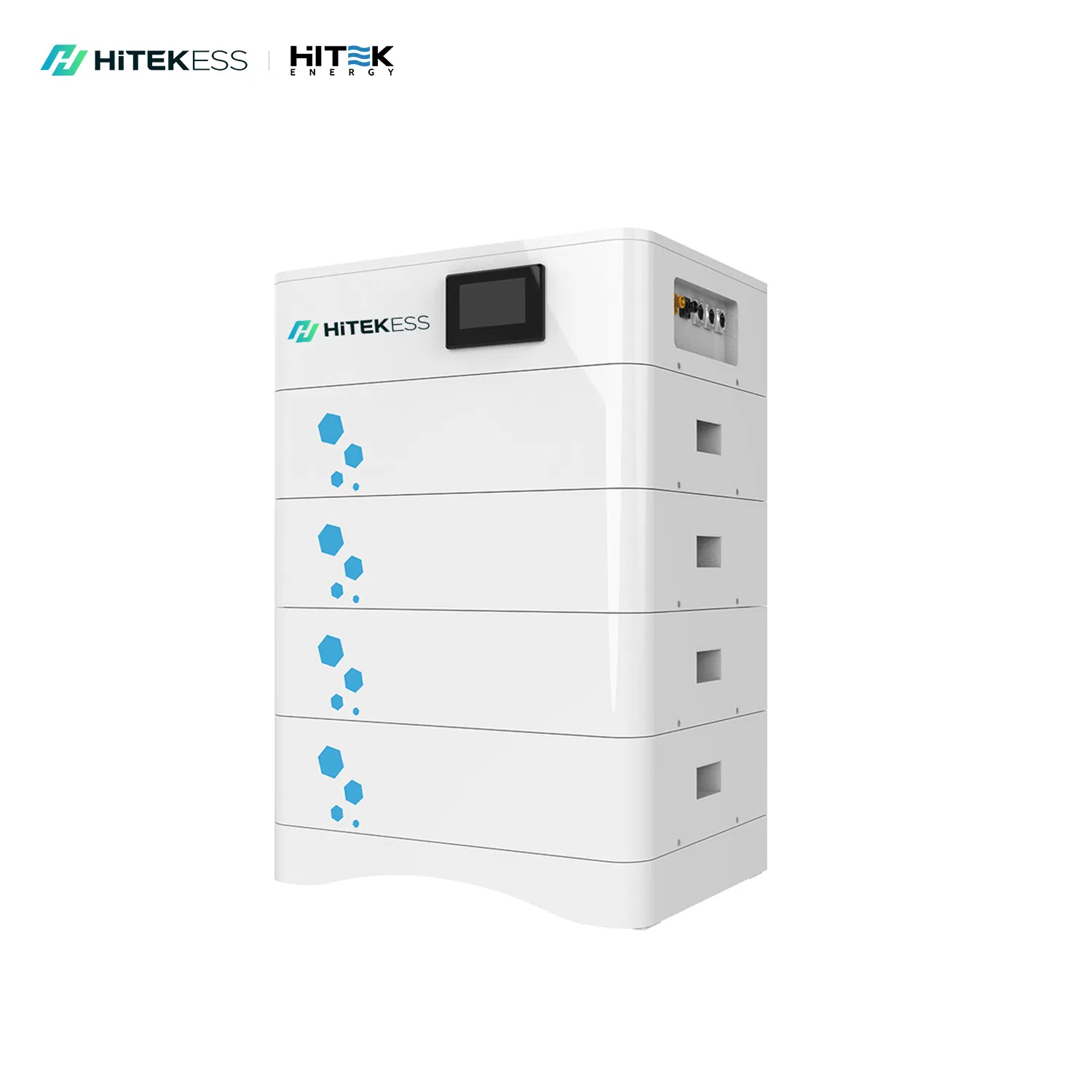

Solar Battery Bank

Stackable Lithium Battery with deep cycle long lifespan. High discharge performance, maintenance-free, and over 6000 cycles at 90% DOD.

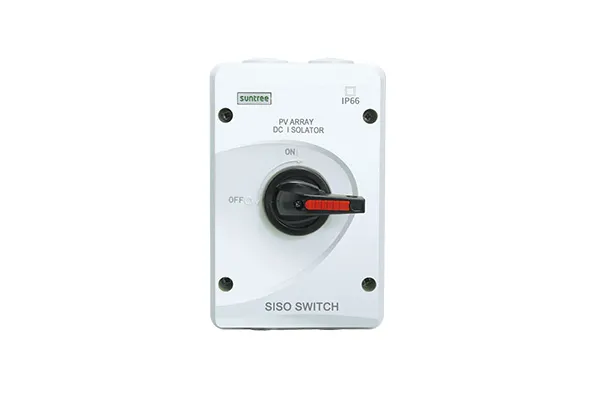

DC & AC Disconnect Switch

Rated Voltage: 1000VDC. Connection Type: M20, M25, MC4. Rated Current: 16A, 20A for safe system isolation.

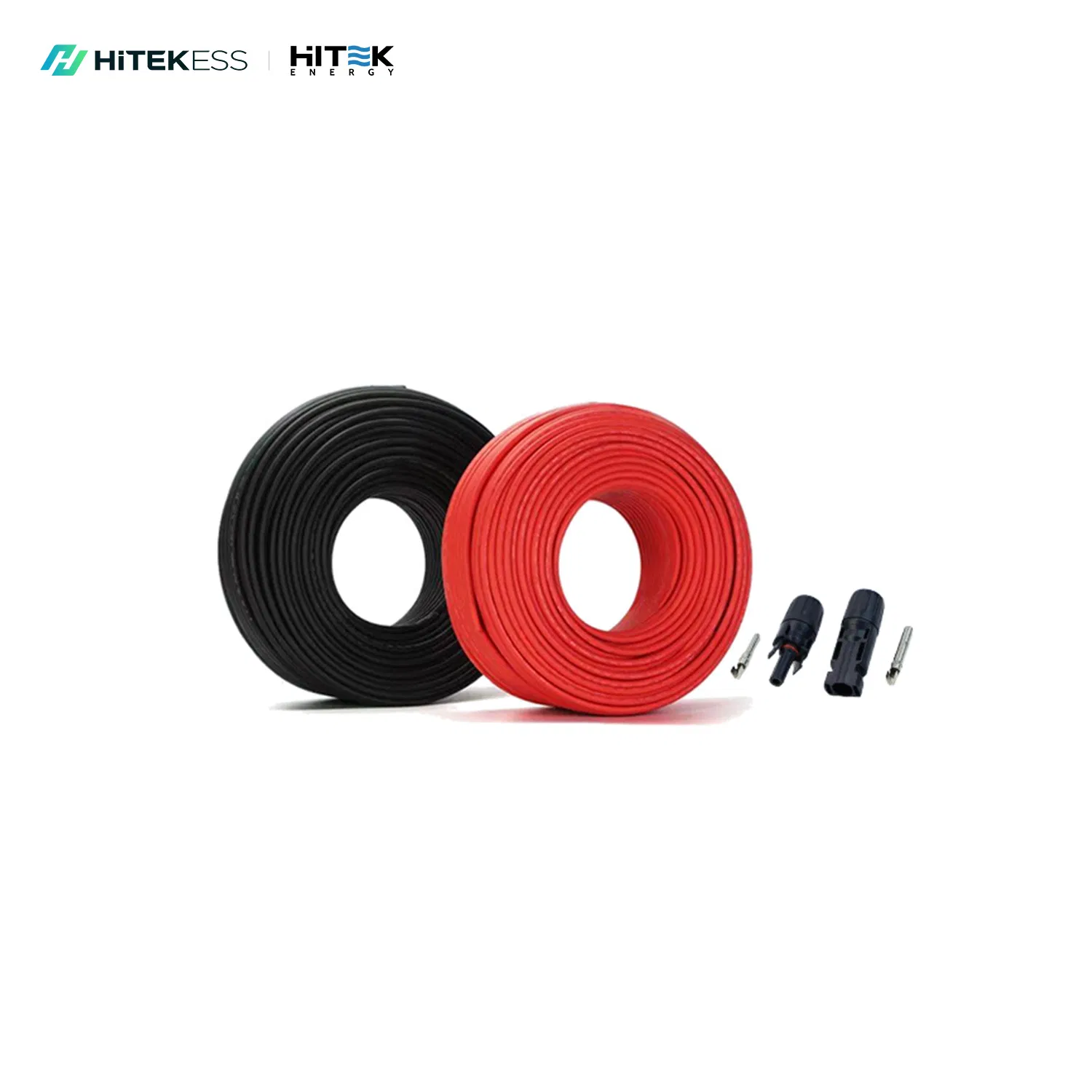

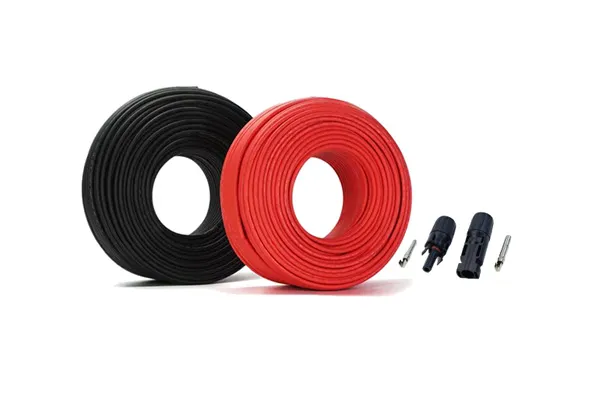

DC Cable & MC4 Connector

4mm2 or 6mm2 cross section. Rated for 1000VDC (TUV). Lifetime up to 25 years with high-quality insulation.

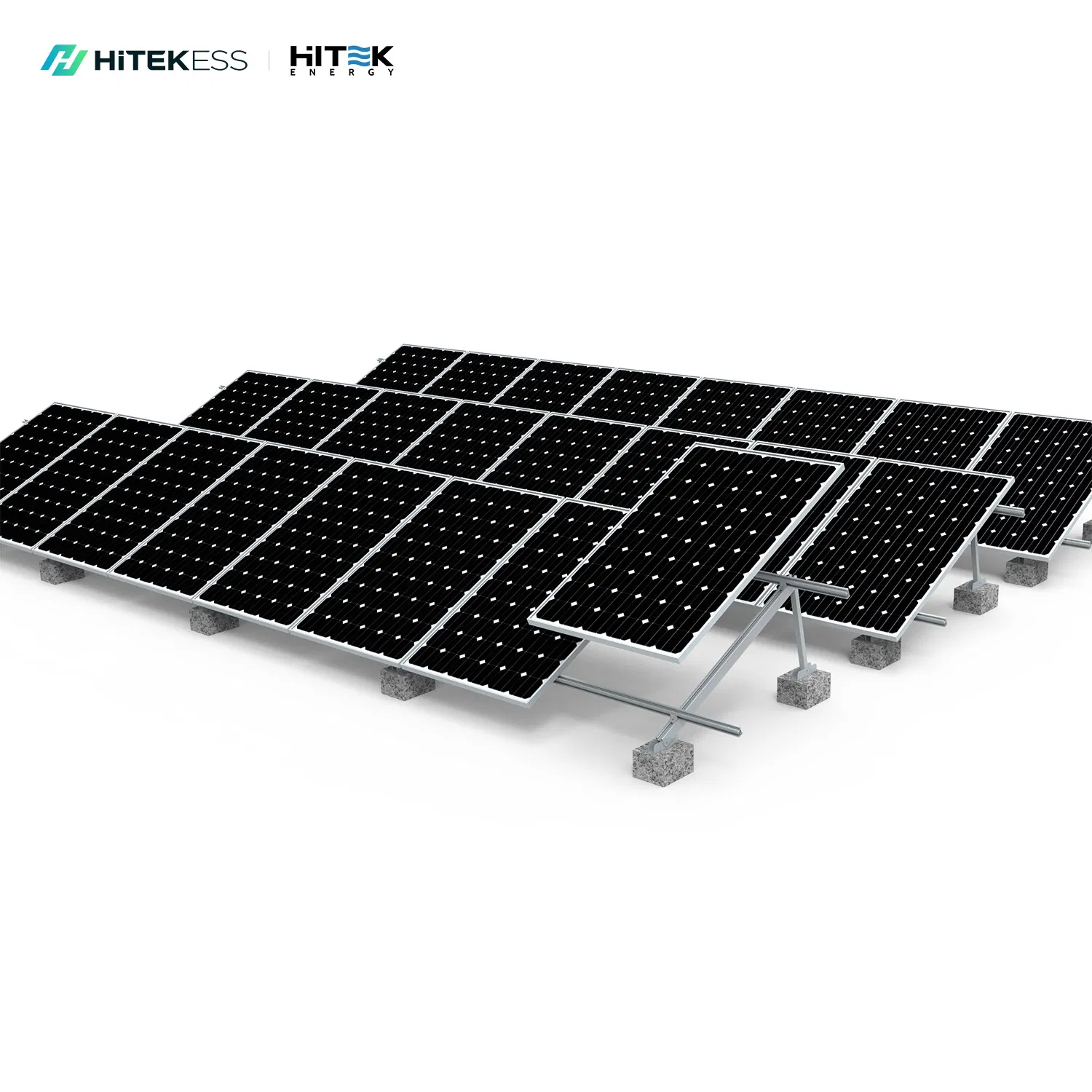

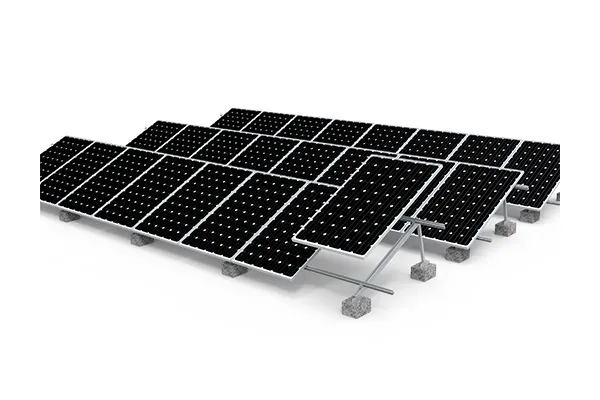

PV Mounting System

AI6005 rails and SUS304 bolts. Mid and end clamps for 30-40mm panels. Specialized kits for asphalt shingle or ground mounting.

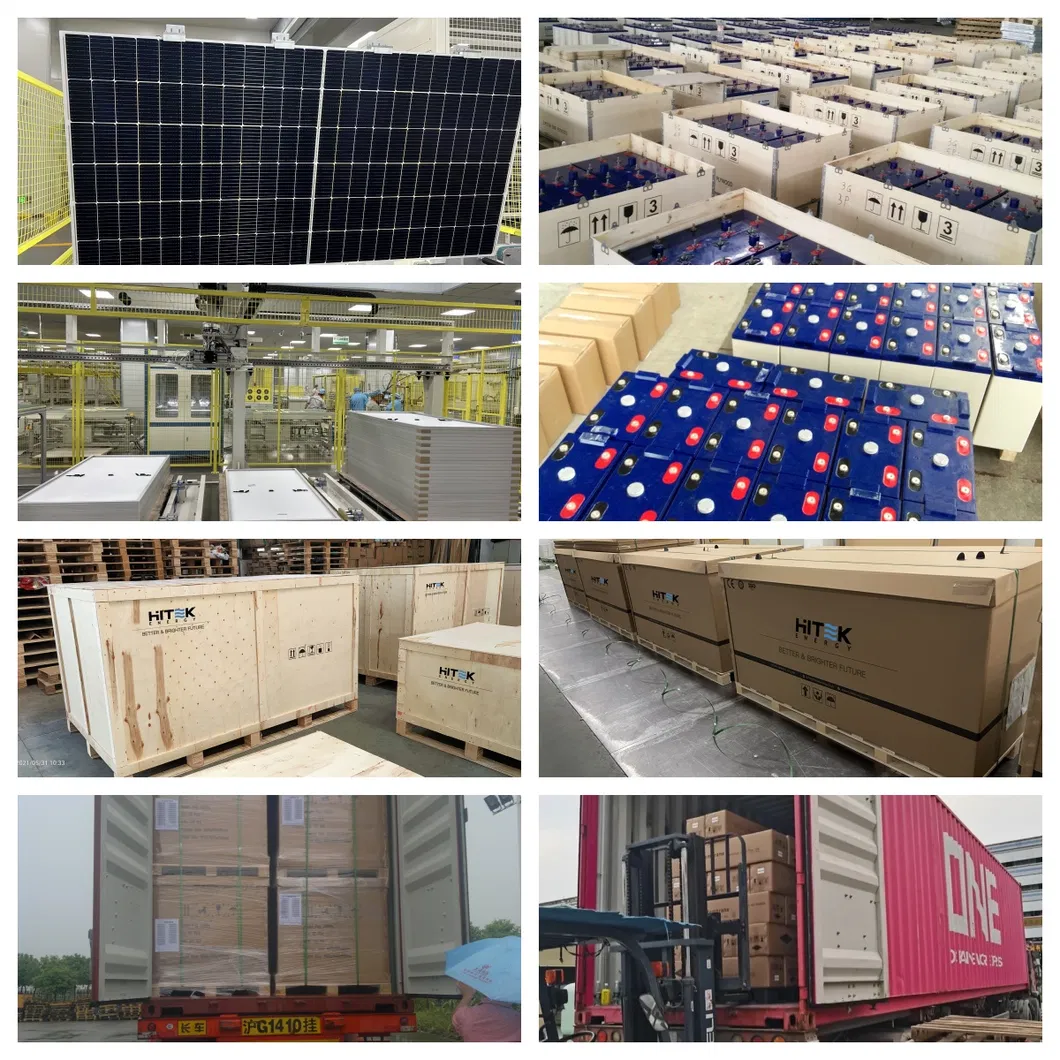

Packaging & Shipping

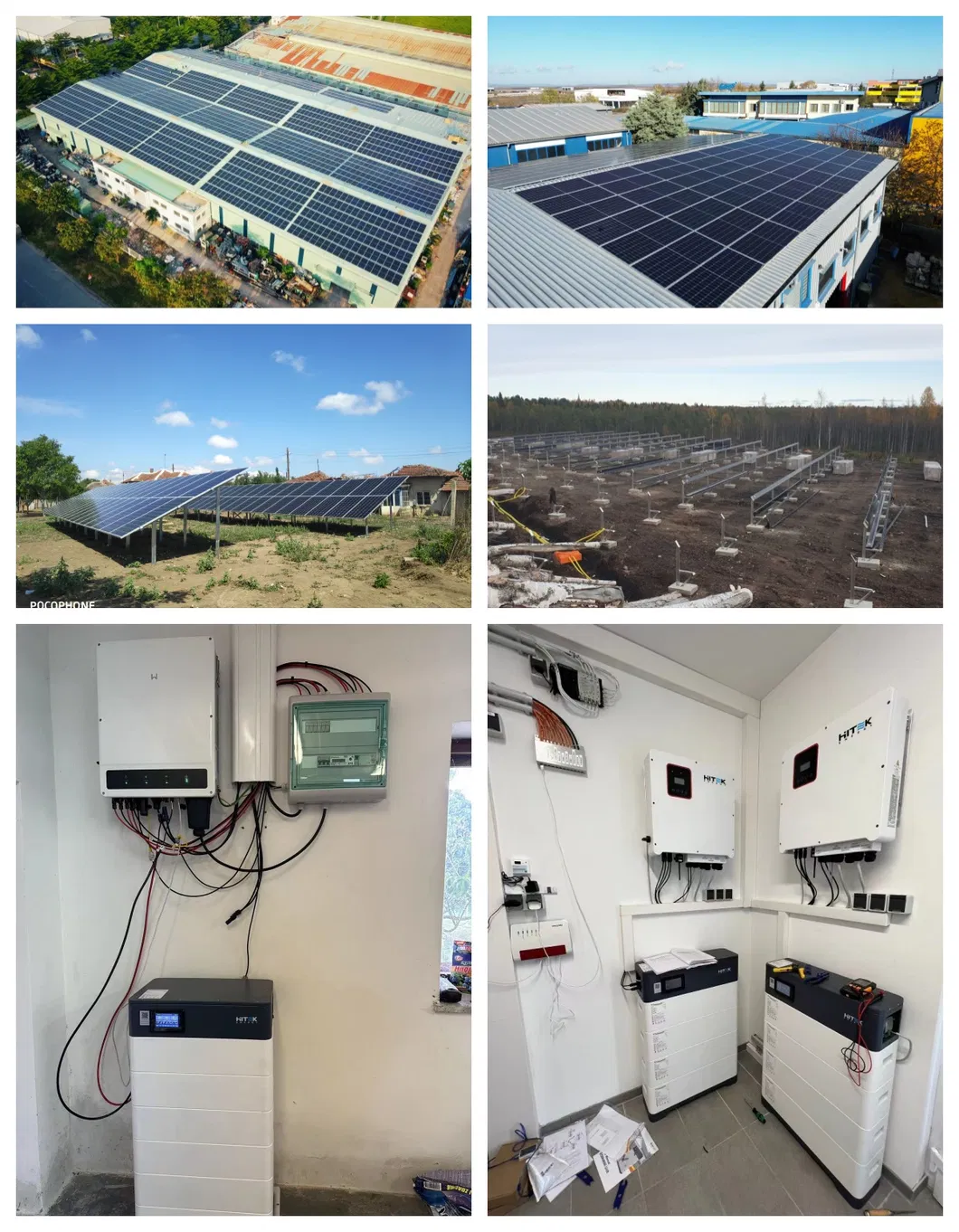

Project Cases

About Our Solutions

Founded in 2018, as a superior photovoltaic manufacturer, we are dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories.

Helping you save money on your electric bill is our priority. We use only reliable approved equipment to ensure long-term stability and performance.

Our Advantages

Frequently Asked Questions

1. What are the benefits of a hybrid solar system?

A hybrid system combines solar panels and batteries, allowing you to store excess energy for use at night or during power outages, maximizing your energy independence.

2. How long do the batteries typically last?

Our LiFePO4 batteries are designed for over 6,000 cycles at 90% depth of discharge, which typically equates to a lifespan of 10-15 years depending on usage.

3. Can the system be monitored remotely?

Yes, the system includes a WiFi/LAN/GPRS monitoring module that allows you to track energy production and battery status through a mobile app or web browser.

4. Is the mounting system suitable for my roof type?

We provide customized mounting kits designed for various roof types (tile, tin, asphalt) and ground-mounted installations to ensure structural integrity.

5. What maintenance is required for the system?

Solar systems are generally low maintenance. We recommend periodic cleaning of the panels and checking connections to ensure optimal performance.

6. Does the system support automatic switching during outages?

Yes, the hybrid inverter features an automatic transfer function that provides seamless backup power to your home or business when the grid goes down.
