Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Specifications

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max.Charge/Discharge Power
0.5c
Configuration of System
1p416sx12
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Voltage Range
1164.8~1497.6V
Origin
China
HS Code
8501310000
Production Capacity
1000set/Month

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Package Gross Weight
2000.000kg
Transport Package
Carton and Pallet

Product Description

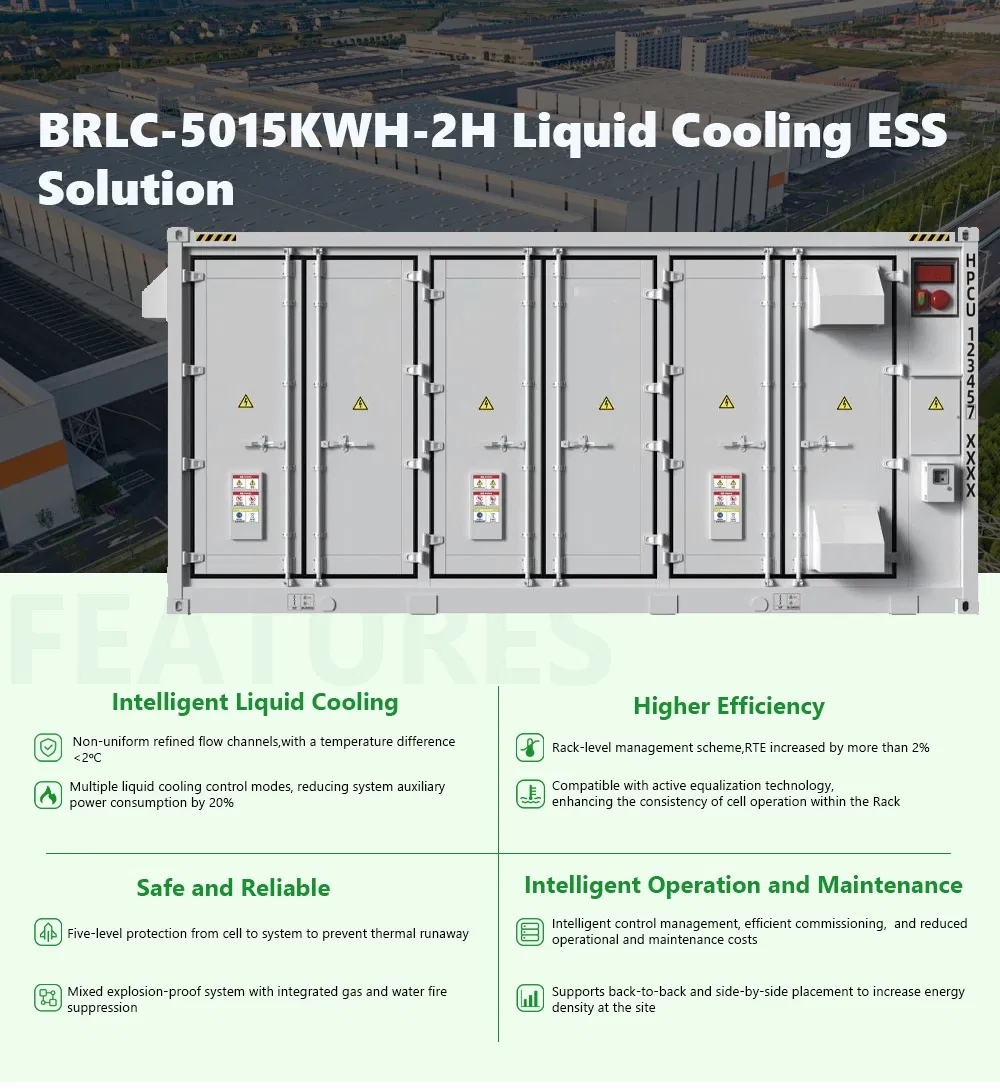

Energy Storage System

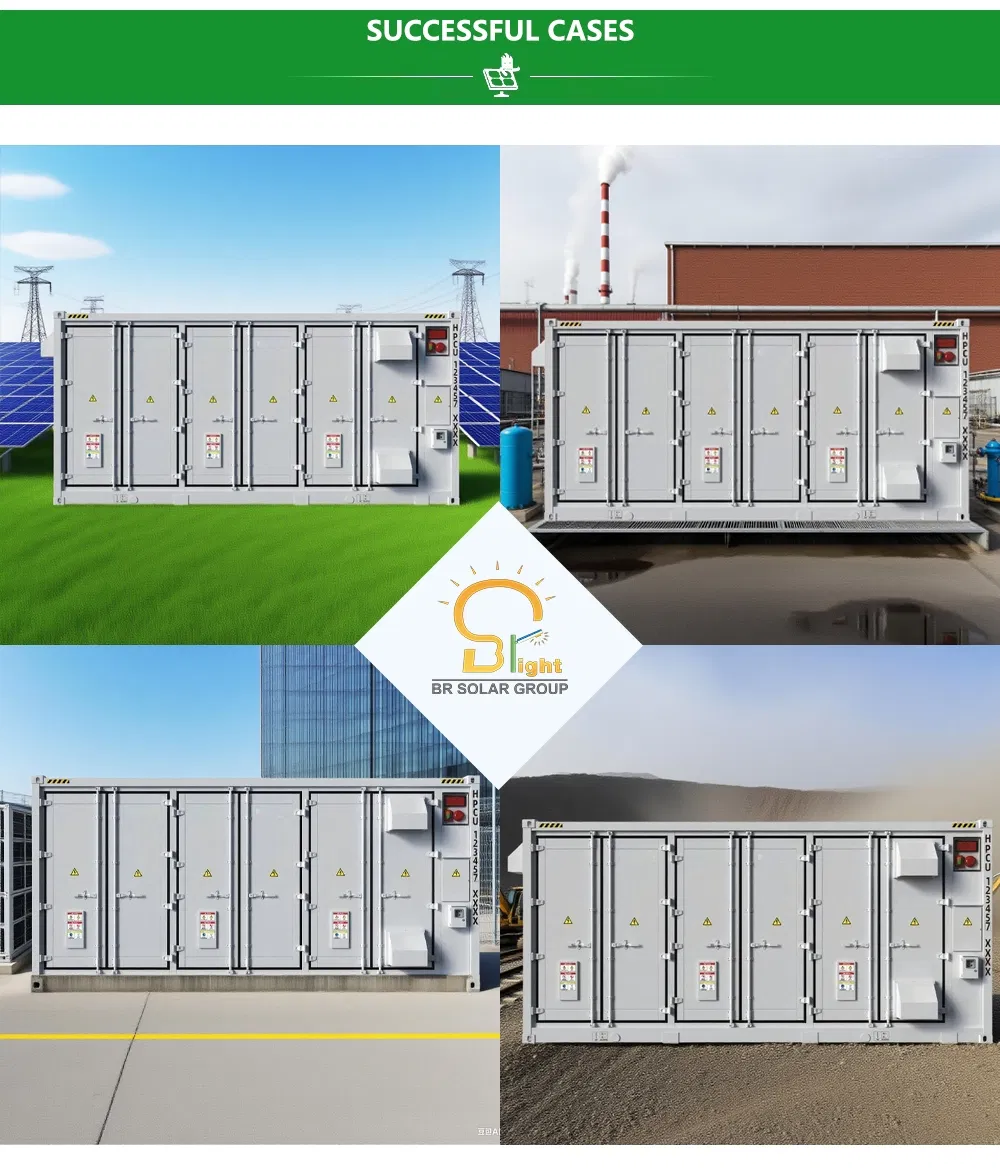

Energy Storage Details

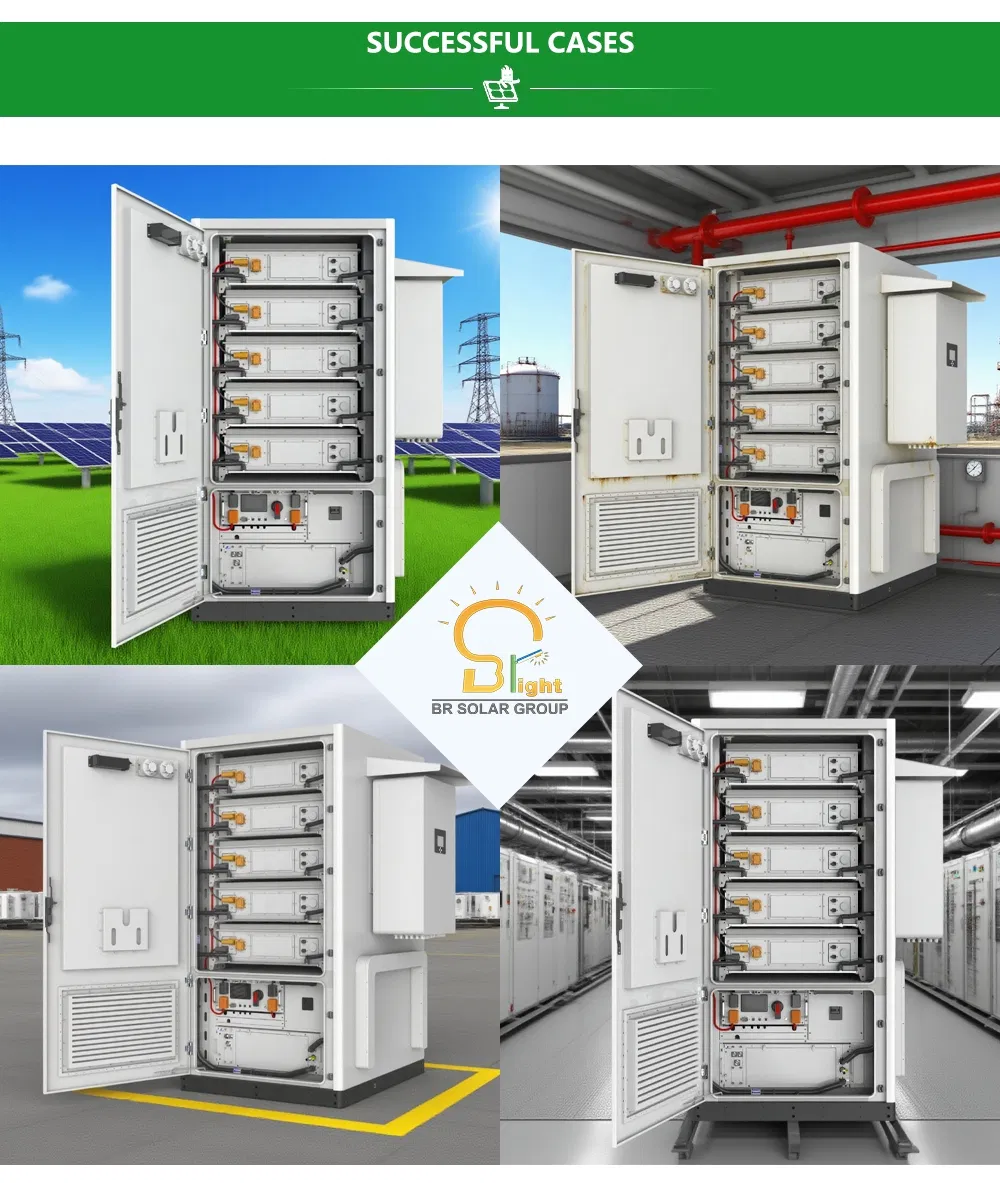

Technical Layout
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Corrosion-proof gradeC4/C5(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interfaceEthernet/CAN/RS485

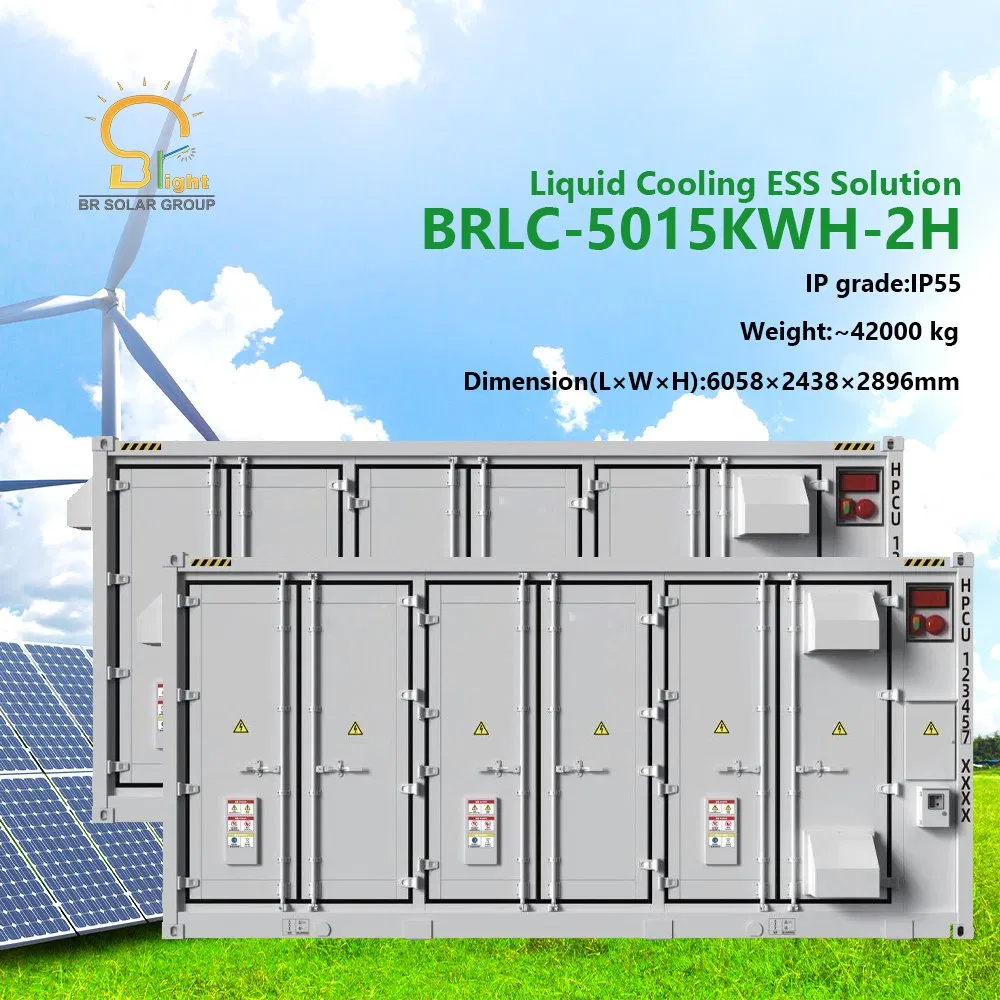

Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
Component View
Internal Structure
System Overview
Assembly Gallery

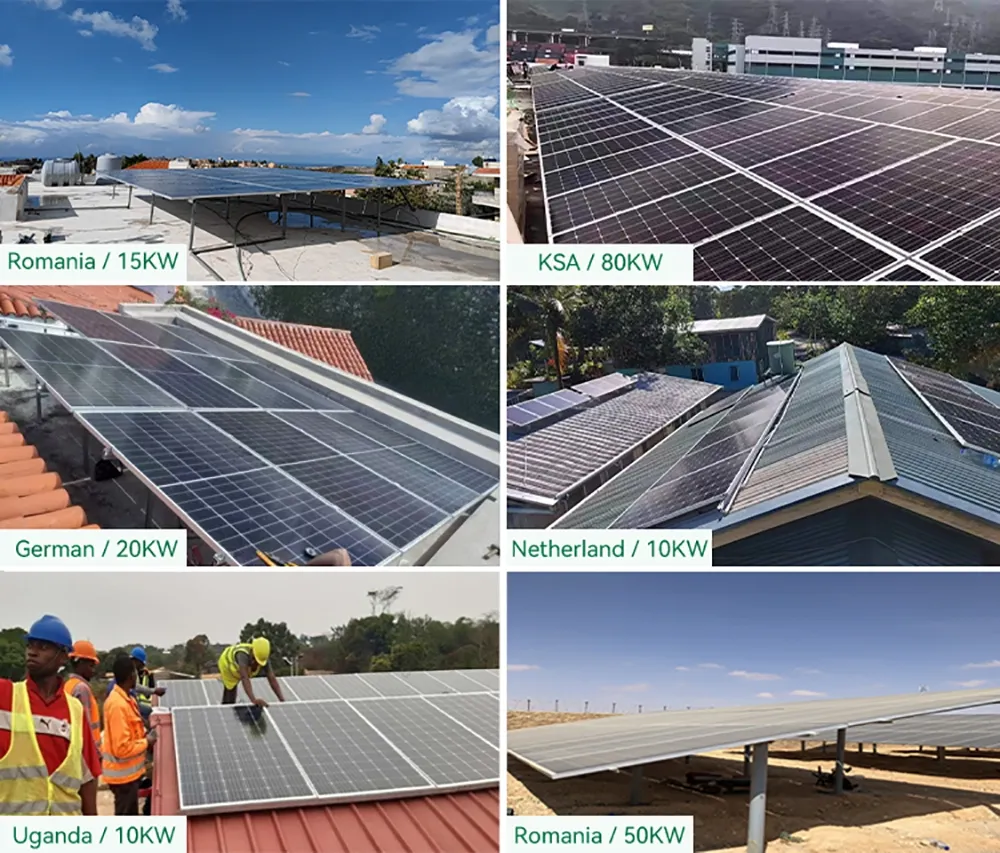

Installation Project

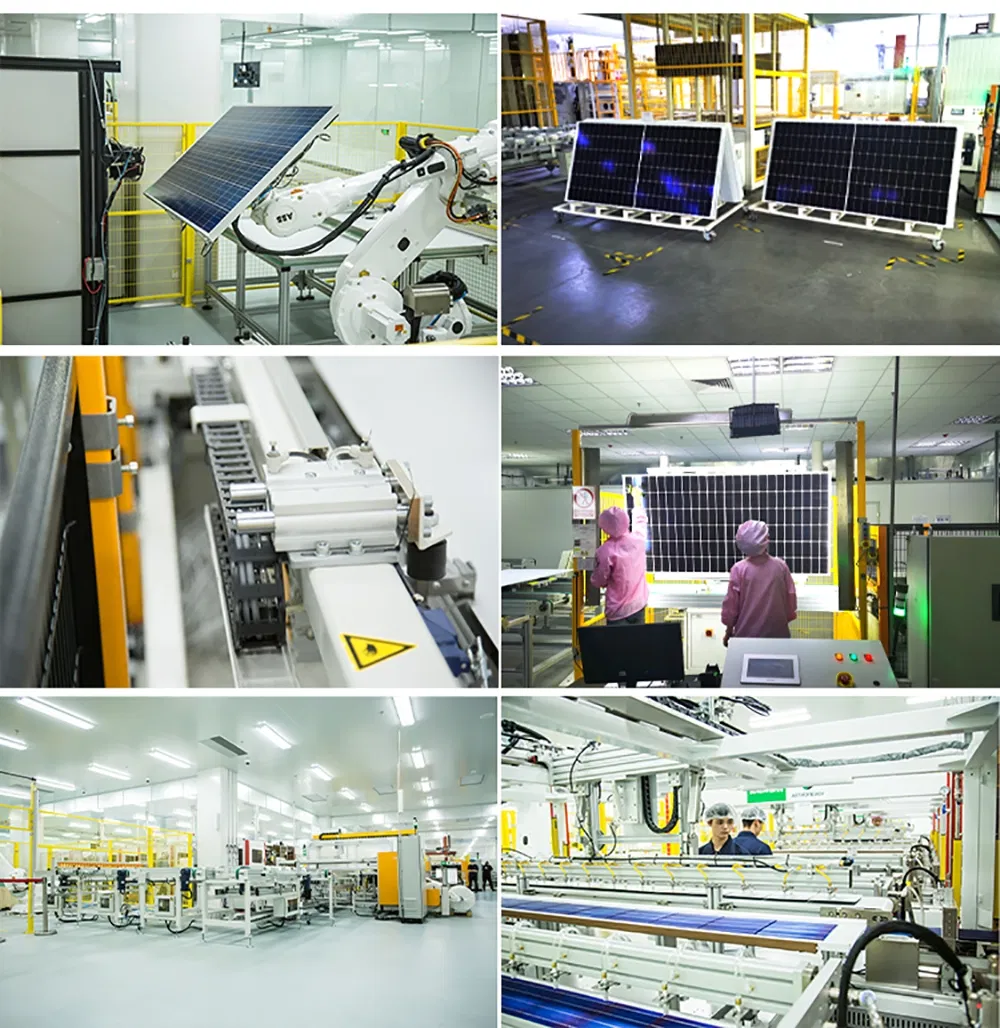

Production Line
Quality Control

Frequently Asked Questions

What is the battery technology used in this storage system?
The system utilizes high-safety Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for long cycle life and thermal stability.
How does the cooling system work?
The system features an advanced Liquid Cooling method which ensures uniform temperature distribution and efficient heat dissipation even under high load conditions.
Is the system protected against harsh environments?
Yes, it comes with an IP55 protection rating and optional C4/C5 corrosion-proof grading, making it suitable for various industrial and outdoor applications.
What fire safety features are integrated?
Safety is a priority; the system includes temperature and smoke sensors, combustible gas detectors, deflagration venting, and automatic fire extinguishing gas/water sprinkler systems.
Can this system be used at high altitudes?
The system is designed to operate reliably at altitudes up to 3000 meters above sea level.
What are the primary applications for this 5.01 MWh system?
It is ideal for large-scale energy storage needs, including industrial plants, commercial buildings, schools, factories, and grid-tied home applications.
