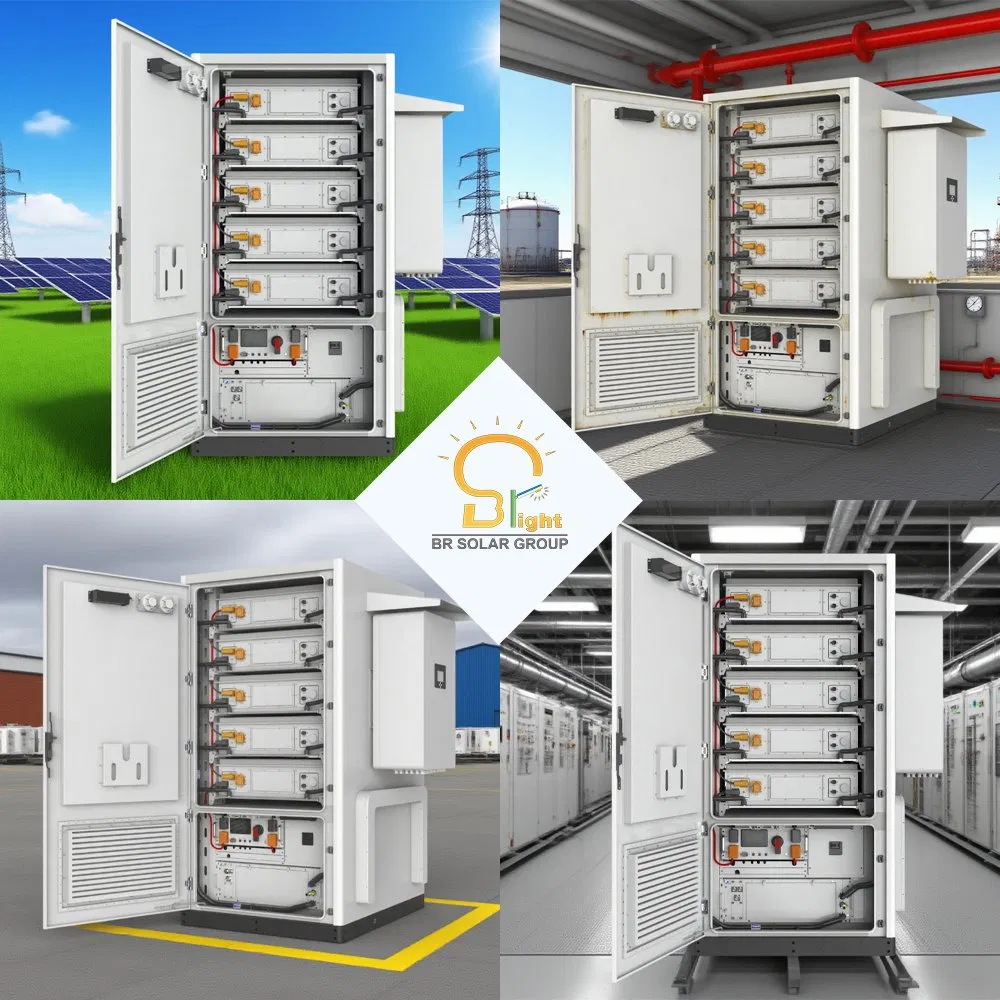

Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
1 / 5
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE
Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE

Industrial 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage with CE

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

🚀 Basic Information
ConditionNew
CertificationISO, CE
Type of CellLFP (Lithium Iron Phosphate)
Protection ClassIP55
CoolingLiquid Cooling
Rated Capacity5.01 MWh
Rated Voltage1331.2V
OriginChina
Production Capacity1000 set/Month
🏢
Wide Application Range

Ideal for Home, Industrial, Commercial, School, and Factory energy management solutions.

📊 Technical Specifications

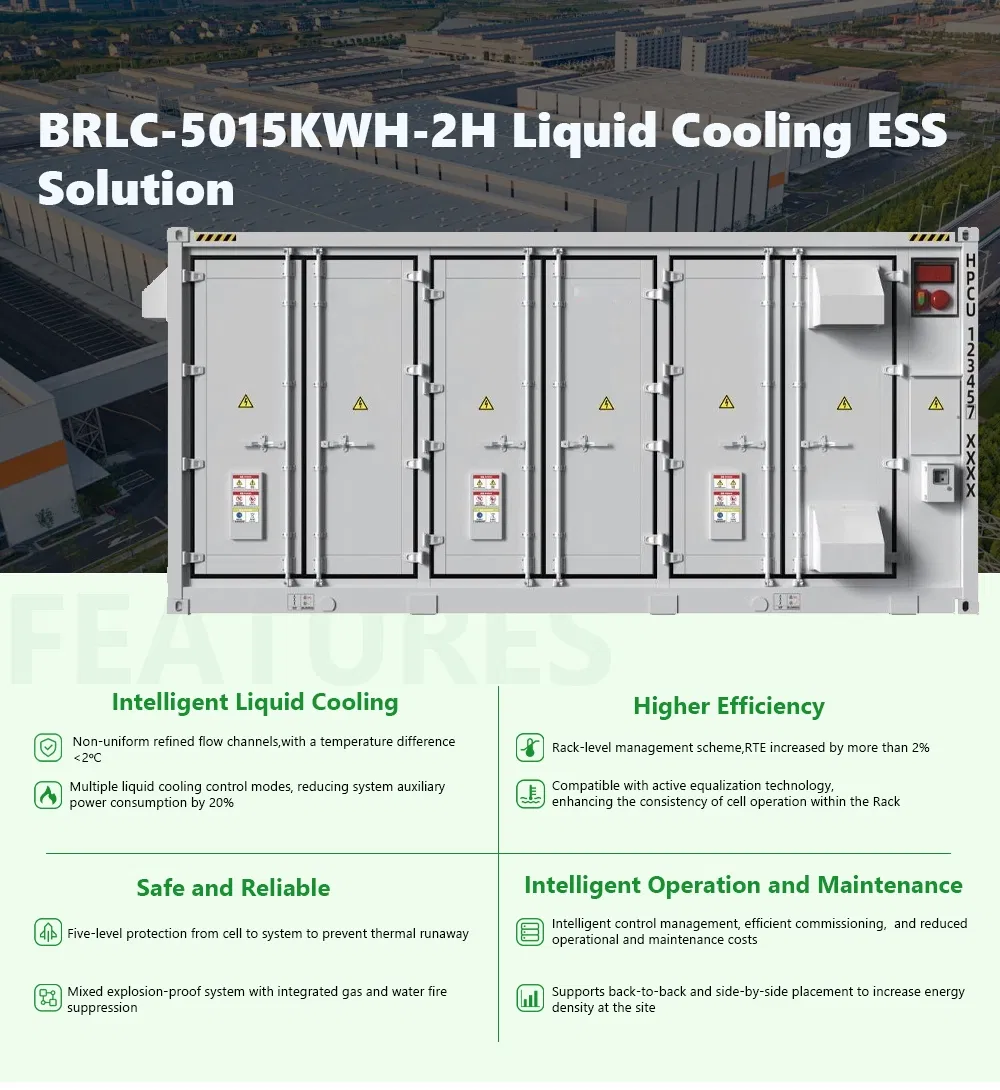

Industrial Energy Storage System
Items Parameters
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Voltage range1164.8~1497.6V
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
📦 Packaging & Delivery
Package Size110.00cm * 140.00cm * 238.00cm
Package Gross Weight2000.000kg
Transport PackageCarton and Pallet
📷 Product Gallery

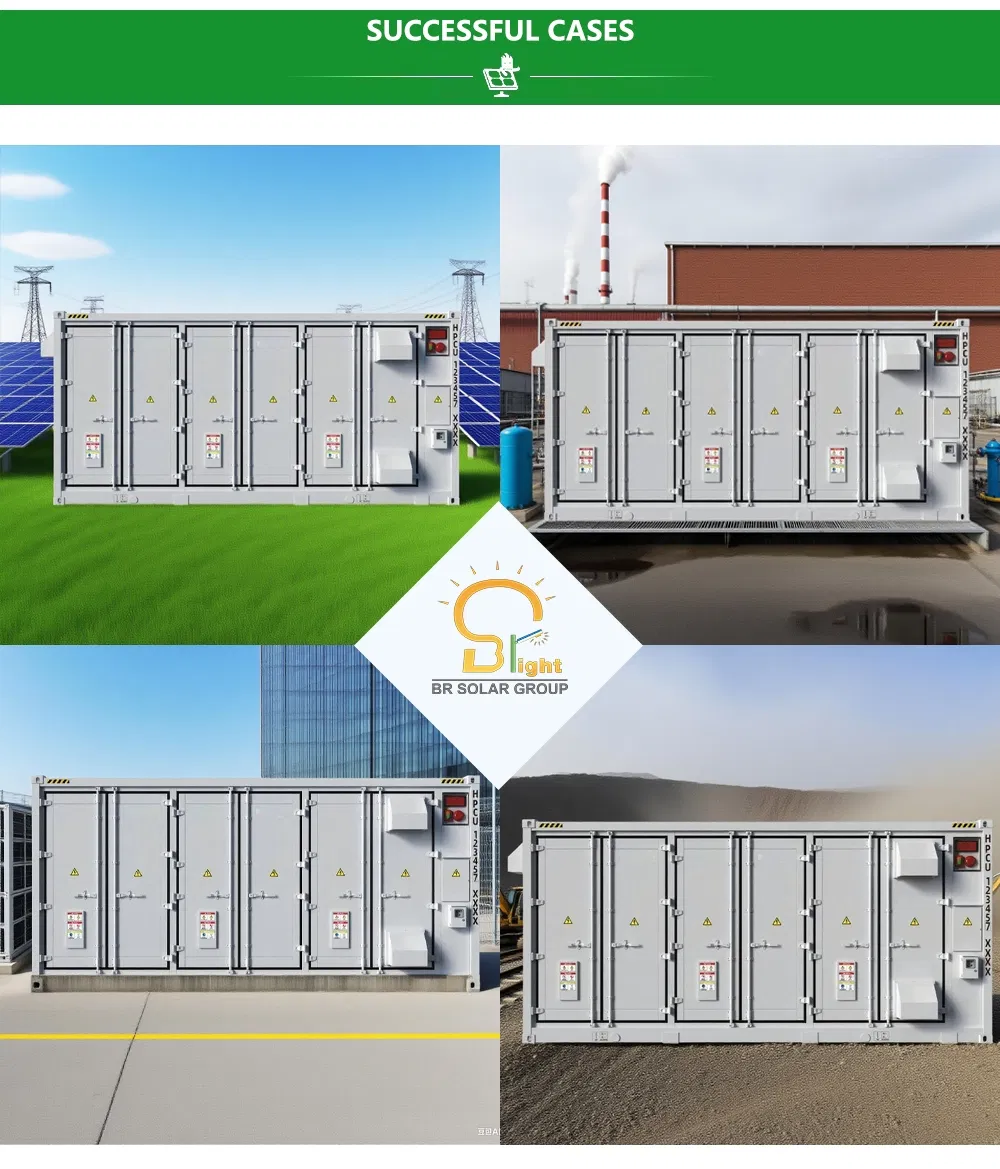

Energy Storage Detail 1

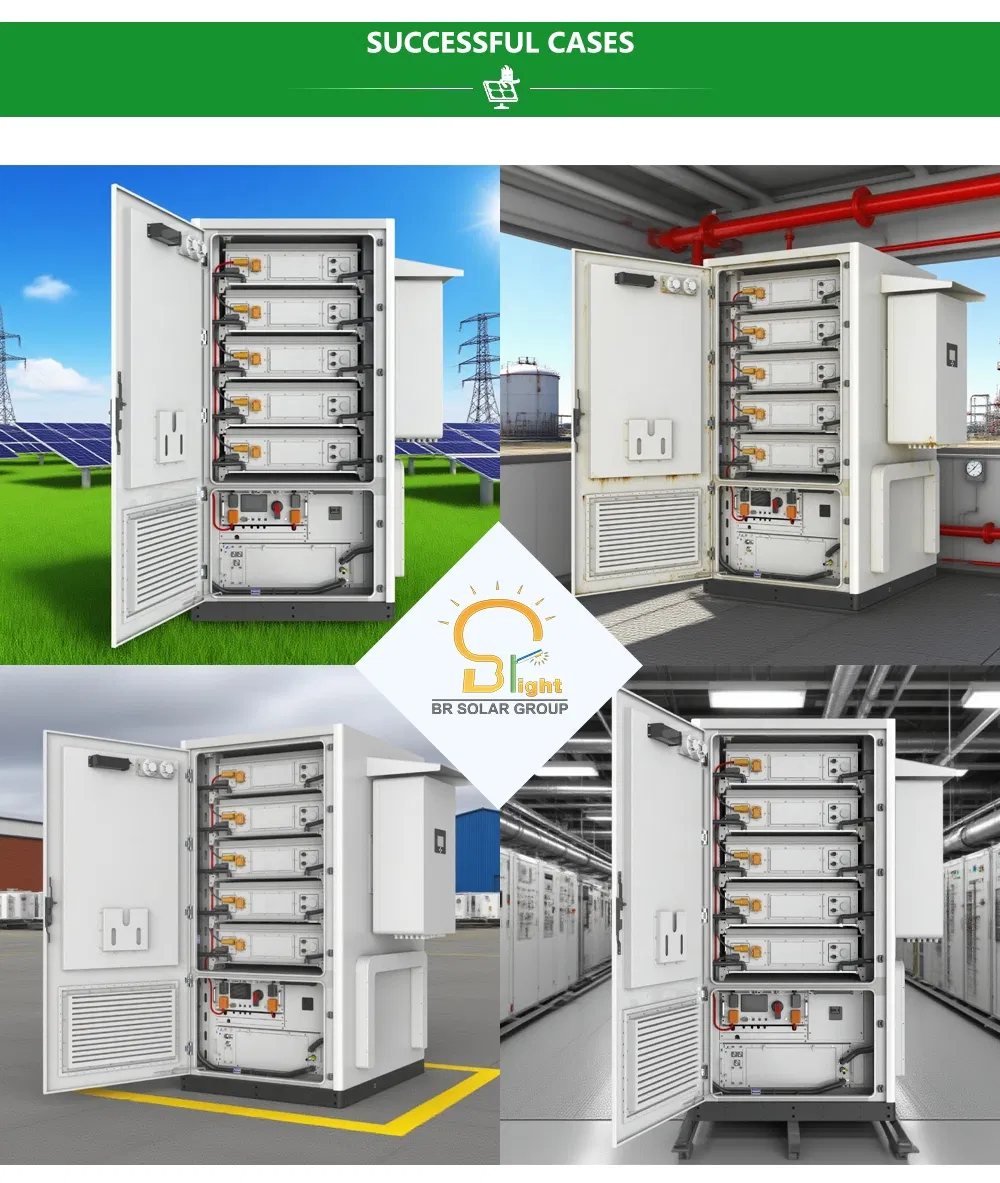

Energy Storage Detail 2
Energy Storage Detail 3

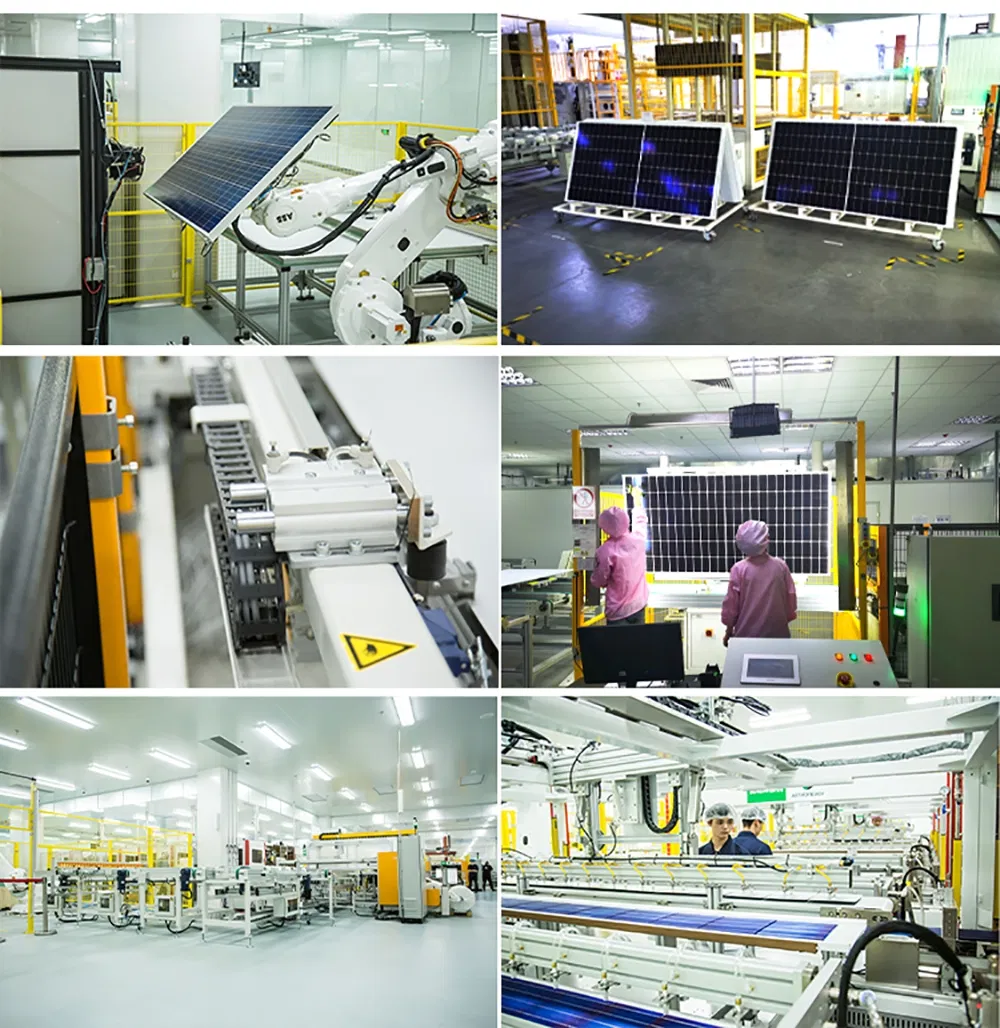

Energy Storage Detail 4
Energy Storage Detail 5

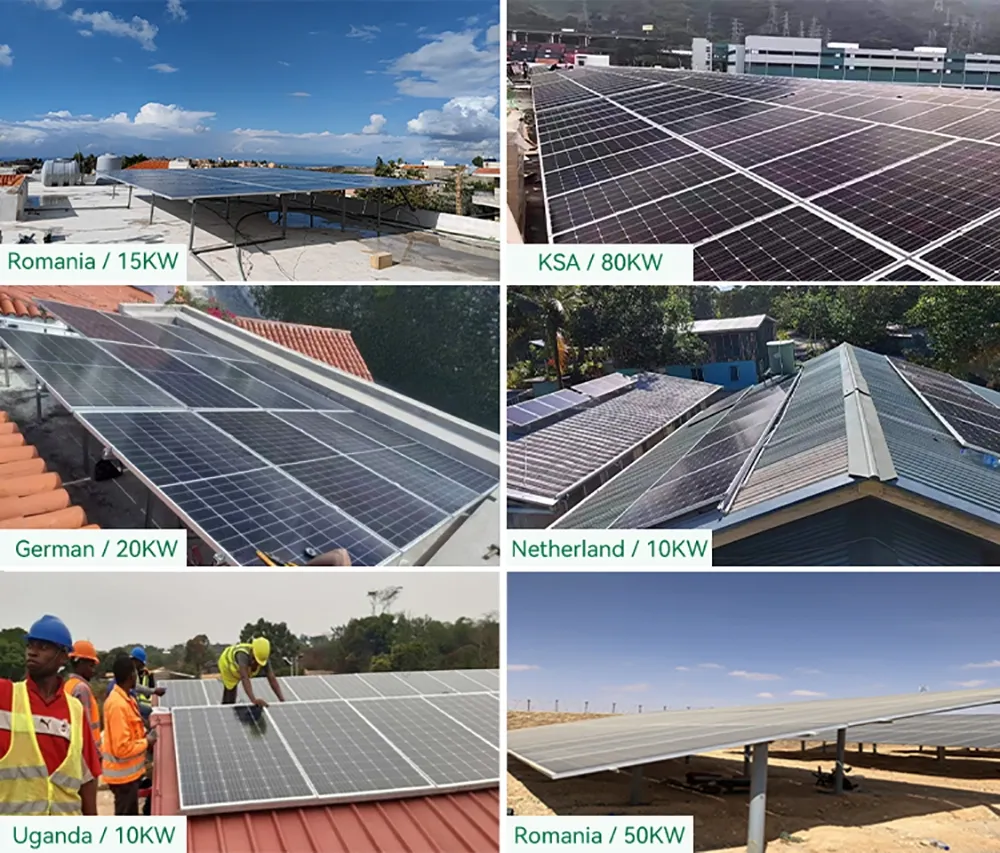

Energy Storage Detail 6
Energy Storage Detail 7

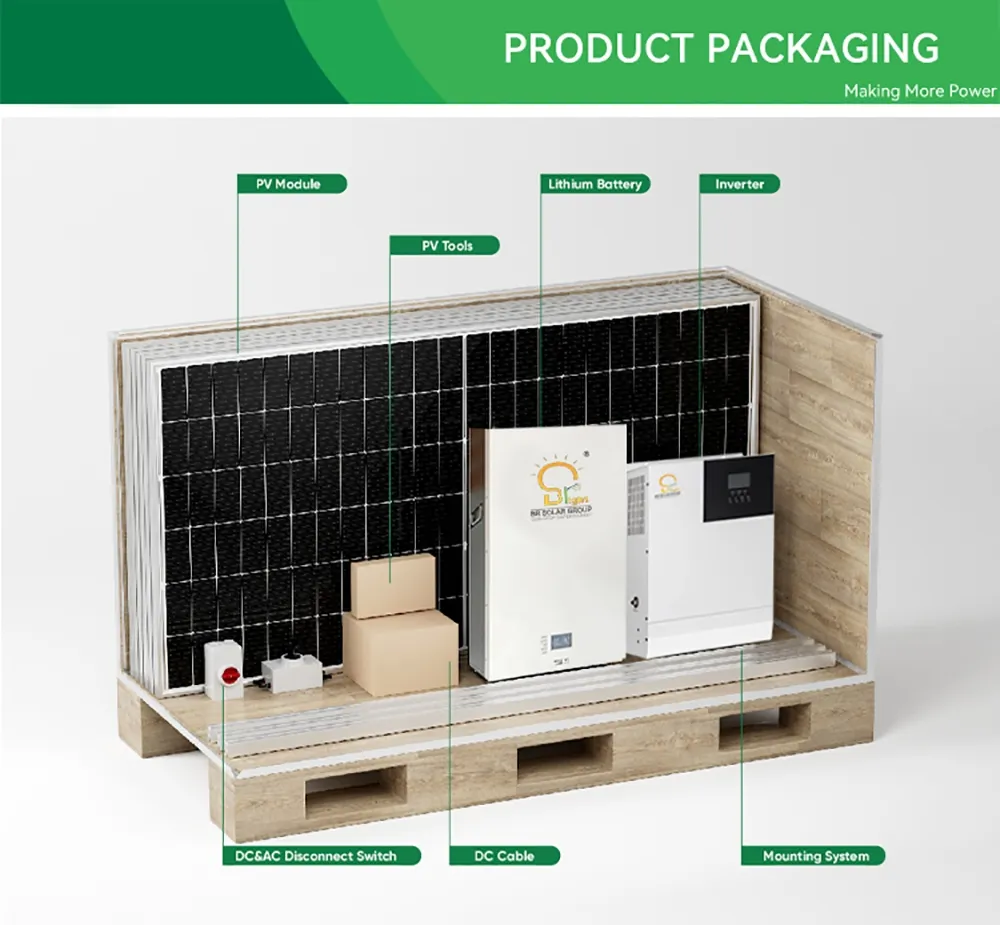

Energy Storage Detail 8
❓ Frequently Asked Questions
What type of battery technology is used in this system?
The system utilizes Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.
How is the battery system cooled?
It features an advanced Liquid Cooling method to ensure optimal operating temperatures and extend battery lifespan.
What is the protection rating for outdoor use?
The system is rated at IP55, providing strong protection against dust and water ingress, making it suitable for various environments.
Can this system operate in extreme weather conditions?
Yes, the operating temperature range is between -30ºC and 50ºC, allowing for reliable performance in most climates.
What safety features are included?
The system includes a comprehensive fire protection suite: temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, and fire extinguishing systems.
What are the supported communication interfaces?
It supports standard industrial interfaces including Ethernet, CAN, and RS485 for seamless integration.
