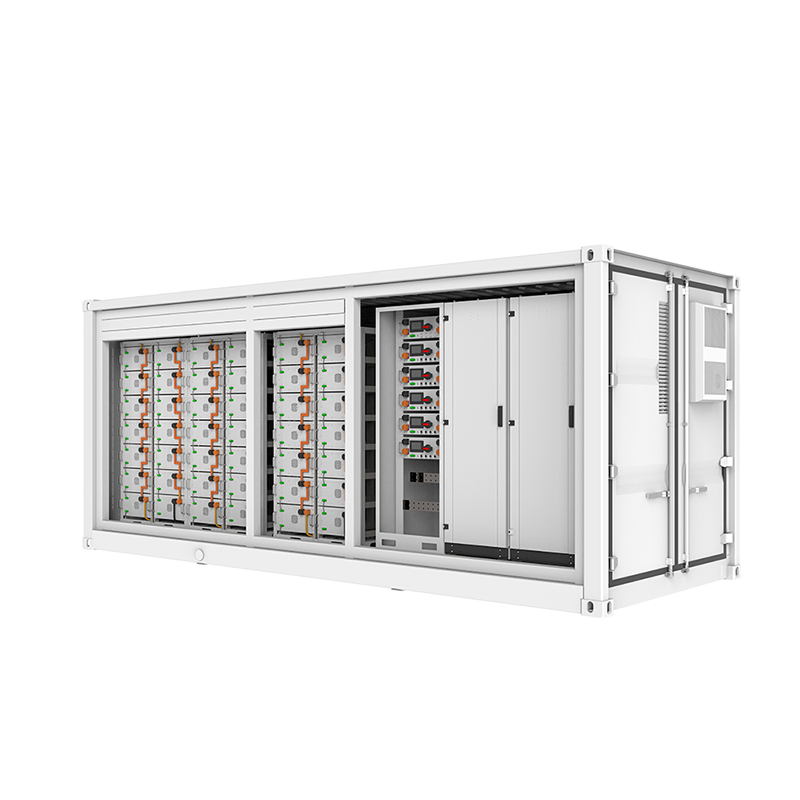

IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
1 / 5
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

IP55 3 Years, 5 Years 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

i

Basic Information

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Power
0.5c Charge/Discharge
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Origin
China
HS Code
8501310000
Production
1000set/Month
📦

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Transport Package
Carton and Pallet
✓

Product Description

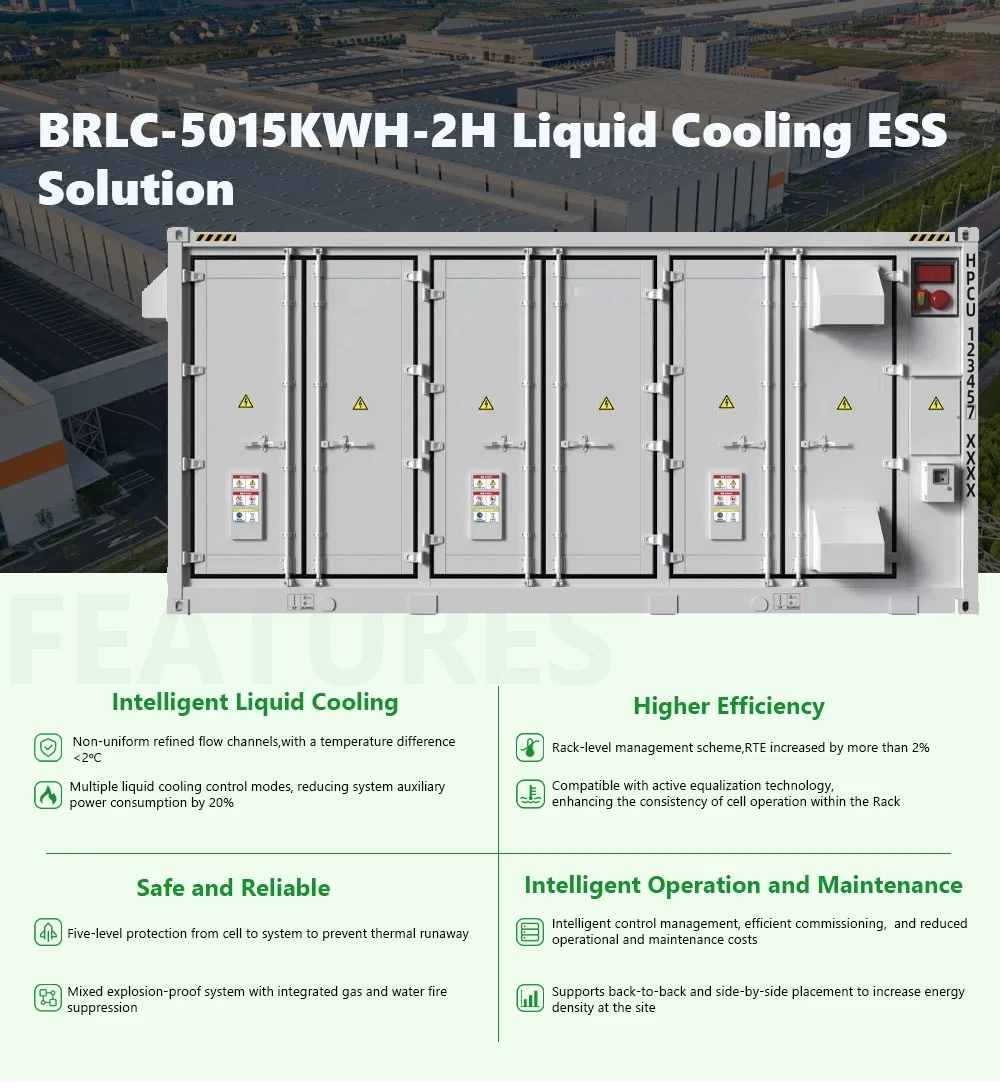

Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionSensor + Smoke/Gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

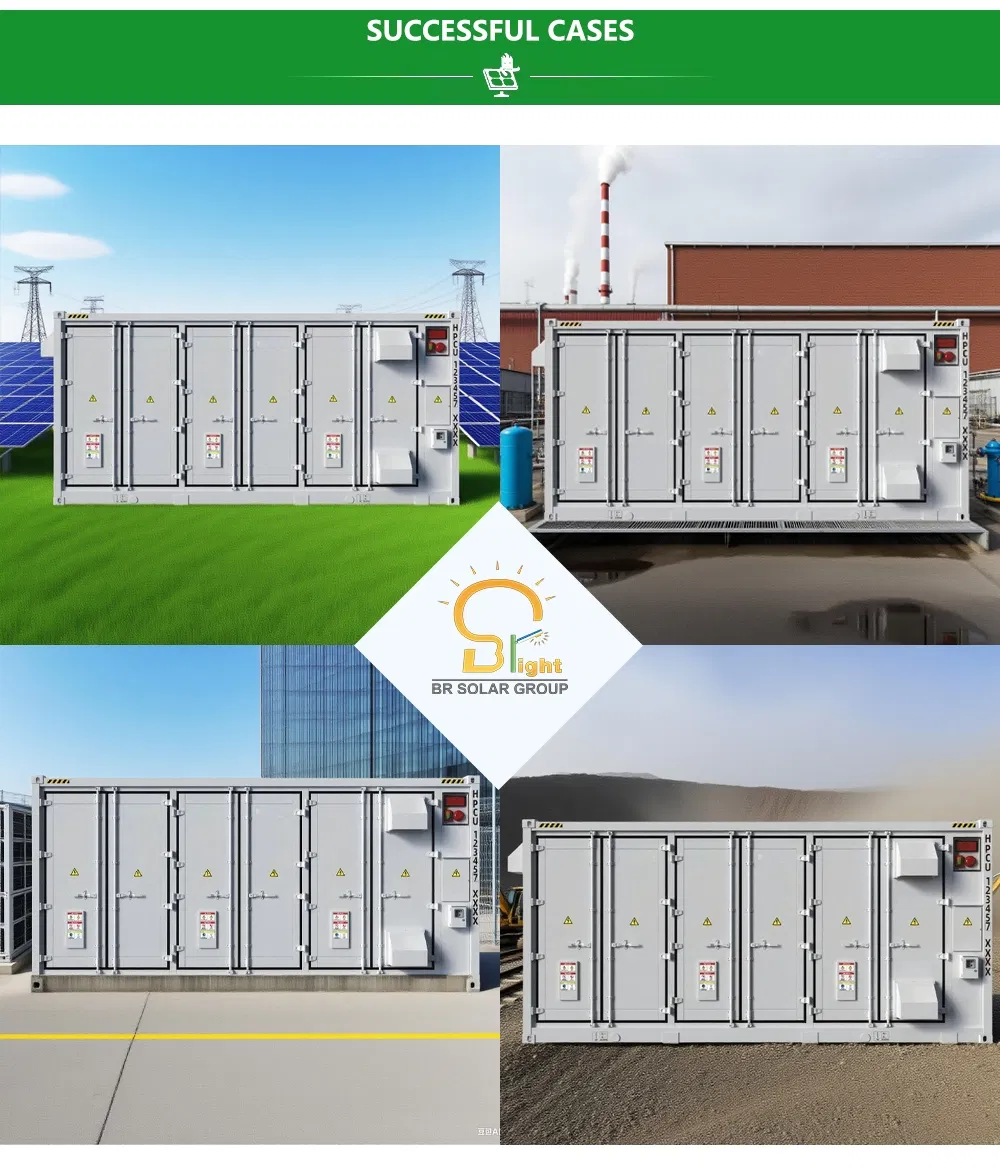

Detail 1

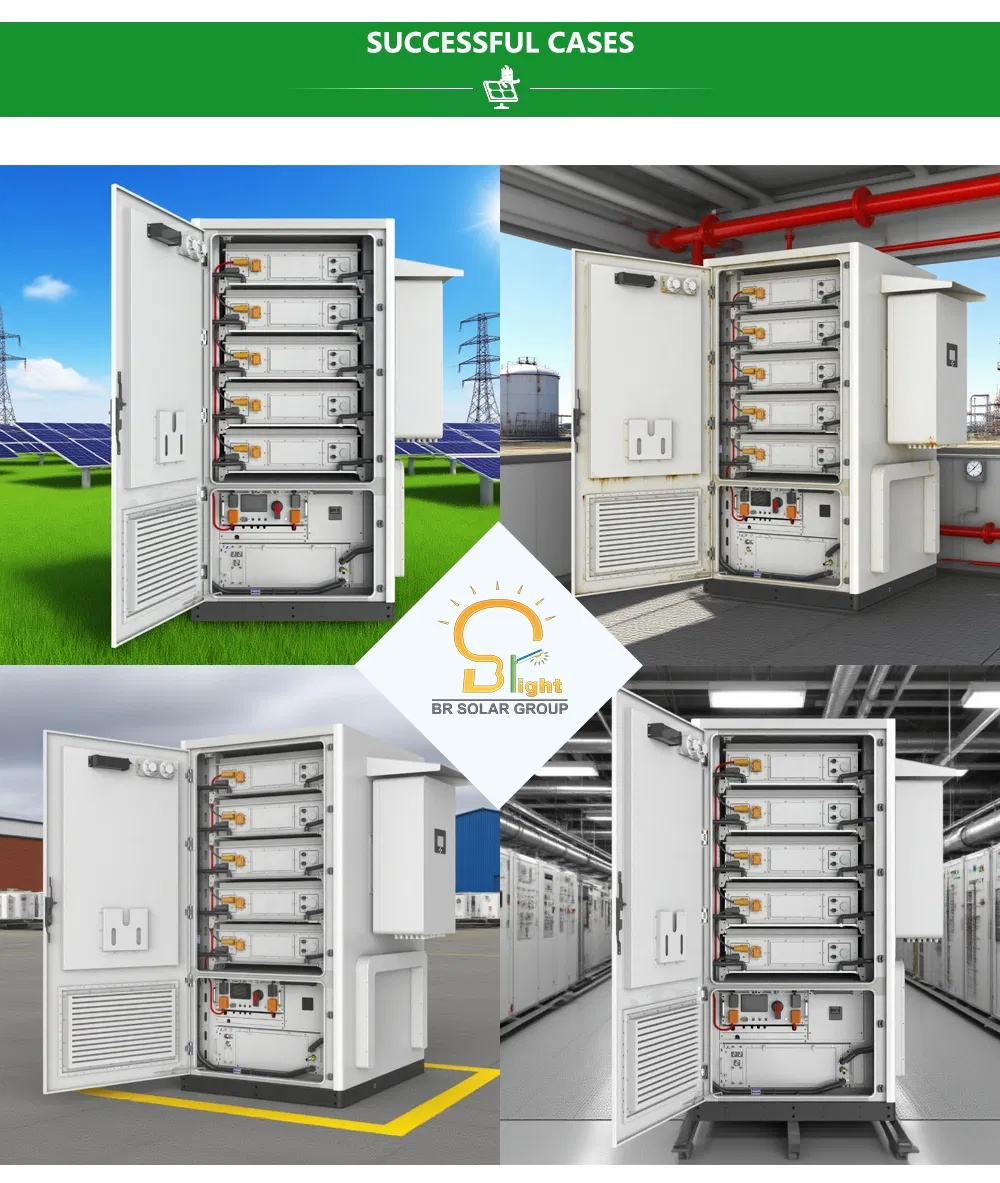

Detail 2
Detail 3
Detail 4

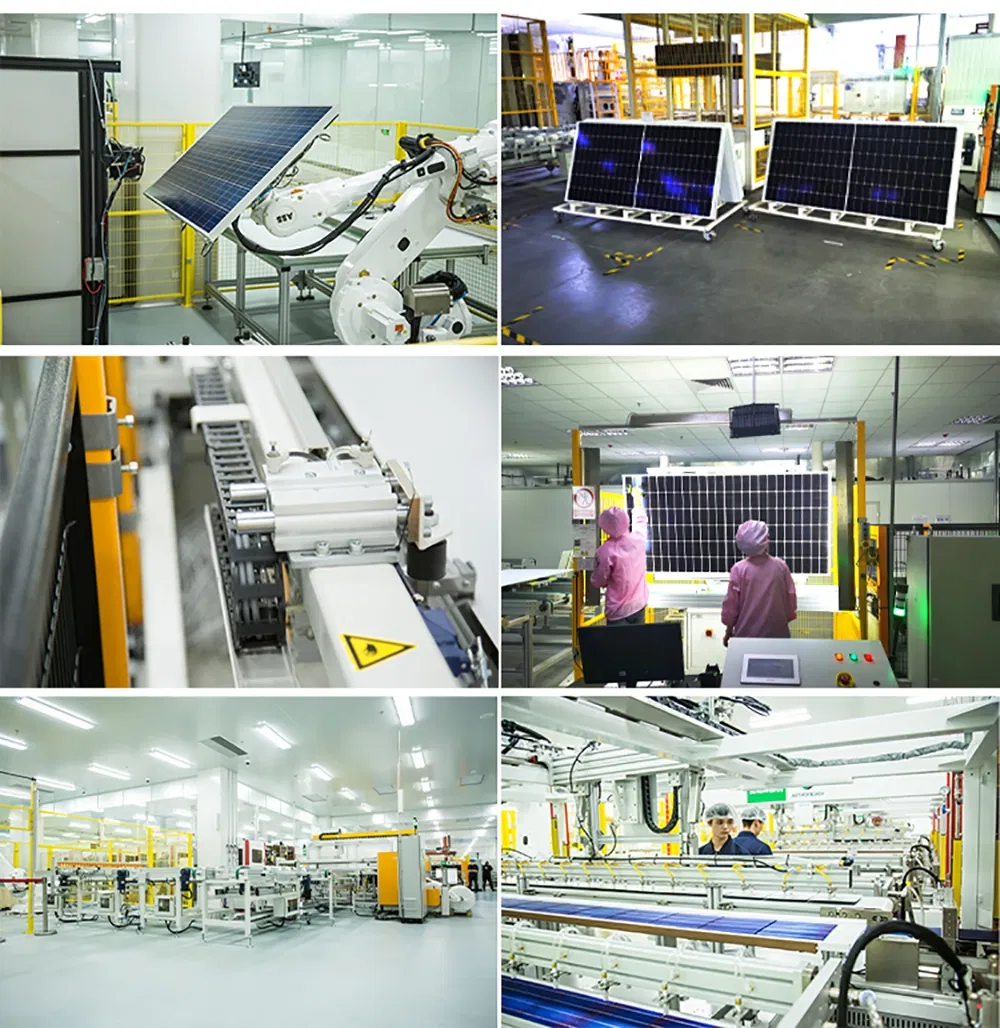

Detail 5
Detail 6

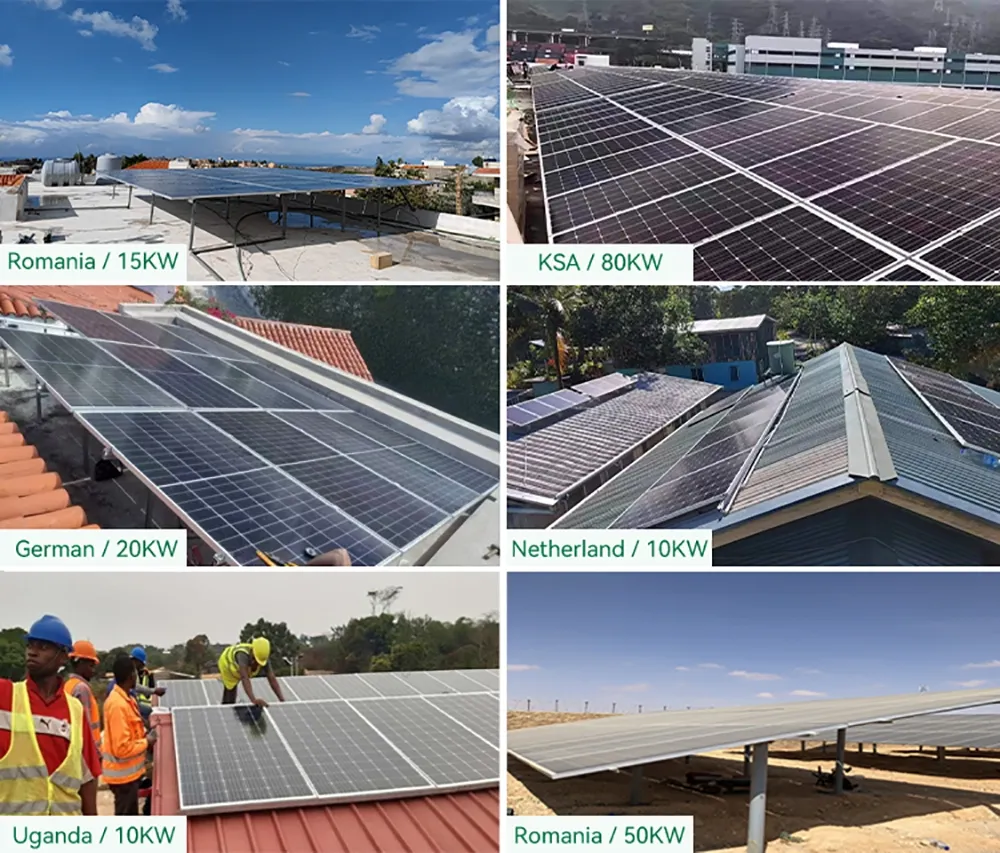

Detail 7
Detail 8

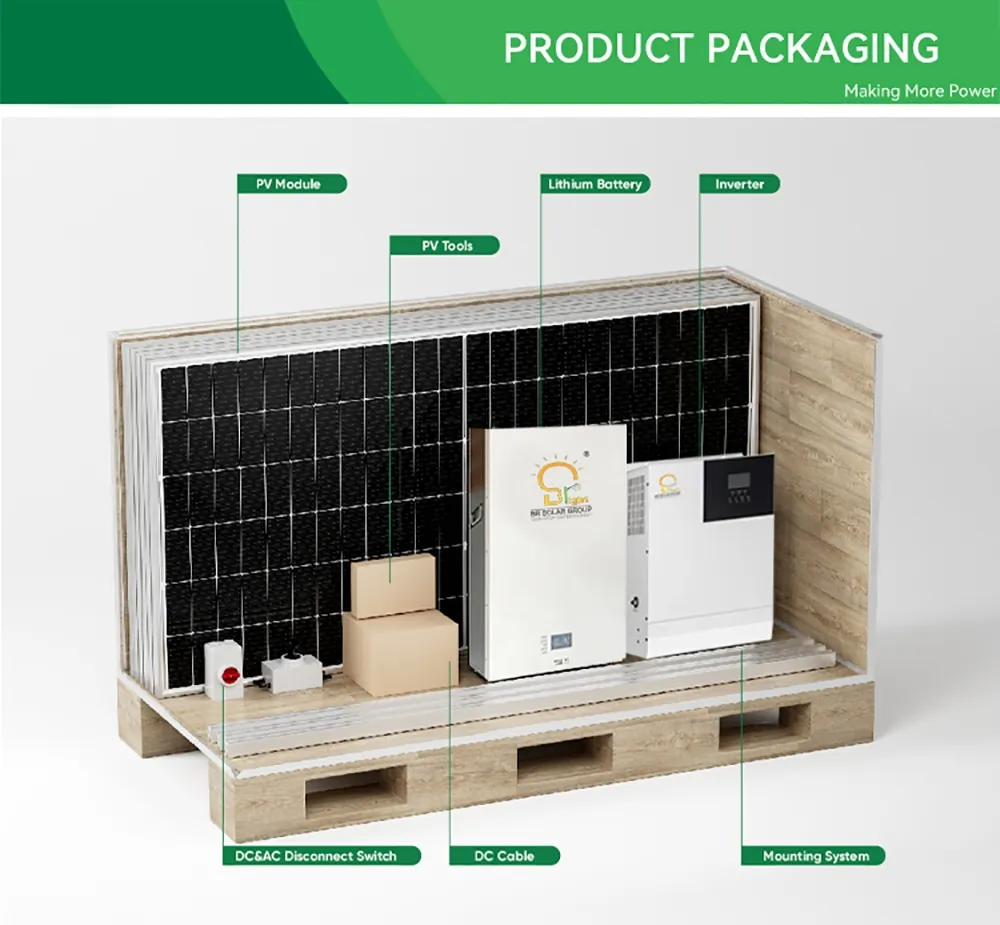

Detail 9
?

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety and long cycle life.
Is the system suitable for outdoor installation?
Yes, the system features an IP55 protection rating, making it resistant to dust and water, suitable for various environments.
What cooling method does the energy storage system use?
The system employs advanced Liquid Cooling technology to ensure optimal temperature management and performance.
What is the operating temperature range?
The system is designed to operate reliably in temperatures ranging from −30ºC to 50ºC.
What fire safety features are included?
Safety is a priority; it includes temperature sensors, smoke and combustible gas detectors, deflagration venting, and fire extinguishing gas systems.
What communication interfaces are supported?
The system supports multiple external communication interfaces including Ethernet, CAN, and RS485 for seamless integration.
