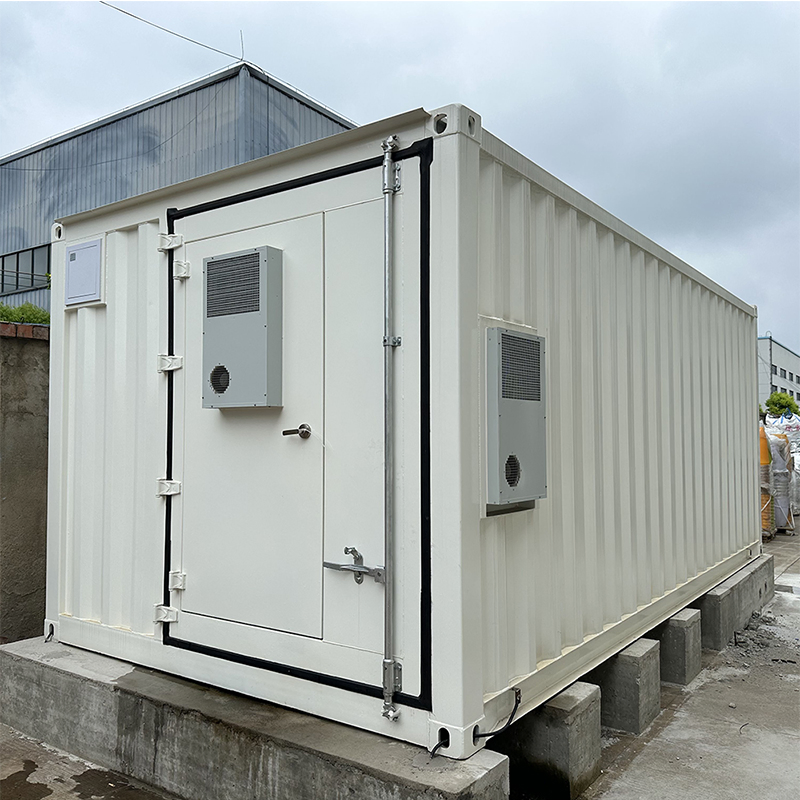

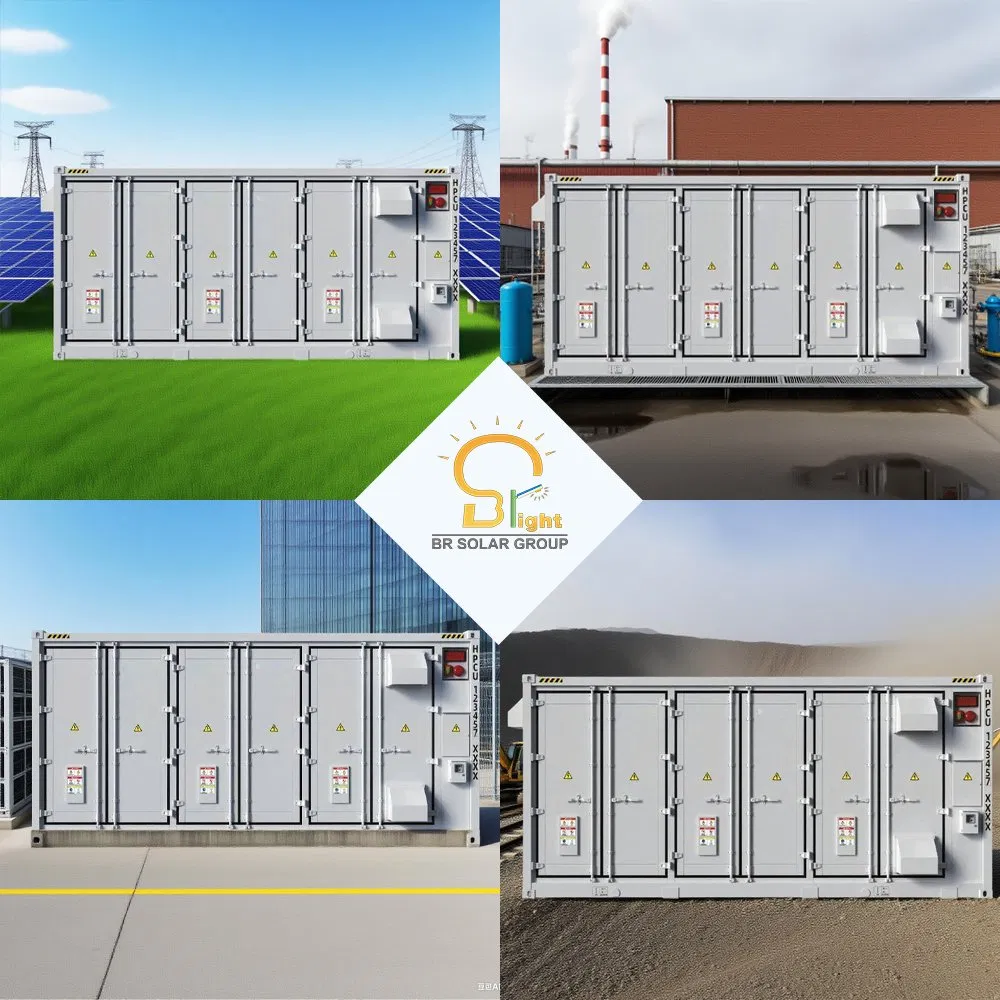

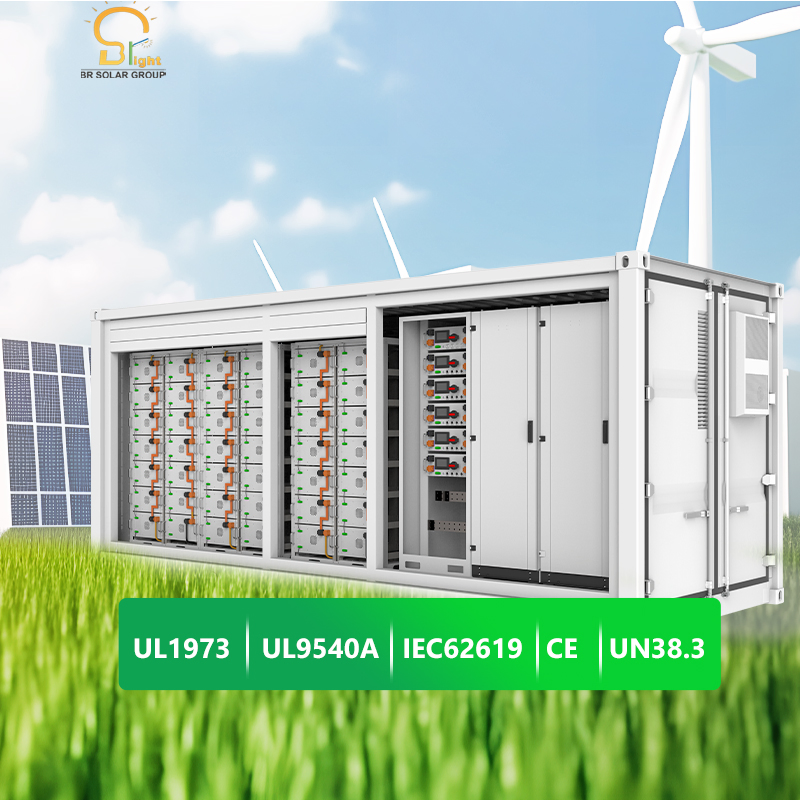

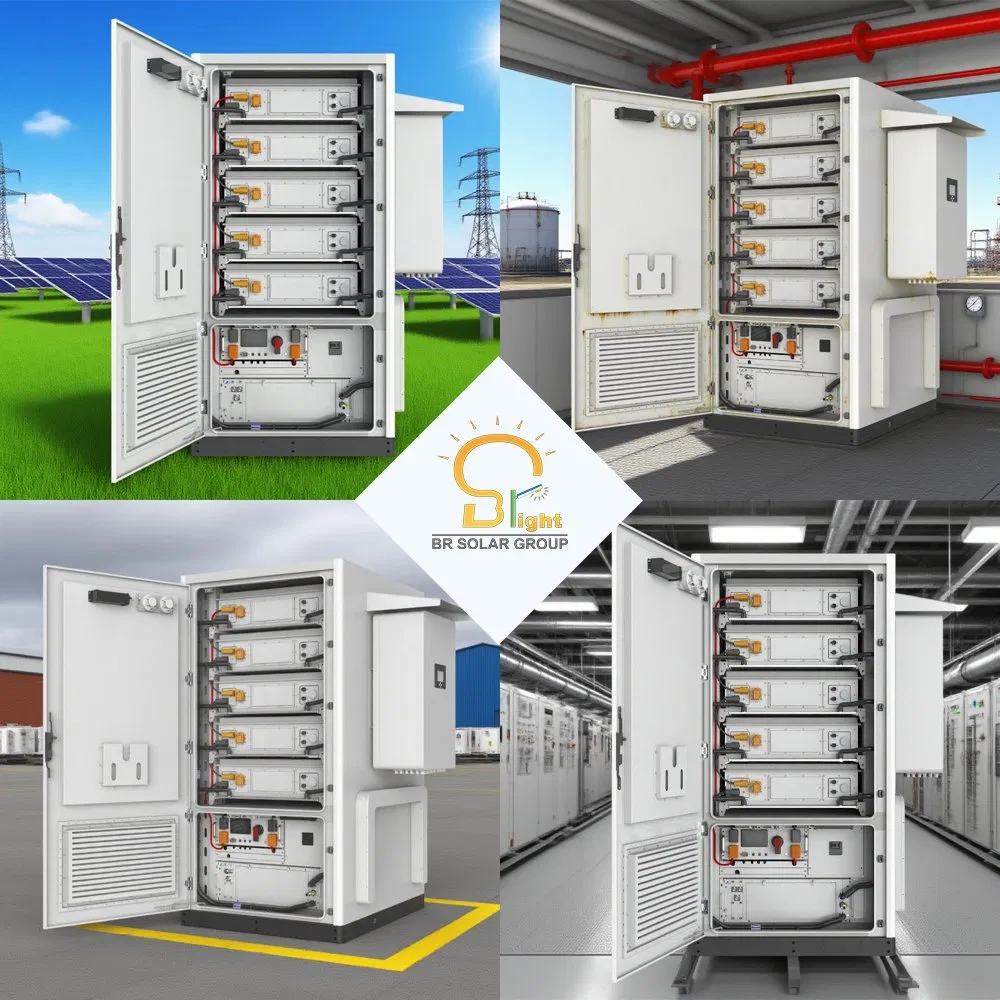

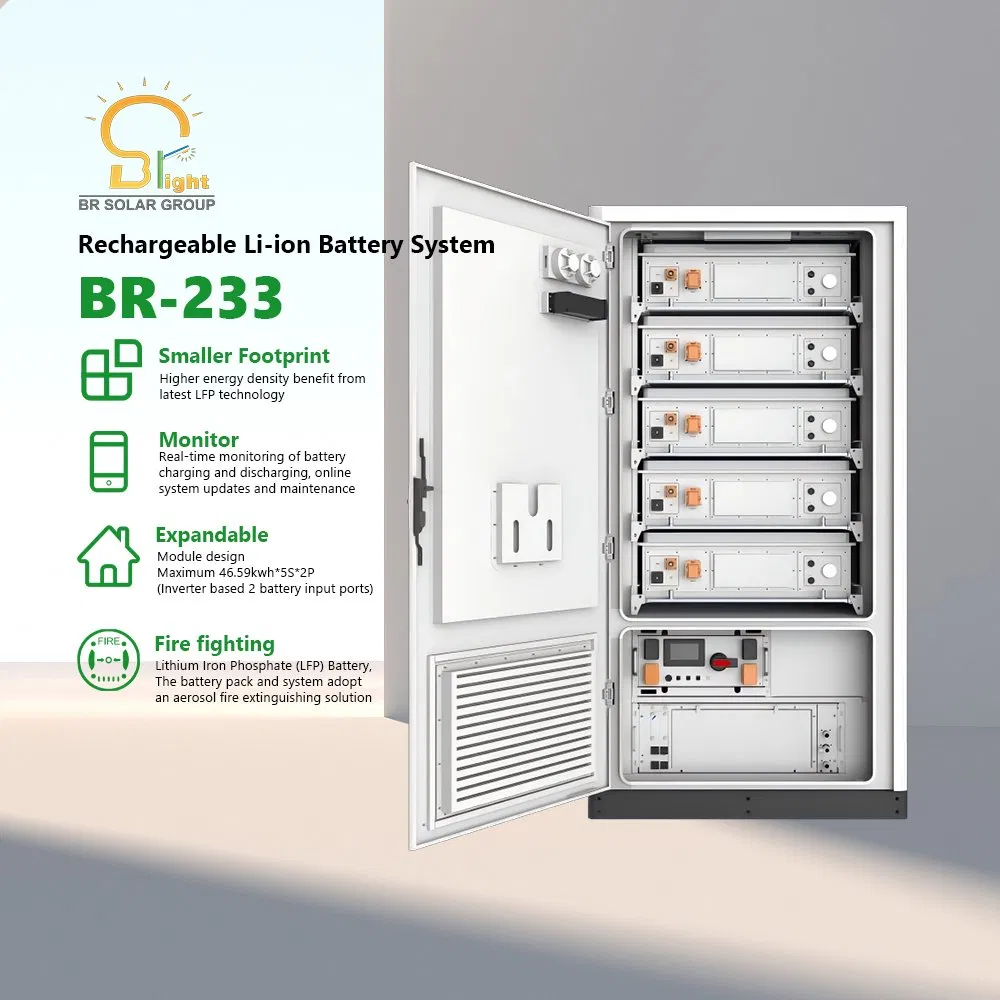

ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
1 / 5
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

ISO Approved Home 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

📋

Basic Specifications

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate (LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max Charge/Discharge
0.5c
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
HS Code
8501310000
Production Capacity
1000set/Month
📦

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Package Gross Weight
2000.000kg
Transport Package
Carton and Pallet
📑

Product Details

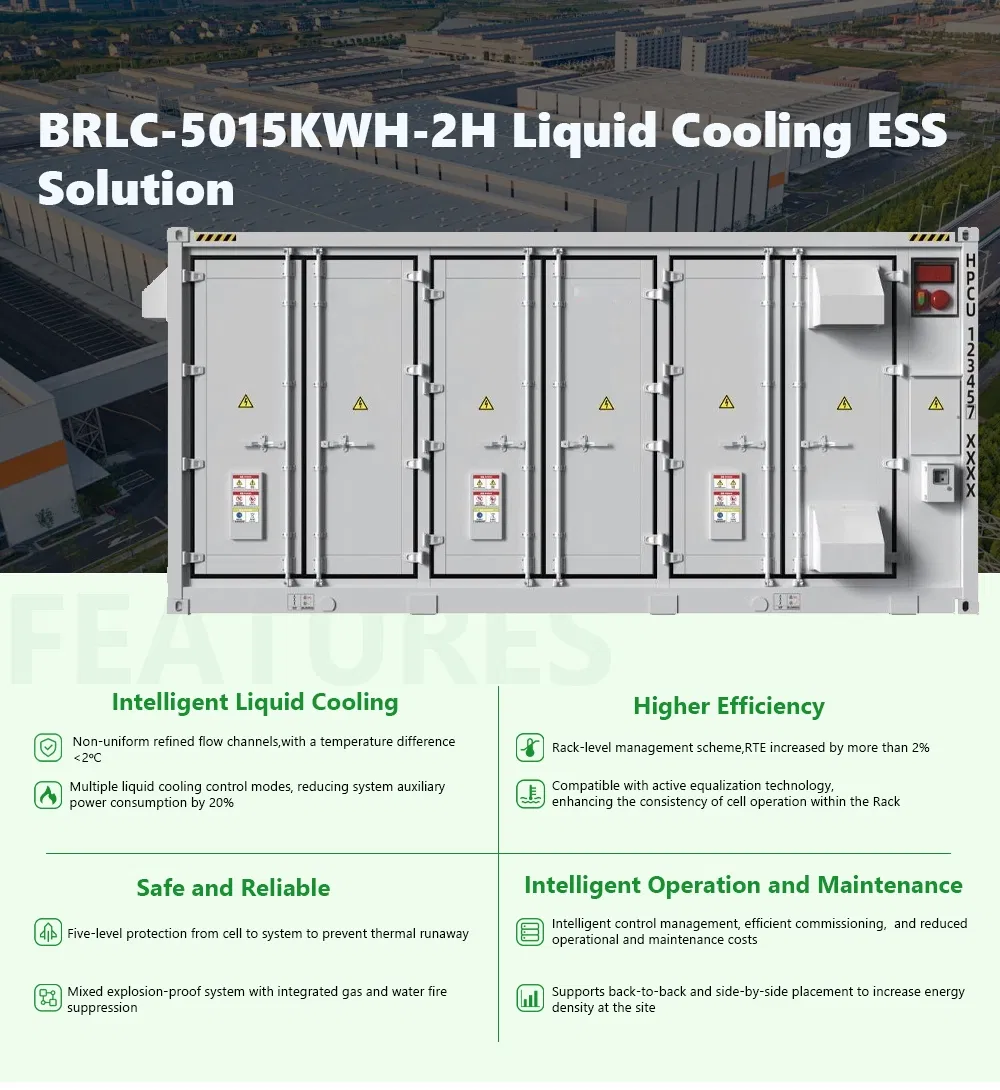

Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communicationEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

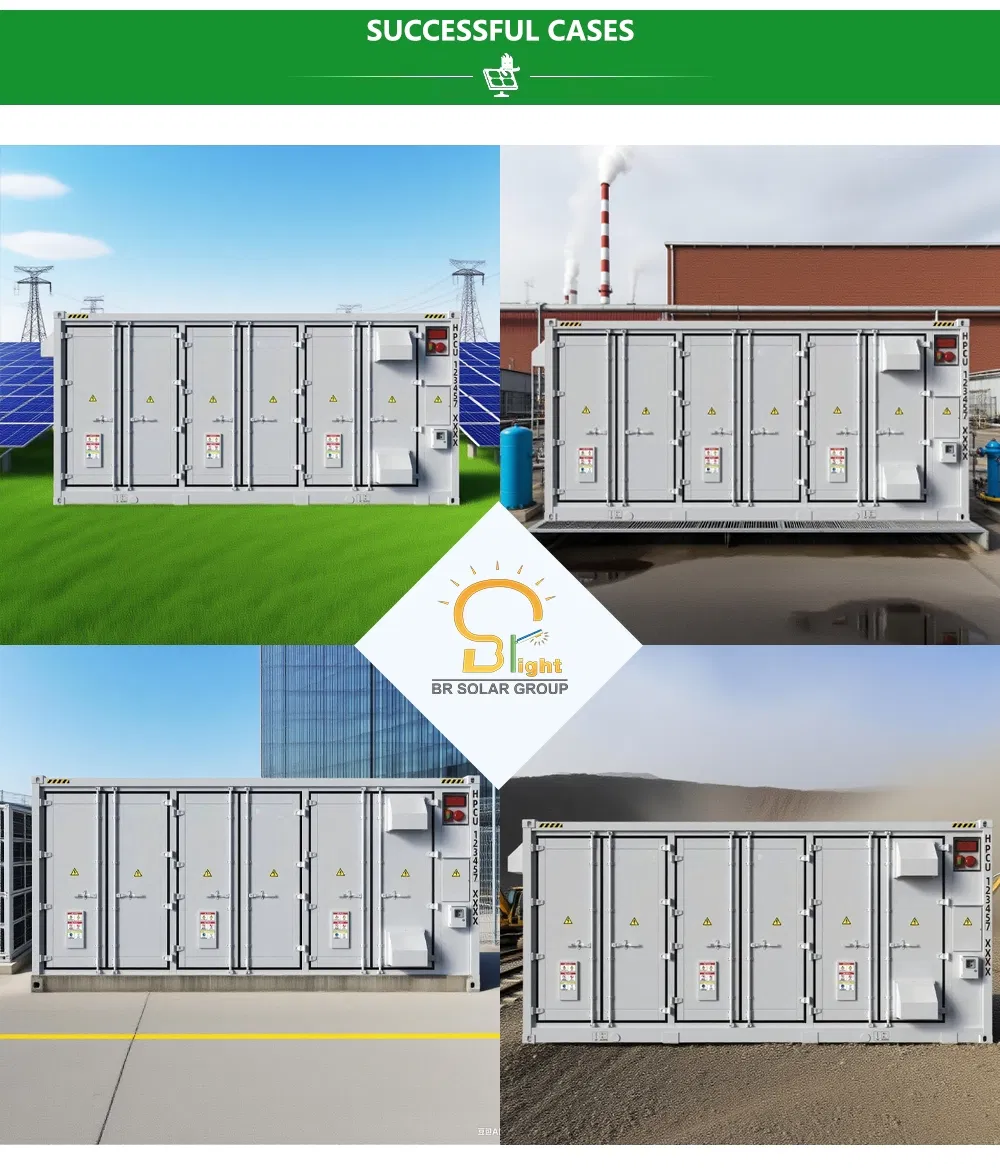

Feature 1

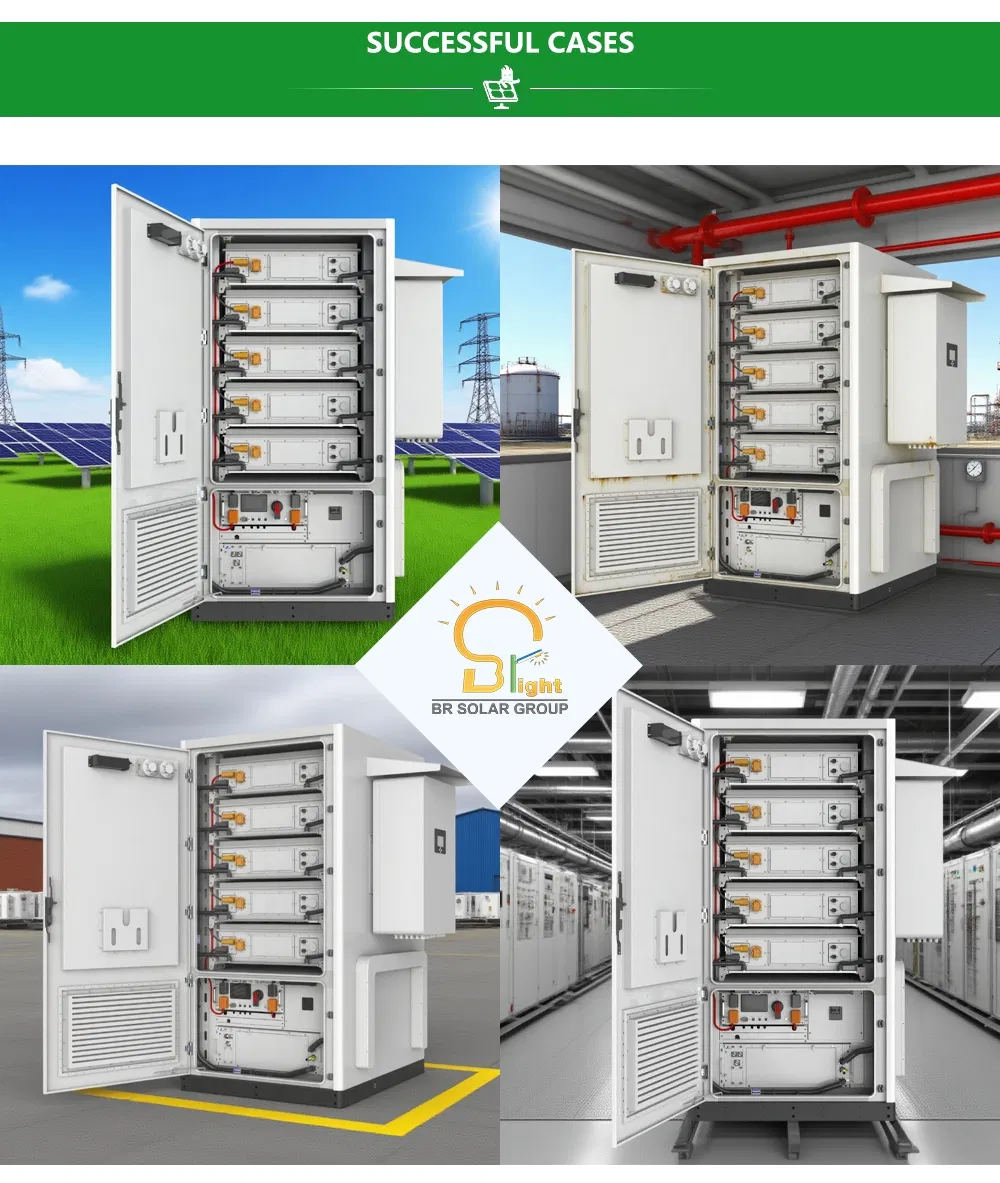

Feature 2
Feature 3
Feature 4

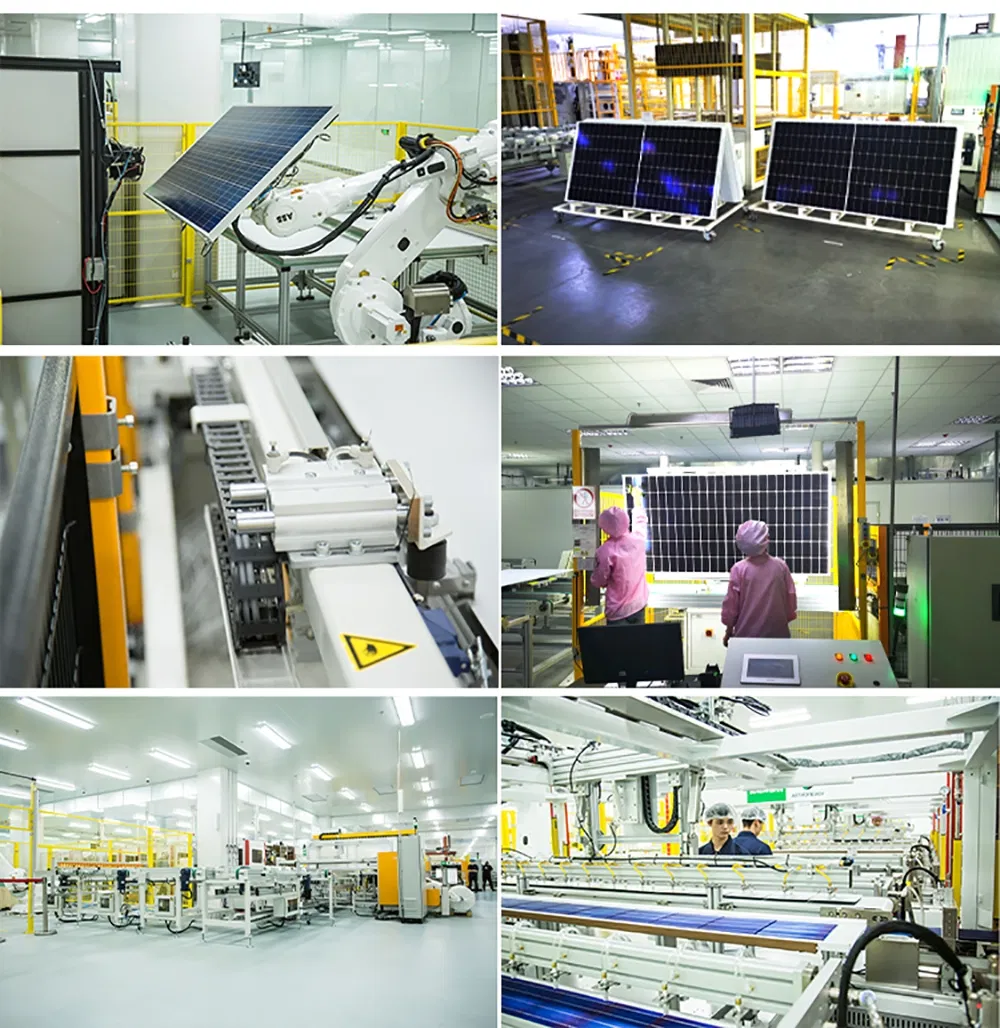

Feature 5
Feature 6
Feature 7
Feature 8
Feature 9
❓

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety and long cycle life.
What is the protection rating for outdoor use?
This energy storage system has an IP55 protection class rating, making it suitable for various environmental conditions.
How is the battery system cooled?
The system employs an advanced Liquid Cooling method to ensure optimal operating temperatures and efficiency.
What are the primary applications for this 5.01 MWh system?
It is designed for Home, Industrial, Commercial, School, and Factory applications requiring reliable grid-tied storage.
What safety features are integrated into the unit?
Safety features include temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, and fire extinguishing systems.
What is the operational temperature range?
The system can operate efficiently in temperatures ranging from -30ºC to 50ºC.
