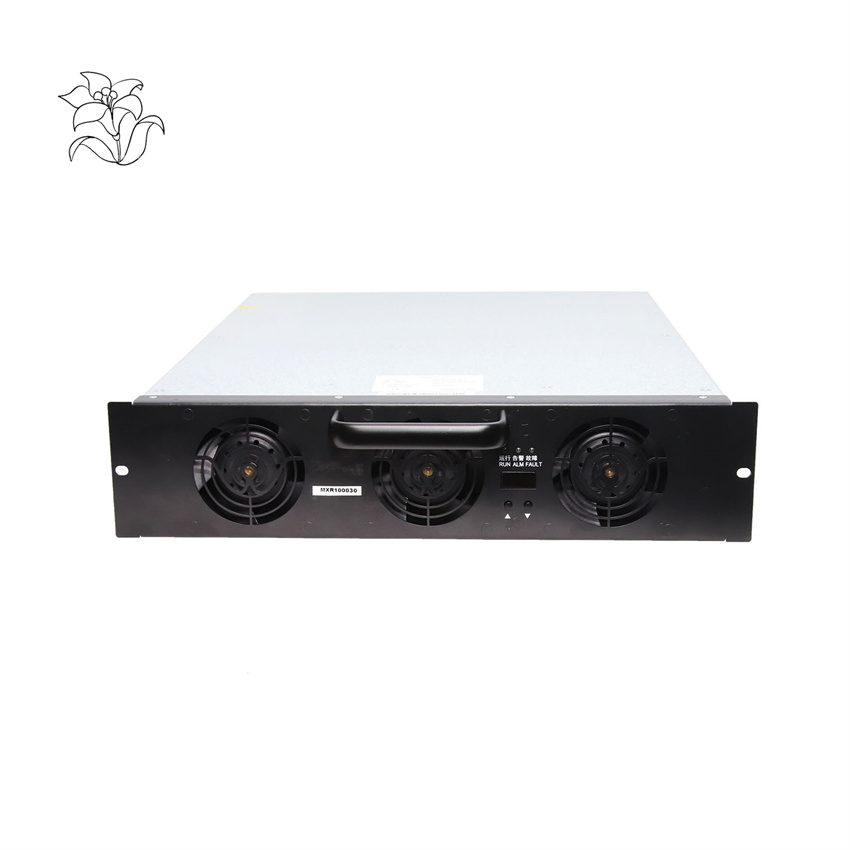

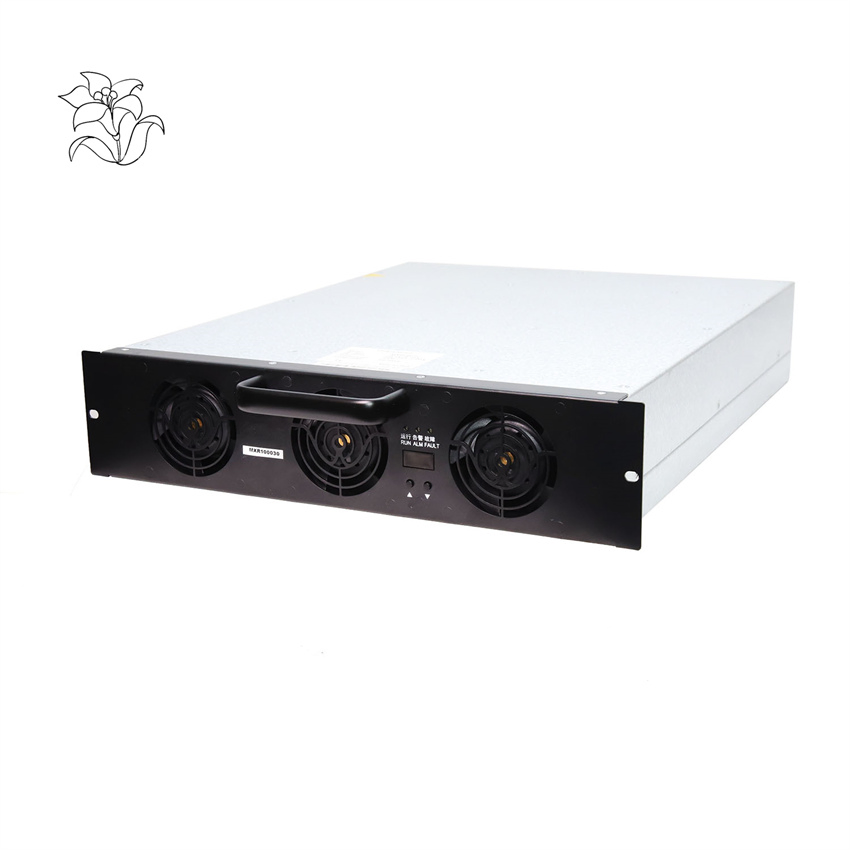

Maxwell 30kw Static Converter/EV Charging Module for DC Fast Charging Pile

Basic Specifications

Model NO.

MXR100030

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

Product Name

EV DC Charging Module

Power Supply

3phase+PE

Communication

Can Bus

Input Voltage

260VAC-530VAC

Output Current

0-100A

Parallel Quantity

Max Number 60

Type

Fast EV Charging Station

Warranty

12 Months

Product Description

MXR100030B is a charging power module developed for the shortage of charging pile industry. Ultra-wide constant power range and ultra-high full-load operating temperature are its prominent advantages, greatly ensuring the charging time. High reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, and low standby power consumption are key characteristics.

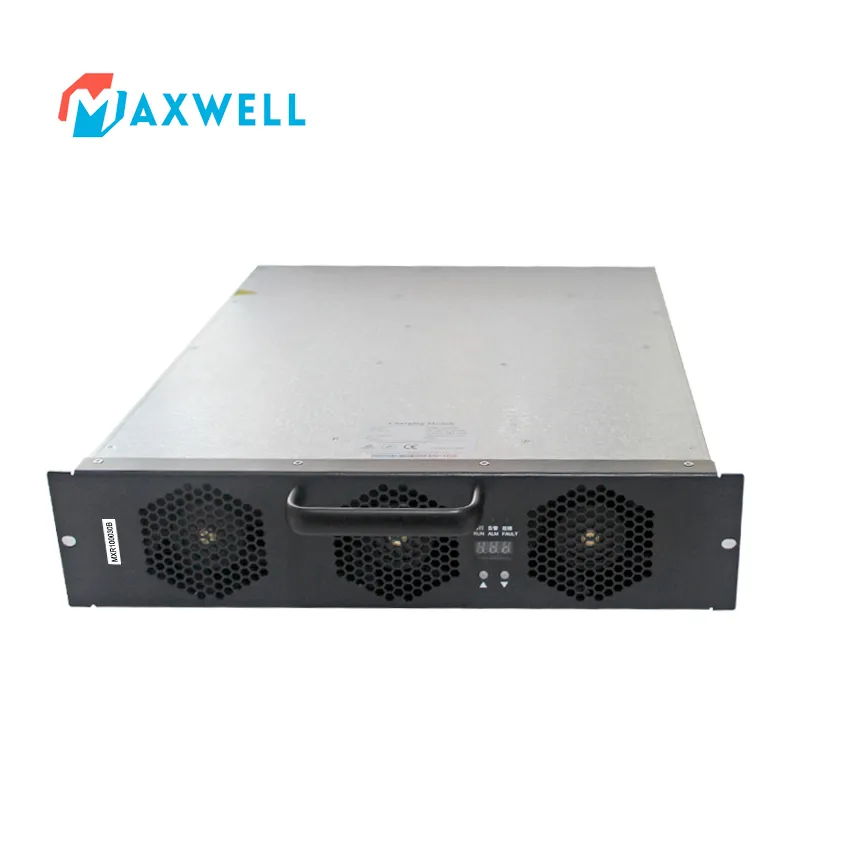

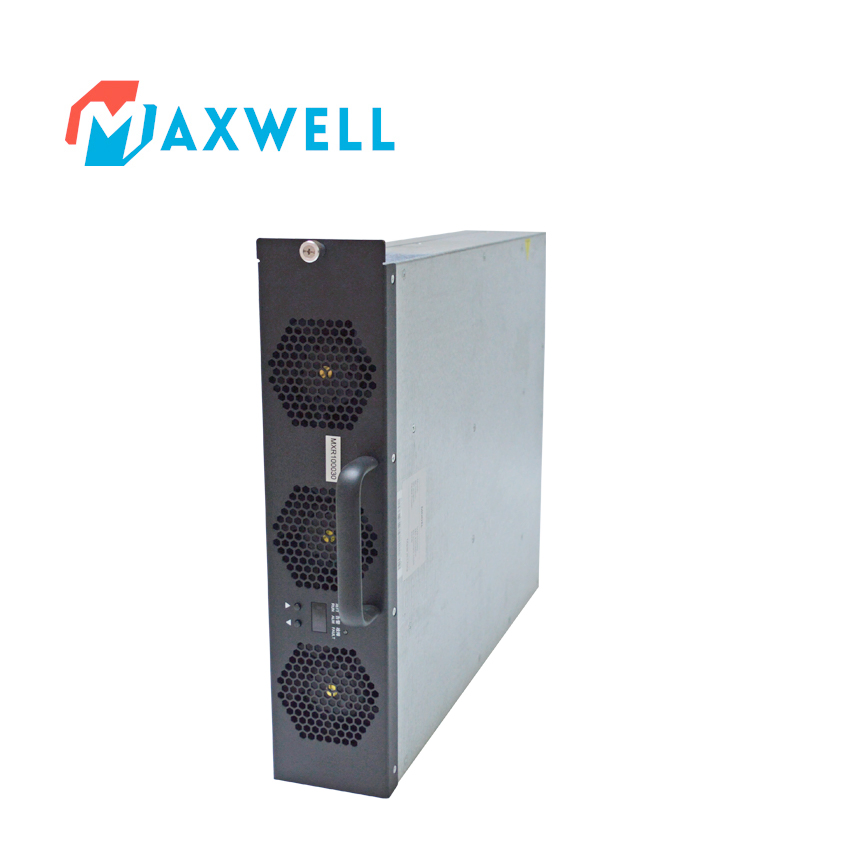

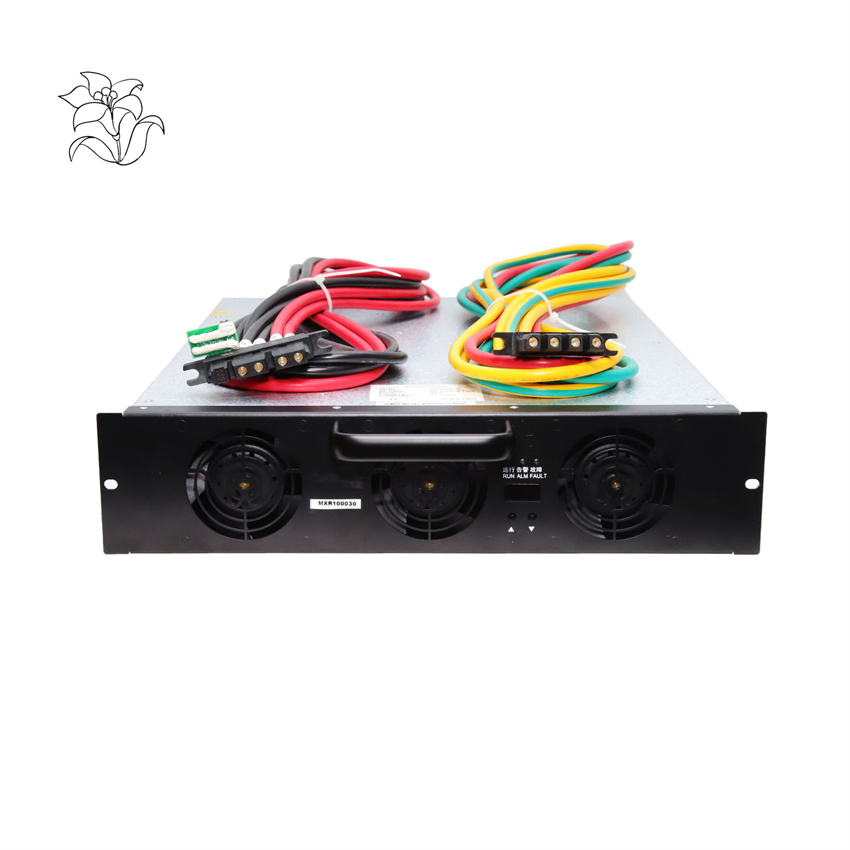

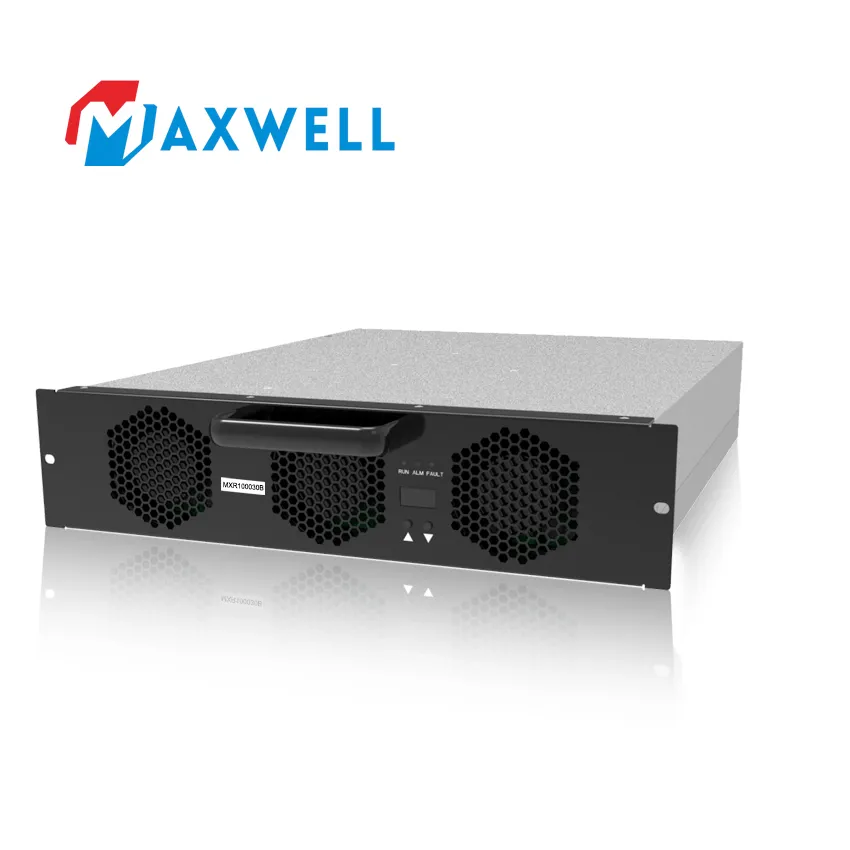

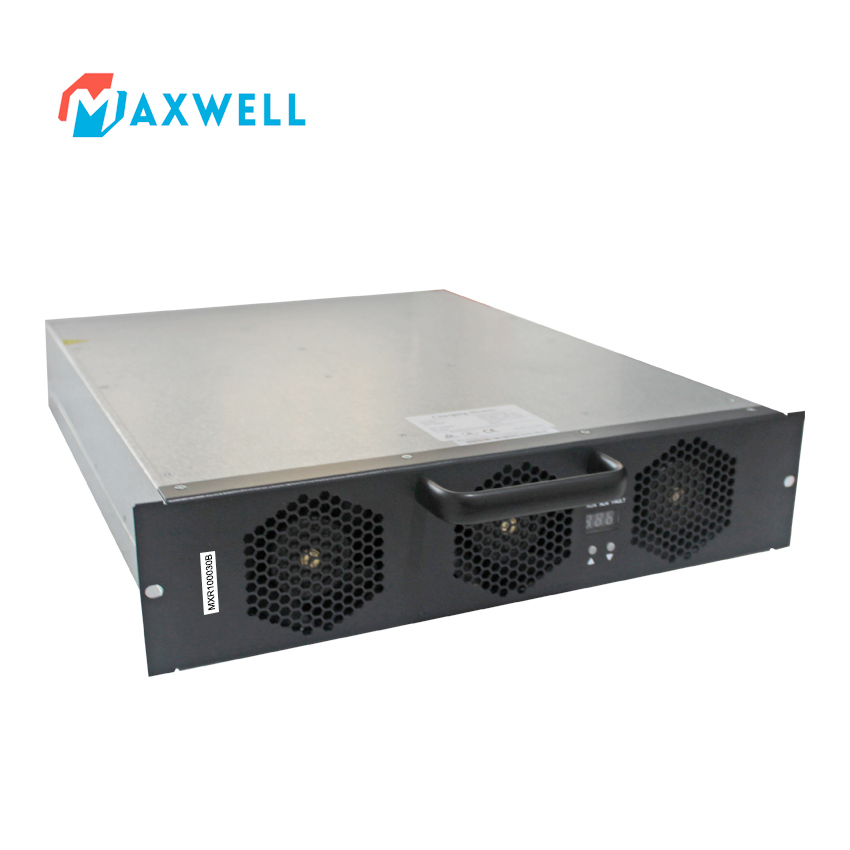

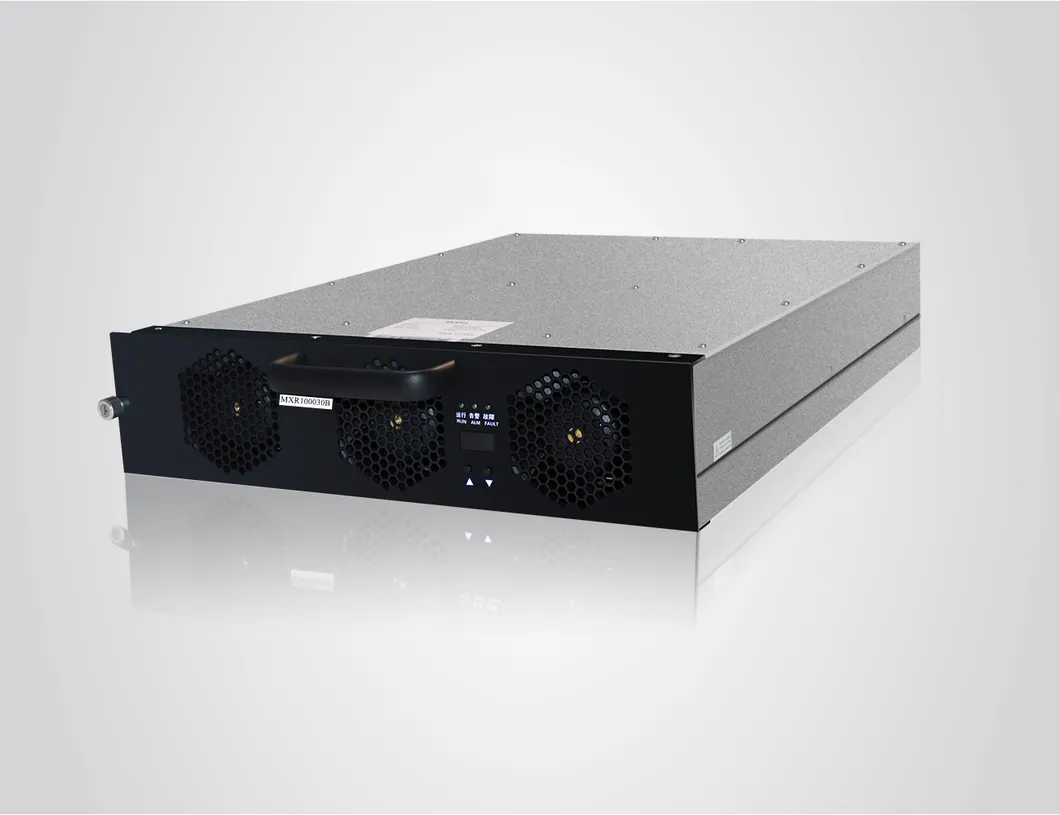

Detailed Photos

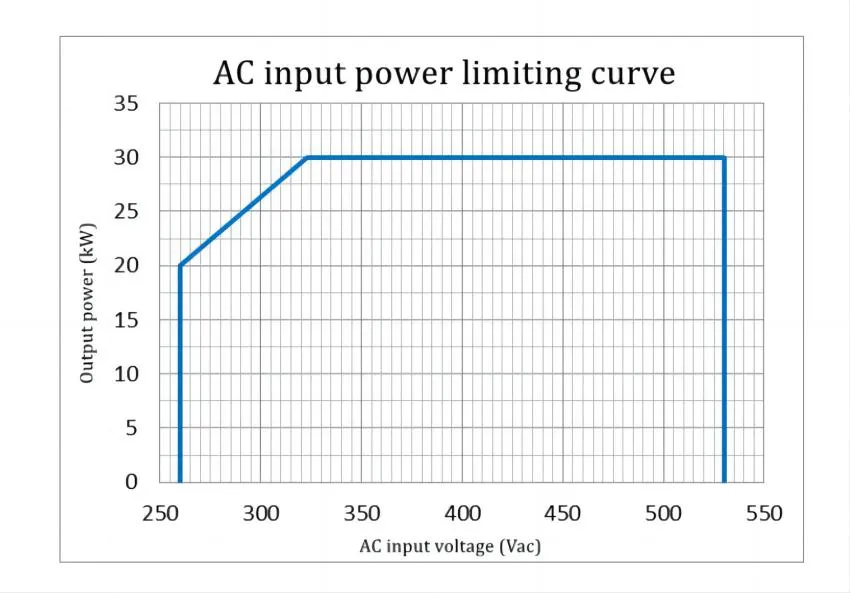

Technical Parameters

Dimensions	85mm(H)459mm(D)360mm(W)
Communication Mode	CAN bus
Input Voltage	260Vac-530Vac, three phase+PE
Power Factor	≥0.99
Output Power	30kw

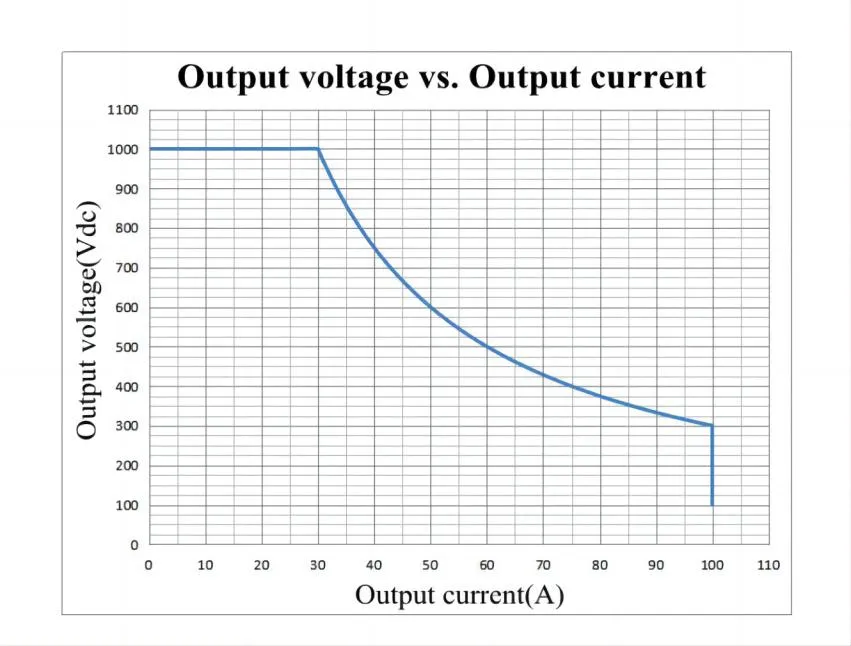

Voltage Range	100Vdc-1000Vdc
Operating Temperature	-40°C to +75°C
Certification Compliance	CE / TUV / EMC (EN IEC 61000-6 series)

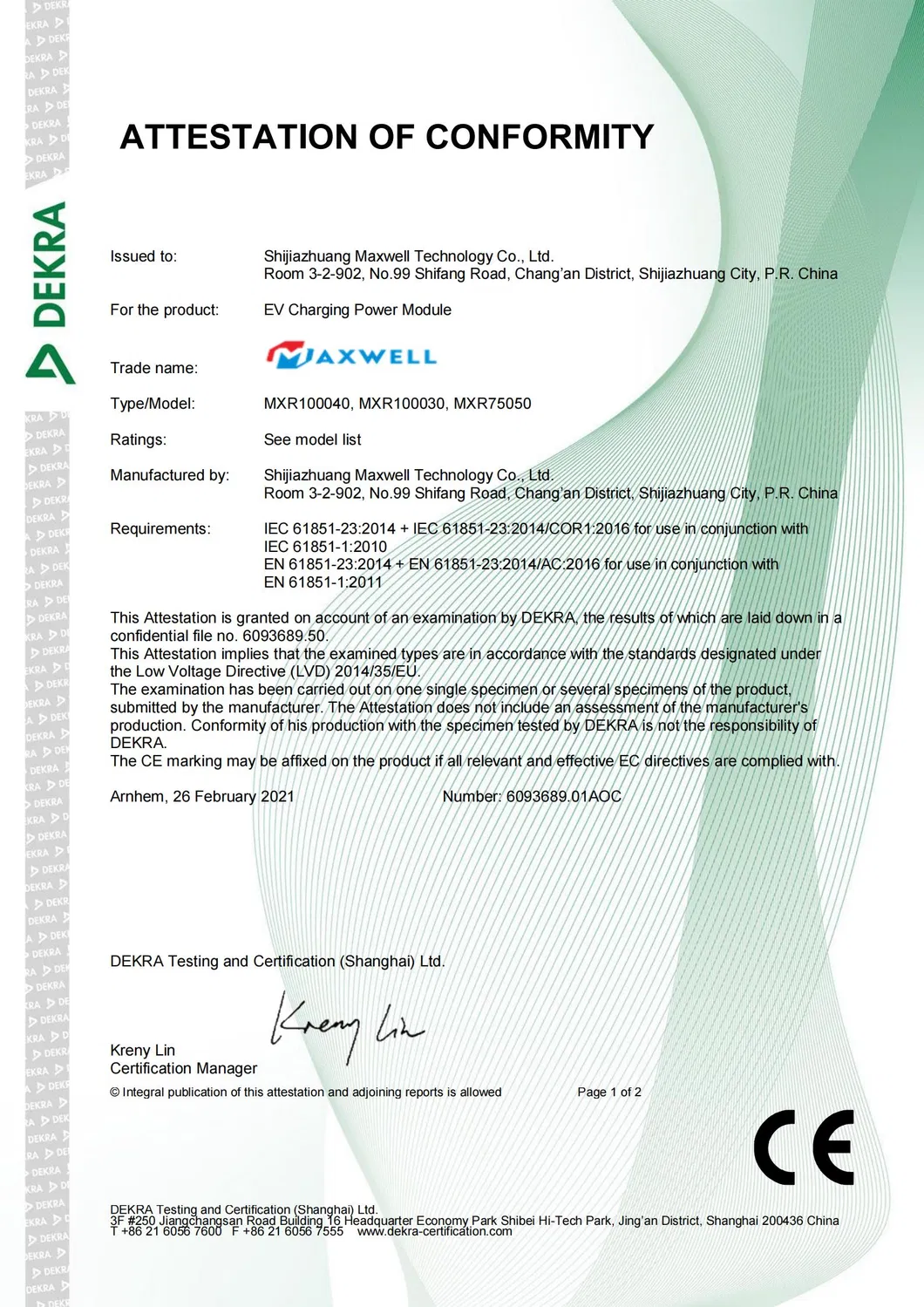

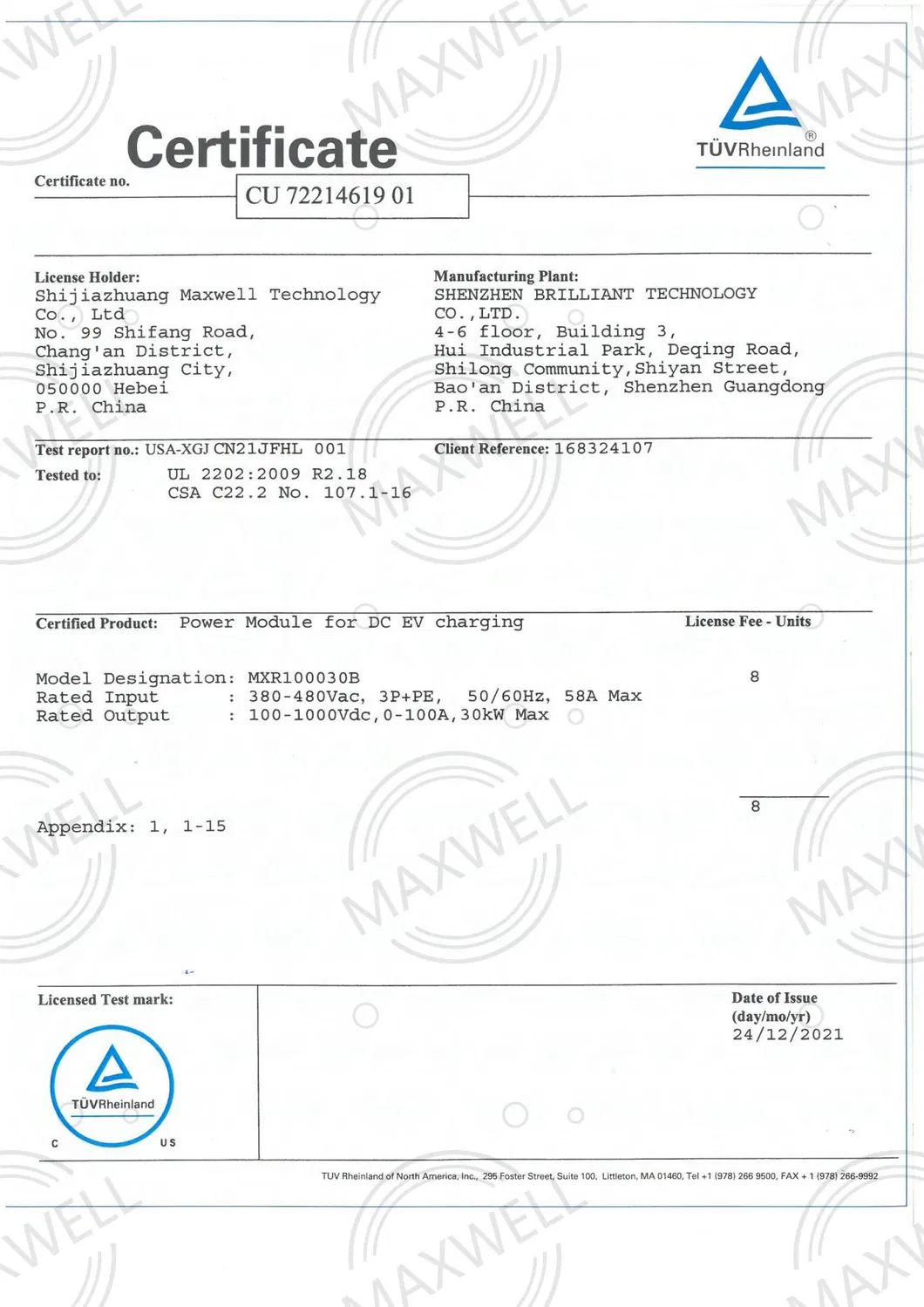

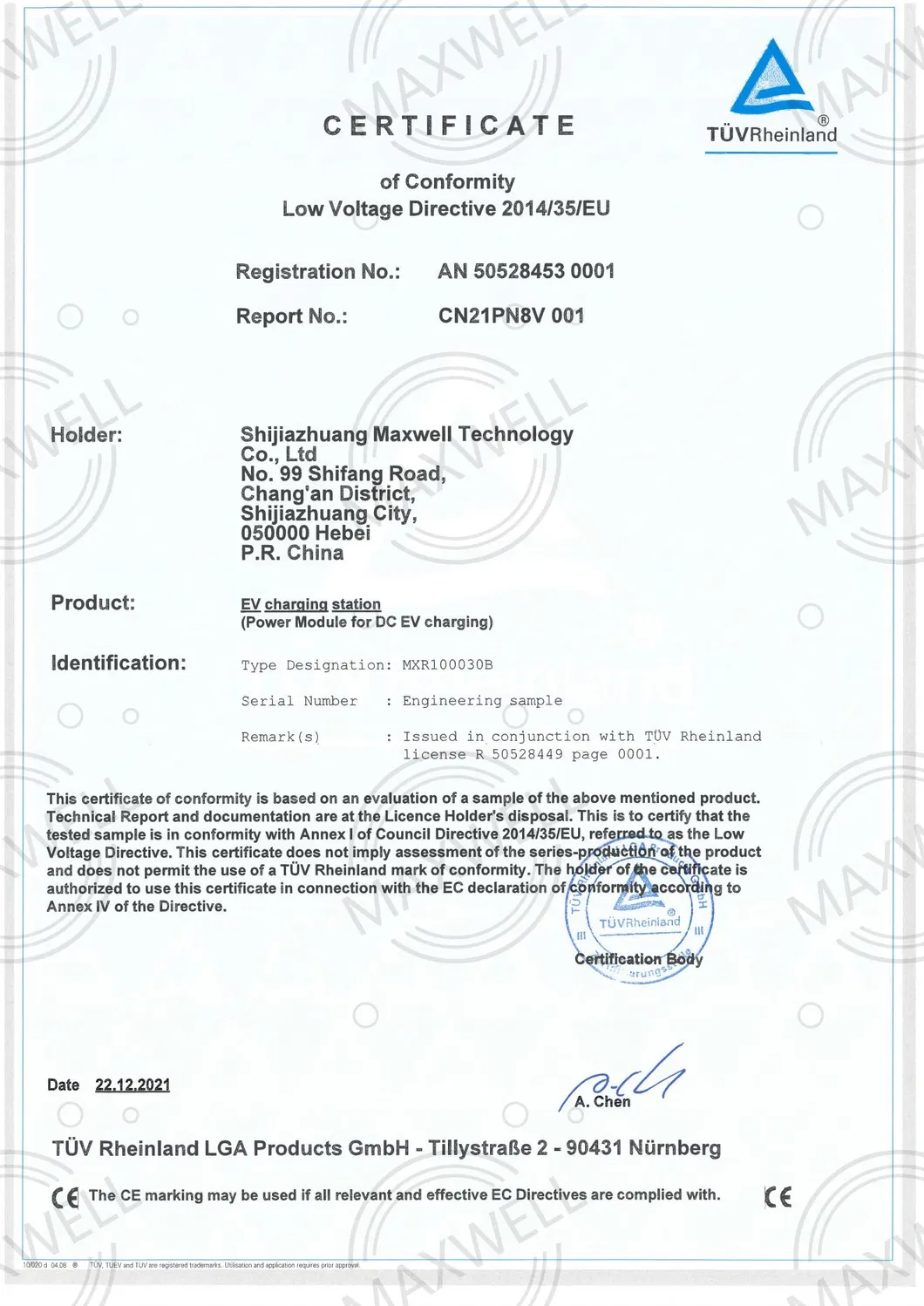

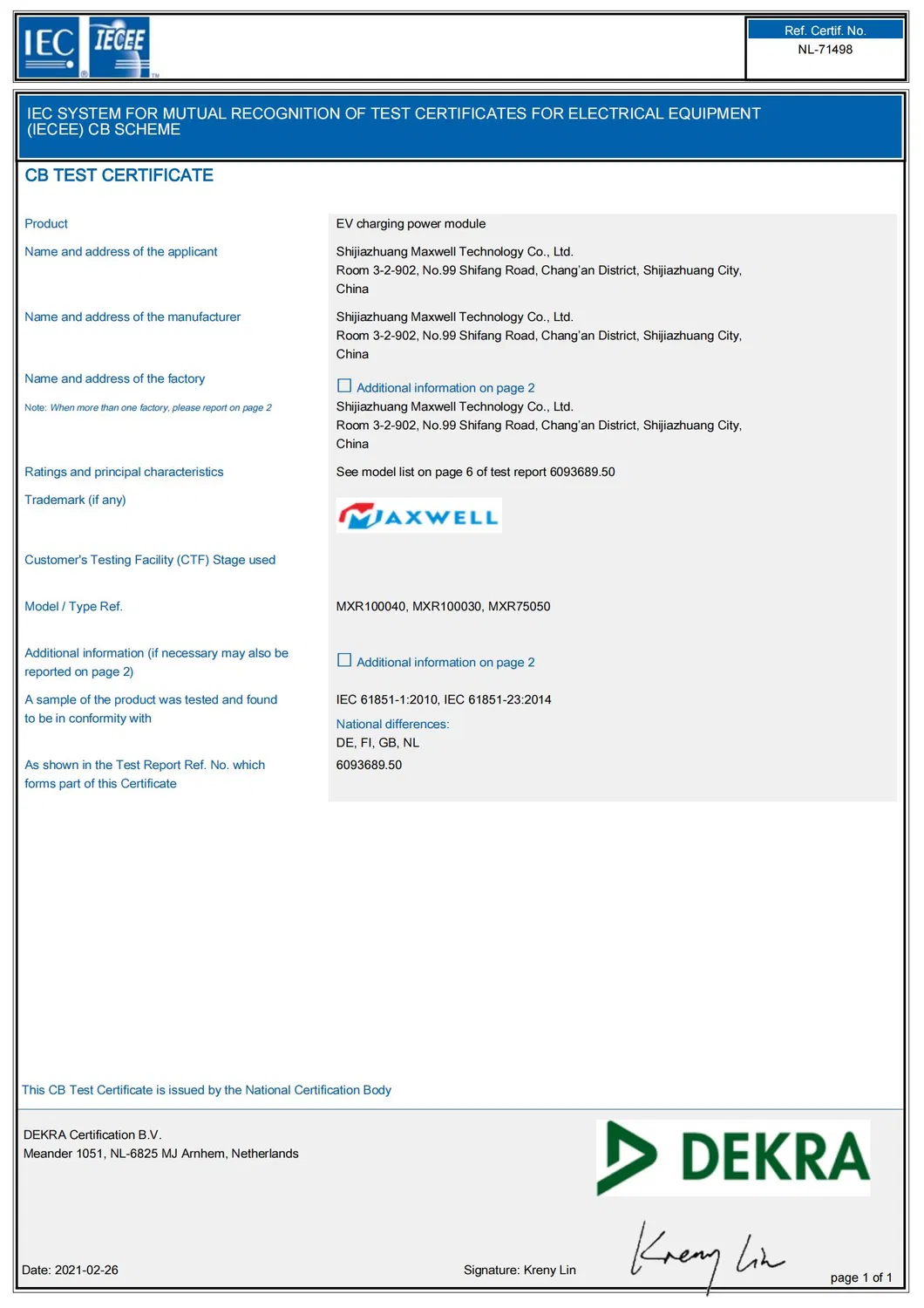

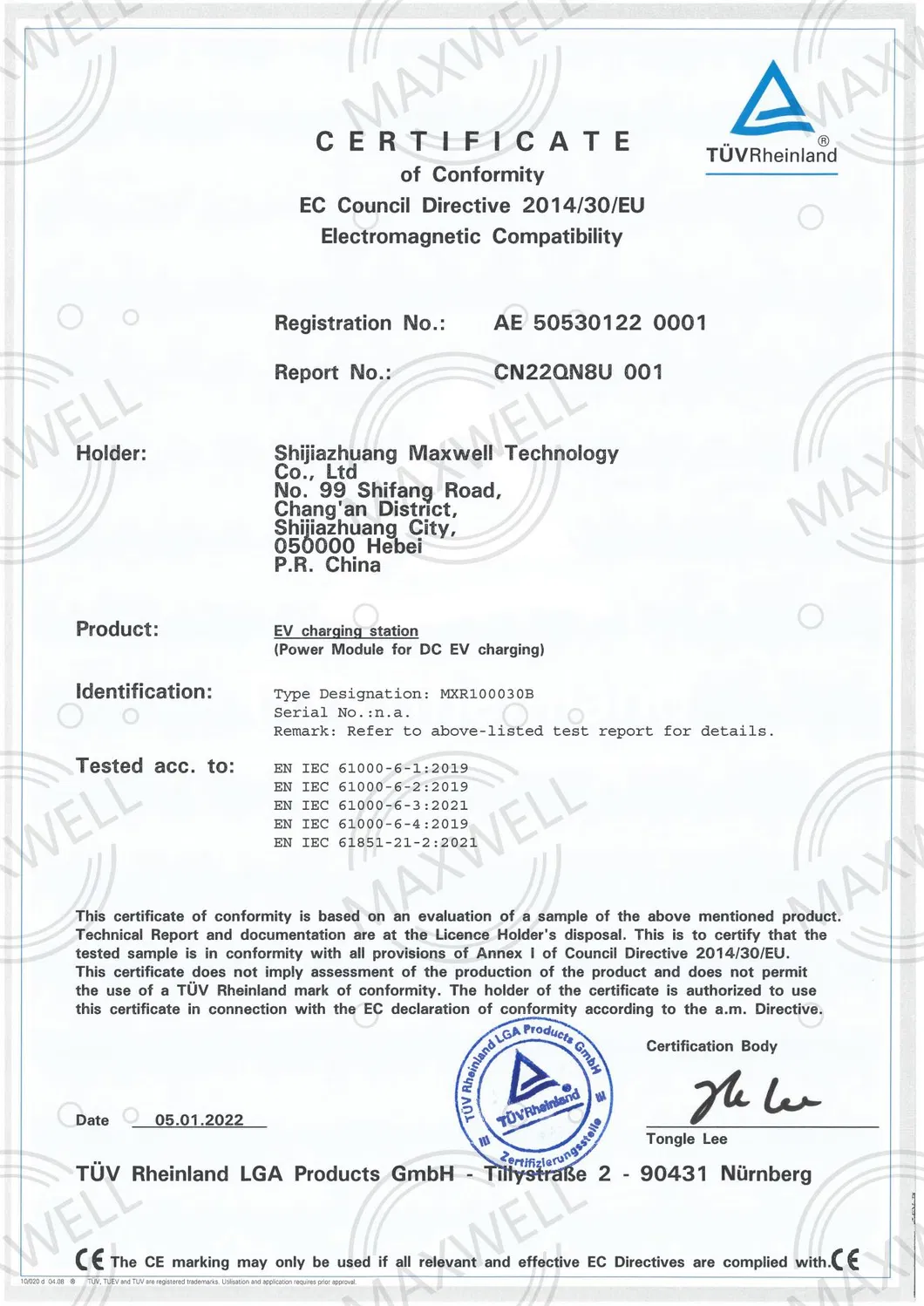

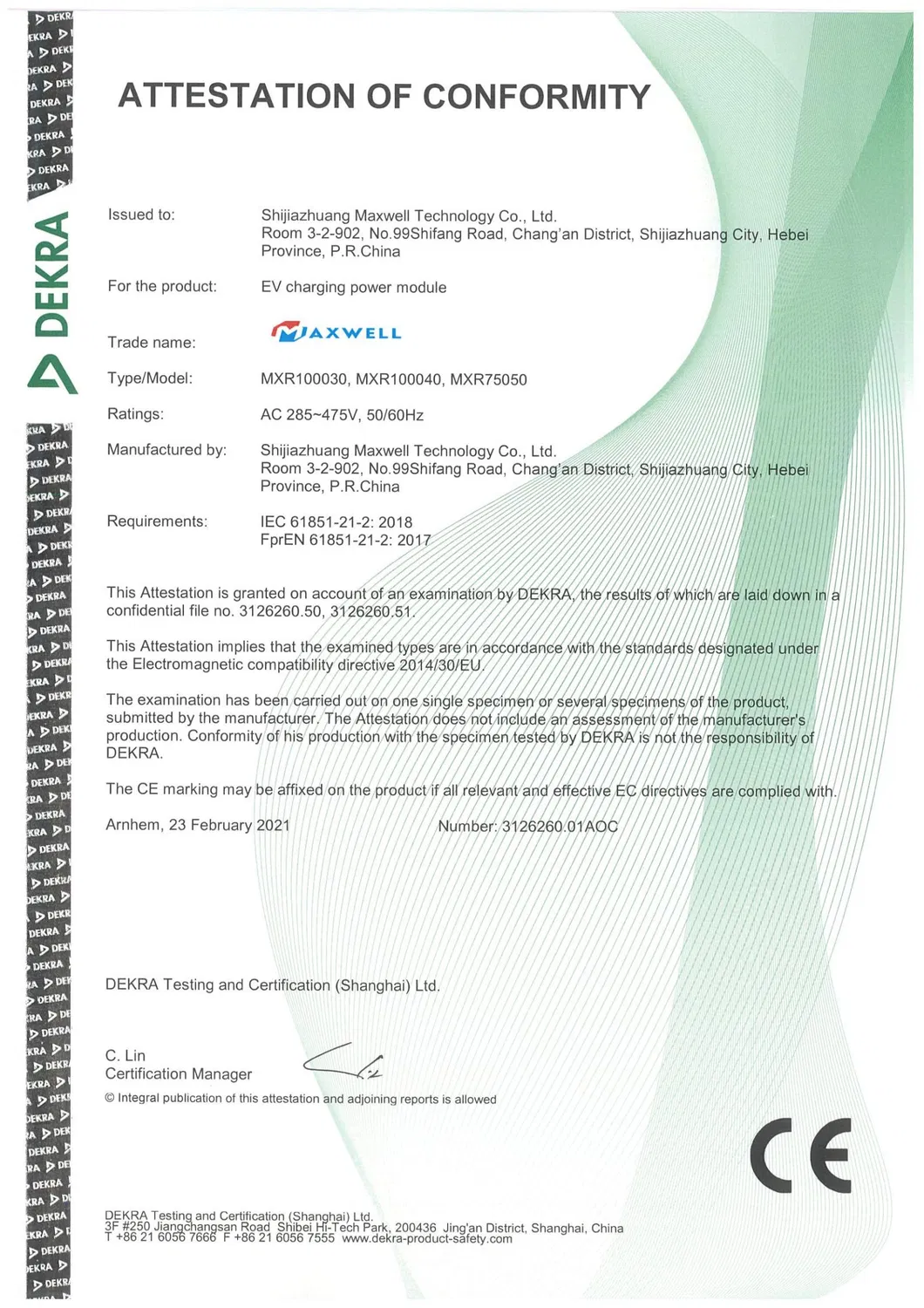

Certifications

Packaging & Shipping

Goods are packed in kraft cartons with pallets or wooden crates. Standard delivery time is 2-3 weeks after order confirmation.

Company Profile

We are a state-level high-tech enterprise focusing on the research, development, production, and sales of power electronic products. We provide mid-to-high-end DC power supply systems based on independent intellectual property rights and technological innovation.

With over ten years of experience, we have built a high-quality R&D team and obtained multiple national invention patents. Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields globally. We offer a comprehensive series of products including 15kW, 20kW, 30kW, 40kW, and 50kW modules.

Frequently Asked Questions

What are the main advantages of your charging modules?

Our modules feature digital controlled power, active PFC for 0.99 power factor, and support CCS, CHAdeMO, and GB/T standards. They include soft start functions and full protection for both input and output sides (over/under voltage, surge, and short-circuit).

Which global DC fast charging standards do you support?

We support the major global standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China). Our modules are designed to be compatible with various electric vehicle models across these regions.

How is after-sales technical support handled?

We provide comprehensive technical training, including written materials and videos. Our technical personnel can provide face-to-face training to help customers master parts replacement and maintenance. On-site support is available for urgent situations.

What are your standard payment and delivery terms?

We typically accept T/T in advance or Irrevocable L/C at sight. Delivery is usually completed within 2-3 weeks after the order is confirmed.

Are the products certified for international markets?

Yes, our EV charger modules have achieved CE and TUV certifications, ensuring they meet rigorous international safety and performance standards for global deployment.

What is the operating temperature range of the module?

The modules are designed for extreme environments with an operating temperature range of -40°C to +75°C, ensuring reliable performance in diverse climates.
