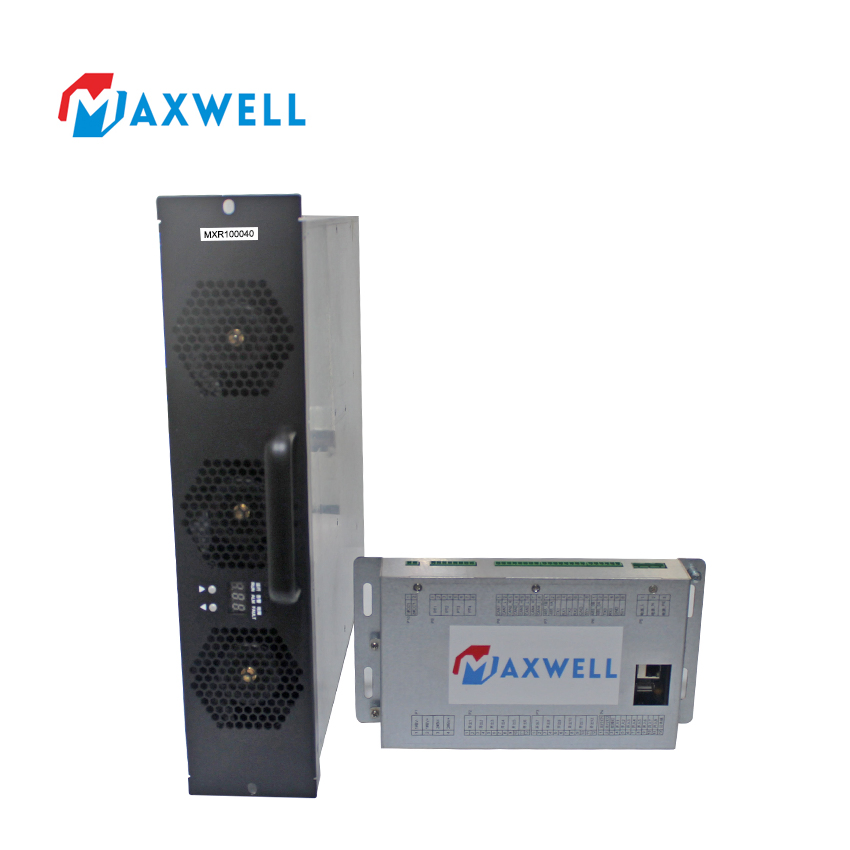

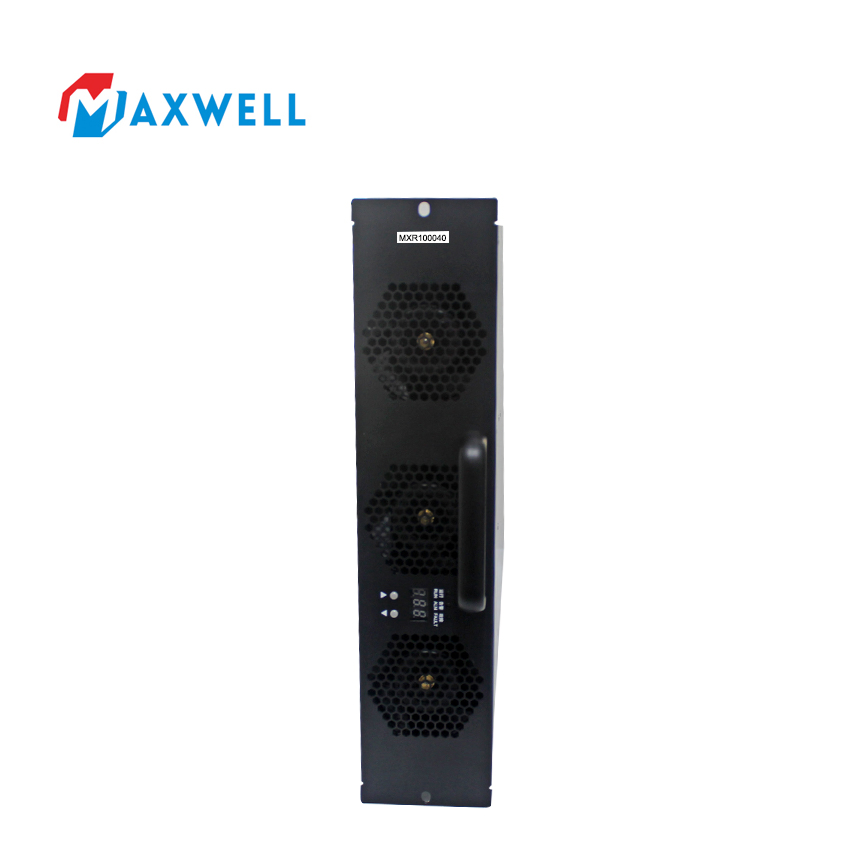

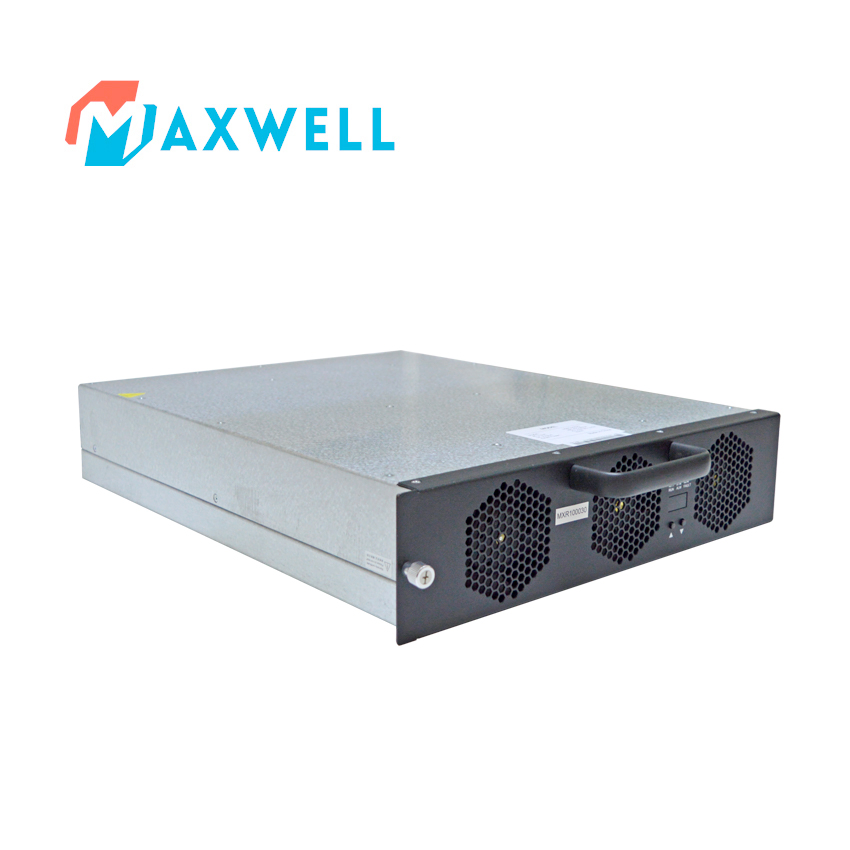

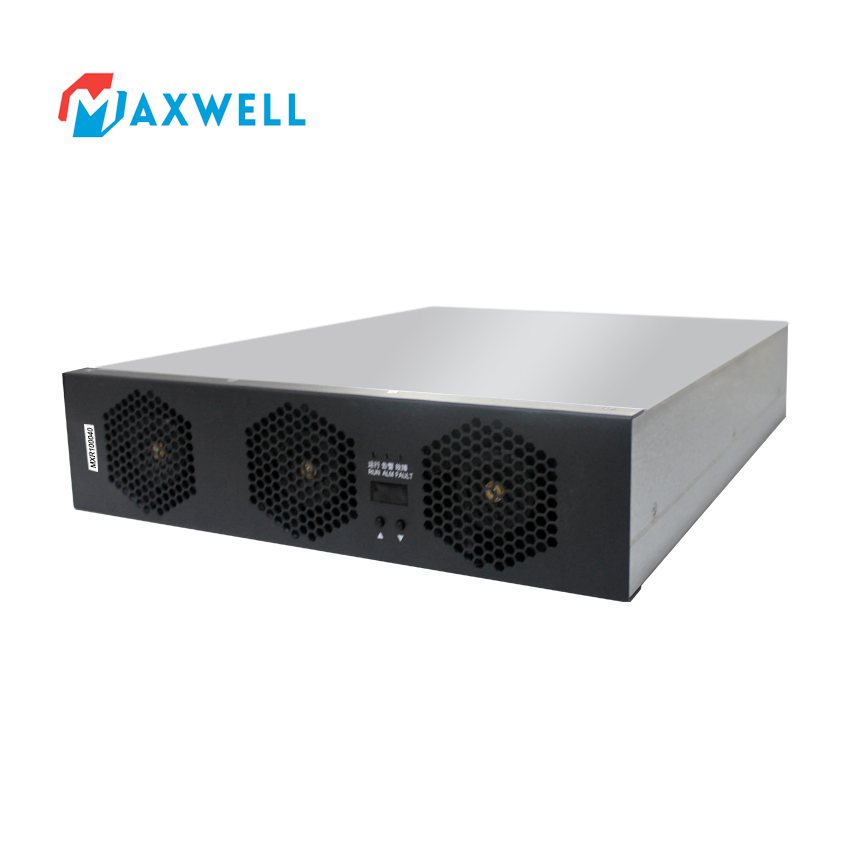

Maxwell 40kw@1000V AC/DC Power Module for Fast Charging

Basic Information

Model NO.

MXR100040

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Mobile App, Credit Card

Product Name

EV DC Charging Module

Power Supply

3phase+PE

Communication

CAN Bus

Input Voltage

285VAC-475VAC

Output Current

0-133.3A

Certifications

CE, ISO, RoHS

Warranty

12 Months

Dimensions

360mm*459mm*85mm

Product Description

MXR100040 is a high-performance charging power module designed for the fast-growing EV charging industry. Its prominent advantages include an ultra-wide constant power range and ultra-high full-load operating temperature, ensuring optimal charging speeds and reduced downtime. Key features include high reliability, efficiency, power factor, and power density, alongside low standby power consumption and excellent EMC performance.

Dimensions	85mm(H) * 459mm(D) * 360mm(W)
Communication Mode	CAN bus

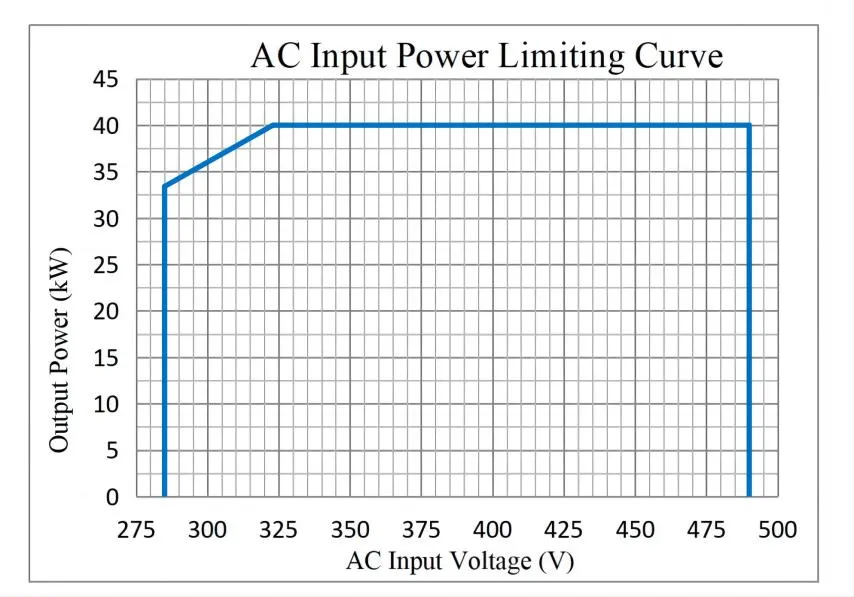

Input Voltage	285Vac-475Vac, three phase+PE
Power Factor	≥0.99
Output Power	40kW

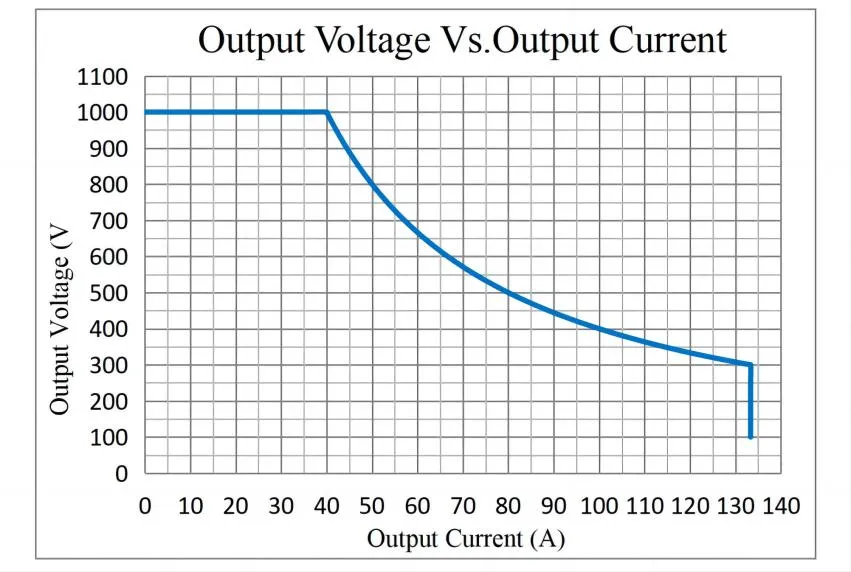

Voltage Range	100Vdc - 1000Vdc
Operating Temperature	-40°C to +75°C
Reference Standards	CE/Dekra/EMC, IEC61851-21-1:2018, EN61851-21-2:2017

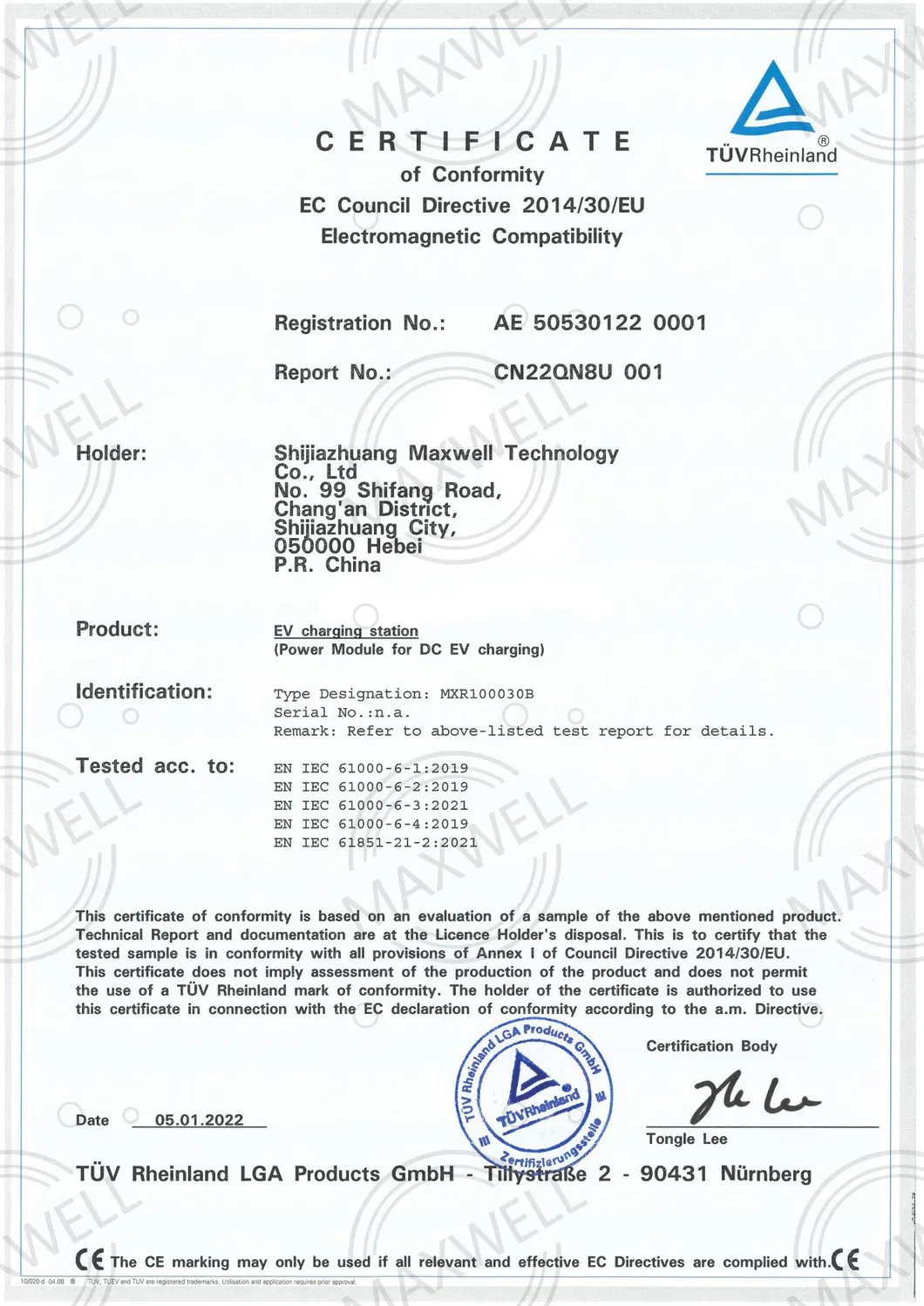

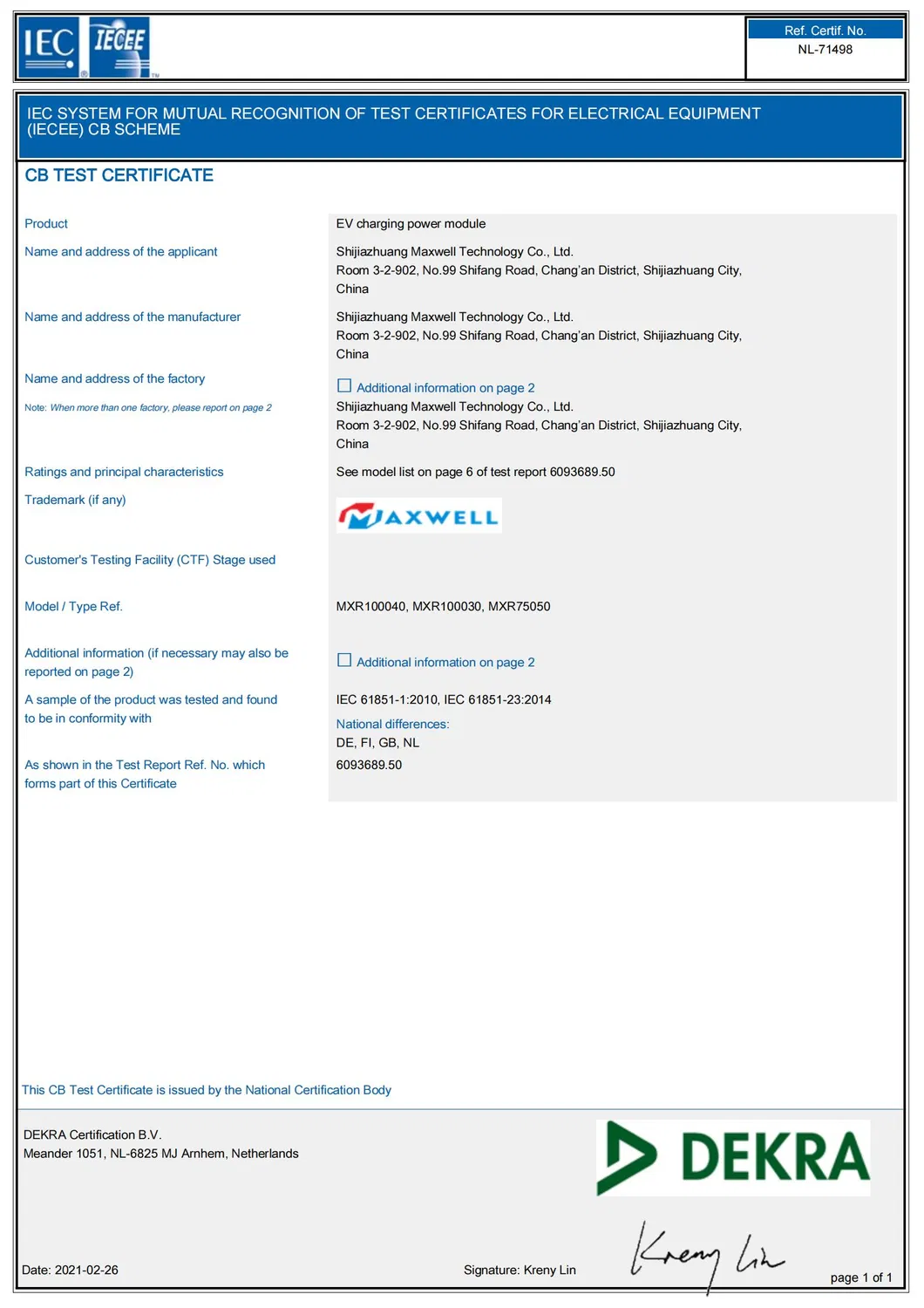

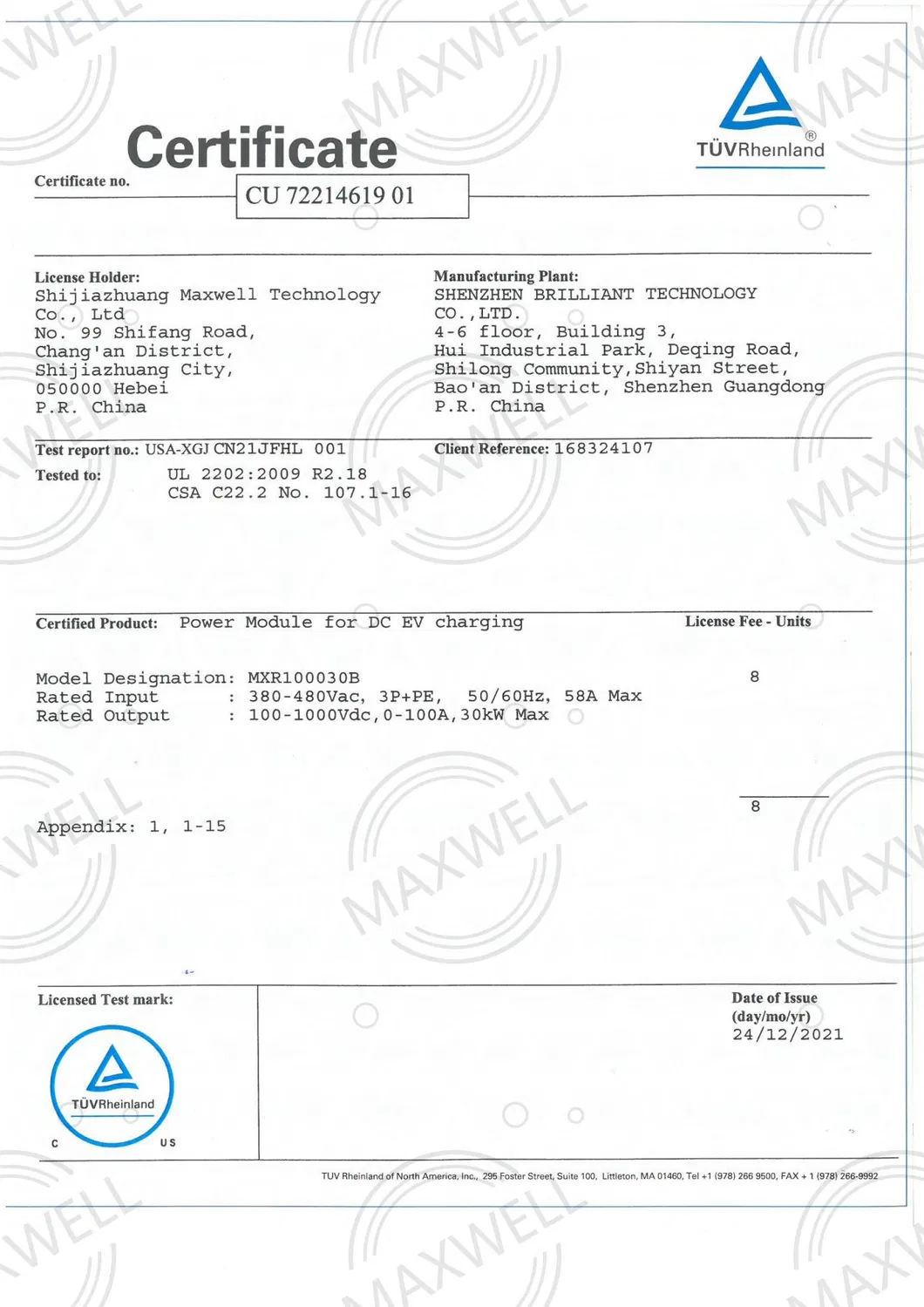

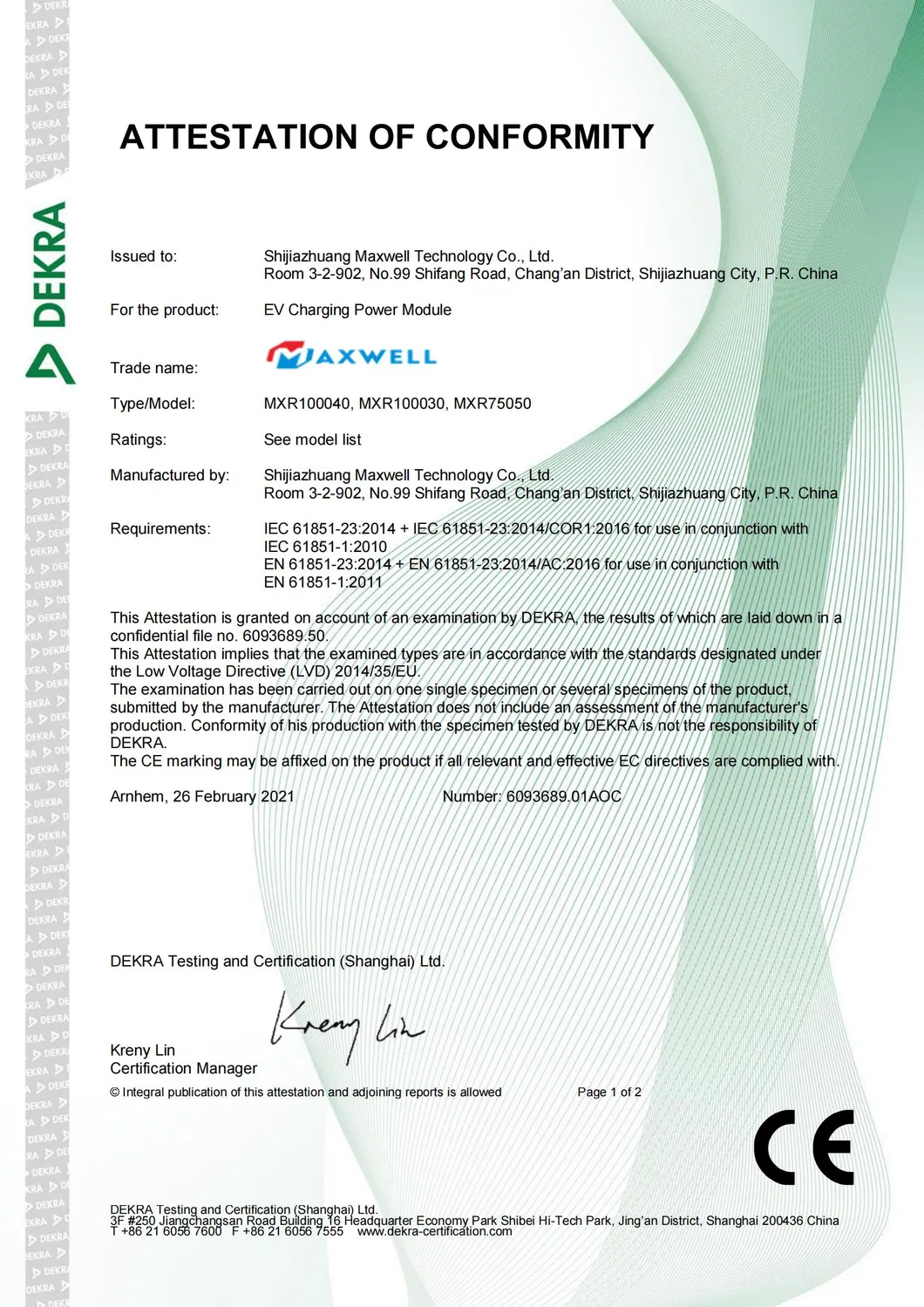

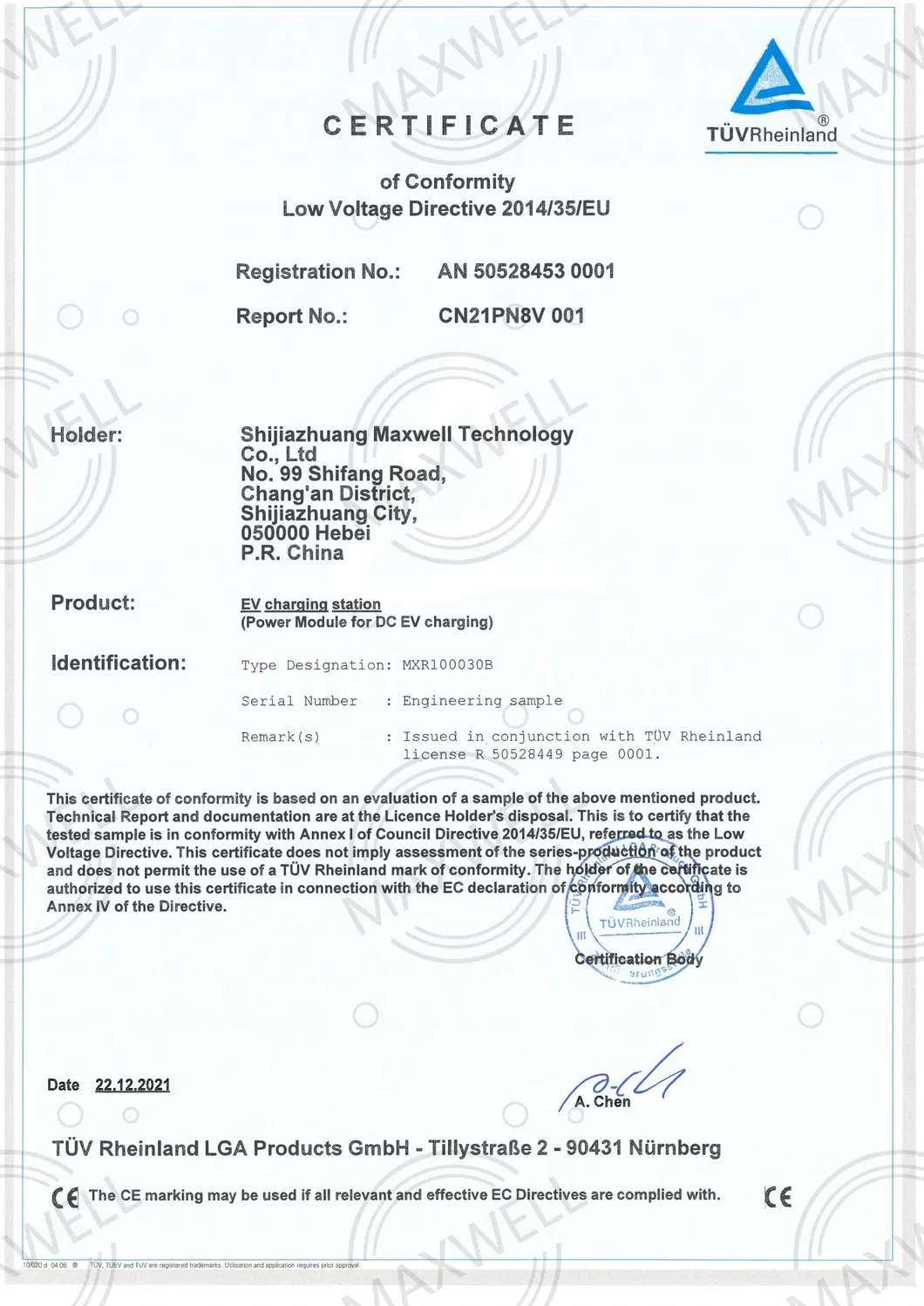

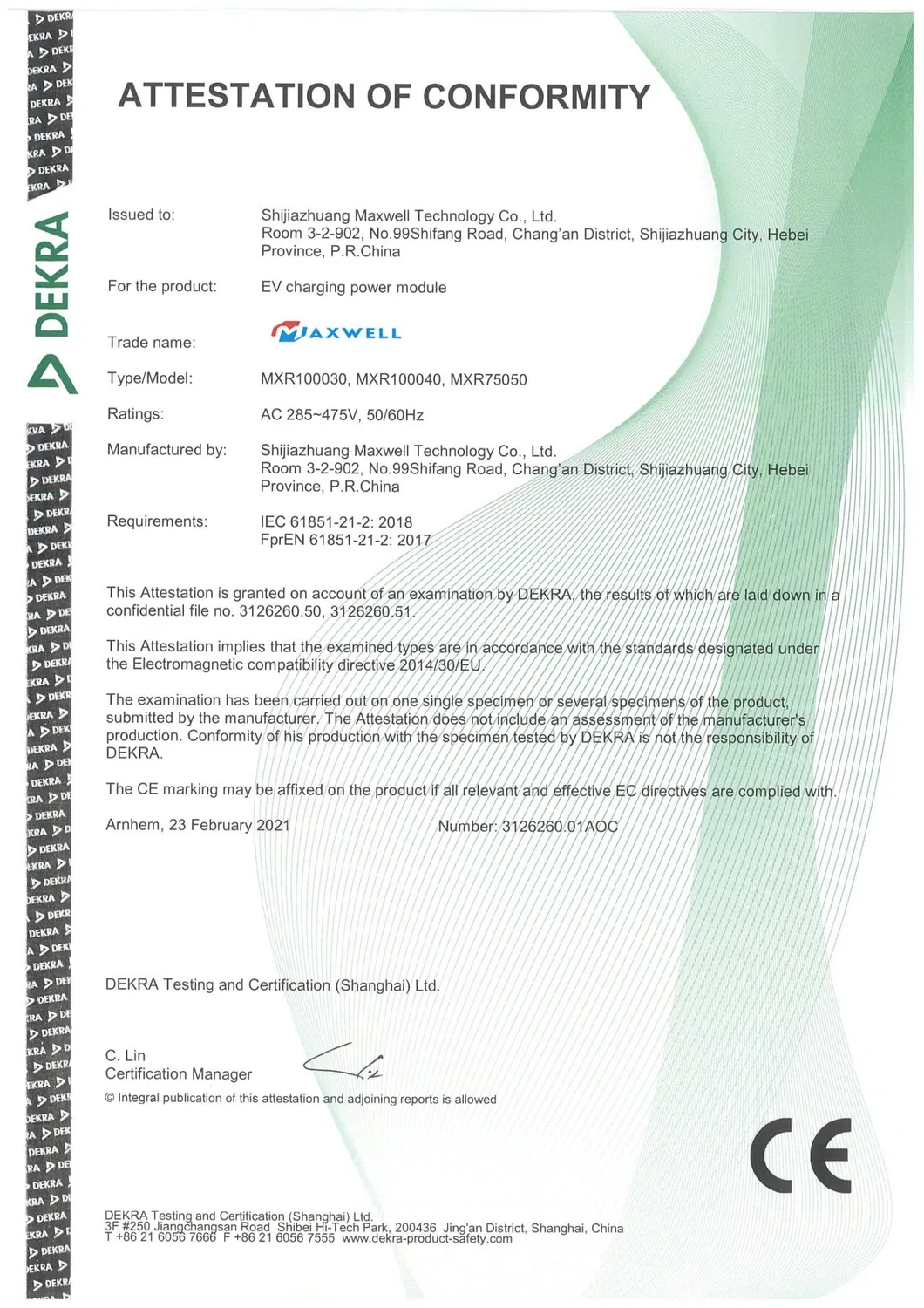

Certifications

Packaging & Shipping

Package Size

58.00cm * 46.00cm * 26.50cm

Gross Weight

33.250kg

Professional Expertise

As a state-level high-tech enterprise supported by local government initiatives, we focus on the research, development, production, and sales of power electronic products. Our mission is to provide mid-to-high-end DC power supply systems for global manufacturers. We hold independent intellectual property rights and maintain a strong commitment to technological innovation and professional marketing services.

✓

Over 12 years of experience in EV charger power modules and DC charging stations.

✓

Product range includes 15kW, 20kW, 30kW, 40kW, and 50kW series.

✓

Advanced R&D team with multiple national invention patents and software copyrights.

Frequently Asked Questions

What are the technical advantages of your charging modules?

Our modules feature digital controlled power, active PFC for a 0.99 power factor, and a wide voltage range (up to 1000V). They include soft-start functions and comprehensive protection for both input (over/under voltage, surge) and output (short-circuit, over-current).

Which charging standards do your products comply with?

Our products are designed to meet global standards including CCS-1, CCS-2, CHAdeMO, and GB/T, ensuring compatibility with a wide range of electric vehicles worldwide.

What kind of after-sales support do you provide?

We offer comprehensive technical training, including written materials and videos. Our technical team is available to assist with parts replacement, maintenance work, and urgent on-site support if required.

What are your typical delivery times?

Delivery is usually completed within 2 to 3 weeks after the order is confirmed, depending on the order volume and specific customization requirements.

What are the terms of payment and packing?

We generally accept T/T in advance or Irrevocable L/C at sight. Goods are packed in robust kraft cartons with pallets to ensure safety during sea or air transport.

Are your modules suitable for extreme environments?

Yes, the MXR100040 module is designed for an ultra-high full-load operating temperature range of -40°C to +75°C, making it highly reliable for various outdoor public use scenarios.
