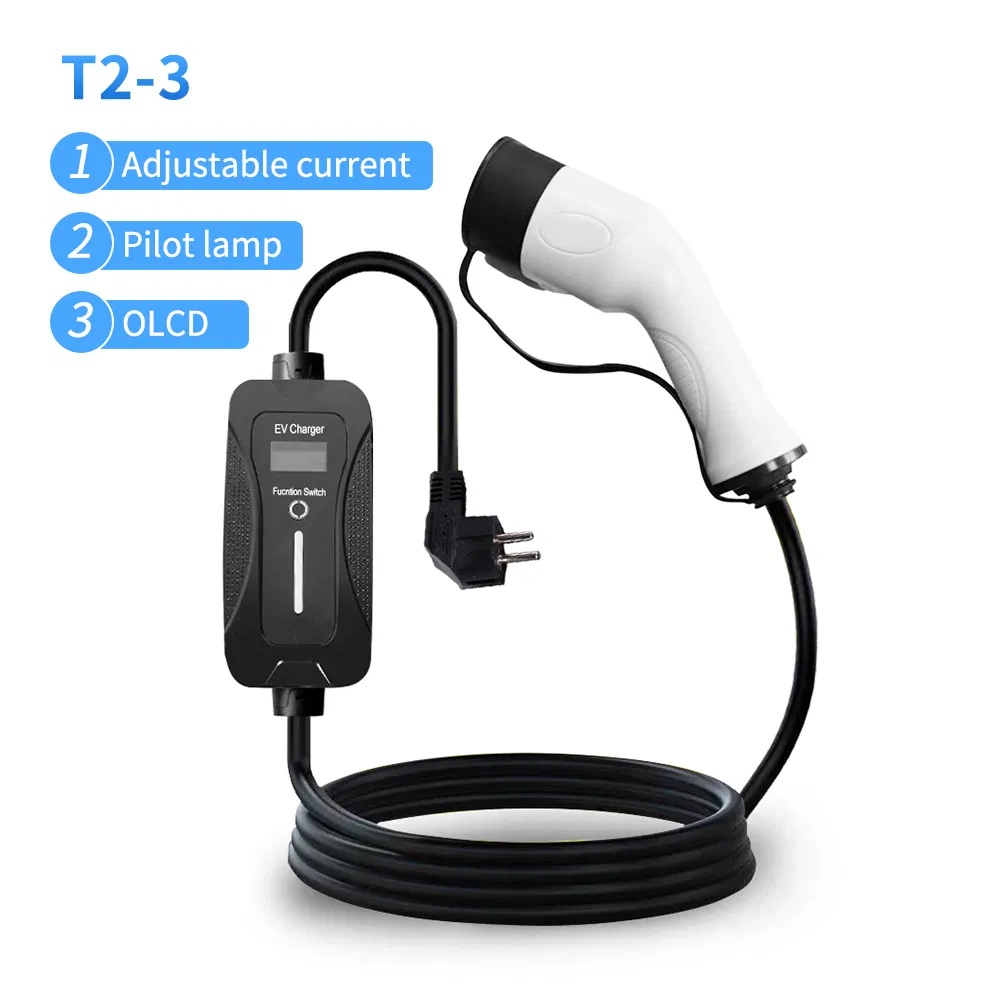

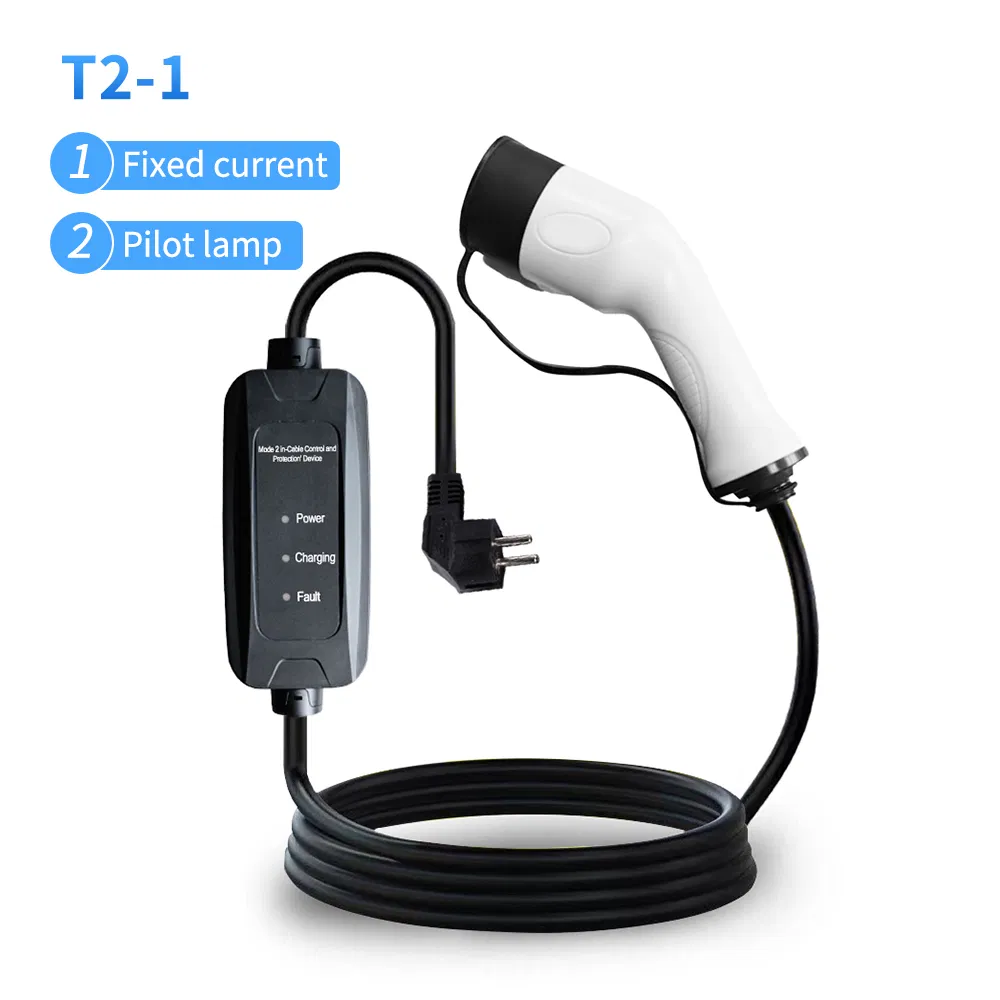

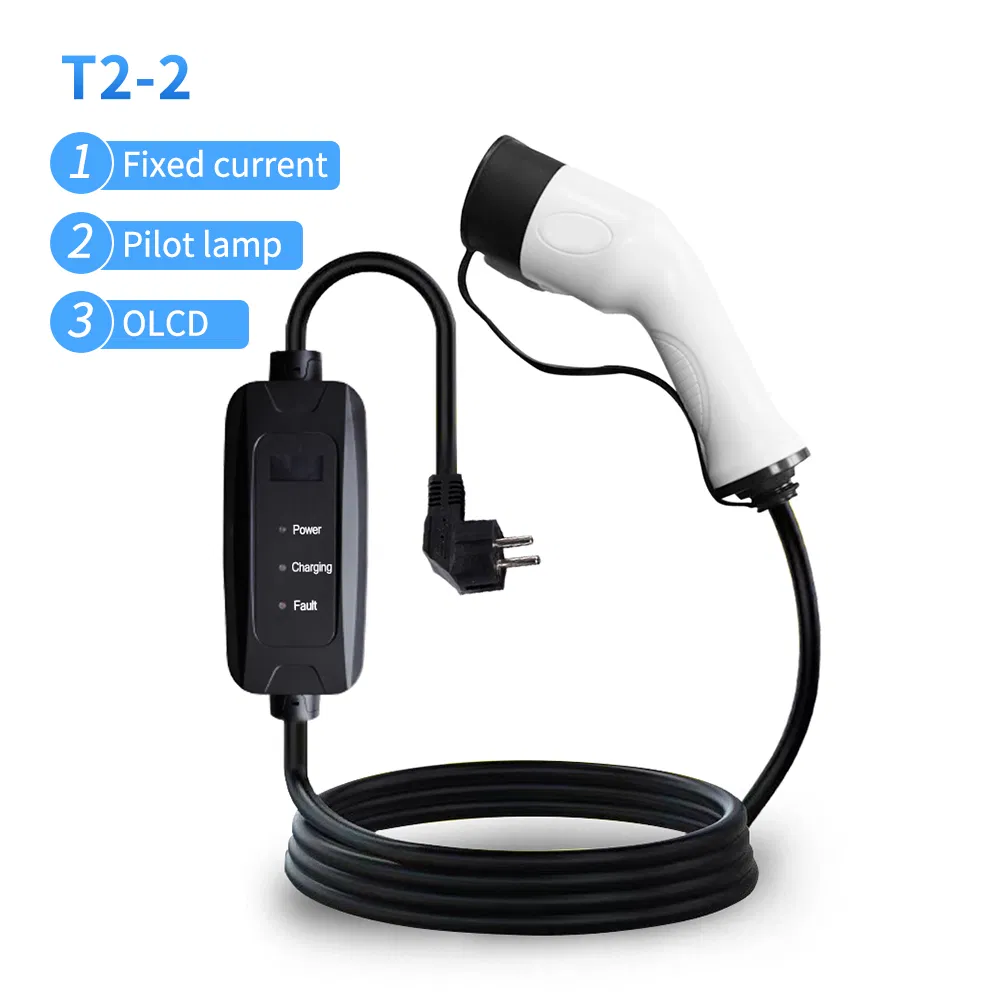

Mode2 Portable EV Charger 16A Type2 Car Charger with Control Box

1 / 5

Mode2 Portable EV Charger 16A Type2 Car Charger with Control Box

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

Interfaces

One Pile with One Charge

Rated Current

16A/32A

Operation Voltage

250V

Insulation Resistance

> 500mohm (DC500V)

Withstand Voltage

1500V

Operating Temp

-30°C to +50°C

Type

Fast EV Charging Station

Certification

CE, ISO, TUV, RoHS

Capacity

10000PCS/Month

📸

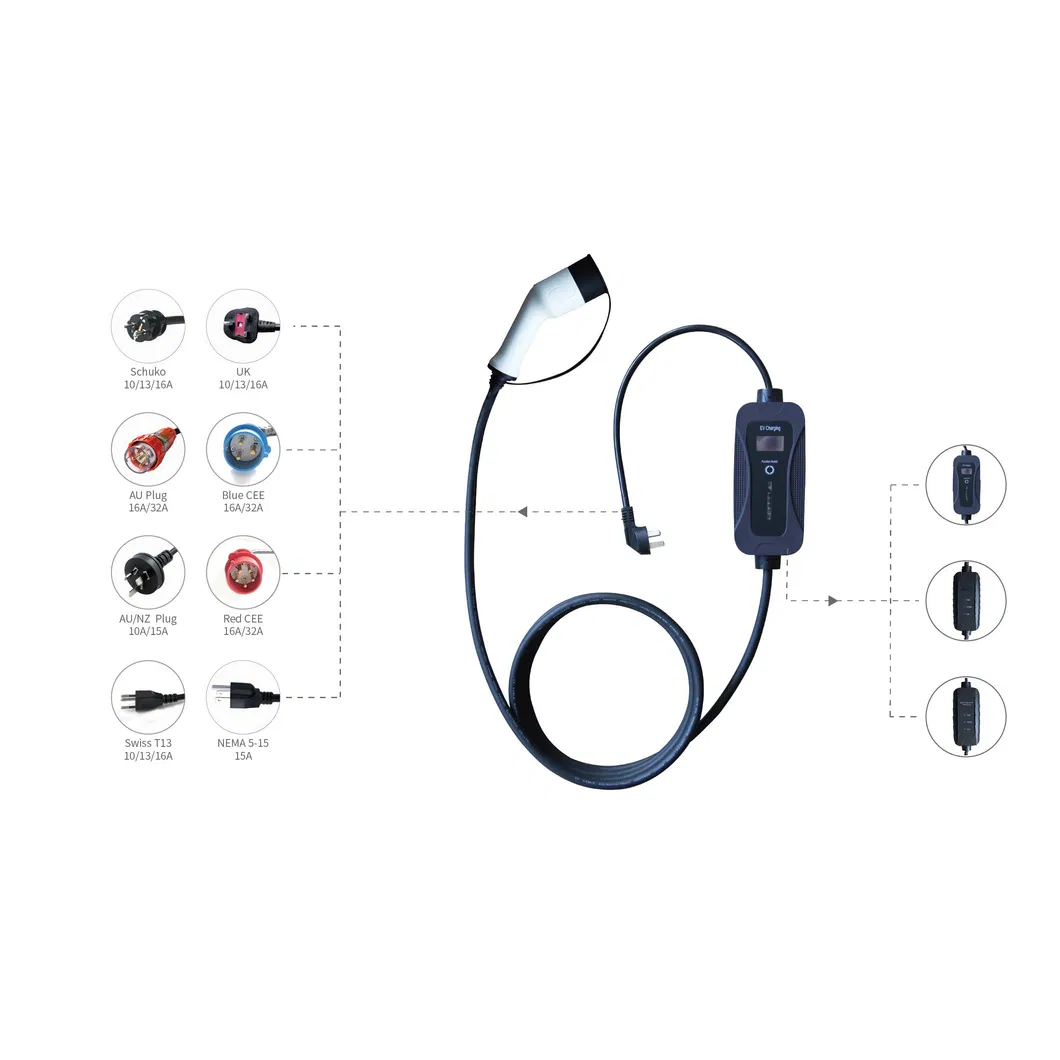

Detailed Product Gallery

⚙️

Technical Parameters

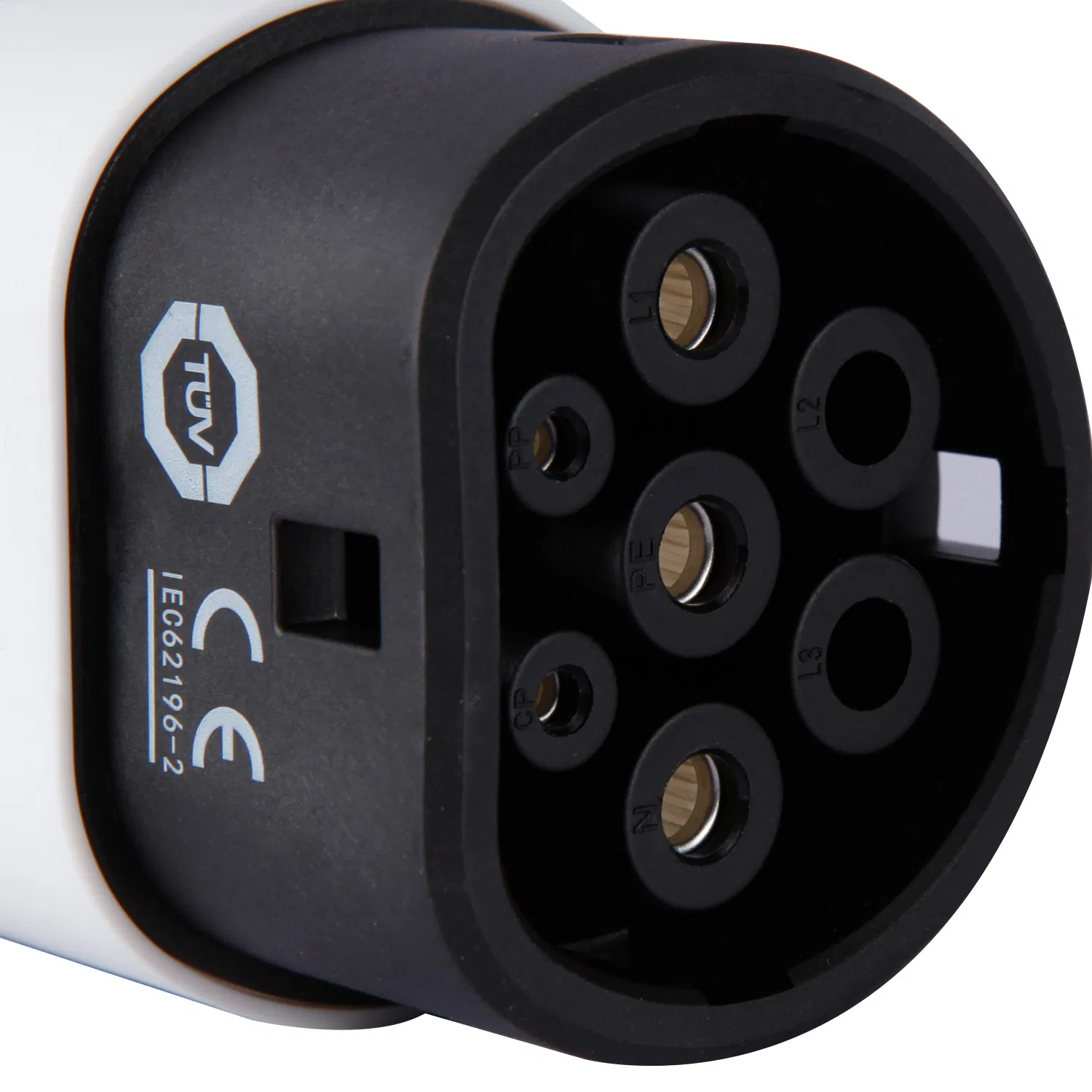

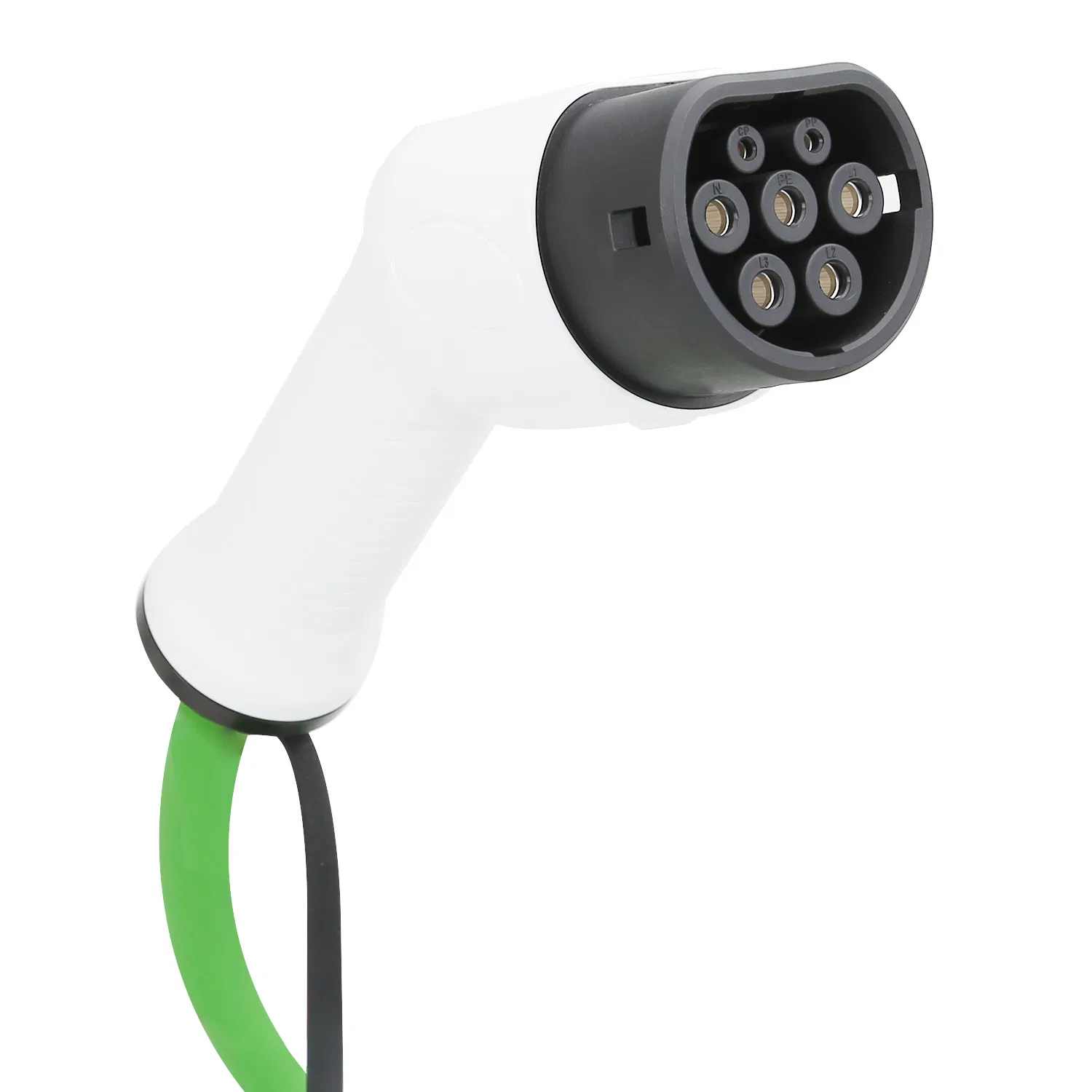

Product Name	IEC 62196-2 Model 2 Charger
Mechanical Life	No-load plug in/out > 10000 times
Coupled Insertion Force	45N ~ 100N
Case Material	Thermoplastic, flame retardant UL94 V-0
Terminal	Copper alloy, silver plating
Control Box Functions	• Leakage protection • Over/Under-voltage protection • Overload protection • Lightning protection • Ground protection • Over-temperature protection

⚡ Easy Use: Charge at home, work, or anywhere with a socket. No installation required. Plug and charge functionality.

🛡️ Safety First: Designed for IEC 62196 standards. Features automatic detection and correction for voltage, current, frequency, and temperature fluctuations.

🏭

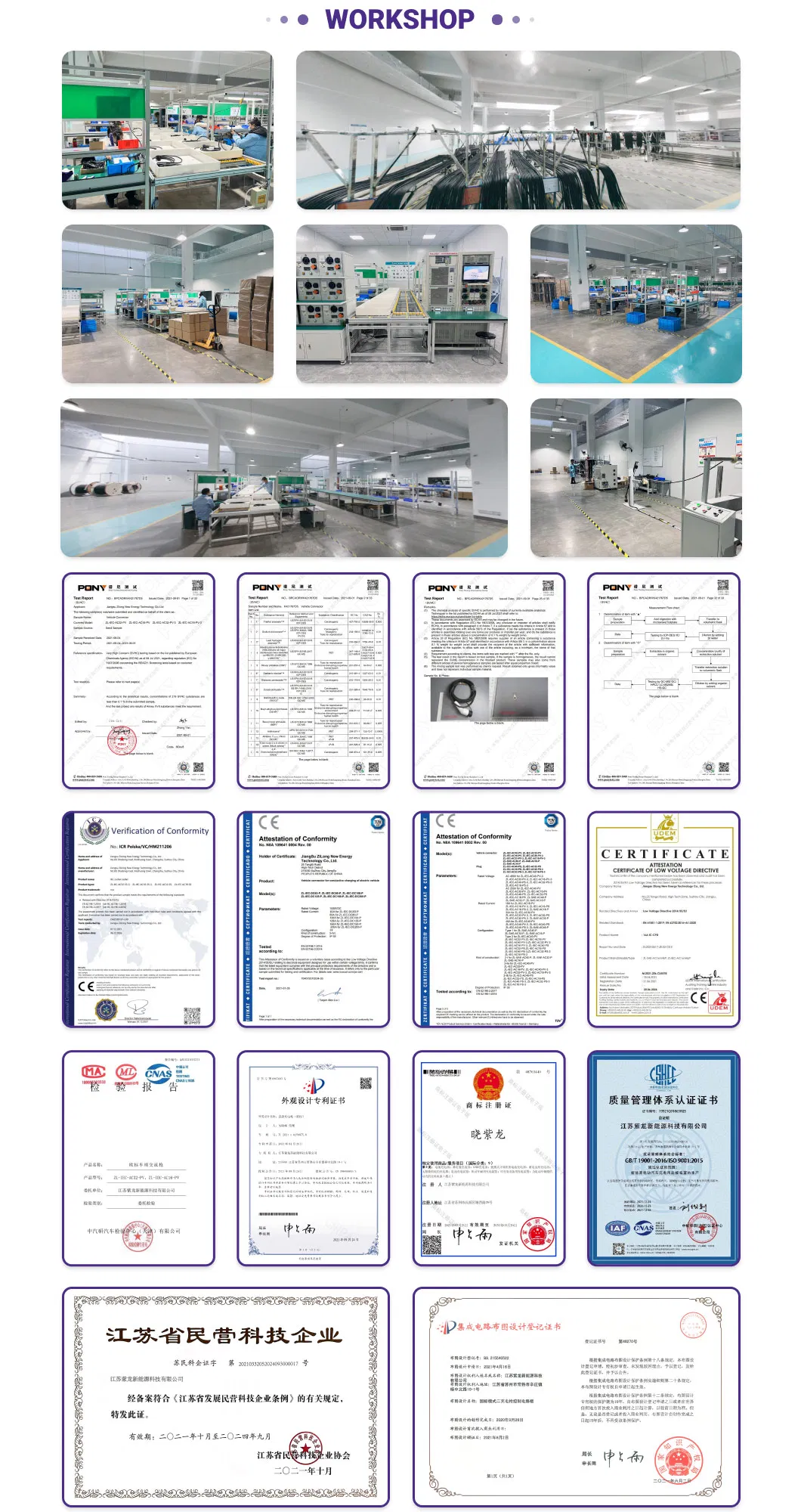

Production & Quality Control

📦

Packaging & Logistics

Package Size

42.50cm * 42.50cm * 41.00cm

Gross Weight

14.050kg

Transport

Standard Carton Box

❓

Frequently Asked Questions

Is this charger compatible with my electric vehicle?

This charger is designed for electric cars using the IEC 62196-2 standard, which is widely compatible with most European and international EV models.

Do I need a professional electrician for installation?

No installation is required. It is a portable "plug and charge" solution that can be used with standard power sockets.

What safety protections are included in the control box?

The unit includes comprehensive protection against leakage, overvoltage, undervoltage, overload, lightning, grounding issues, and over-temperature.

Can I use the charger in extreme weather conditions?

Yes, the charger is rated for operation in temperatures ranging from -30°C to +50°C.

What is the maximum charging speed?

This car charger offers a maximum charging speed of up to 3.6 kW per hour, depending on your vehicle's onboard charger and power source.

What is the mechanical lifespan of the plug?

The plug is designed for high durability, supporting more than 10,000 cycles of no-load plugging in and out.
