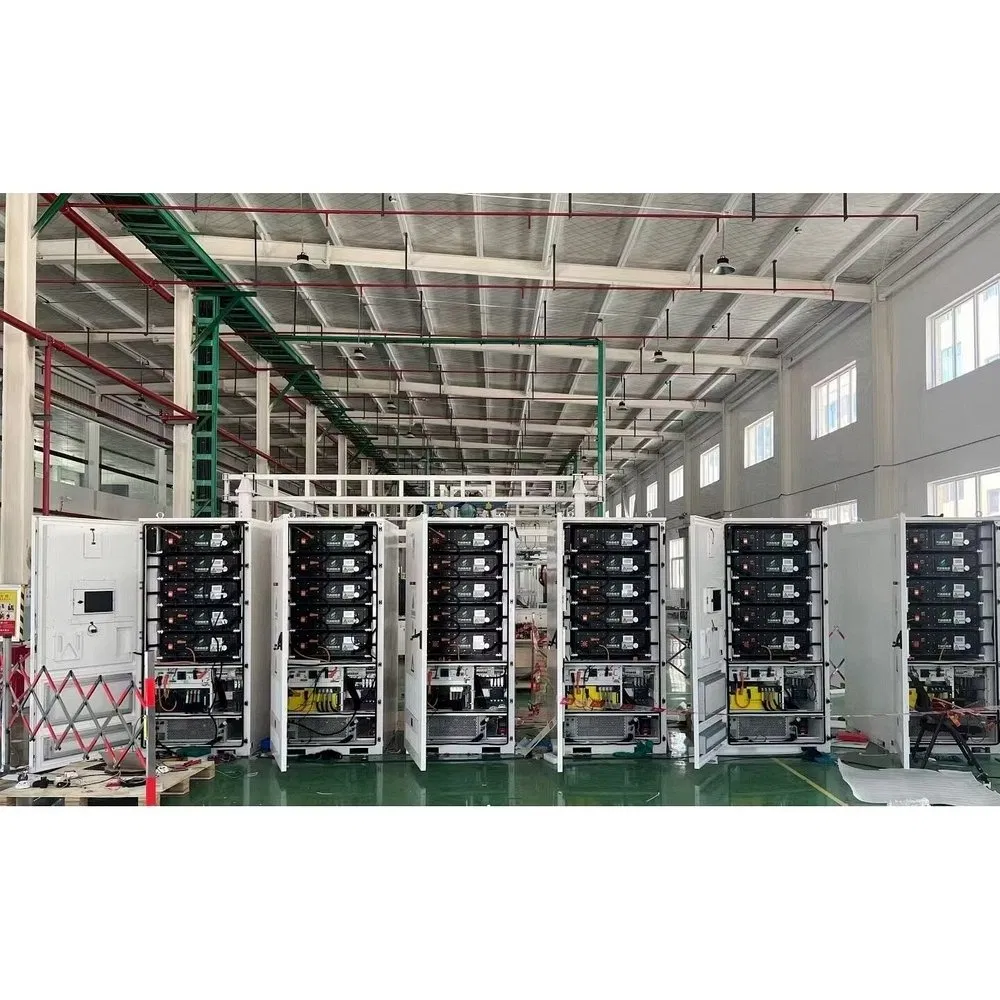

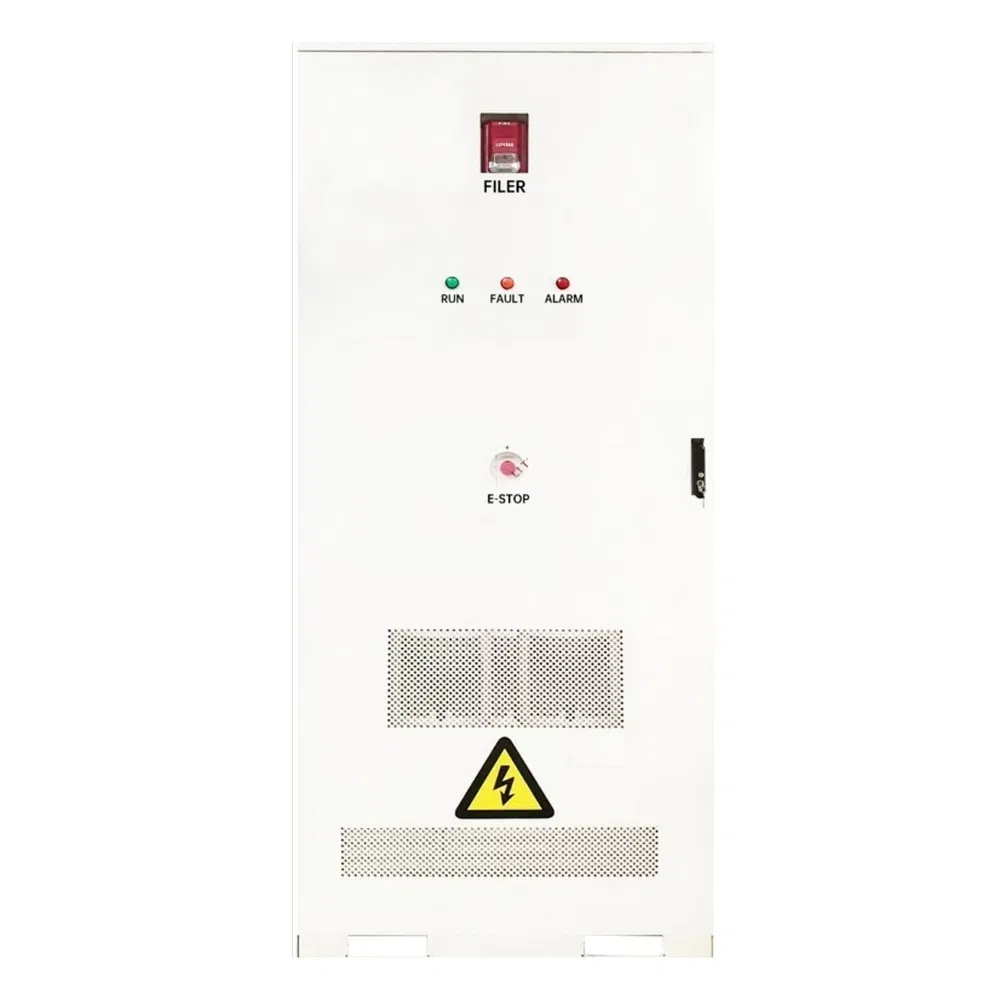

COMMERCIAL & INDUSTRIAL ENERGY STORAGE CABINET
These systems adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability—critical for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh, with high usable energy ratios, meeting diverse power demand scenarios.
The electrical parameters are optimized for industrial grids. Nominal DC voltage spans 358.4V to 832V, with corresponding voltage ranges to adapt to different grid conditions. Most models feature 100KW rated power and AC 400V rated voltage, compatible with standard industrial power systems.
| Parameter | Value |
|---|---|
| Product Name | WRES-CI-25-261/125 |
| Total Energy (kWh) | 261 |
| Usable Energy (kWh) | 245.57 |
| Nominal Voltage (Vd.c) | 832 |
| Voltage Range (Vd.c) | 728~936 |
| Rated Capacity (Ah) | 314 |
| Max. Output Current To Grid (A) | 200 |
| Nominal Grid Voltage (V) | 230/400V, 3L+N+PE |
| Maximum Efficiency | 99% |
| Cycle Life | ≥8000 @ 25℃ |
| Dimension (W*H*D) (mm) | 1055*2300*1300 |
| Weight (KG) | 3180 |

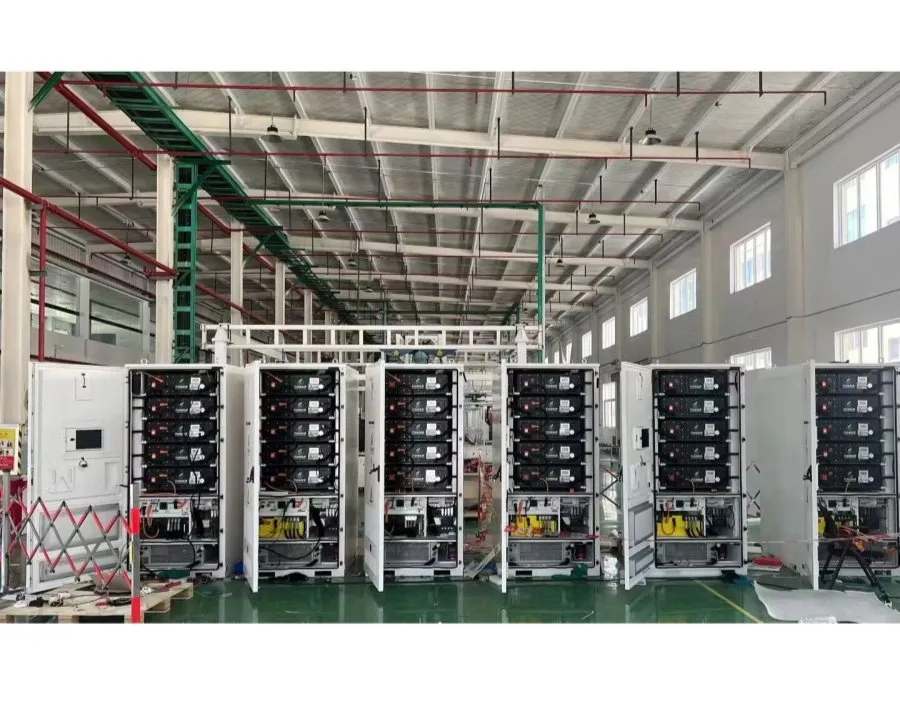

Economic Value: Tailored to business scales, these systems enable effective tariff arbitrage for manufacturing and logistics sectors.
Safety & Reliability: Adopting Lithium Iron Phosphate batteries with excellent thermal stability and long cycle life minimizes downtime risks.

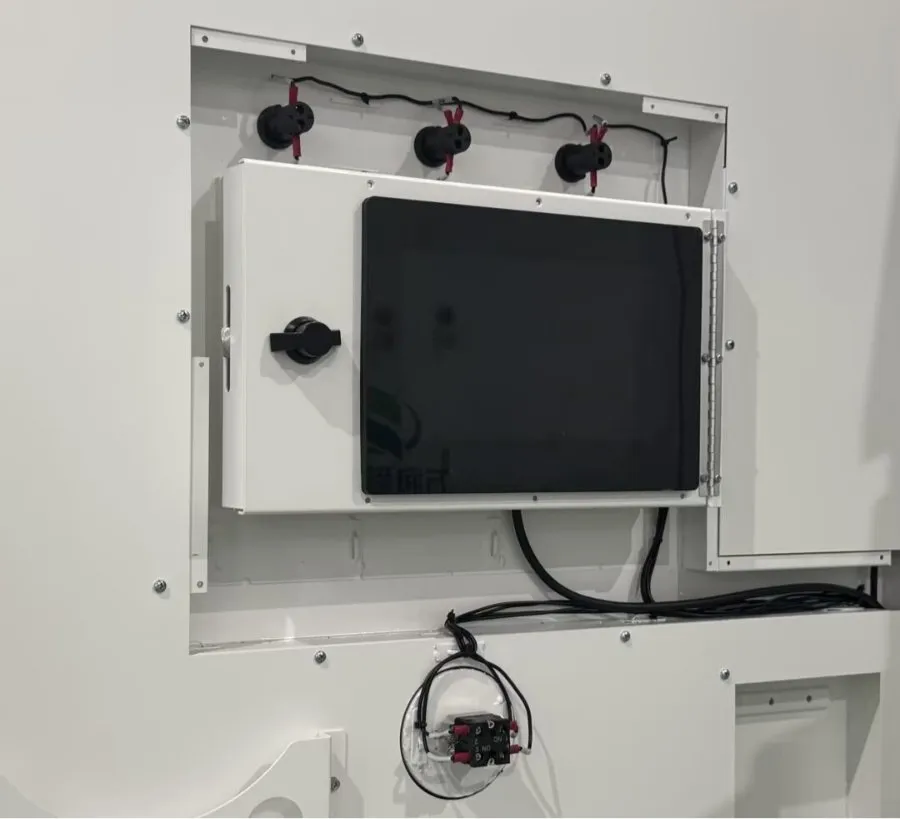

Sustainability: Lower carbon emissions by reducing reliance on fossil-fueled grid power and maximizing on-site renewable energy.
