Mxc75027 Bidirectional 20kw DC/DC EV Charging Module for DC Fast Charger

Customization:	Available
Type:	Fast EV Charging Station
Weight:	<12kg

Basic Information

Model NO.	MXC75027
Noise	<60dB
Protection Level	IP20 (Unit Module)
After-Sales Service	Online Support and Site Guidance
Certification	CE, ISO, TUV, RoHS
Warranty	12 Months
Specification	22686575
HS Code	8504409999
Production Capacity	300,000 pieces/Year

Product Description

MXC75027 is a charging power module developed for the evolving charging pile industry. It features prominent advantages in ultra-high full-load operating temperature and an ultra-wide constant power range. Key characteristics include high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.

Product Parameters

⚡ Charging Part

DC Bus Side Parameters
DC bus voltage range	600Vac-850Vac
DC bus current	≤32A
Battery Side Parameters
Output voltage	200-750VDC
Output rated current	40A
Output Rated power	20KW
Charging efficiency	97% max
Voltage stabilized accuracy	±0.5%

🔄 Discharge Part

Battery Side Parameters
Battery voltage range	200-750VDC
Battery current	40A Max
DC Bus Side Parameters
DC bus voltage range	600Vac-850Vac
Output Rated power	20KW
Effectiveness	97% max

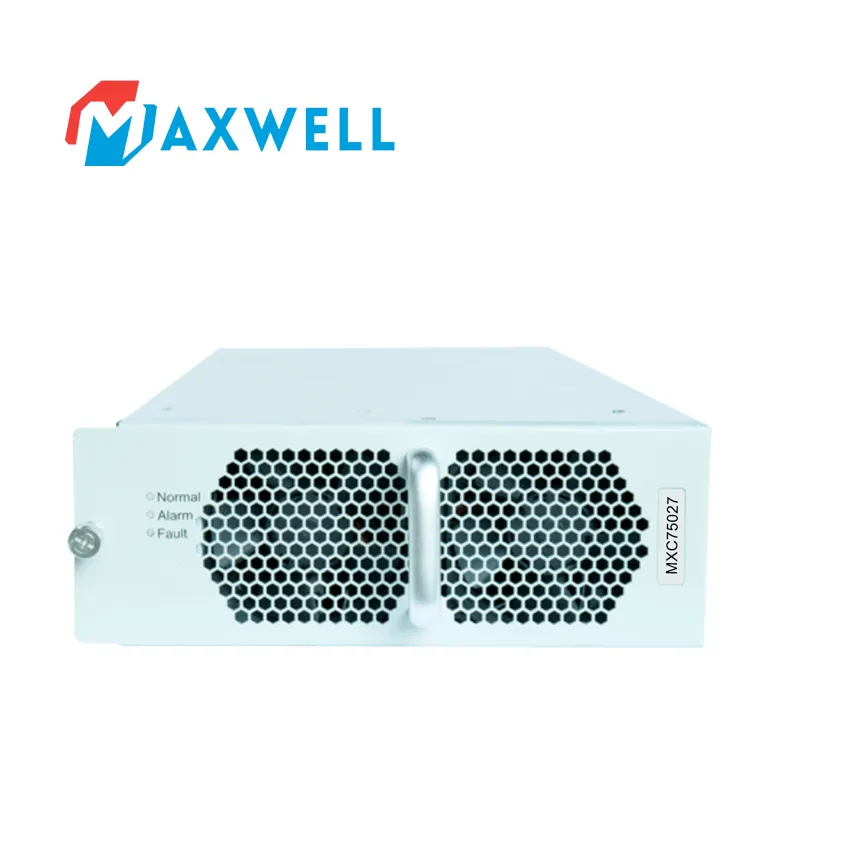

Detailed Photos

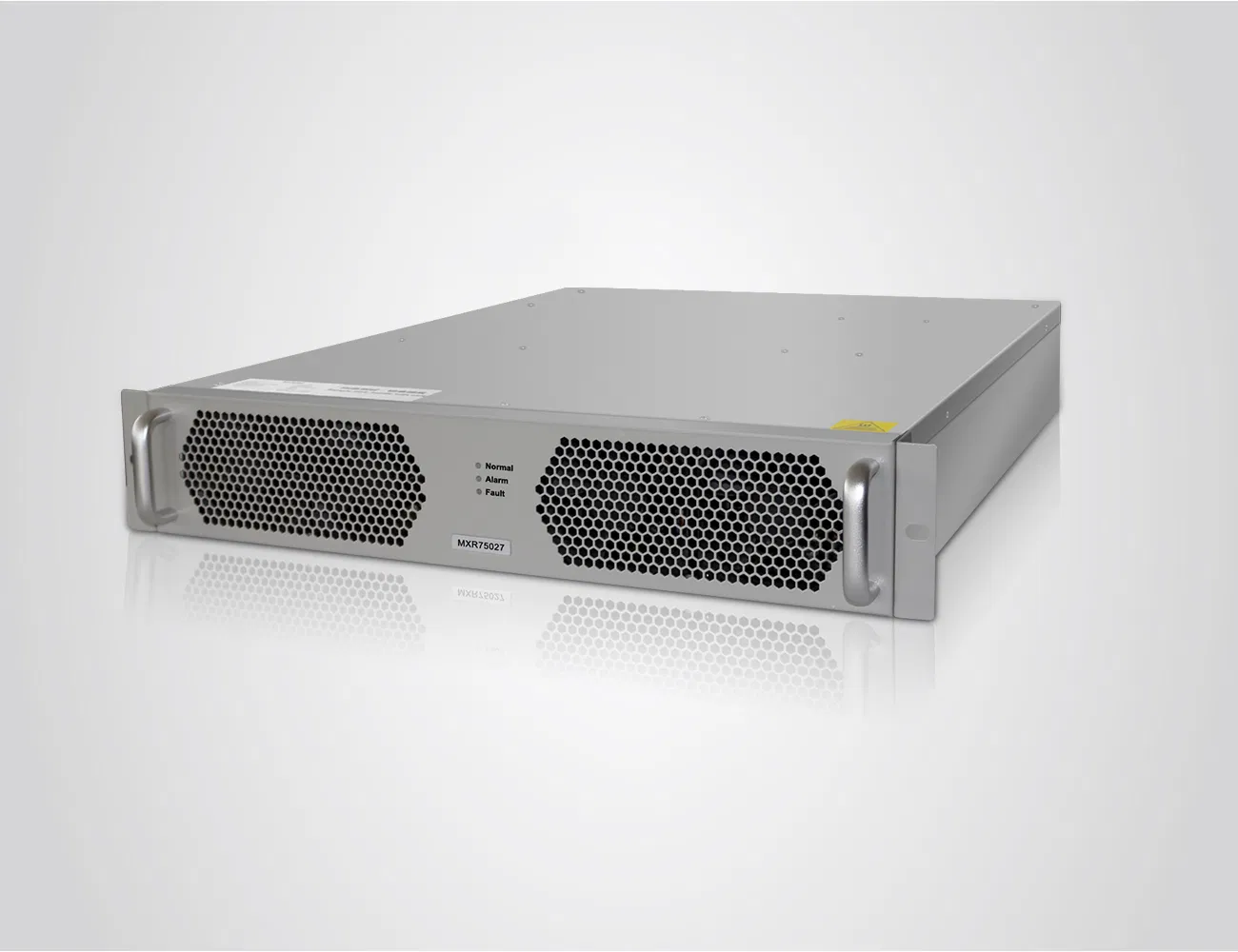

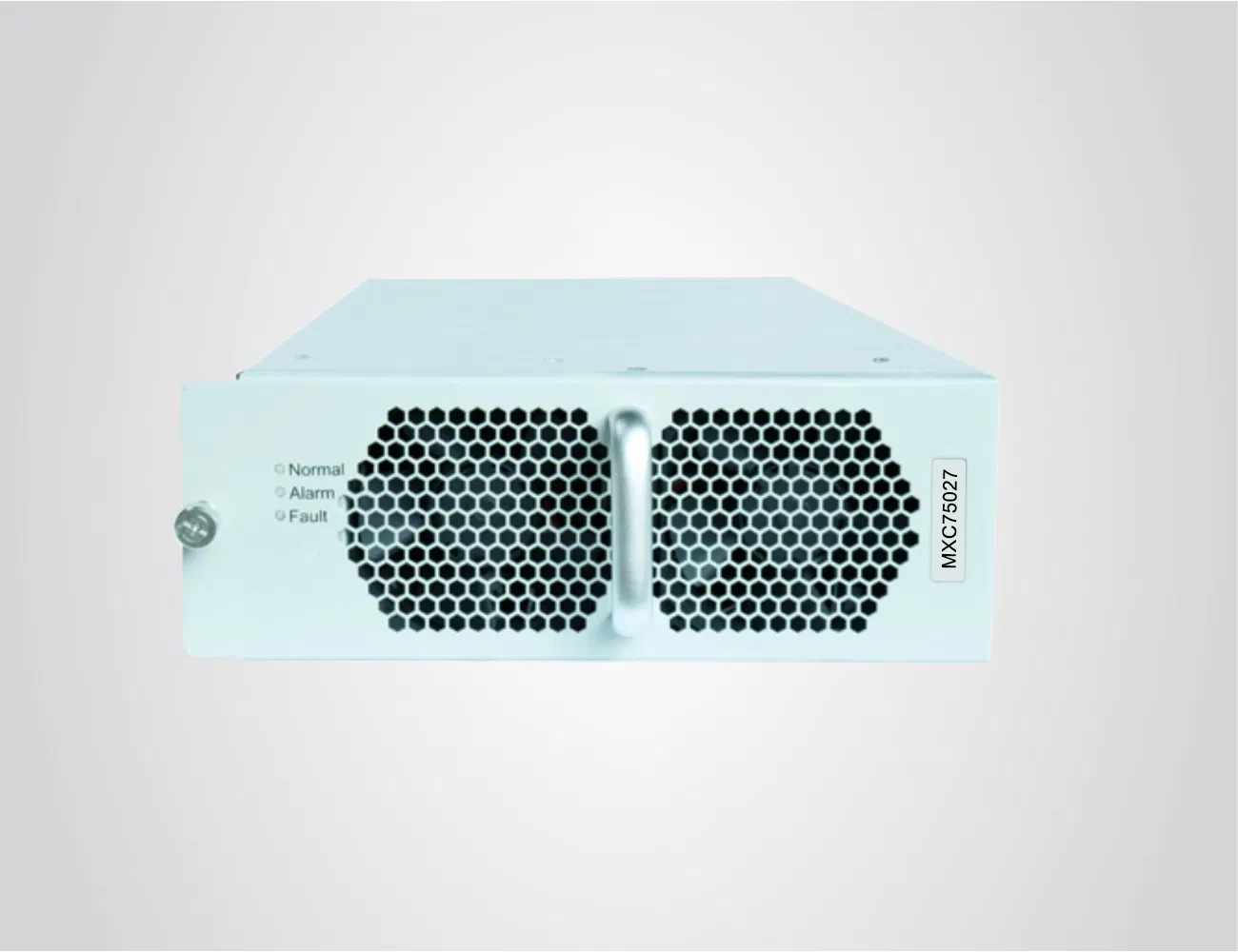

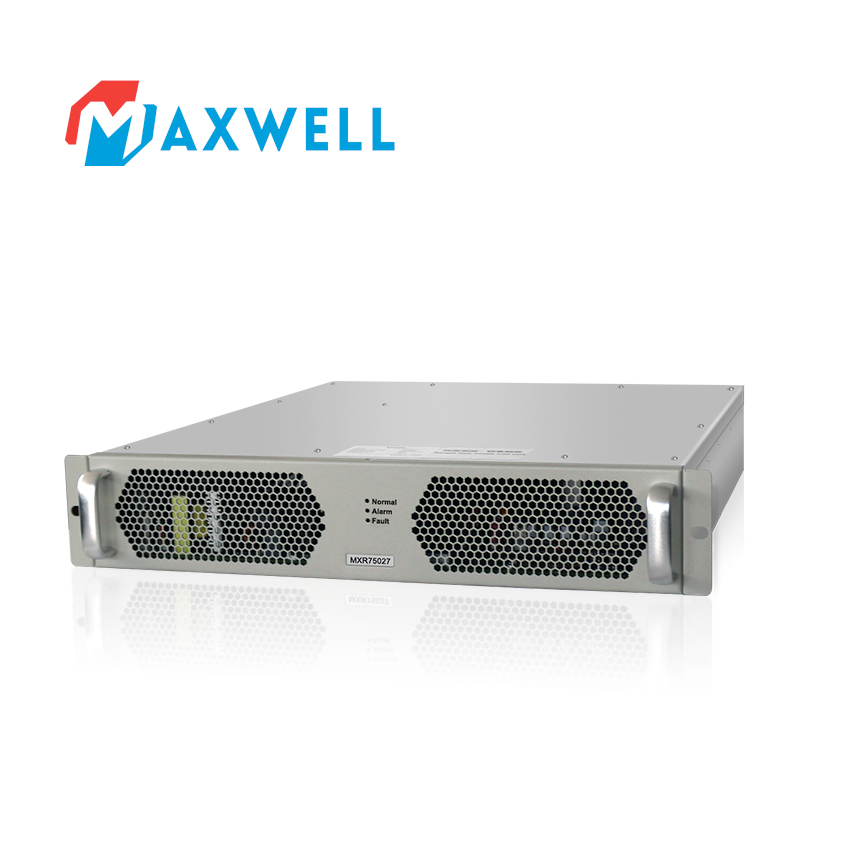

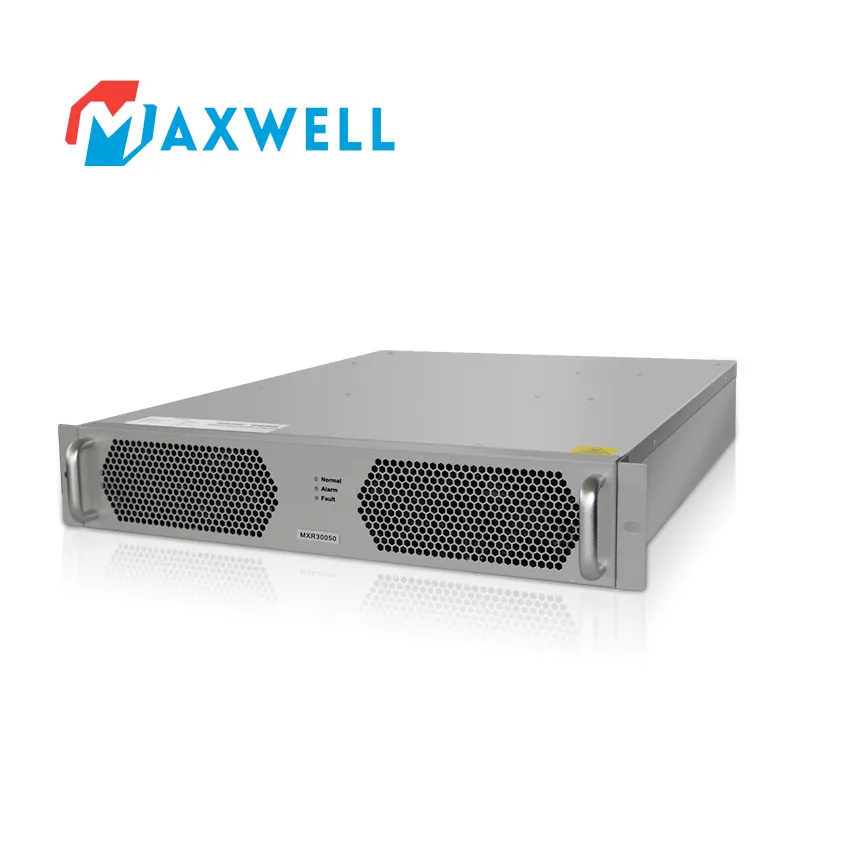

Bidirectional 20kw DC/DC EV Charging Module

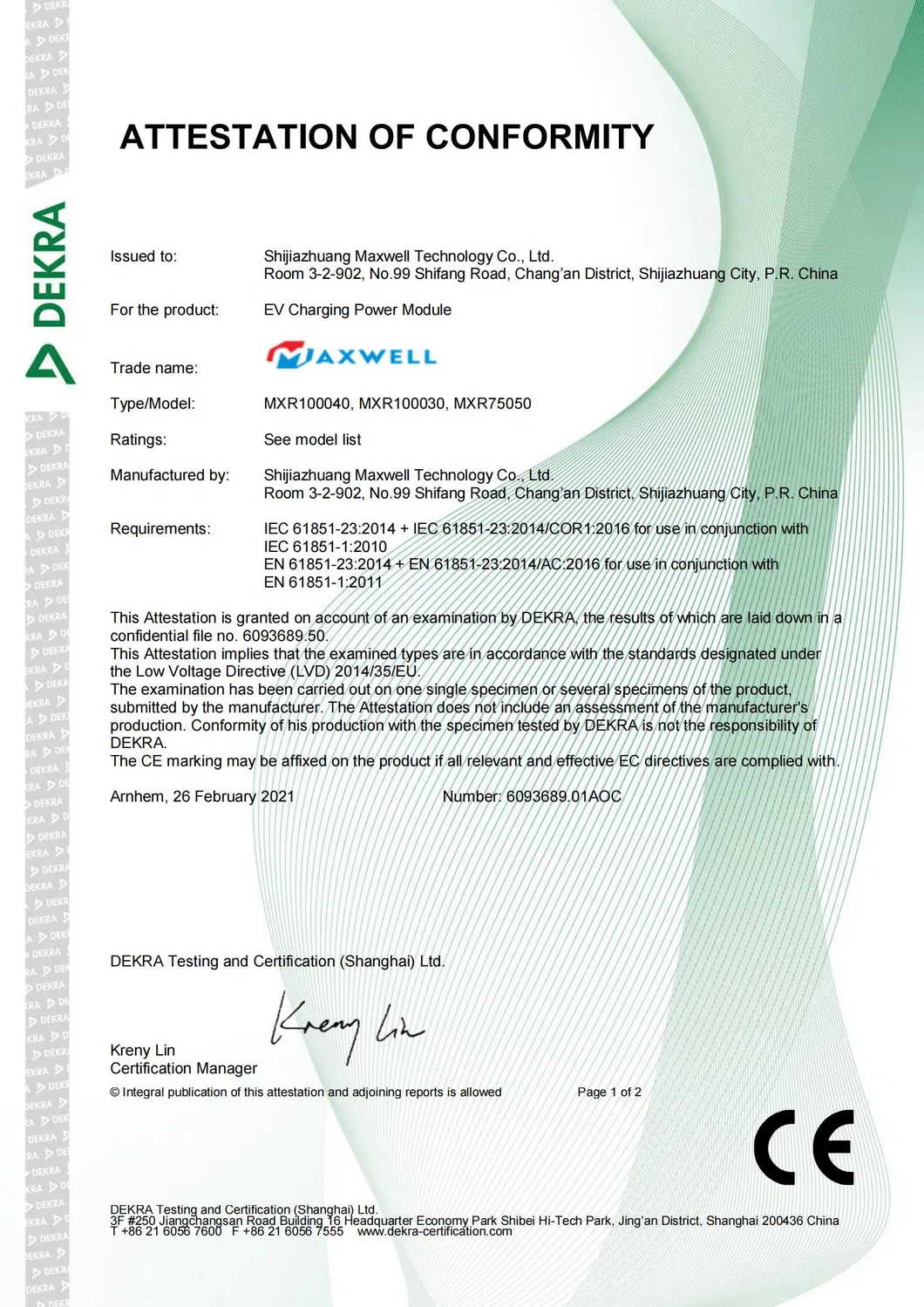

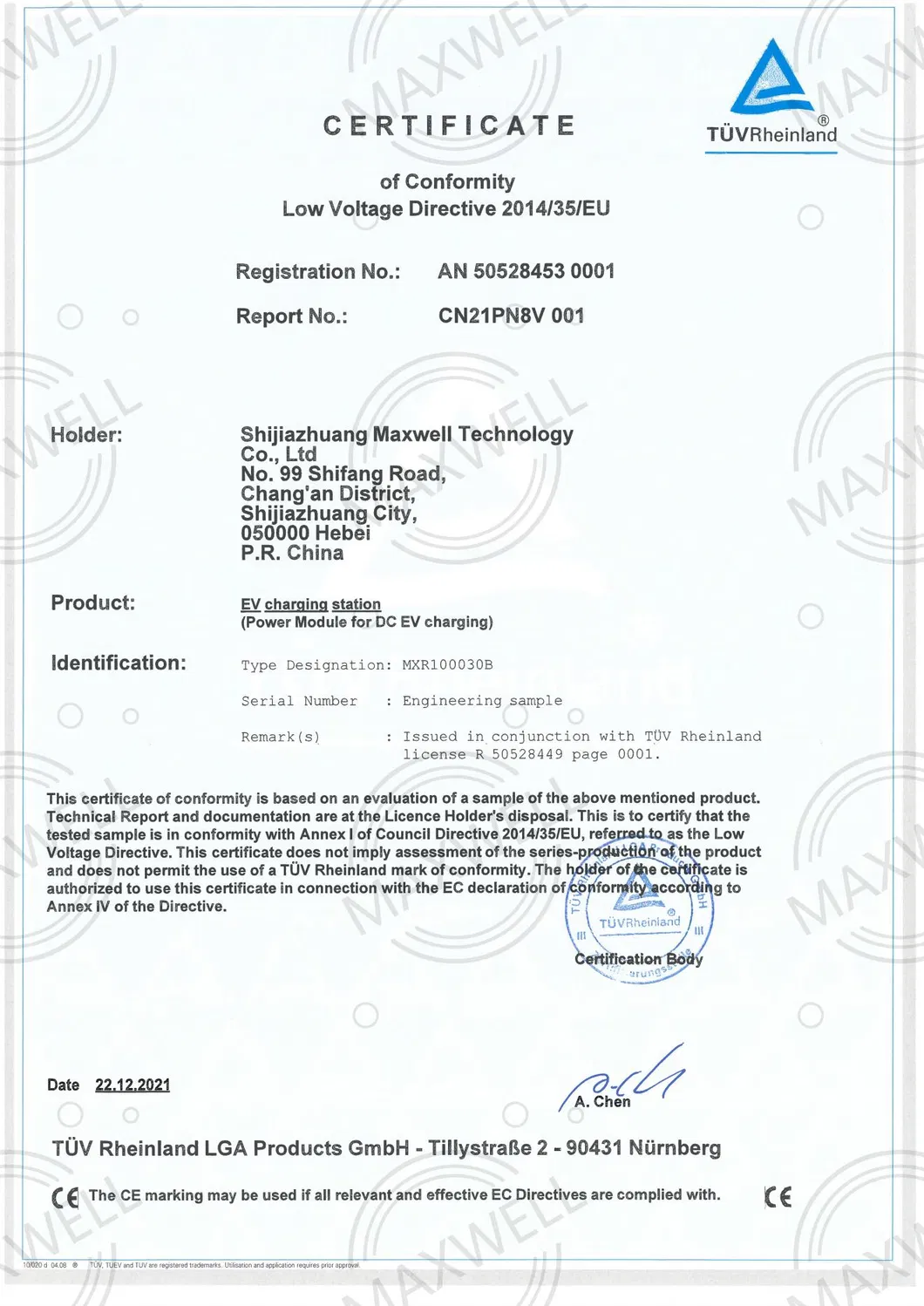

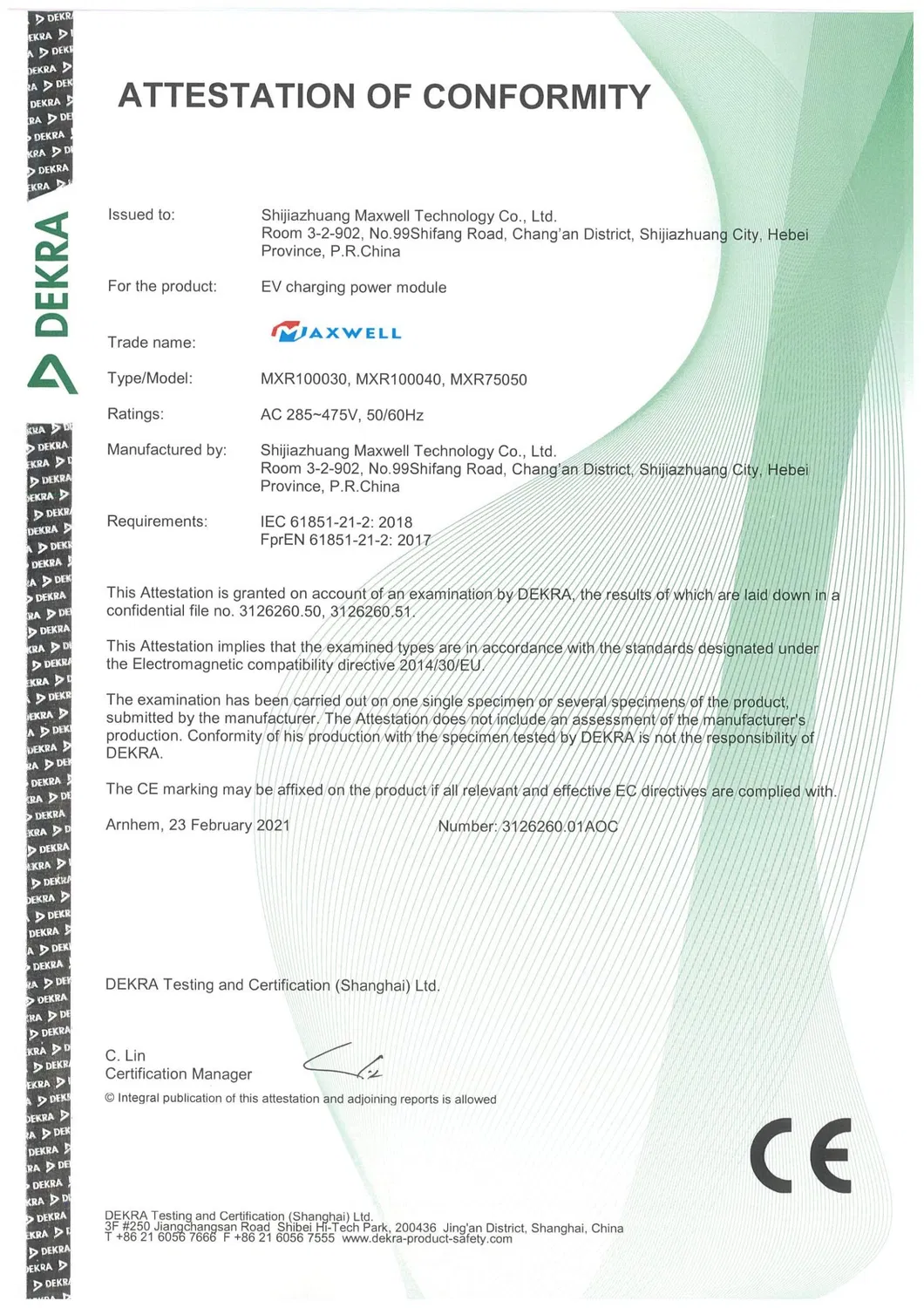

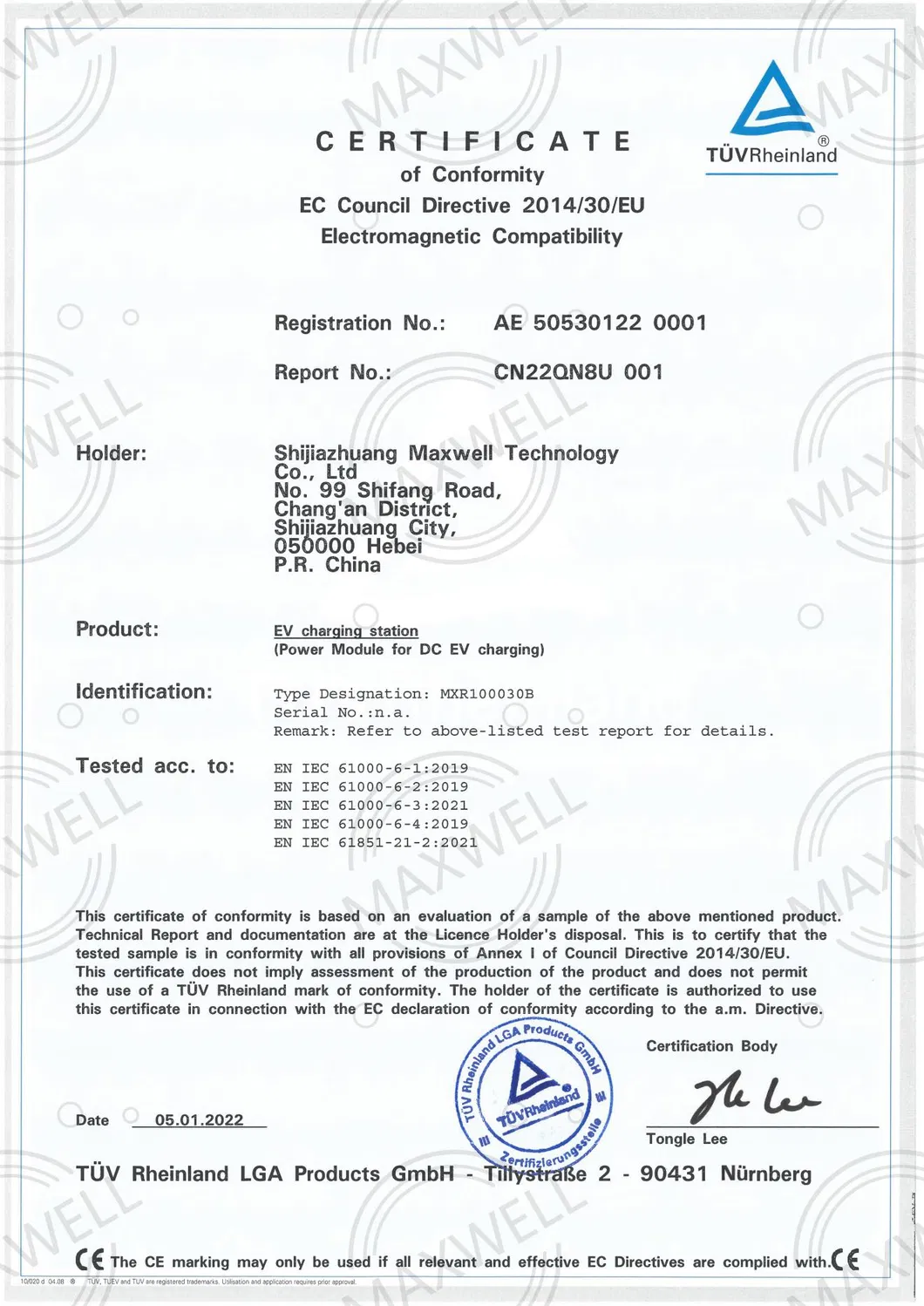

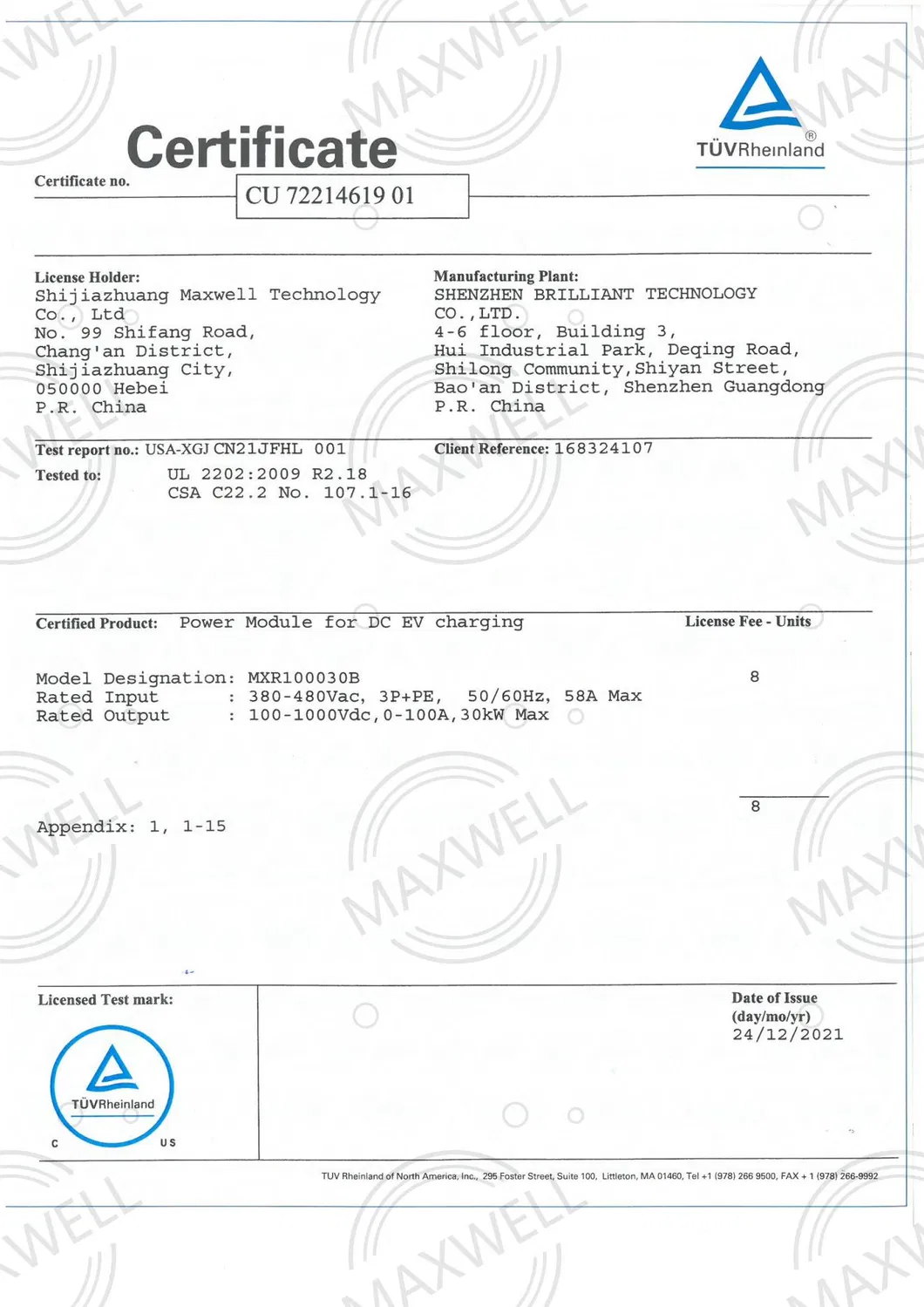

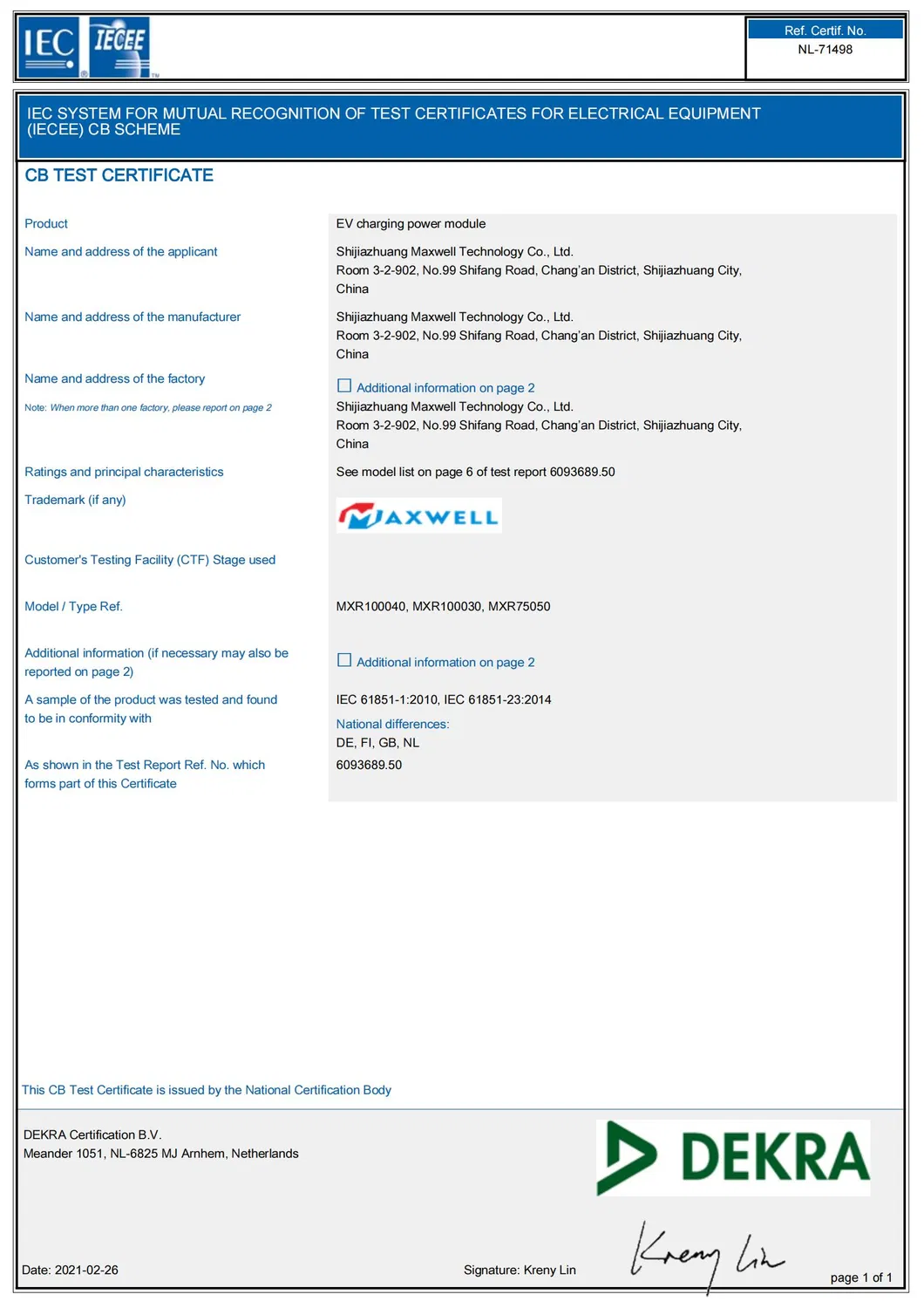

Certifications

Packaging & Shipping

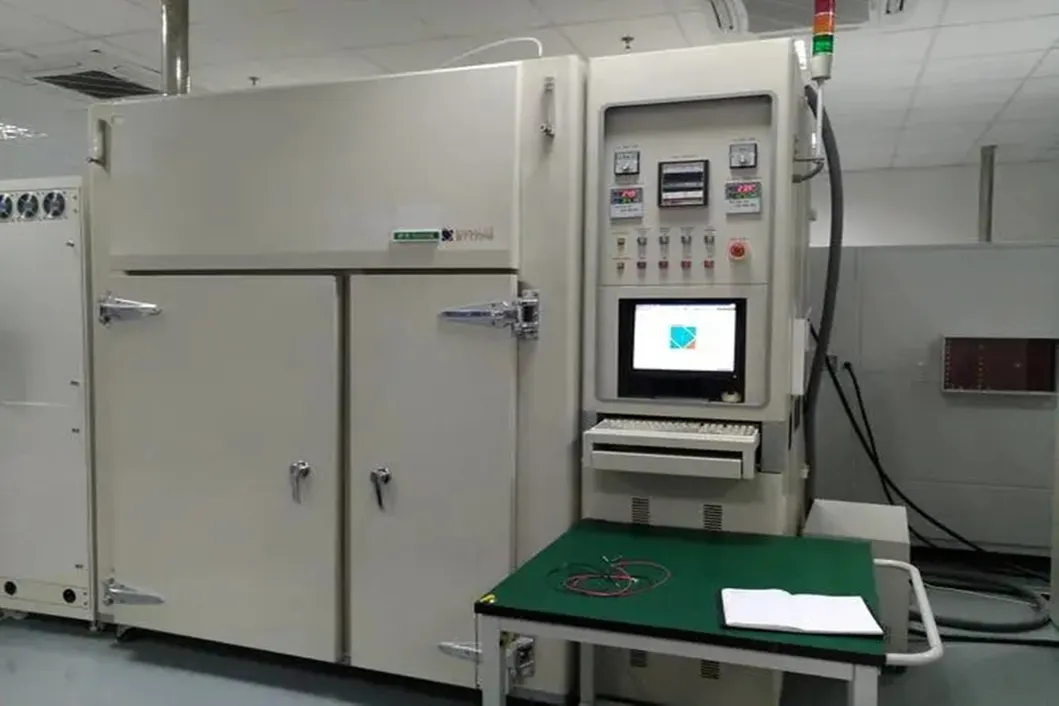

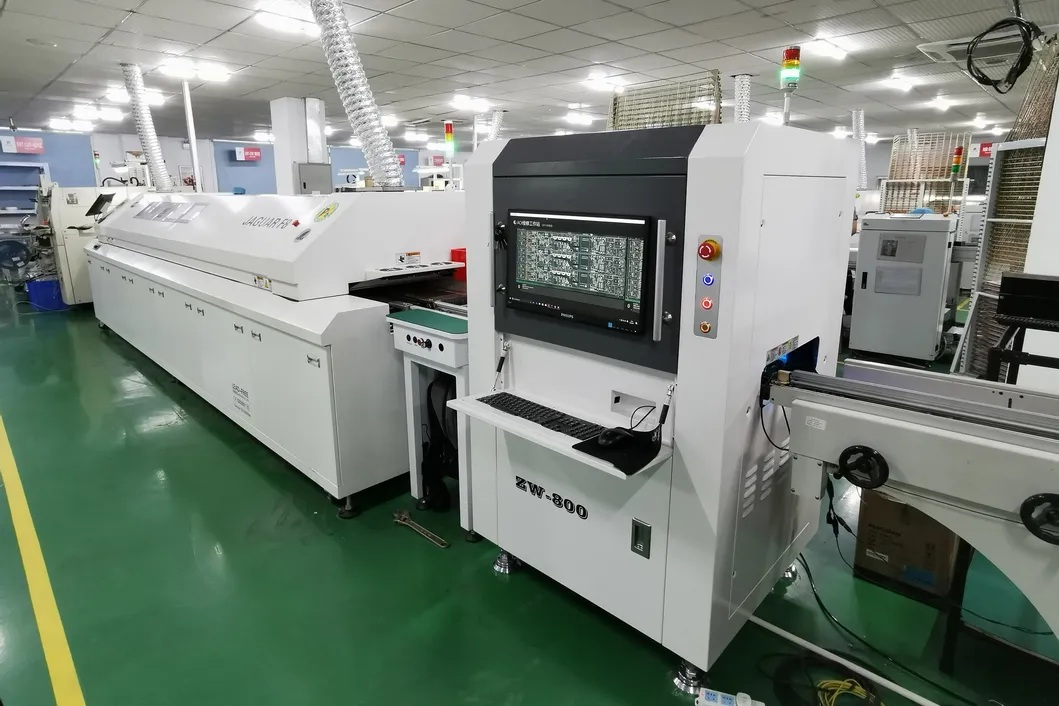

Company Profile

Our company is a state-level high-tech enterprise and one of the leading developers of new energy and energy internet technology. We focus on the research and development, production, and sales of power electronic products, providing services for mid-to-high-end DC power supply system manufacturers. Based on independent intellectual property rights, we insist on technological innovation to provide equipment supporting services that realize the growth of corporate and customer value together.

With over ten years of establishment, our high-quality R&D team actively serves as an explorer and practitioner of technological innovation in the power supply industry. Our products are widely used in automotive, electric power, railway, metallurgy, communications, and other fields globally. We have been developing automotive DC charging modules since 2011, currently offering over 20 models across 15kW, 20kW, 30kW, and 40kW series, serving major charging centers and exhibition infrastructure.

Frequently Asked Questions

Are you a professional manufacturer of EV charger modules?

Yes, we are a professional manufacturer and supplier of EV charger power modules and DC charging stations with over 12 years of experience in the industry.

Why should we choose your EV Charger Modules?

Our technical team ensures leading industry standards with a wide range of products including international standardization designs. Our modules have passed rigorous application scenarios and laboratory tests, holding both CE and UL certifications.

What are the main technical advantages of your products?

Our solutions feature digital controlled power, active PFC to achieve 0.99 power factor, and compliance with CCS, CHAdeMO, and GB/T standards. They include soft-start functions and comprehensive protection for both input (surge/voltage) and DC output (short-circuit/over-current).

Can you explain the different global DC fast charging standards?

There are five main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. Our modules are designed to be compatible with these global requirements.

How do you provide after-sales and technical support?

We provide comprehensive technical training, including written materials and videos. For urgent situations, we offer professional technician support to help customers master maintenance and part replacement.

What are your terms of payment and delivery?

Generally, we accept T/T in advance or Irrevocable L/C at sight. Delivery is typically made within 2-3 weeks after order confirmation.
