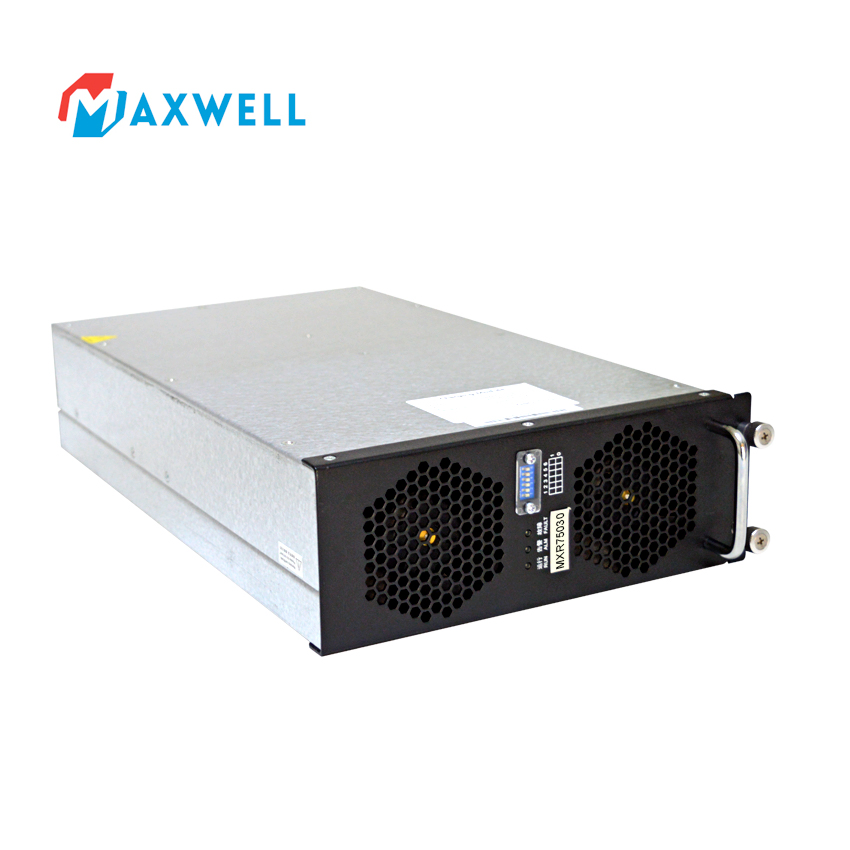

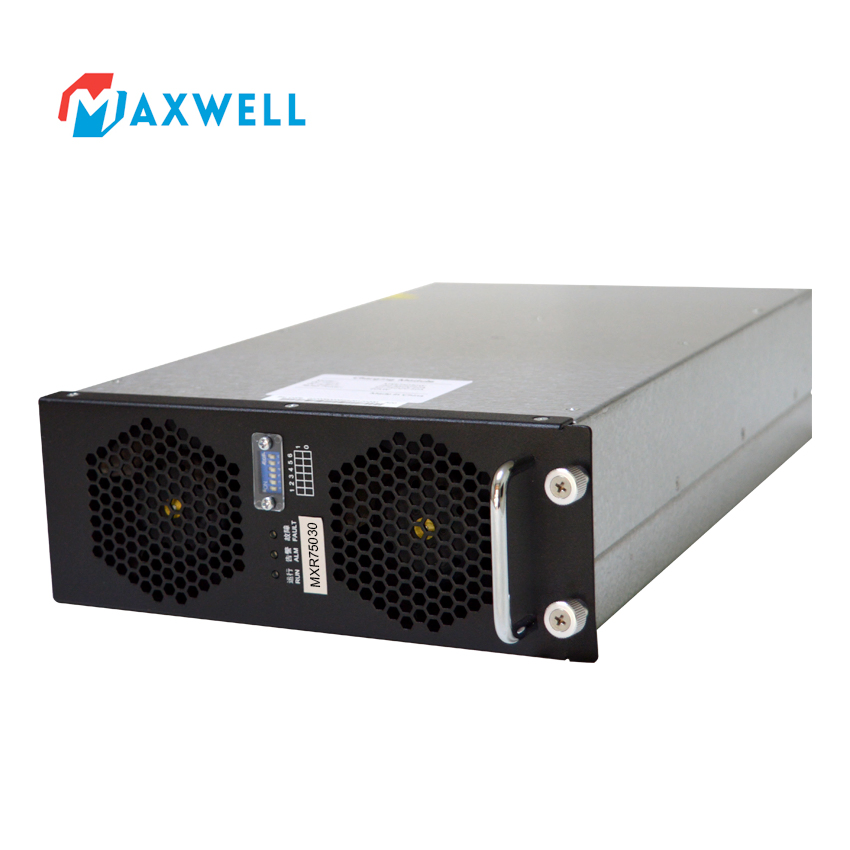

Mxr75030 20kw EV Charging Module for DC Fast Charger

Customization:	Available
Type:	Fast EV Charging Station
Weight:	<11kg

Basic Information

Model NO.

MXR75030

Cooling Method

Fan Cooling

Standby Power

<8W

Communication

Can Bus

Parallel Quantity

<60 Pieces

Efficiency

>95.5%

Certification

CE, ISO, TUV, RoHS

Warranty

12 Months

Specification

84*226*395

Trademark

MXRWELL

Product Description

⚙️

MXR75030 is a high-performance charging power module specifically developed for the charging pile industry. It addresses critical industry needs, particularly in ultra-high full-load operating temperatures and an ultra-wide constant power range.

Main characteristics include: High reliability, superior efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.

Product Parameters

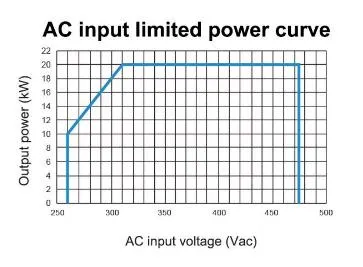

Input Characteristics

Item	Parameters
Input Voltage	260Vac-475Vac, three-phase+PE
Input Current	<40A
Grid frequency	45Hz-65Hz
Power Factor	≥0.99
ITHD	≤5%

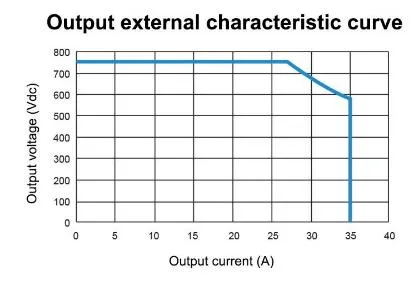

Output Characteristics

Item	Parameters
Output Power	20kw
Voltage Range	50-750Vdc
Current Range	0-35A
Voltage Accuracy	≤±0.5%
Current Accuracy	≤±1%
Ripple Peak-to-Peak	≤1%

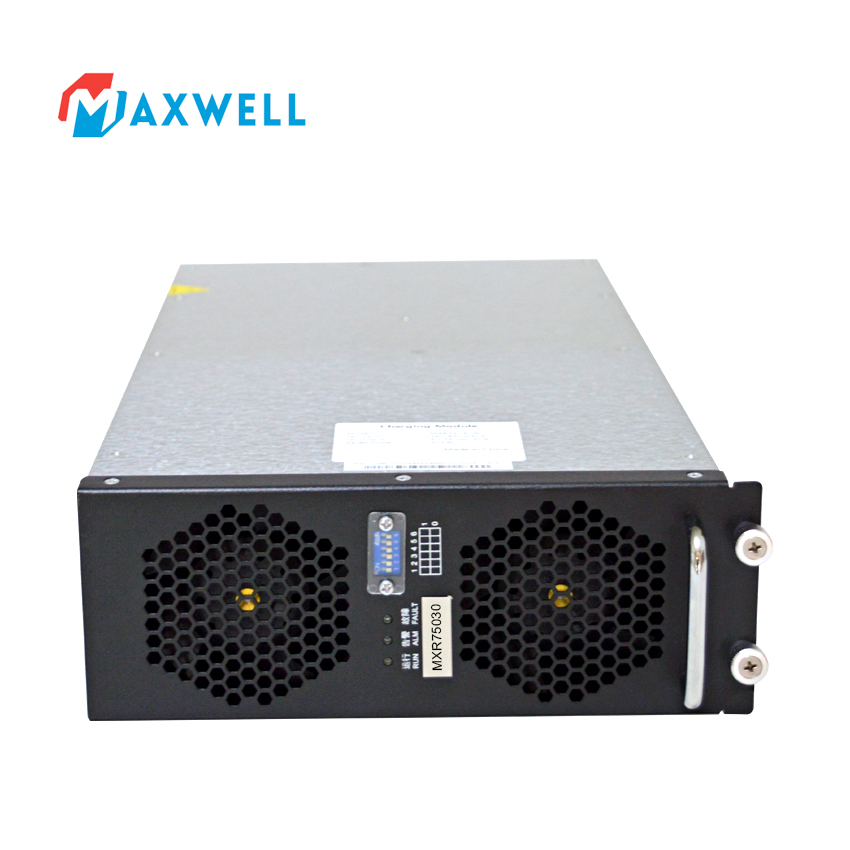

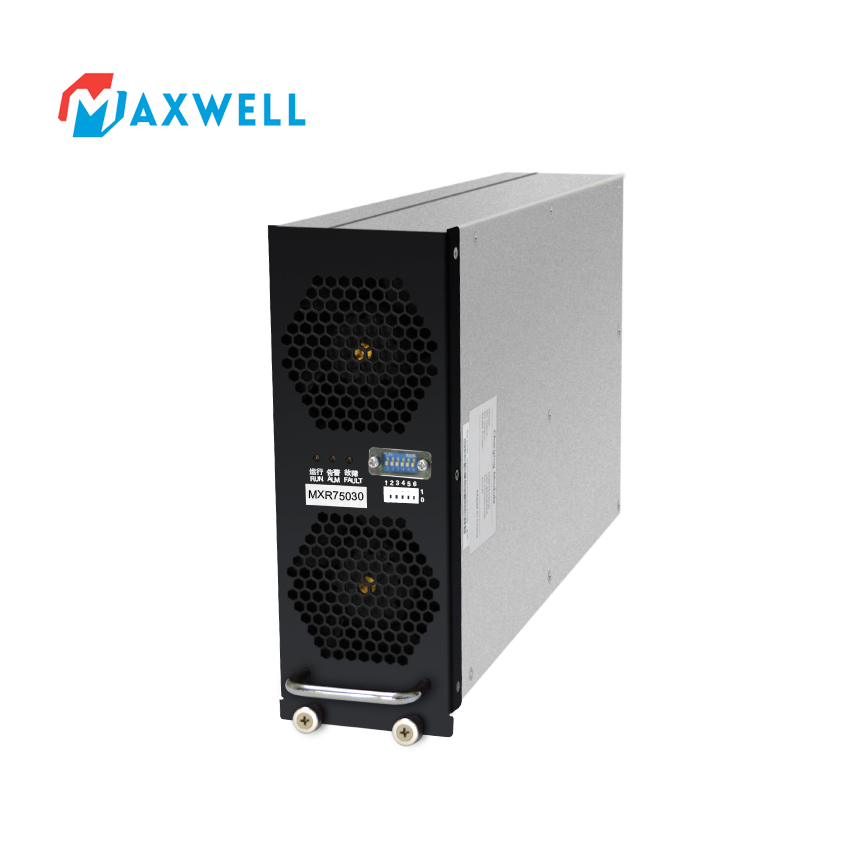

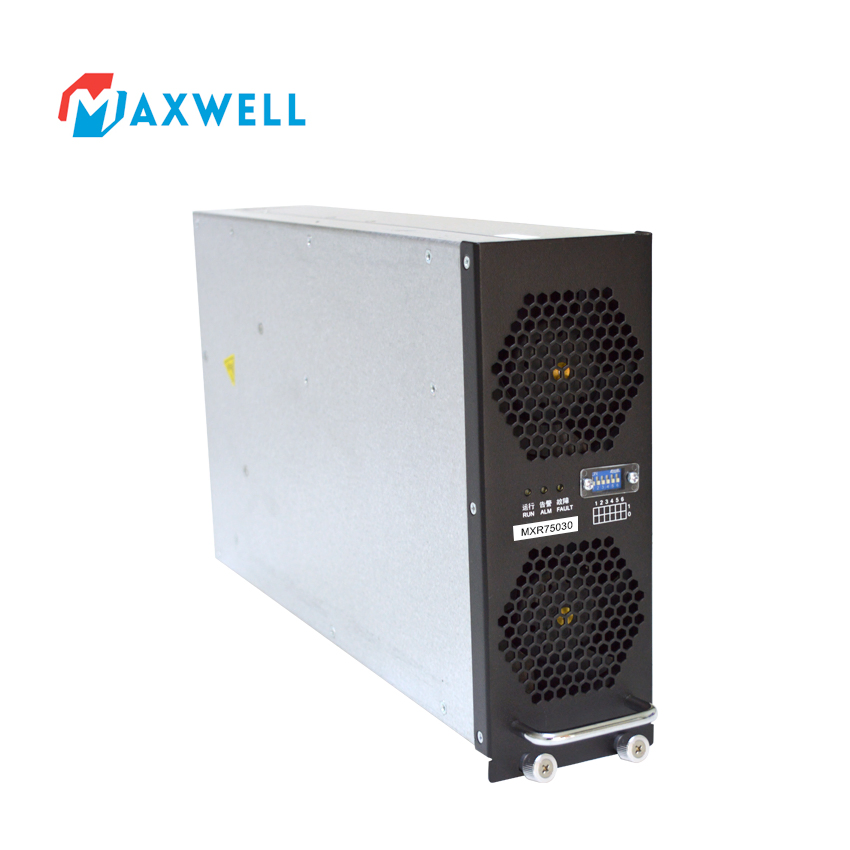

Detailed Photos

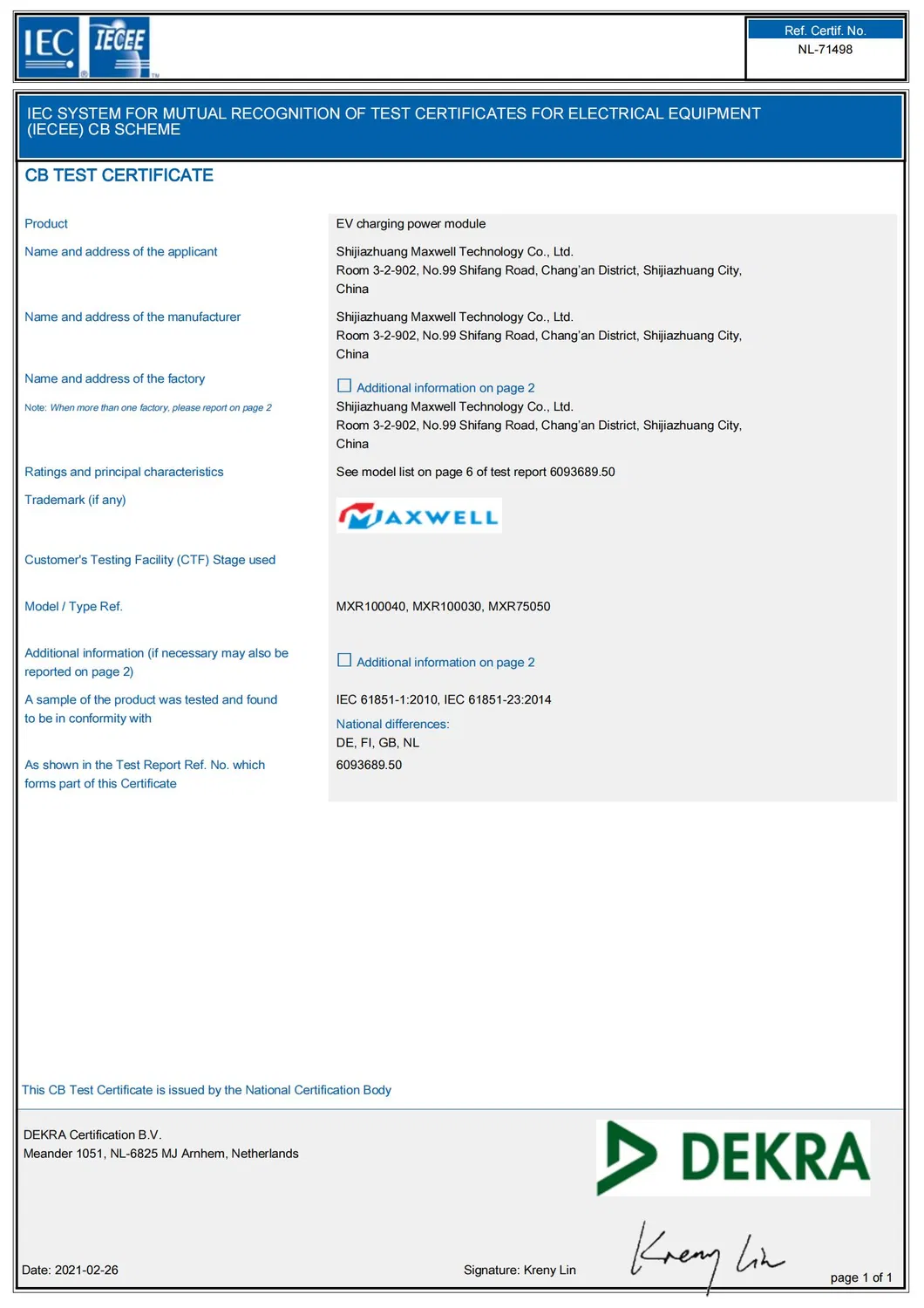

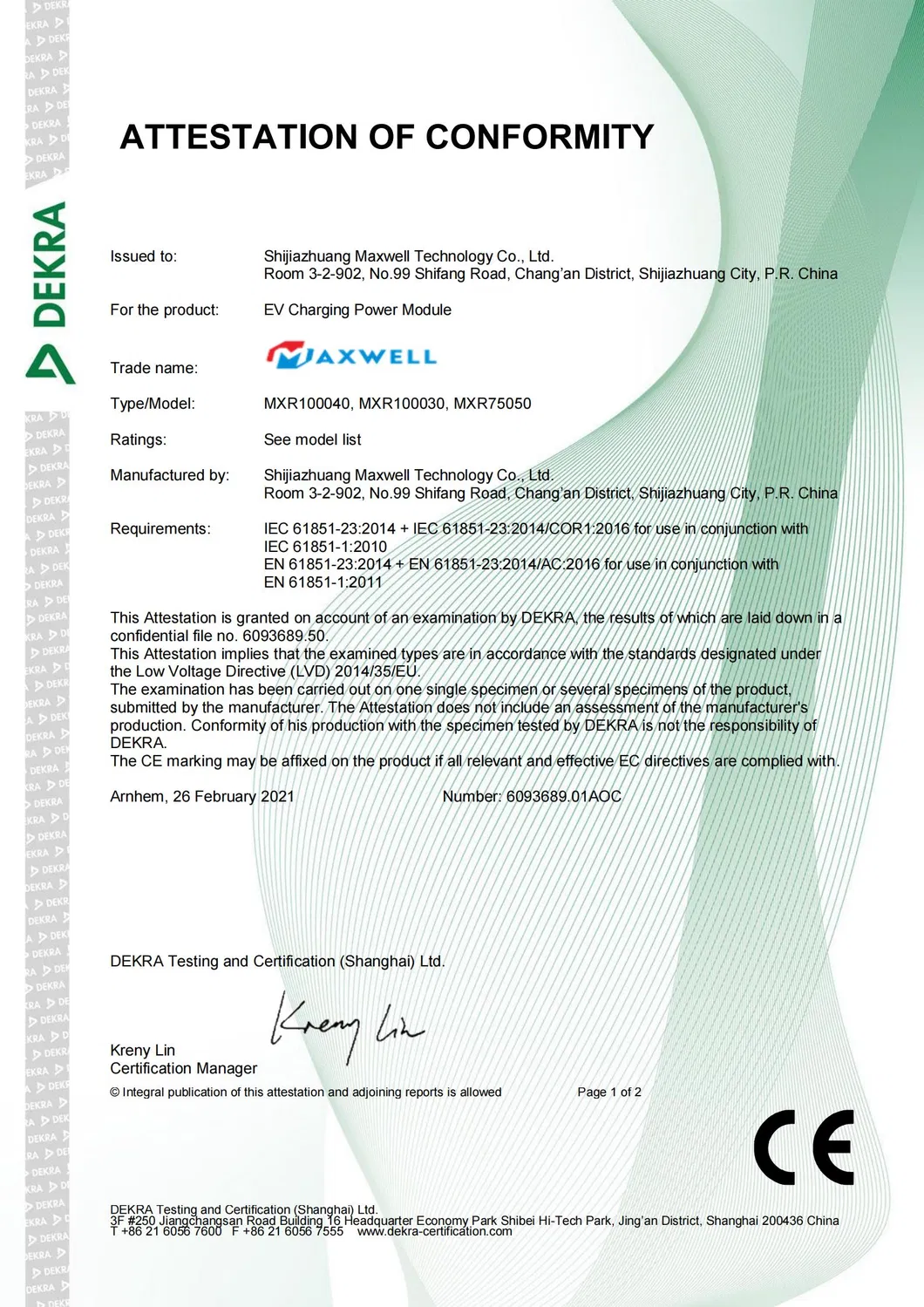

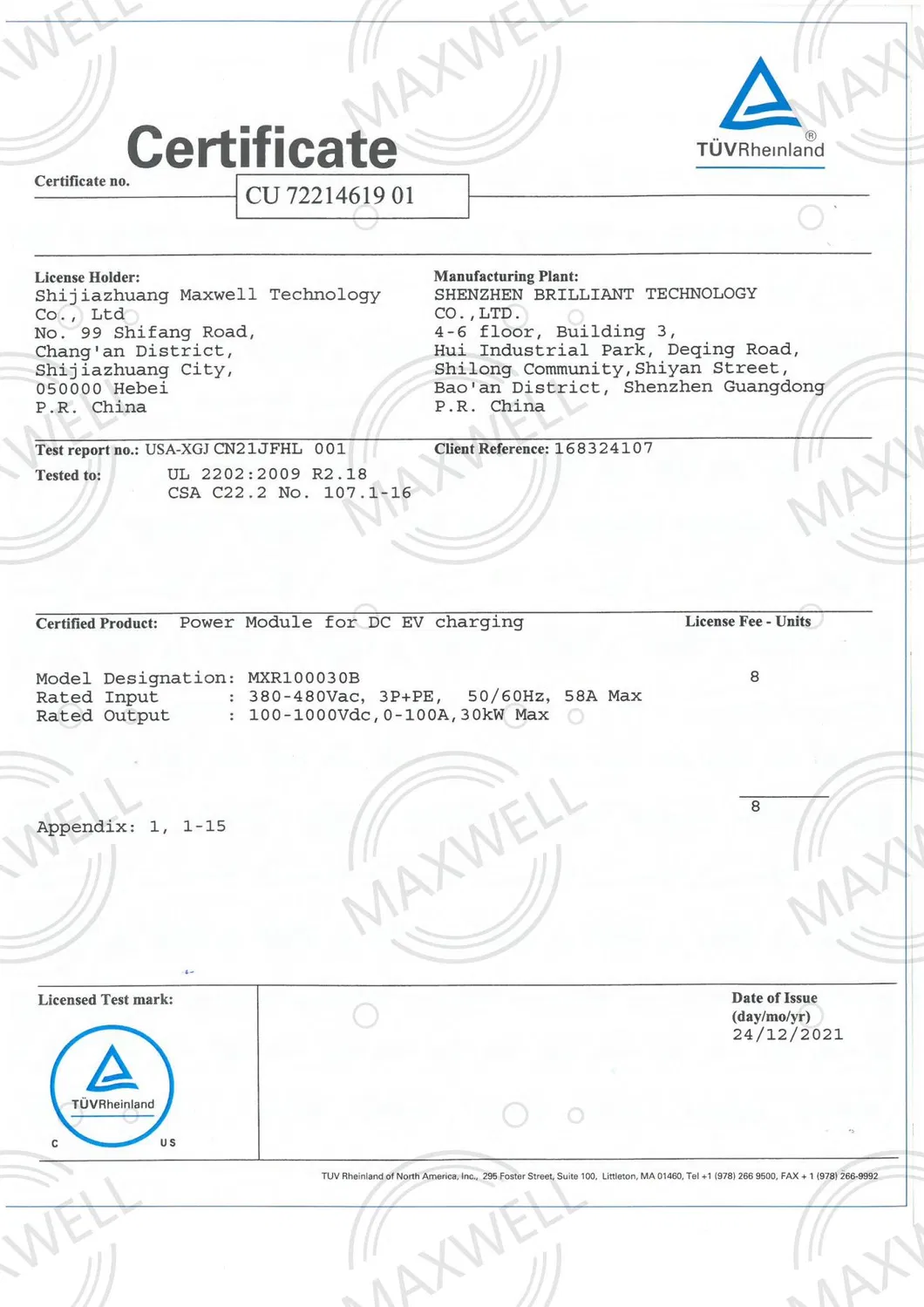

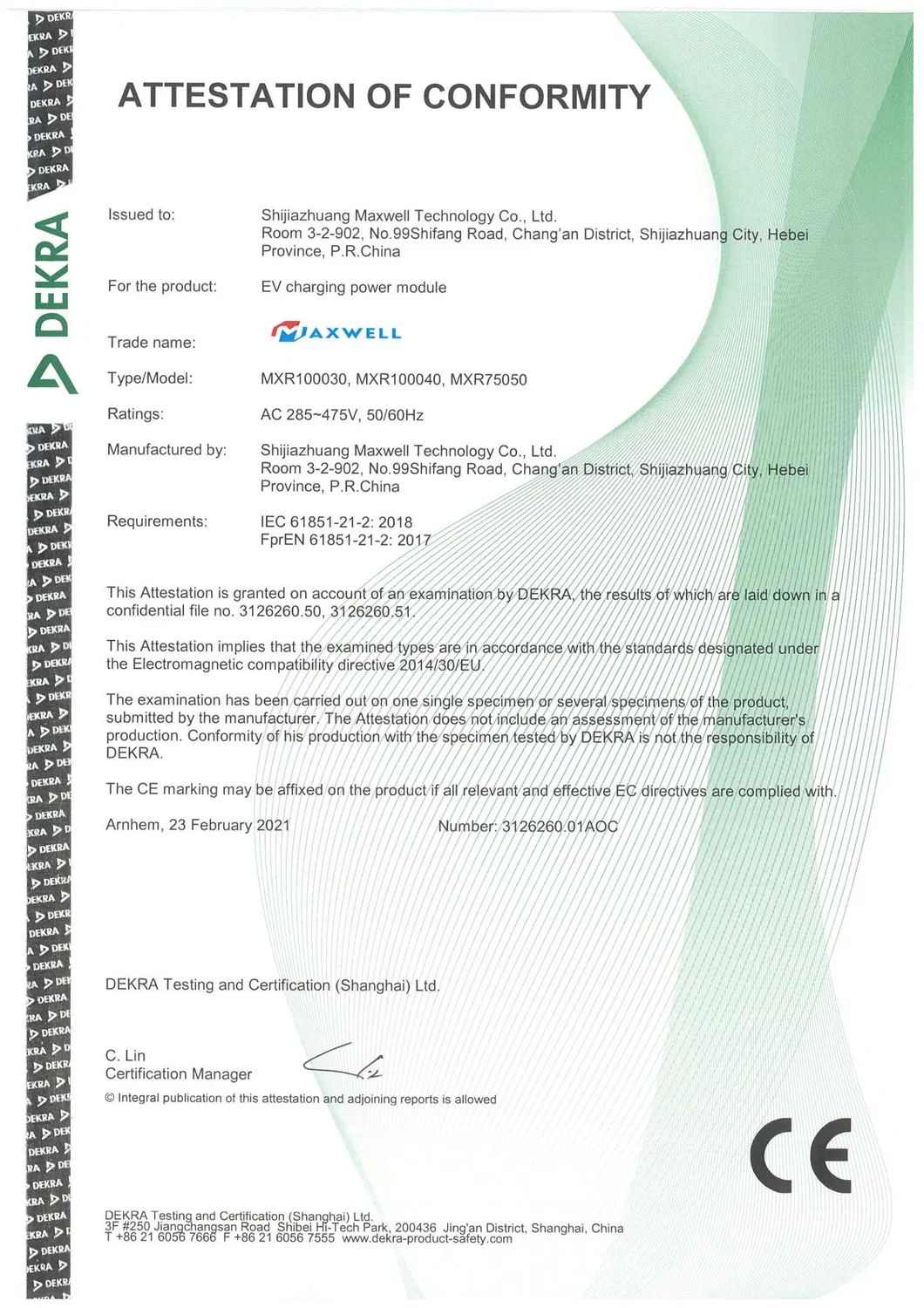

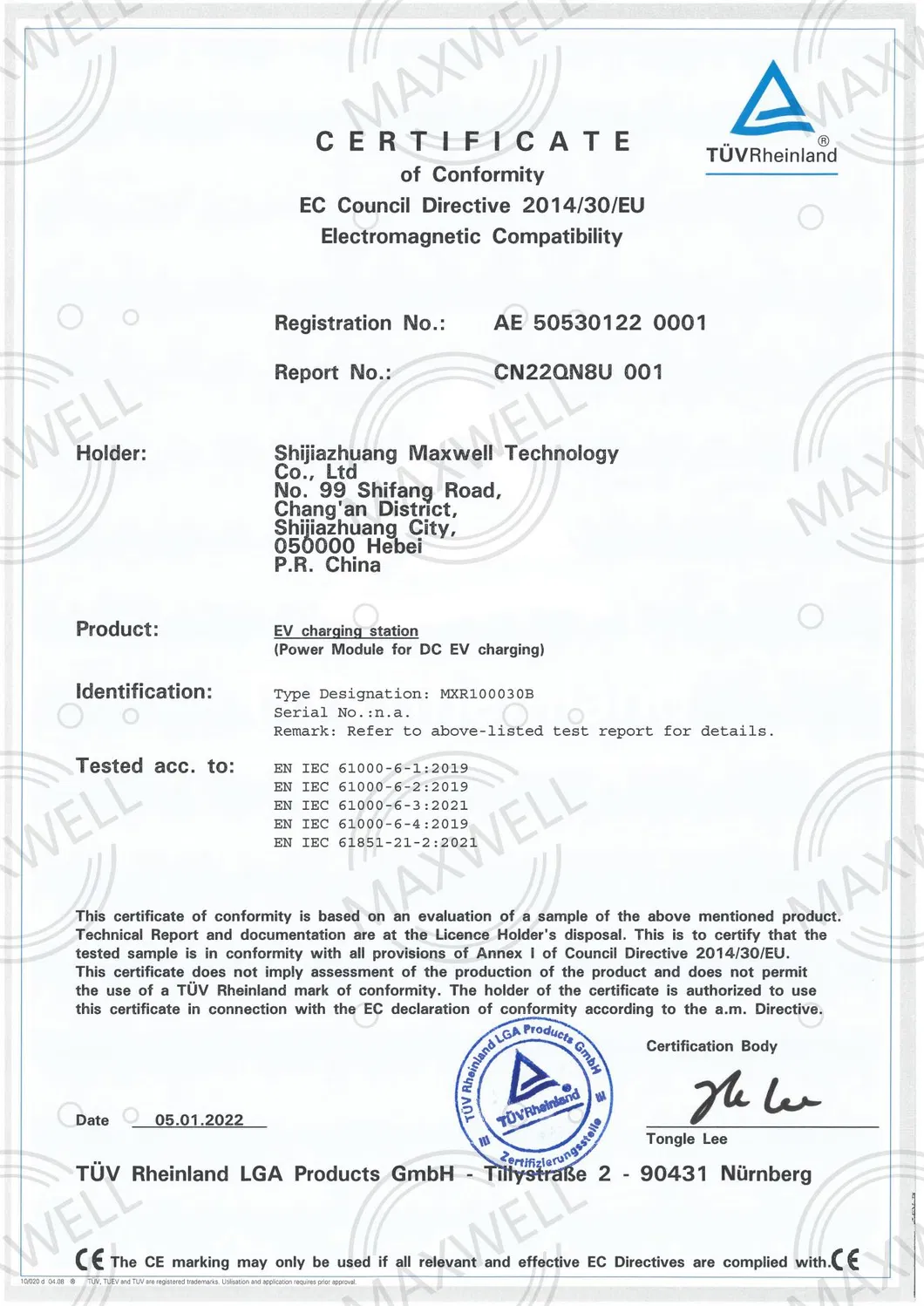

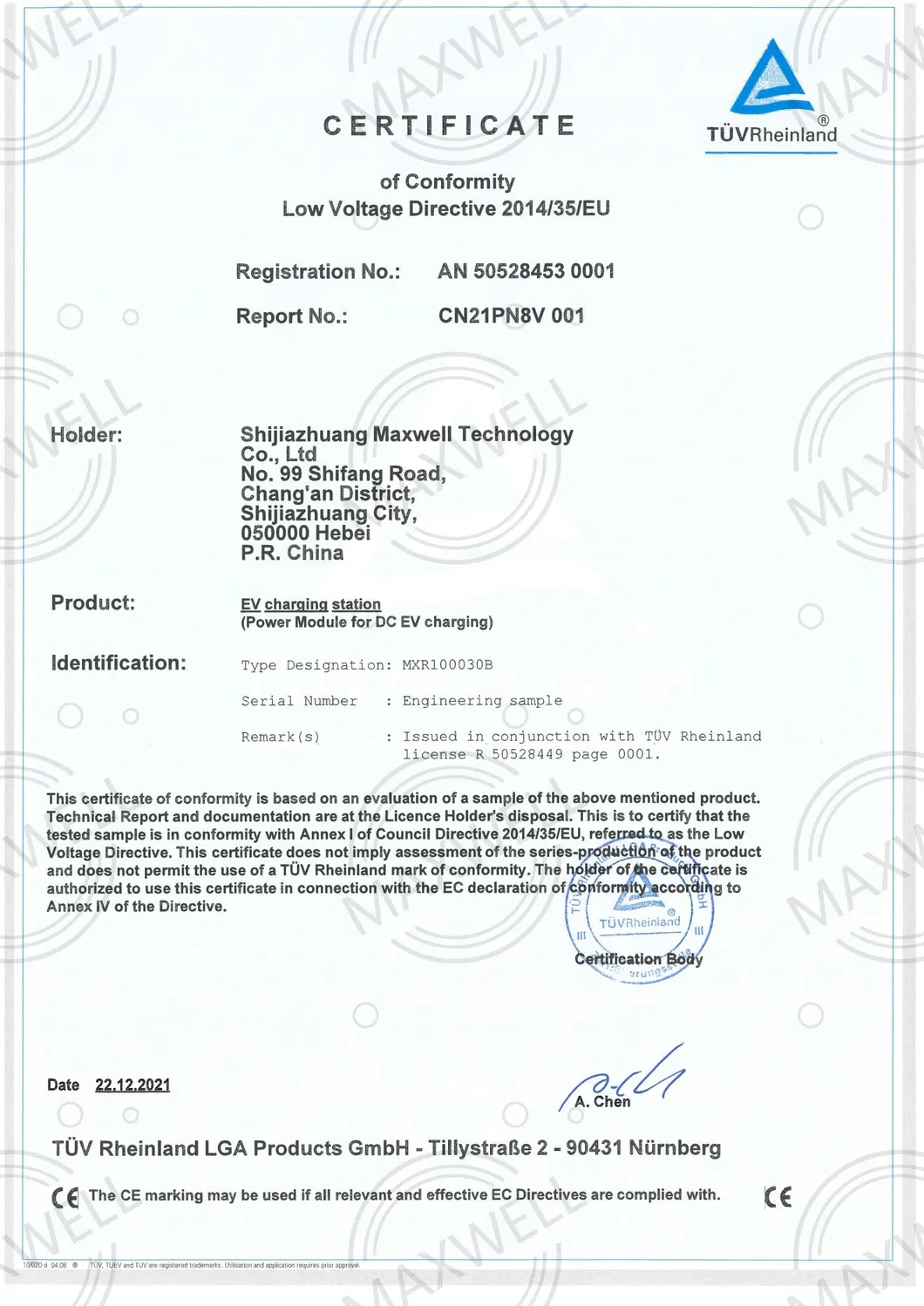

Certifications

Packaging & Shipping

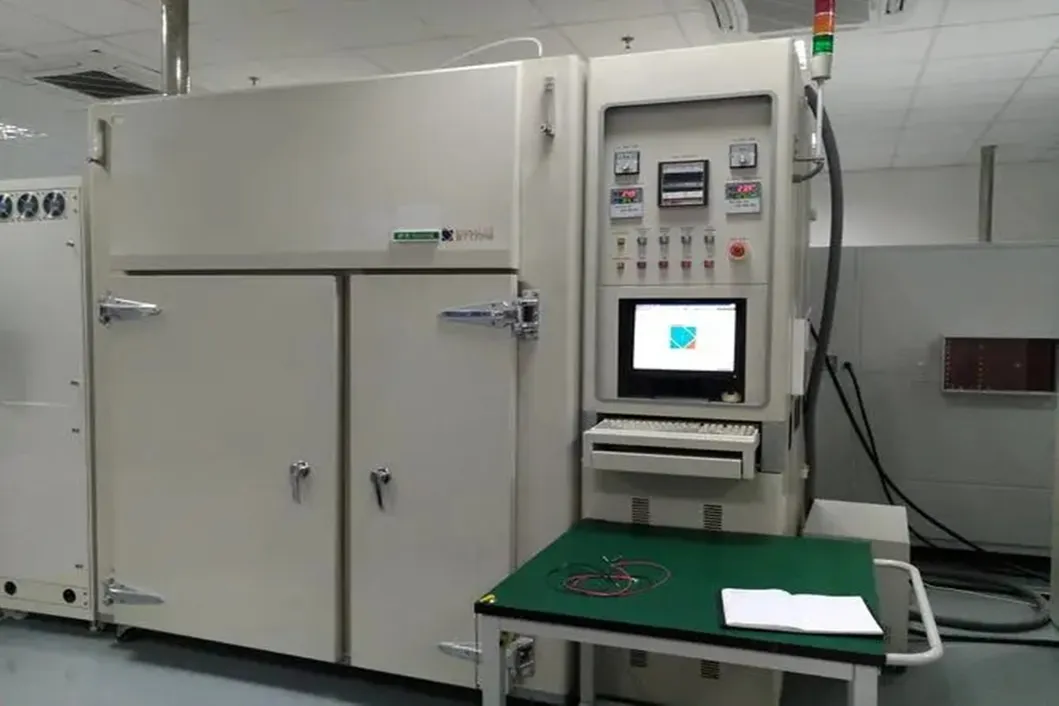

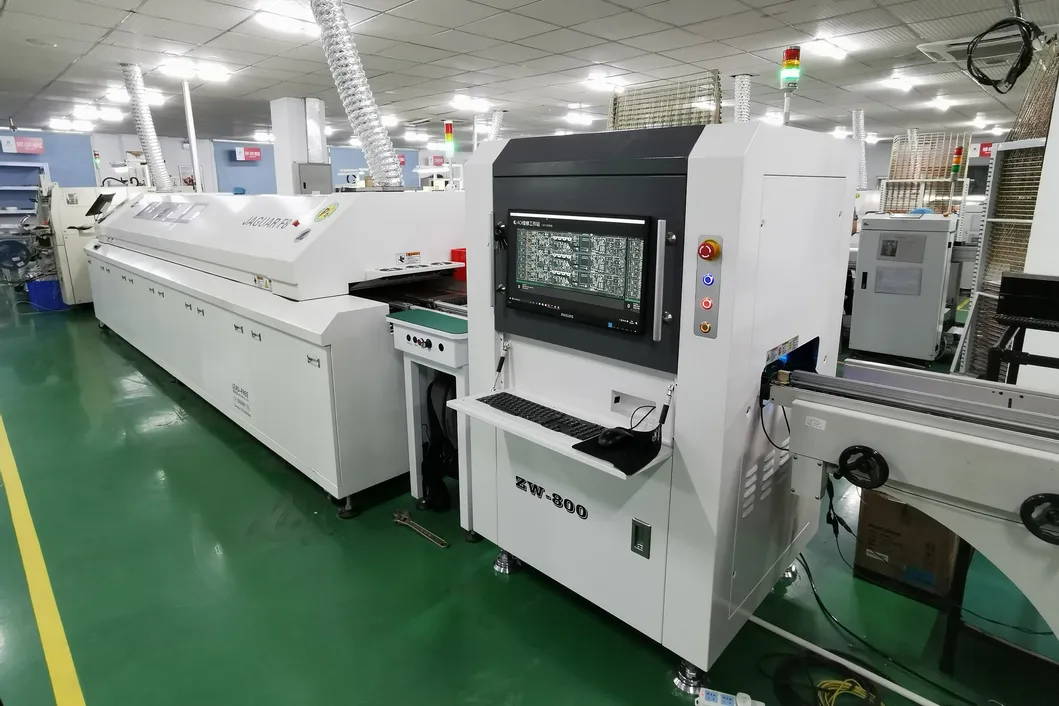

Manufacturing Profile

As a state-level high-tech enterprise, we focus on the research, development, production, and sales of power electronic products. We provide positioning services for mid-to-high-end DC power supply system manufacturers based on independent intellectual property rights and technological innovation.

For over a decade, we have built a high-quality R&D team, obtaining multiple national invention patents and software copyrights. Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields worldwide.

Frequently Asked Questions

What is your professional background?

We are a professional manufacturer and supplier of EV charger power modules and DC charging stations with over 12 years of experience.

Why choose your EV Charger Modules?

Our technical team ensures industry-leading designs with international standardization, smart back-end services, and products that have passed rigorous laboratory and scenario testing.

What are the technical advantages?

Features include digital controlled power, active PFC (0.99 power factor), CCS/CHAdeMO/GBT compliance, soft start functions, and comprehensive side protection for both input and output.

How do you handle after-sales support?

We provide comprehensive technical training, including manuals and videos, and offer professional technical support for maintenance and part replacement.

What are your packing and delivery terms?

Goods are generally packed in kraft cartons with pallets. Delivery typically takes 2-3 weeks after order confirmation.

What payment terms do you accept?

We accept T/T in advance or Irrevocable L/C at sight.
