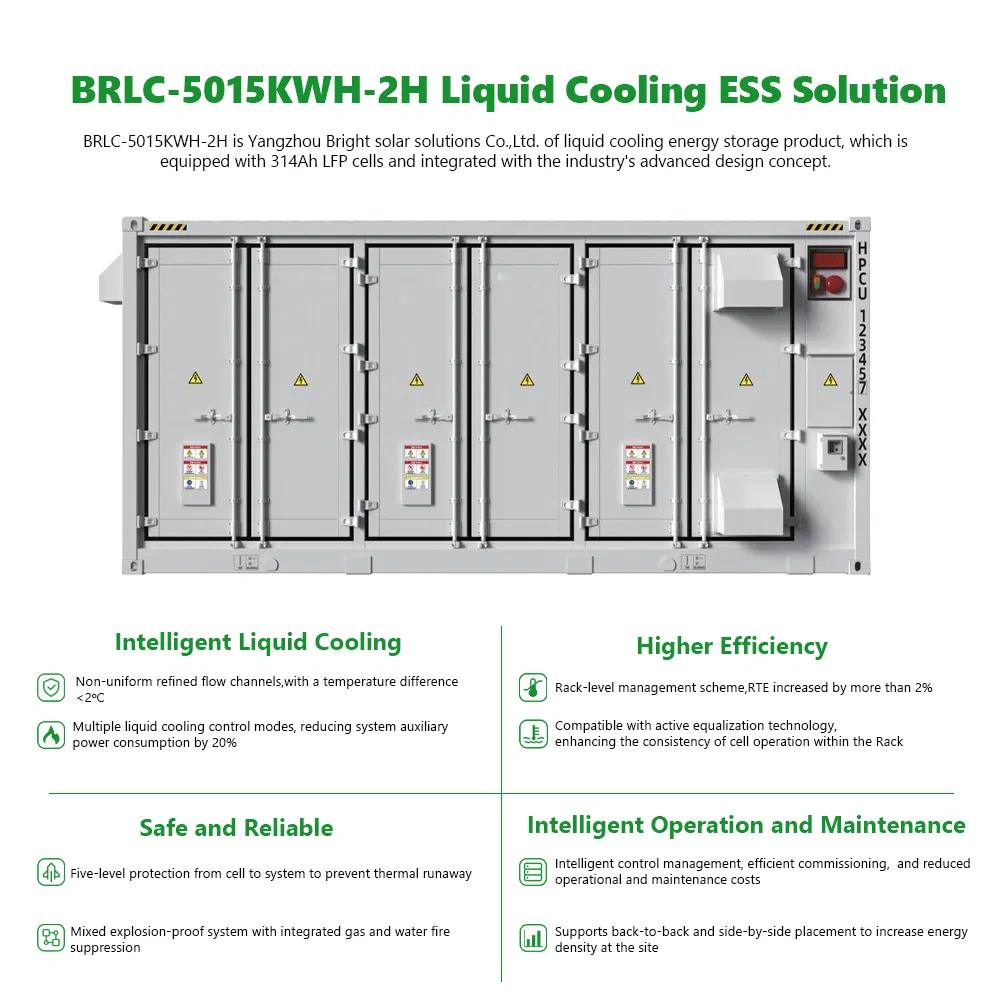

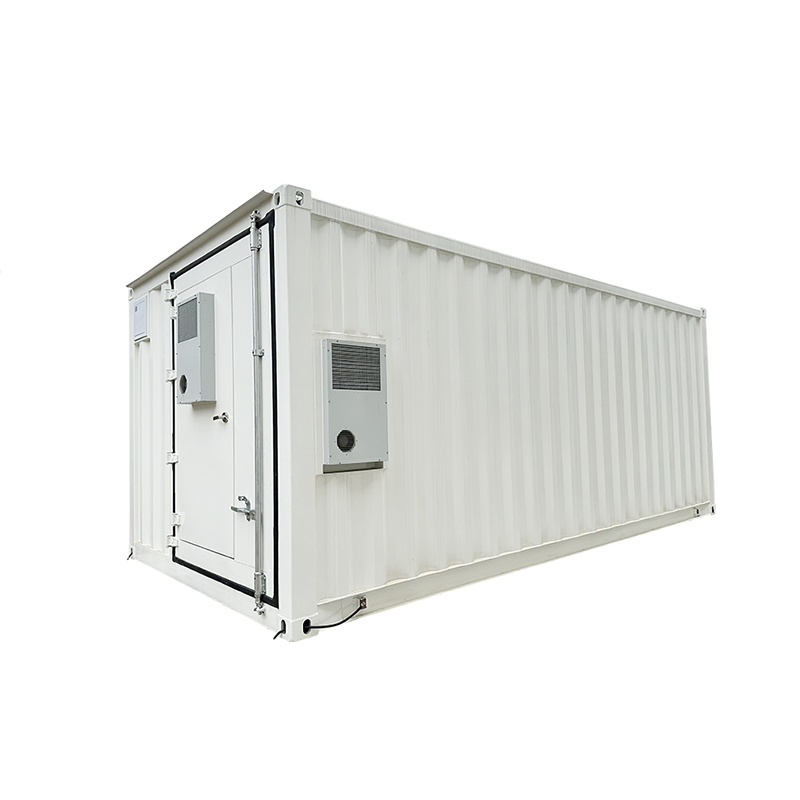

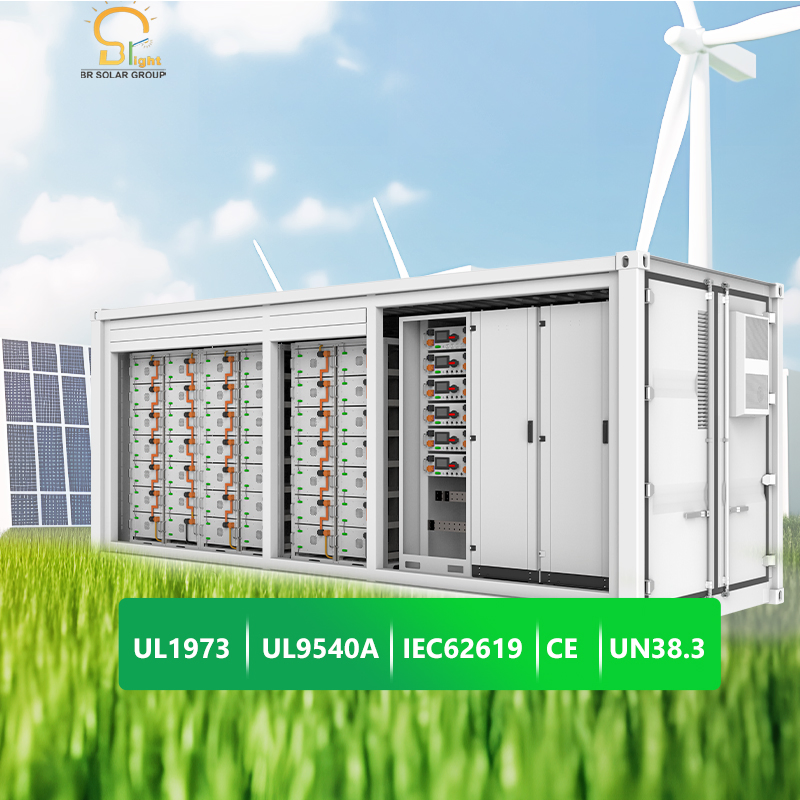

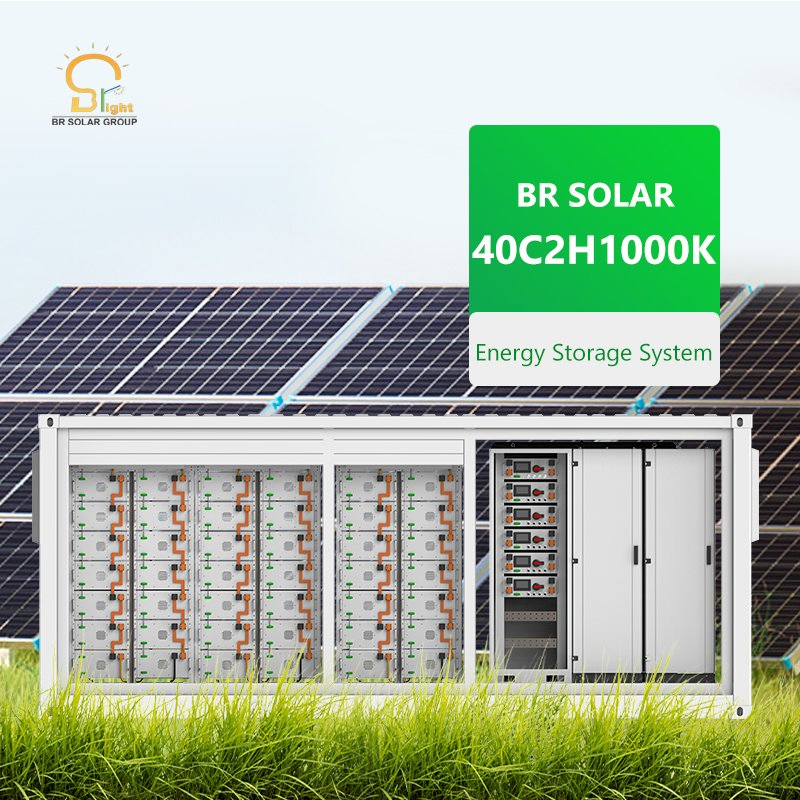

New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
1 / 5
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

New School, Factory 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Specifications

Condition:New
Certification:ISO, CE
Application:Home, Industrial, Commercial, School, Factory
Specification:100kwh, 233kwh
Type of Cell:Lithium Iron Phosphate (LFP)
Cell Parameter:3.2V / 314Ah
Cooling:Liquid Cooling
Protection Class:IP55
Max Power:0.5C Charge/Discharge
Rated Capacity:5.01 MWh
Rated Voltage:1331.2V
Voltage Range:1164.8V ~ 1497.6V

Packaging & Delivery

Package Size:110.00cm * 140.00cm * 238.00cm
Gross Weight:2000.00kg
Production Cap:1000 sets / Month

Product Technical Details

Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12

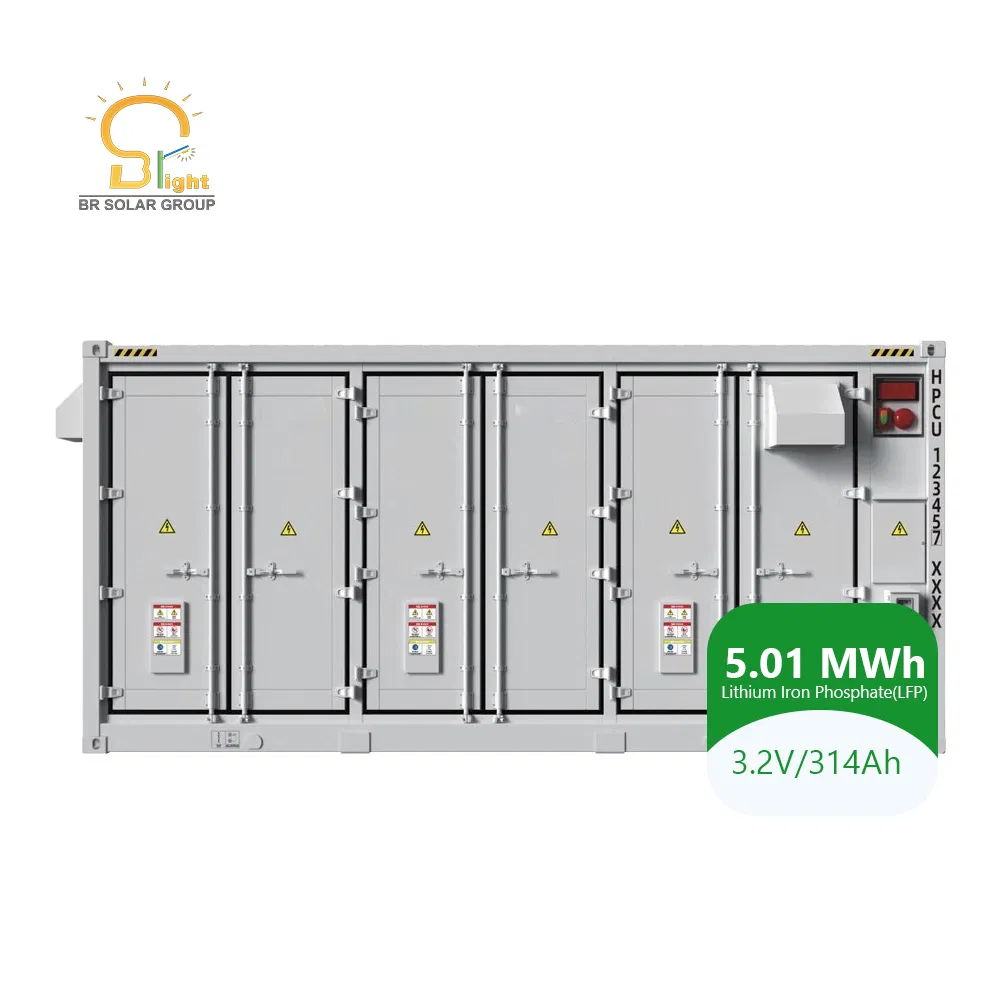

Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet / CAN / RS485
Dimension (L×W×H)6058×2438×2896mm
Weight≈42000 kg

Product Presentation

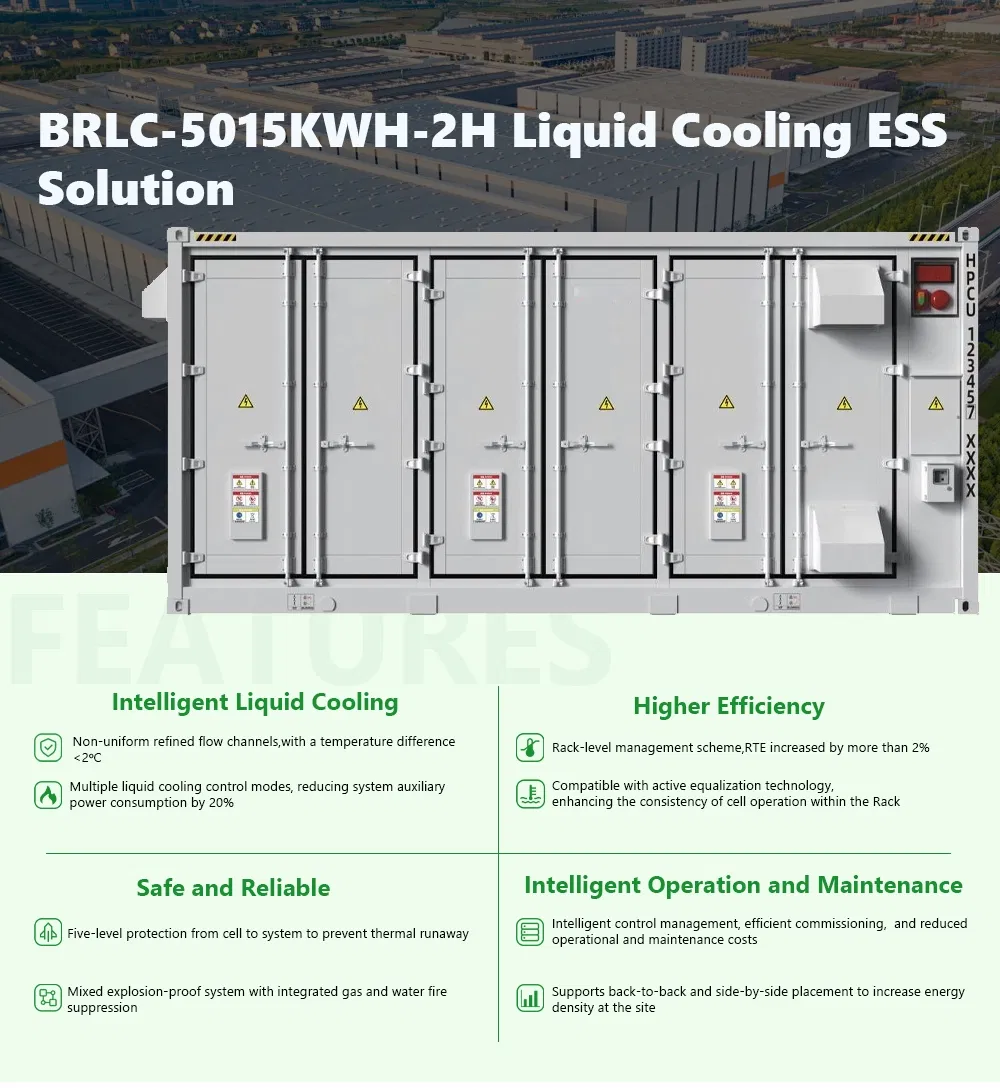

Energy Storage System

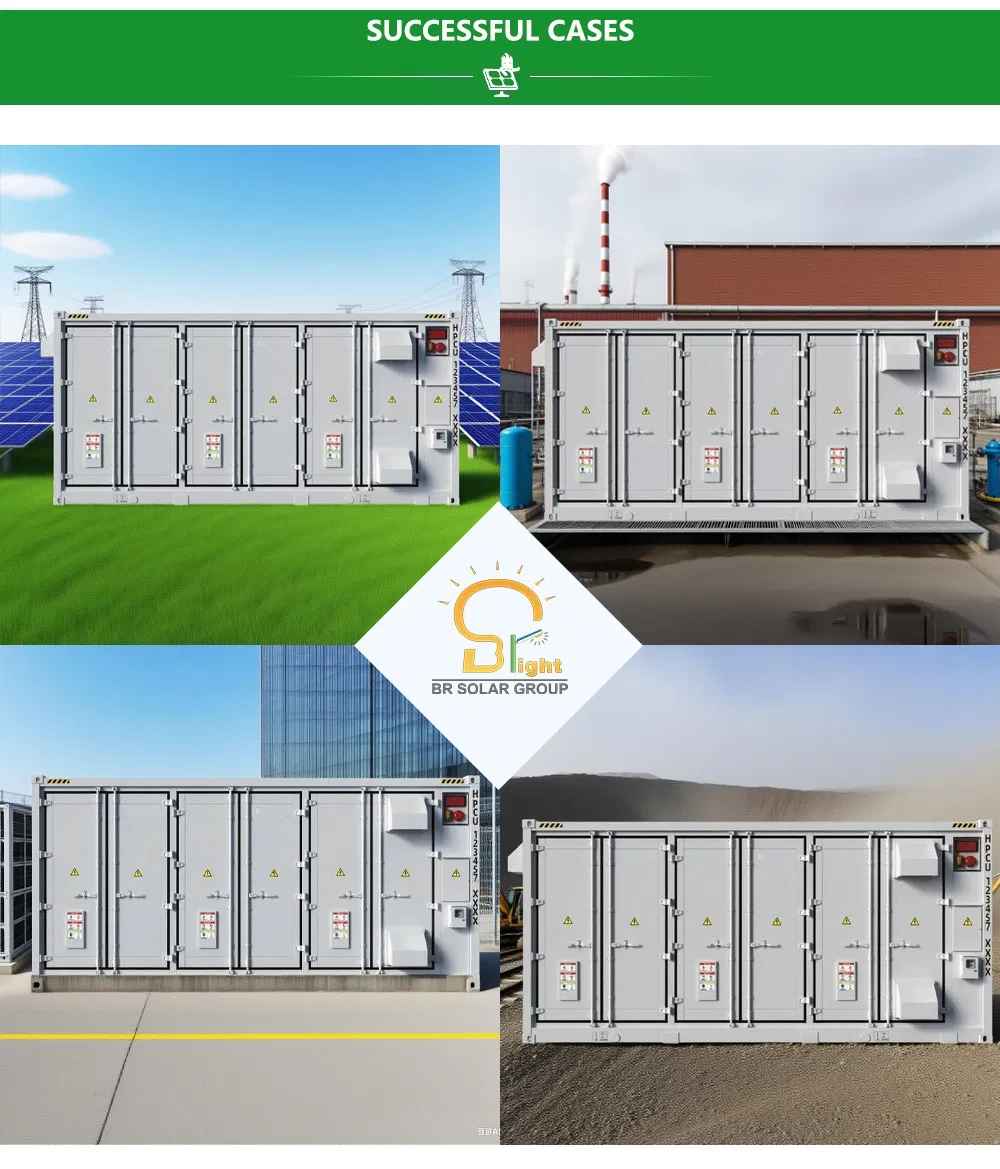

Battery Grid-Tied Storage

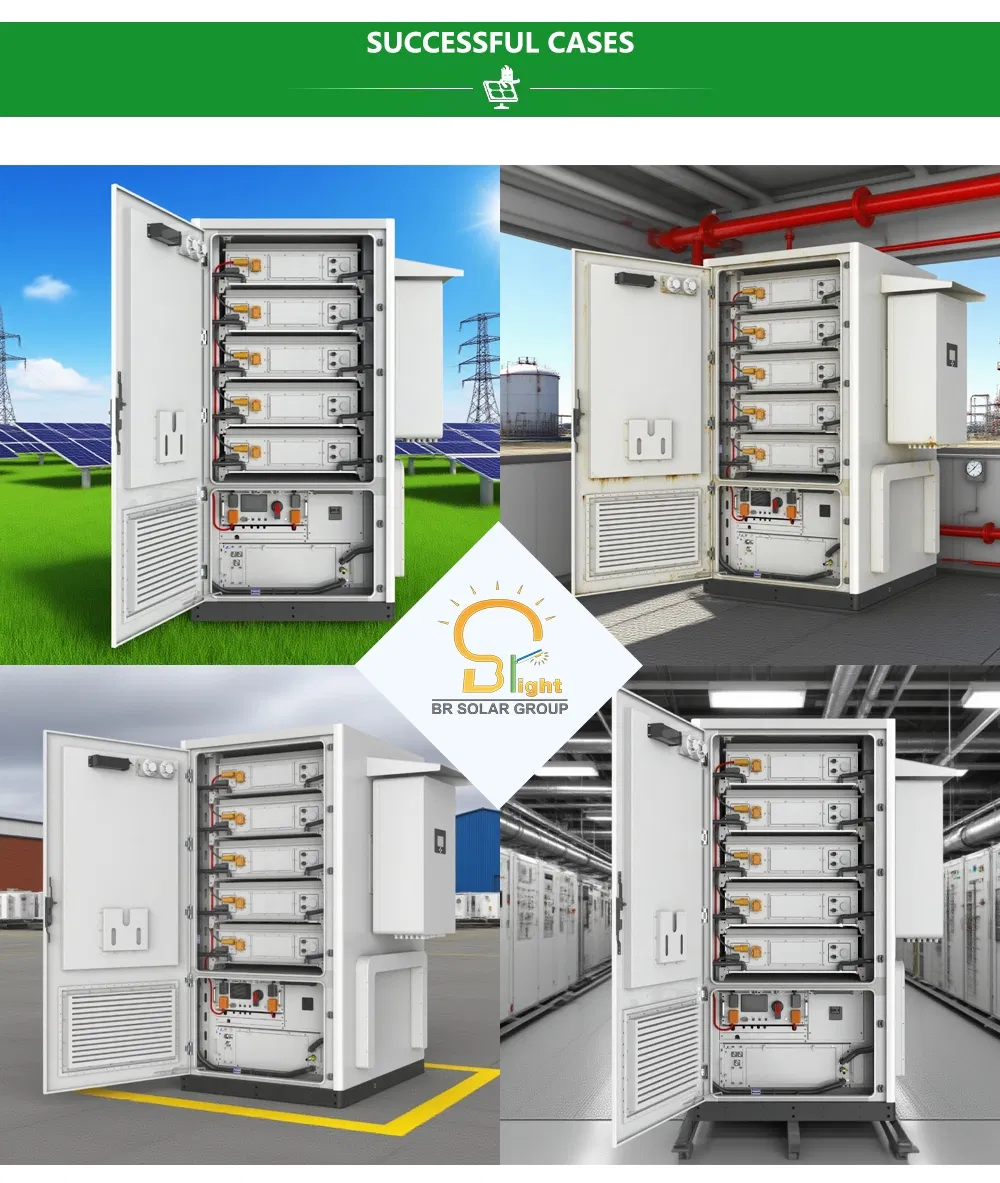

Industrial Battery Storage
Technical Specs View
LFP Battery Detail
System Configuration
Liquid Cooling System
Protection Class View
Factory Storage Solution

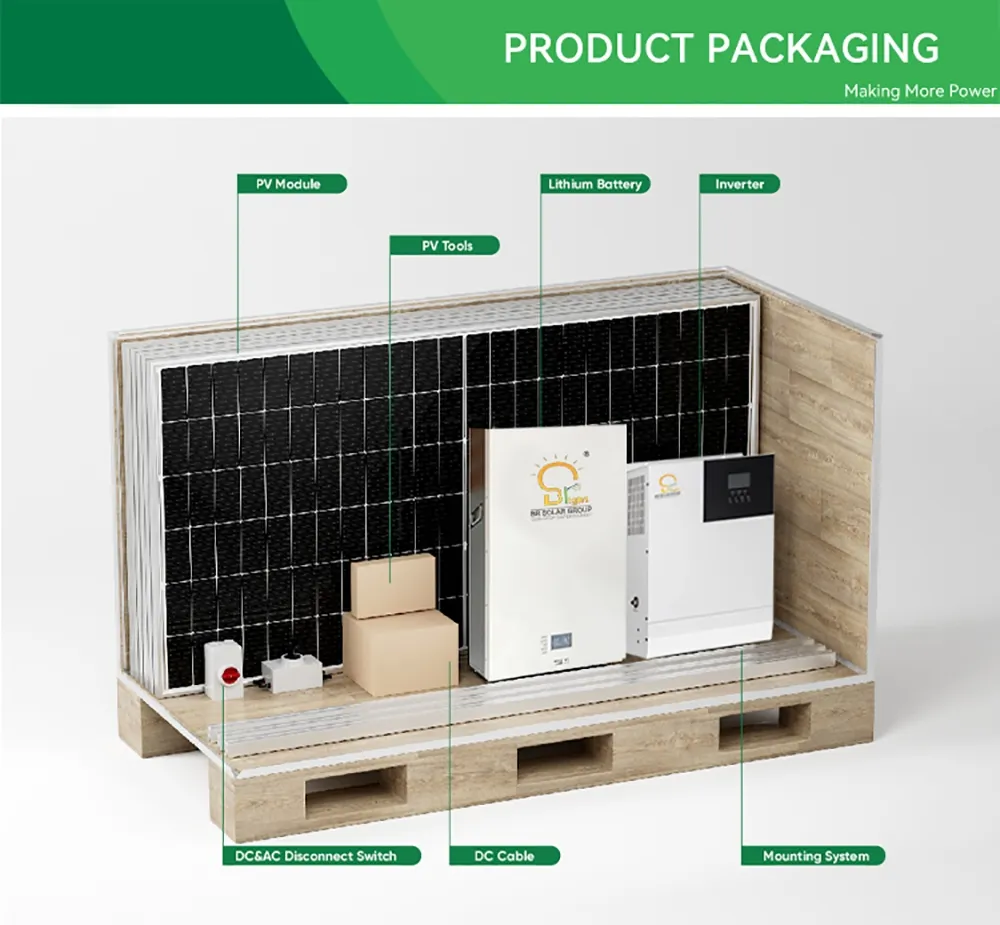

Full Energy Storage System

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for their safety and long cycle life.
How is the thermal management handled?
This energy storage system uses advanced Liquid Cooling technology to maintain optimal operating temperatures and ensure system stability.
What is the protection rating for outdoor use?
The system is rated at IP55, providing excellent protection against dust and water, making it suitable for various industrial and commercial environments.
Does the system include fire suppression features?
Yes, it features a comprehensive fire protection system including temperature sensors, smoke detectors, combustible gas detectors, and fire extinguishing gas/water sprinklers.
What communication interfaces are supported?
The system supports multiple external communication interfaces including Ethernet, CAN, and RS485 for seamless integration.
What is the typical operating temperature range?
The system is designed to operate efficiently in temperatures ranging from -30ºC to 50ºC.
