EnerNova Charger
1 / 5
| Model NO. | HT-1000/2000-EC | Nominal Voltage | 380/400/415/480V 3 Phase |
| Warranty | 5 Years | Nominal Capacity | 250kwh, 500kwh, 1mwh, 2mwh |
| Cycle Life | 6000+ Cycles | System Application | Ess Solar Storage Container |
| Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon | Battery Type | LiFePO4/Lithium Battery/Gel Battery |
| DoD | 0.5/1c @ 80% | BMS | Integrated Battery Management System |
| Rated Capacity | 250kw/500kwh, 500kw/1mwh | Output Frequency | 50/60Hz |

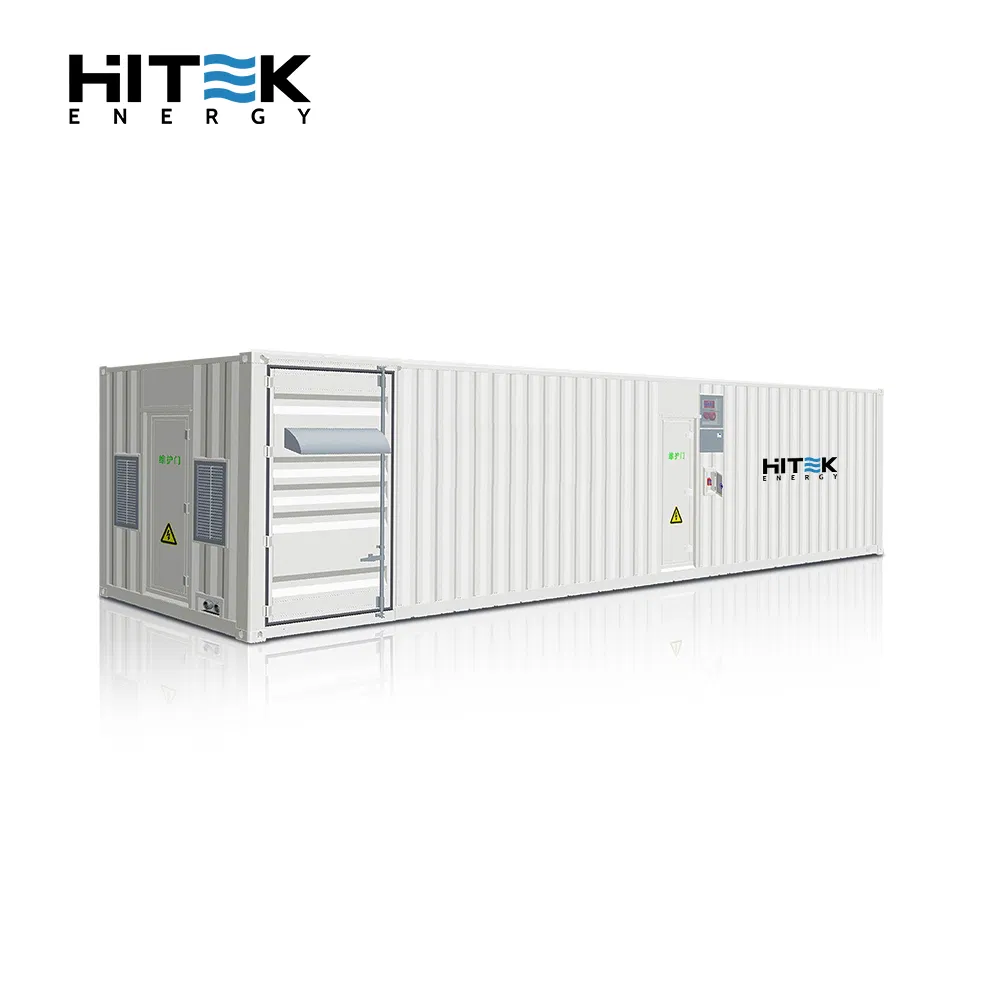

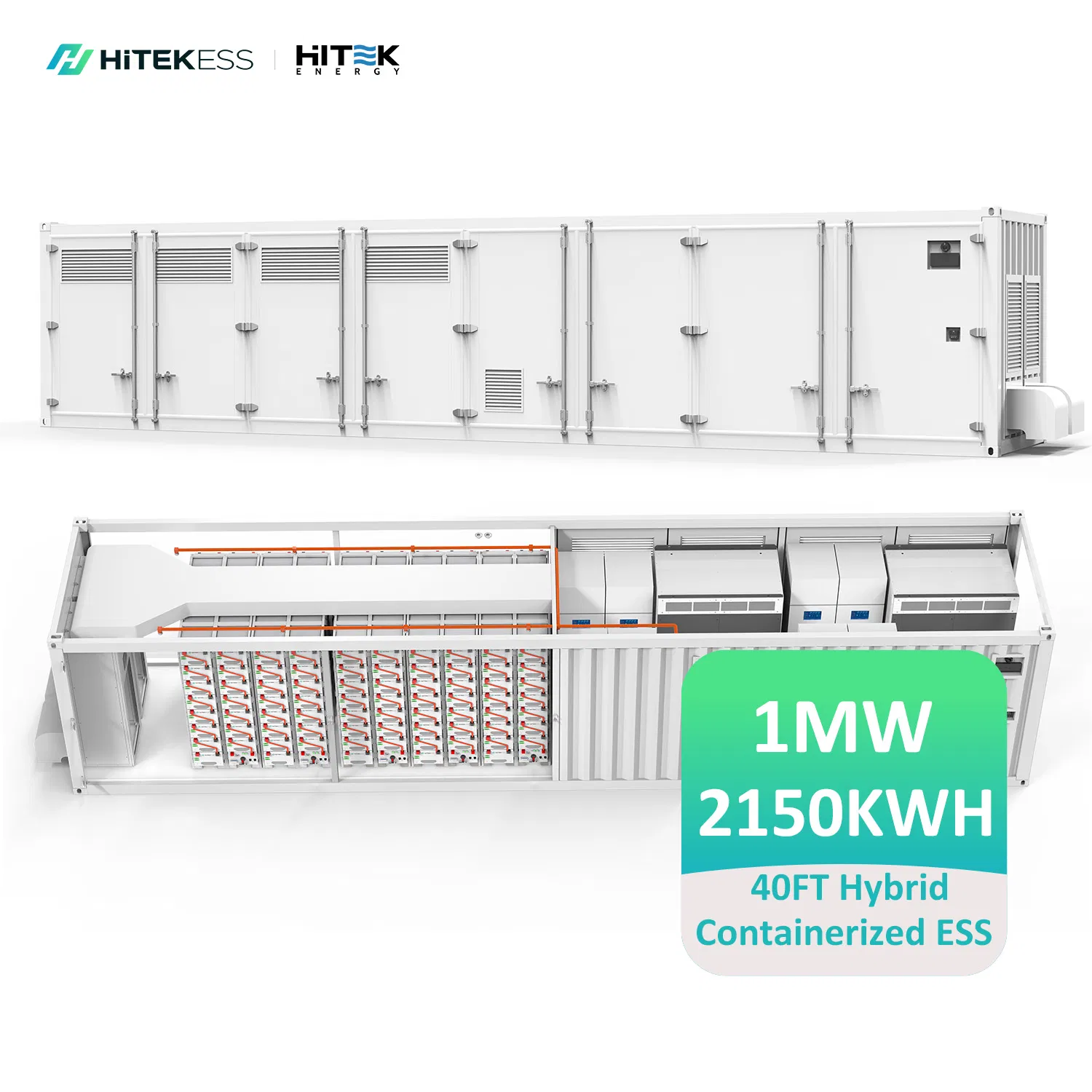

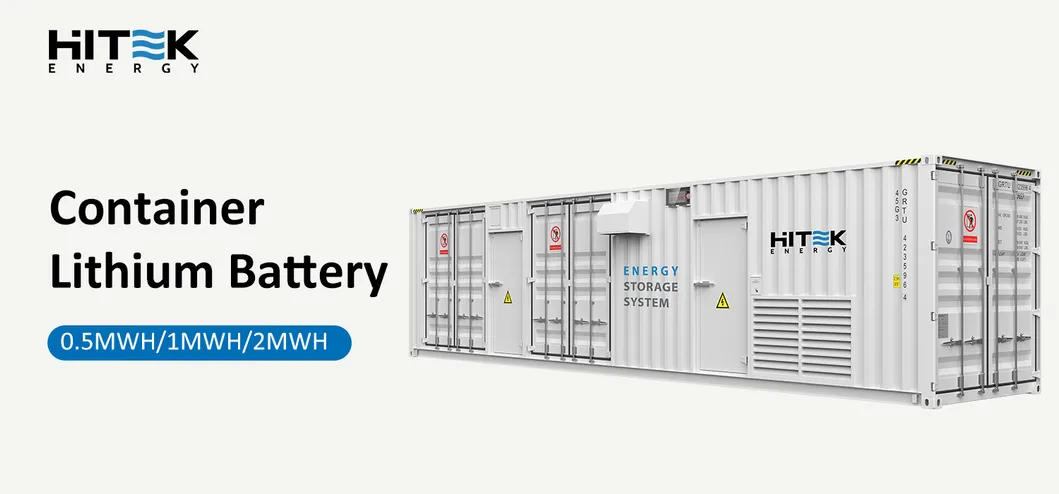

Main Features of Energy Storage System Container
| Item | Description | Qty (pcs) | Remarks |
|---|---|---|---|
| PV Solar Panel | HT560M-72H | 960 | Total of 537.6KW |
| Battery Backup | 280Ah Lithium Module | 150 | Capacity 14.3kWh per module |
| PV-Combiner Box | 8 Inputs 1 Output | 10 | For multiple PV module strings |
| PBD250 | Solar Charge Controller | 2 | 250kW charging capacity |
| PCS500 | Battery Inverter | 1 | 250kW bidirectional inverter |

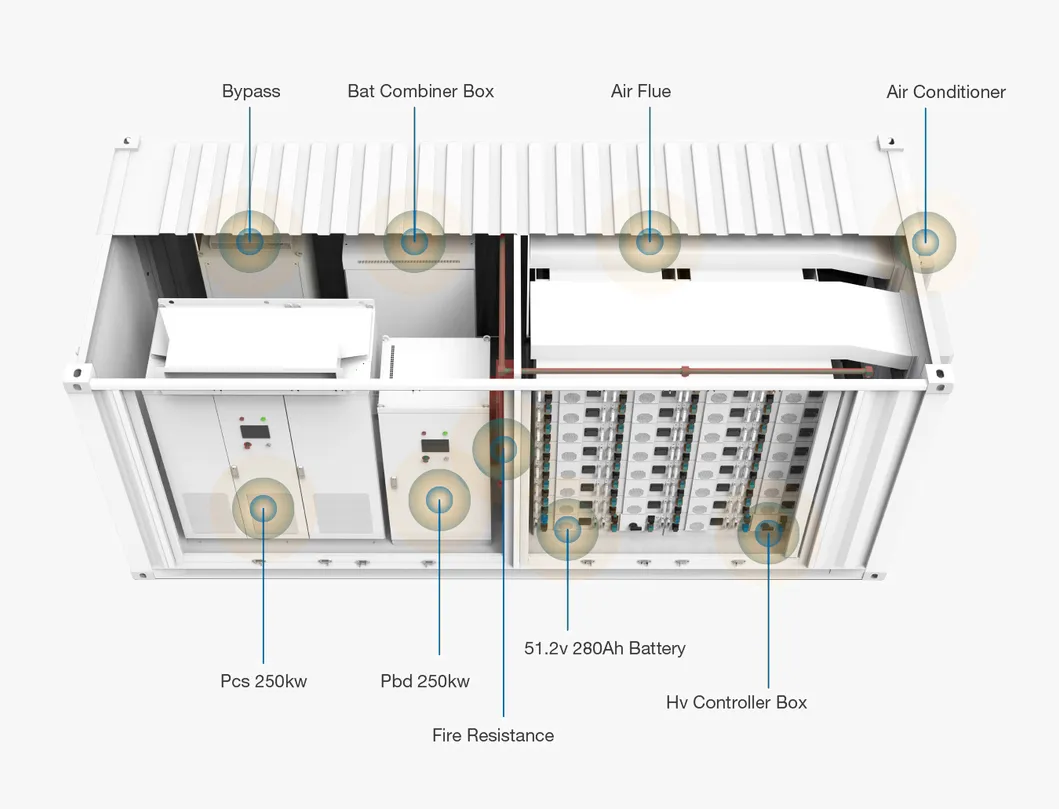

| 20FT Container | Outdoor IP54 | 1 | Includes lighting, fire system, AC |

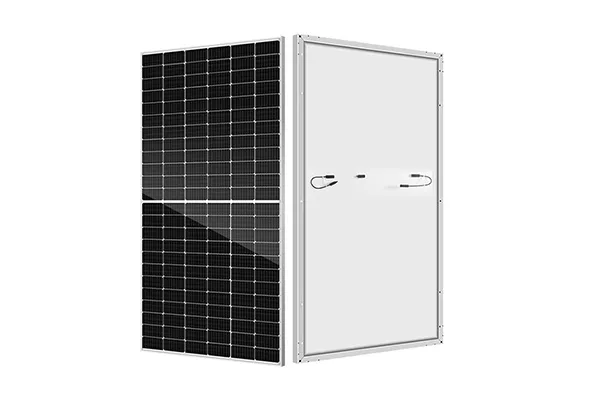

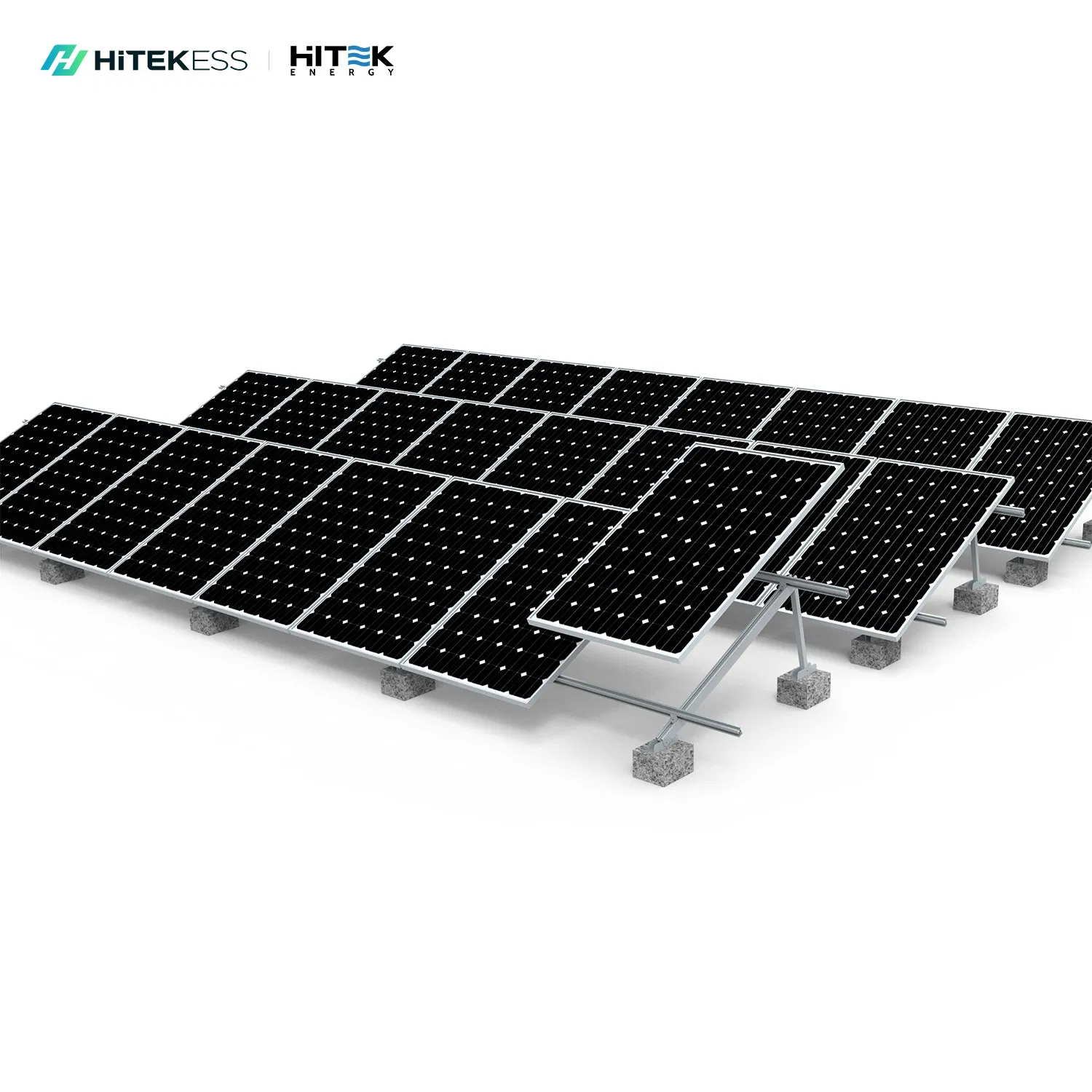

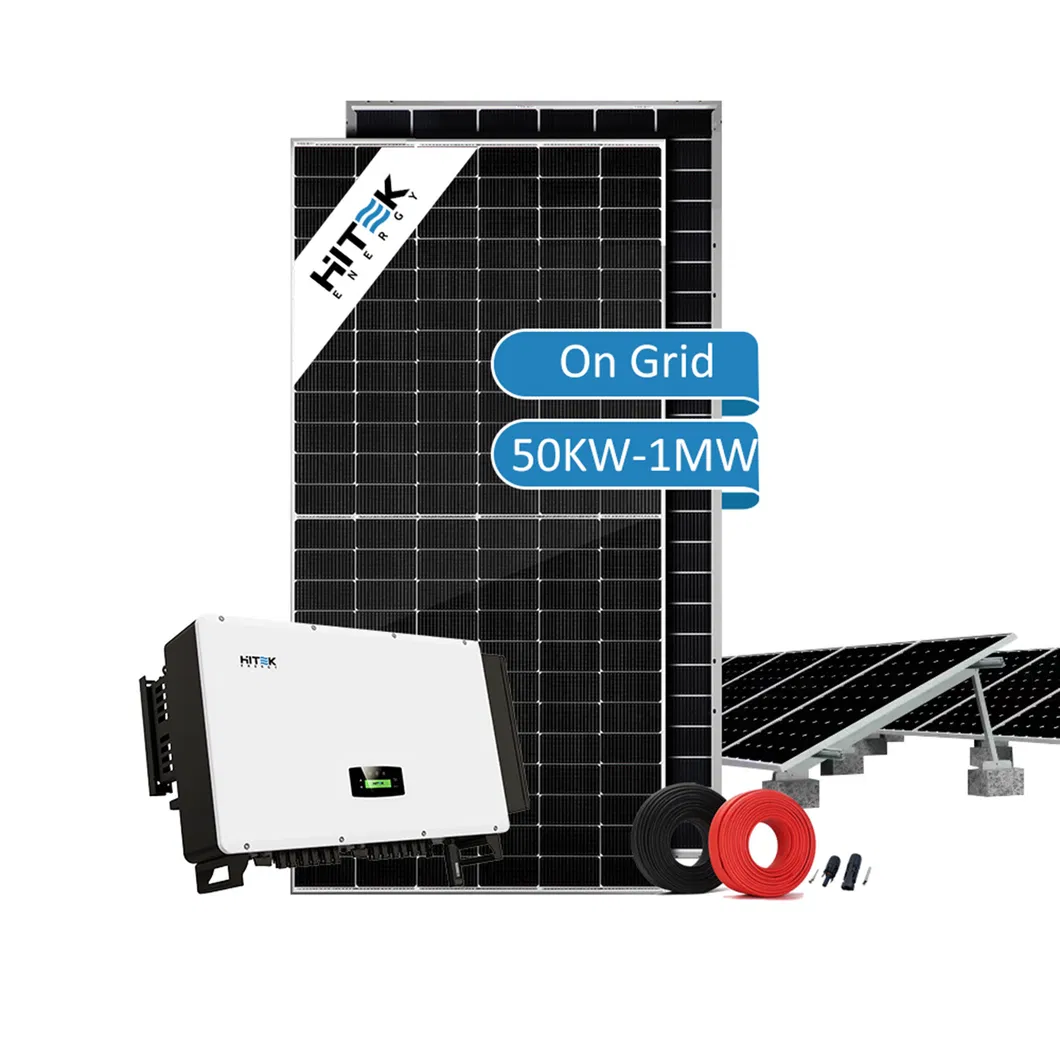

PERC Mono Solar Panel
Model: HT560M-72
Peak Power: 560Wp
Vmp: 41.08V / Imp: 13.64A
Dimensions: 2279*1134*35mm
Weight: 28kg

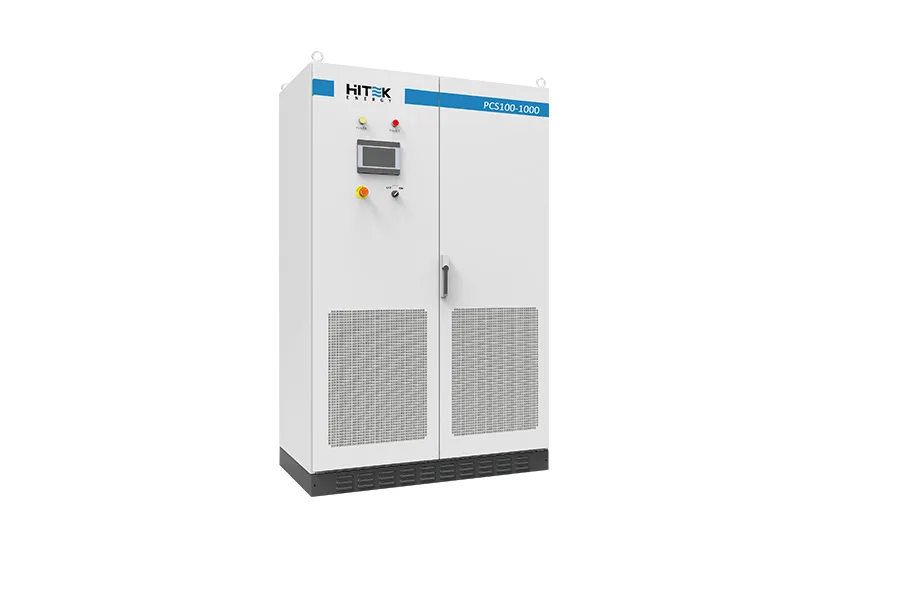

Bidirectional Inverter (PCS)
Capacity: 100-1000KW. Can be used alone or with solar chargers. Features programmable working modes, parallel capability, and touchscreen LCD.

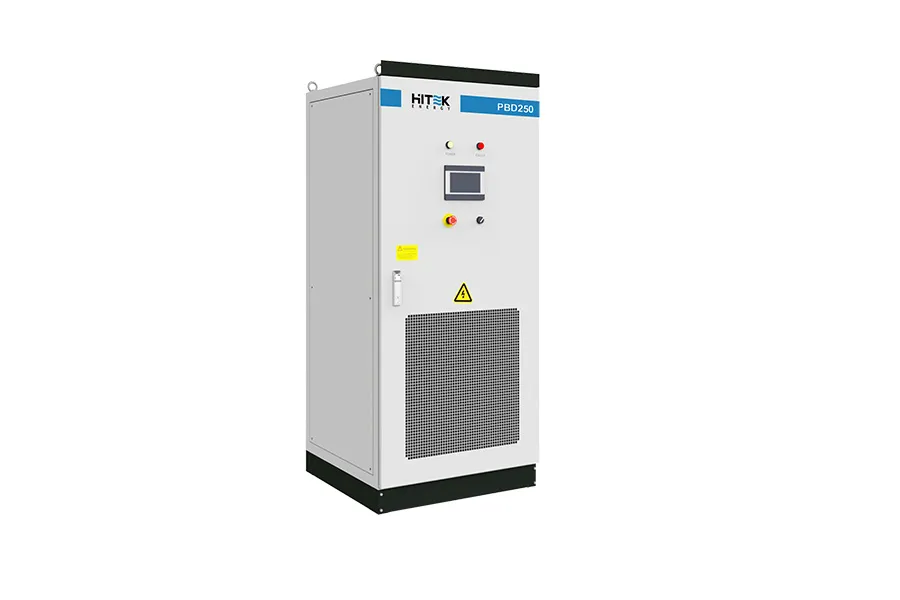

Solar Charge Controller (PBD)
1000V level DC to DC controller. Modular design, transformerless, and supports up to 5 MPPT for large scale projects.

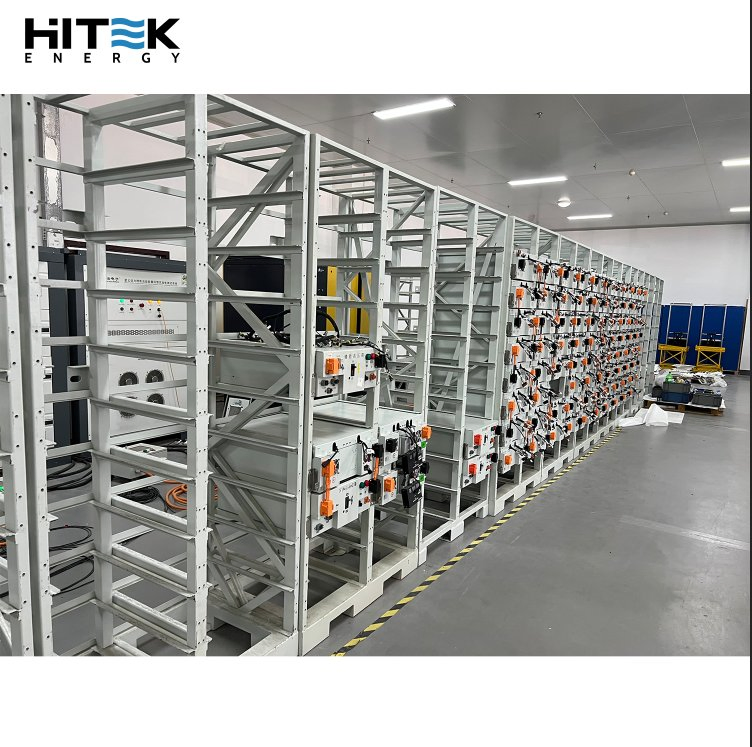

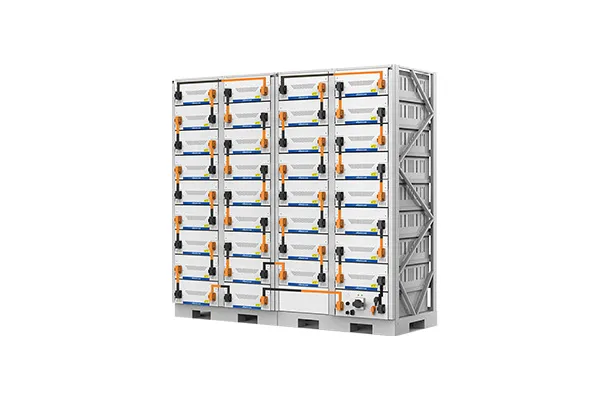

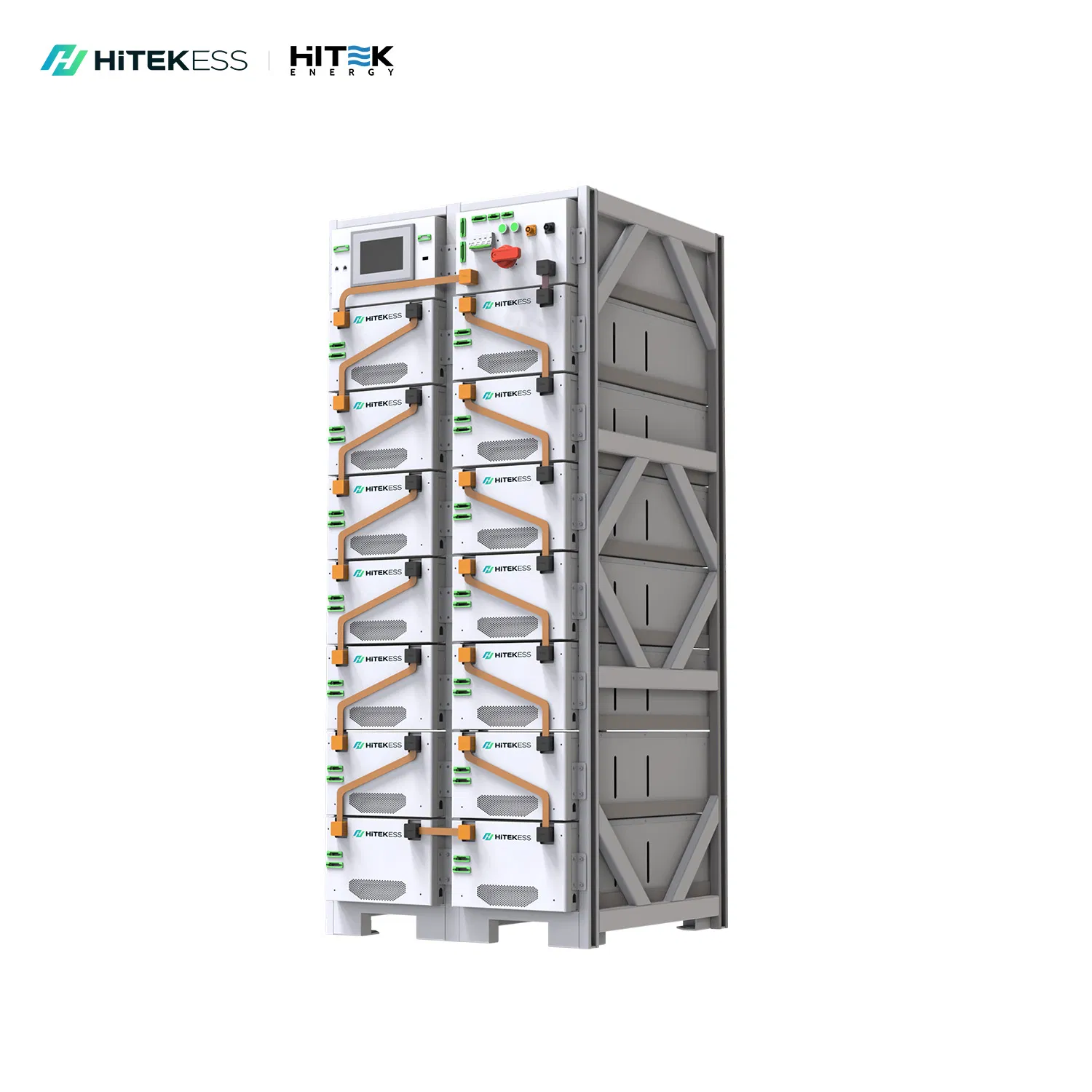

Storage Battery Bank
Standard modules consisting of 150 cells. Each unit provides 14.3kWh at 51.2V. Total system capacity reaches 1720kWh @ 80% DOD.
Founded in 2018, the manufacturer is a superior photovoltaic provider dedicated to sustainable energy solutions for homes, businesses, and factories. We provide tailored solar solutions for backup, residential, and commercial needs using reliable approved equipment.
Working together for a better, brighter, and greener future.
