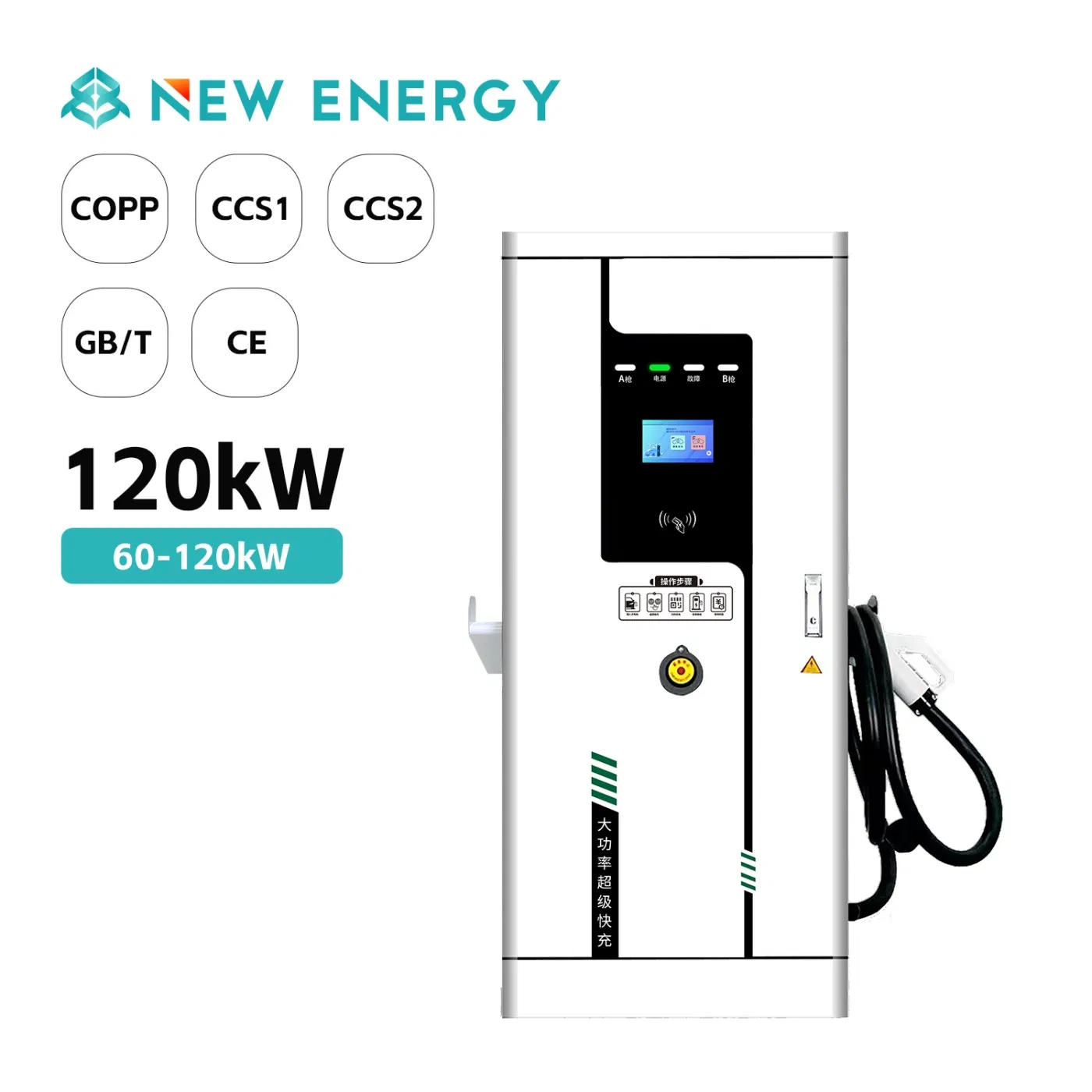

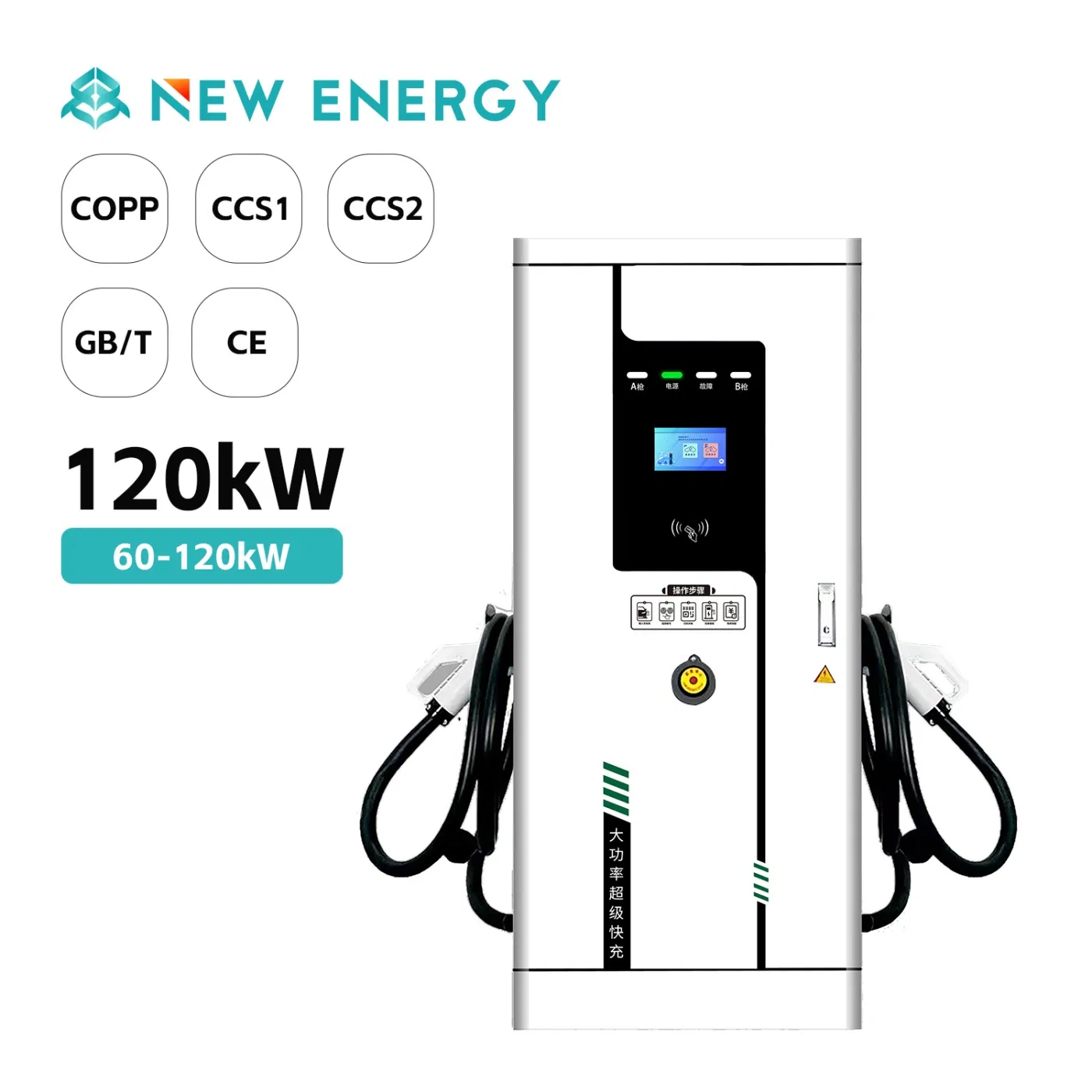

EnerNova Charger
1 / 5

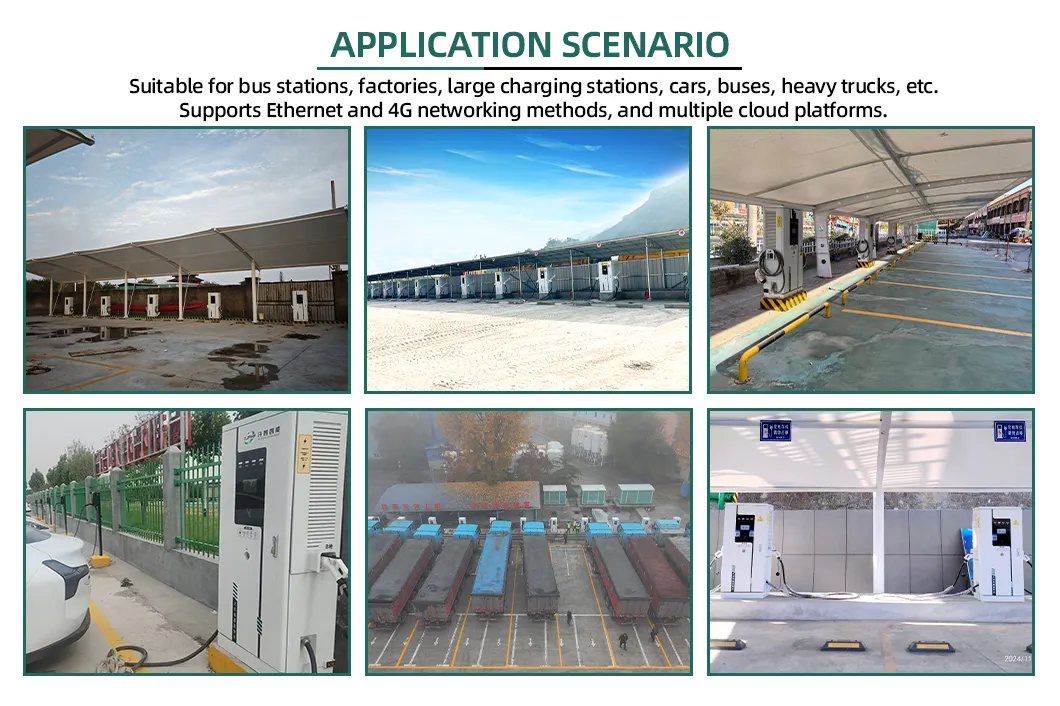

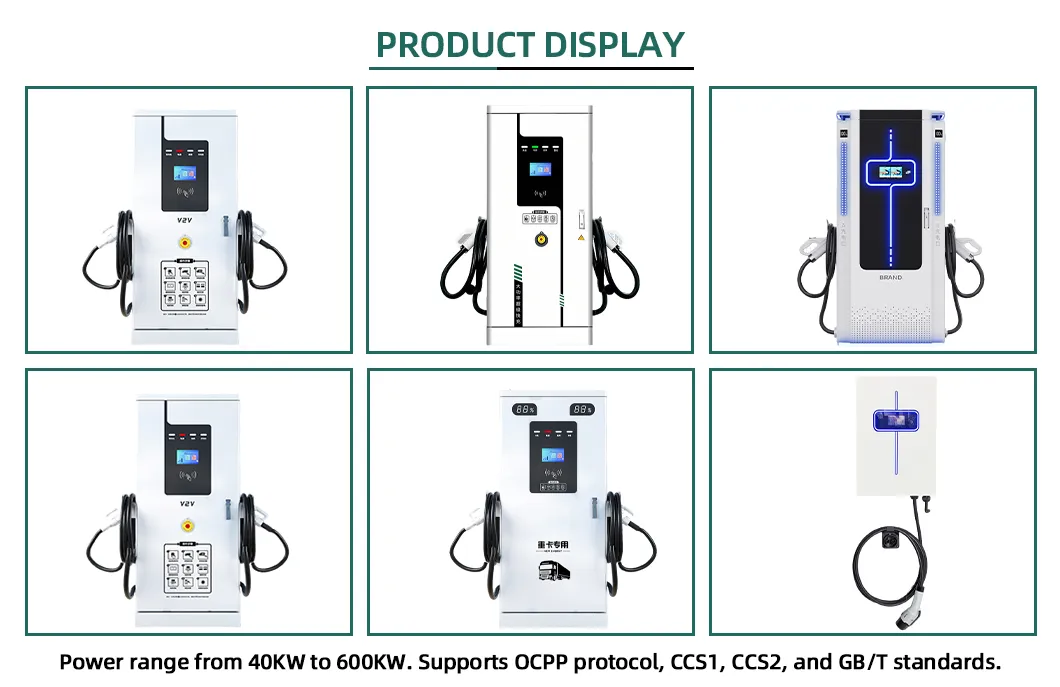

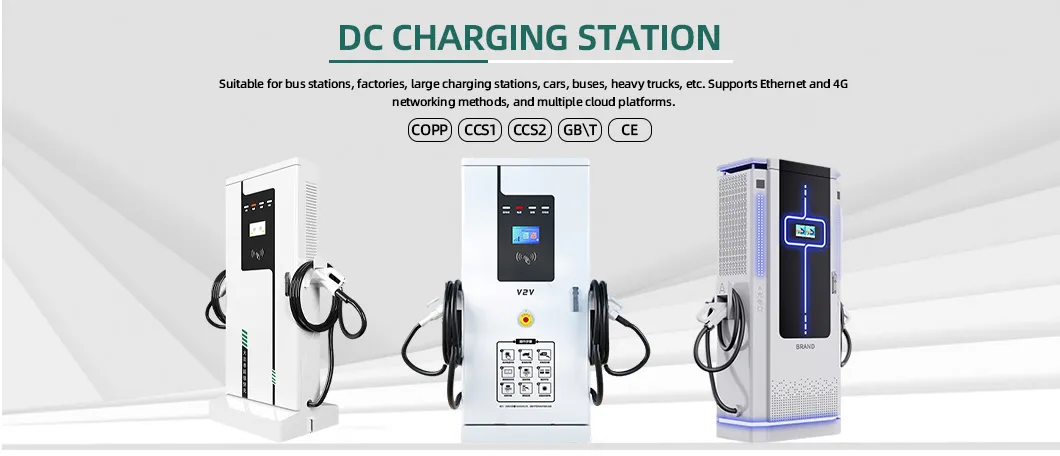

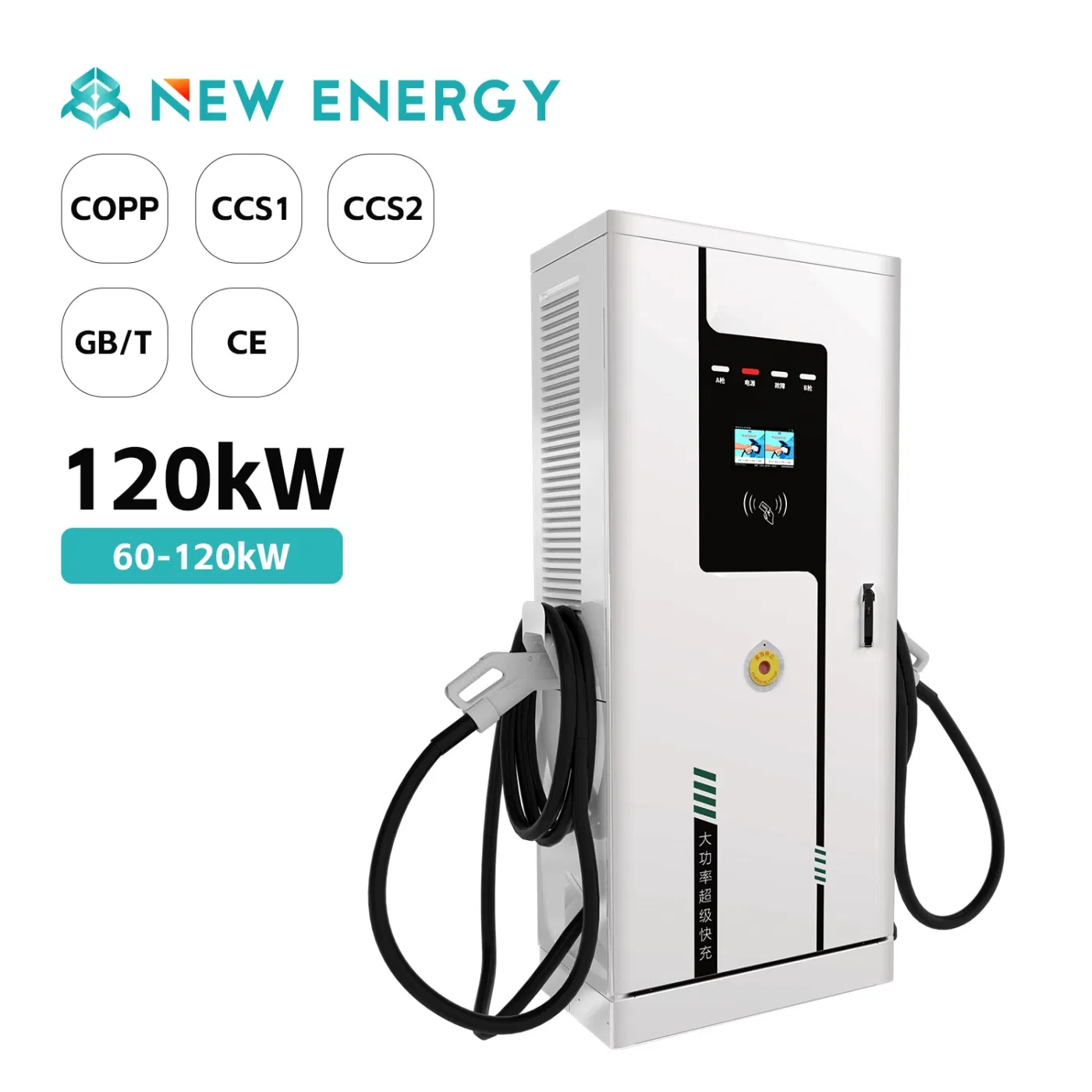

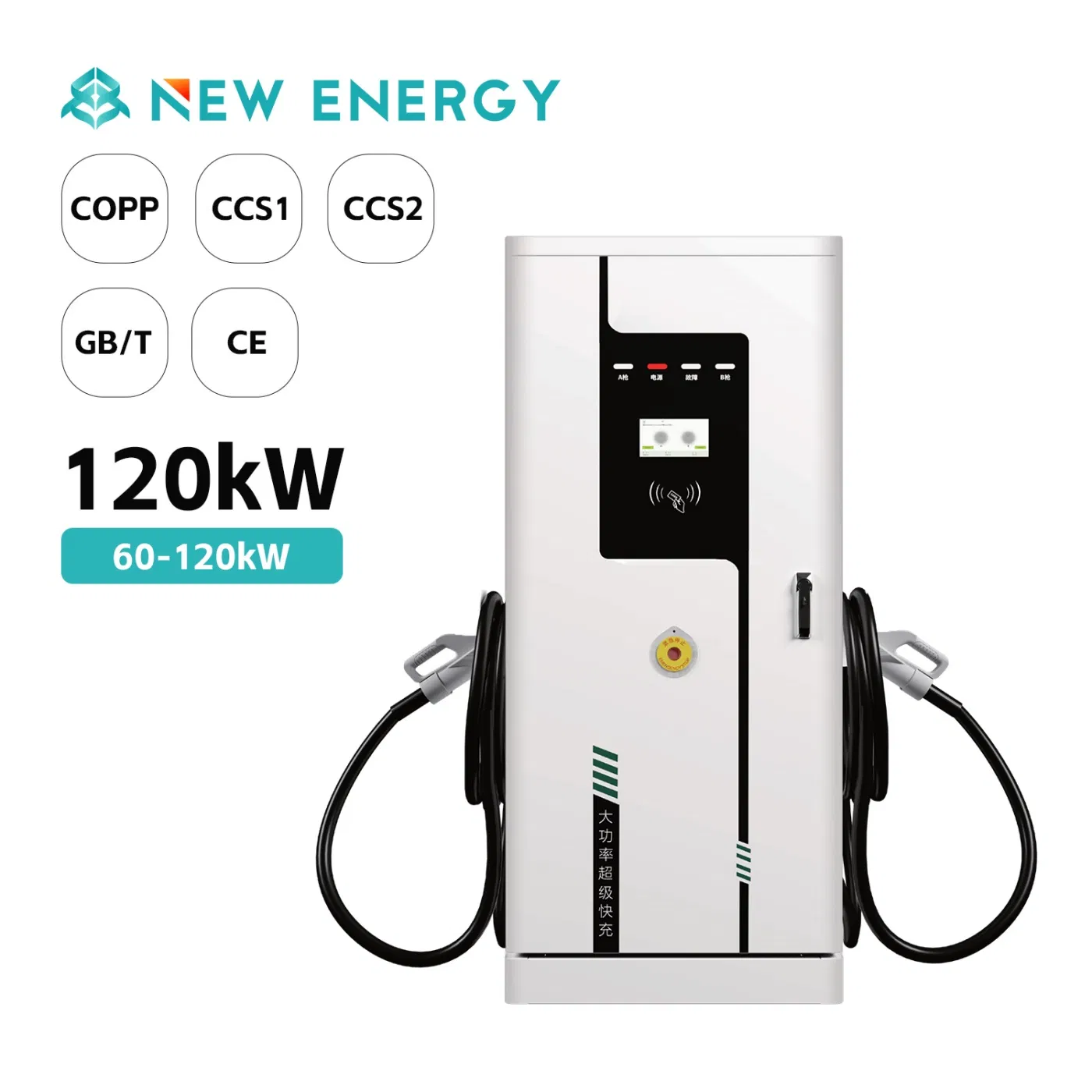

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc.
Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

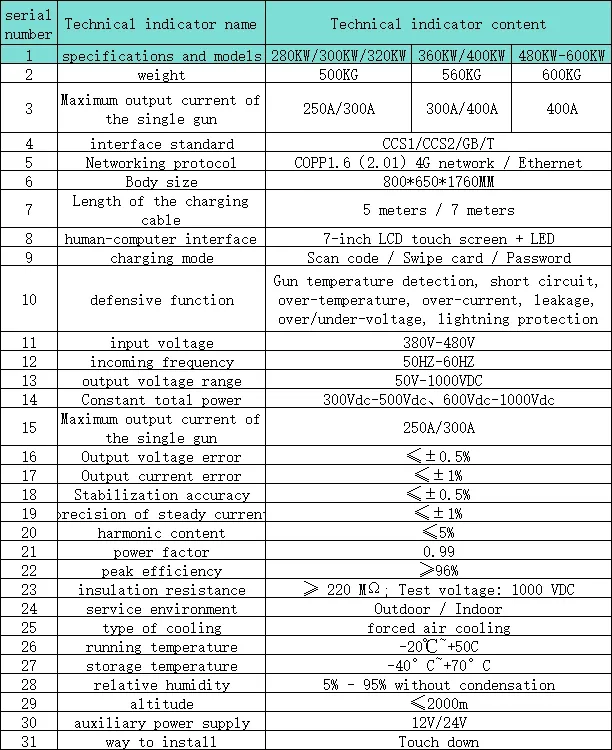

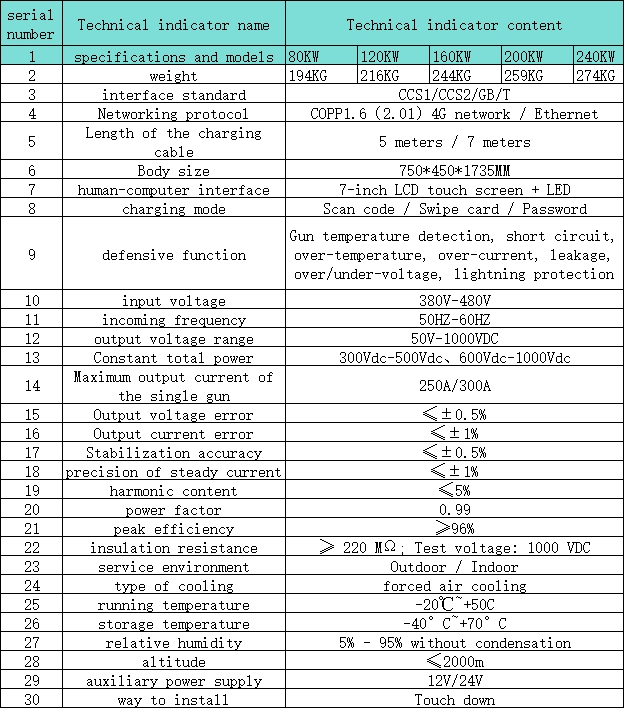

| Product Model | 40KW-600KW | External Dimension | 750x410x1700(mm) |
| Rated Power | 40KW-600KW | Weight | 194KG-274KG |
| Design Criterion | CCS1, CCS2, GB/T | Gun Barrel Length | 5 Meters |
| Charging Guns | 2 Individual | HMI | 7-Inch LCD Touch Screen + LED |
| Protection Level | IP54 | Connection | 4G All-Network / Ethernet |
| Charging Mode | Scan Code, Swipe Card, VIN, Password | Start Method | Swipe Card, Scan Code |
| Protection Functions | Temperature, Short Circuit, Leakage, Over/Under Voltage, Lightning | Cloud Platform | OCPP 1.6 (2.0.1) |
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights, certificates for honest business practices, and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises.
We adopt packaging methods sufficient to protect the equipment, supporting sea, air, and land transportation.
