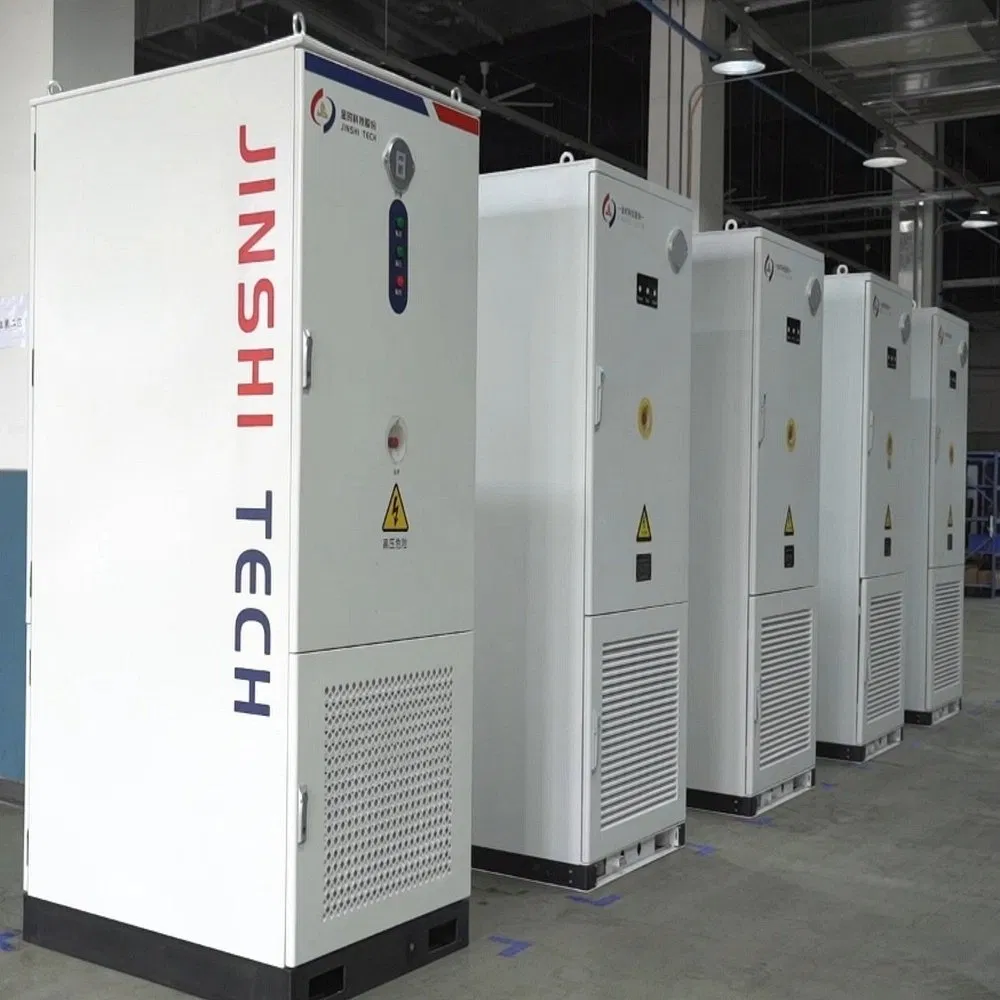

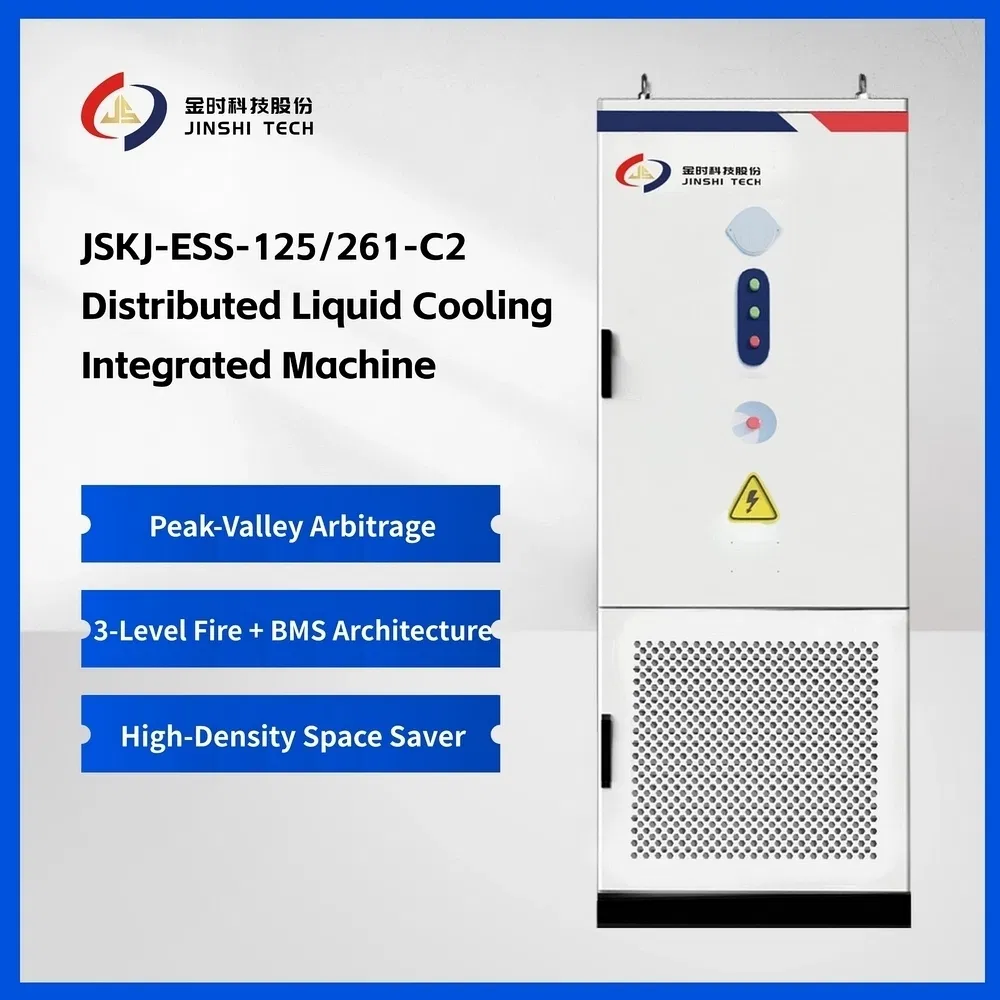

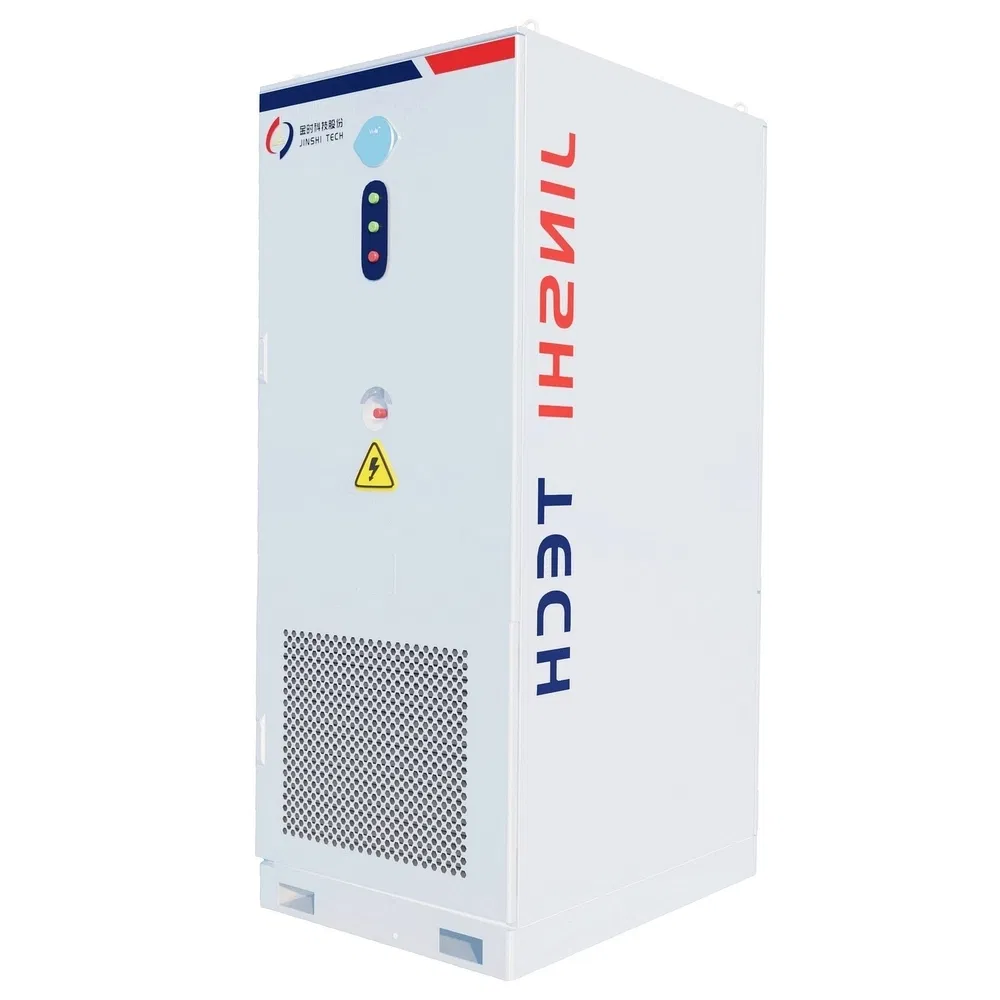

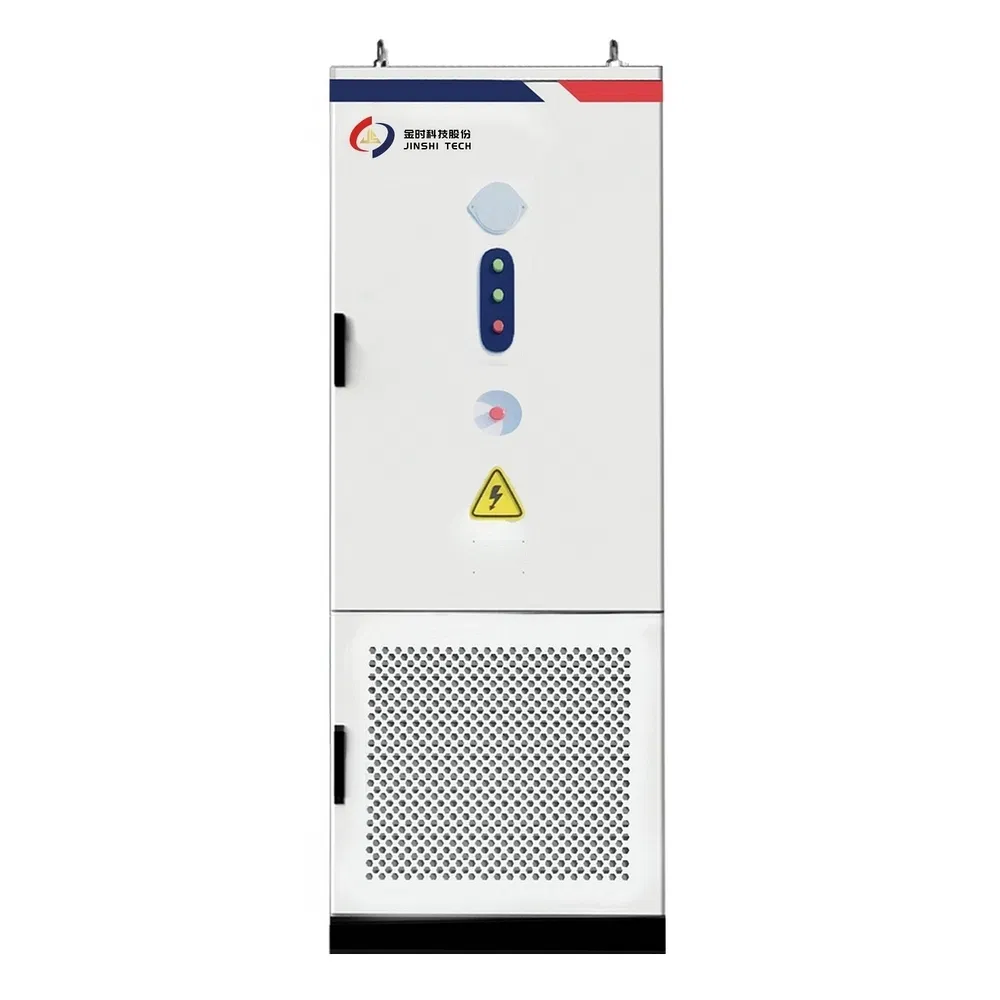

DISTRIBUTED LIQUID-COOLED ENERGY STORAGE SYSTEM
Our advanced Liquid Cooling Energy Storage System delivers exceptional performance with 125kW rated power and 261kWh capacity, engineered specifically for commercial and industrial applications. This LiFePO4 battery storage system features innovative liquid thermal management technology that ensures optimal operating temperatures and extended battery lifespan.
CORE PRODUCT FEATURES:
| System Specifications | |
|---|---|
| Cell Type | LFP Battery |
| Configuration | 1P260S |
| Rated Capacity | 314Ah |
| Rated Energy | 261kWh |
| Rated Voltage | 832V |
| Rated Power | 125kW |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 676~936V |
| Standard Curren | 157/157A |
| Cooling Method | Liquid Cooling |
| Fire Suppression Medium | NOVEC 1230 |
| Fire Detection | Temp., CO, Smoke Sensors |
| Noise Level | ≤ 75dB |
| IP Rating | IP54 |
| Weight | 2.6T |
HIGH-PERFORMANCE LFP BATTERY TECHNOLOGY: 314Ah rated capacity with 1P260S configuration delivering 261kWh energy storage and 125kW power output.

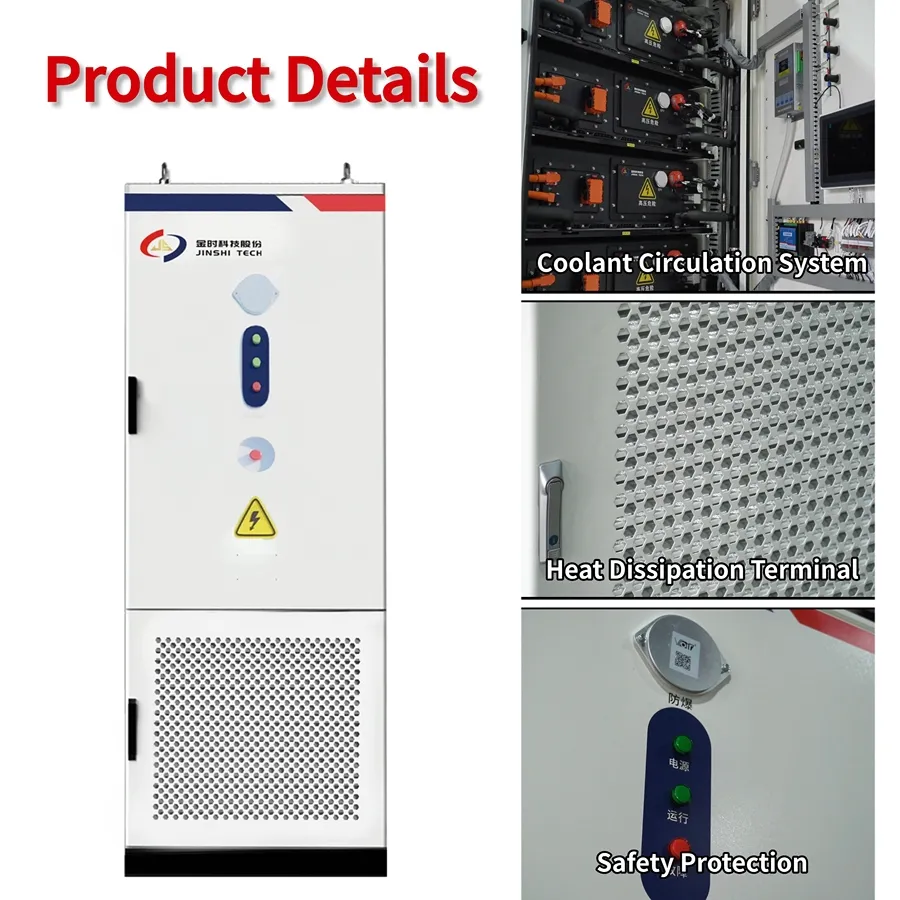

ADVANCED LIQUID COOLING SYSTEM: Precision thermal management ensures optimal operating temperatures, maximizing battery efficiency and extending service life.
TRIPLE-LEVEL FIRE PROTECTION: Integrated NOVEC 1230 fire suppression system with multi-sensor detection provides comprehensive safety.

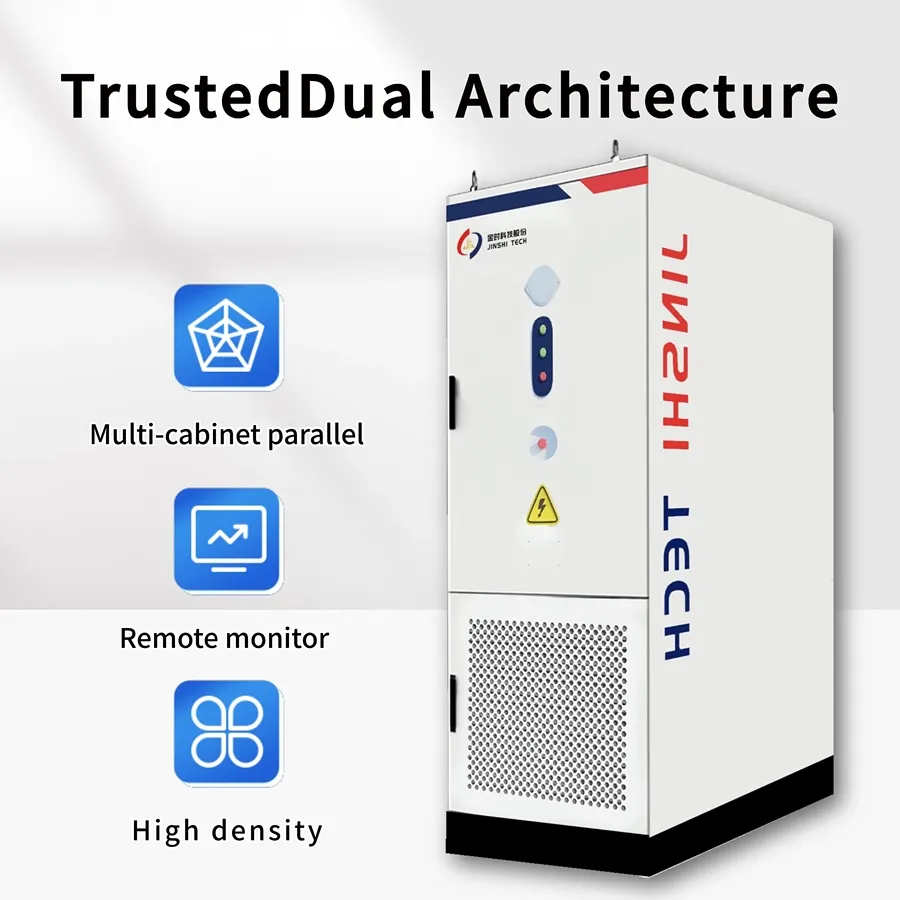

INTELLIGENT BMS ARCHITECTURE: Sophisticated Battery Management System with remote monitoring capabilities enables real-time performance tracking.
