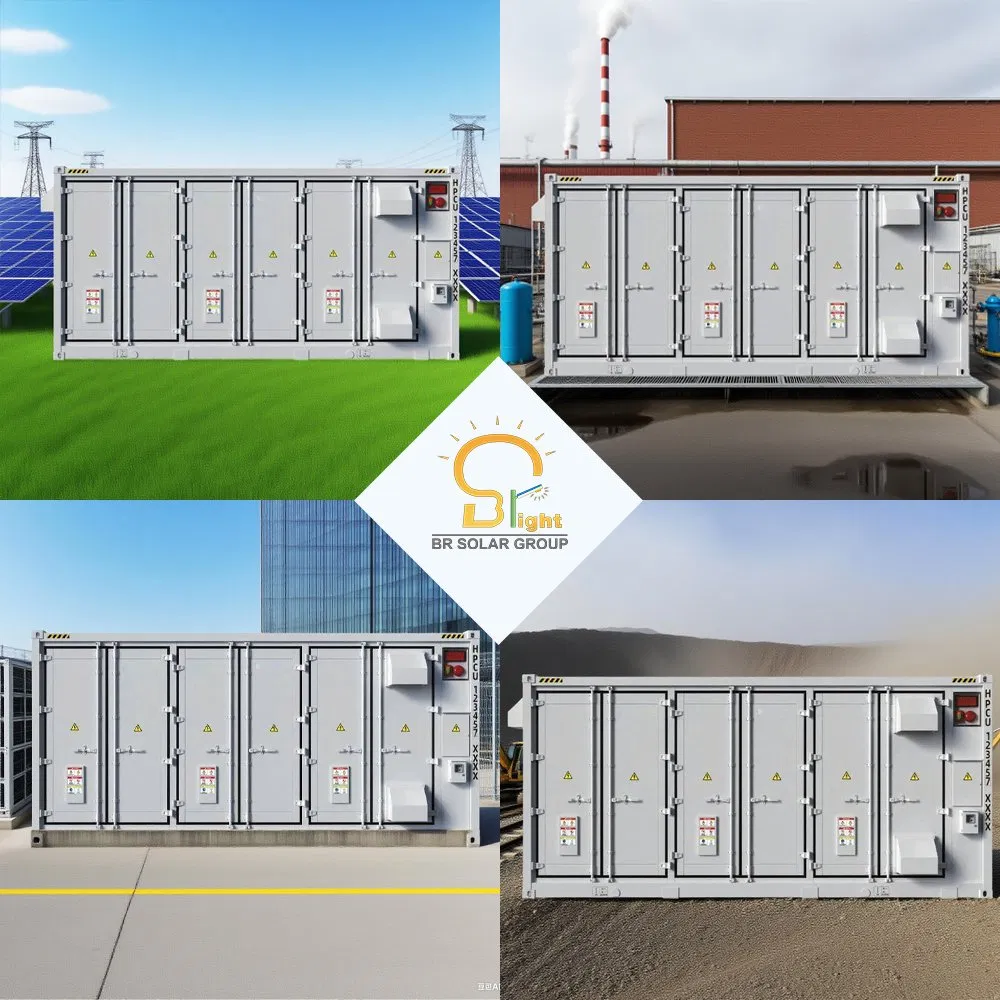

School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
1 / 5
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage
School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

School, Factory CE Approved 100kwh 200kwh 500kwh 1mwh Battery Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Specifications

ConditionNew
CertificationISO, CE
ApplicationHome, Industrial, Commercial, School, Factory
Specification100kwh, 233kwh
Type of CellLithium Iron Phosphate(LFP)
CoolingLiquid Cooling
Protection ClassIP55
Rated Capacity5.01 Mwh
Rated Voltage1331.2V

Packaging & Delivery

Package Size110.00cm * 140.00cm * 238.00cm
Gross Weight2000.000kg
Transport PackageCarton and Pallet

Product Description

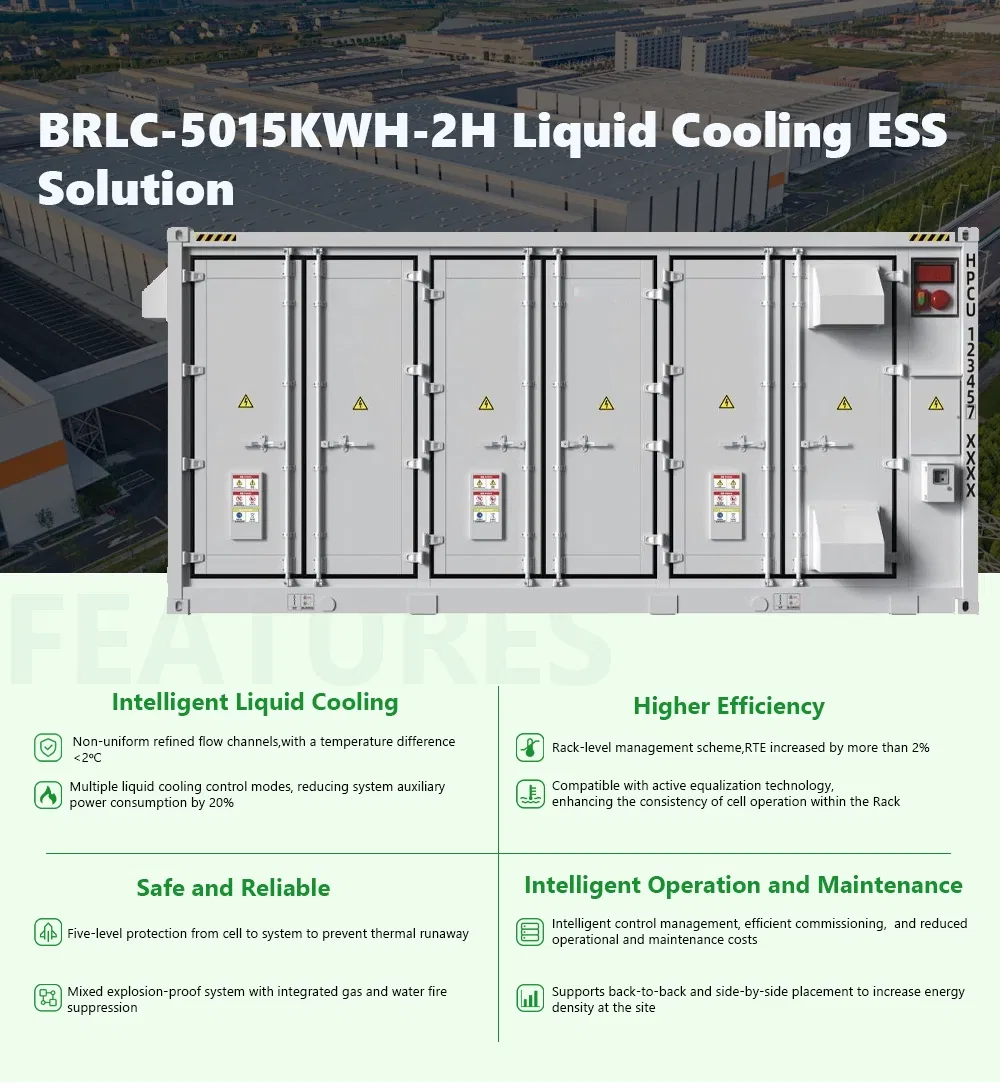

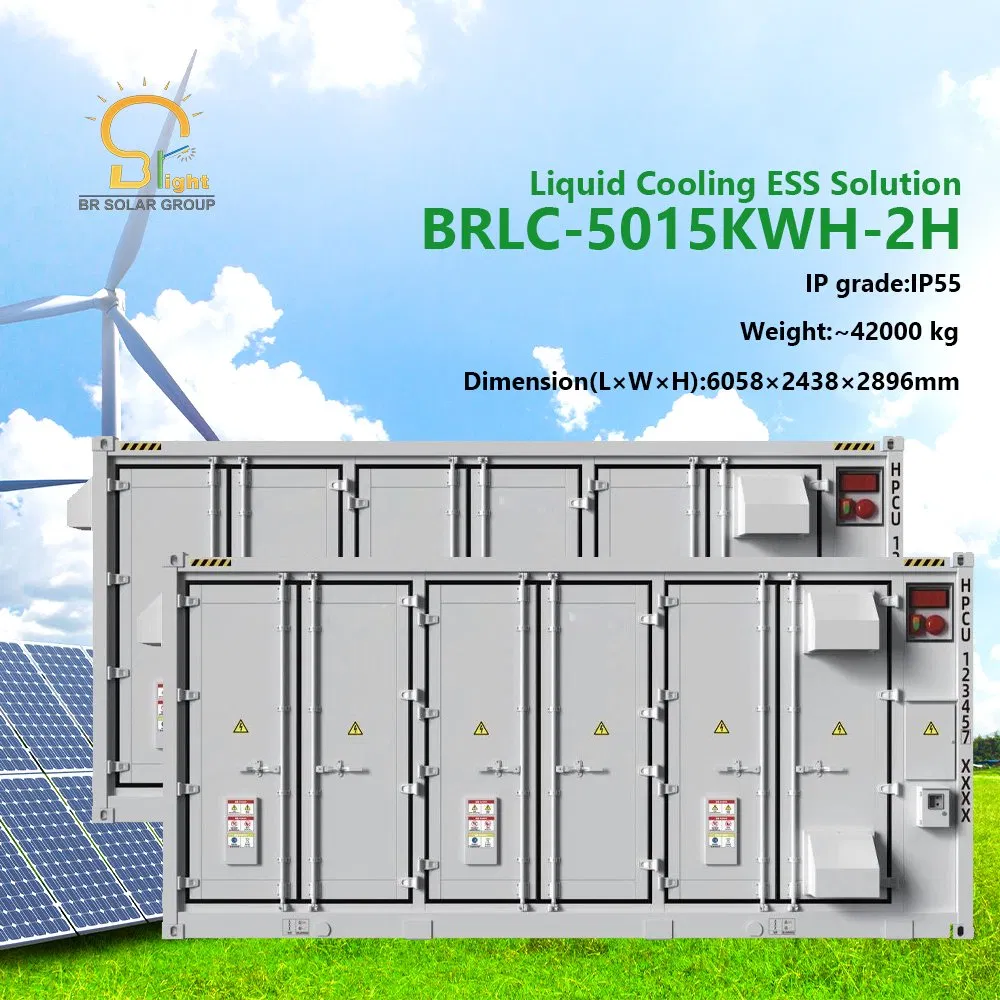

Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communicationEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

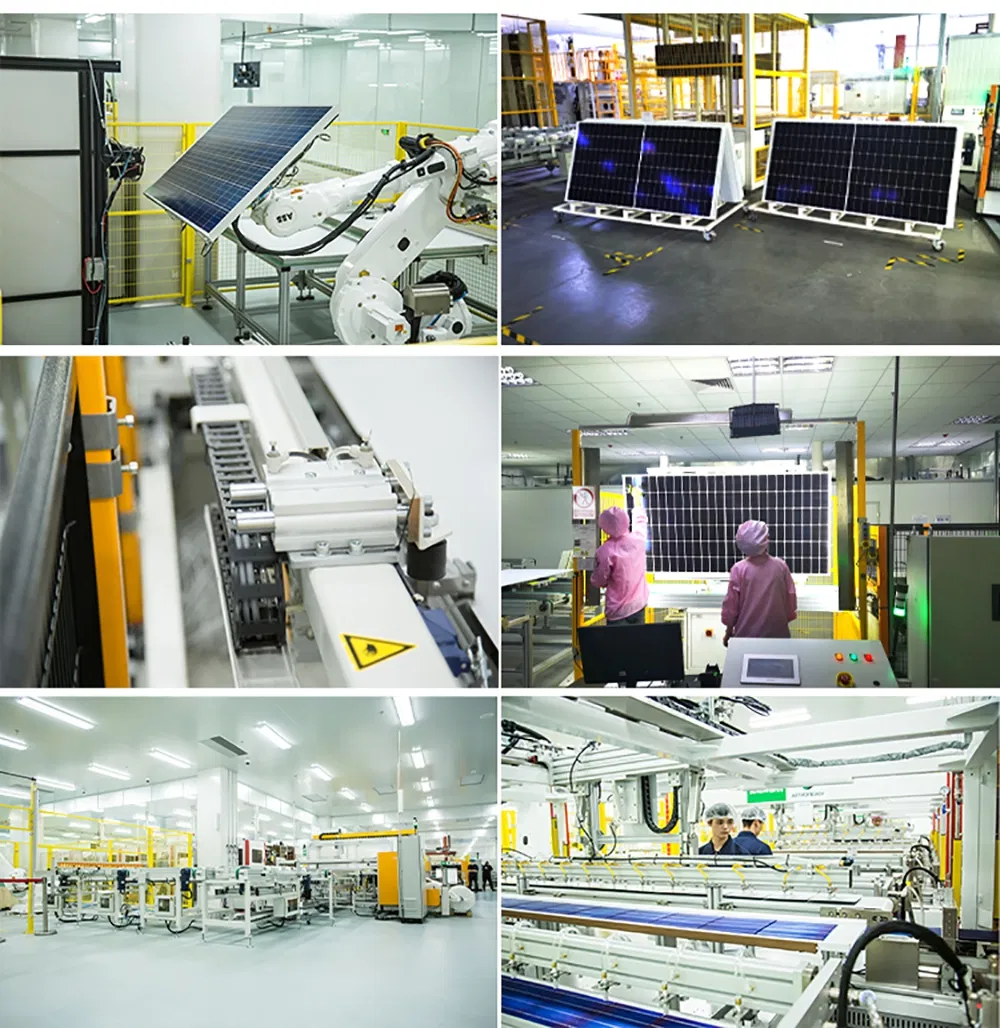

Storage Detail 1 Storage Detail 2 Storage Detail 3 Storage Detail 4 Storage Detail 5 Storage Detail 6 Storage Detail 7 Storage Detail 8 Storage Detail 9

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety and long cycle life.
How is the thermal management handled?
It features an advanced Liquid Cooling system to ensure optimal operating temperatures and enhance battery longevity.
What is the protection rating for outdoor use?
The system is rated at IP55, providing robust protection against dust and water ingress, suitable for various environments.
What fire safety features are included?
Safety is prioritized with temperature sensors, smoke and combustible gas detectors, deflagration venting, and fire extinguishing gas/water sprinkler systems.
What are the primary applications for this storage unit?
This energy storage solution is ideal for Industrial, Commercial, School, and Factory settings, as well as large-scale residential use.
What communication interfaces are supported?
The system supports standard external communication interfaces including Ethernet, CAN, and RS485 for seamless integration.
