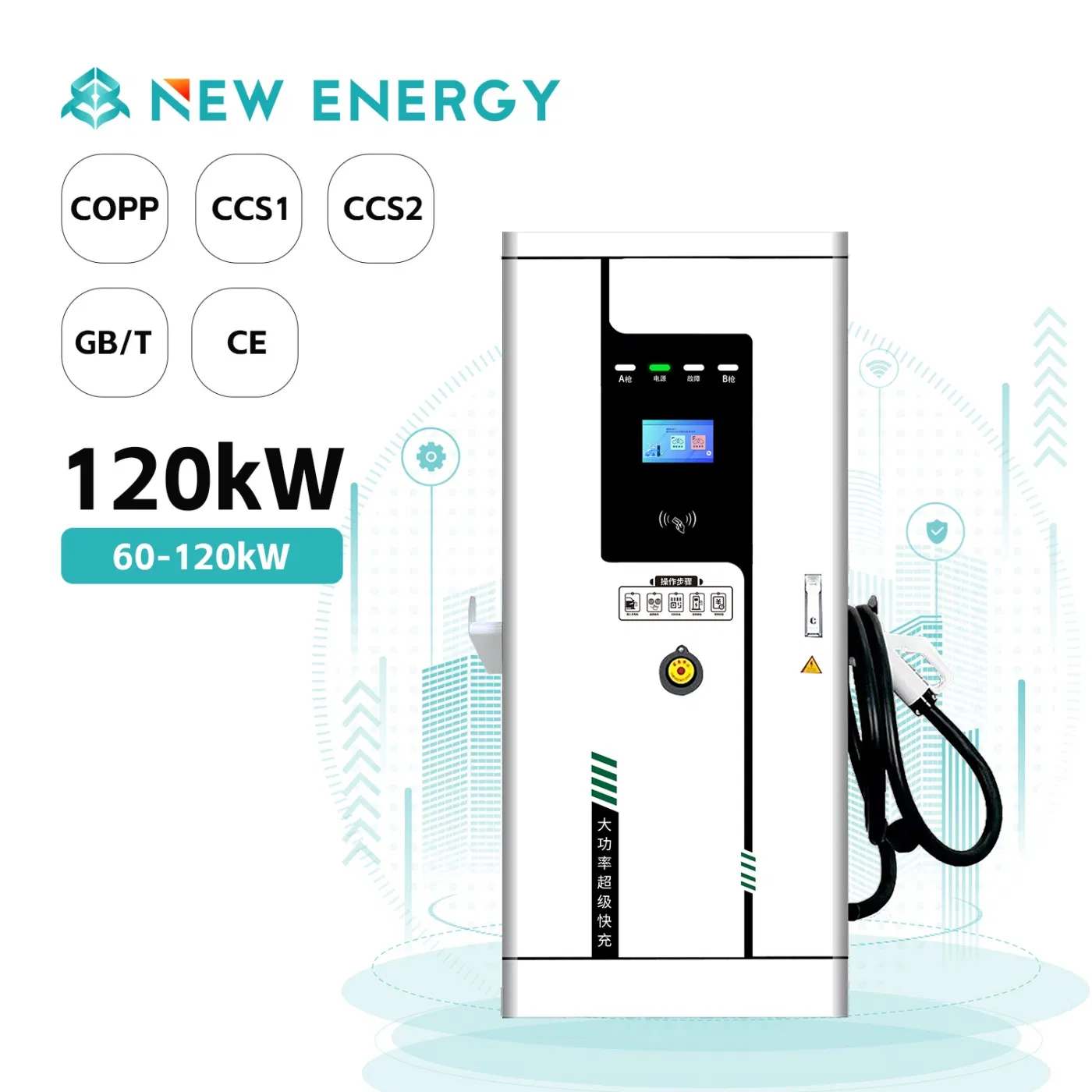

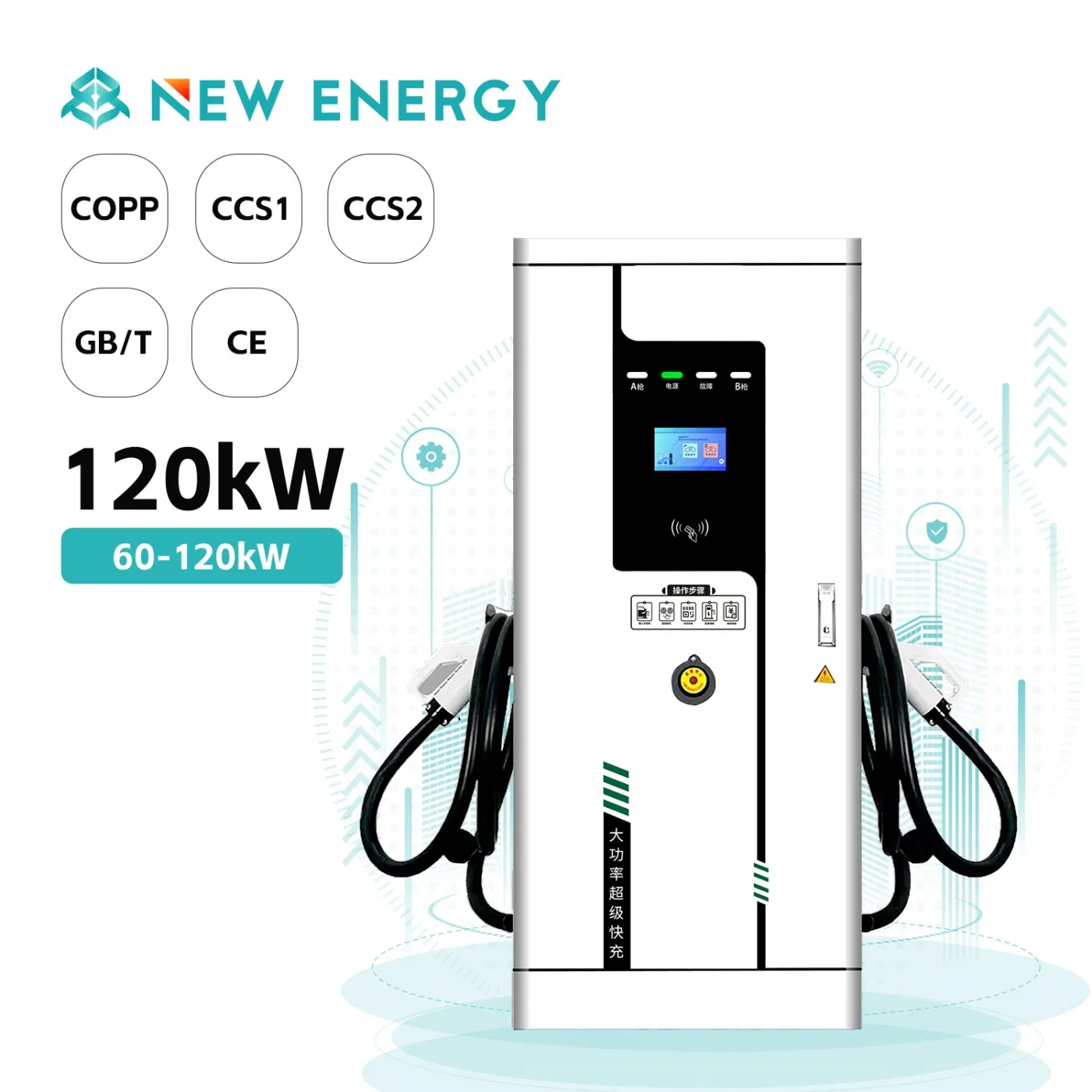

Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
1 / 5
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station
Silent Operation Public Transportation and Charging Network EV DC Charging Station

Silent Operation Public Transportation and Charging Network EV DC Charging Station

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

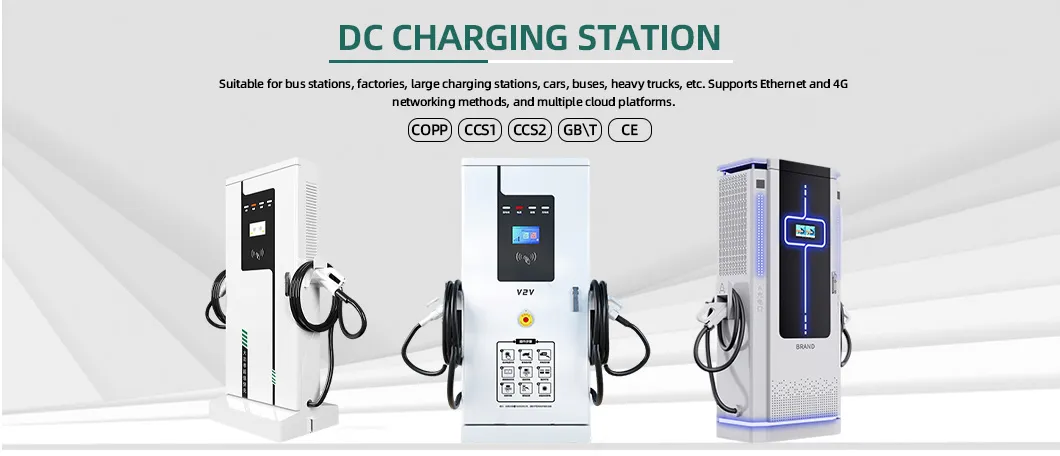

EV DC Charging Station Banner
Public Transportation Charging Network
⚡ Basic Information
Model NO.
80KW-600KW
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Rated Power
40kw To 600kw
Weight
194kg-274kg
Gun Barrel Length
5 Meters
Number of Guns
2 individual
Body Size
750X410X1700(mm)
Interface
7-Inch LCD Touch Screen + LED
Connection
4G / Ethernet
HS Code
85044099
📘 Product Description
Product Introduction:
Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. It adopts advanced DC fast charging technology, providing rapid energy replenishment.

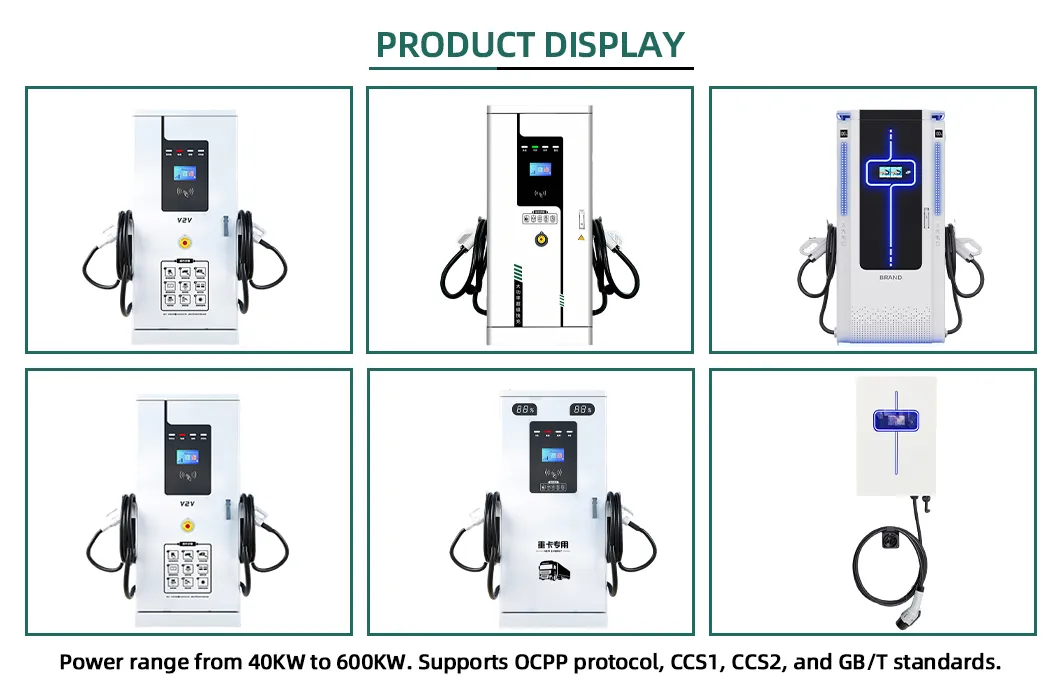

DC Fast Charger Details
Charging Gun View

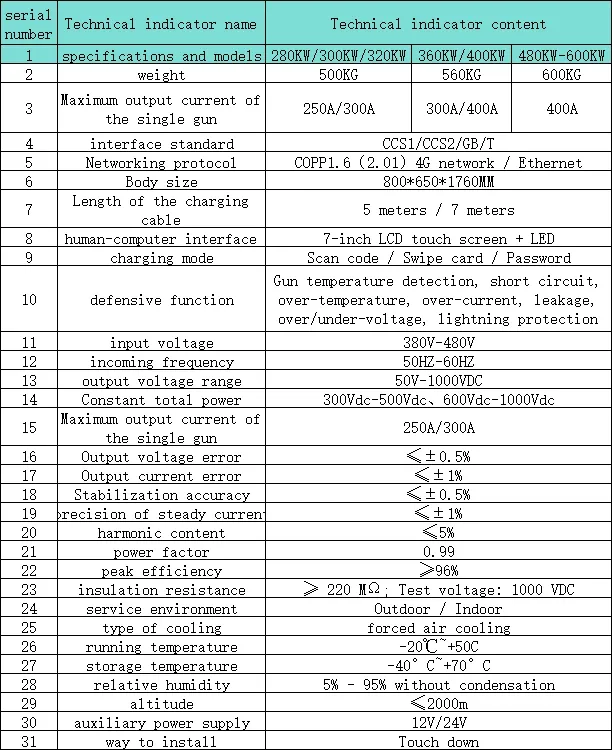

Internal Component Display

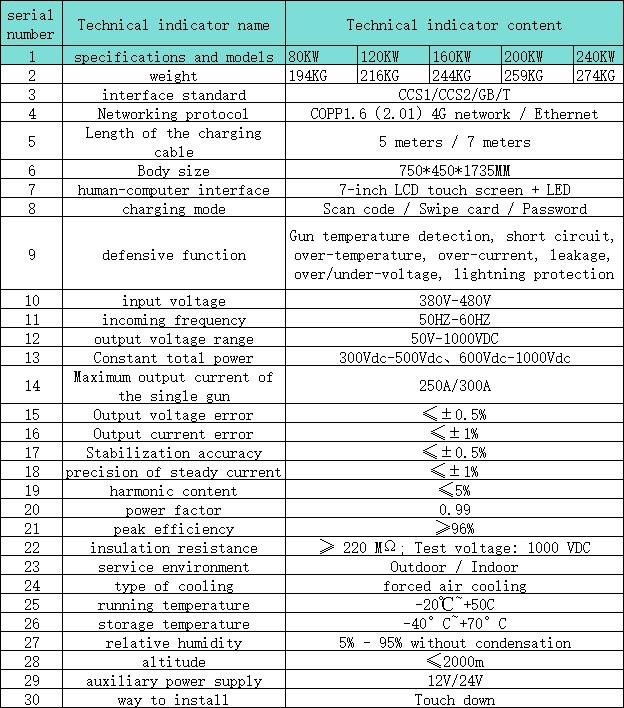

📋 Technical Specification
Product Model40KW-600KW External Dimension750x410x1700(mm)
Design CriterionCCS1, CCS2, GB/T Weight194KG-274KG
Protection LevelIP54 Gun Barrel Length5 Meters
Charging ModeScan code, Swipe card, VIN code Cloud PlatformOCPP 1.6 (2.0.1)
Defense FunctionGun temperature detection, short circuit, over-temperature, over-current, leakage, over/under-voltage, lightning protection
🛡️ Quality Assurance & Company Profile

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale international exhibitions and have established partnerships with numerous renowned enterprises globally.

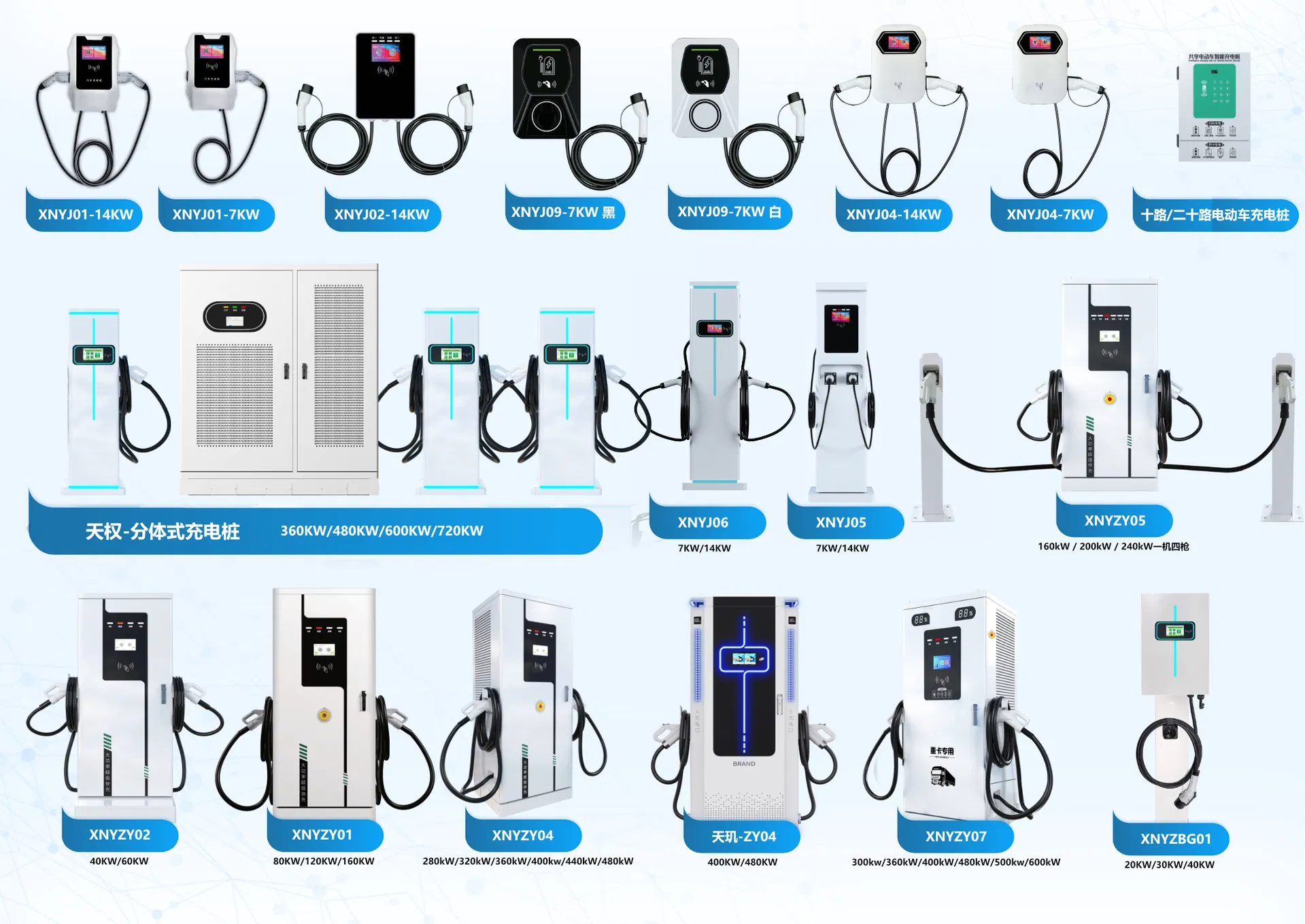

Certification Showcase

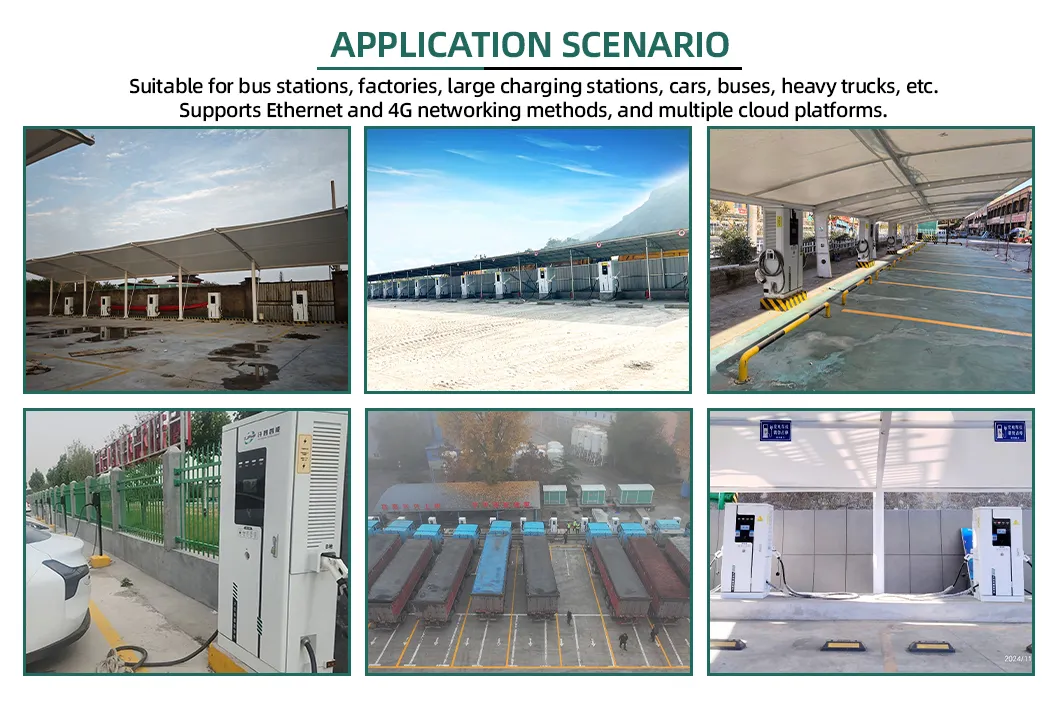

Factory Testing
Factory View
Exhibition Presence
📦 Packaging & Shipping
Professional Packaging

We adopt robust packaging methods to protect the equipment during sea, air, and land transportation.

❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer. You are welcome to visit our production facility at any time to see our processes and quality control.
What types of EV charging solutions do you provide?
We offer a wide range of products including Portable AC chargers (3.5kw-44kw), floor-mounted fast DC Charging stations (30kw-480kw), and mobile energy storage chargers.
Can we customize the products with our own logo and design?
Yes, we provide OEM and ODM services. We can incorporate your design and place your logo on the products and packaging based on MOQ requirements.
What is the typical delivery time for an order?
Generally, delivery takes between 7 to 35 days after receiving advance payment. The exact time depends on the specific items and the total quantity of your order.
Do you test the charging stations before they are shipped?
Absolutely. All goods undergo a rigorous final inspection and functional testing before delivery to ensure they are ready for immediate use upon arrival.
What payment methods do you support?
We accept various payment methods including T/T (30% deposit, 70% before delivery), Credit Card, Western Union, and Bank Transfers.
