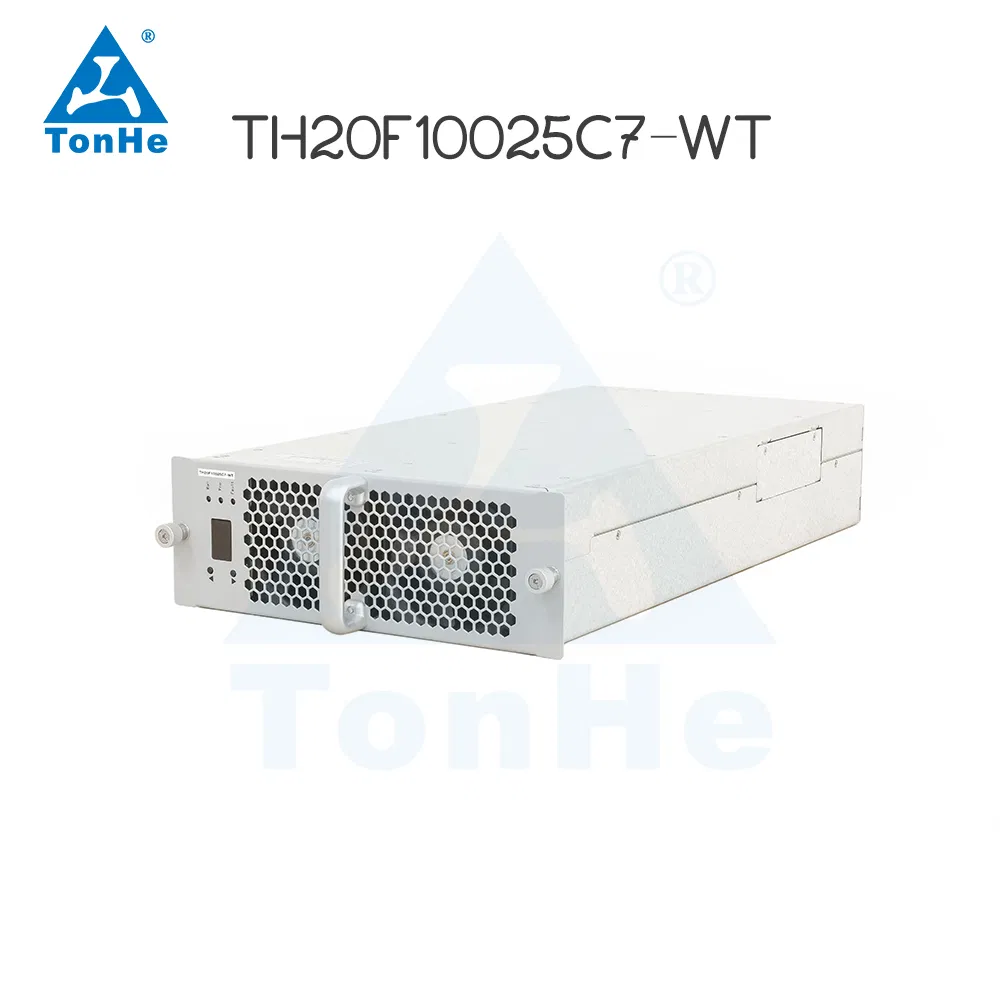

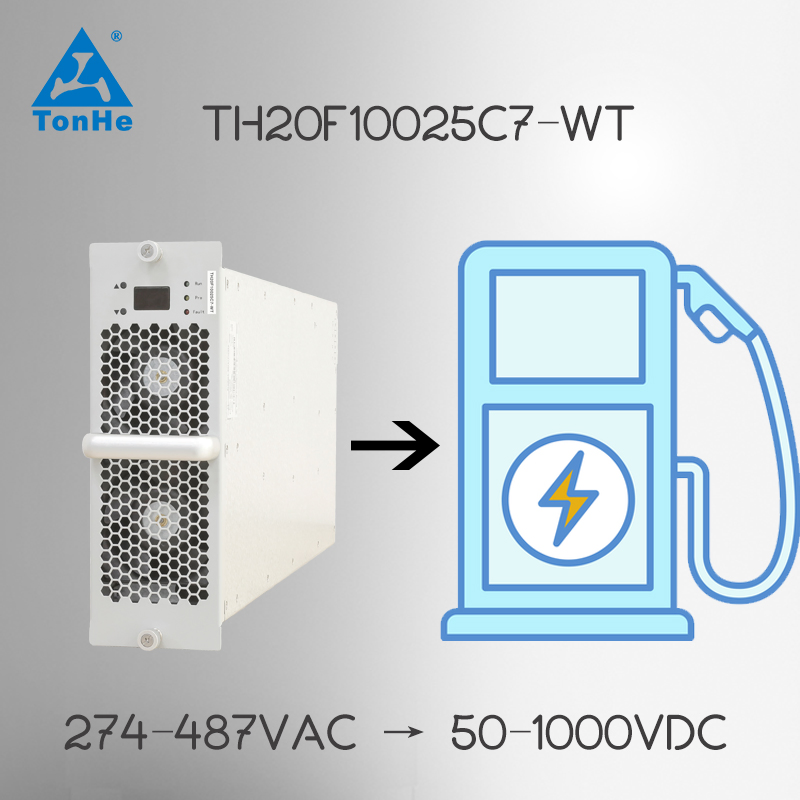

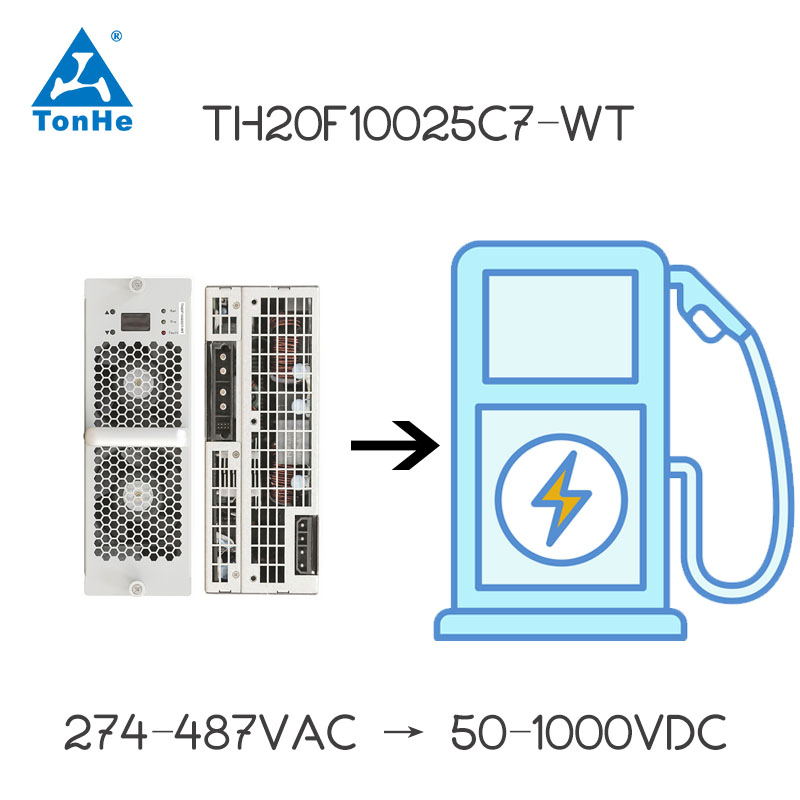

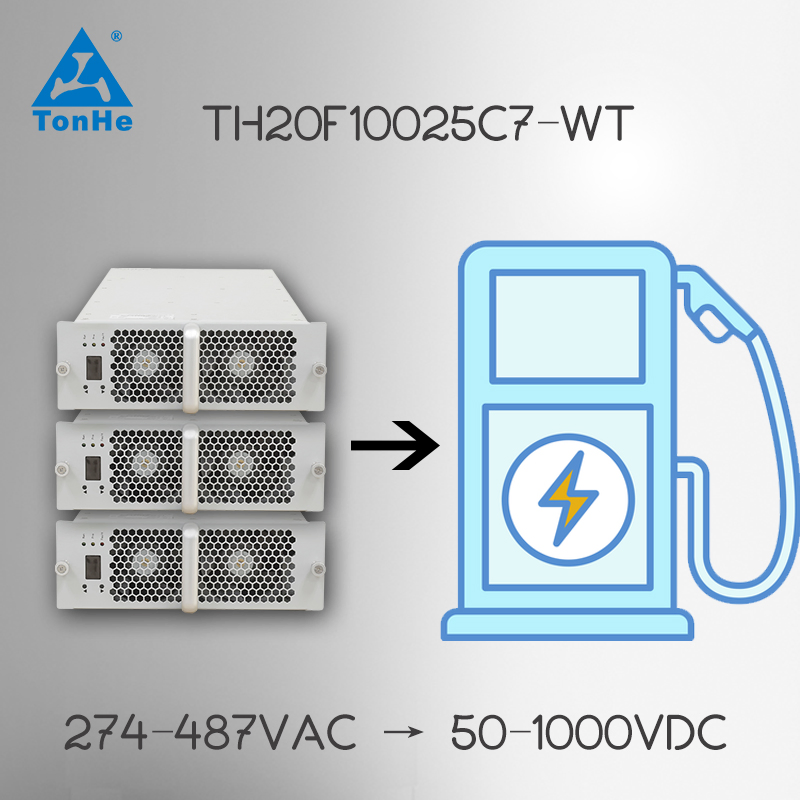

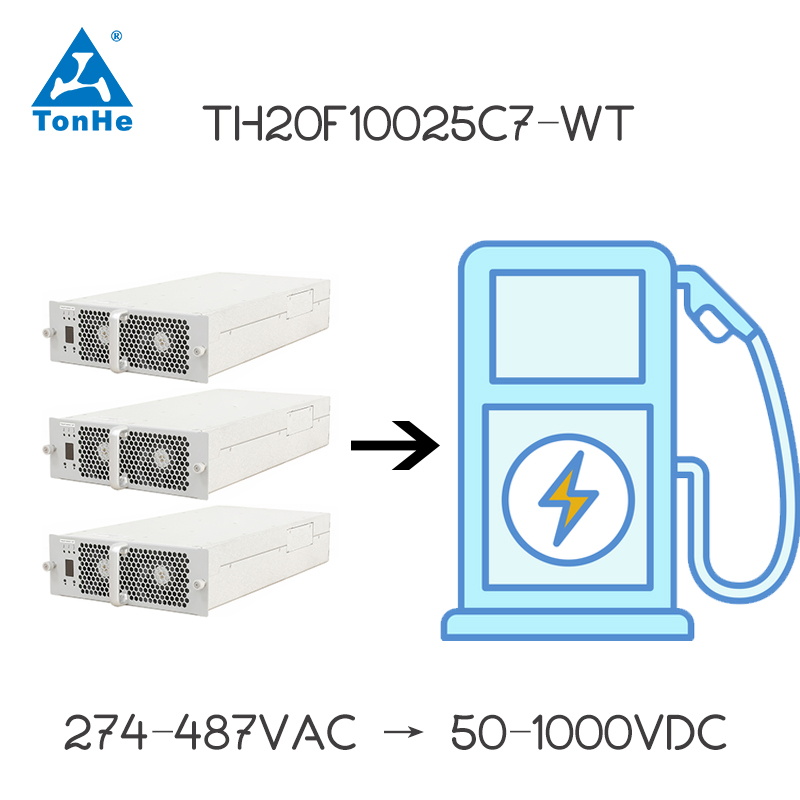

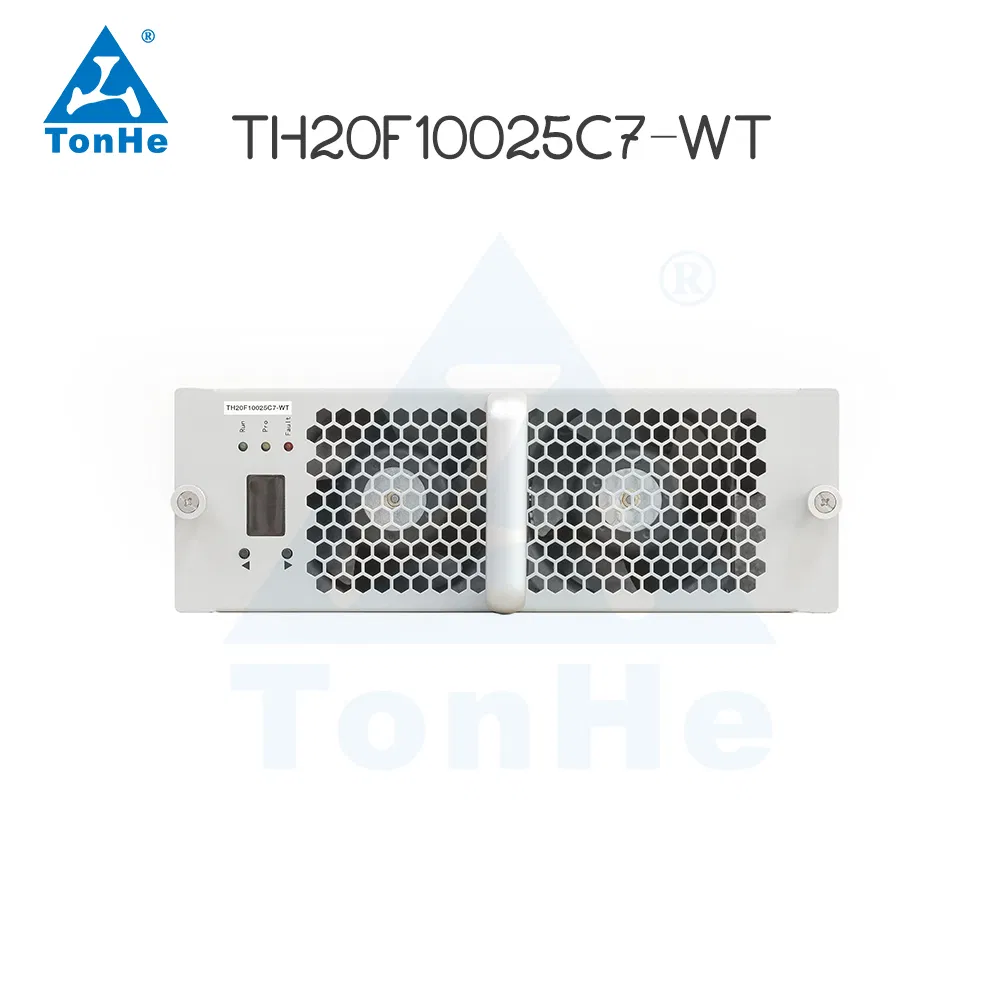

Tonhe 20kw 1000V Acdc EV Charging Power Module with High Efficiency

1 / 5

Tonhe 20kw 1000V Acdc EV Charging Power Module with High Efficiency

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TH20F10025C7EWT-Y-1

Type

Fast EV Charging Station

Output Range

300-1000VDC

Input Voltage

274-487VAC

Peak Efficiency

≥96%

Cooling Method

Fan Cooling

Working Temp

-40℃ - 75℃

Capacity

10000PCS / Month

★

Product Advantages

✓ Wide output constant power range: 300-1000VDC

✓ Ultra-low standby power consumption: < 10W

✓ Ultra-wide Voltage Input Range 274-487VAC

✓ Ultra-wide operating temperature: -40ºC - 75ºC

✓ Peak efficiency > 96%

⚙

Technical Specifications

Category	Parameter	Specification
AC Input	Input voltage	Rated 380VAC, 3W+PE, range 274-487VAC
AC Input	Frequency	50/60Hz
DC Output	Rated power	20kW
	Voltage range	50-1000VDC
	Current range	0.5-67A
	Constant power range	300-1000VDC
	Regulation accuracy	Voltage ≤±0.5%, Current ≤±1%
Mechanical	Dimensions	460mm210mm84mm (DWH)
	Weight	≤13kg
	MTBF	500,000 hours

📦

Packaging & Shipping

🏢

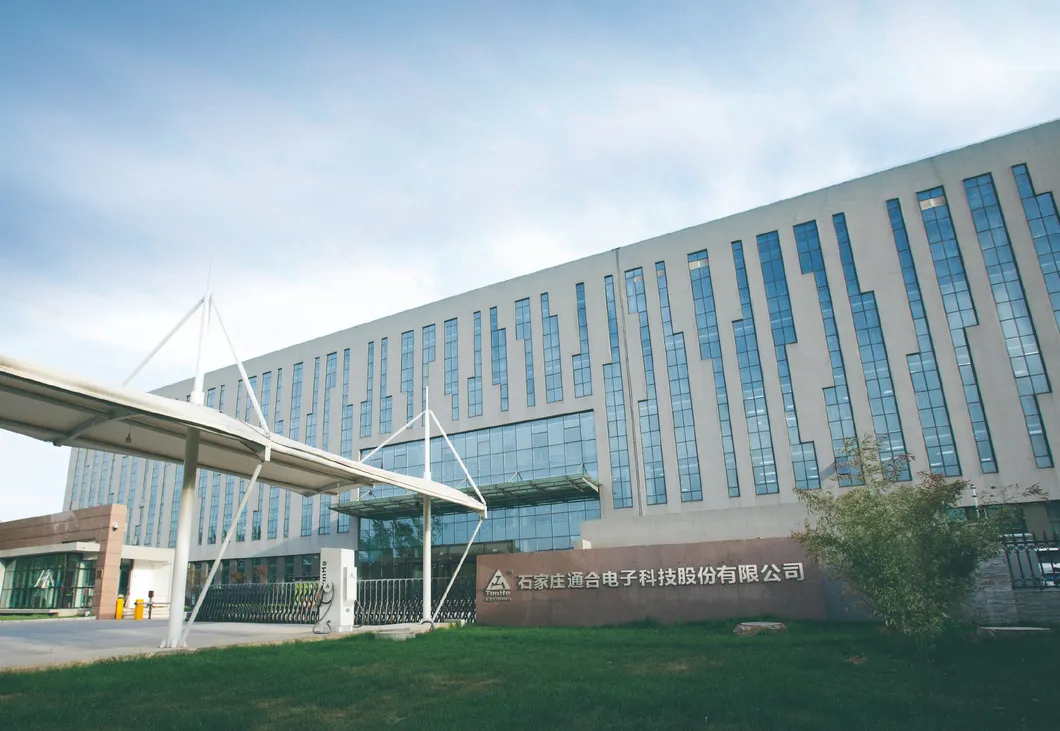

Professional Profile

Dedicated to technological innovation in high-frequency power conversion, we are a leading enterprise in the EV charging and swapping industry. Our focus remains on soft switching technology and efficient power conversion processes.

We provide comprehensive "One-Stop Service" including R&D guidance, system solutions, technical training, and global after-sales support. Our commitment to quality is backed by international certifications and advanced manufacturing processes.

🔬

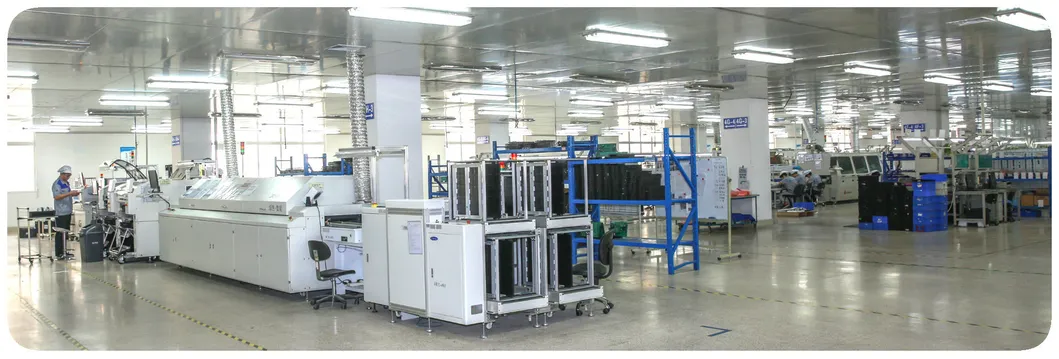

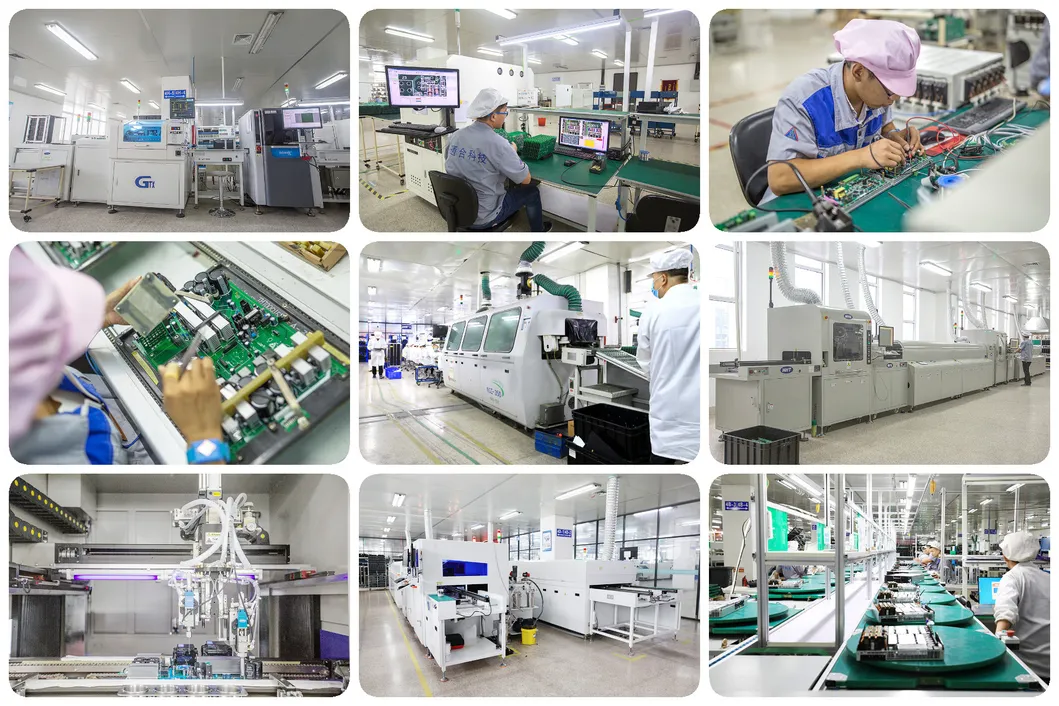

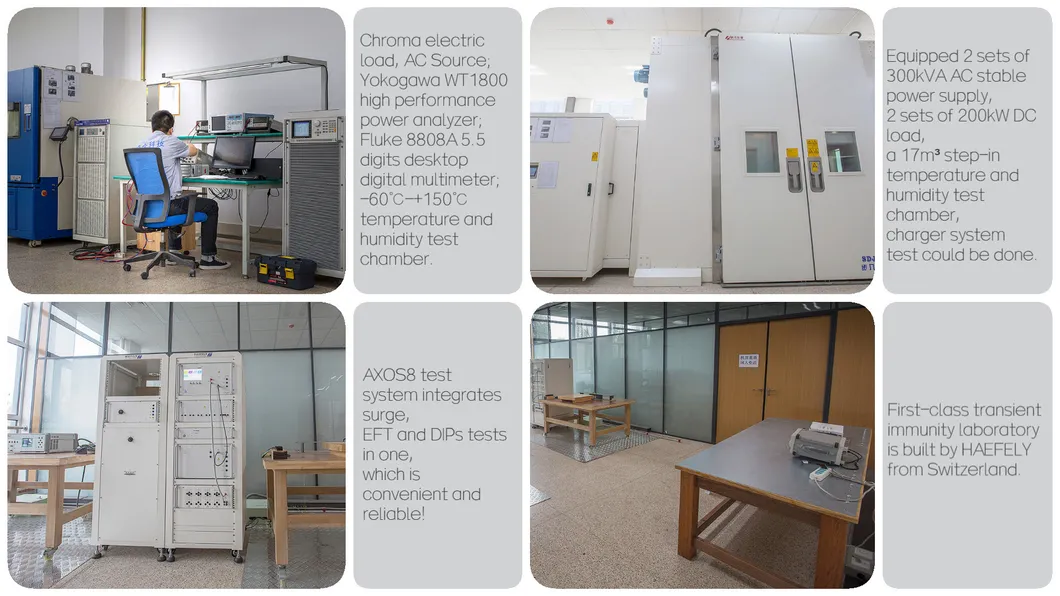

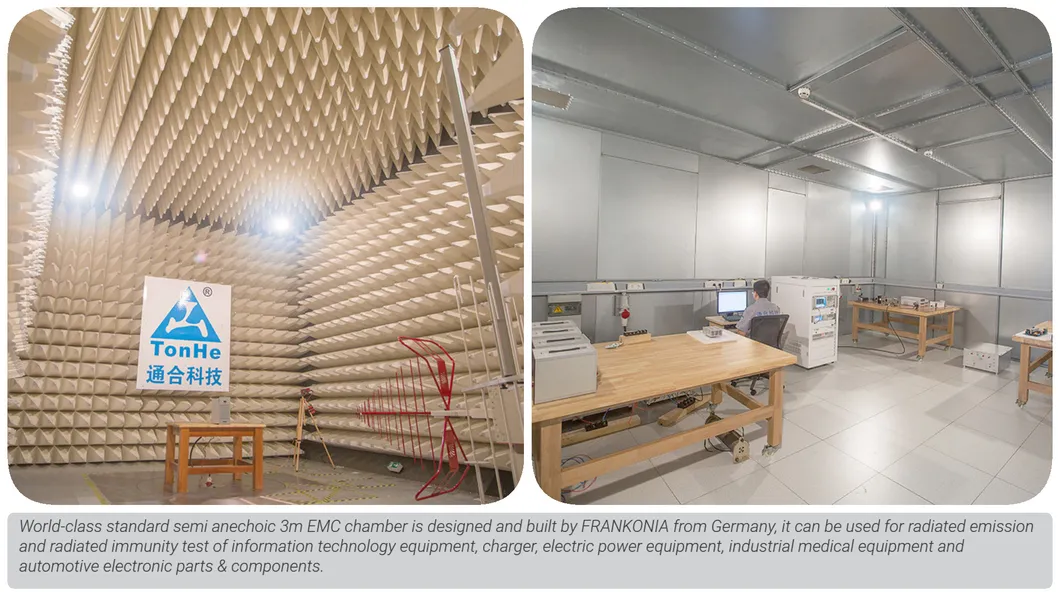

Manufacturing & Testing

📜

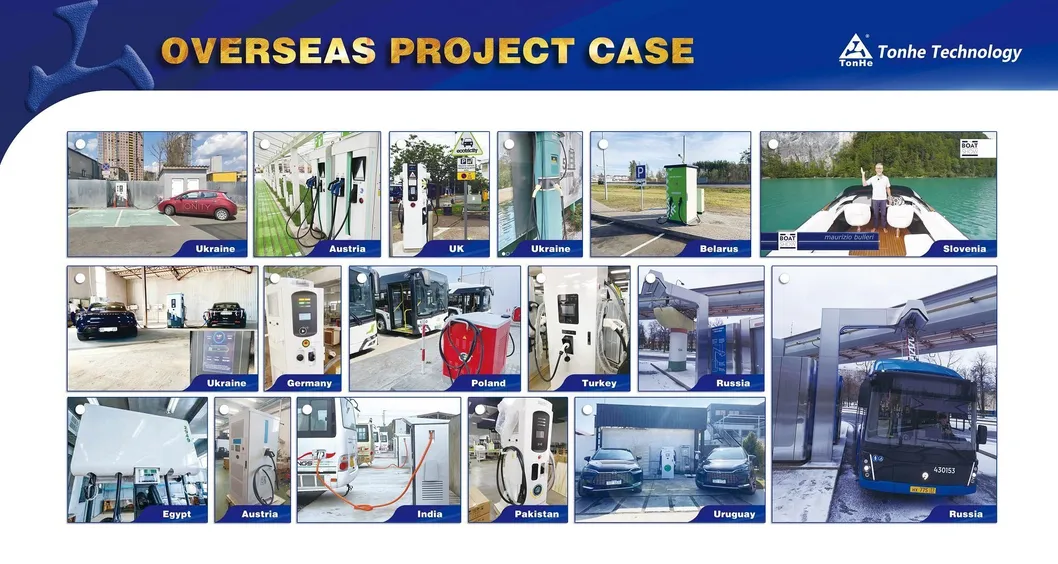

Certifications & Global Presence

Frequently Asked Questions

What is the delivery time for modules and piles?

We typically require approximately 7 days for module orders and 35 days for standard charging piles. Large or customized orders are coordinated based on workshop capacity.

What are the requirements for module installation?

Modules can be installed horizontally, side-standing, or upside down. For upside-down installation, we offer customized front panels without handles.

Do the modules support glue filling?

Yes, all series of our modules support glue filling for enhanced durability.

How long is the standard warranty?

The standard warranty period is 12 months from the date of receipt of the shipment.

What certifications do your products hold?

Our products are ISO, TUV, and CE qualified. The company also holds IATF16949 automobile quality management system and CNAS certifications.

Can you provide after-sale support?

We provide both online and on-site after-sale services with a guaranteed 24-hour response scheme to ensure continuous operation.
