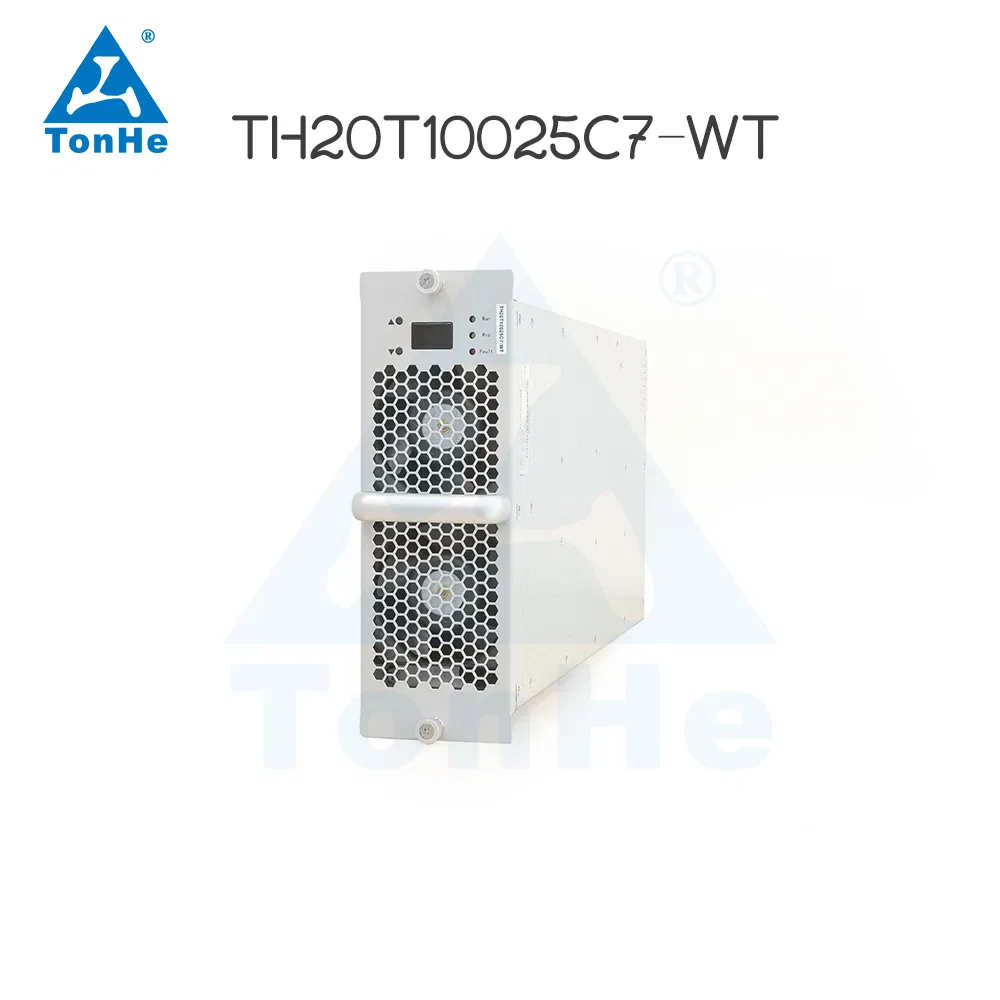

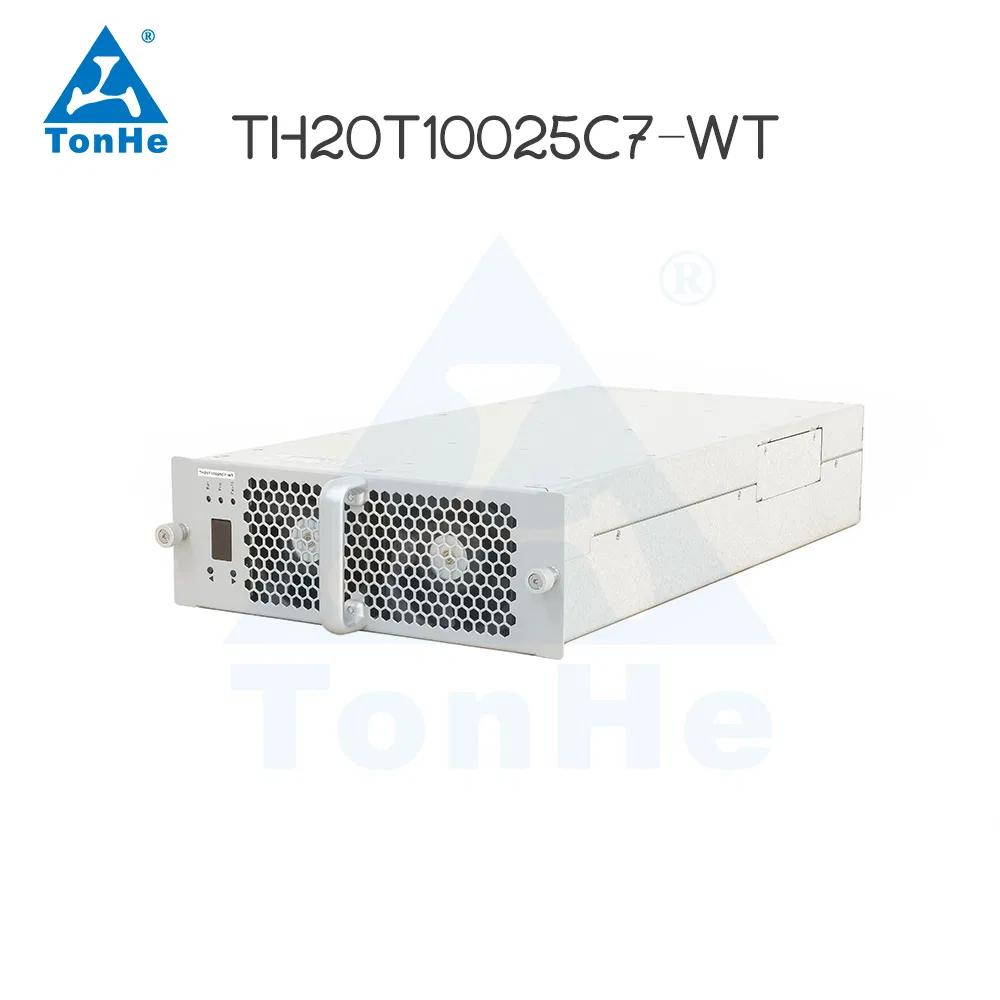

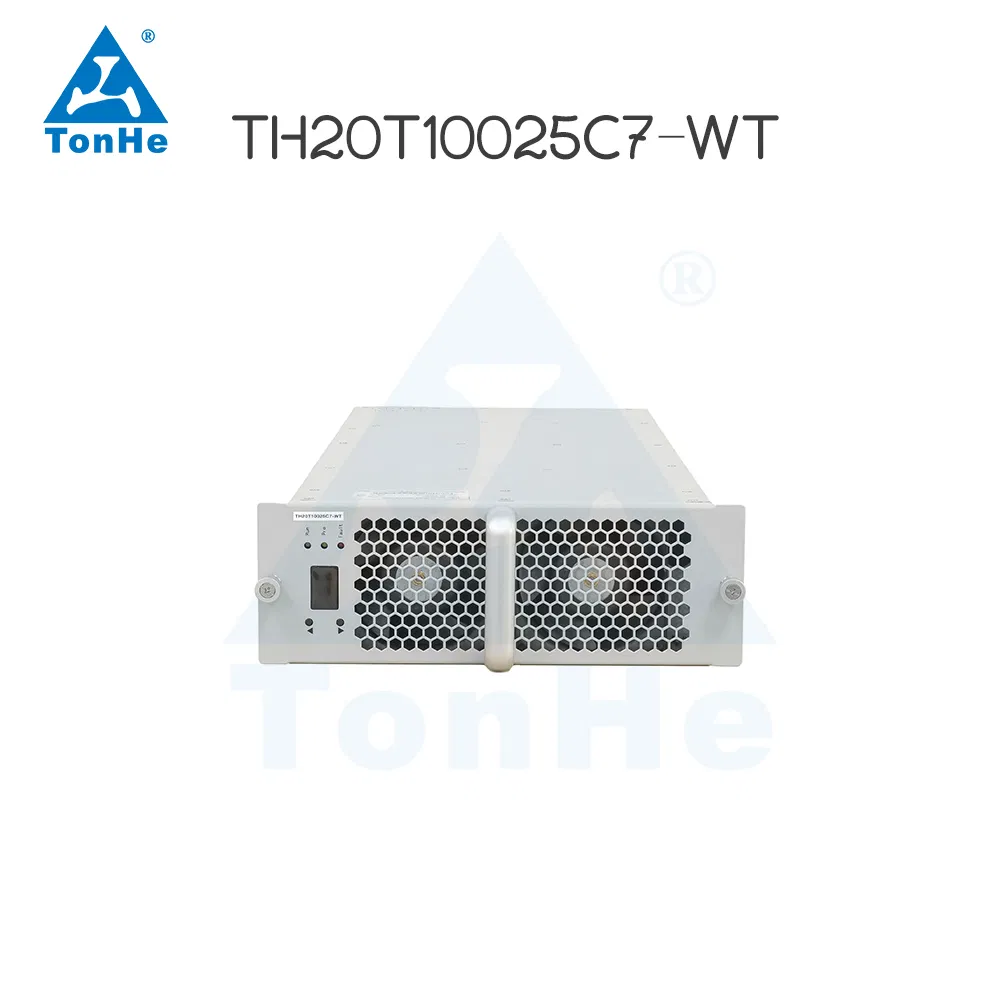

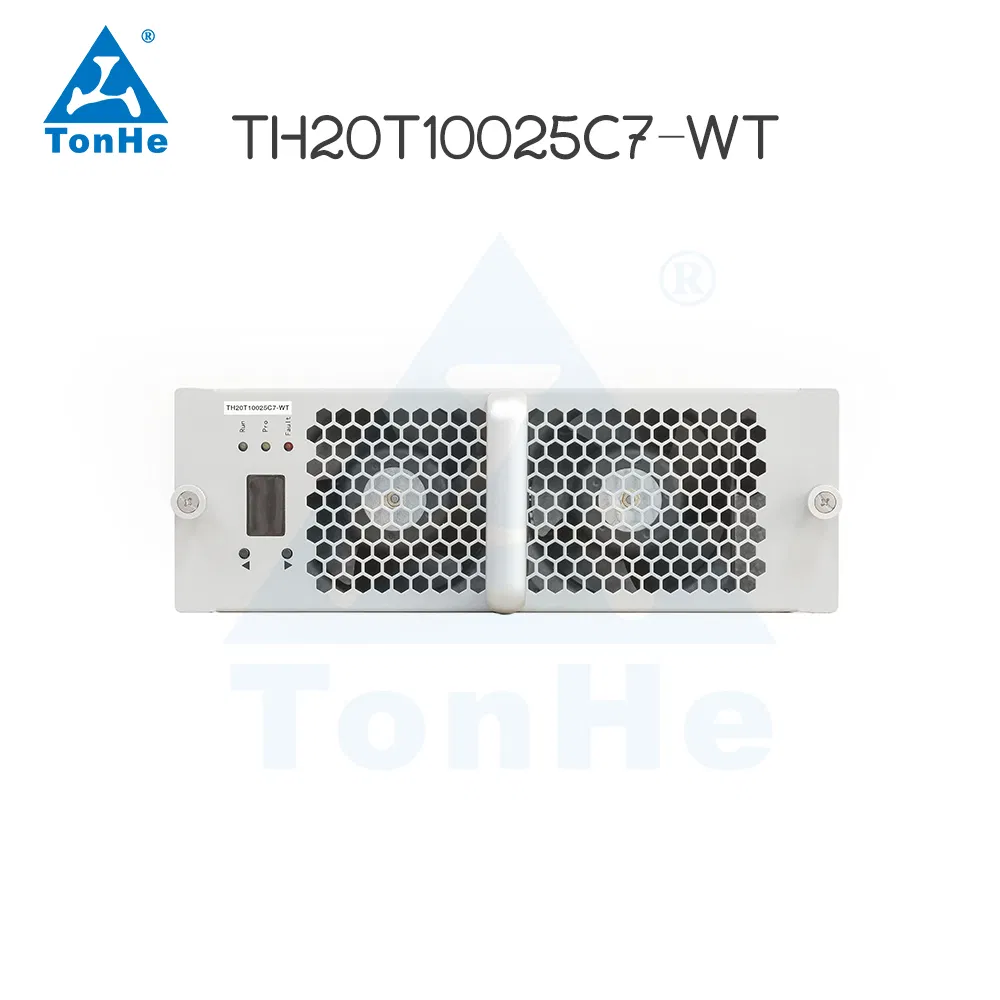

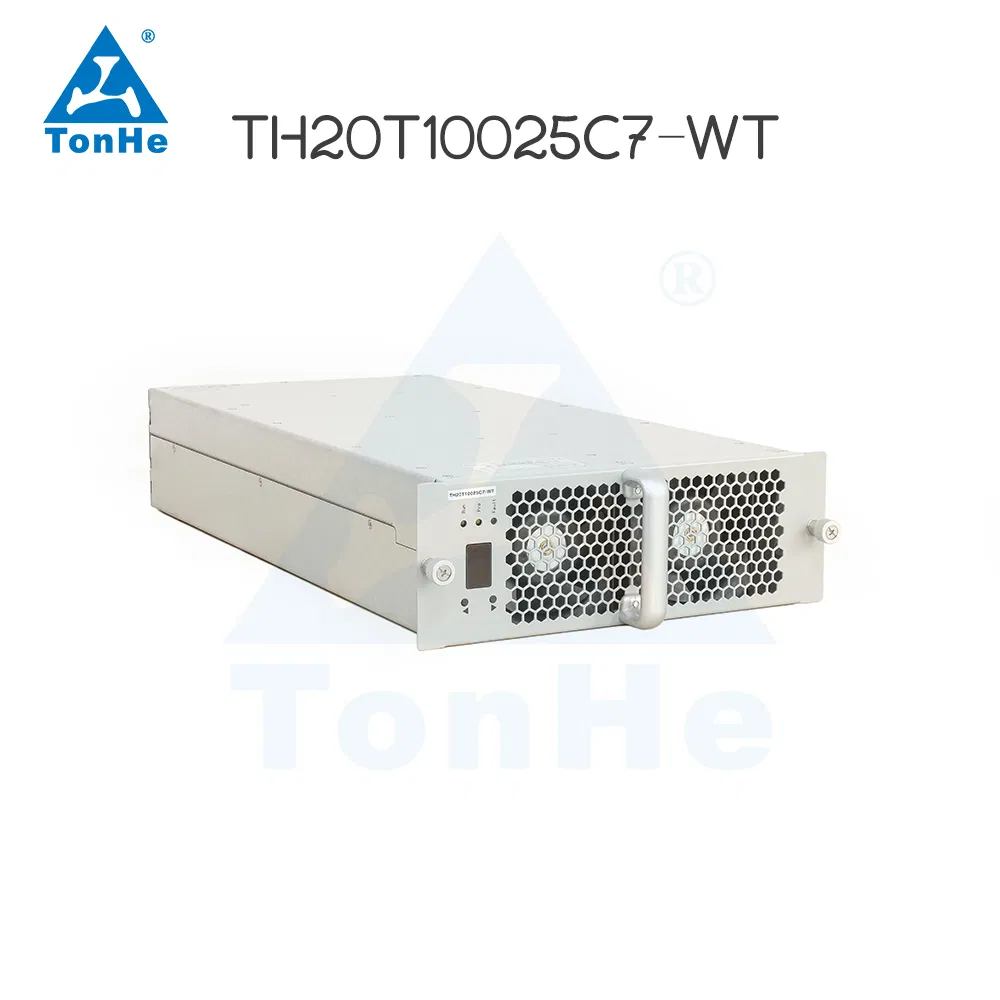

Tonhe 7th Gen 20kw 1000V Acdc Dcdc Dual Input Charging Power Module Cheapest

1 / 5

Tonhe 7th Gen 20kw 1000V Acdc Dcdc Dual Input Charging Power Module Cheapest

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TH20T10025C7EWT-Y-1

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Mobile App, Credit Card

AC Input

274-487VAC

Peak Efficiency

≥96%

Working Temp

-40℃ - 75℃

Type

Fast EV Charging Station

Product Advantages

Dual Input: AC & DC

Wide output constant power range: 300-1000VDC

Ultra-low standby power consumption: < 10W

Ultra-wide Voltage Input Range 274-487VAC

Ultra-wide operating temperature: -40ºC - 75ºC

Peak efficiency > 96%

Technical Specifications

Model No.	TH20T10025C7EWT
AC Input	Rated voltage 380VAC, 3W+PE, operating voltage range 274-487VAC	DC Input: 300-810VDC
DC Output	Rated Power: 20kW	Voltage Range: 50-1000VDC
Power Performance	Peak efficiency ≥96%	Constant Power: 300-1000VDC
Accuracy	Voltage: ≤±0.5%	Current: ≤±1%
Dimensions	460mm210mm84mm	Weight: ≤13kg
Environment	Temp: -40ºC to +75ºC	Cooling: Fan cooling

Packaging & Shipping

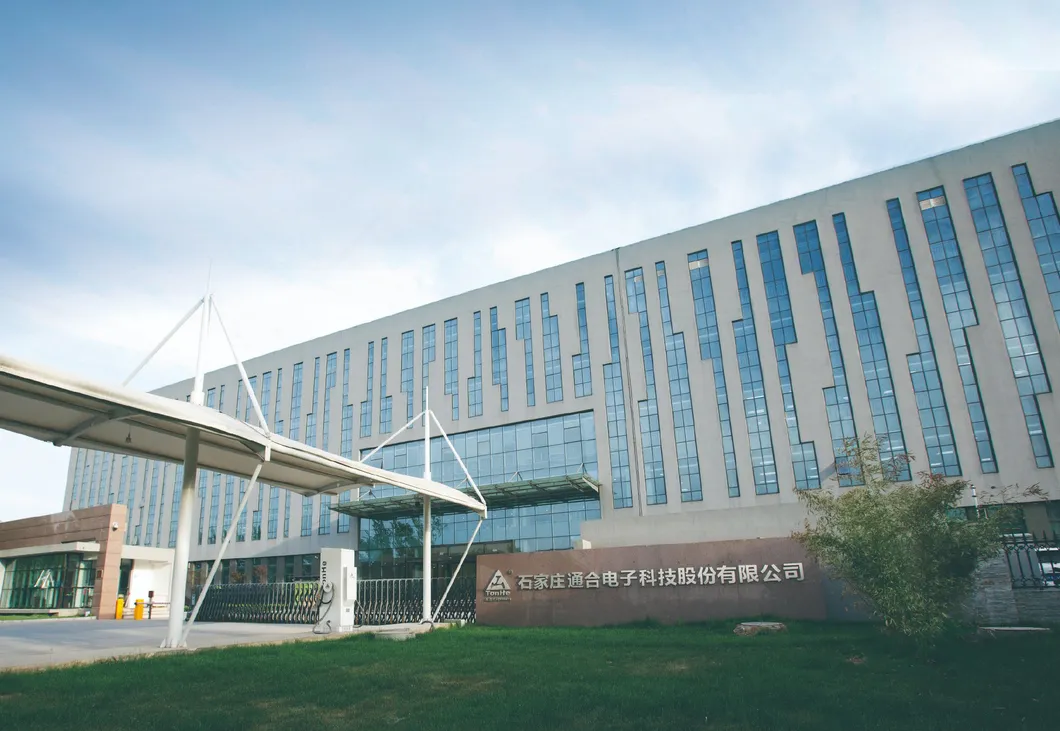

Company Overview

The Company sticks to technological innovation, focusing on the field of high-frequency power conversion technology. As a leading power electronic enterprise, it has realized soft switching technology for the whole process of power conversion and holds numerous internationally advanced core technologies.

In the EV charging and swapping industry, the company is committed to innovation in technology, products, and management. Focus areas include EV charging power modules and system solutions, providing customers with comprehensive services including R&D guidance, system solutions, technical training, and after-sales support.

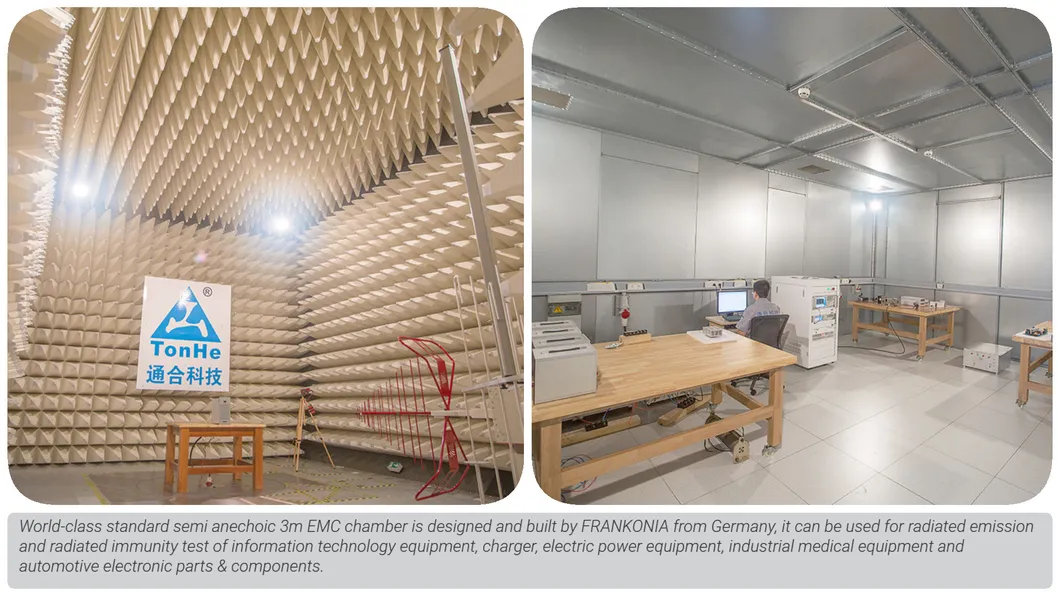

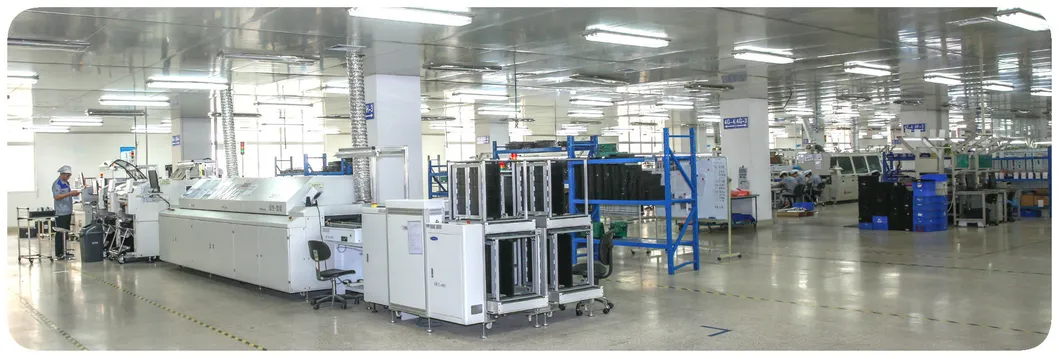

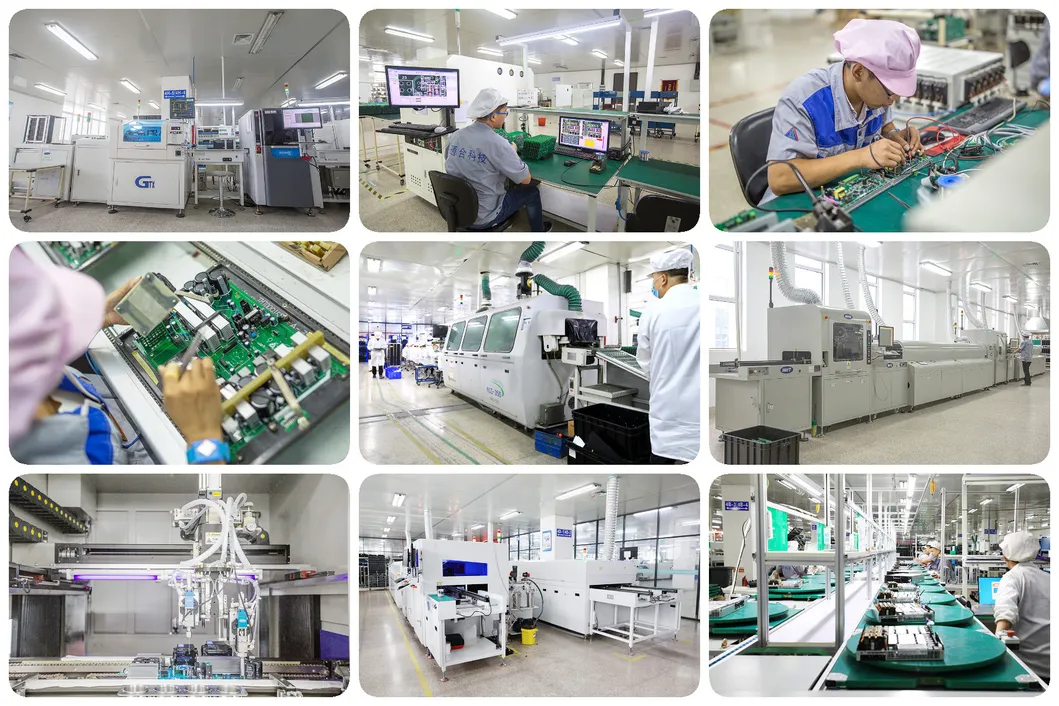

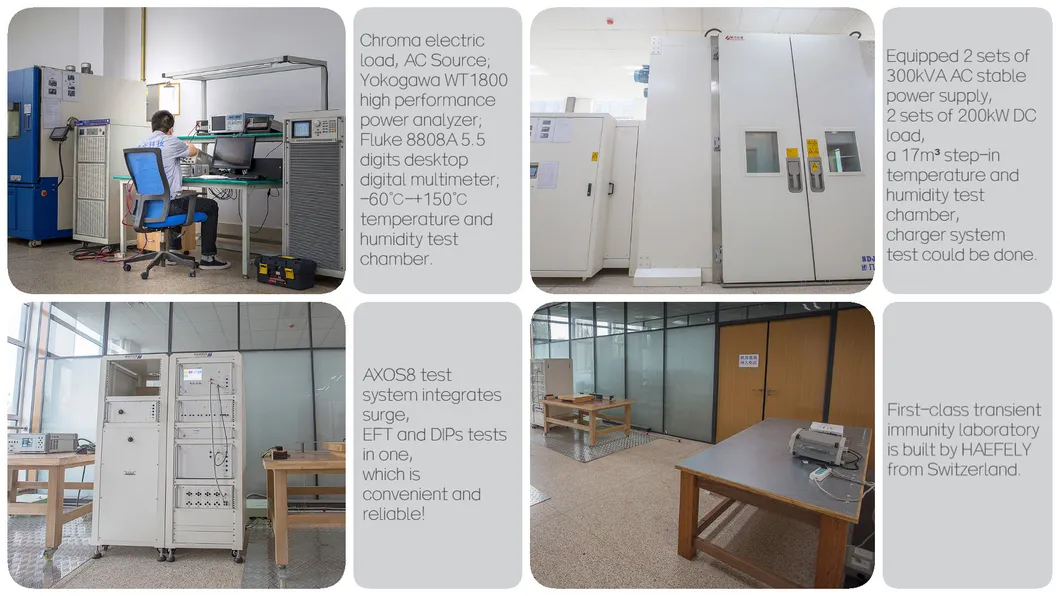

Manufacturing & Testing

Certifications

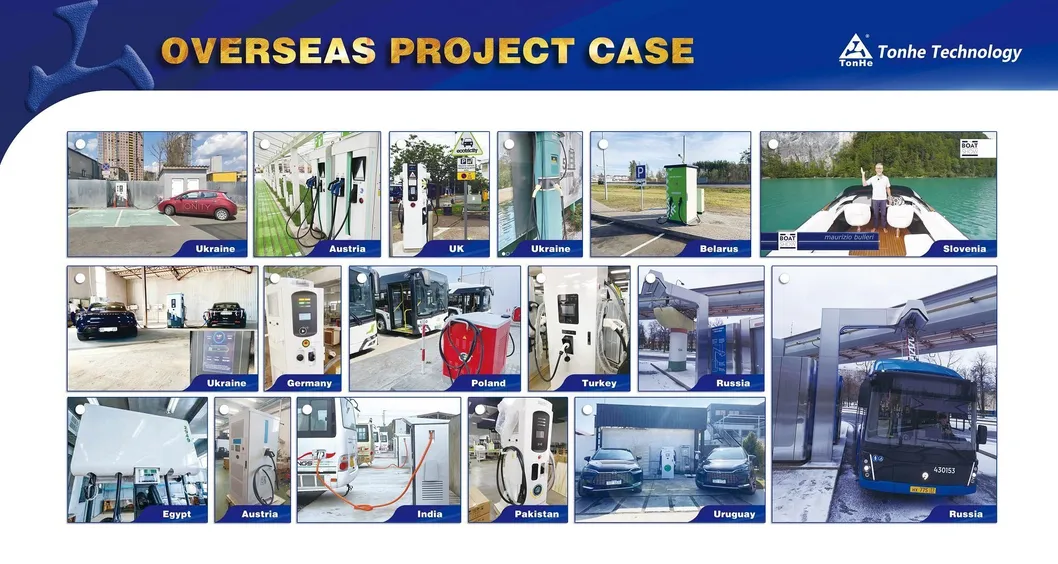

Global Reach

Frequently Asked Questions

What are the module CAN baud rate and voltage level?

The standard is 125Kbs 5V.

Do the modules support glue filling?

Yes, all series modules can support glue filling for enhanced protection.

What are the requirements for the installation method?

The charging module can be installed horizontally, side standing, or upside down. For upside down installation, please request a front panel without a handle.

What is your typical delivery time?

We usually require about 7 days for power modules and 35 days for standard charging piles. Large or customized orders will be coordinated based on workshop capacity.

What customized services do you provide?

We provide various OEM and ODM solutions tailored to specific customer requirements and technical standards.

What is the standard warranty period?

The standard warranty is 12 months upon the receipt of shipment.
