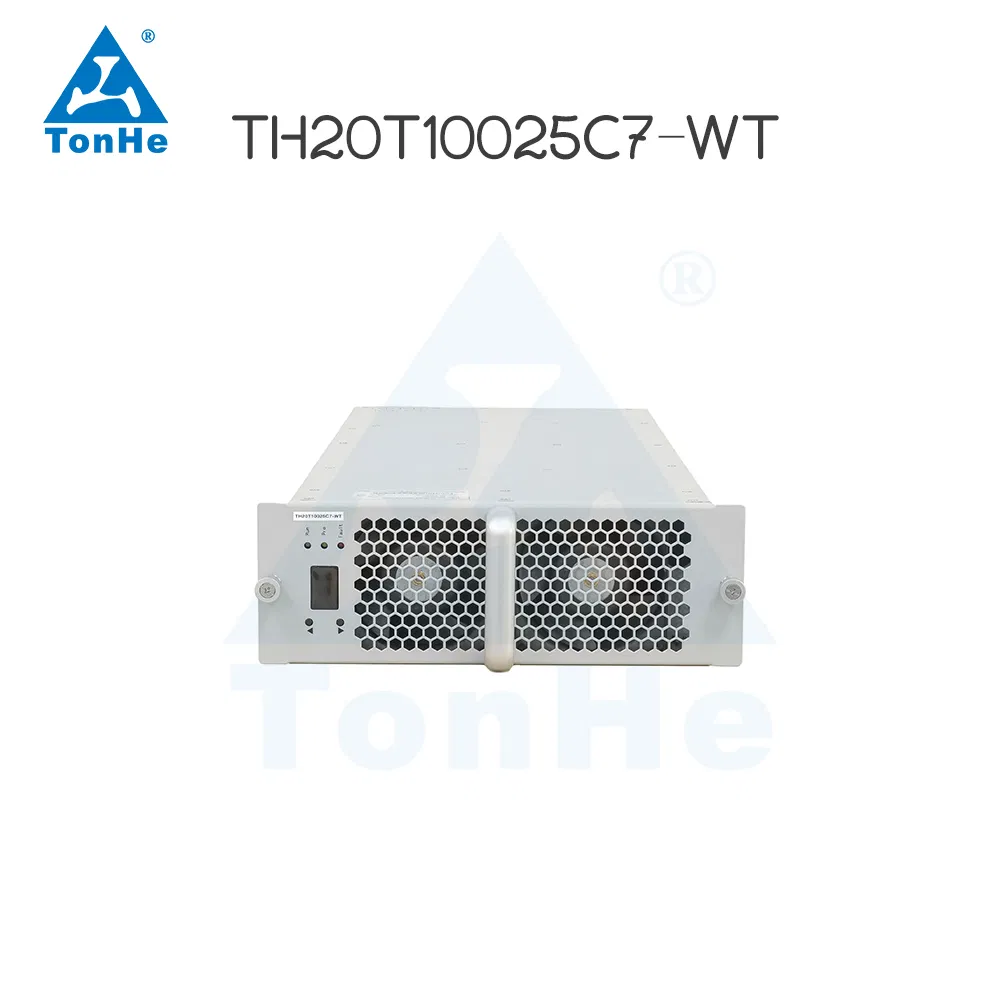

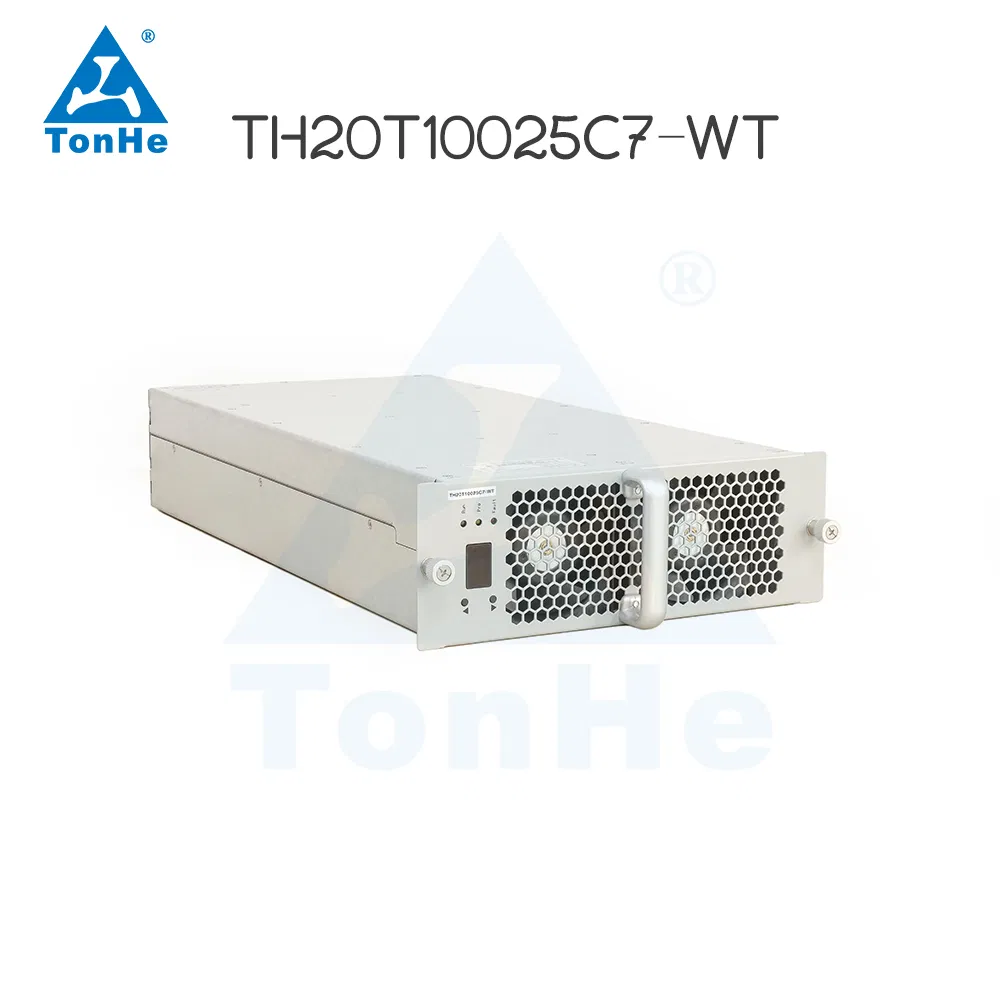

Tonhe 7th Gen Acdc Dual Input Charging Power Module

1 / 5

Tonhe 7th Gen Acdc Dual Input Charging Power Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Overview - Basic Information

Model NO.

TH20T10025C7EWT-Y

Location

Public Use

Charging Interfaces

Multiple Charges per Pile

Start Mode

Credit Card, Mobile Remote, RFID

AC Input

274-487VAC

DC Input

300-810VDC

Peak Efficiency

≥96%

Working Temp

-40℃ - 75℃

Standby Power

<10W

Communication

CAN Protocol

Cooling Method

Fan Cooling

Type

Fast EV Charging Station

⭐ Product Advantages

Dual Input: AC & DC Support

Wide constant power range: 300-1000VDC

Ultra-low standby power consumption: < 10W

Ultra-wide Voltage Input: 274-487VAC

Operating temperature: -40ºC to +75ºC

High efficiency performance: > 96%

⚙️ Technical Specifications

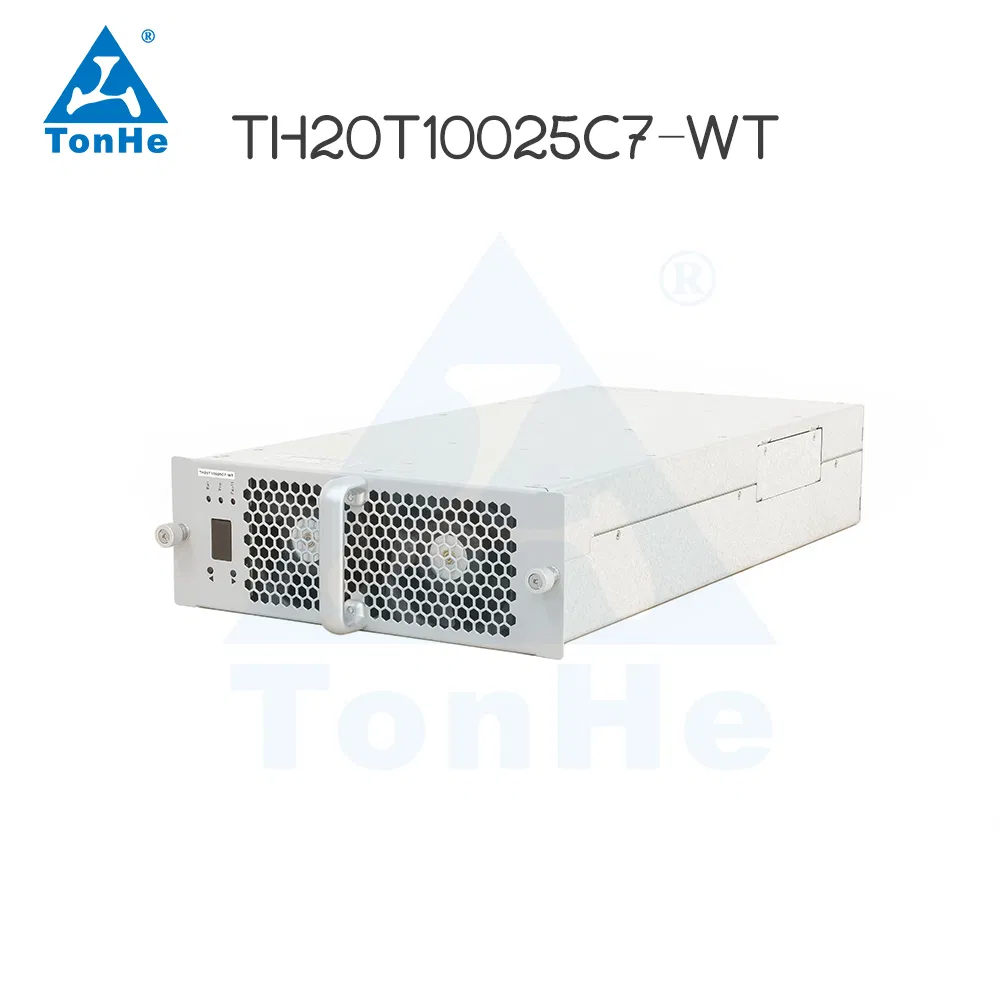

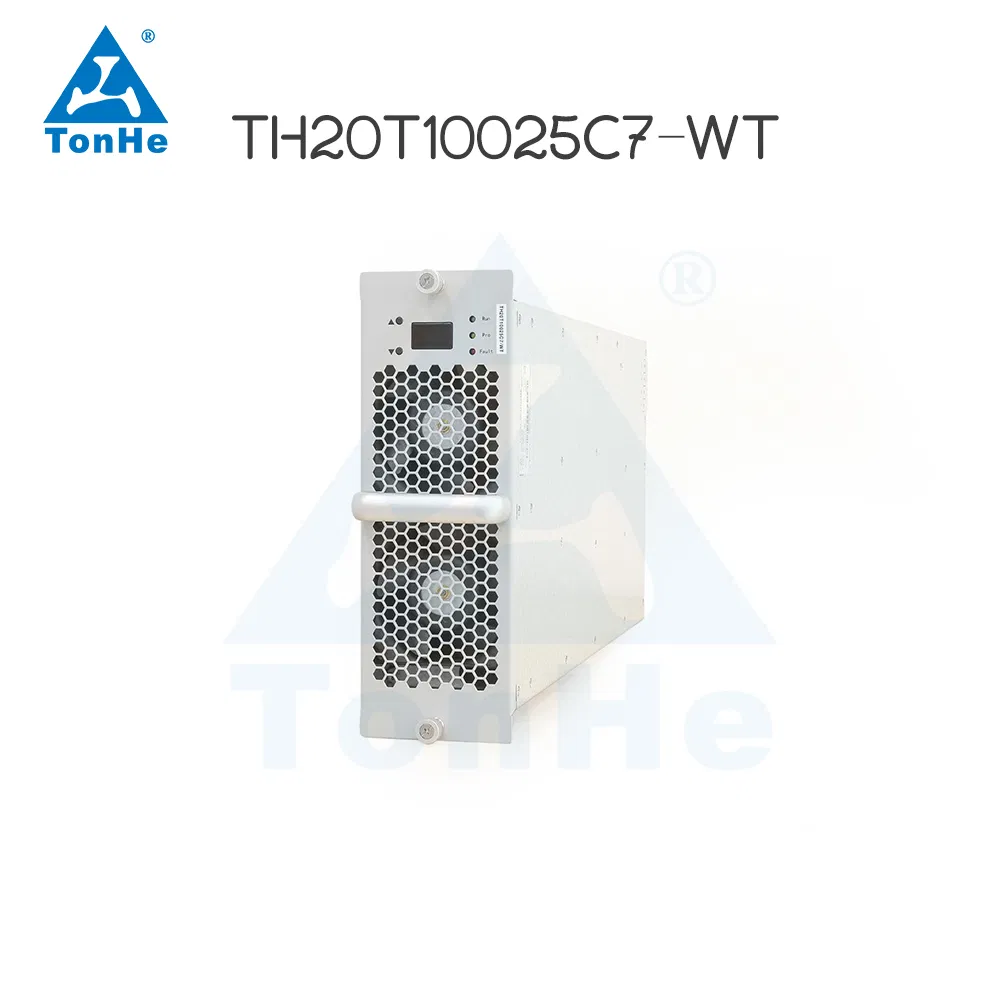

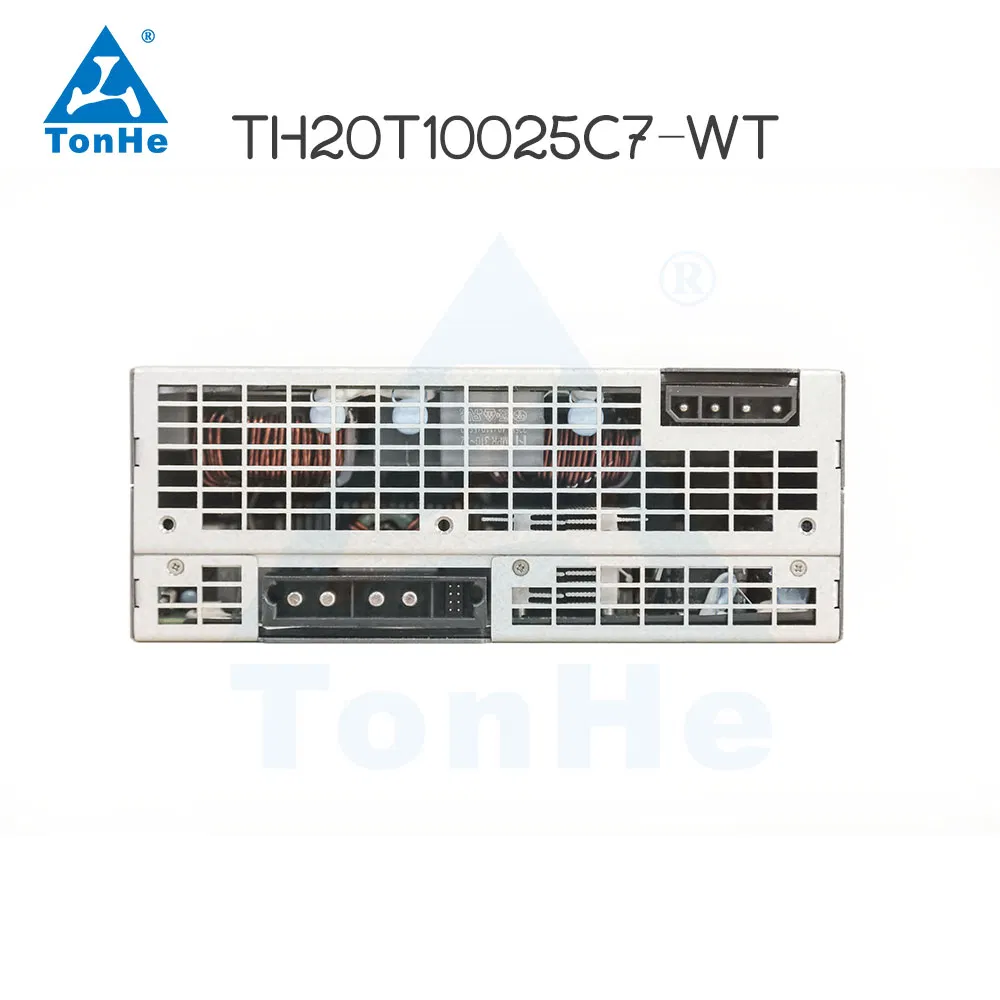

Model: TH20T10025C7EWT
AC Input	Input Voltage	Rated 380VAC, 3W+PE, range 274-487VAC
DC Output	Rated Power	20kW
	Voltage Range	50-1000VDC
	Current Range	0.5-67A
	Constant Power Range	300-1000VDC
	Peak Efficiency	≥96%
DC Input	Operating Voltage	300-810VDC
Dimensions	Module Size	460mm210mm84mm
Dimensions	Weight	≤13kg
Reliability	MTBF	500,000 hours

📦 Packaging & Shipping

Package Size

55.00cm * 40.00cm * 15.00cm

Gross Weight

13.000kg

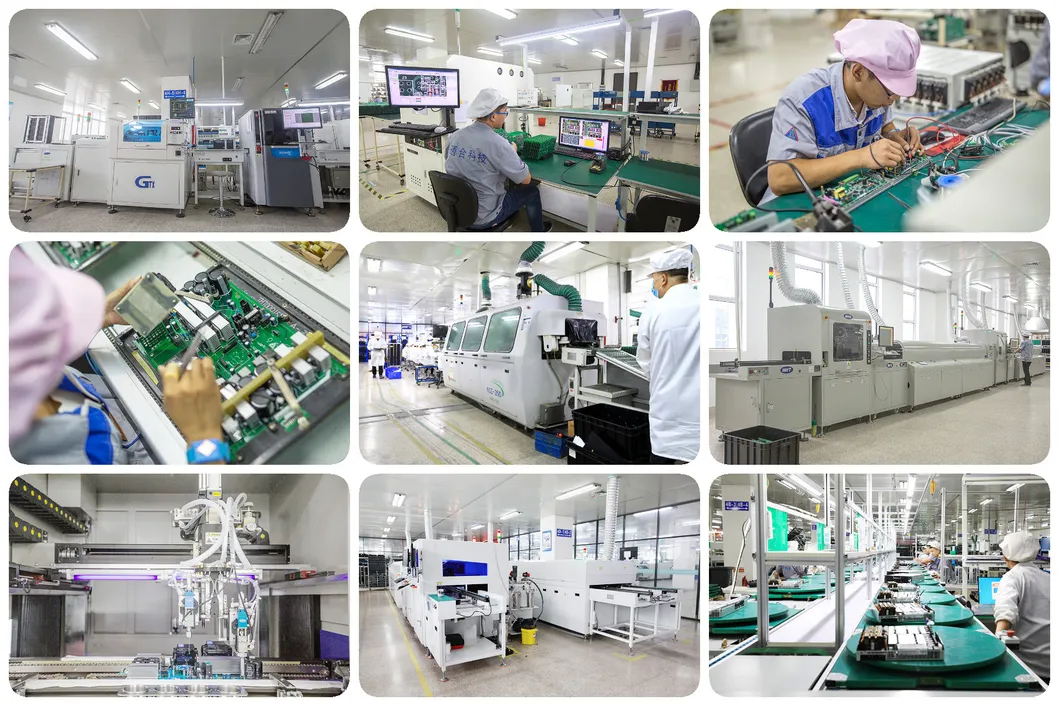

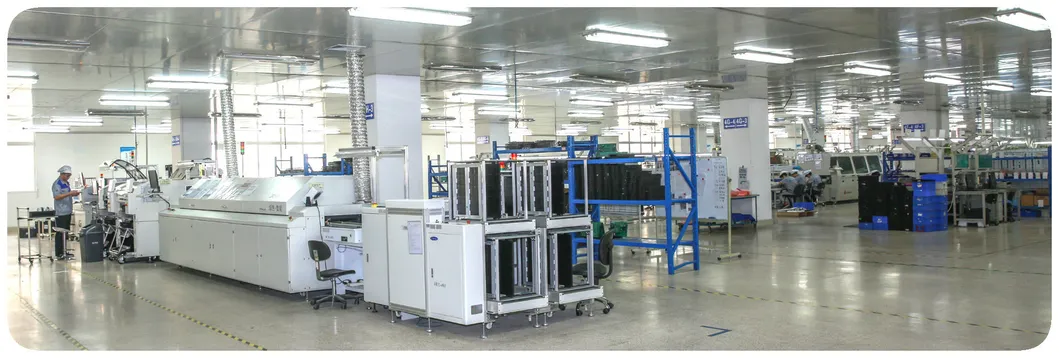

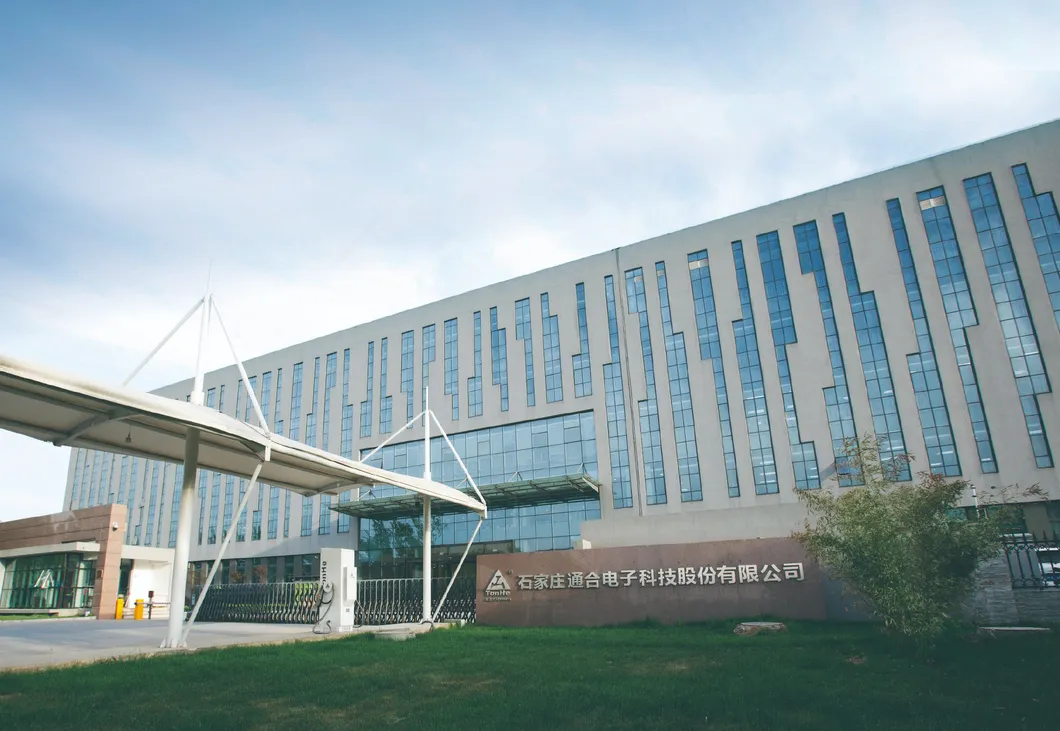

🏢 Professional Manufacturing

Our company sticks to technological innovation, focusing on the field of high-frequency power conversion technology. We are among the pioneers in realizing soft switching technology for the whole process of power conversion, holding a number of internationally advanced core technologies.
