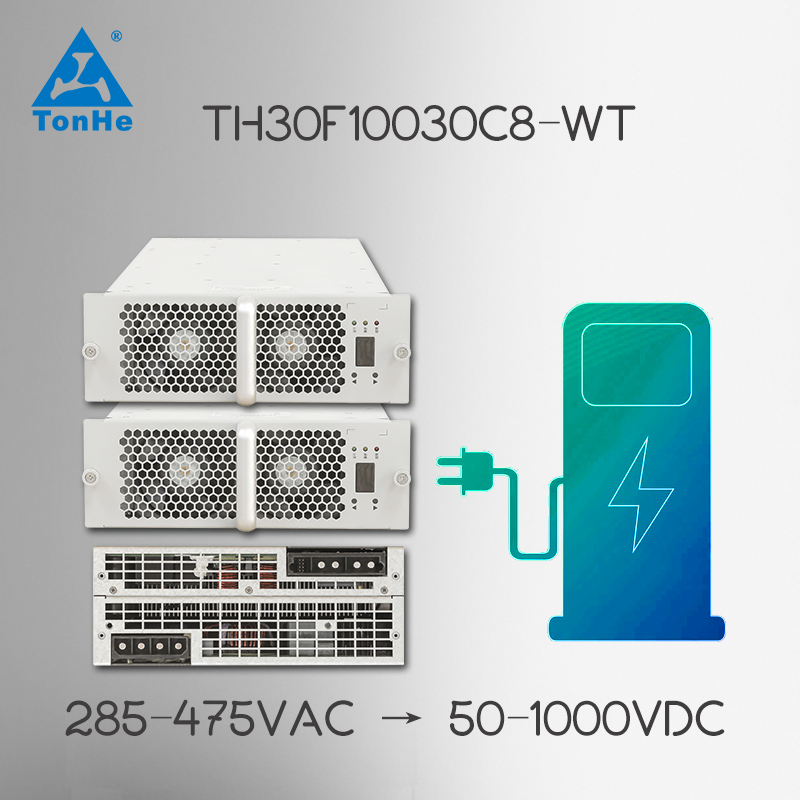

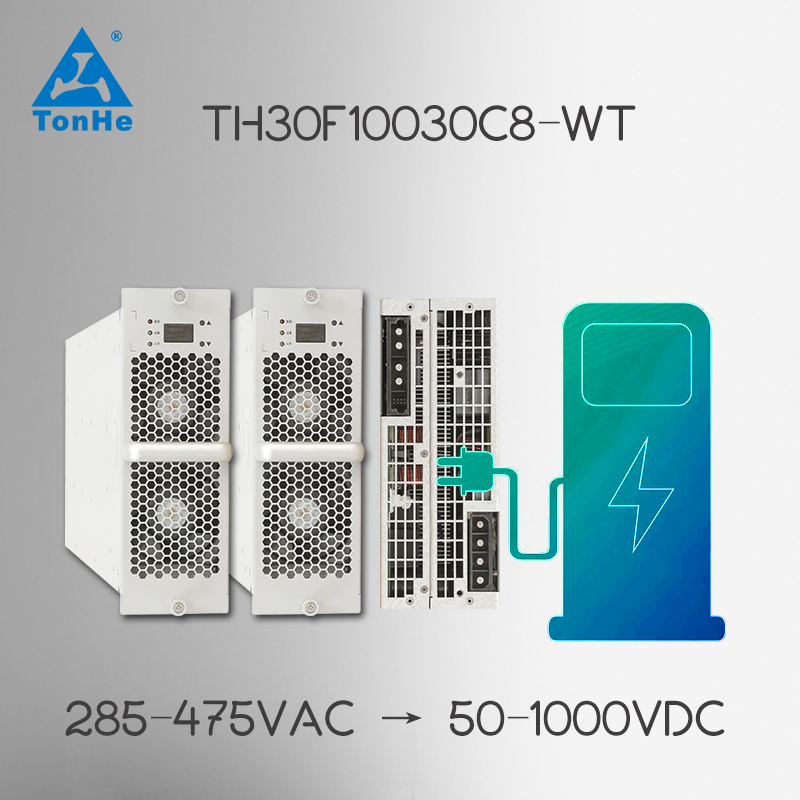

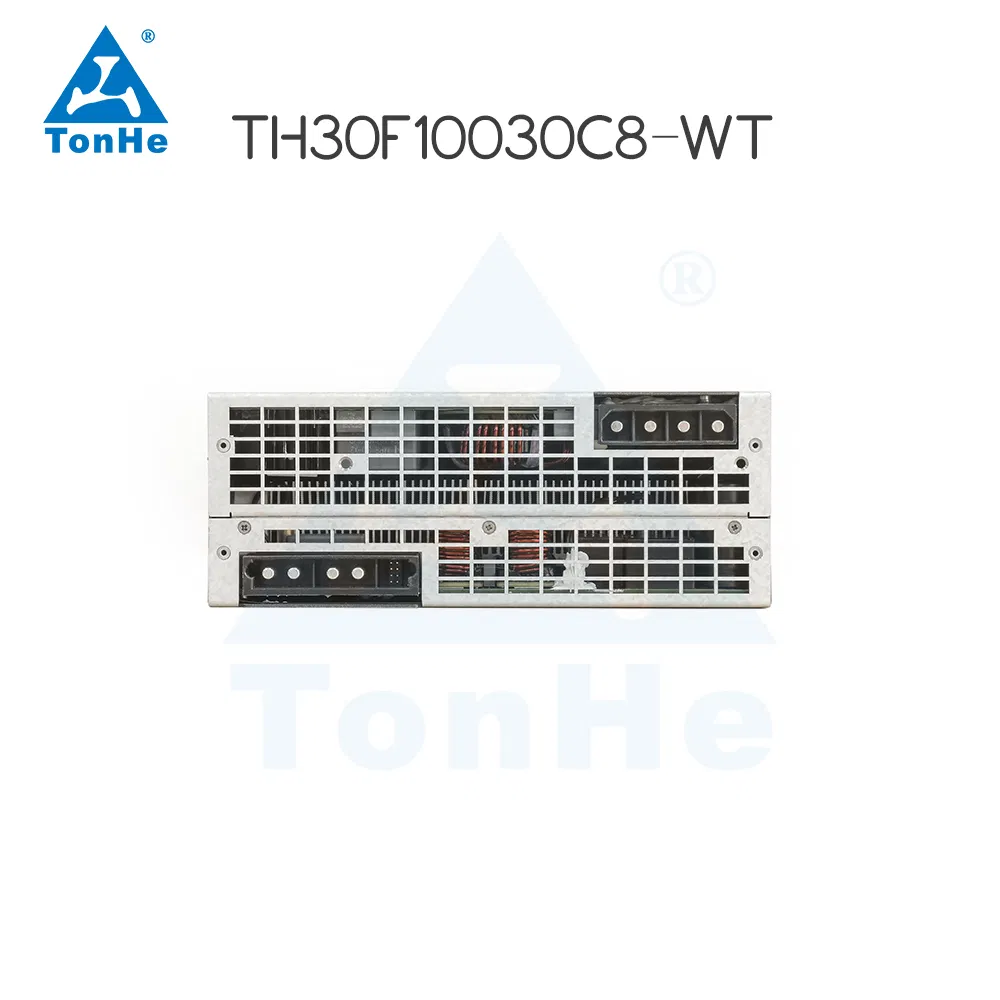

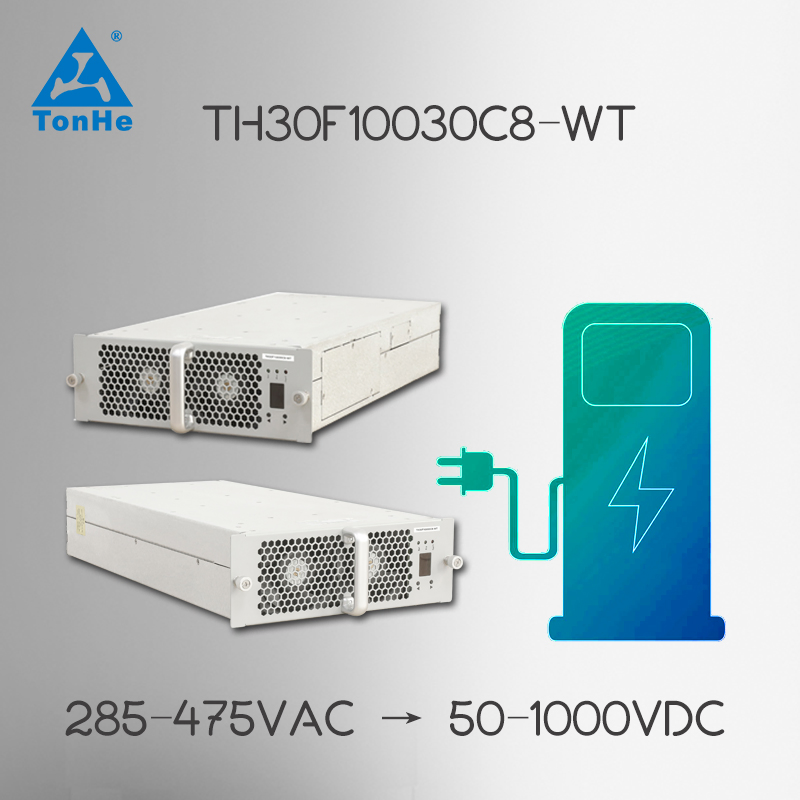

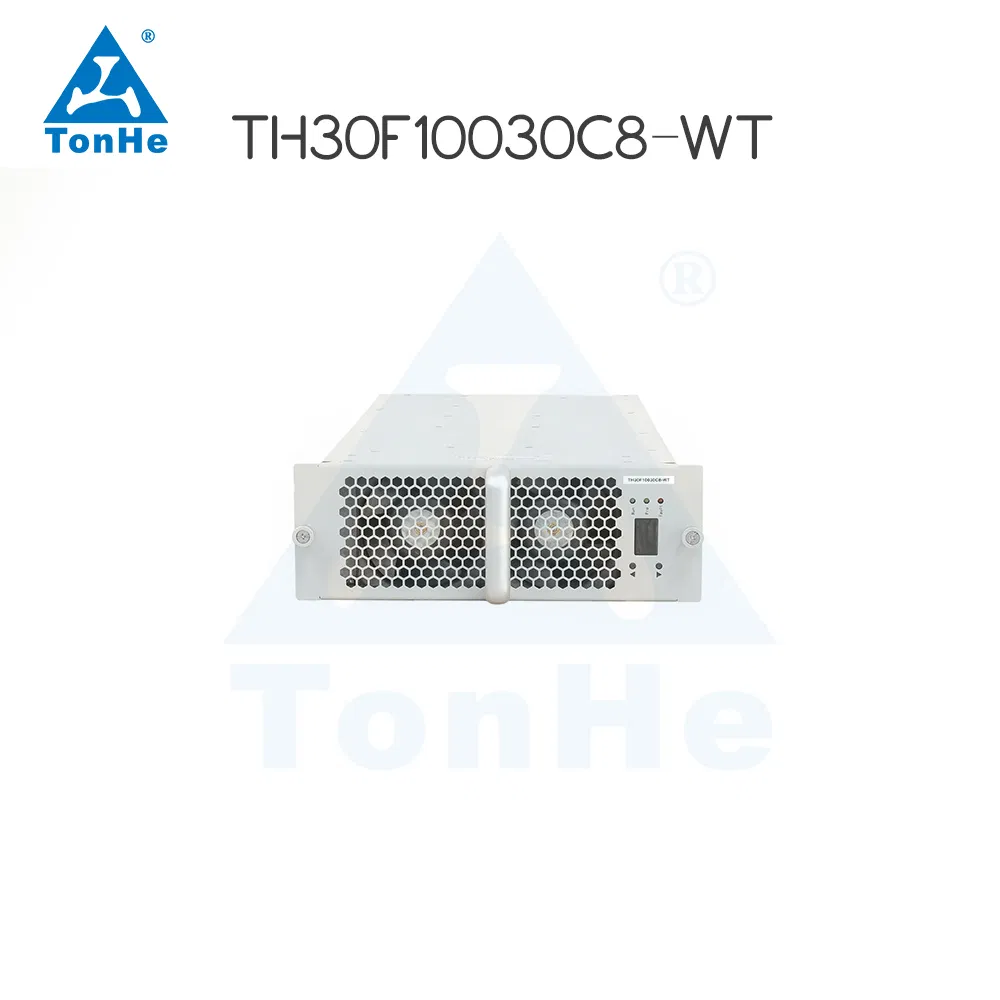

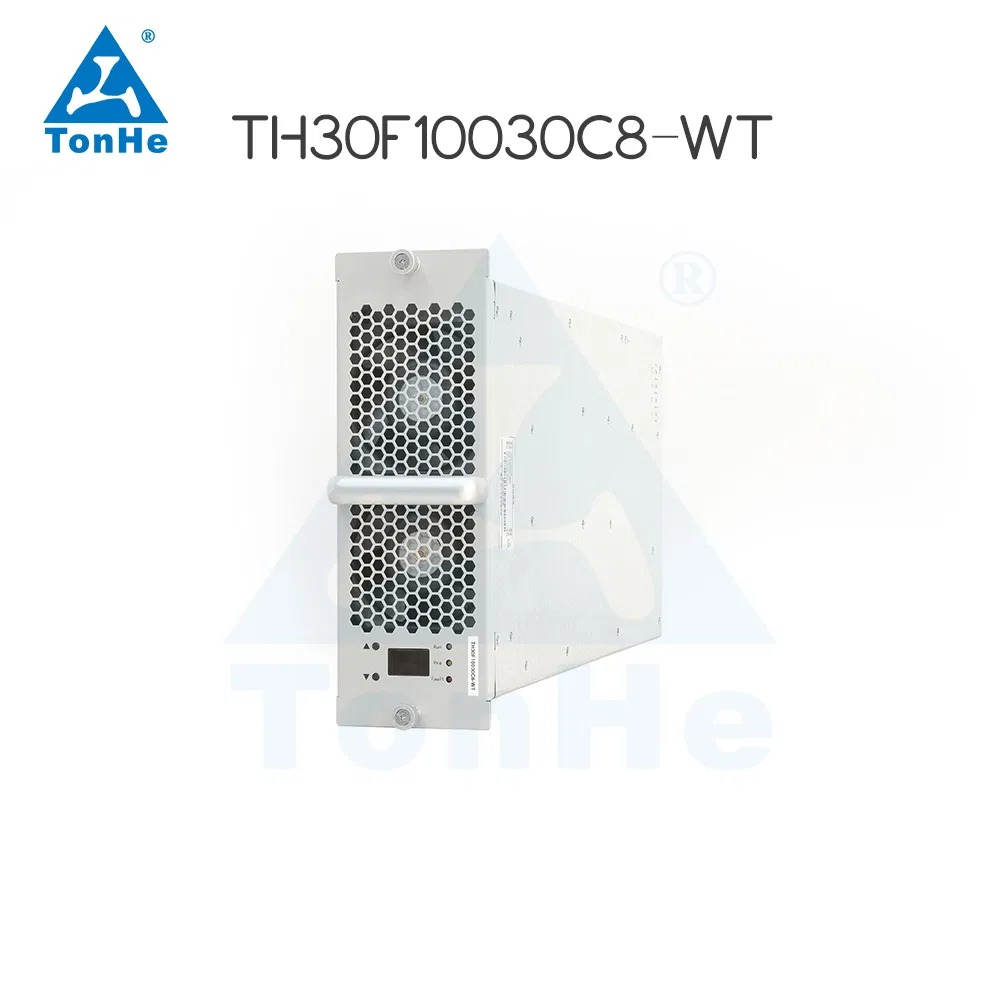

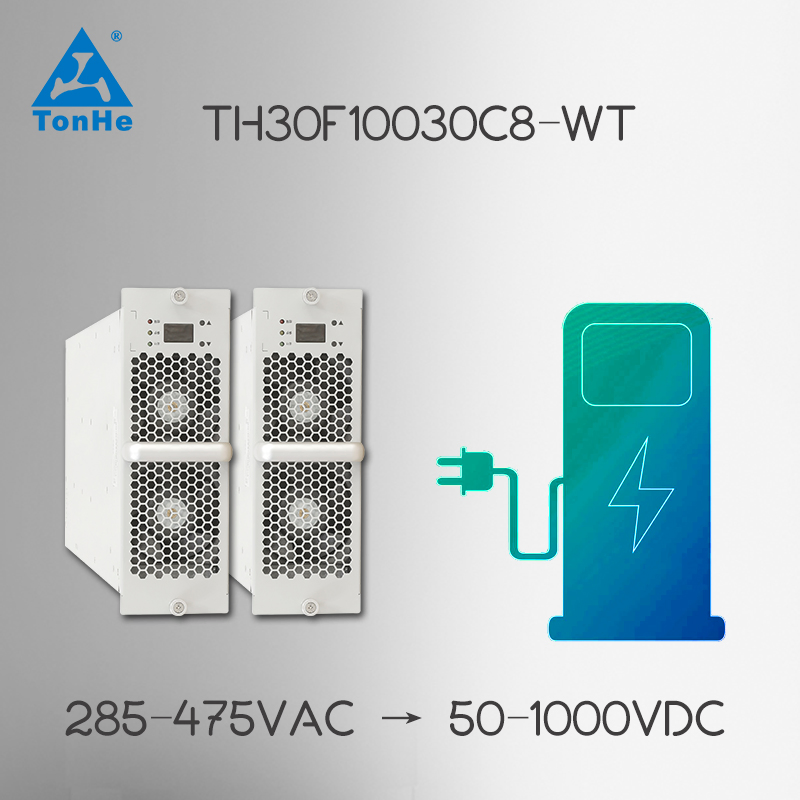

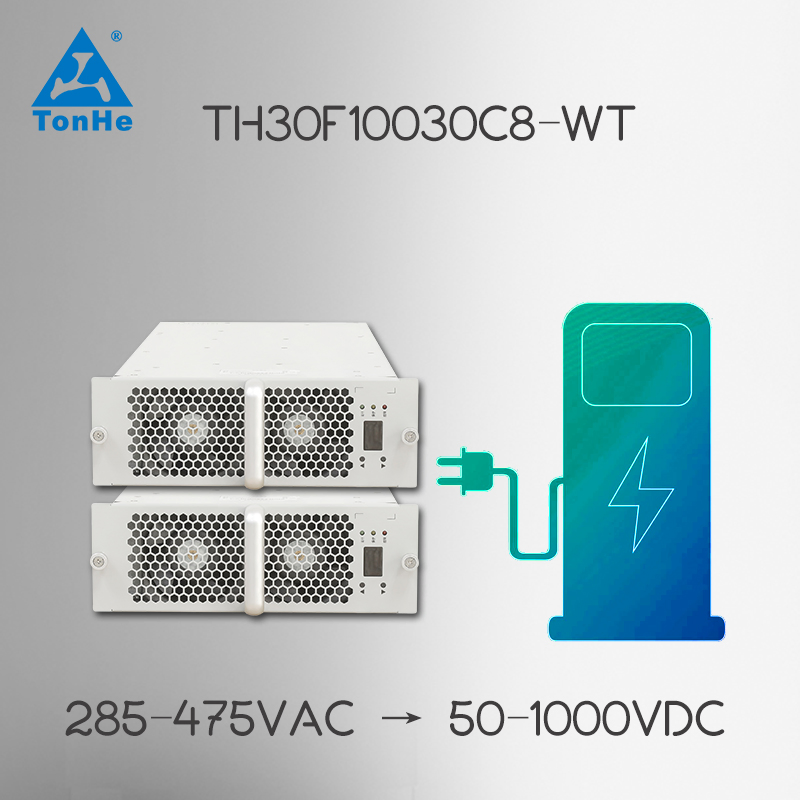

Tonhe 8th Gen 30kw 1000V Electric Vehicle Charging Power Module

Basic Specifications

Model NO.

TH30F10030C8EWT-Y-1

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Mobile App, Credit Card

Output Power Range

300-1000VDC

Input Voltage

285-475VAC

Peak Efficiency

≥96%

Working Temp

-40℃ - 75℃

Protocol

CAN Communication

Cooling Method

Fan Cooling

Product Advantages

Wide output constant power range: 300-1000VDC
Ultra-low standby power consumption: < 10W
Ultra-wide Voltage Input Range: 285-475VAC
High environmental adaptability: -40ºC to 75ºC operating range
Superior peak efficiency exceeding 96%
Advanced SiC Power Components for reliability

Technical Parameters

Category	Parameter	Specification
AC Input	Rated Voltage	380VAC, 3W+PE, range 285-475VAC
DC Output	Rated Power	30kW
	Voltage Range	50-1000VDC
	Current Range	0.5-100A
	Constant Power	300-1000VDC
Accuracy	Voltage Accuracy	≤±0.5%
Accuracy	Current Accuracy	≤±1%
Environment	Relative Humidity	≤95% no condensation
Environment	Altitude	≤2000m (derating above 2000m)
Mechanical	Dimensions	437.5mm * 300mm * 84mm
Mechanical	Weight	≤13kg

Packaging & Manufacturing

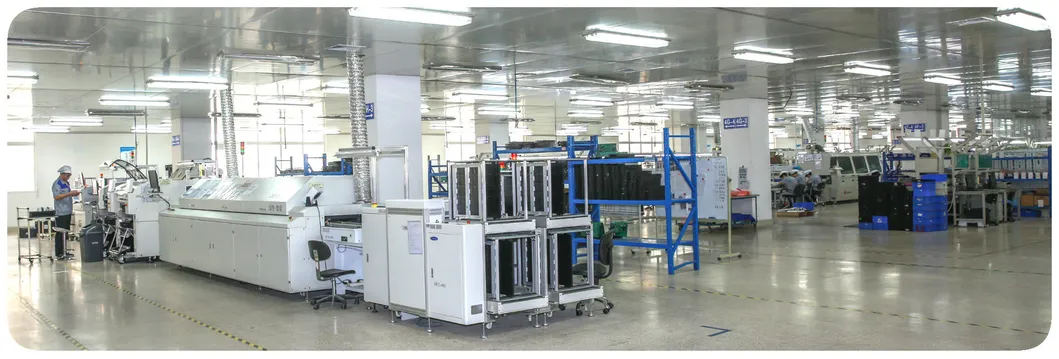

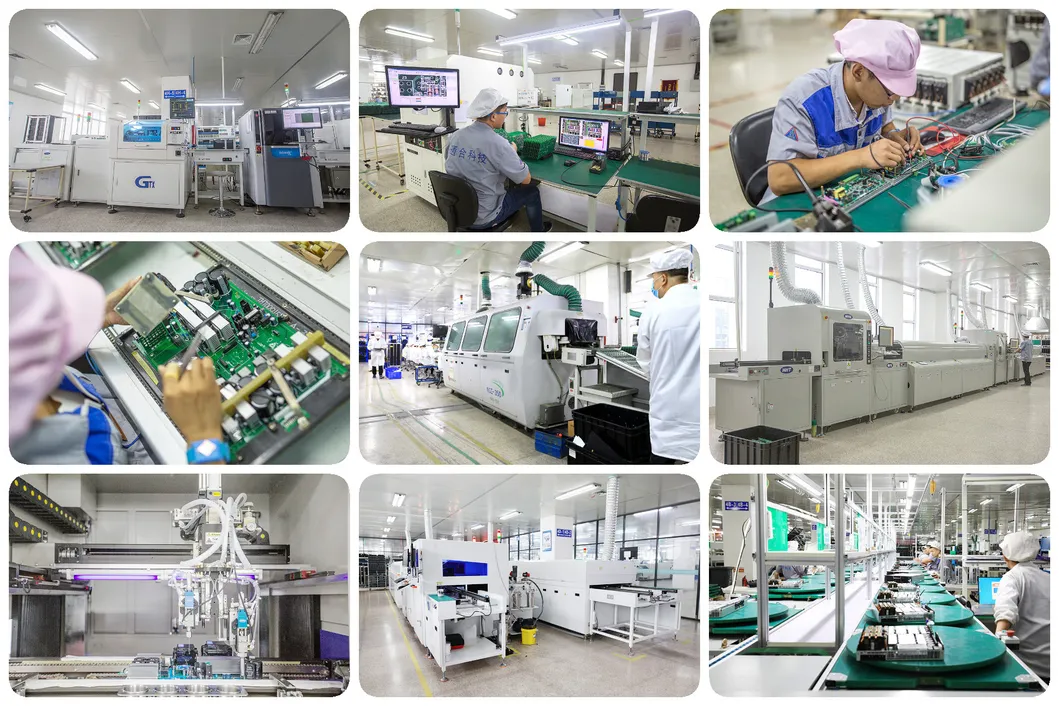

Production Workshop

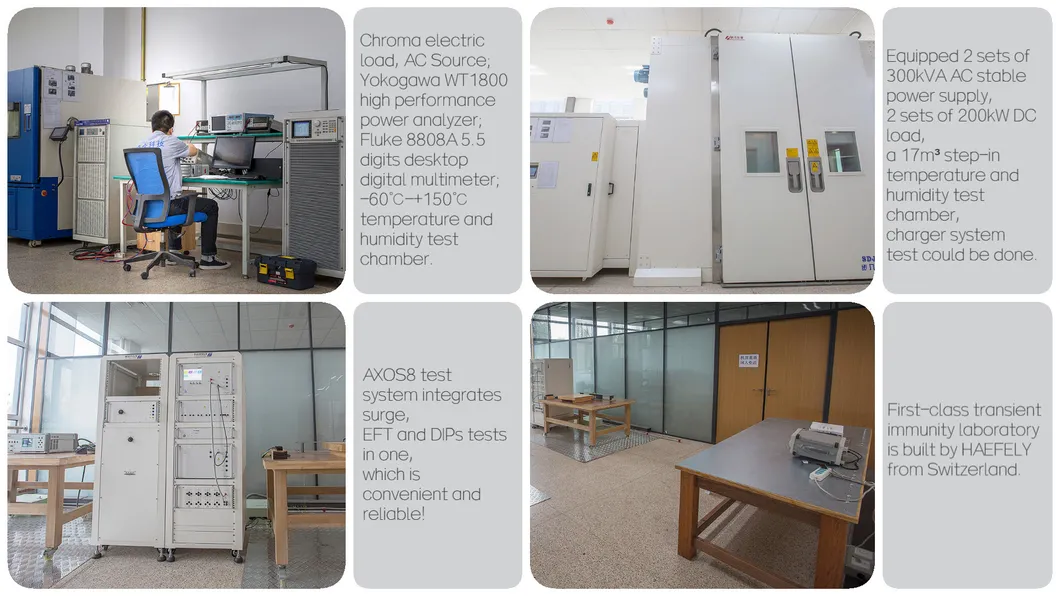

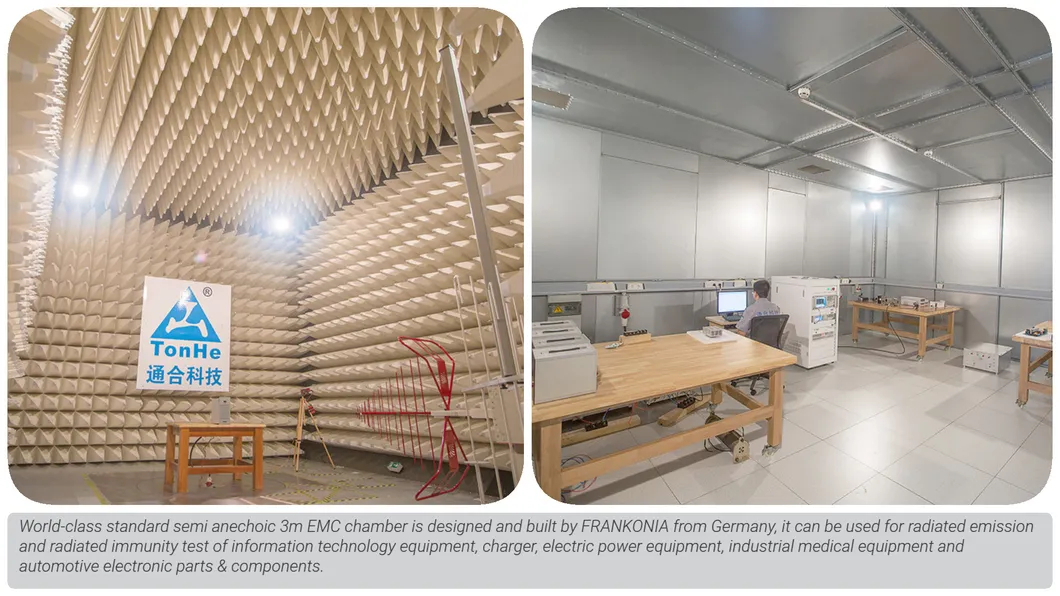

Testing & Quality Control

Frequently Asked Questions

What are the module CAN baud rate and voltage levels?

The modules operate at 125Kbs with a 5V CAN voltage level.

Do the charging modules support glue filling for protection?

Yes, all series modules support glue filling to enhance durability and environmental protection.

What are the installation requirements for the module?

The module can be installed horizontally, side standing, or upside down. For upside-down installation, a customized front panel without a handle is recommended.

What is the standard delivery time?

We typically require about 7 days for modules and 35 days for standard charging piles. Large or customized orders are scheduled based on workshop capacity.

How long is the product warranty?

The standard warranty period is 12 months from the date of receipt of the shipment.

What certifications do the products hold?

Our products are qualified under ISO, TUV, and CE standards, following IATF16949 automobile quality management system requirements.
