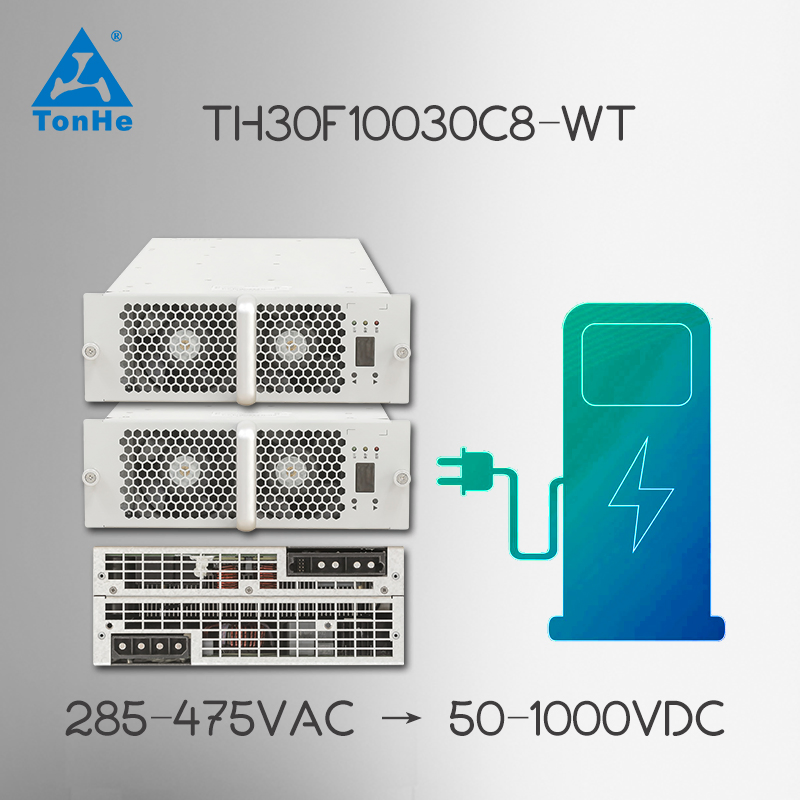

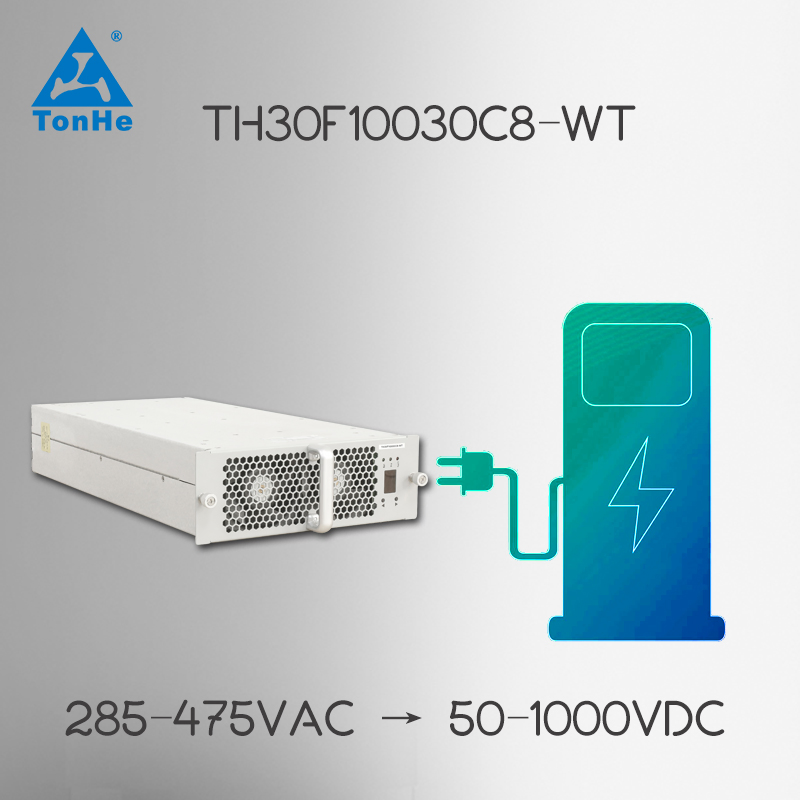

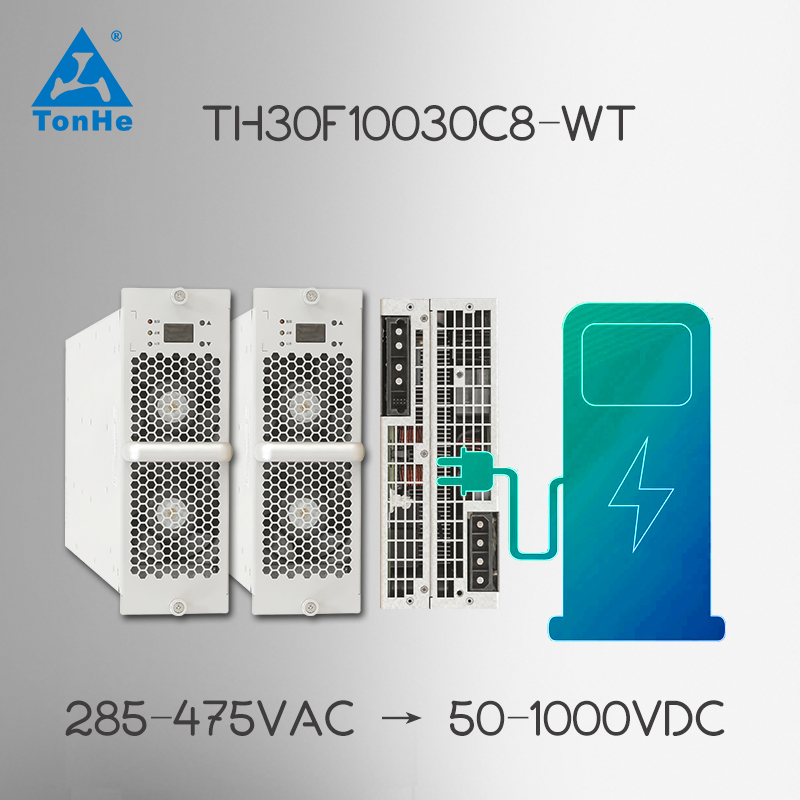

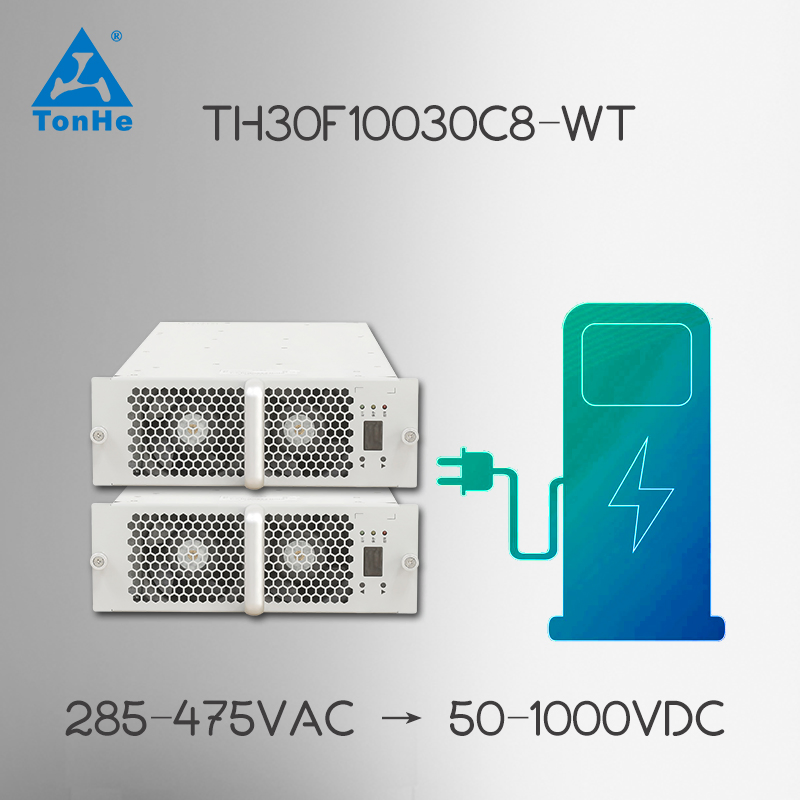

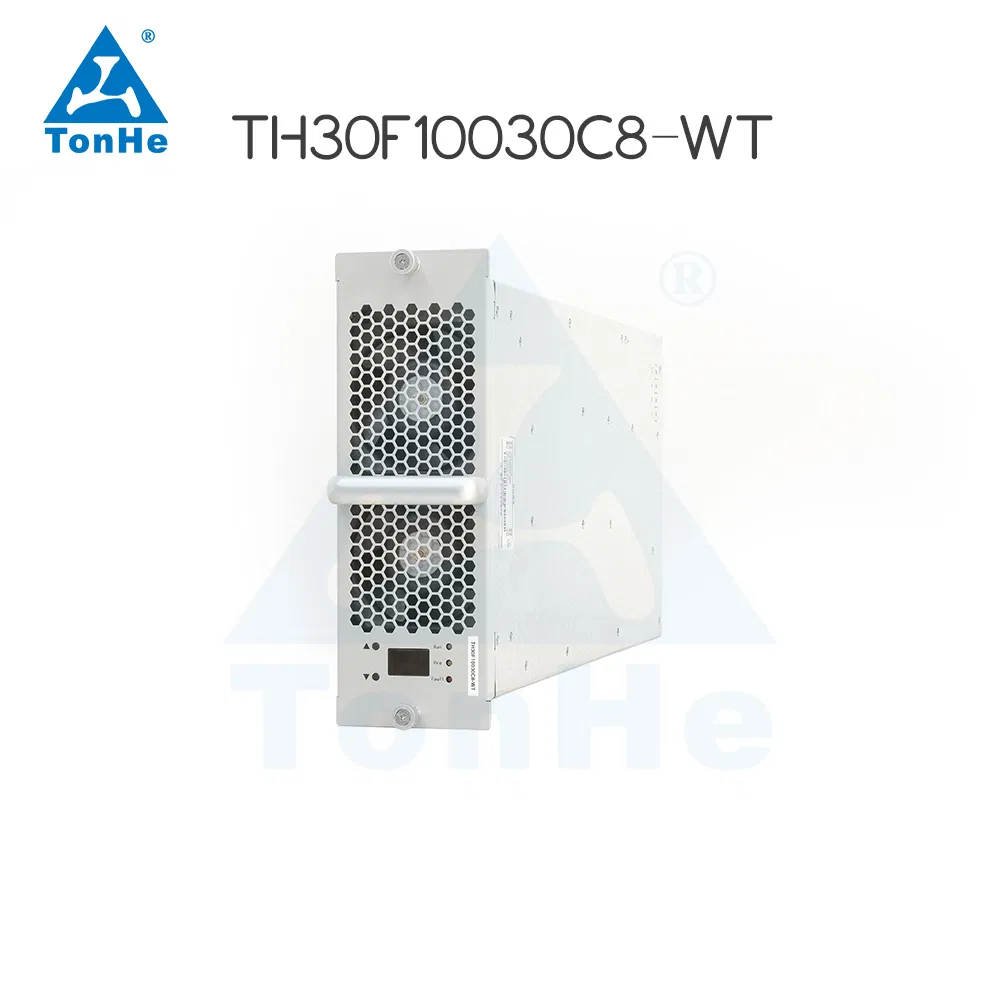

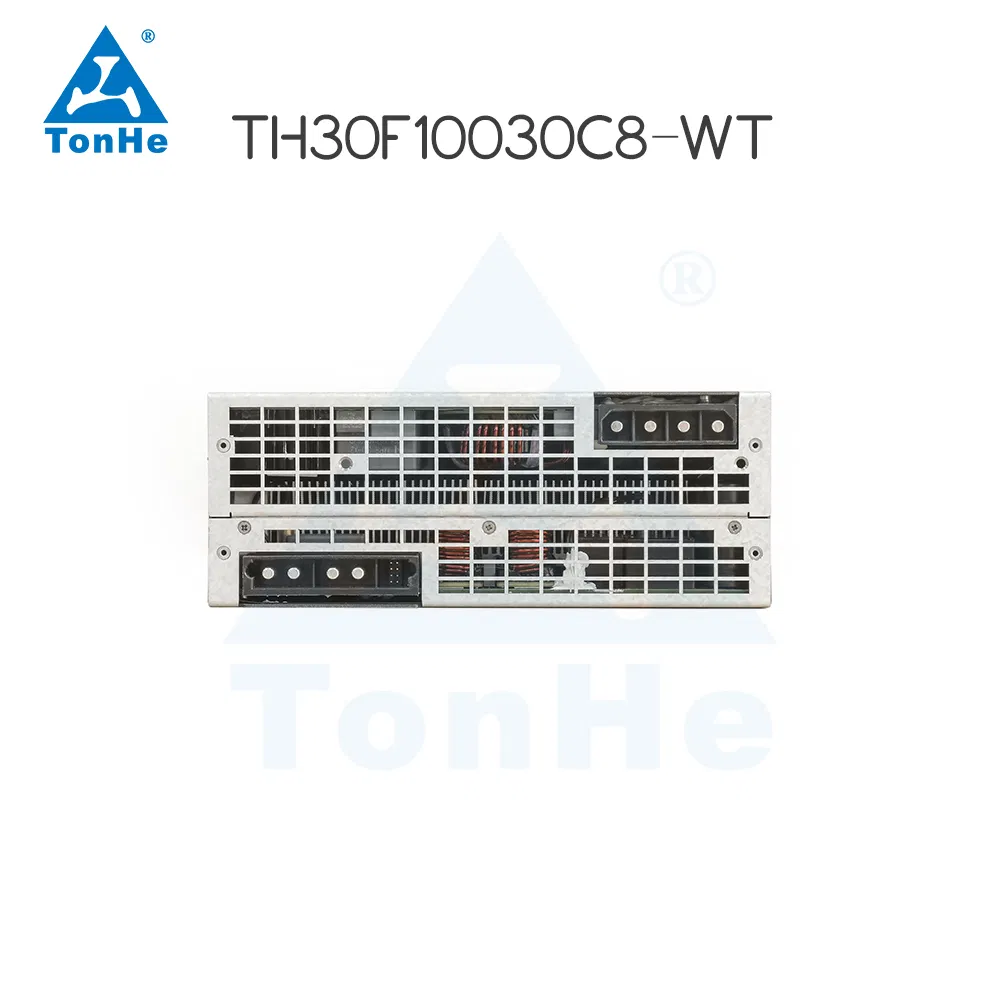

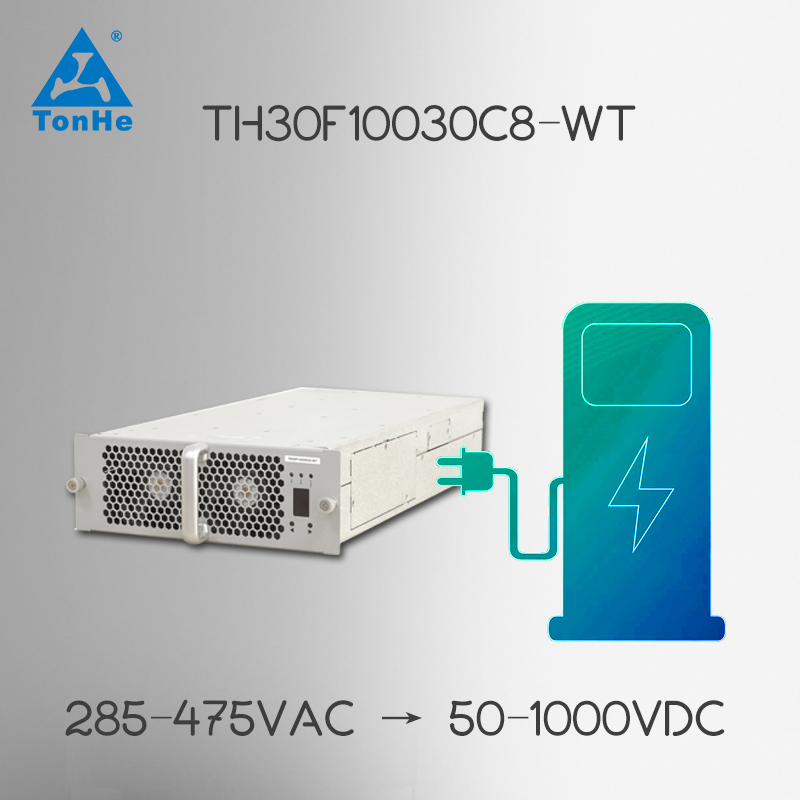

Tonhe 8th Gen 30kw 1000V High Voltage Charging Power Module for Car Charging Station

1 / 5

Tonhe 8th Gen 30kw 1000V High Voltage Charging Power Module for Car Charging Station

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TH30F10030C8EWT-Y

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Credit Card, Mobile App

Output Power Range

300-1000VDC

Peak Efficiency

≥96%

Working Temp

-40℃ - 75℃

Cooling Method

Fan Cooling

Product Advantages

⚡

Wide output constant power range: 300-1000VDC

🔋

Ultra-low standby power consumption: < 10W

🔌

Ultra-wide Voltage Input Range 285-475VAC

🌡️

Ultra-wide operating temperature: -40ºC - 75ºC

Technical Specifications

Parameters		Specification Details
AC Input	Input Voltage	Rated 380VAC, 3W+PE, range 285-475VAC
DC Output	Rated Power	30kW
	Voltage Range	50-1000VDC
	Current Range	0.5-100A
	Peak Efficiency	≥96%
	Regulation Accuracy	Voltage ≤±0.5%, Current ≤±1%
Structure	Dimension	437.5mm300mm84mm (DWH)
Structure	Weight	≤13kg

Packaging & Delivery

Package Size

55.00cm * 40.00cm * 15.00cm

Package Gross Weight

13.000kg

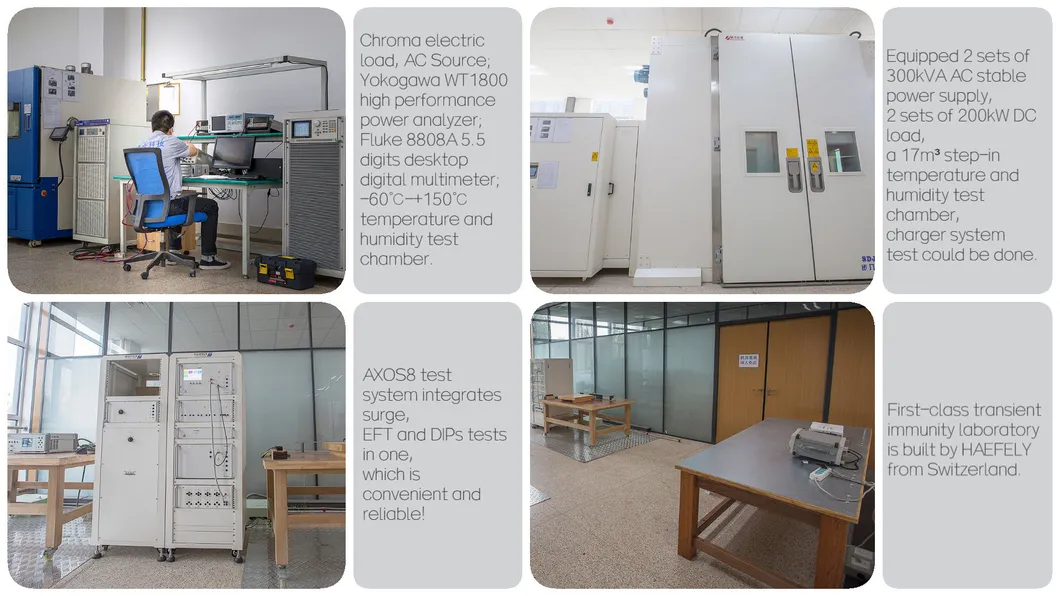

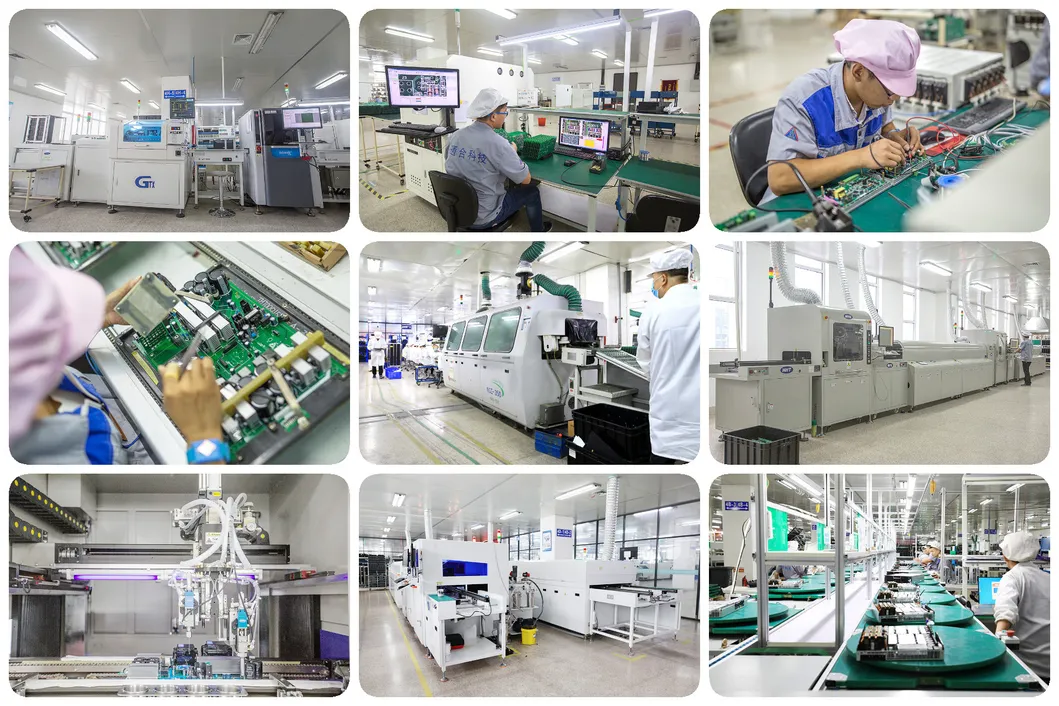

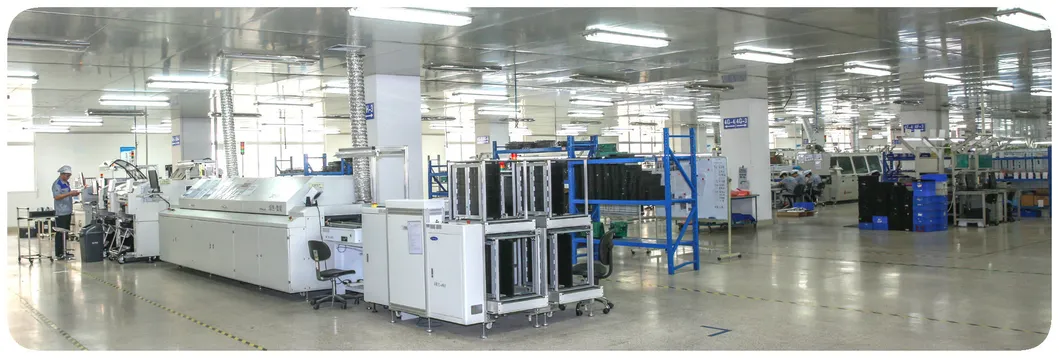

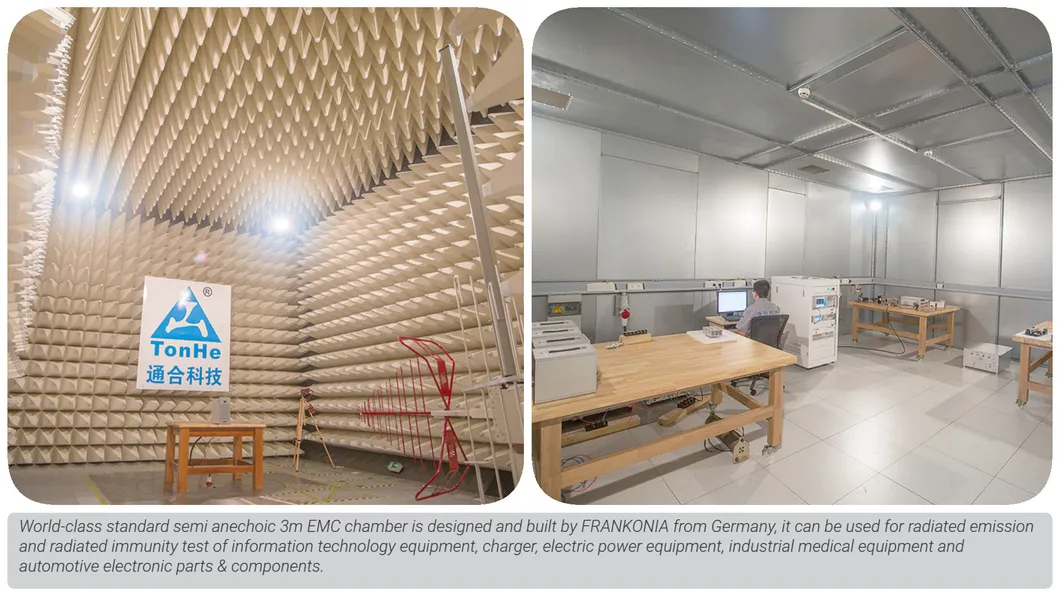

Manufacturing Workshop & Testing

The manufacturer sticks to technological innovation, focusing on the field of high-frequency power conversion technology. As a pioneer in realizing soft switching technology for power conversion, the company holds numerous core technologies. In the EV charging industry, they provide one-stop services including R&D guidance, system solutions, and technical training.

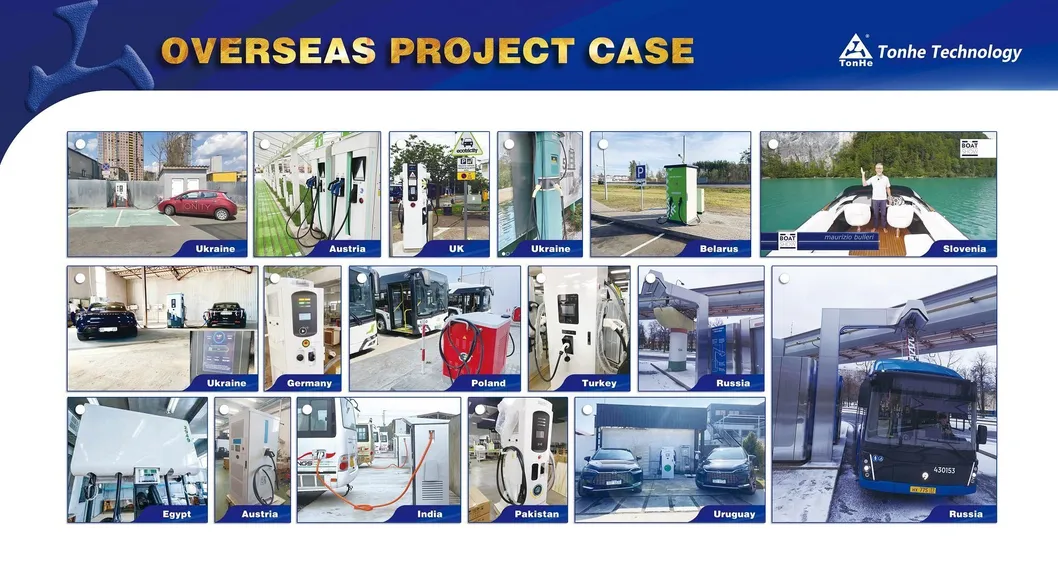

Certifications & Global Presence

Frequently Asked Questions

What are the module CAN baud rate and CAN voltage level?

- 125Kbs 5V.

Do the modules support glue filling?

- All series modules can support glue filling.

What are the requirements for the installation method?

- The charging module can be installed horizontally, side standing, or upside down. For upside-down installation, customized front panels without handles are available.

What is the standard delivery time?

- Approximately 7 days for modules and 35 days for standard piles. Large or customized orders require coordinated scheduling.

How long is the product warranty?

- The standard warranty is 12 months upon receipt of the shipment.

What certifications have been obtained?

- The products are qualified with ISO, TUV, and CE certifications, meeting international quality and automobile management system standards (IATF16949).
