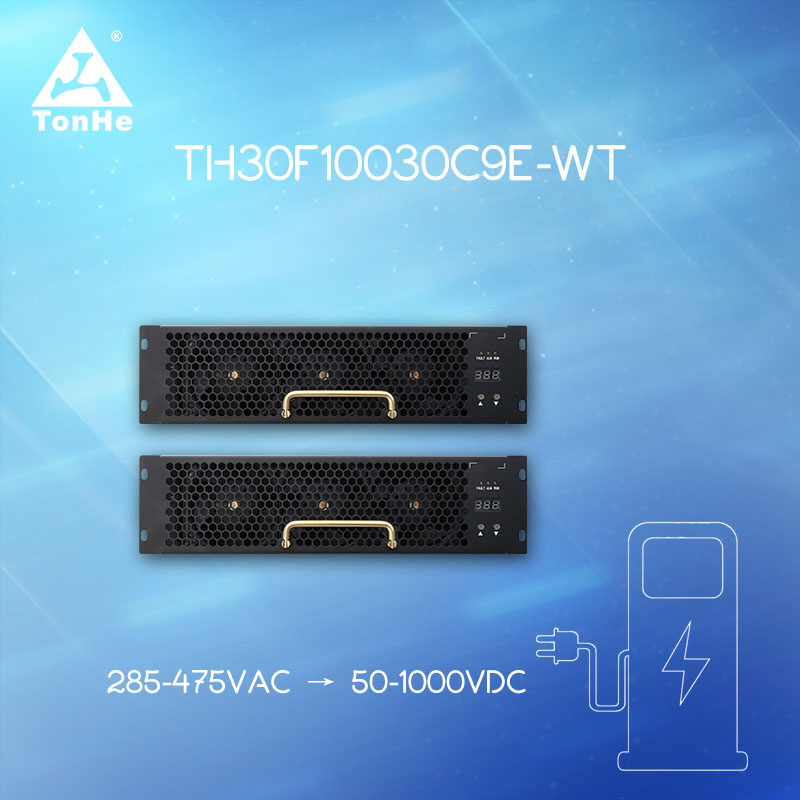

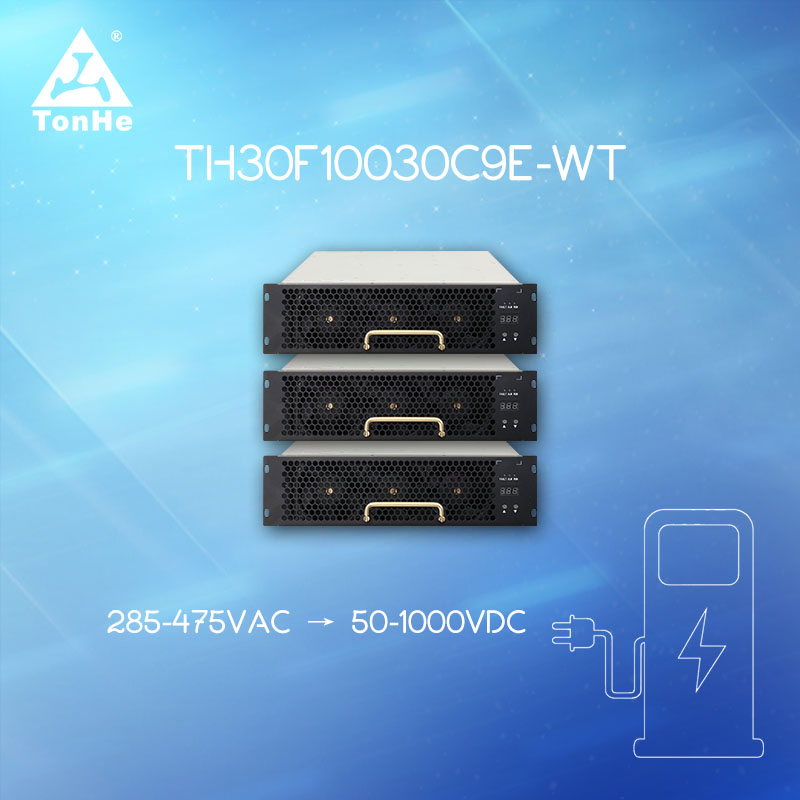

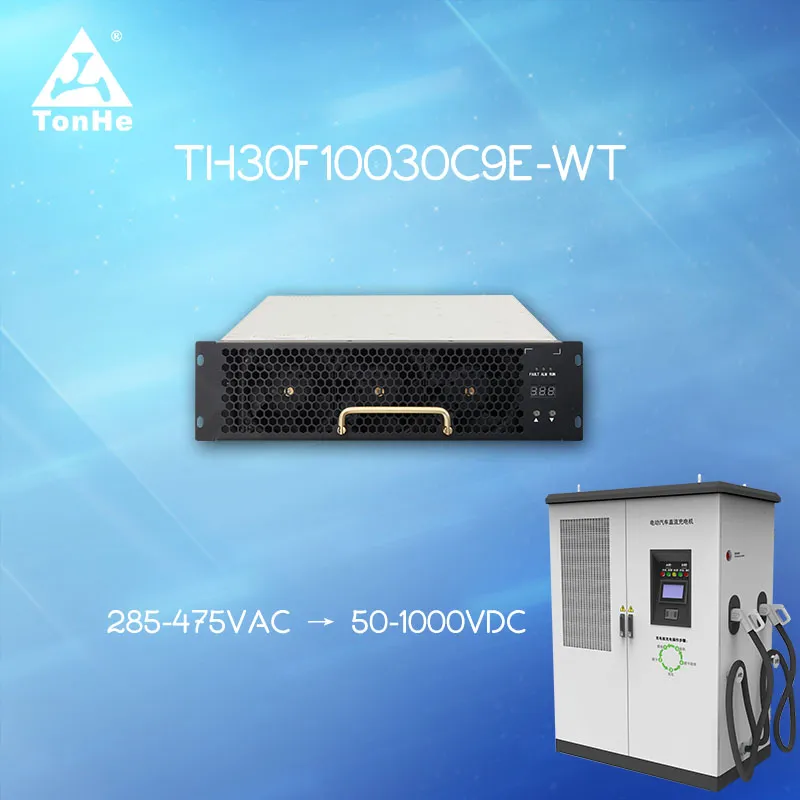

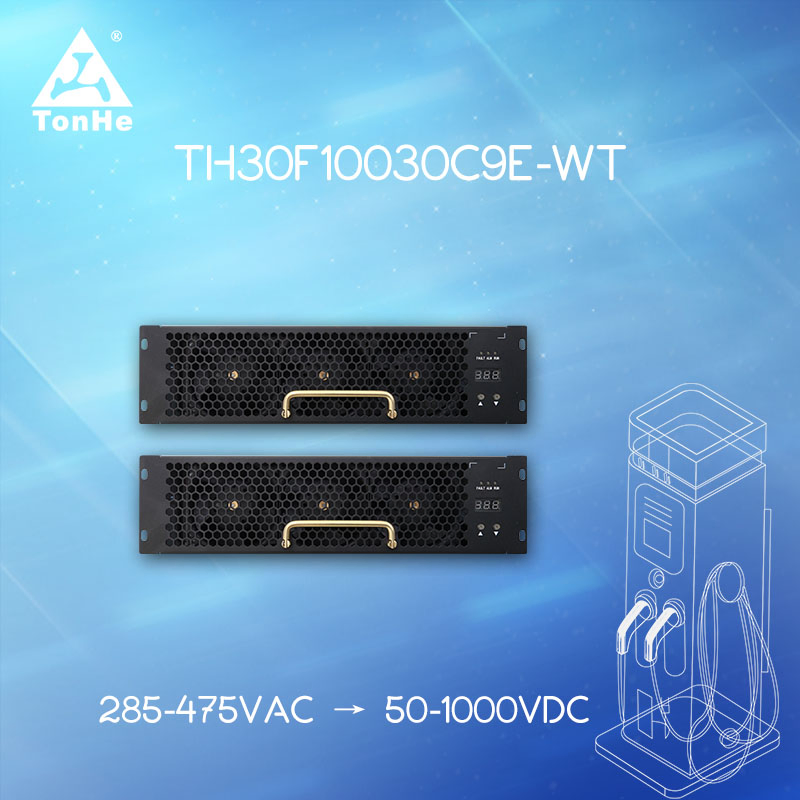

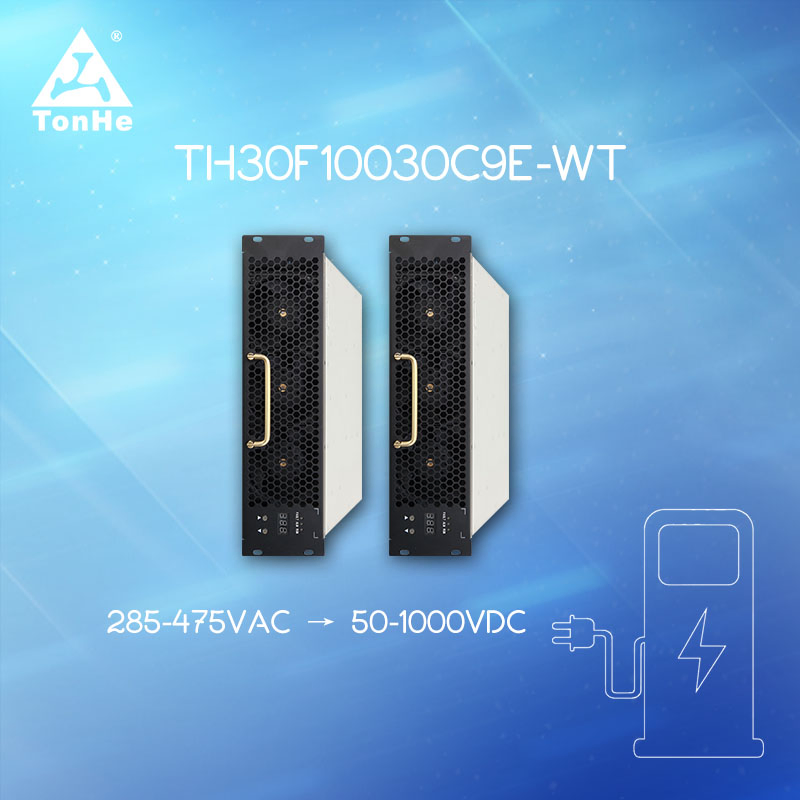

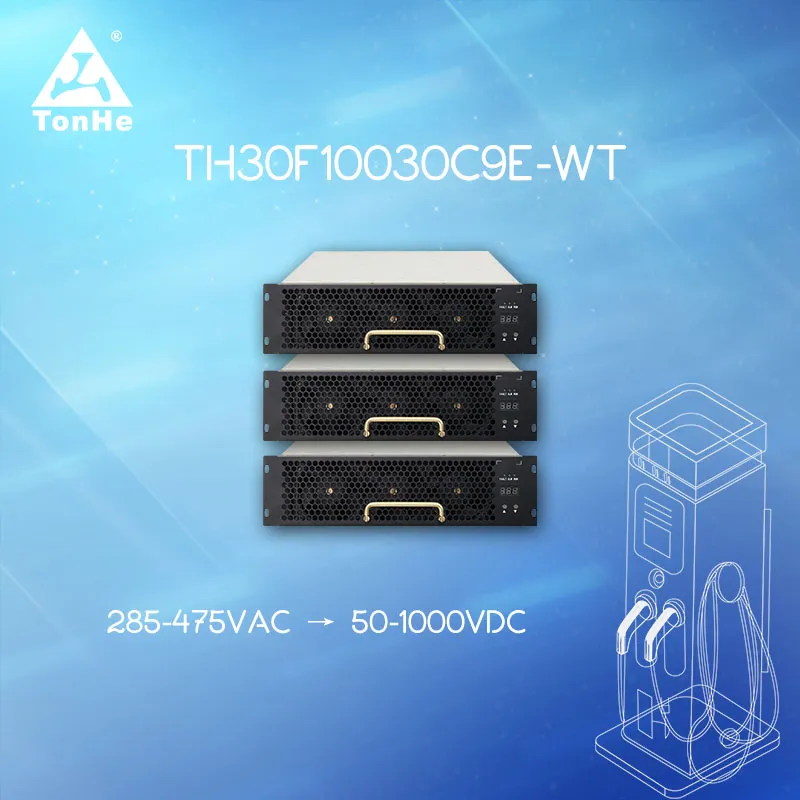

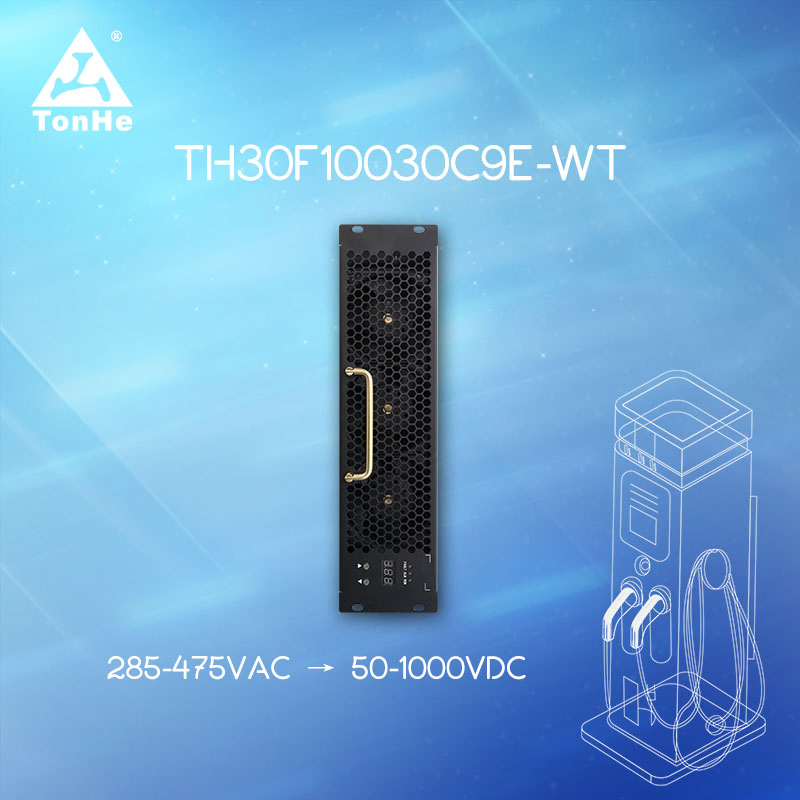

Tonhe 9th Generation 30kw@1000V EV Charging Module Manufacturer

Basic Information

Model NO.

TH30F10030C9EWT-Y-1

Output Power

30kW

Input Voltage

380V

Constant Power Range

300-1000VDC

Peak Efficiency

≥96.5%

Cooling Method

Fan Cooling

Certification

CE, ISO, FCC, UL

Working Temp

-40℃ - 75℃

Start Mode

RFID Authentic

Modulation System

PWM

Product Advantages

✔ Wide output constant power range: 300-1000VDC

✔ Ultra-low standby power consumption: < 6W

✔ Ultra-wide Voltage Input Range 285-475VAC

✔ Ultra-wide operating temperature: -40ºC - 75ºC

✔ Peak efficiency > 96.5%

✔ Ultra-low noise ≤ 60dB

✔ SiC Power Components for high reliability

Technical Specifications

Model No.	THWT40F10028C8EUR
AC Input	Input voltage	Rated 380VAC, 3W+PE, range 285-475VAC
AC Input	Maximum current	50A
DC Output	Rated power	30kW
	Voltage range	50-1000VDC
	Current range	0.5-100A
	Peak efficiency	≥96.5%
	Soft start time	3~8S
Mechanical	Dimension	437.5mm300mm84mm
Mechanical	Weight	≤16kg

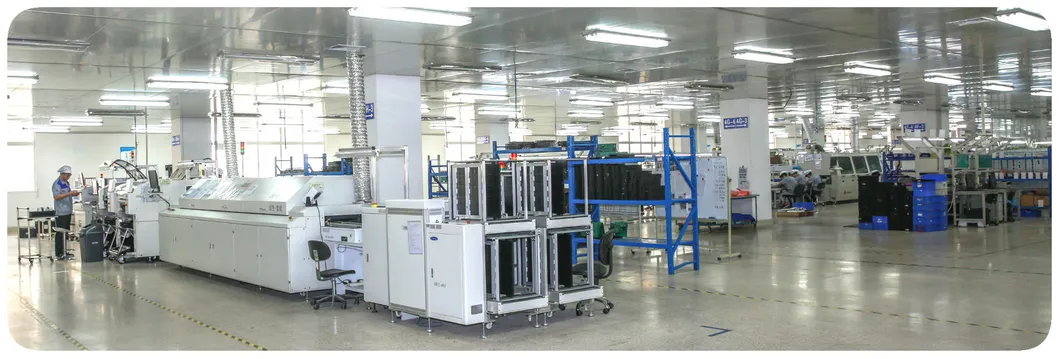

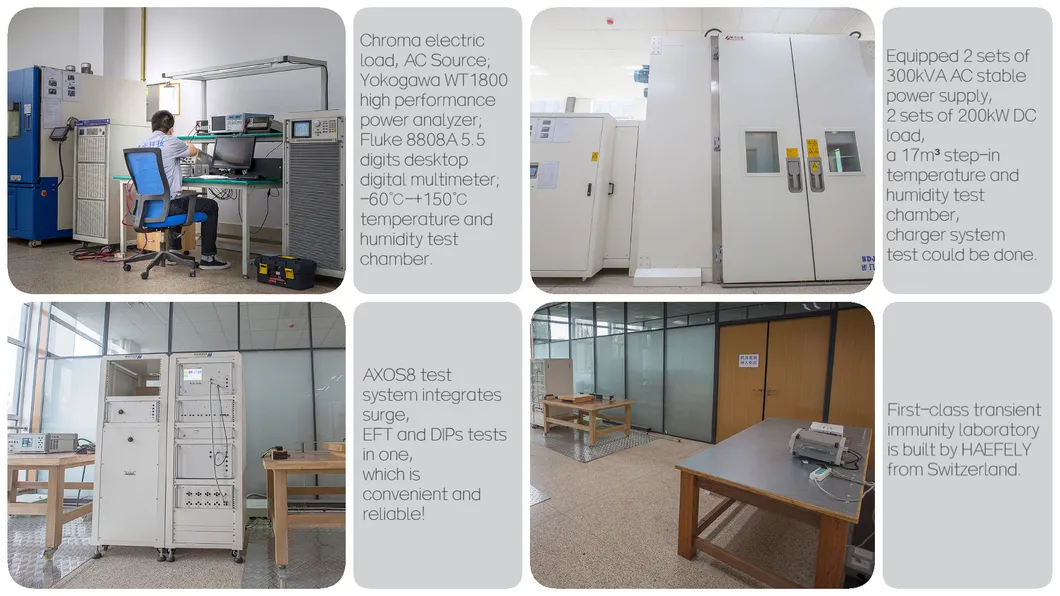

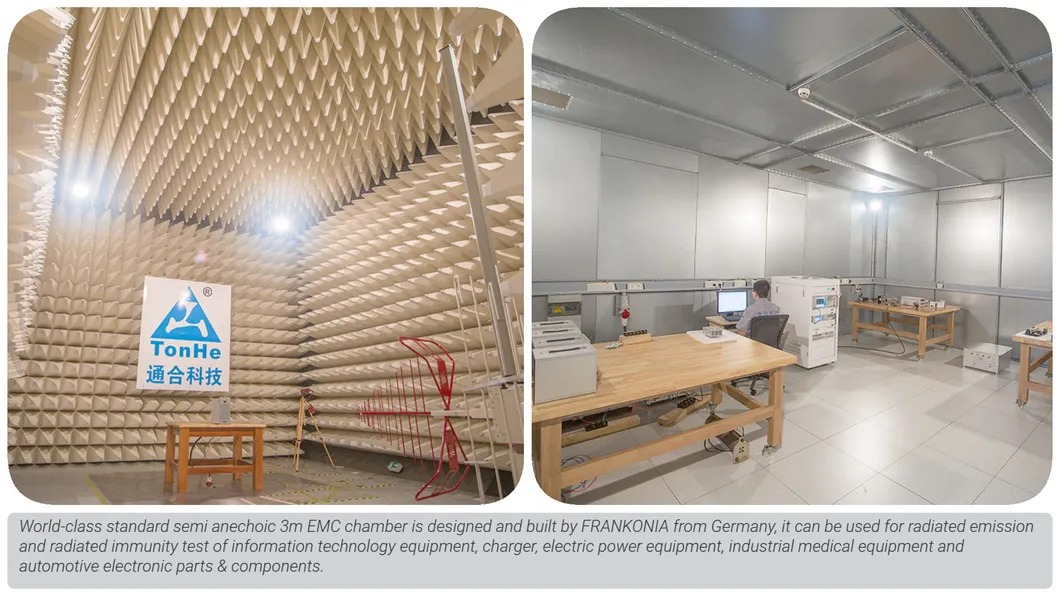

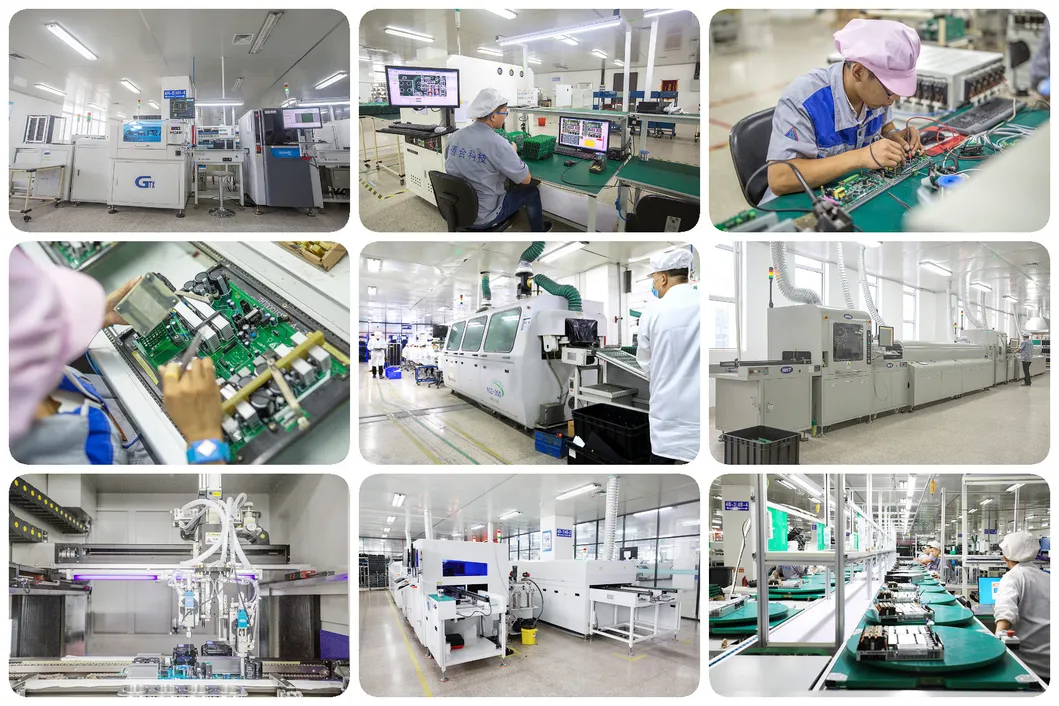

Manufacturing & Quality Control

Packaging & Shipping

Frequently Asked Questions

What are the module CAN baud rate and CAN voltage level?

- 125Kbs 5V.

Do the modules support glue filling?

- All series modules can support glue filling.

What are the requirements for the installation method of the charging module?

- The charging module can be installed horizontally, side standing or upside down. If upside down installation is used, please customize the front panel without a handle.

What is your delivery time?

- We need about 7 days for modules and 35 days for standard piles. Large quantity orders are coordinated based on workshop capacity.

What is your standard term of payment?

- Our standard term is 100% TT advance with order.

How long is the warranty period?

- Standard warranty is 12 months upon the receipt of shipment.
